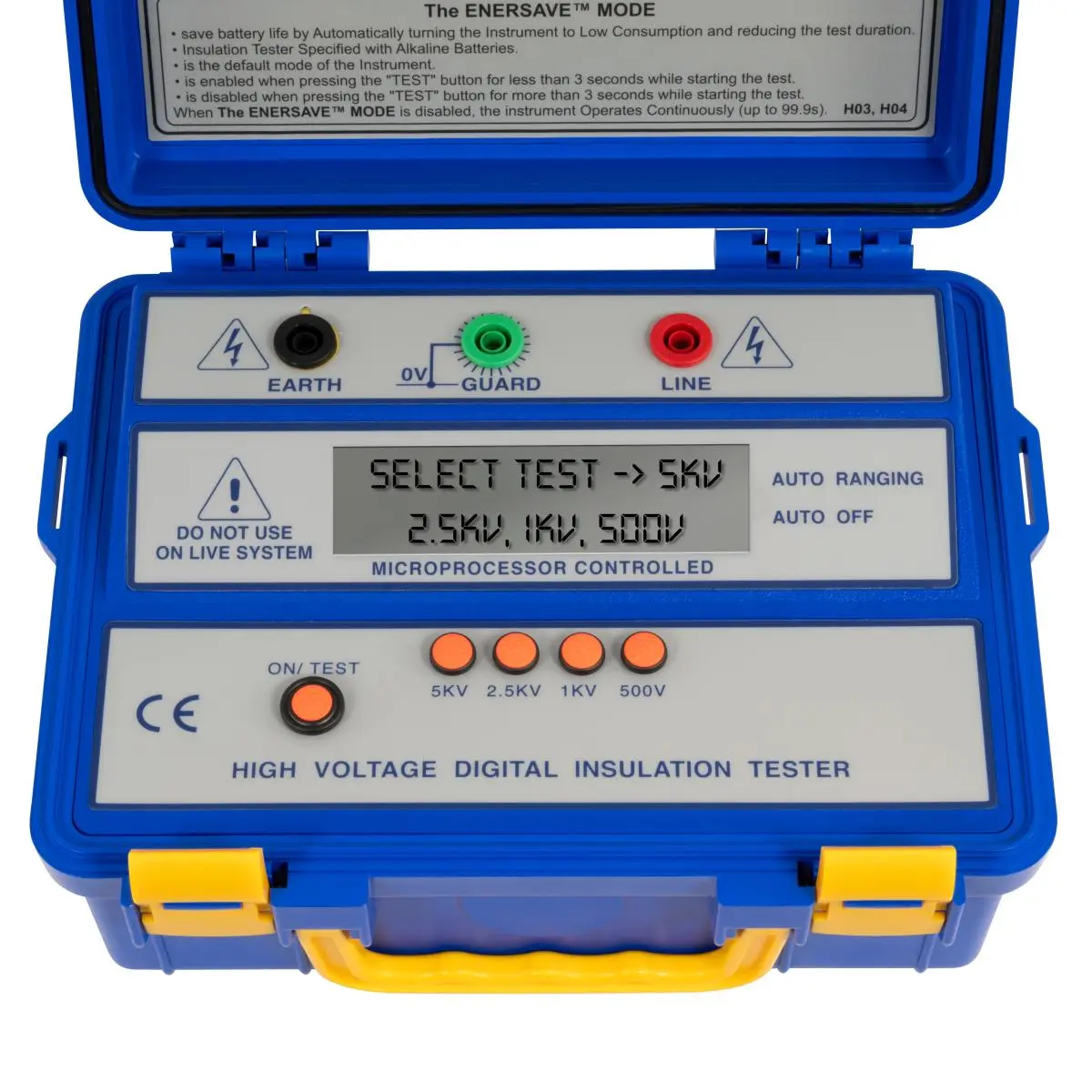

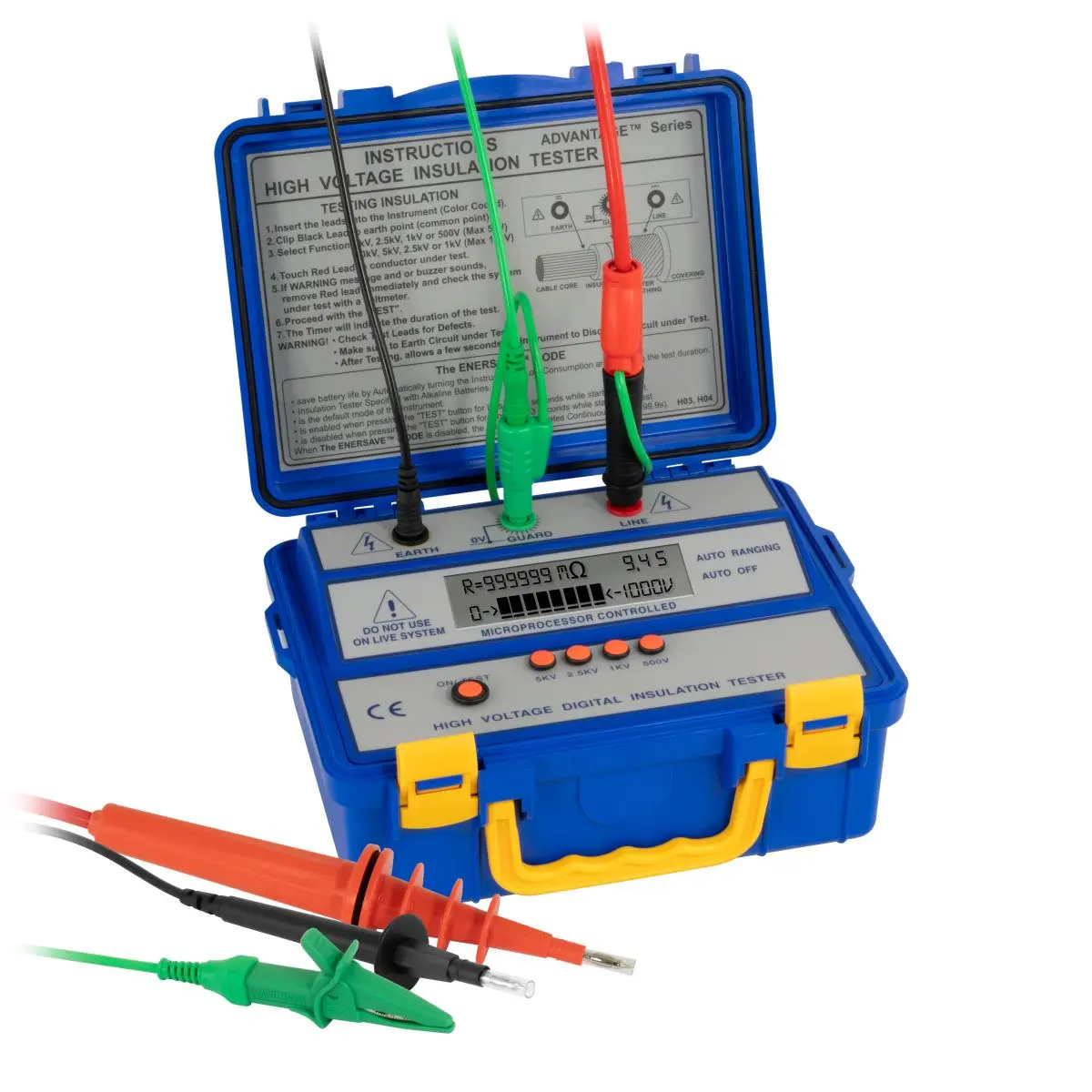

The PCE-IT413 Insulation Meter belongs to a series of highly accurate resistance devices that have a 6 digit display. These Insulation Meters have been developed specifically for technical service and for difficult measurement conditions. One of the advantages is the built in protection to avoid errors originating from loss of current. The Insulation Meter contains a microprocessor and both optical and visual alarms. Factory calibration ensures the most accurate measurements with this series of Insulation Meters.
| Model | PCE-IT413 |
| DC test tension | 500 / 1,000 / 2,500 / 5,000V |
| Range of measurement | 30 GΩ / 500V 60 GΩ / 1,000V 150 GΩ / 2,500V 300 GΩ / 5,000V |
| Accuracy | ± 3% |
| Potential output | Maximum of 1 watt |
| Insulation resistance between electrical conduction and the enclosure | 2000 MΩ / 2000V |
| Static tension between enclosure and circuit | 700V AC for a maximum of 1 minute |
| AC warning circuit | For tension > 450V AC |
| Power | 8 batteries (1.5V) |
| Dimensions | 250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in |
| Weight | 1.5 kg / 3.3 lbs |
