IoT Sensor PCE-CP 20

Order no.: PCE-CP 20
GTIN (EAN): 4250348722997
336,90 €
400,91 €
Wireless
price ex. (VAT / delivery)
:
4250348722997
PCE-CP 20
Delivery time: 1-2 working days
measurement in liquids

Description

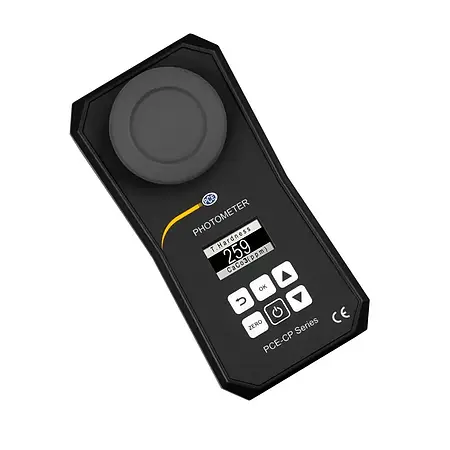

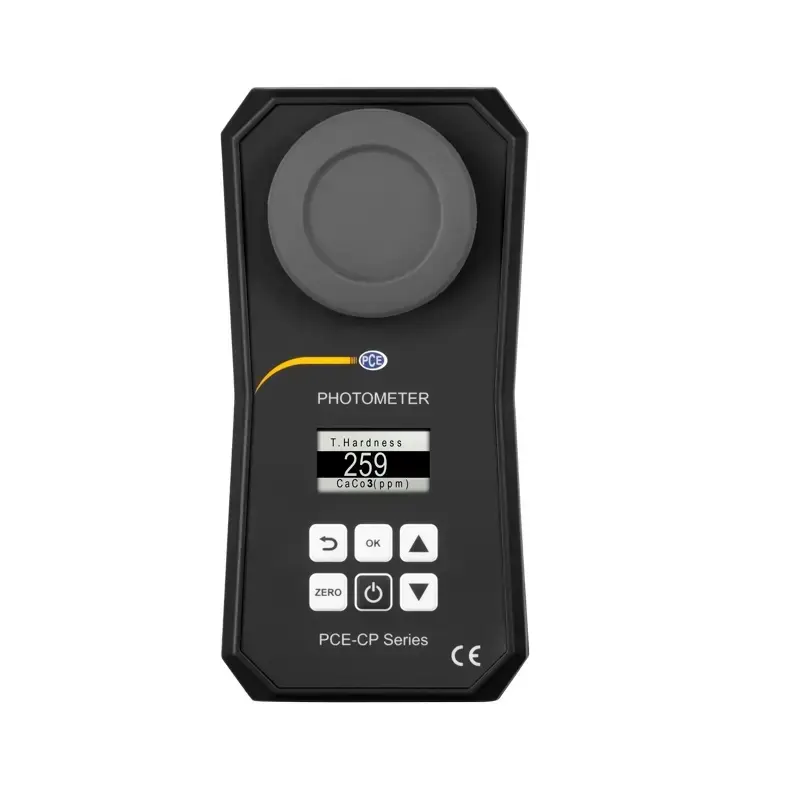

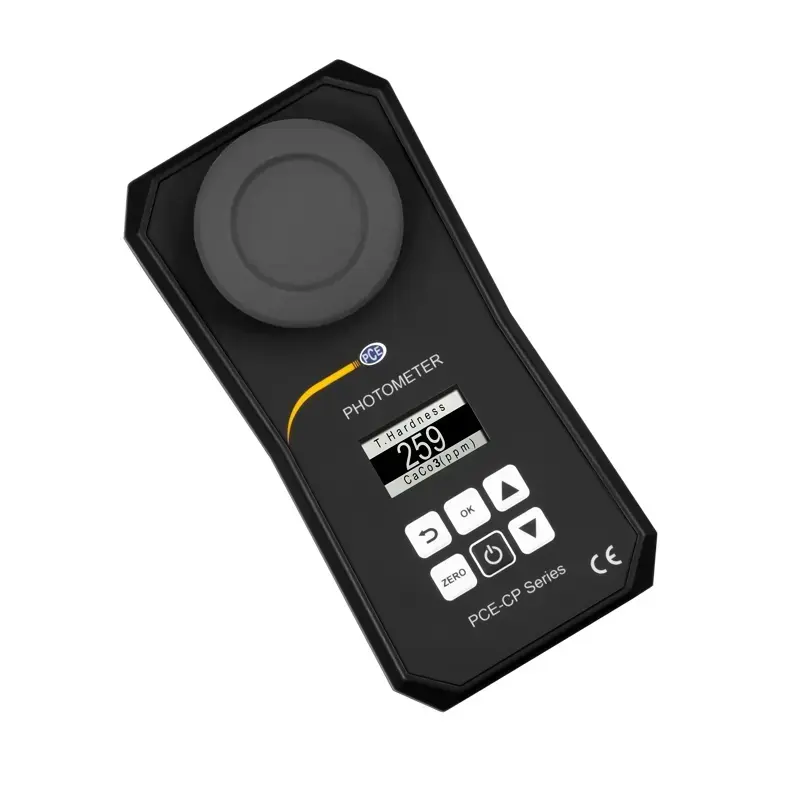

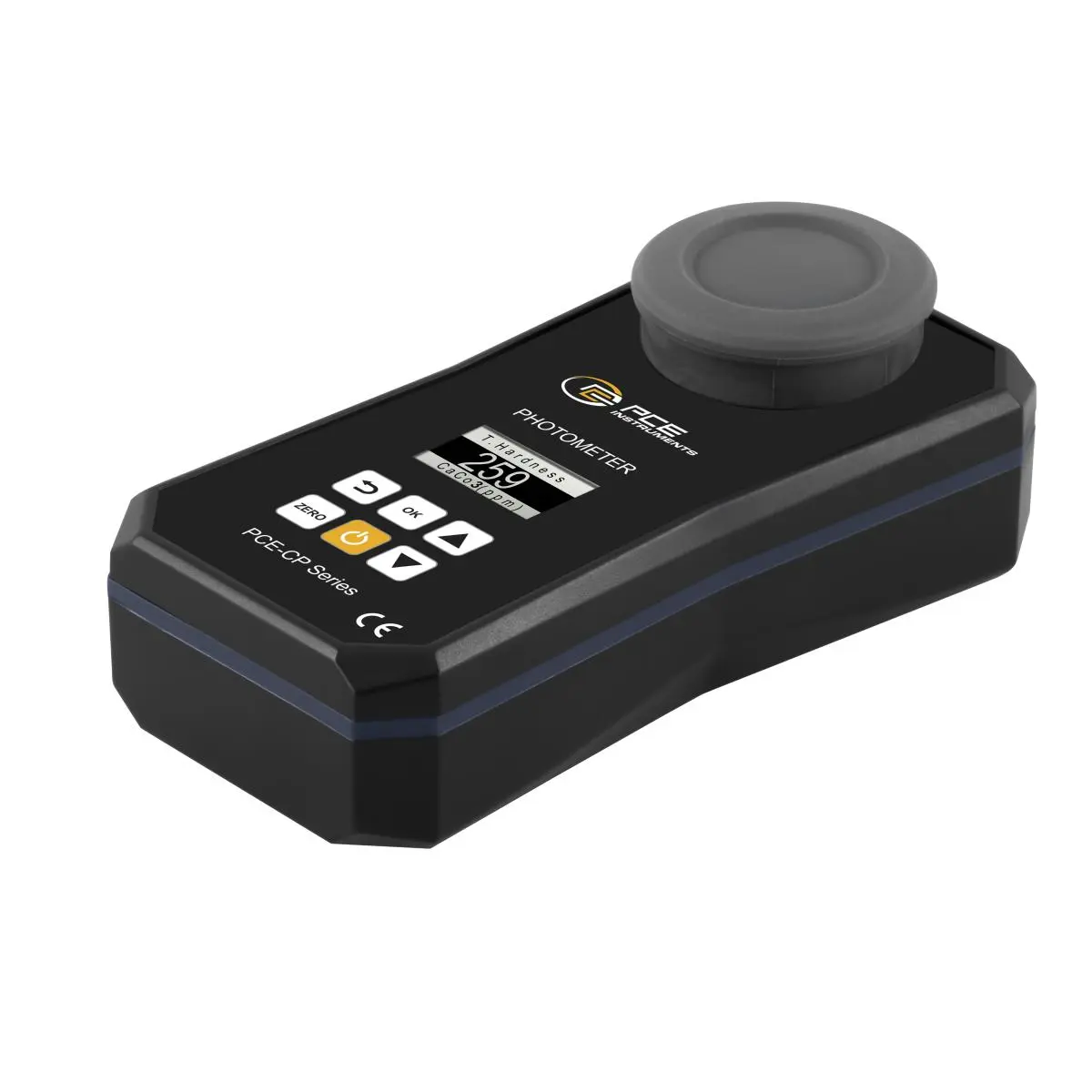

IoT Sensor PCE-CP 20
Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

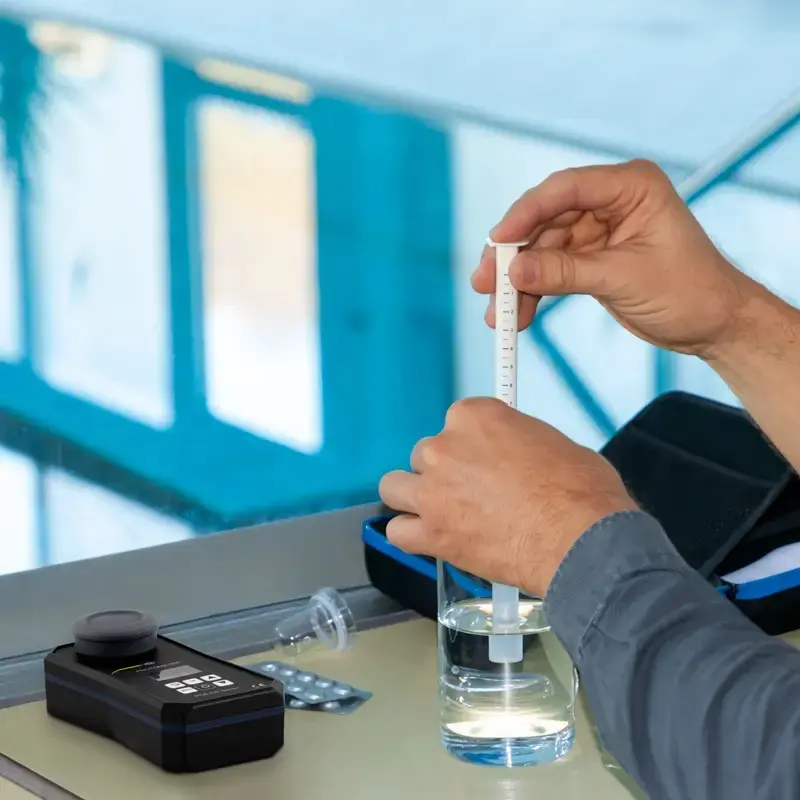

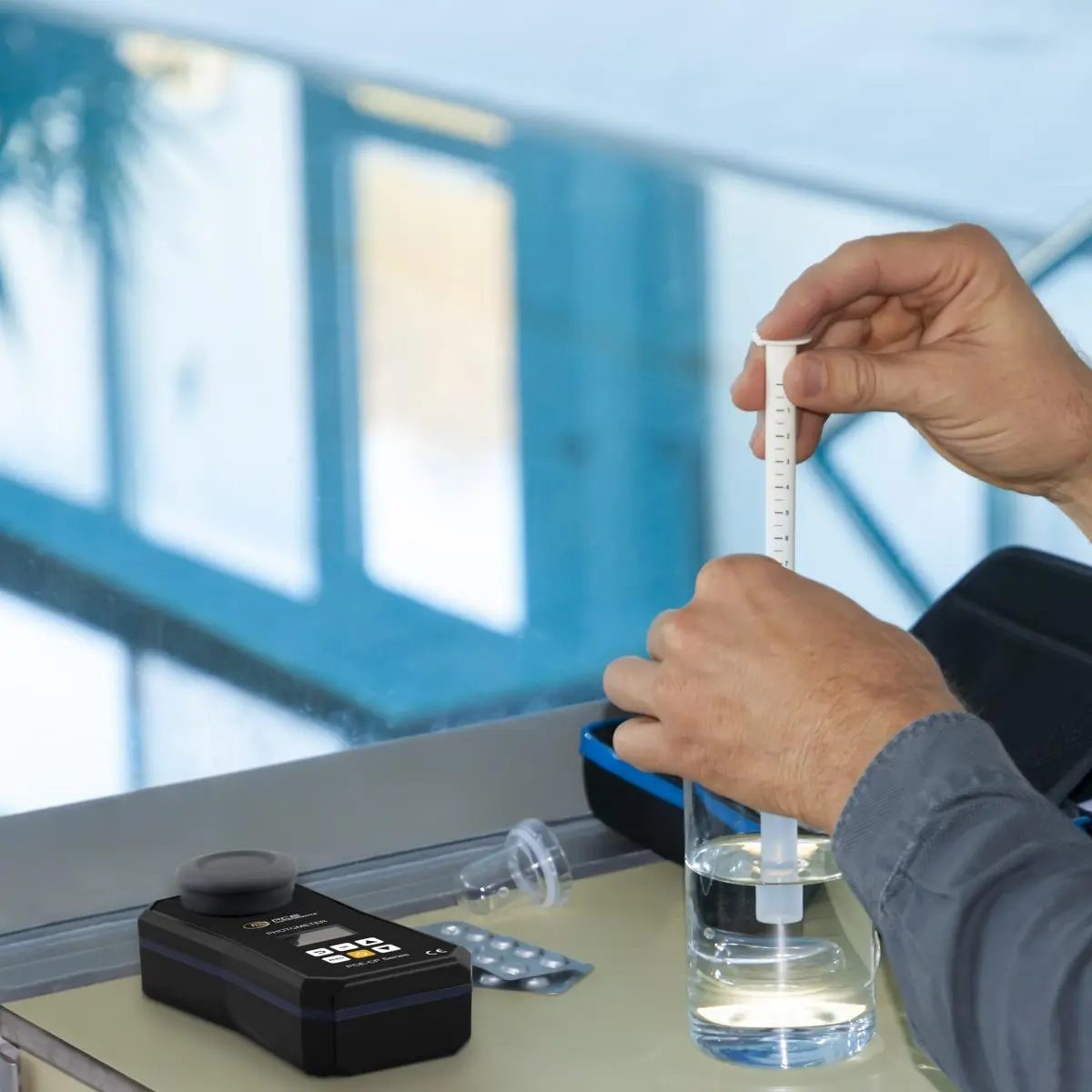

The multi-parameter IoT sensor is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter IoT sensor. With this multi-parameter IoT sensor, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter IoT sensor, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter IoT sensor generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

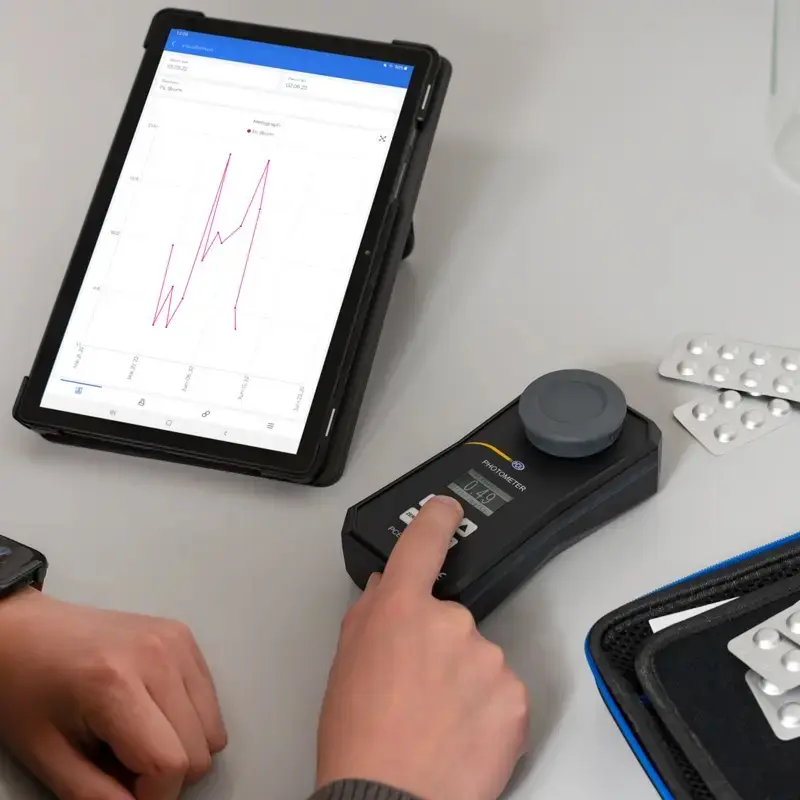

Each measurement is automatically saved by the multi-parameter IoT sensor. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter IoT sensor. A free app is available to analyze the measured values ​​from the multi-parameter IoT sensor. It is also possible to establish a Bluetooth connection between the multi-parameter IoT sensor and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter IoT sensor, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter IoT sensor is also free of charge.

Highlights


- Up to 7 selectable parameters
- Bluetooth connection with app

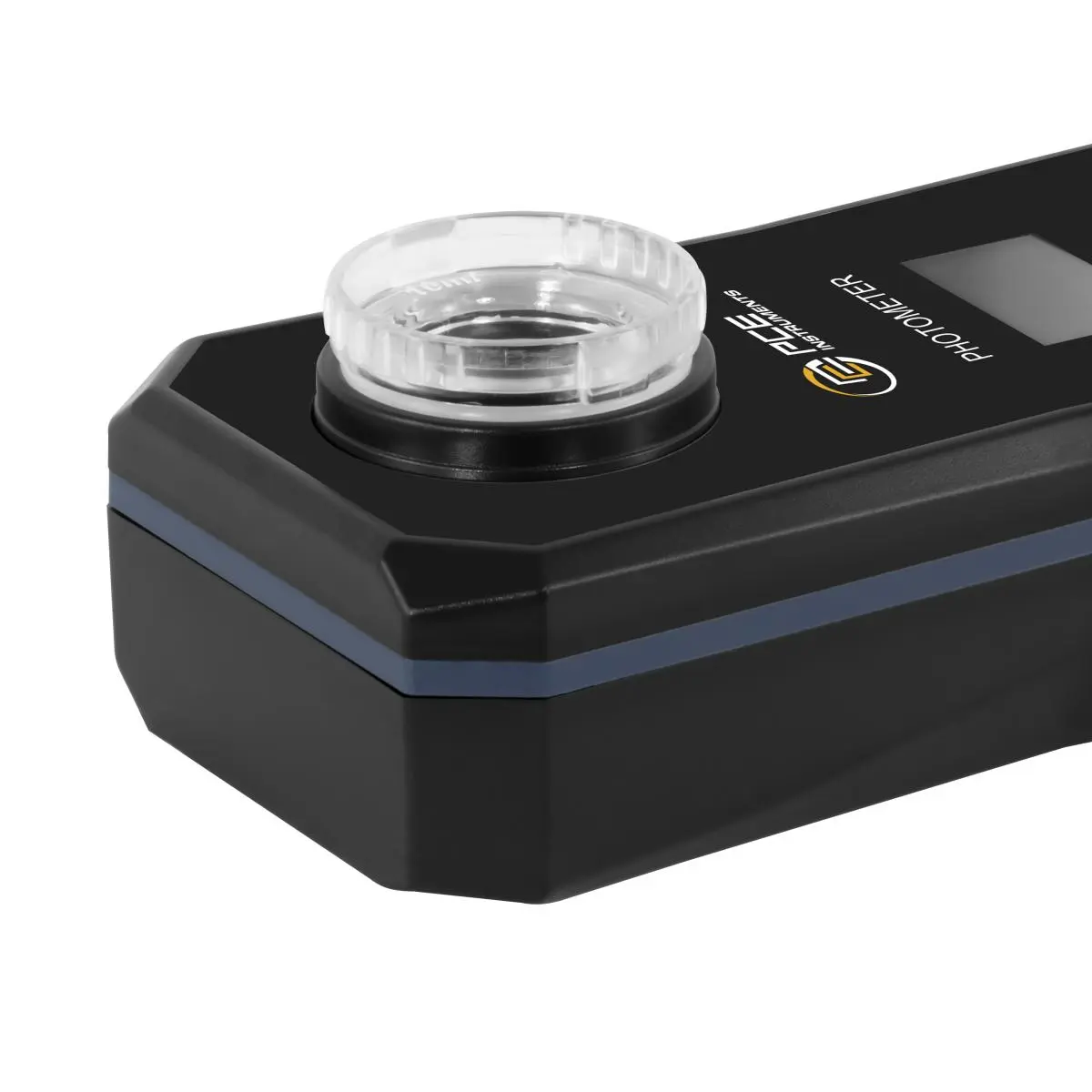

- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Alkalinity
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l

Accuracy   3 mg / l
    7 mg / l
  12 mg / l
  18 mg / l

Resolution   1 mg / l

Chlorine
Measuring range 0.00 ... 2.00 mg / l
  2.00 ... 3.00 mg / l
  3.00 ... 4.00 mg / l
  4.00 ... 8.00 mg / l

Accuracy 0.10 mg / l
  0.23 mg / l
  0.75 mg / l
  1.00 mg / l

Resolution 0.01 mg / l

Cyanuric acid
Measuring range     0… 15 mg / l
    15… 50 mg / l
    50… 120 mg / l
  120… 160 mg / l

Accuracy   1 mg / l
    5 mg / l
  13 mg / l
  19 mg / l

Resolution   1 mg / l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Total hardness
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l
  200 ... 300 mg / l
  300 ... 500 mg / l

Accuracy   3 mg / l
    5 mg / l
  10 mg / l
  17 mg / l
  22 mg / l
  58 mg / l

Resolution   1 mg / l

Calcium hardness
Measuring range     0… 25 mg / l
    25… 100 mg / l
  100 ... 300 mg / l
  300 ... 500 mg / l

Accuracy   8 mg / l
  22 mg / l
  34 mg / l
  45 mg / l

Resolution   1 mg / l

Further specification

Calibration Zero point calibration
Light source
503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
4 x 1.5V AA batteries
Dimensions of the cuvette 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45°C, 20 ... 90% RH non-condensing
Storage conditions 5… 45°C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / < 1 lb

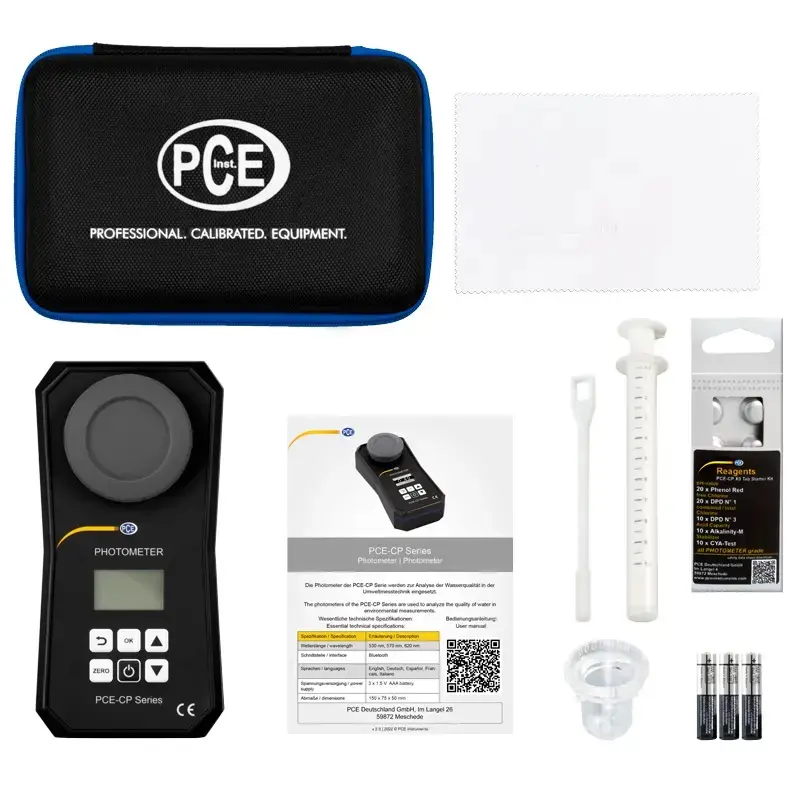

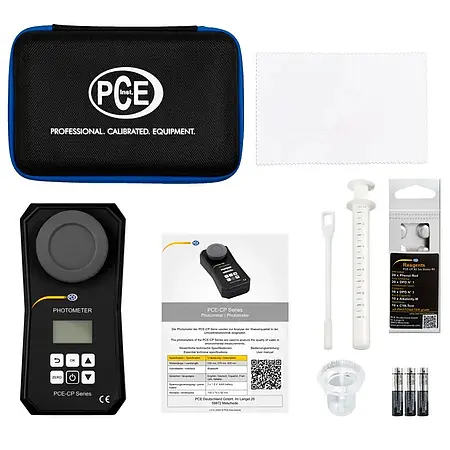

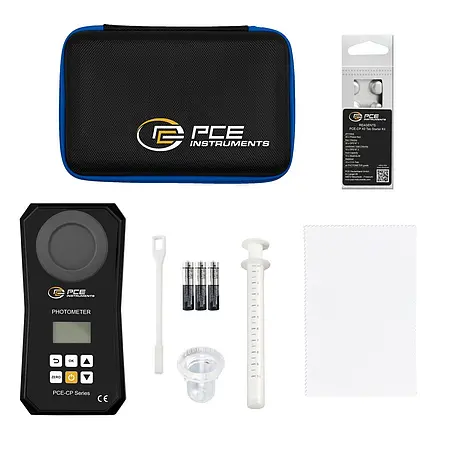

Delivery Scope

1 x Multi-parameter IoT Sensor PCE-CP 20 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
