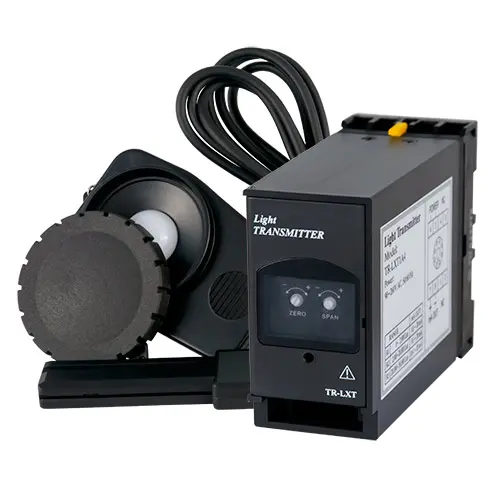

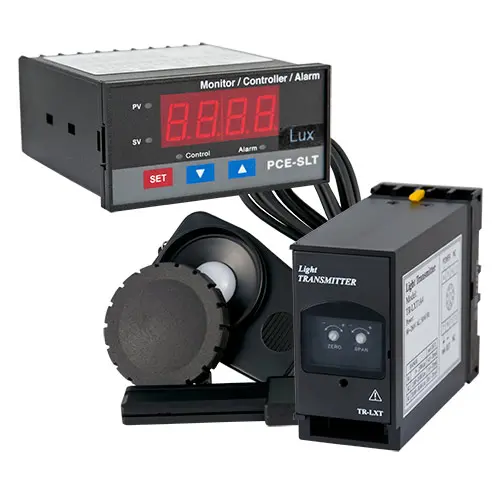

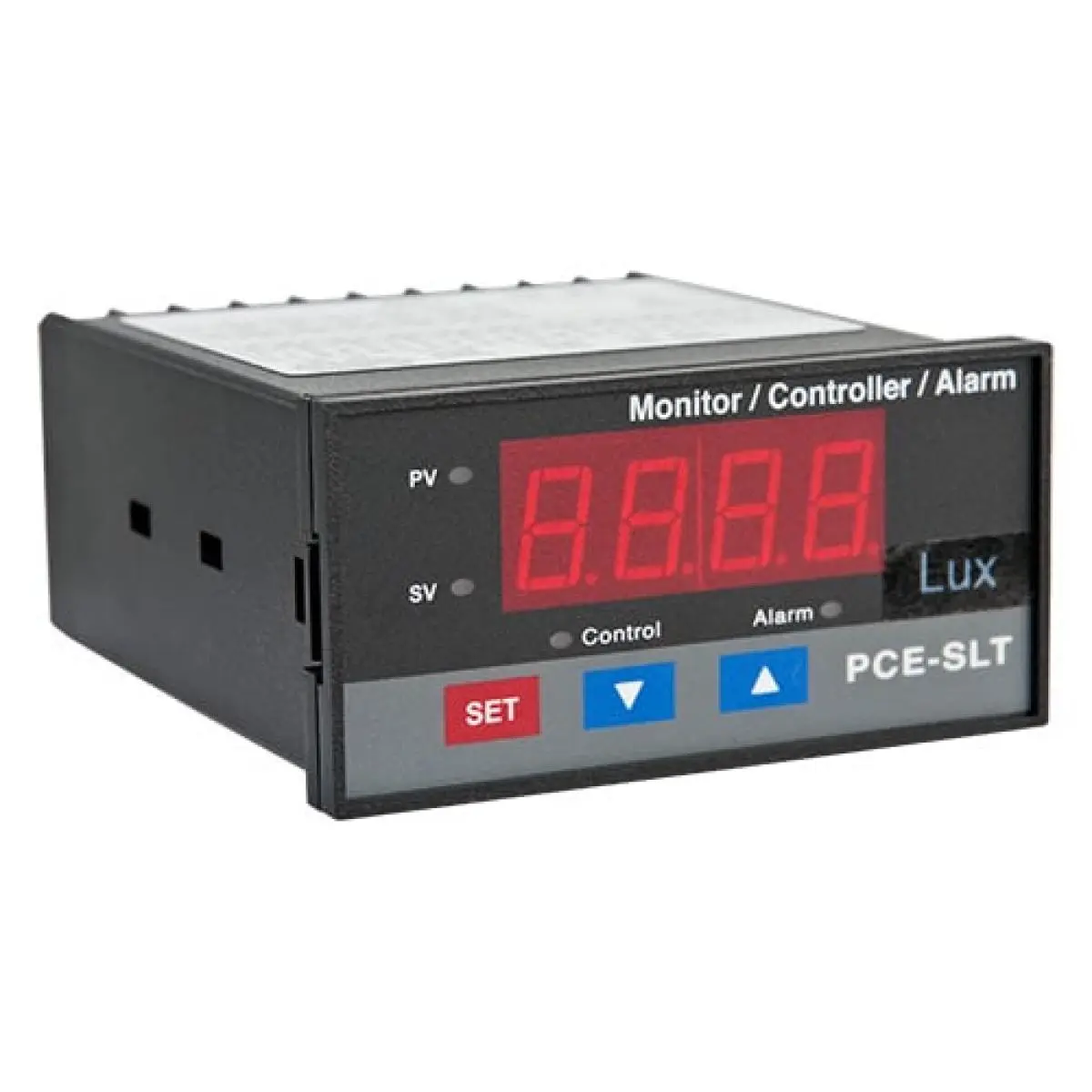

The lux warning system consists of a measuring sensor with a handle and a wall bracket with a 1.5 m cable, a light transmitter and a digital display. The main area of application of this lux warning system is in the continuous light measurement and light monitoring of photo laboratories and production rooms (e.g. food or drug production ...). The digital display has a relay output for controlling alarm horns or flashing lights for optical or acoustic warning and a control output.
The alarm output limit can be programmed on the display. The analog output signal can also be used to control window flaps ... or the transmitter signals can be stored on a logger, evaluated and documented. The sound warning device is very easy to connect and can be operated via 240 V mains power.
The lux warning system was developed for continuous measurement of light intensity. The light transmitter and the digital display have standard dimensions and therefore fit into any control cabinet that has standardized slots. The lux warning system is particularly suitable for monitoring in companies that produce or store light-sensitive materials (e.g. photo laboratories, food production (storage), pharmaceutical production (storage) ... ).
Lux sensor | |
Measuring range | 0 ... 50000 lux in three areas |
Resolution | 0.1 lx / 1 lx |
Accuracy | ±5 % of reading |
Sensor | Photo Diode with color correction filter according to C.I.E. |
Supply | via transmitter |
Cable length (sensor to transmitter) | 1.5 m / 4.9 ft |
Ambient conditions | max. 80 % relative humidity / 0 ... +50 °C (32 ... 122 °F) |
Housing material | ABS plastic |
Transmitter | |
Housing | ABS plastic |
Supply | 90 … 260 ACV |
Calibration | adjustable via grub screws |
Output | 4 ... 20 mA |
Degree of protection | IP 54 |
Ambient conditions | max. 85 % relative humidity / 0 ... +50 °C (32 ... 122 °F) |
Digital display | |
Input signal from the transmitter | 4 – 20 mA |
Display | -1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / selectable by the user) |
Programming data (decimal point, limit value...) | are stored in the device |
Control output | 3-point (Com, NO, NC) |
Alarm output | relay output: 5 A / 240 VAC |
Supply | 90 ... 260 ACV / 50 ... 60 Hz |
Dimensions / control panel cut-out according to DIN | 92 (+0.8) mm x 45 (+0.5) mm |
Weight | ca. 250 g / 8.8 oz |
Ambient conditions | max. 85 % relative humidity / 0 ... +50 °C (32 ... 122 °F) |
Degree of protection | IP 65 |
