Light Meter PCE-LXT-TRM-ICA incl. ISO calibration certificate

Order no.: PCE-LXT-TRM-ICA

GTIN (EAN): 4250348724724

Accessory

ISO Calibration Certificate for Lux Meters

230,90 €

Description

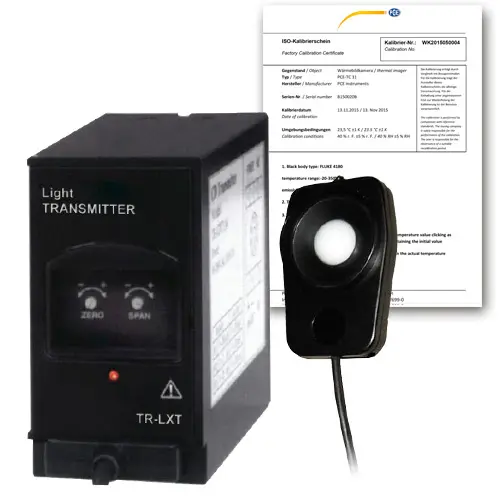

PCE-LXT-TRM-ICA light meter incl. ISO calibration certificate
Lux warning device for permanent installation with relay output and control output

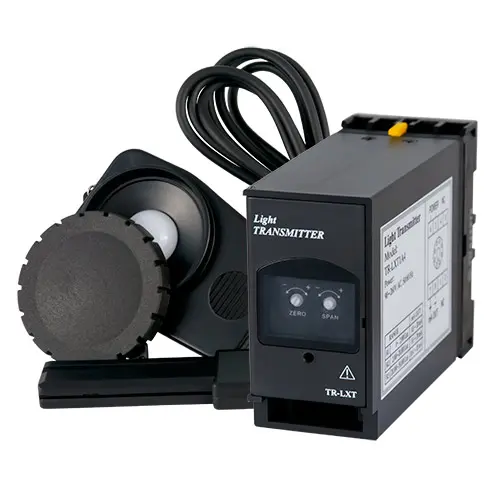

The light meter consists of a measuring sensor with handle, a wall bracket with a 1.5 m / 4.9 ft cable, and a light transmitter. The essential area of application of this Lux-warning system is the continuous light measurement and light monitoring of photo laboratories and production areas, such as food or drug production.

Likewise, the analogue output signal can be used to control window flaps, or the signals of the transmitter can be stored, evaluated and documented on a logger. The light meter is very easy to connect and can be operated via 240V mains current.

Specification

Lux sensor
Measuring range	0 ... 50,000 lux in three areas
Resolution	0.1 lx / 1 lx
Accuracy	± 5% of the reading
Sensor	Photo diode with color correction filter according to CIE
Care	Via transmitter
Cable length (sensor to transmitter)	1.5 m / 4.9 ft
Environmental conditions	Max. 80% relative humidity, 0 ... 50°C / 32 ... 122°F
Housing material	ABS plastic
Transmitter
Casing	ABS plastic
Care	90 ... 260 ACV
Calibration	Adjustable via grub screws
Exit	4 ... 20-mA
Protection	IP 54
Environmental conditions	Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

Delivery Scope

1 x Light meter PCE-LXT-TRM-ICA
1 x Lux sensor on 1.5 m / 4.9 ft cable
1 x Light transmitter
1 x User manual
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Downloads

Manual
