59,90 €

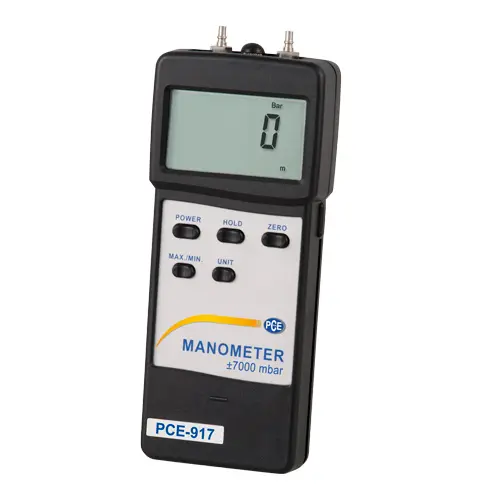

PCE-917 Differential Pressure Manometer
Portable handheld meter measures differential pressure from ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory
PCE-917 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.
The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
| mbar | Resolution: 5 Range: ± 7000 |
| psi | Resolution: 0.05 / 0.1 Range: ± 101.5 |
| inH2O | Resolution: 2 Range: ± 2800 |
| mH2O | Resolution: 0.05 Range: ± 70.00 |
| inHg | Resolution: 0.1 Range: ± 206.0 |
| mmHg |
Resolution: 5 Range: ± 5250 |
| Torr | Resolution: - Range: - |
| Pa / kPa | Resolution: - Range: - |
| atm | Resolution: 0.005 Range: ± 6.905 |
| kg/cm² | Resolution: 0.005 Range: ± 7.000 |
| Accuracy | ± 2% (full range) |
| Reproducibility | ± 1% |
| Response time | 0.8 second |
| Interface | RS-232 port |
| Power supply | 1 x 9V block battery |
| Housing material | Plastic |
| Housing dimensions | Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26 in |
| Weight | Approx. 210 g / < 1 lb |
| Warning: | ***Exceeding the maximum pressure range will destroy the sensor*** |
