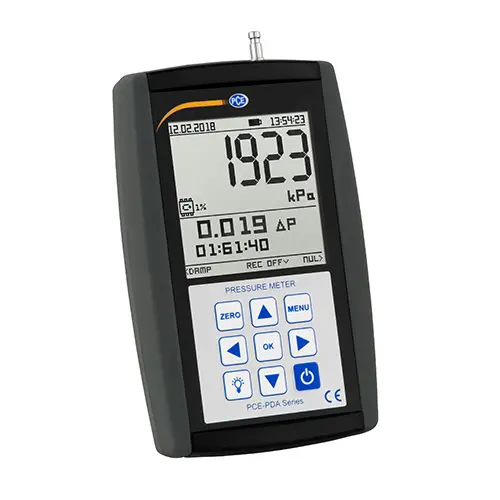

PCE-PDA 1000L Pressure Manometer
Digital pressure meter for measuring relative pressure from -100 ... 2000 kPa / Data logger / MAX MIN HOLD functions / USB interface / Graphic LCD

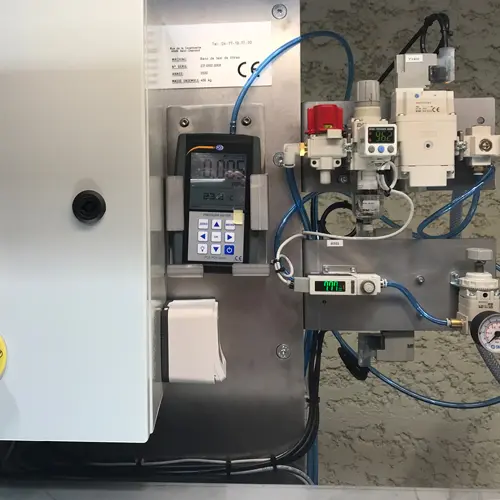

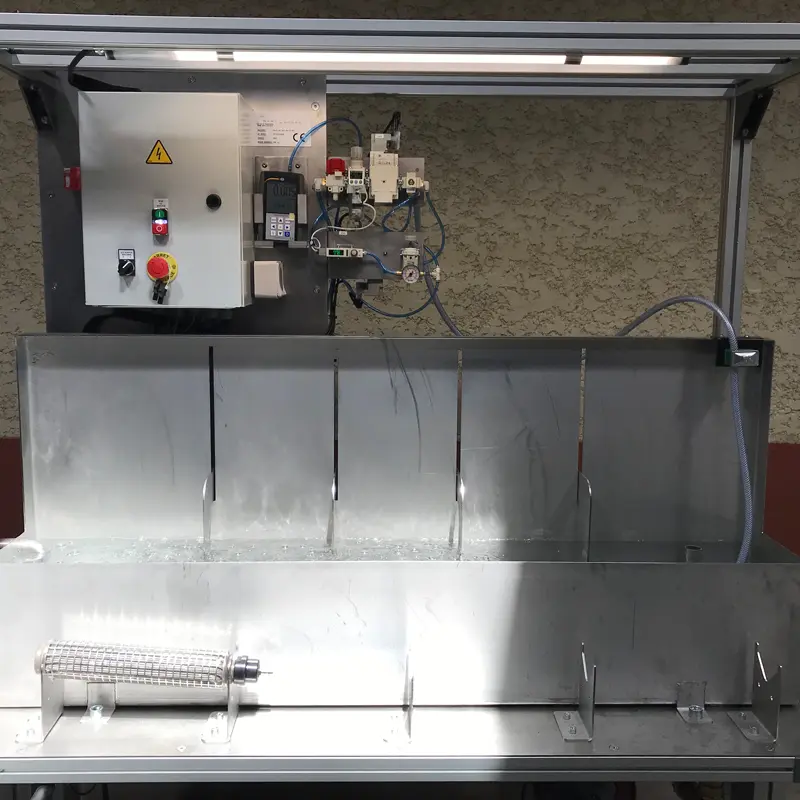

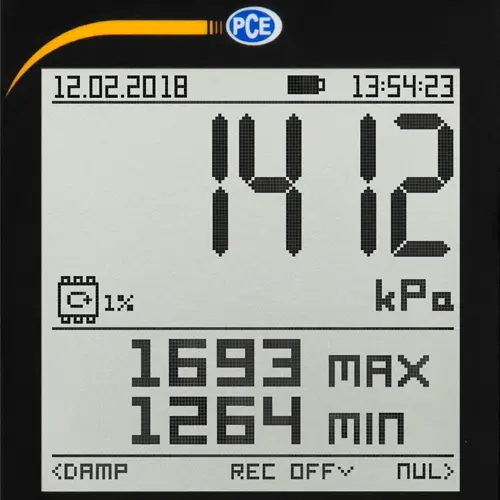

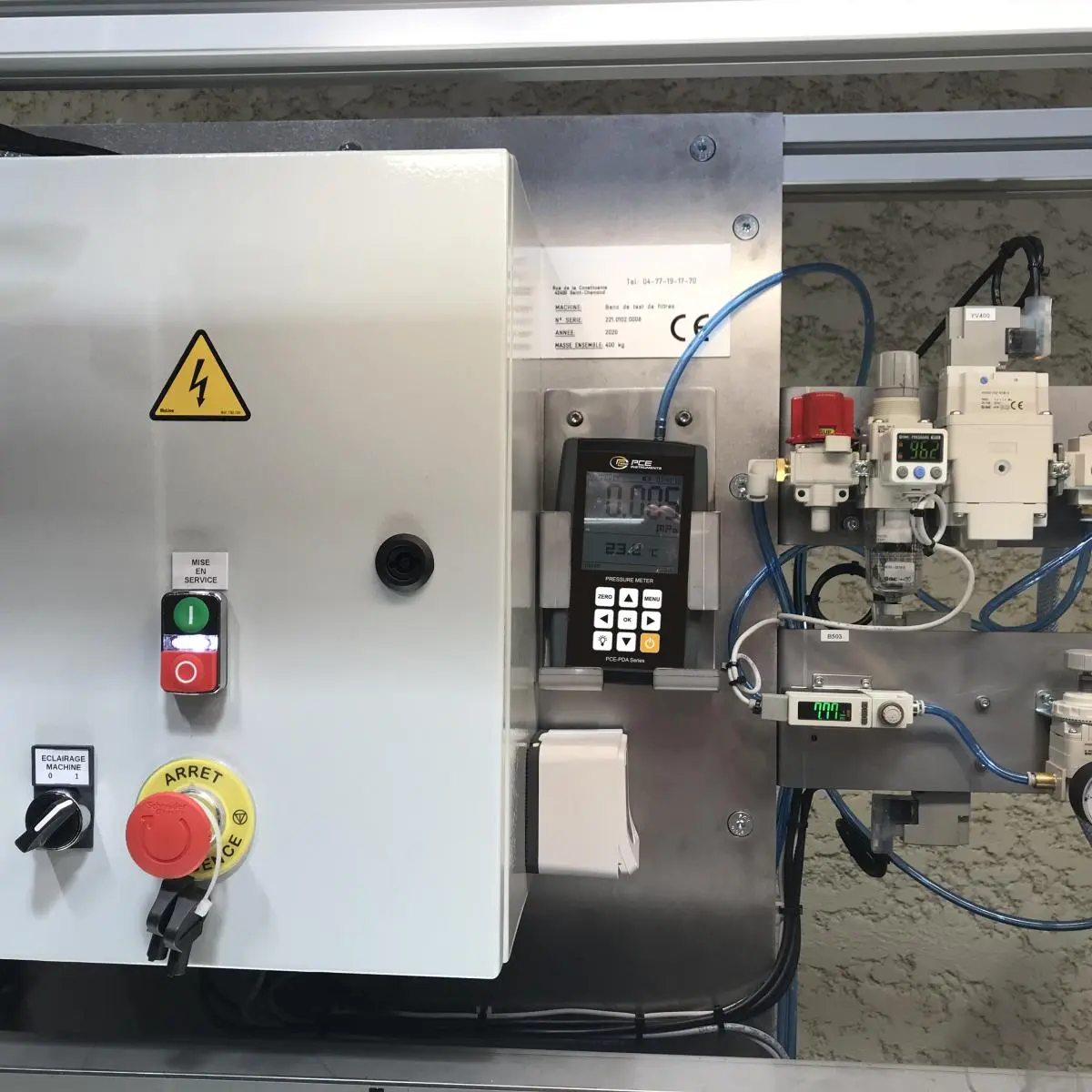

The relative pressure manometer PCE-PDA 1000L measures the relative pressure on machines and systems. The relative pressure is measured by this pressure manometer in the range between -100 ... 2000 kPa. The relative pressure manometer has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device. In addition to the measurement in kPa, many other pressure units are available to the user. The large LCD on the relative pressure manometer continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measured value in the display via the Max-Min-Hold function. Likewise, the relative pressure manometer in the second display area optionally displays the system temperature or a pressure difference if a leak test has been carried out.
The PCE-PDA 1000L relative pressure manometer has a data logger. The memory has 1024 memory locations. Recordings of up to 255h can be stored in each memory location. To evaluate the stored measured values, software is available to the relative pressure manometer. The pressure manometer for relative pressure is supplied by 2 AA batteries. Here the user can either use batteries or rechargeable batteries. In battery operation, the relative pressure manometer PCE-PDA 1000L can be charged via a micro USB port.
| Pressure measuring range | -100 ... 2000 kPa relative |
| Resolution | 0.01 kPa, 0.1 kPa |
| Accuracy | <± 0.5% of the measuring range |
| Nominal pressure | 2000 kPa |
| Overpressure | 2000 kPa |
| Burst pressure | 3000 kPa |
| Media | Liquids Air Non-explosive gasses |
| Measuring rate | 10 Hz |
| Measurement units (adjustable) | Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF |
| Principle | Relative pressure |

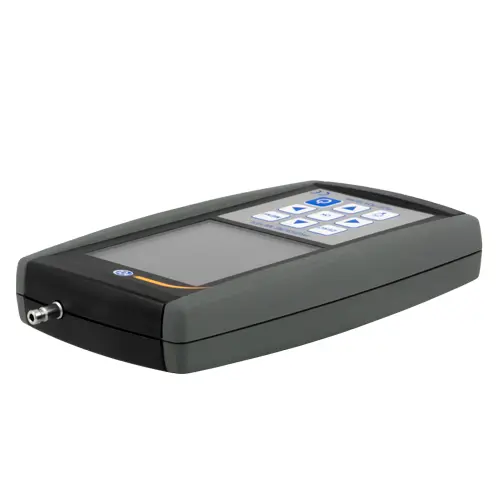

| Pressure connections | 5 mm (0.2 in) nipple for quick connection |
| Max, min and hold functions | Yes |
| Data logger | 1024 memory slots 1 s ... 255 h recording time per memory location 1 s ... 24 h recording interval |
| Medium | For air and non-explosive gases |
| Zero correction | Yes, with a zero key |
| Averaging | Yes, between 0.1 ... 9.9 s |
| Display | Graphic LCD with backlight |
| Ingress protection (IP) rating | IP41 |
| Power supply | 2 x 1.2V NiMh batteries 5V / 500-mA USB power adapter |
| Current consumption | 50-mA (with backlight) 10-mA (without backlight) |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | 10 ... 55°C / 50 ... 131°F |
| Dimensions | 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in |
| Weight | Approx. 285 g / < 1 lb |
