195,90 €

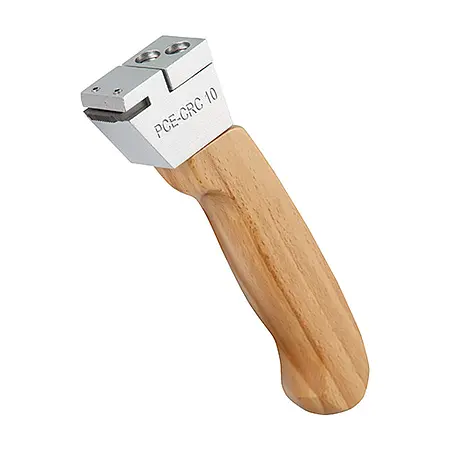

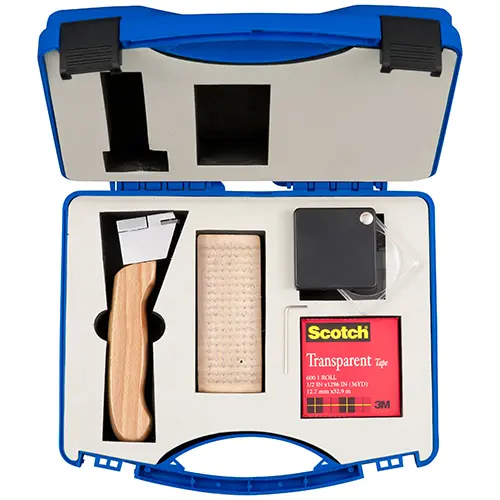

The Material Tester PCE-CRC 10 was designed to determine the quality of the adhesion of coatings. The Material Tester is suitable for thin, thick or tough coatings on all surfaces. Since the adherence of paintings and other coatings is a crucial product and quality characteristic for their protective effect, adhesion testers are used in a wide range of industries. The material test with the Material Tester is very quick and easy to perform. The coating is scratched crosswise and thereby divided into chessboard-like segments. The large, non-slip grip and movable probe help to create a secure fitting without tilting. Then an adhesive tape is applied and removed again. Based on the numbers of broken segments, the adhesive strength is determined. The Material Tester PCE-CRC 10 is supplied with a 11-edged blade; other versions are available as an option.
Application areas for the Material Tester, are the paint, coatings, and plastics industries, the processing industry and wherever products are coated. In addition, the Material Tester is suitable for the manufacturer of road marking materials and applicators. The Material Tester is suitable for all layer thicknesses and substrates.
| Measuring range | to 60 microns thickness | |
| Number of teeth | 6 or 11 (depending on the version) | |
| Average distance | 1 ... 3 mm (depending on the version) | |
| Choosing the right cross-cut method | ||
| - Method A (X-cut) for testing to ASTM D 3359 with layer thickness> 125 µm | ||
| - Method B (crosshatch Cross) for testing to ISO 2409 with thickness 0 ... 250 µm and ASTM D 3359 with thickness <125 µm | ||
| Choosing the right cut distance (Method B) | ||
| To EN DIN ISO 2409 | ||
| Layer thickness | Substratum | Average distance |
| 0...60 µm | Hard | 1 mm |
| 0...60 µm | Soft | 2 mm |
| Approx. 60...120 µm | Hard or soft | 2 mm |
| Approx. 120...250 µm | Hard or soft | 3 mm |
| To ASTM D 3359 | ||
| Layer thickness | Average distance | |
| 0 ... 50 µm | 1 mm | |
| 50 ... 125 µm | 2 mm | |
