Moisture Meter PCE-DPM 3

Order no.: PCE-DPM 3
GTIN (EAN): 4250348719812
1.036,90 €
1.233,91 €
price ex. (VAT / delivery)
:
4250348719812
PCE-DPM 3
Delivery time: 1-2 working days

Accessory

ISO Calibration Certificate for Temperature and Humidity
ISO Calibration Certificate for Temperature and Humidity
159,90 €

Description

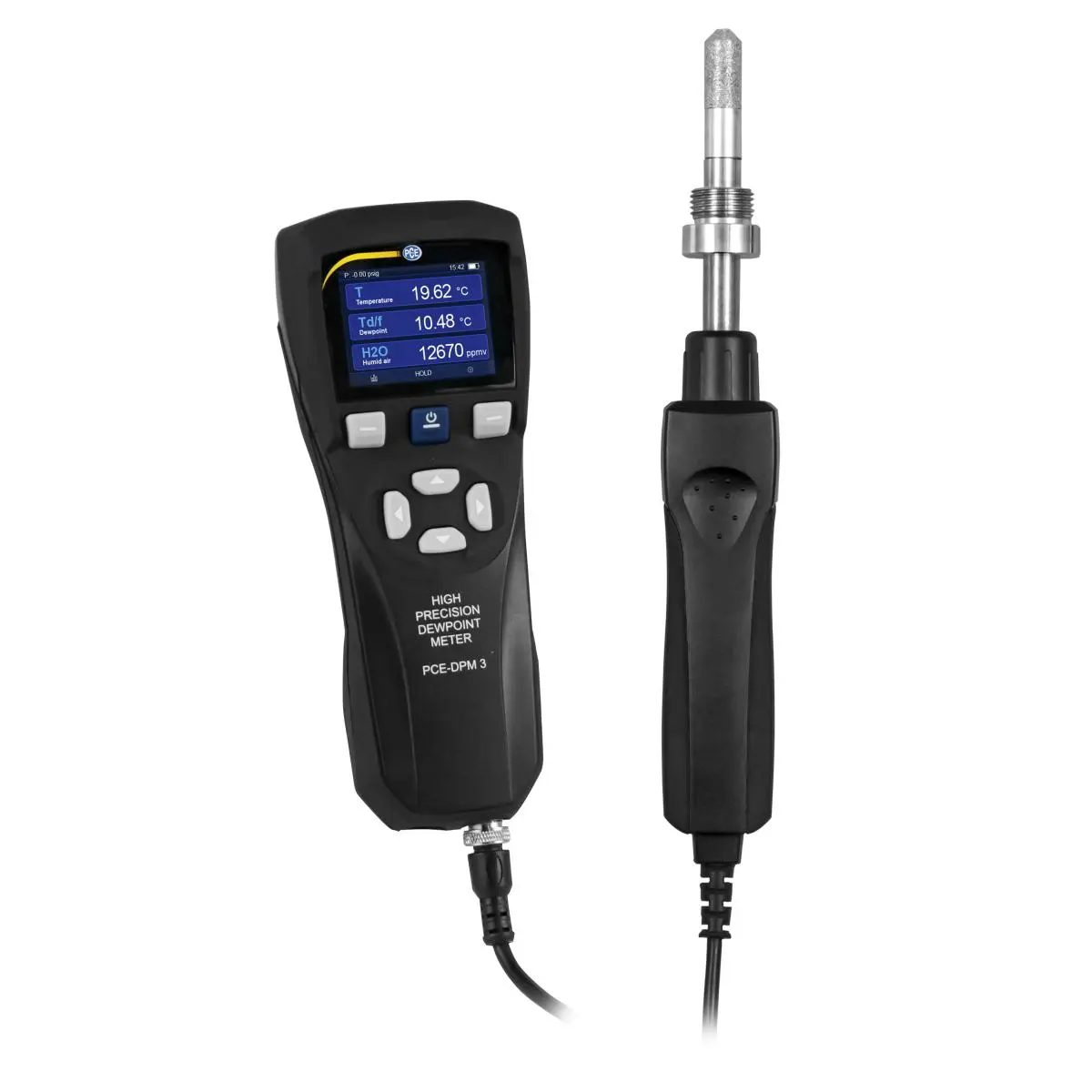

Moisture meter PCE-DPM 3

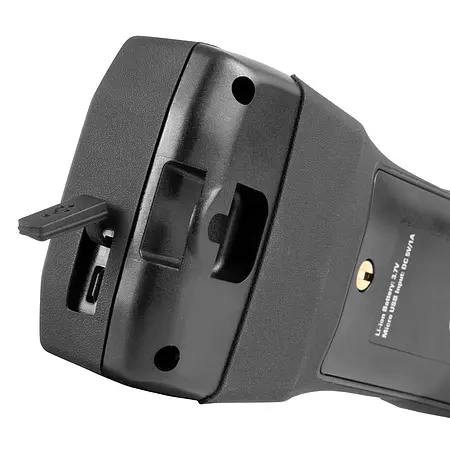

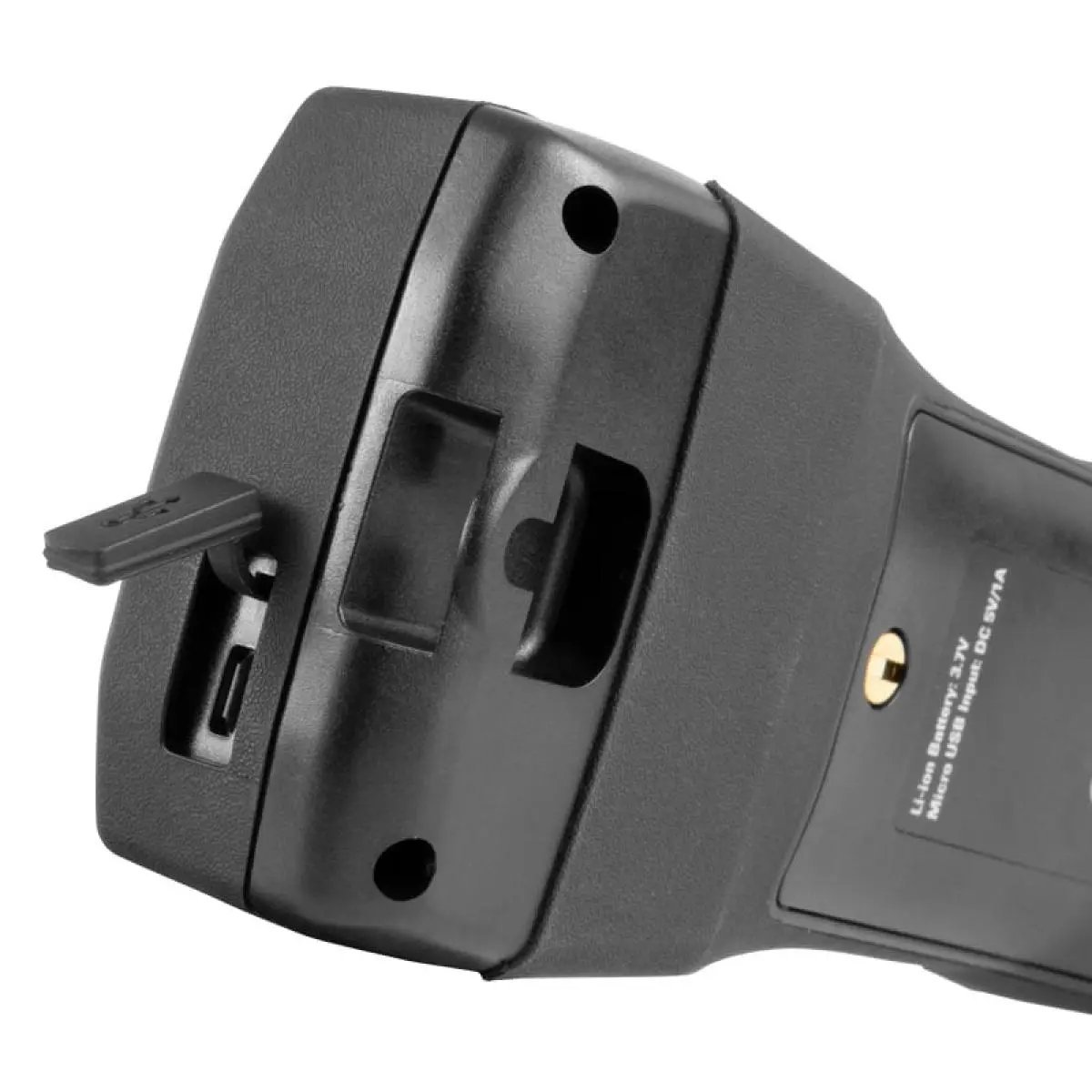

Sintered cap to protect against moisture and dust / Data can be read out via any computer / Data memory for approx. 50,000 measurement data / CSV format / Battery can be recharged via micro-USB / Easy operation

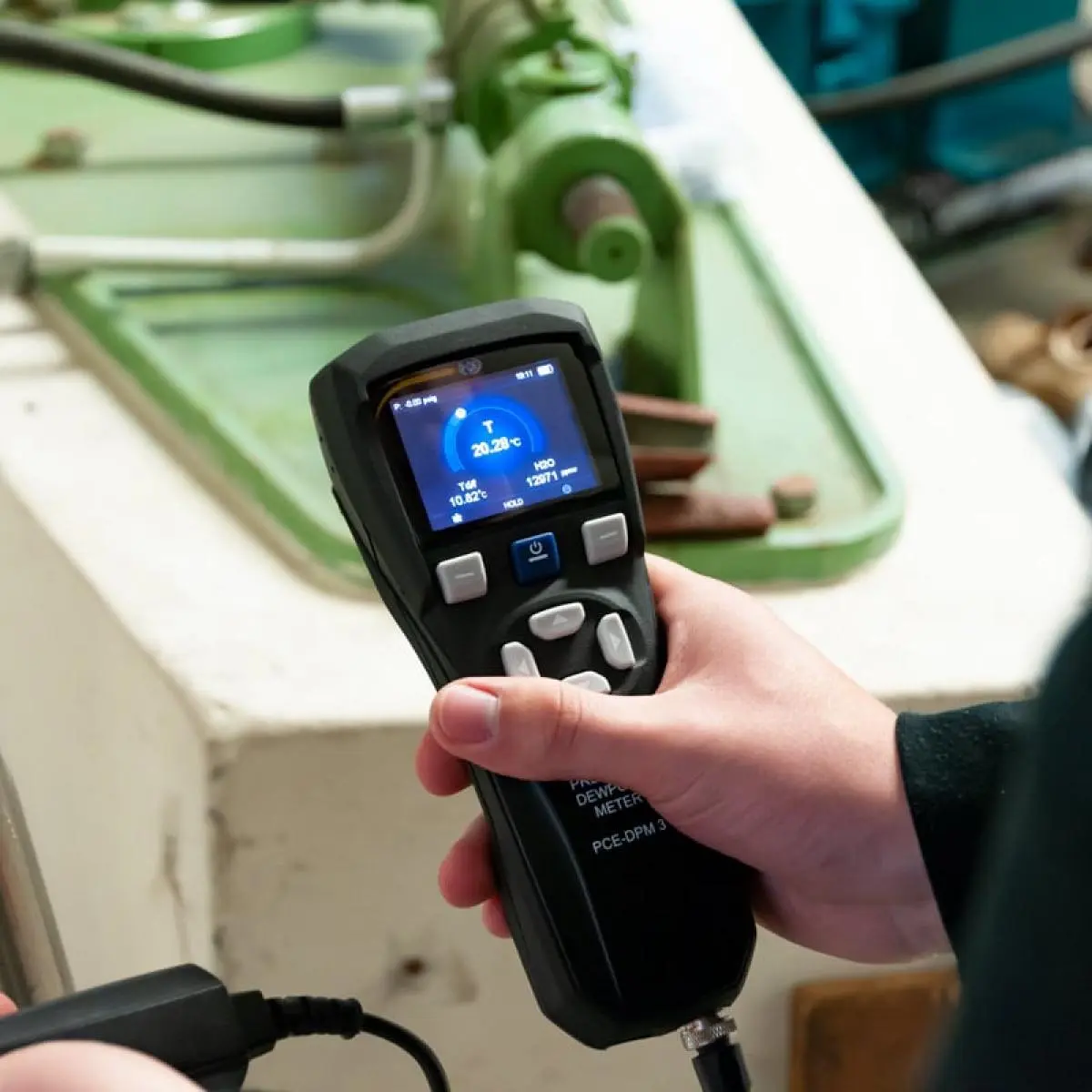

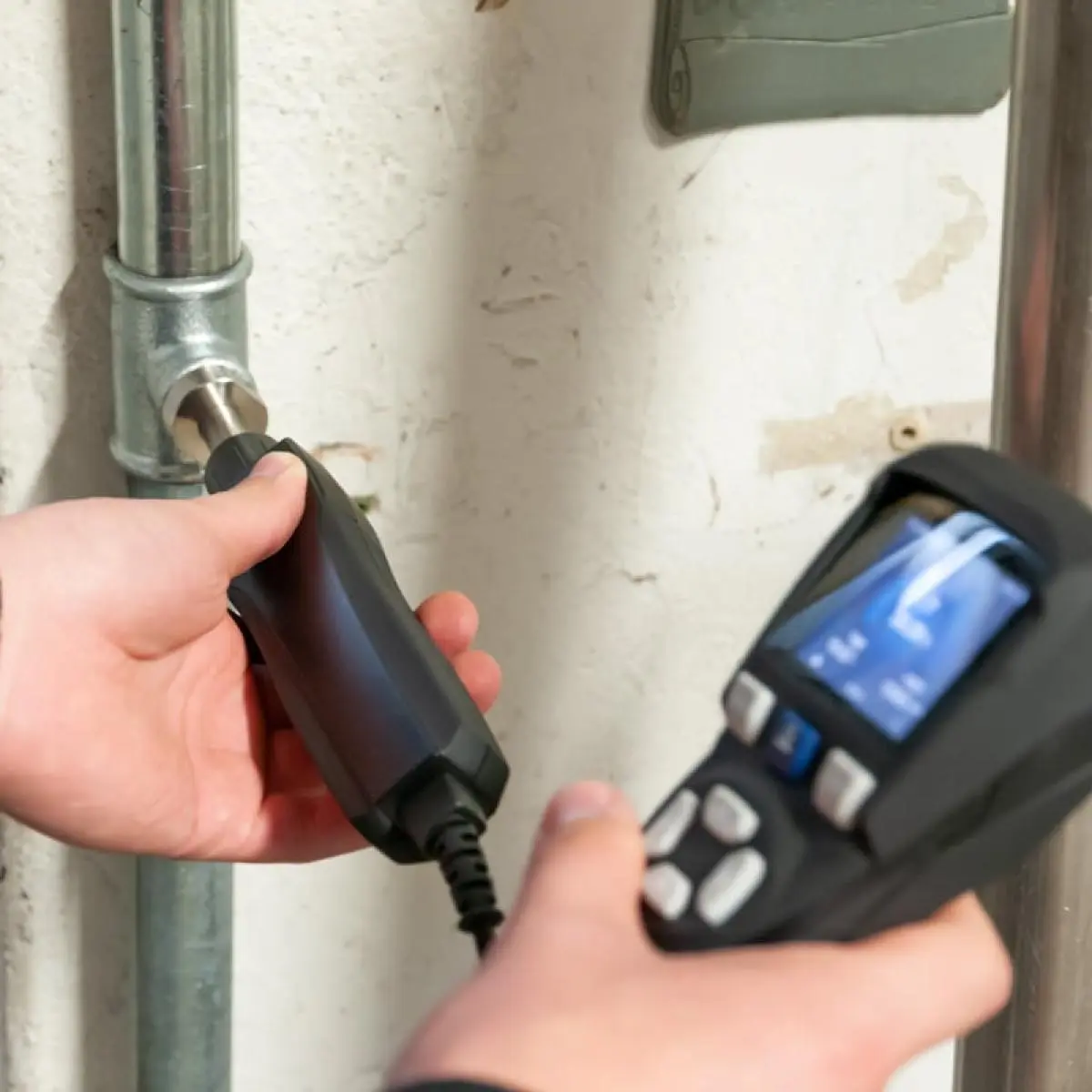

The moisture meter is a mobile testing device for monitoring the quality of compressed air on stationary and mobile compressed air generators. This moisture meter measures the temperature, the relative humidity, H2O and calculates the current dew point up to an ambient pressure of 20 bar. Thanks to the sintered cap, the moisture meter in the pressure lines is protected from dirt, moisture and high flow speeds. This increases the service life of the moisture meter's sensors.

The data memory of the moisture meter enables the course of the measurement parameters to be recorded in a pressure line. The data recorded by the moisture meter is permanently stored in the internal memory. The memory can be read out directly on the moisture meter. The moisture meter can also be connected to an operating system independent computer via the micro USB interface. This is made possible because the moisture meter is recognized as a mass data storage device. The data saved by the pressure dew point measuring device are saved in CSV format. The stored measurement data can thus be evaluated using any spreadsheet program.

Highlights

- Data storage with CSV data export

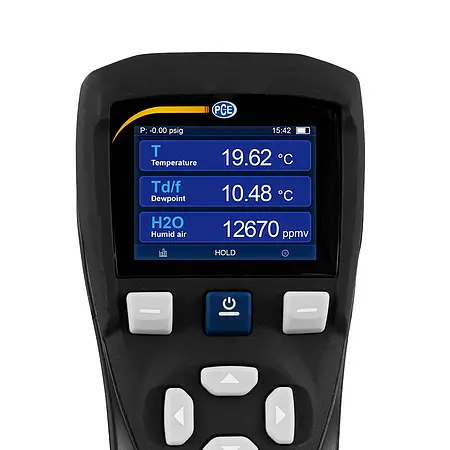

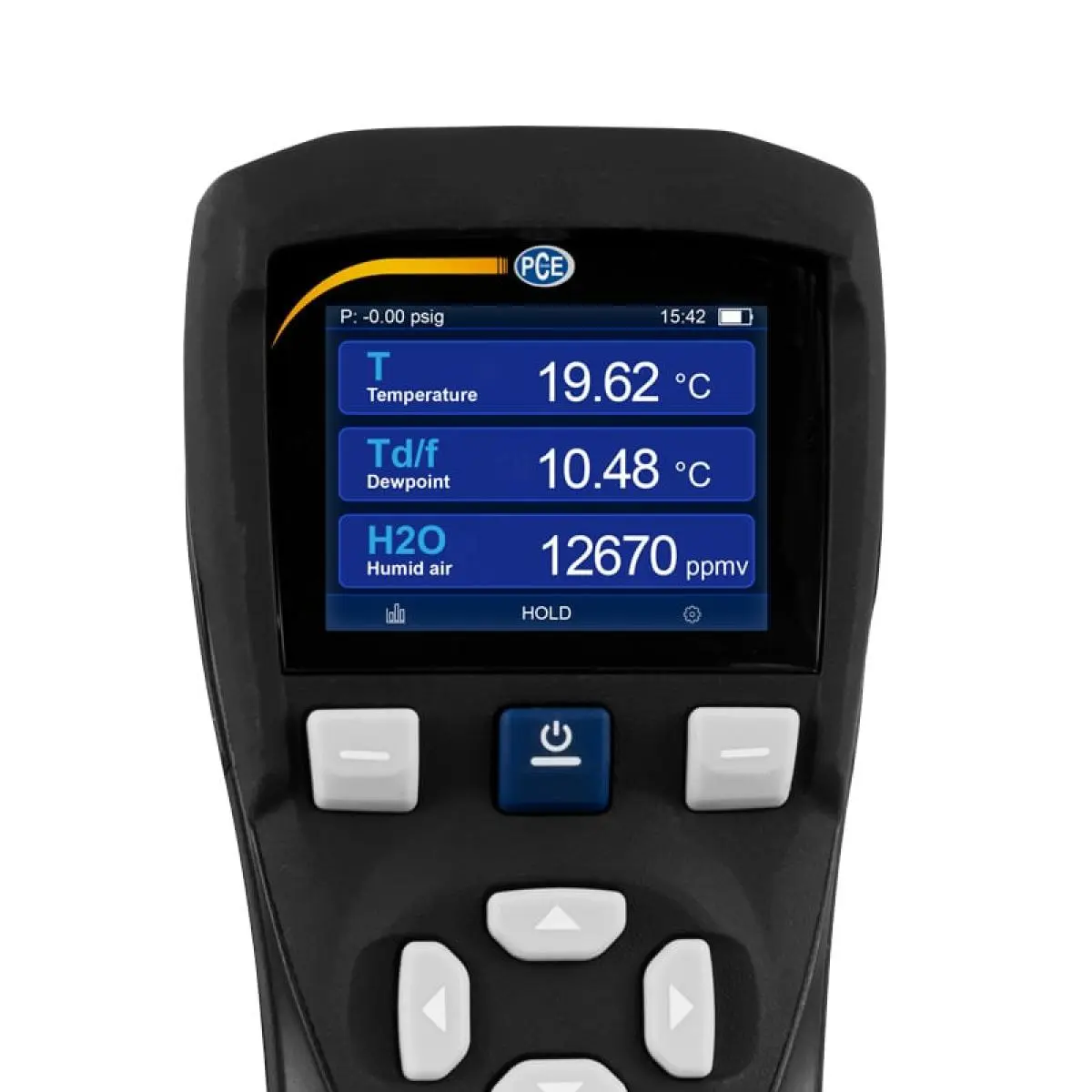

- Dew point, H2O, temperature, humidity measurement

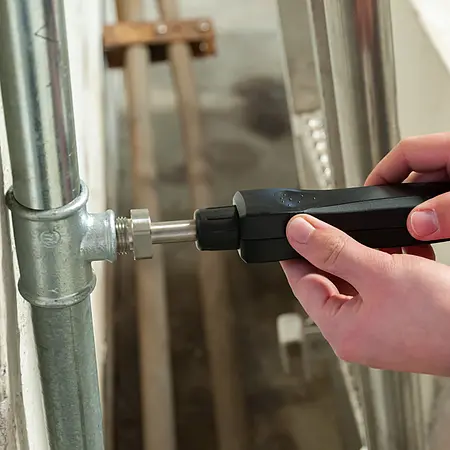

- For inline measurement of pressure pipes
- Battery operation for mobile use
- With G1 / 2 "connection thread

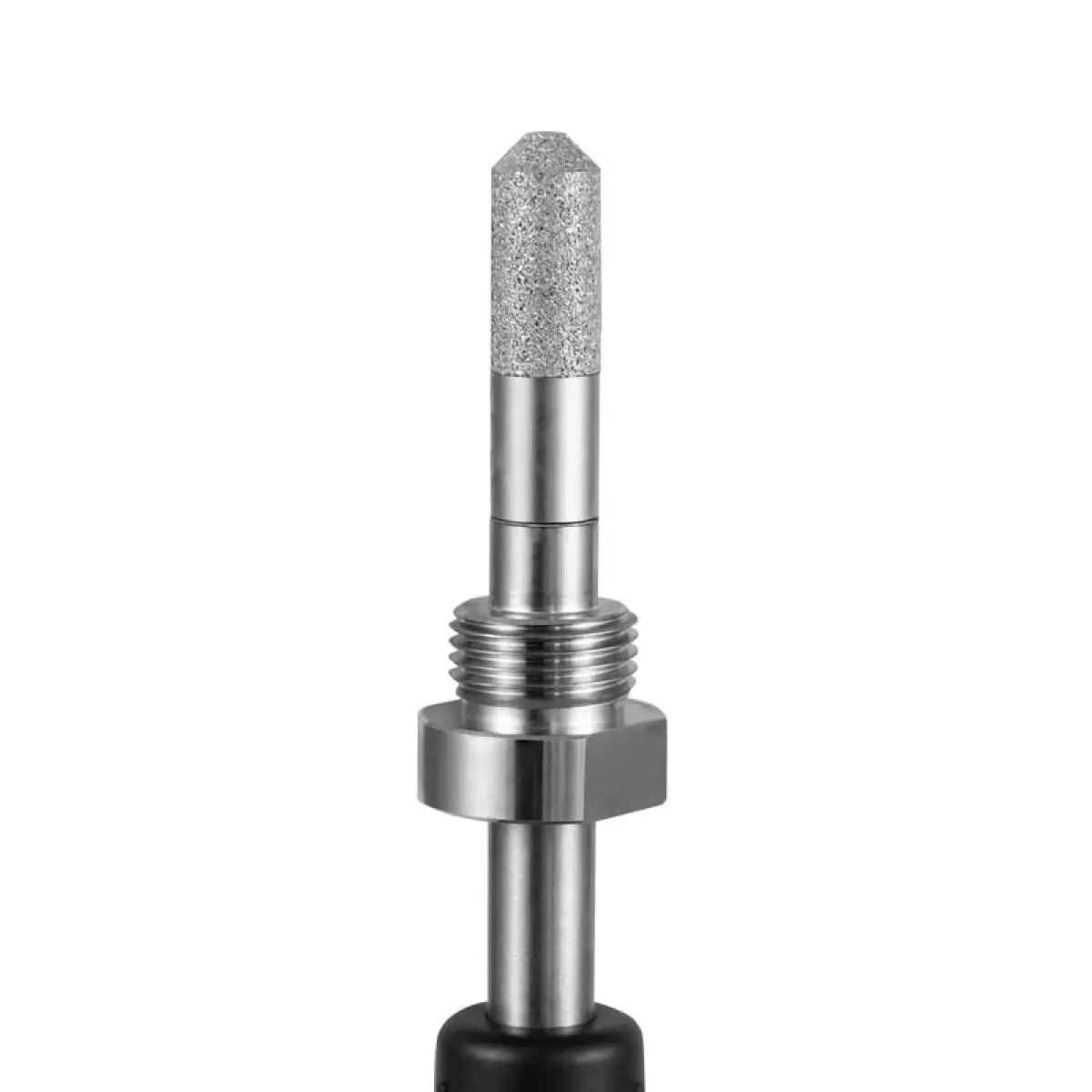

- Sensors protected with sintered filters

Specification

MeasurementTemperature
Measuring range-10 ... 60°C / 14 ... 140°F
Resolution0.01°C / 0.018°F
Accuracy at 20°C / 68°F-10 ... 50°C / 14 ... 122°F: ± 0.3°C / 0.5°F

MeasurementRelative humidity
Measuring range0 ... 100%
Resolution0.01%
Accuracy at 20°C / 68°F< 5%:
 ± (0.025% + 17.5% of mv)
 > 5%: ± (1% + 5% of mv)
 > 15%: ± (2% + 3% of mv)

MeasurementDew point*
Measuring range-50 ... 30°C / -58 ... 86°F
Resolution0.01°C / 0.018°F
Accuracy -40 ... 20°C / -40 ... 68°F: ± 2°C / 3.6°F


-50 ... -40°C / -58 ... -40°F: ± 2.5°C / 4.5°F



*The accuracy of the dew point relates to an
ambient temperature of 16 ... 25°C / 61 ... 77°F




MeasurementH2O
Measuring range40 ... 20,000 ppm
Resolution1 ppm
Accuracy at 20°C / 68°F± (7.3 ppm + 8.3%)

Environmental conditions-10 ... 60°C / 14 ... 140°F
 0 ... 20 bar (absolute)
Response time at: 0.2 m / s, 1 bar,        0 ... 40°C / 32 ... 104°F: 20s [120s]
20°C / 68°F, 63% RH [90%] -40 ... 0°C / -40 ... 32°F: 10s [20s]

Data storageFor approx. 50,000 measuring points
Adjustable storage rates10 seconds
 1, 5, 10, 20, minutes
Adjustable recording time1, 5, 12, 24, 48 hours
File formatCSV
Cable lengthApprox. 1.5 m / 4.9 ft
ThreadG1 / 2"
Thread length1.2 cm
Probe length5.2 cm
Probe width1.2 cm
Display2.3" LCD
Power supplyBattery 3.7V DC, 3000-mAh
Power supply power pack
 Primary: 100 ... 240V AC, 0.25 A
 Secondary: 5V DC, 1 A
Interface 7 mains connectionMicro USB
WeightApprox. 610 g / 1.3 lbs

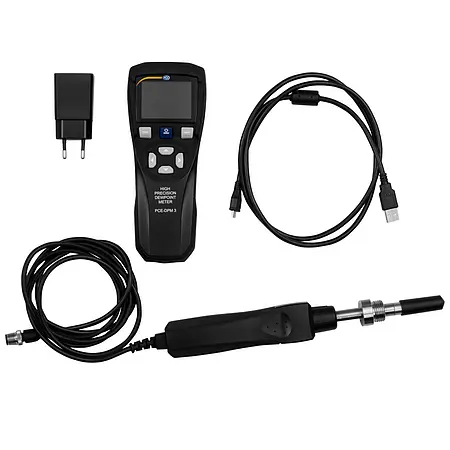

Delivery Scope

1 x PCE-DPM 3 moisture meter
1 x USB power supply
1 x Micro USB cable
1 x Transport case
1 x Instruction manual
