Noise Meter / Sound Meter PCE-322ALEQ-ICA incl. ISO Calibration Certificate

Order no.: PCE-322ALEQ-ICA

GTIN (EAN): 4250348727985

Accessory

ISO Calibration Certificate for Noise Meter CAL-SL

123,90 €

Microphone extension cable MIC-4-322

29,90 €

Microphone extension cable MIC-10-322

49,90 €

Software for PCE-322ALEQ

271,90 €

Class 2 Sound Level Calibrator PCE-SC 43

141,90 €

Mini Tripod for Various Measuring Devices

15,90 €

Adapter attachment PCE-SC 09 1/4" adapter

78,90 €

Class 1 Sound Level Calibrator PCE-SC 09

499,90 €

Tripod STAT

62,90 €

Description

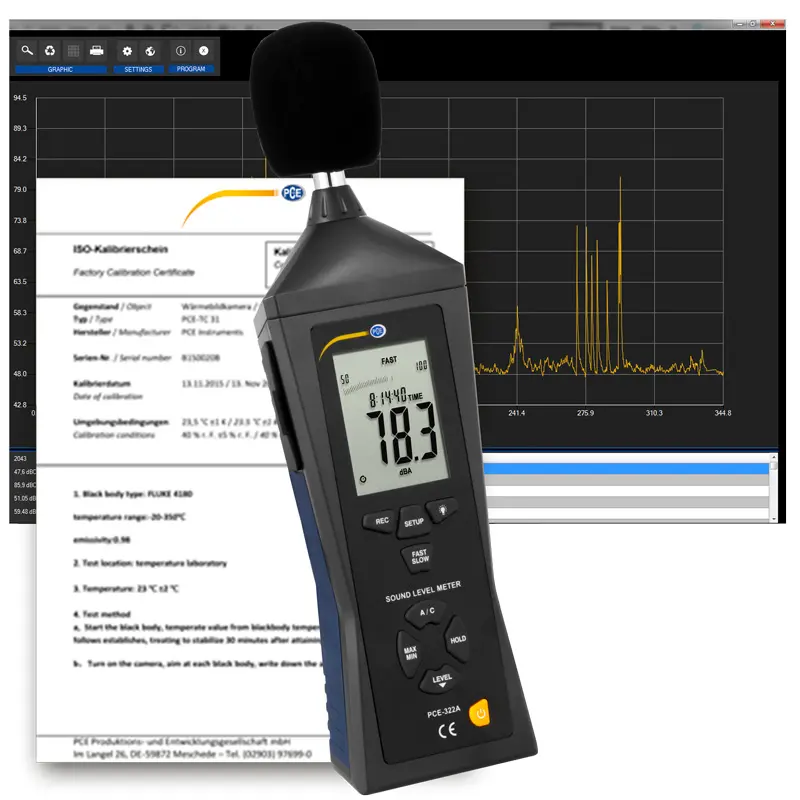

Class II Noise Meter / Sound Meter PCE-322ALEQ-ICA with logger function / USB interface / Measuring range 30 ... 130 dB / LC display / incl. software for LEQ calculation / Memory for up to 32700 values

The noise meter / sound meter PCE-322A is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322A noise meter / sound meter has a logger function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The noise meter / sound meter PCE-322A can be connected to the PC with a USB cable.

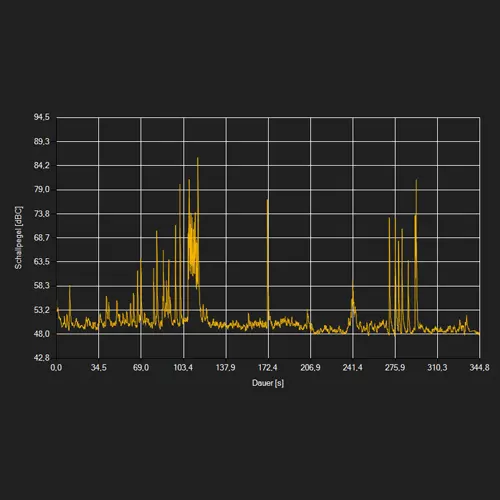

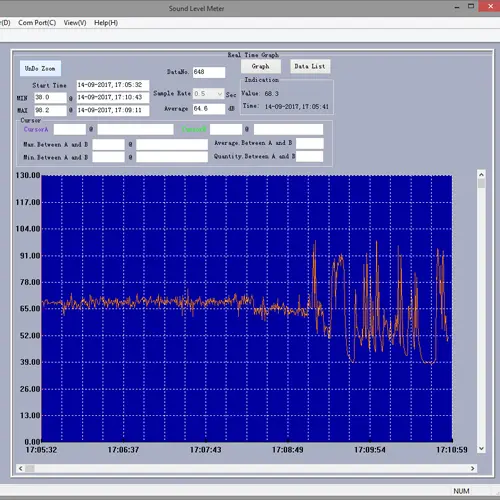

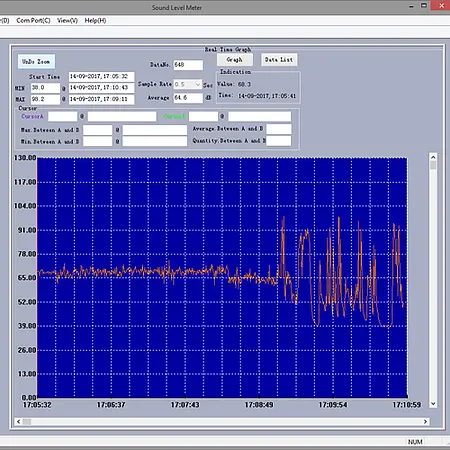

A live measurement is also possible with the noise meter / sound meter and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The noise meter / sound meter has an analogue output and offers further features that are unique in its class.

Highlights

- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- USB port for data transfer
- 32700 value memory
- Fast and slow time weighting
- Date- and time-stamped measurements
- Robust ABS plastic housing
- Large LCD
- LEQ calculation via software
- ISO Calibration certificate

Specification

Noise levels	Low 30 ... 80 dB Medium 50 ... 100 dB High 80 ... 130 dB Auto 30 ... 130 dB
Dynamic range	50 dB
Display	4-digit LCD
Resolution	0.1 dB
Accuracy	±1.4 dB
Display update	2 x per second
Frequency	31.5 Hz ... 8 kHz
Storage capacity	32,700 readings (9 hours @ 1 second interval)
Frequency weighting	A and C
Time weighting	fast (125 ms) slow (1 sec.)
Microphone type	Electret condenser
Functions	MIN, MAX, HOLD, ALARM
Analog output	AC/DC Headphone
Data interface	USB
Automatic shutdown	after 15 minutes inactivity
Operating conditions	0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions	-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply	9 V block battery (for approx. 30 h continuous operation) AC power
Dimensions	280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight	ca. 350 g / 0.78 lb
Standards	IEC 61672-1 (Class II)

Delivery Scope

1 x Noise Meter / Sound Meter PCE-322A
1 x PCE-SOFT-LEQ software (LEQ calculation) + manual

1 x Wind noise suppressor

1 x Interface cable

1 x Mini tripod

1 x Calibration screwdriver

1 x Battery

1 x Power adapter

1 x Carrying case

1 x Operation manual

1 x ISO Calibration certificate

Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
