Electrical Tester PCE-MO 2001

Order no.: PCE-MO 2001

GTIN (EAN): 4250348701077

Accessory

Measuring leads PCE-MO2001-ML

52,90 €

Calibration Certificate for PCE-MO Series

194,90 €

Description

Electrical Tester

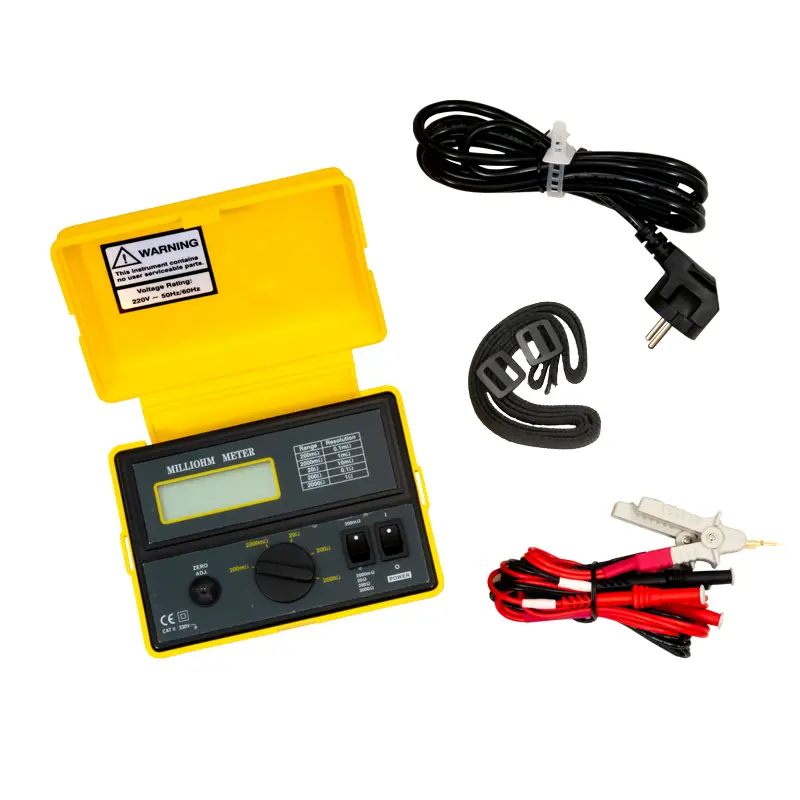

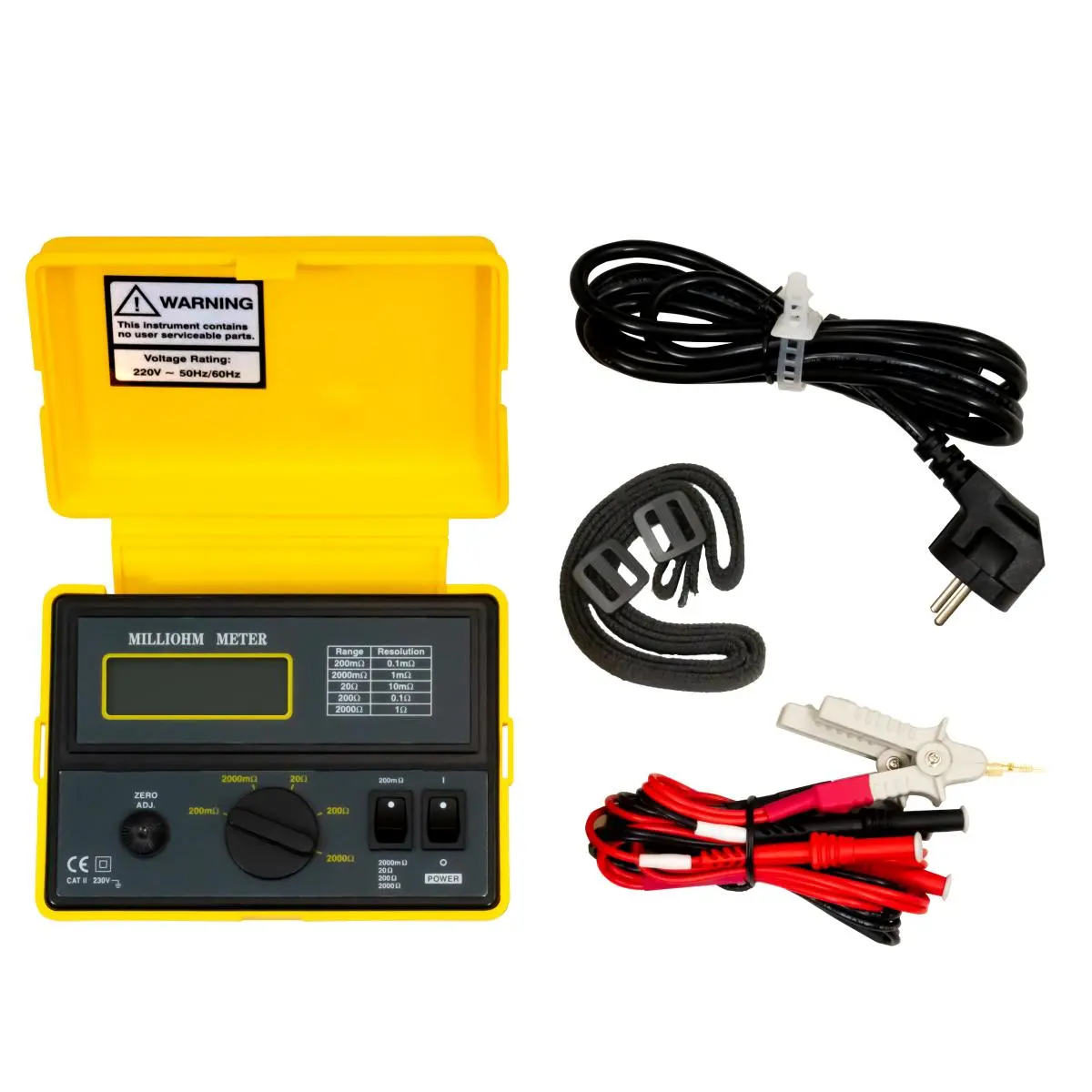

(it comes with a water resistant brief-case, for measuring ranges from 100 μΩ to 2000 Ω)

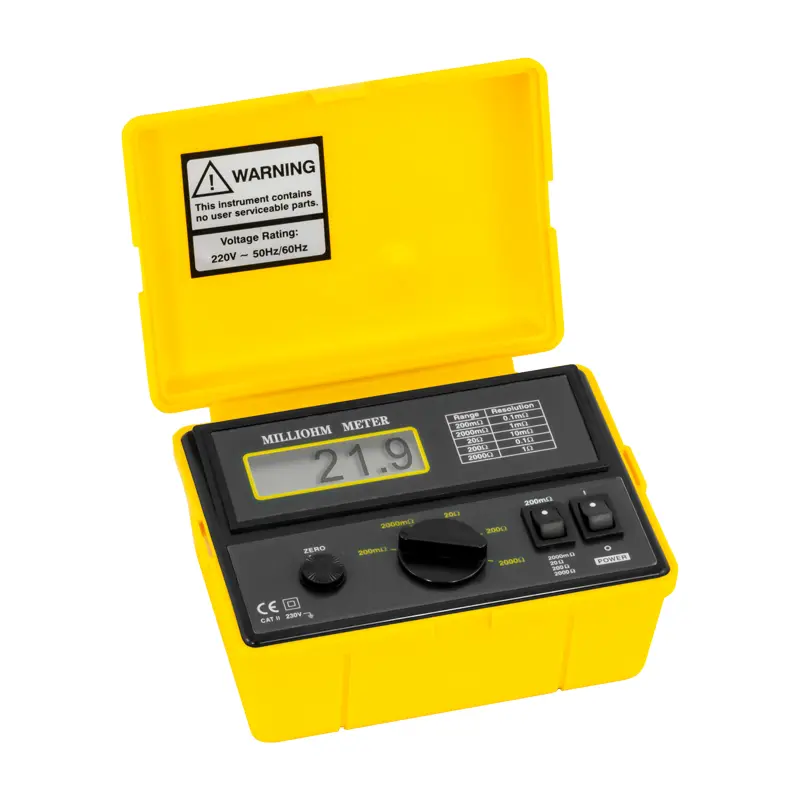

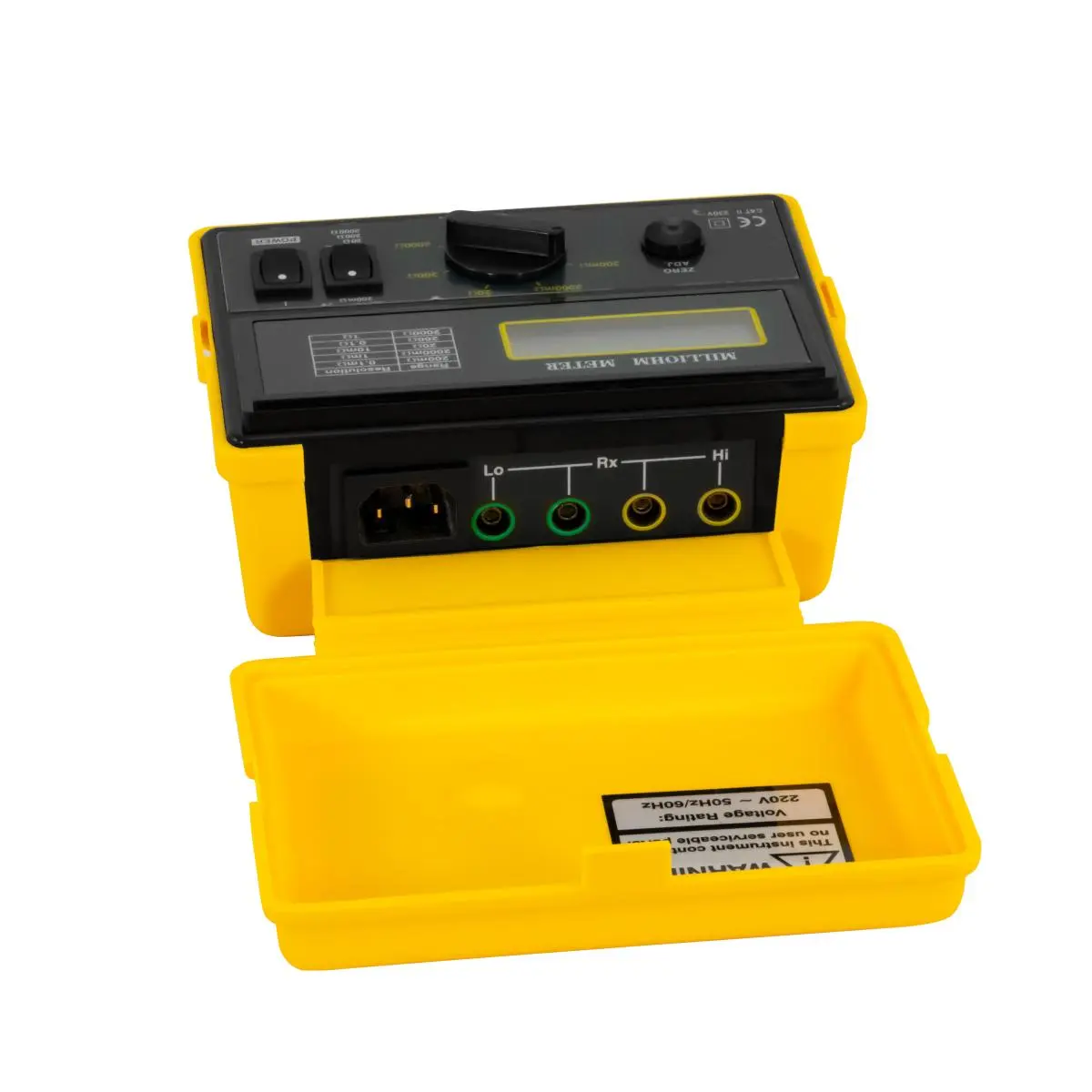

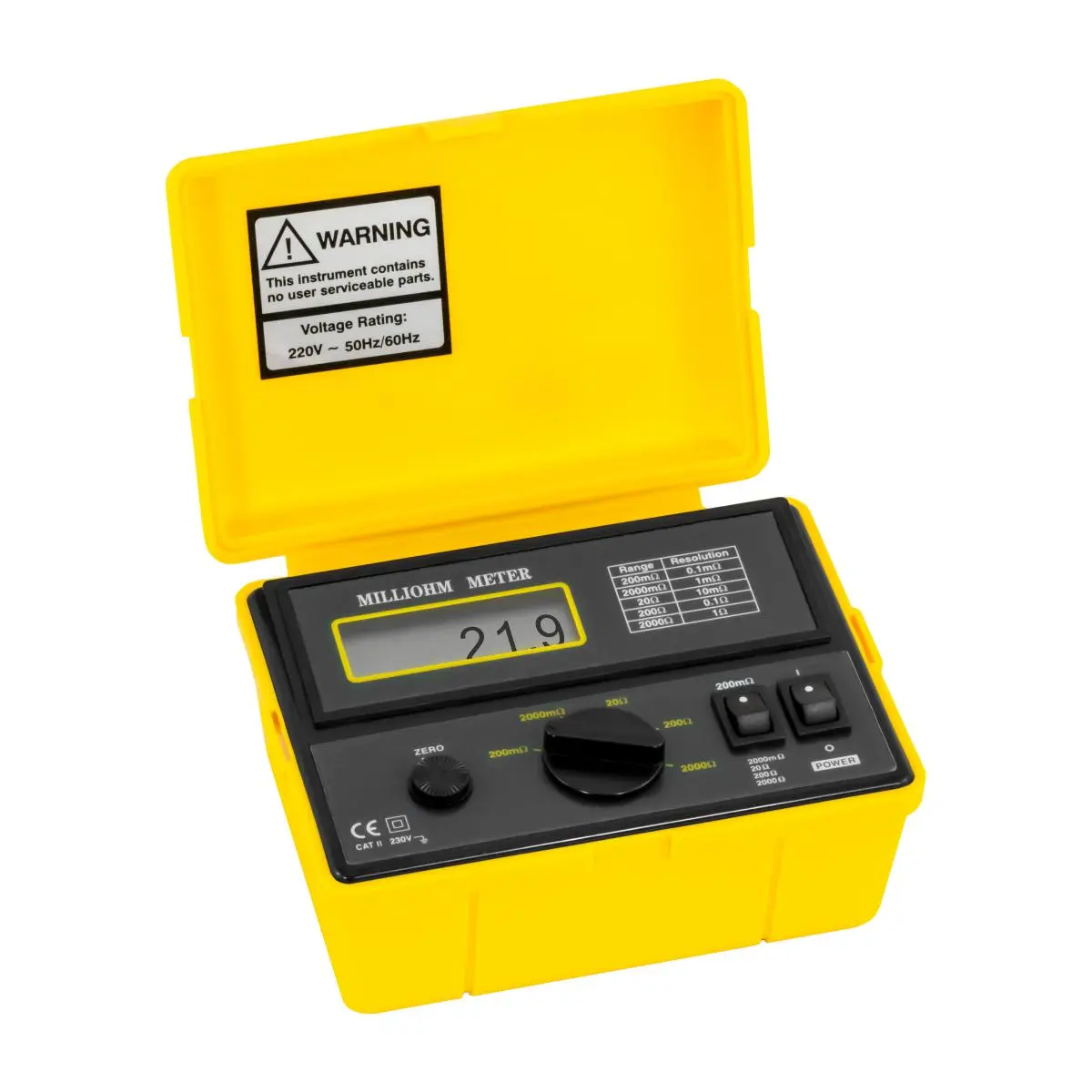

This Electrical Tester is supplied with a big 3½ positions LCD display that shows the measurement values, which is very easy to read. With the Electrical Tester you will be able to measure electric resistance form 100 μΩ a 2000 Ω.To obtain measurement values, a constant electric current is introduced inside an object to test the voltage drop in it. Electrical Tester has a housing protected against water splash and also it is delivered calibrated. If you wish, an ISO calibration certificate can be requested.

Highlights

- It can be used to measure electric resistance in engine coils, generators, transformers, commutation circuits, for instance in parallel or adjoining commutation circuits, compressed commutation circuits or commutators and relays.
- To measure binding energy in mines, planes, boats and also for both industrial and home installations.
- Pitch control in cyclic systems (Ringbus) to be used in industry and home.
- To test and measure Read contacts.
- Compression elements control in over line current cables, for the control and maintenance of components such as connectors, contacts.
- Security: IEC-1010-1; CAT II 20 V

Specification

Ranges	0 ... 200 mΩ every 100 μΩ/ 0 ... 2000 mΩ: 1 mΩ/ 0 ... 20 Ω: 10 mΩ/ 0 ... 200 Ω: 100 mΩ/ 0 ... 2000 Ω: 1 Ω
Accuracy	±0.75 % of the value +4 pos. (range up to 20 Ω) ±0.75 % of the value +2 pos. (from 20 Ω)
Resolution	0.1/ 1/ 10 mΩ; 0,1/ 1 Ω
Test current	1 mA (2000 Ω/200 Ω range) 10 mA (20 Ω/2 Ω range) 100 mA (200 mΩ range)
Accuracy	±0.1 %
Measuring quota	aprox. 0.4 s
Zero reset	by hand: by means of a rotary wheel (±50)
Overload indicator	In case of overload a ''1'' appears
Power	230 V AC, 50/ 60 Hz
Dimension of the tester cable length	250 x 180 x 200 mm 50 cm (between the plug and the gripper)
Weight	680 g
Approval	IEC-1010-1; CAT II
