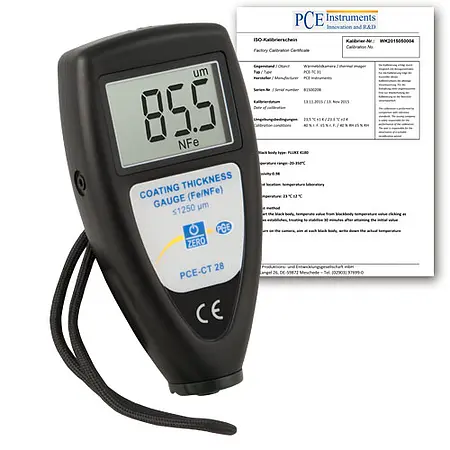

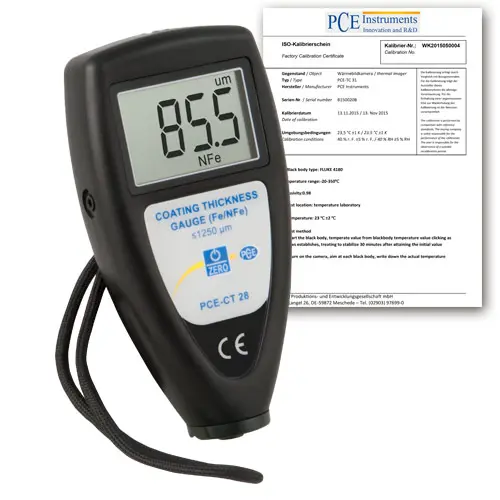

Paint Thickness Gauge PCE-CT 28-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 28-ICA

GTIN (EAN): 4250348727732

Accessory

Re-Calibration for Coating Thickness Meter

172,90 €

Description

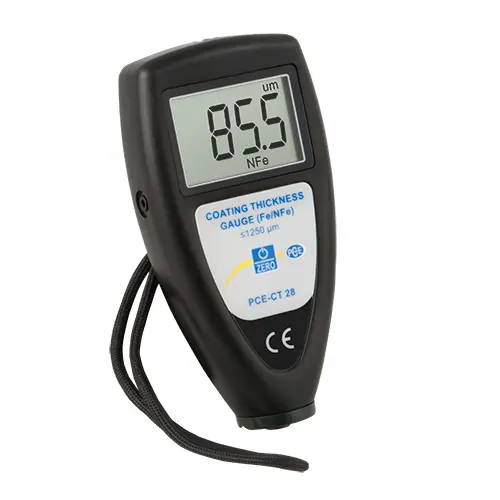

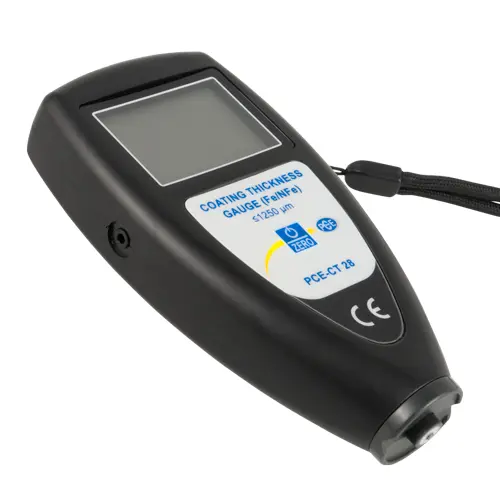

PCE-CT 28 Paint Thickness Gauge
Determines thickness of coating on steel or iron (F) / Non-ferrous metals (N) with high range of measurement

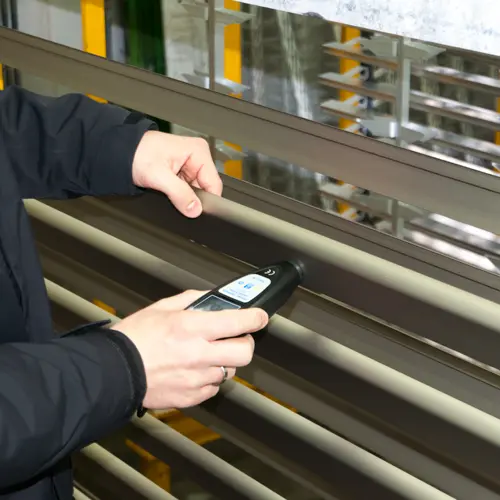

The PCE-CT 28 Paint Thickness Gauge for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous materials without damaging the coating's surface. The Paint Thickness Gauge stands out due to its high range of measurement. This Paint Thickness Gauge works excellently as a tool for technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The Paint Thickness Gauge is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair. Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The Paint Thickness Gauge was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the Paint Thickness Gauge is ideal for the naval and metal industries.

Highlights

- F / N: for materials including iron, steel, aluminium, copper, brass and stainless steel
- Instant results
- Large measurement range
- Vibrations do not influence readings

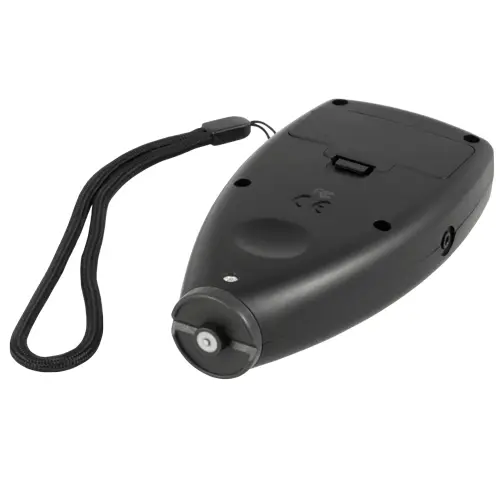

- Elastic lined measuring head to ensure accurate results and prevent wear

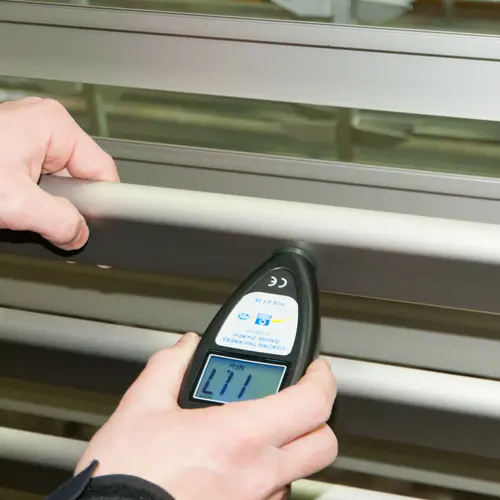

- The v-slot simplifies the measurement on round surfaces acting as a reference or axis point

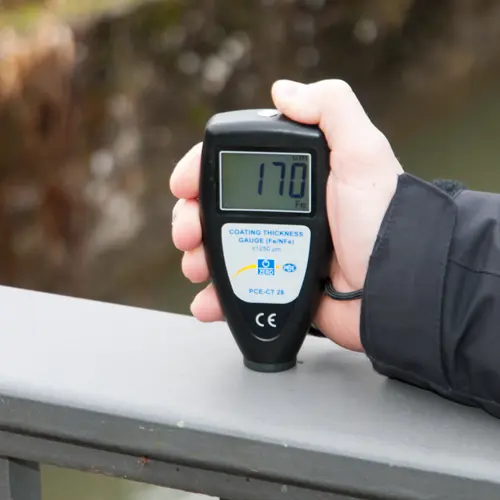

- Can be operated comfortably with only one hand thanks to its design and integrated sensor
- Incl. ISO Calibration Certificate
- Complete with battery, carrying case, calibration standards and user's manual

Specification

Measurement range	0 ... 1250 µm / 49.2 mils
Resolution	0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils) 1 µm / 0.04 mils(above the range)
Accuracy	±2 % or 2.5 µm / 0.10 mils (highest reading is valid)
Minimum surface measurable	6 mm x 6 mm / 0.2 in x 0.2 in
Minimum radial curve	convexed: 5 mm / 0.2 in concaved: 60 mm / 2.4 in
Minimum thickness of material	0.3 mm / 0.01 in (for ferrous materials) 0.1 mm / 0.004 in (for non-ferrous materials)
Display	LCD with 4 mm x 10 mm (0.2 in x 0.4 in) high digits
Operating temperature	0 ... 50°C / 32 ... 122°F
Power	4 batteries
Dimensions	126 x 65 x 27 mm / 5.0 x 2.6 x 1.1 in
Weight	120 g / 0.26 lbs with batteries

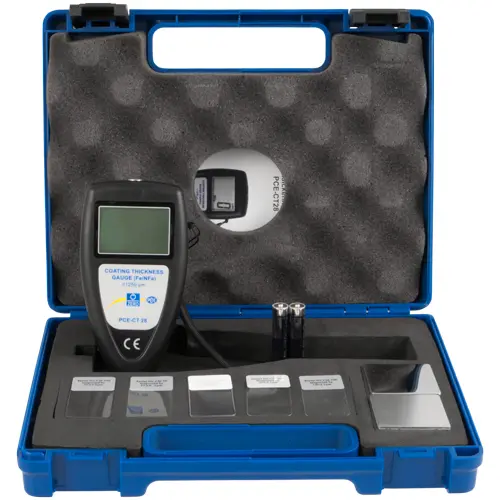

Delivery Scope

1 x PCE-CT 28 Paint Thickness Gauge with integrated F/N sensor
1 x Carrying case
4 x Batteries

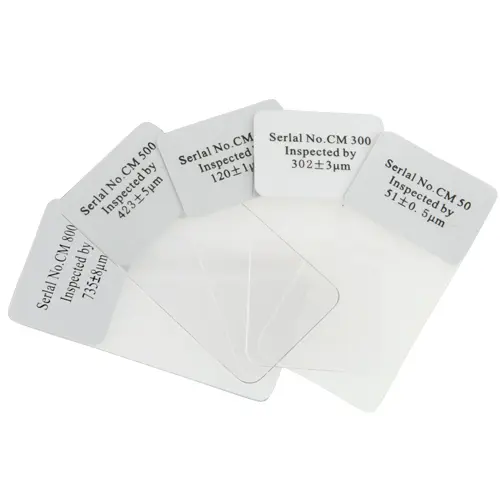

1 x Set of calibration standards
1 x User's manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
