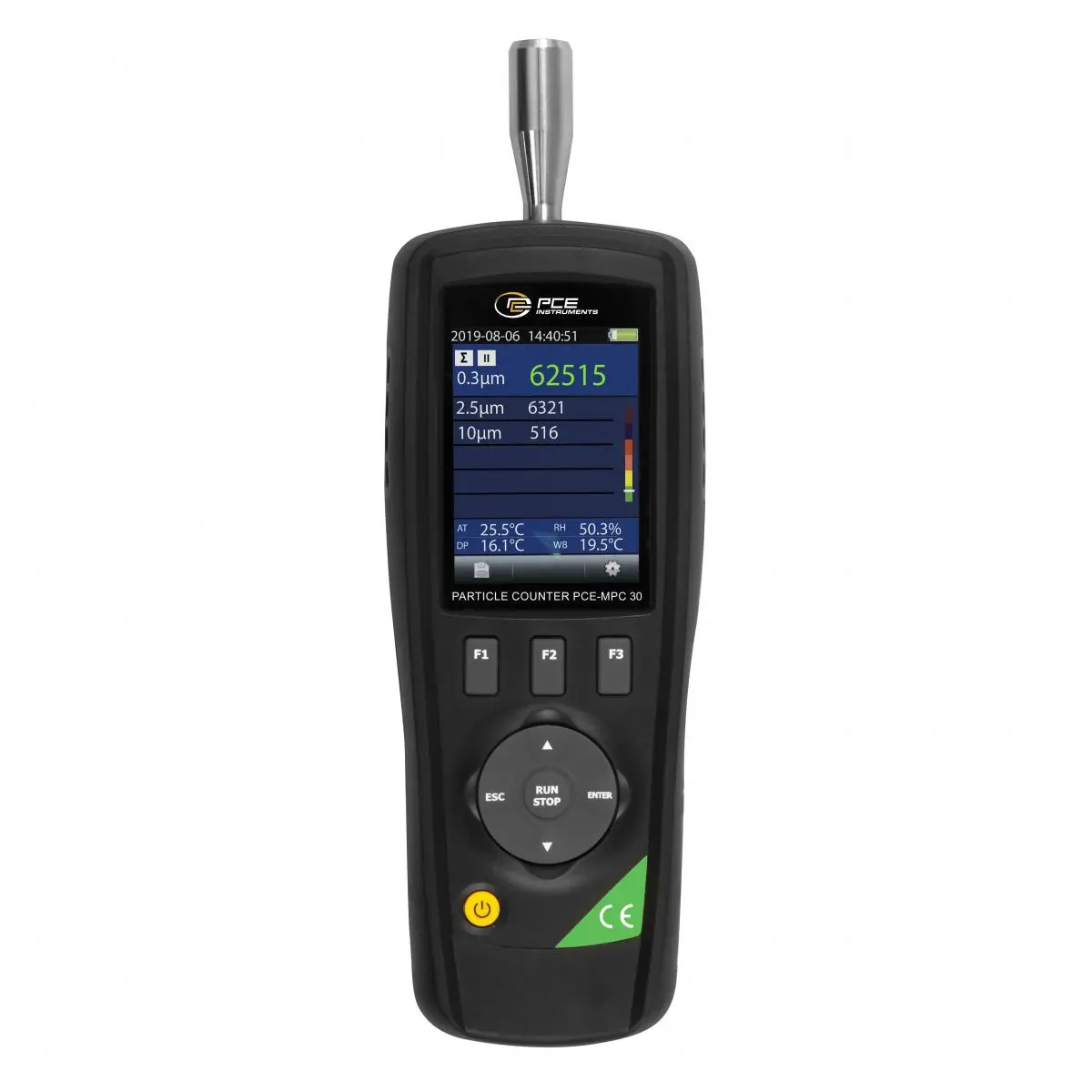

Particle Counter Device PCE-MPC 30

Order no.: PCE-MPC 30
GTIN (EAN): 4250348719287
1.094,90 €
1.302,93 €
price ex. (VAT / delivery)
:
4250348719287
PCE-MPC 30
Delivery time: 1-2 working days

Description

Particle Counter Device with data logger / HCHO measurement / battery for mobile use /
2.8 "TFT display / measurement of mass concentration / data storage on SD card

This Particle Counter Device has many functions. With the Particle Counter Device it is possible to determine the number of particles in the size of 0.3, 2.5 and 10 µm. In addition to measuring the particles, the Particle Counter Device can also measure the PM 2.5 and PM 10 mass concentration. The mass concentration of the Particle Counter Device determines the weight of the particles on one cubic meter.

In addition to particle measurement, the Particle Counter Device can also determine the formaldehyde content in ppm. During this HCHO measurement, the temperature, the ambient humidity and the dew point are determined and displayed by the Particle Counter Device. As a further important property, the Particle Counter Device can also store data. It is therefore possible with the Particle Counter Device to evaluate all measured values after a measurement.

Highlights

- Particle counter, HCHO, temperature measurement
- Measured value recording for later analyzes

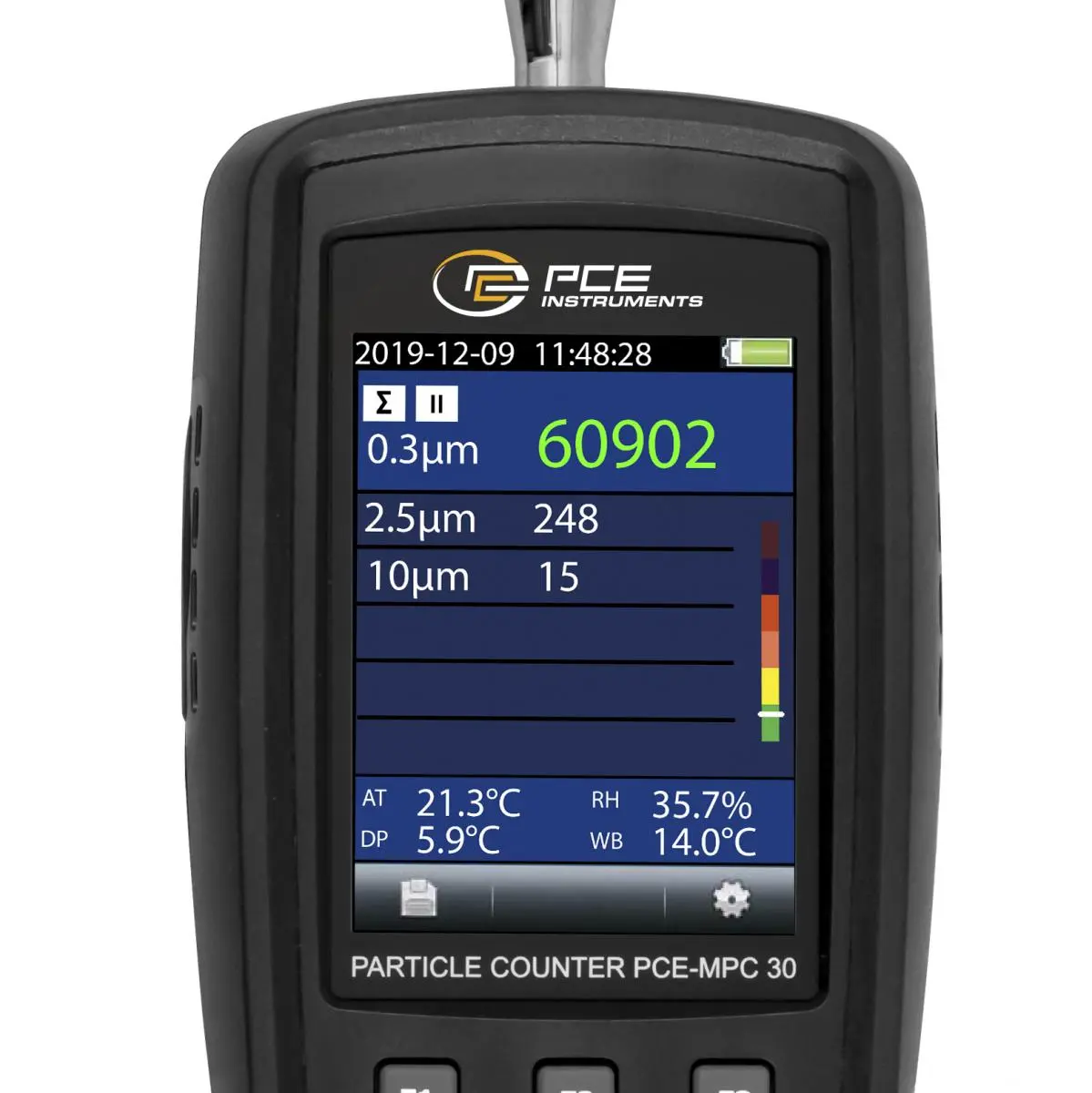

- Large 2.8 "LC display, 320 x 240 pixels
- Mass concentration PM 2.5 and PM 10
- Battery for mobile use
- Dew point and wet bulb temperature

Specification

Measurable particle sizes PM 2.5 and PM 10
Measuring range 0 ... 2000 µg / m³
Resolution 1 µg / m³

Particle counter
Measurable particle sizes 0.3, 2.5, 10 µm
Flow rate 2.83L / min (0.1 ft³)
Counting efficiency 50% at 0.3 µm;
  100% with particle size> 0.45 µm
Coincidence error <5% at 2,000,000 particles per ft³
Data storage 5000 data records (micro SD card)
Counting modes cumulative, differential, concentration

HCHO
Measuring range 0.01 ... 5.00 ppm
Accuracy ± 5%
Resolution 0.01 ppm

Air temperature and relative humidity
Measuring range air temperature 0 ... 50 ° C, 32 ... 122 ° F
Measuring range dew point 0 ... 50 ° C, 32 ... 122 ° F
Relative humidity measuring range 0 ... 100% RH
Air temperature measurement accuracy 10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F
  Others: ± 2 ° C, ± 3.6 ° F
Measuring accuracy dew point temperature 10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F
  Others: ± 2 ° C, ± 3.6 ° F
Relative humidity accuracy 0 ... 20% rel. Humidity: ± 5%
  20 ... 80% rel. Humidity: ± 3.5%
  80 ... 100% rel. Fencing: ± 5%

More specifications
Operating conditions 0 ... +50 ° C, 10 ... 90% rel. humidity,
  not condensing
Storage conditions -10 ... +60 ° C, 10 ... 90% rel. humidity,
  not condensing
Display 2.8 ", 320 x 240 pixels, backlit color LCD

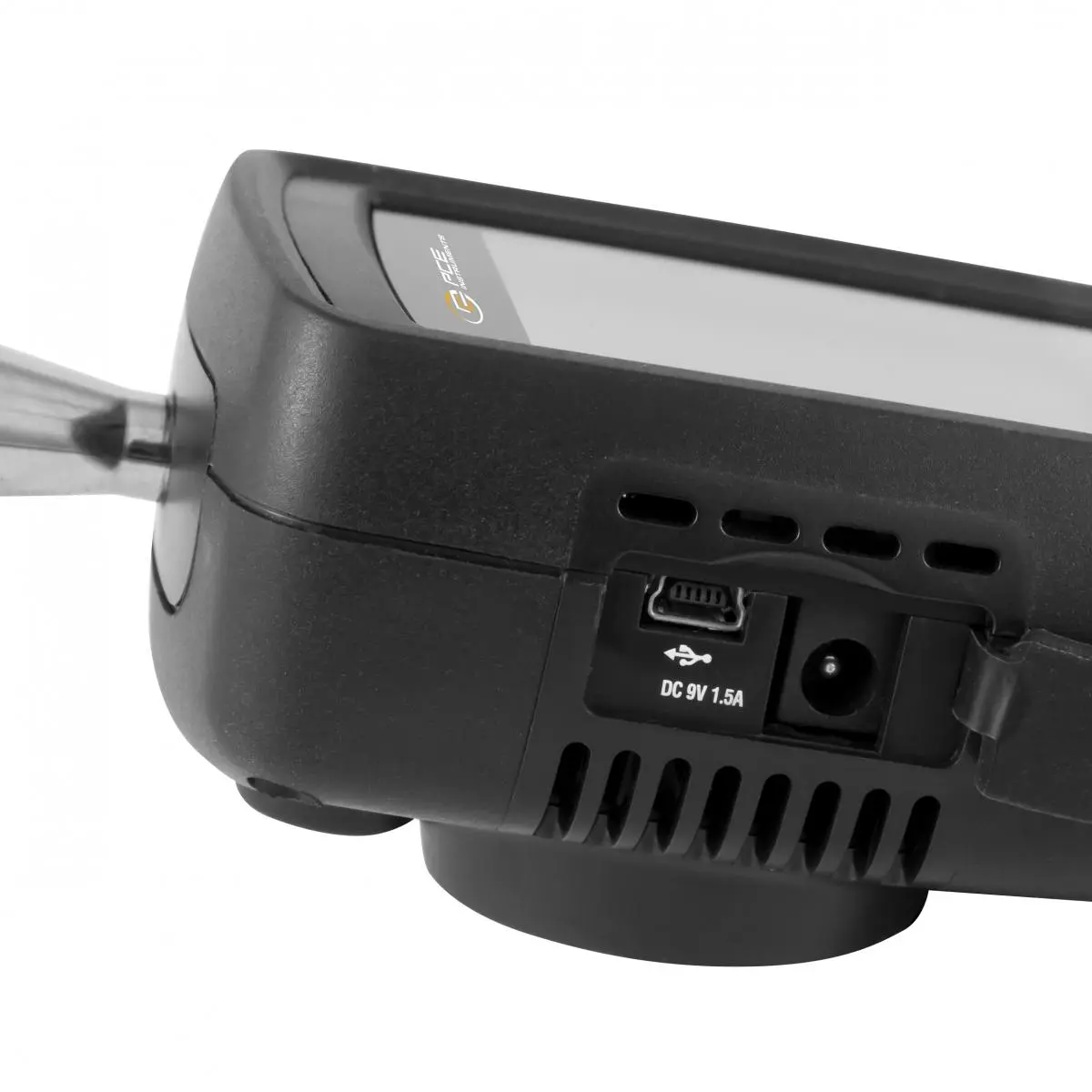

Power supply mains adapter
 Primary: 100 ... 240 V AC, 50/60 Hz, 0.6 A.
  Secondary: 9 V DC, 1500 mA
Power supply battery 7.4 V, 1200 mAh, 8.88 Wh
Battery Life approx. 4 hours in continuous operation
Battery recharge time approx. 2 hours with AC adapter
Dimensions 240 x 75 x 57 mm
Weight 570 g

Delivery Scope

1 x Particle Counter Device PCE-MPC 30
1 x zero filter
1 x battery
1 x charger
1 x mini USB cable

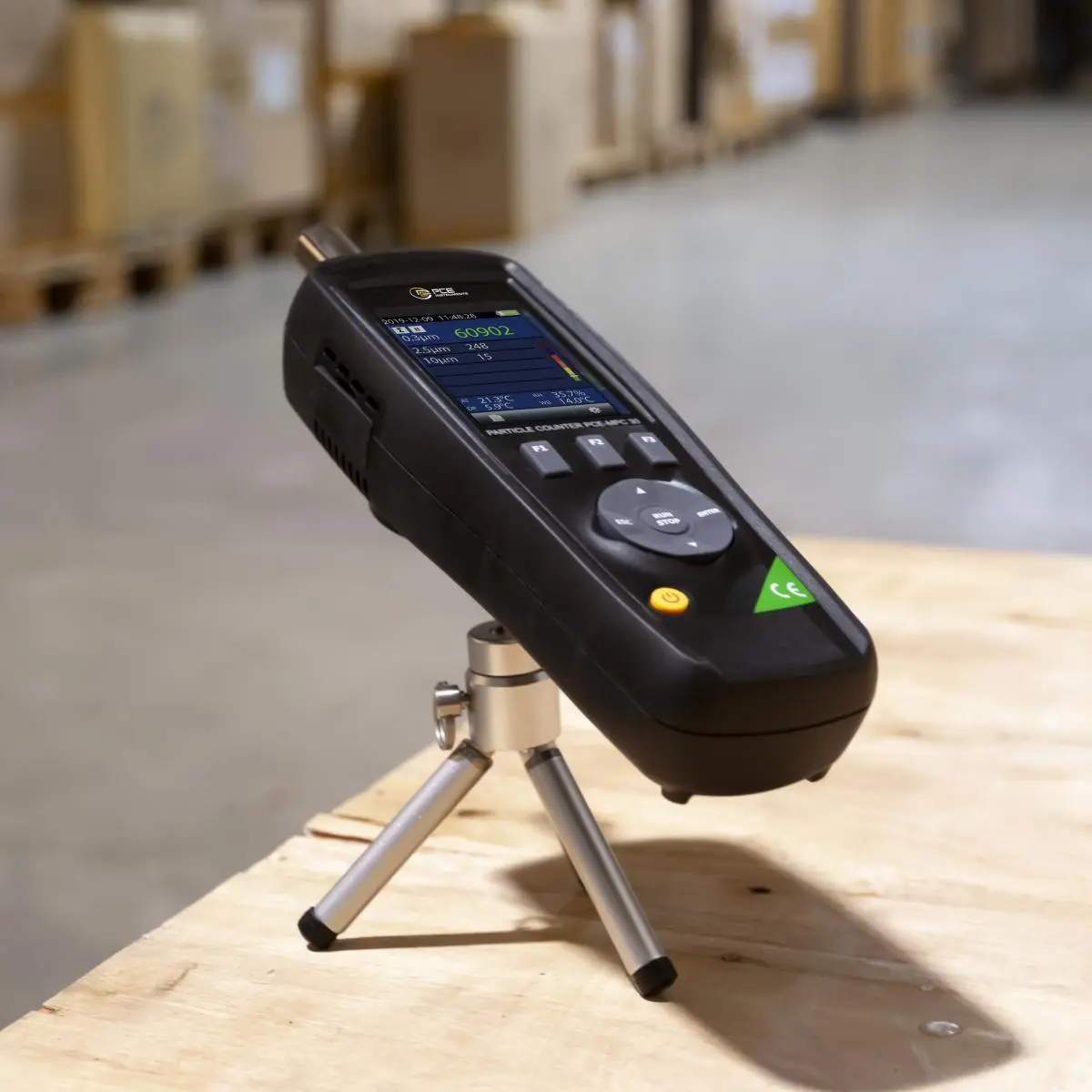

1 x mini tripod
1 x hard case
1 x instruction manual

Downloads
