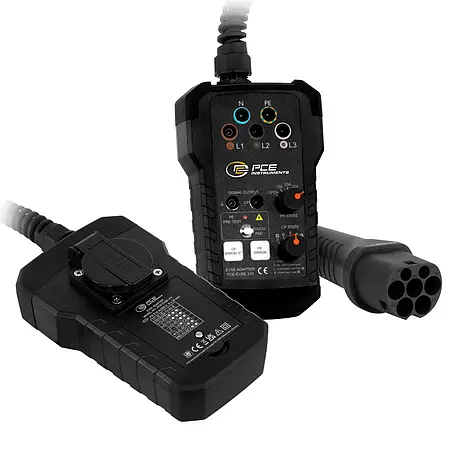

PAT Tester / Portable Appliance Testing Equipment PCE-EVSE 310

Order no.: PCE-EVSE 310
GTIN (EAN): 4250348732323
332,90 €
396,15 €
Topseller
price ex. (VAT / delivery)
:
4250348732323
PCE-EVSE 310
Delivery time: 1-2 working days

Description

PAT Tester / Portable Appliance Testing Equipment / vehicle simulation / cable simulation / CP output and mains socket for measuring purposes / incl. transport bag

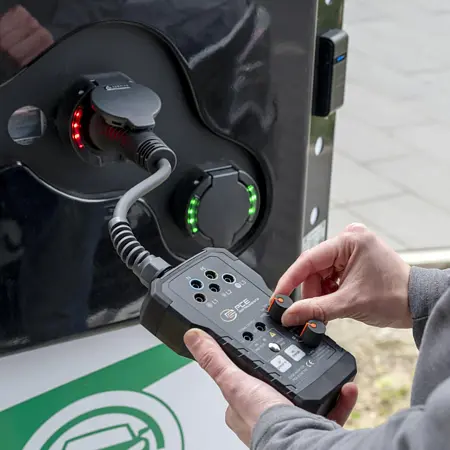

The PAT tester / portable appliance testing equipment is  for VDE 0100 testers to test charging stations (charging mode 3) for electric cars. This adapter can be used with the PCE-ITE 55B installation tester or with most other standard VDE 0100 testers. Thanks to the LEDs for voltage detection on the 3 phases, it can be quickly determined if there is an installation error.

The PP State rotary switch can be used to simulate the current carrying capacity of the charging cable. The current carrying capacity is simulated with various resistors in the PAT tester / portable appliance testing equipment, which are connected between PP and PE conductors. Various vehicle states can be simulated using the CP State rotary switch. The vehicle states are simulated with different resistors connected between the CP and PE conductors.

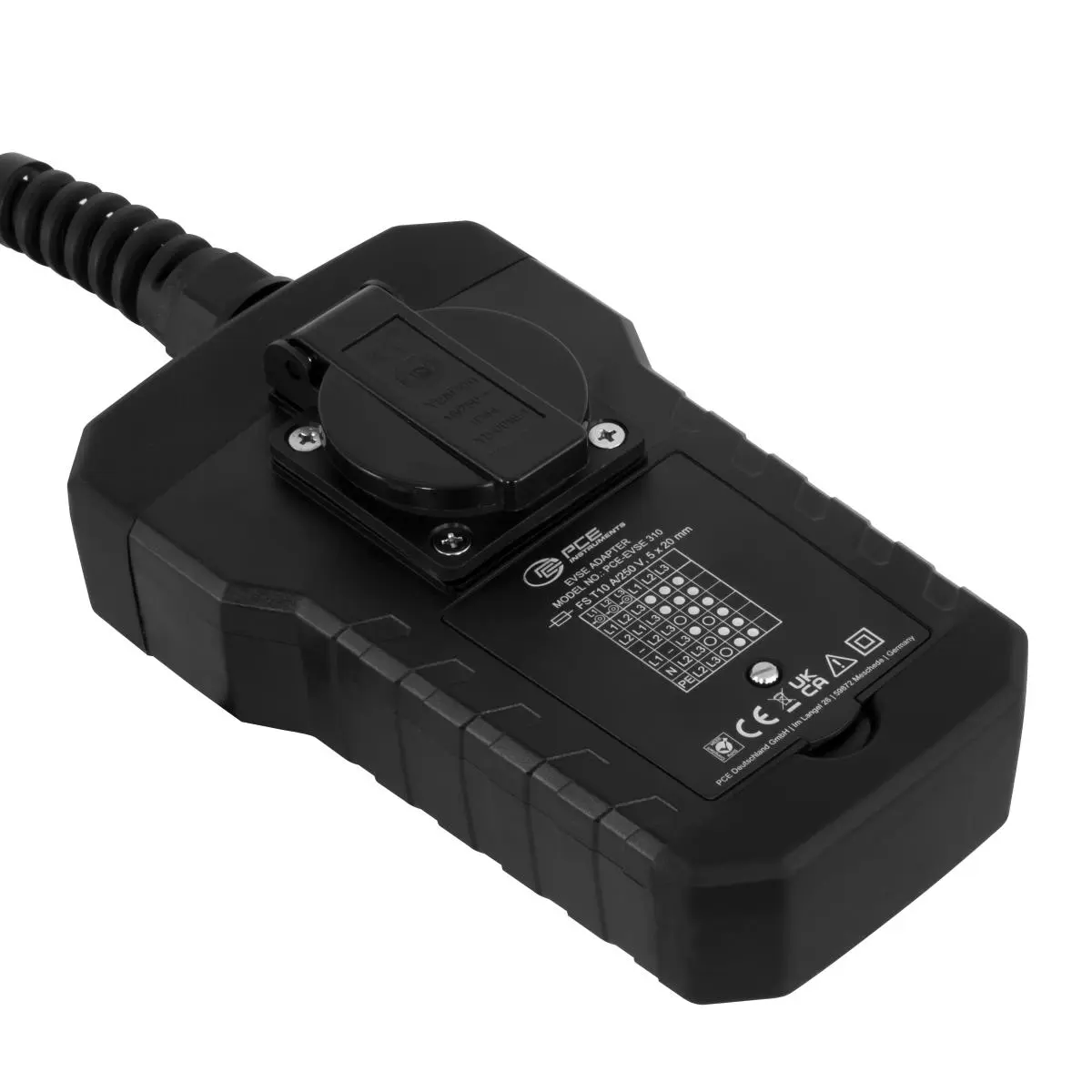

An external load can be connected to the socket. This output is only intended for measuring purposes and offers the option of checking the function of the electricity meter. The PAT tester / portable appliance testing equipment can also be used to simulate a PE fault (earth fault). The PAT tester / portable appliance testing equipment is supplied in a device bag. There is also an optional adapter for wallboxes with a type 1 connection.

Highlights

- PE pre-test
- Status of the Proximity Pilot PP and the Control Pilot CP
- Simulation of CP fault "E" and PE fault
- Mains socket for measuring purposes
- Safety measuring sockets
- Optional adapter to type 1

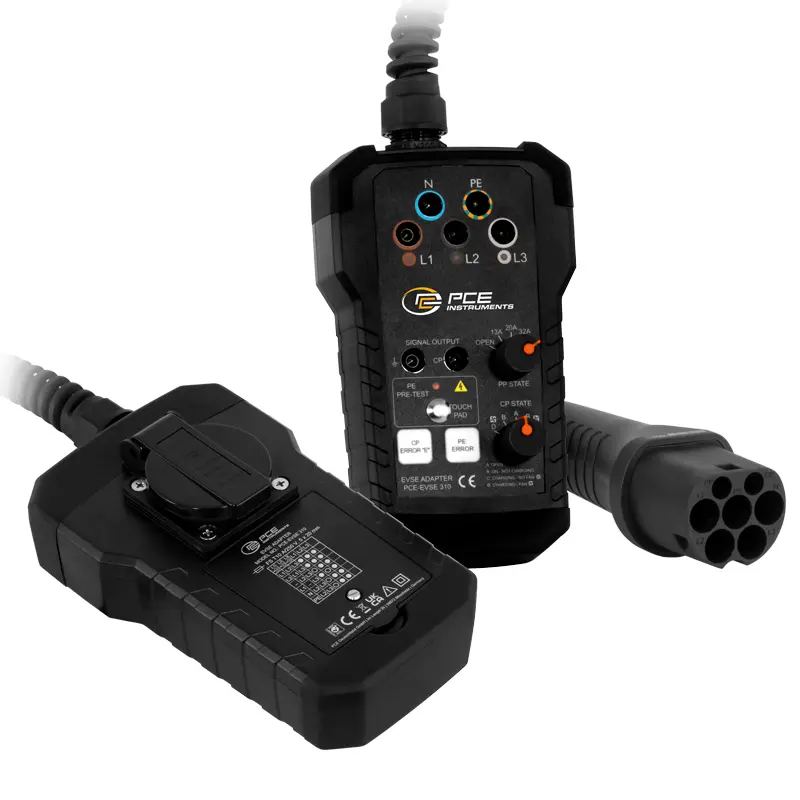

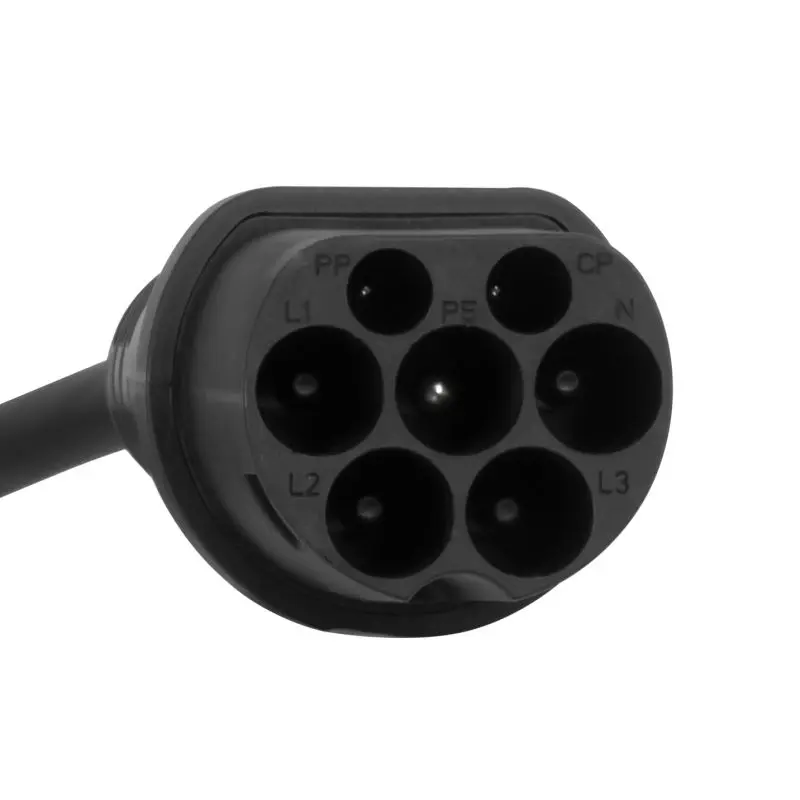

incl. type 2 plug


Specification

. . . . . . . . . . . . . . . . . . . . .
Test Functions
PE pre-testyes, with capacitive electrode
PP Simulationopen, 13 A, 20 A, 32 A, 63 A
CP StatusA, B, C, D
CP error "E"E
PE fault / earth faultYes

General technical data
ConnectionsL1, L2, L3, N, PE
Connections Additional information  max. 230V (1-phase) / 430V (3-phase) ; 50 / 60Hz
10A / 250 V
Type 2 plug fixed to the cable
(optional adapter required for type 1)
Standard(s)IEC62196-2 Type 2 connector
Cable length25 cm
Safety standardCAT II / 300V
Power socketmax. 250 V; 50/60 Hz; 10 A
Outputs2 x 4mm sockets (signal output terminals)
Fuse(s)Power socket T10A/250V
Protection class (device)IP40
Weight643 g
Dimensions (L x W x H)600 x 105 x 73 mm
Operating conditions0 ... 40 °C , 80 % r.H.
Storage conditions-10 ... 50 °C , 80 % r.F
Languages of instructionsGerman, English

Delivery Scope

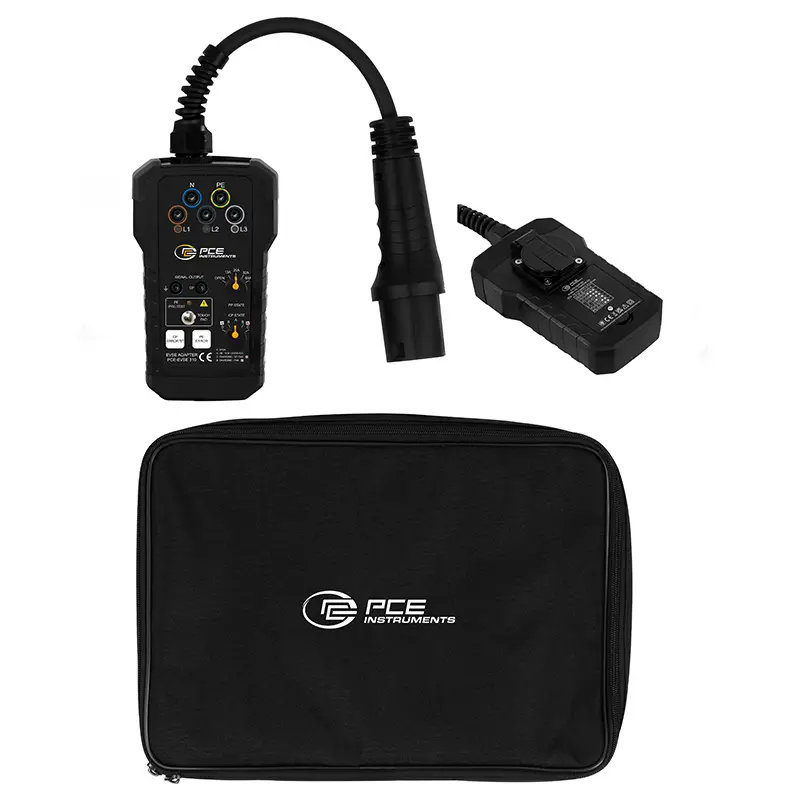

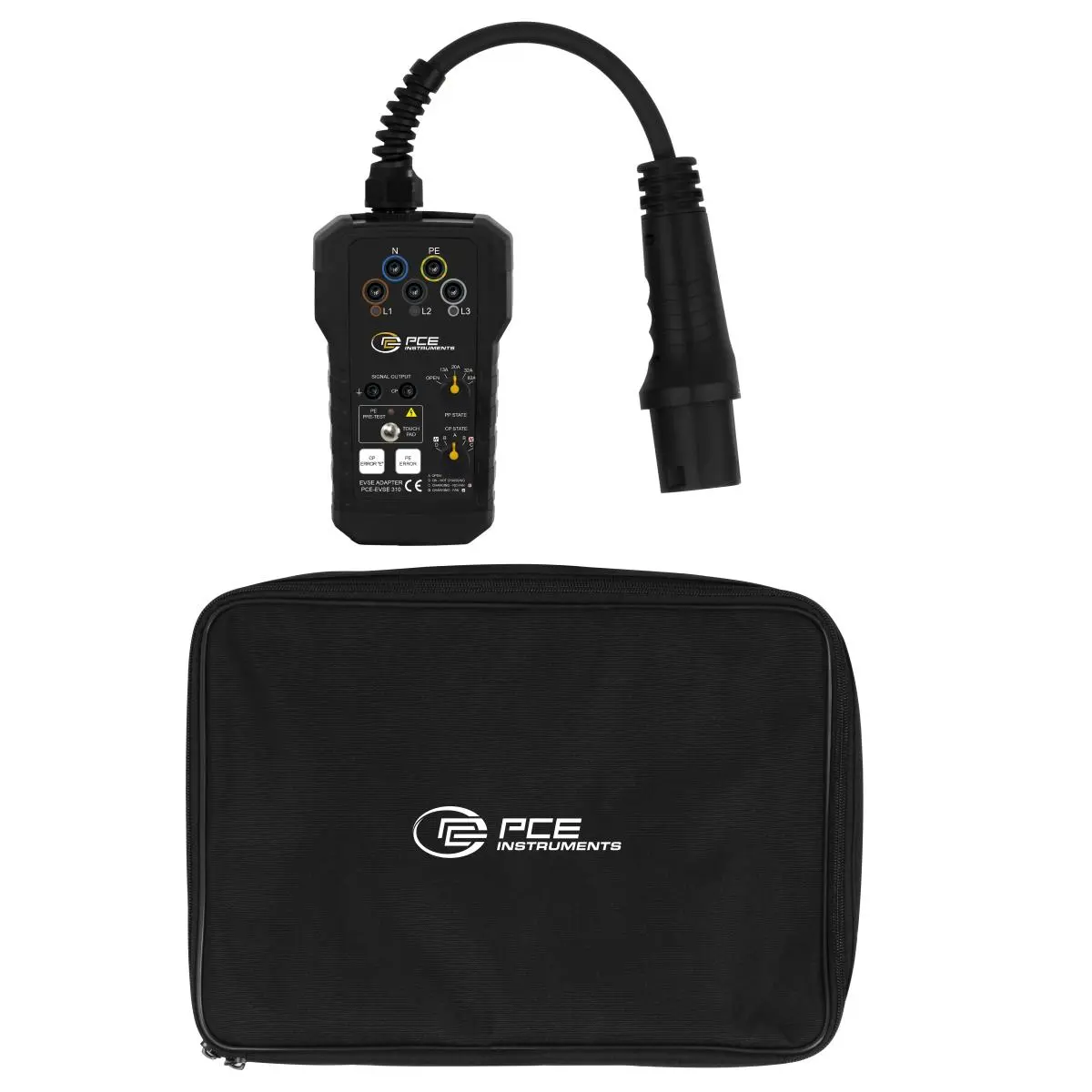

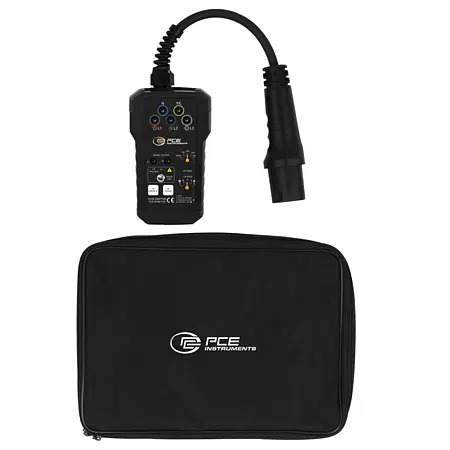

1 x PAT Tester / Portable Appliance Testing Equipment PCE-EVSE 310
1 x operating instructions
1 x transport bag
1 x type 2 plug
