Multifunction pH Meter PCE-PHD 1

Order no.: PCE-PHD 1

GTIN (EAN): 4250348702760

Accessory

Potassium Chloride Conductivity Solution 1413μS / cm 500 ml

27,90 €

Food pH-electrode CPC-OSH-12-01

208,90 €

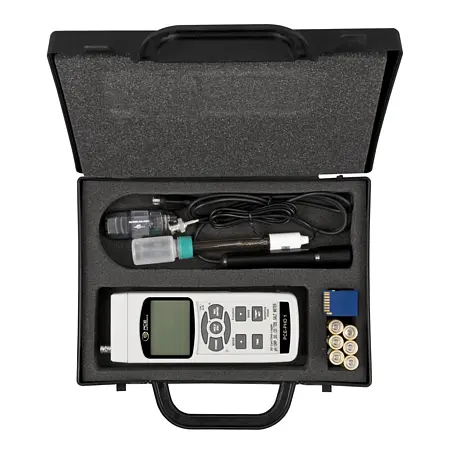

Carrying Case with hard foam insert

25,90 €

Replacement Electrode CPC-OSH-12-00SP

115,90 €

ISO certificate CAL-PCE-PH for pH meters

71,90 €

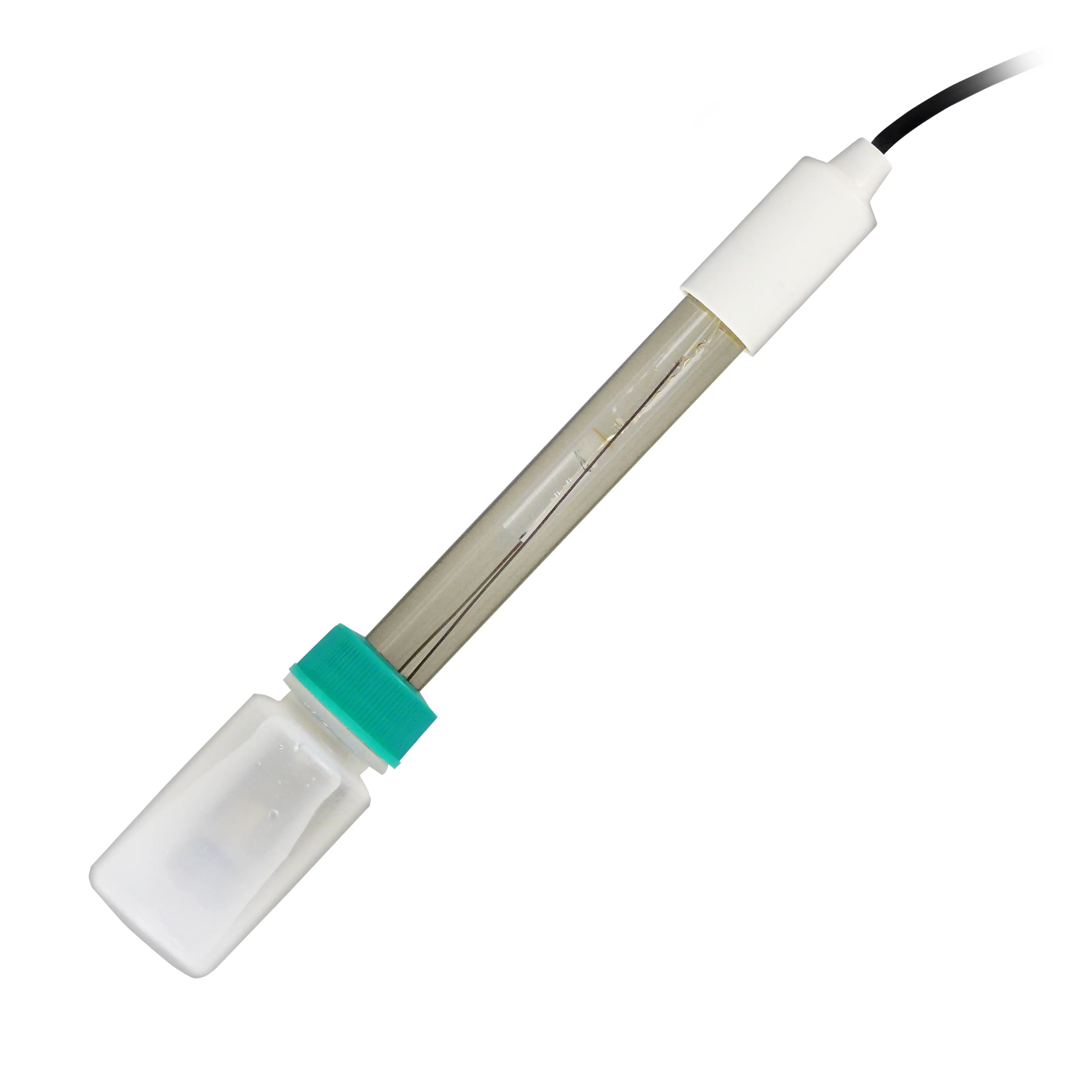

pH-Electrode PE-03

50,90 €

REDOX-Electrode ORP-14

84,90 €

Replacement membrane OXHD-04

14,90 €

Oxygen probe OXPB-11

98,90 €

Electrolytic solution OXEL-03

24,90 €

Temperature sensor TP-07

34,90 €

Replacement conductivity electrode CDPB-03

Replacement electrode CDPB-03

54,90 €

Potassium Chloride Conductivity Solution 1413μS / cm 250 ml

22,90 €

USB Data Cable Incl. Software SOFT-LUT-USB

85,90 €

Power Supply 9 V / 0.8 A (US / North American)

15,90 €

Power Supply 9 V / 1 A (European)

24,90 €

Standard pH electrode CPC-EPS-1

95,90 €

Buffer solution PCE-PH2-500 500 ml

19,90 €

pH Electrode for Wine PCE-PH-WINE

380,90 €

Electrode Storage Solution 3mol / l

14,00 €

Conductance Solution Potassium Chloride PCE-CDS-12,88

22,90 €

Calibration Solution PCE-CDS-111,8

24,90 €

Diaphragm Cleaner with Thiourea PCE-DCS-250

28,90 €

Buffer solution PCE-PH12-500

19,90 €

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

21,90 €

Redox Solution +468 mV PCE-RTS-468

30,90 €

Redox Solution +240 mV PCE-RTS-220

30,90 €

pH Electrode PCE-PH-SLUR

150,90 €

pH Electrode PCE-PH-LIQ

150,90 €

Calibration Solution pH4 and pH7

20,90 €

pH Electrode IJ-44A

148,90 €

Calibration Solution pH4 and pH7 and pH10

28,01 €

Calibration Solution pH10

13,90 €

Calibration Solution pH7

12,20 €

Calibration Solution pH4

12,20 €

Description

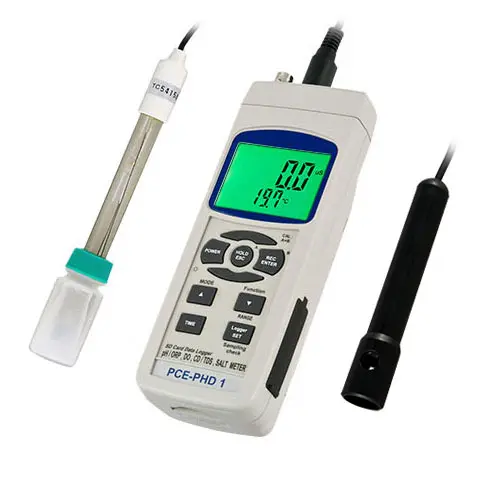

PCE-PHD 1 Multifunction pH Meter
pH value, redox, conductivity, salt, oxygen and temperature measuring device /
SD card memory (1 ... 16 GB), data is saved as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC

The Multifunction pH Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction pH Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water. Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements.

This meter is supplied with both a pH electrode and a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. This meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

Highlights

- Optimal price / performance ratio
- Real-time data logger
- SD card memory (1 ... 16 GB)
- The saved data is saved directly as an Excel file on the SD card (for evaluation, no software is required)
- RS-232 interface for online data transfer
- Measures pH value, redox, conductivity, salt content, oxygen, and temperature
- High precision
- Low battery display
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Includes pH and conductivity electrode
- Automatic calibration
- Manual or automatic temperature compensation

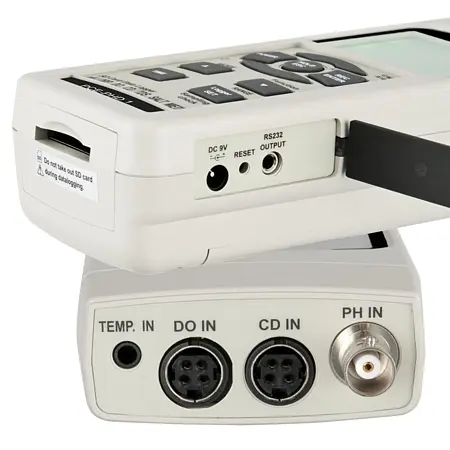

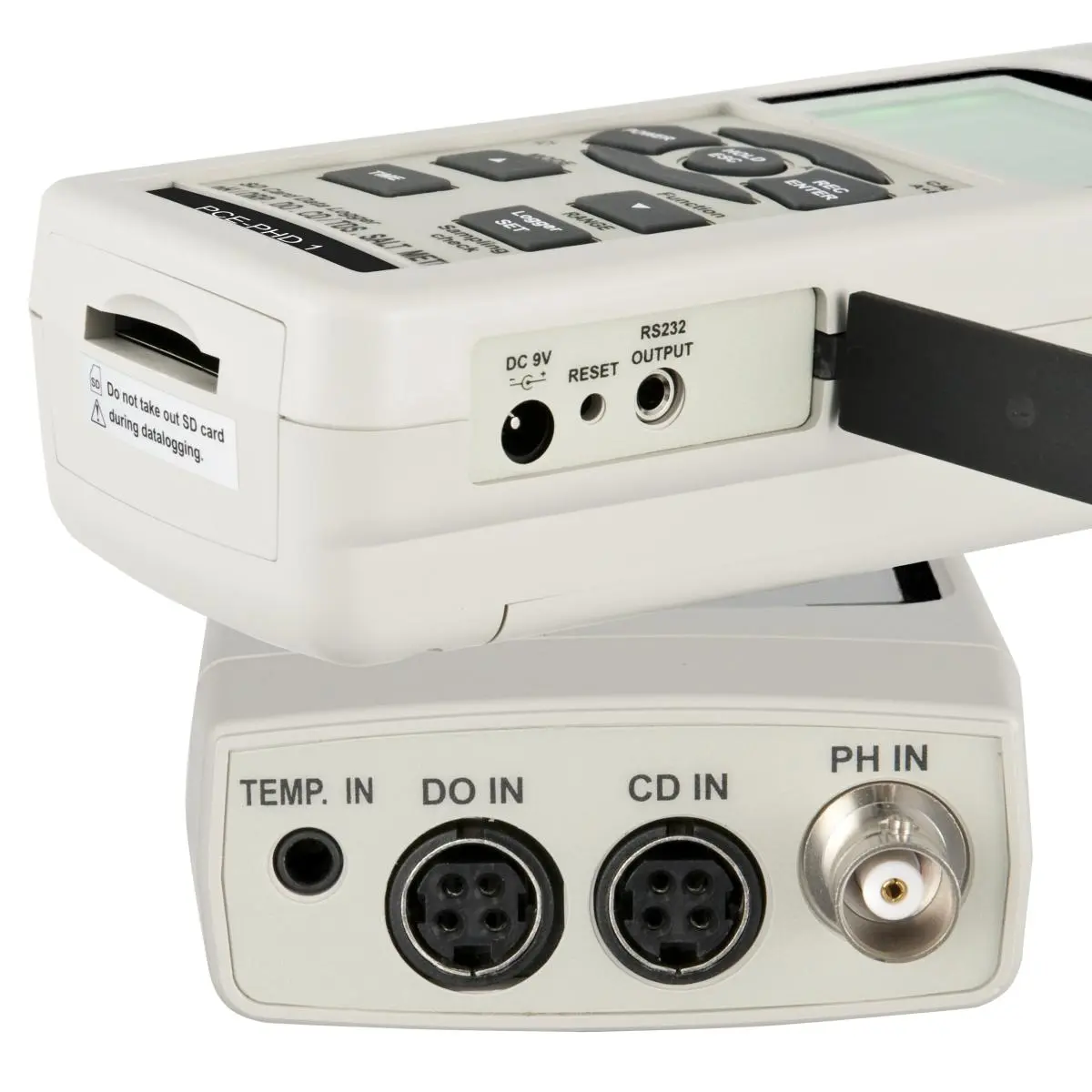

- BNC connector
- Suitable for laboratory and on-site measurements
- REDOX and oxygen electrode optionally available

Specification

pH measurement
Measurement range	0 ... 14.0 pH
Resolution	0.01 pH
Accuracy	±0.02 pH + 2 digits
Calibration	3 points (pH 4, pH 7, and pH 10)
Temperature compensation	Automatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF)

Redox measurement (optional)
Measurement range	1999 ... 0 ... 1999 mV
Resolution	1 mV
Accuracy	± 0.5 % + 2 digits

Conductivity measurement
Measurement range	0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm
Resolution	0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy	±2 % of the measurement range + 1 digit
Calibration	1413 mS/cm
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Total dissolved solids (TDS) measurement
Measurement range	0 ... 132 ppm, 132 ... 1320 ppm, 1320 ... 13200 ppm, 13200 ... 132000 ppm
Resolution	0.1 ppm, 1 ppm, 10 ppm, 100 ppm
Accuracy	±2 % of the measurement range + 1 digit
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Salt content measurement
Measurement range	0 ... 12 % (of weight)
Resolution	0.1 %
Accuracy	±0.5 % of the measurement range
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Oxygen measurement (optional)
Measurement range	0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 ºC / 32 ºF ... 122 ºF
Resolution	0.1 mg/l, 0.1 %, 0.1 ºC
Accuracy	±0.4 mg/l, ±0.7 %, ±0.8 ºC
Calibration	In the air
Temperature compensation	Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF)

Temperature measurement
Measurement range	0 ... 60 ºC / 32 ºF ... 140 ºF
Resolution	0.1 ºC
Accuracy	±0.8 ºC
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

General specifications
Measurement rate	1 second up to 8 hrs 59 mins 59 secs
Display	LCD 52 x 38 mm / 2 x 1.5"
Memory	SD card up to 16 GB (2 GB card included)
Interface	RS-232
Software	Optional
Power supply	6 x 1.5 V AA batteries (optional power adapter)
Operating conditions	0 ... +50 ºC / < 85 % RH
Dimensions	177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
Weight	490 g / 1.1 lbs
