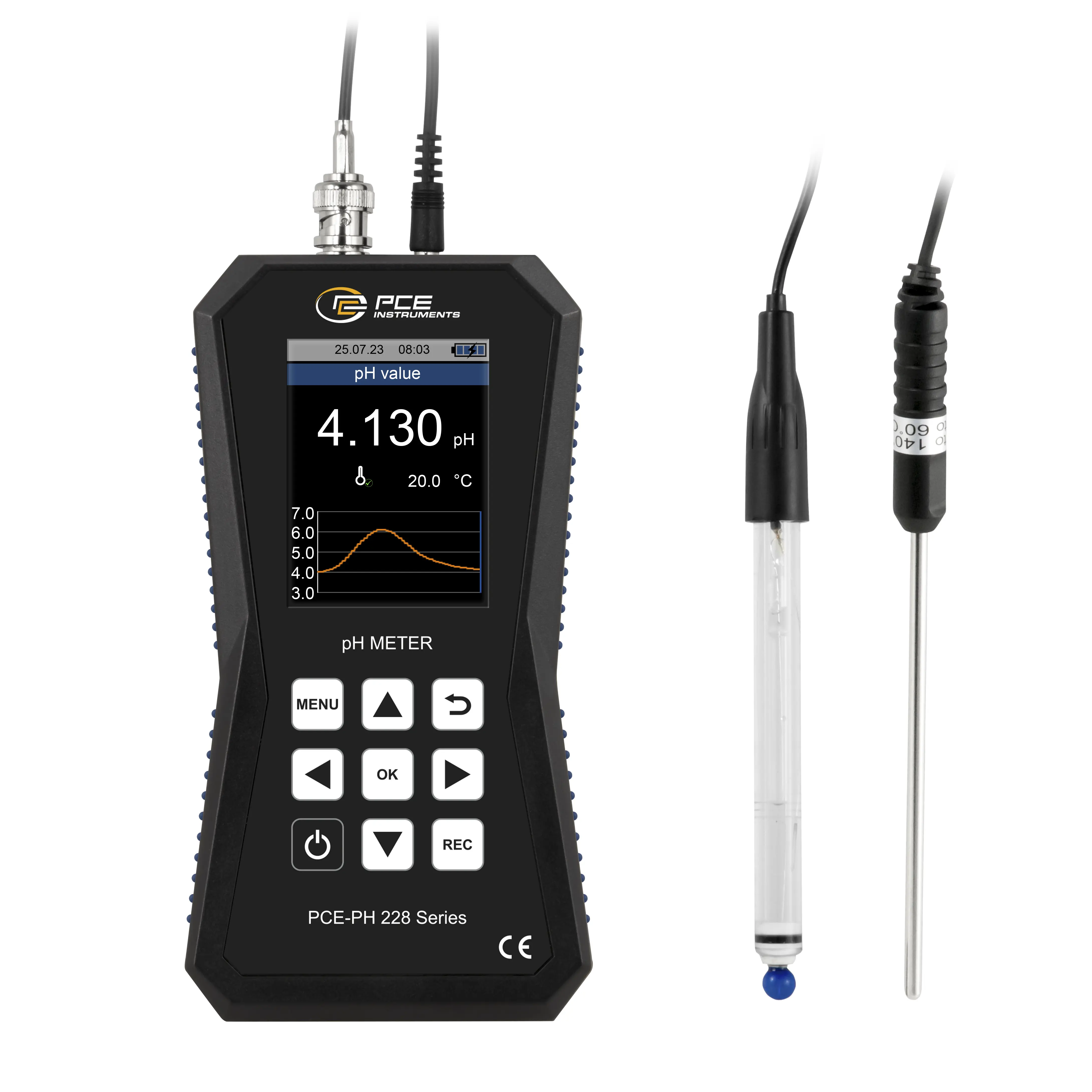

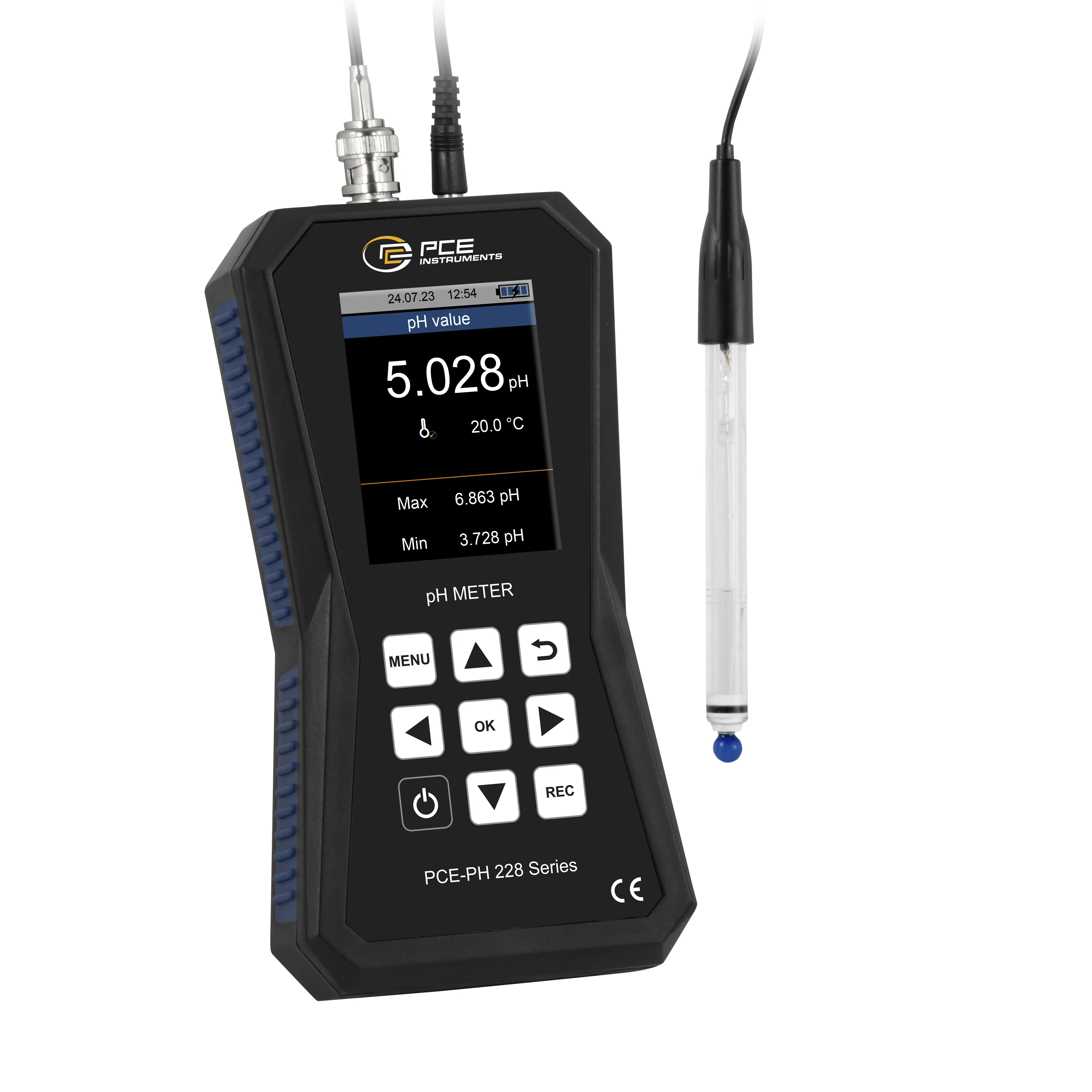

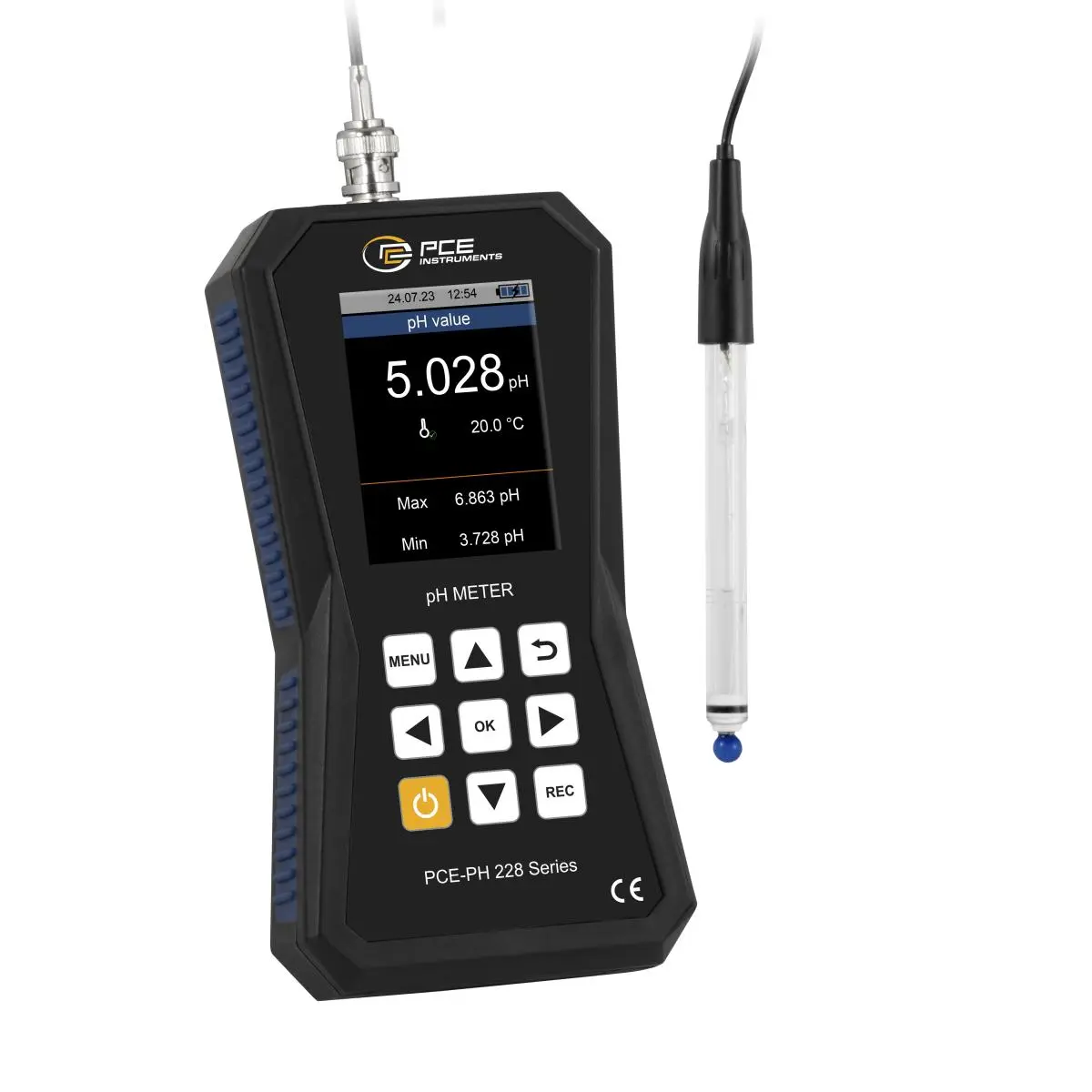

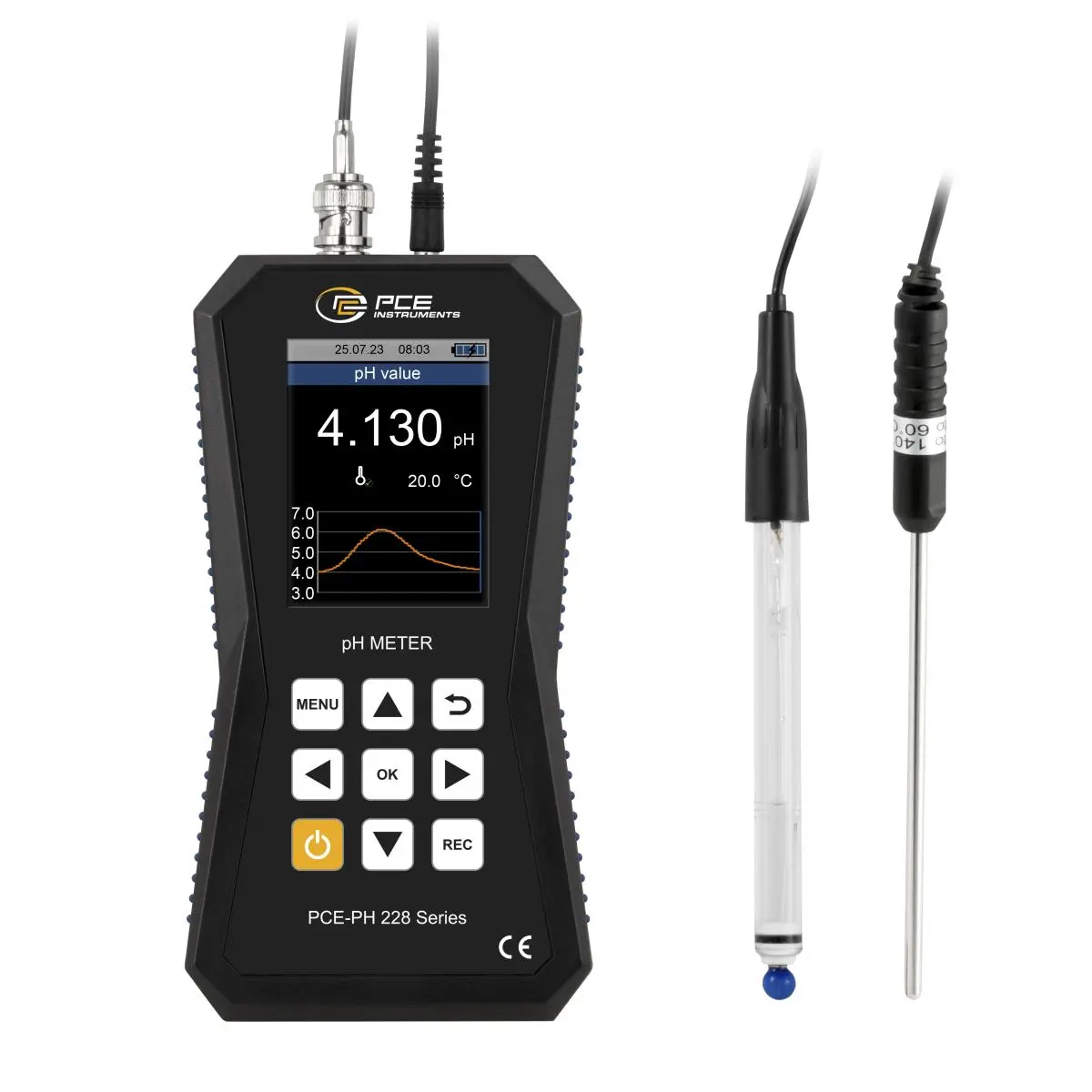

pH Tester PCE-PH 228HTE

Order no.: PCE-PH 228HTE
GTIN (EAN): 4250348735355
635,90 €
756,72 €
price ex. (VAT / delivery)
:
4250348735355
PCE-PH 228HTE
Delivery time: 1-2 working days

Description

pH Tester with GLP data management / high accuracy ± 0.002 pH + 2 digit / data logger / user with password protection / incl. electrode / rechargeable battery operation

Our pH Tester stands for precision, user-friendliness and GLP conformity (Good Laboratory Practice). With a high-resolution LCD screen, our pH Tester provides a clear and concise display of the measured values. GLP compliance is guaranteed by automatic data recording and traceable documentation. It is possible to measure pH or redox values and temperature with external sensors.

A permanent measurement verification (PMV) shows the user where the measured value is within the calibration range by means of a coloured bar in order to classify whether the measurement is within the correct range.
GLP (Good Laboratory Practice) ensures that measurements are reliable and reproducible by prescribing precise protocols and standardised procedures. A GLP-compliant approach ensures the quality of the data and the integrity of the experiment. GLP-compliant pH measurements are particularly important in scientific research laboratories and industrial applications to ensure accurate and trustworthy results.

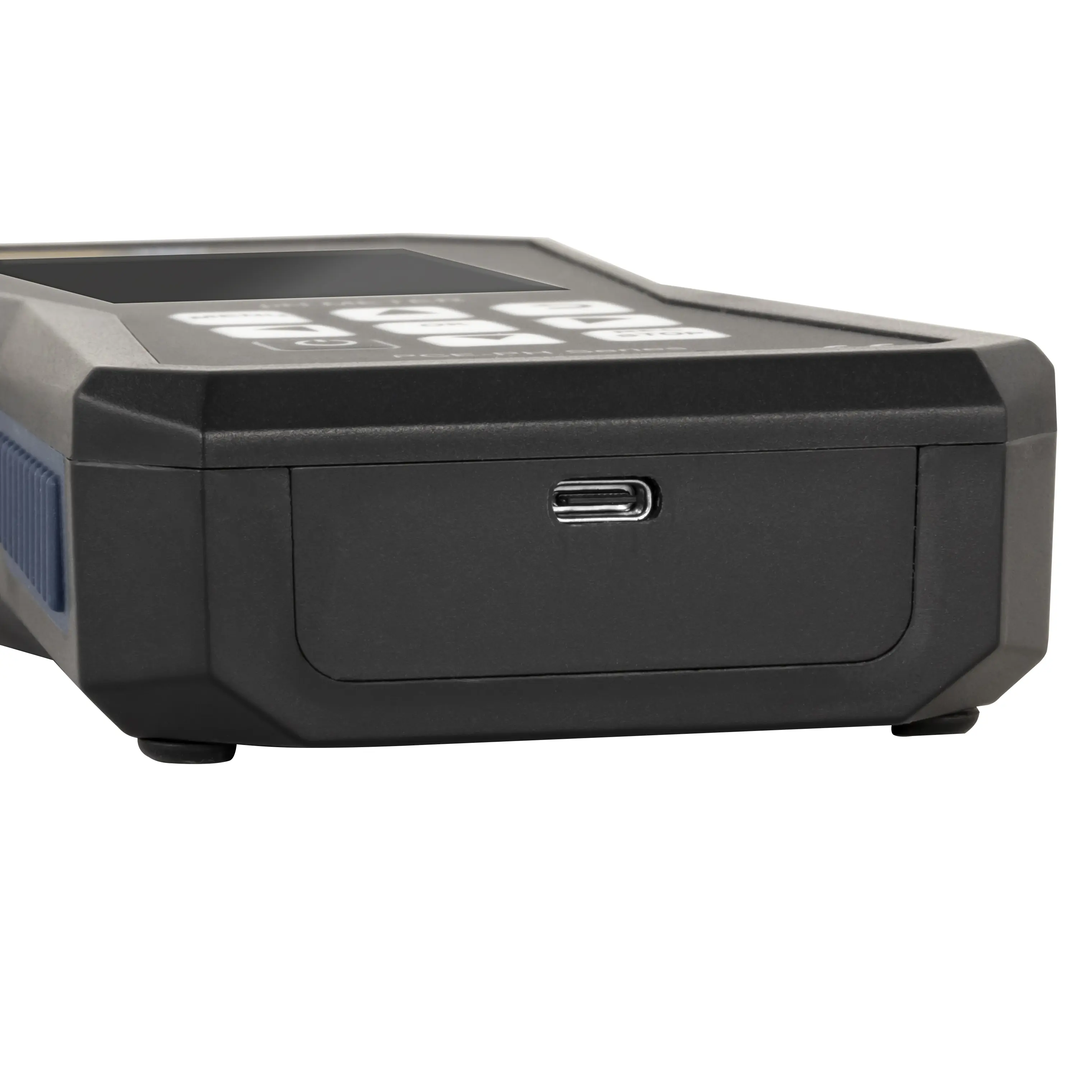

The graphically guided calibration makes the process simple and user-friendly. User and sample management allow easy navigation and setting of measurement parameters on the pH meter. Sample information can be saved to facilitate the management and identification of measurements. A large internal data memory saves extensive records without the need for external storage. Our pH Tester is equipped with a USB-C port for fast data transfer and charging. A powerful rechargeable LiPo battery enables hours of measurements before it needs to be recharged.

Overall, this pH Tester represents a significant step in the development of handheld and laboratory instruments. The high accuracy of ±0.002 pH + 2 digits, graphically guided calibration, GLP compliance, user and sample management and data storage make it an indispensable tool for scientists, researchers and laboratory technicians who rely on precise pH measurements. It does not only improve the accuracy and efficiency of experiments but also facilitates everyday work in industry, quality assurance and the laboratory.


Highlights

- fast, precise pH and temperature measurement
- adjustable resolution: 0.1 pH, 0.01 pH, 0.001 pH
- redox measurement (with optional electrode)
- GLP data management
- simple 2, 3, 4 and 5-point calibration
- calibration reminder
- permanent measurement verification (PMV)
- graphical display of measurement progress
- data logger

Specification

pH
Measurement range up to  -2 ... +20 pH
Resolution  0,001 pH
Accuracy  ±0.002 pH +2 digits

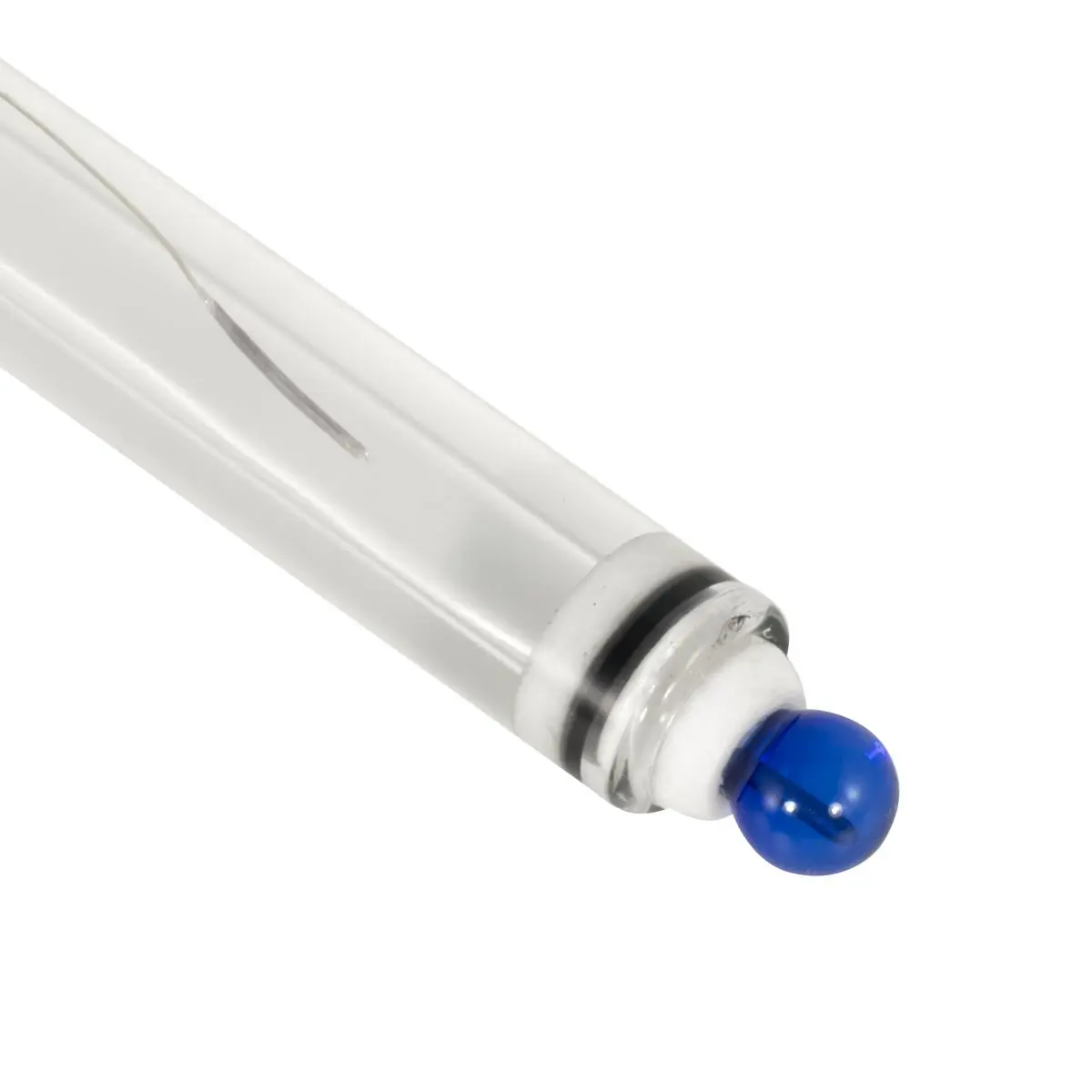

Electrode
Designation  PCE-PH-HTE
Measurement range up to  1 ... 13 pH
Temperature range  0 ... 100 °C
Application  Aqueous non-corrosive media
Reference electrolyte  Ag/AgCl
Shank material  Epoxy resin
Shank length  120 mm
Shank diameter  12 mm
Cable length  1 m

Redox
Measurement range up to  -2000 ... +2000 mV
Resolution  1 mV
Accuracy  ±2 mV

Temperature sensor
Measurement range up to  -20 ... +100 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C (@ 20 °C)

General technical data
Measuring functions  MIN, MAX
Display type  LCD with backlight
Display size  2,8 Inch
Storage medium  Internal memory
Storage capacity  32 GB
Memory capacity (additional information)  100 recordings with max. 100,000 data points per recording
Storage interval from  1 s
Storage interval to  12 h
Interface  USB-C
Number of calibration points  5
Menu language  Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device)  IP52
Power supply  5 V DC, 500 mA
(Rechargeable) battery  1 x 3,7 V LP785060 , Lithium polymer battery
Capacity  2500 mAh
Operating conditions  -20 ... 65 °C , 10 ... 95 % RH
Storage conditions  -20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  178 x 85 x 32 mm
Weight  252 g

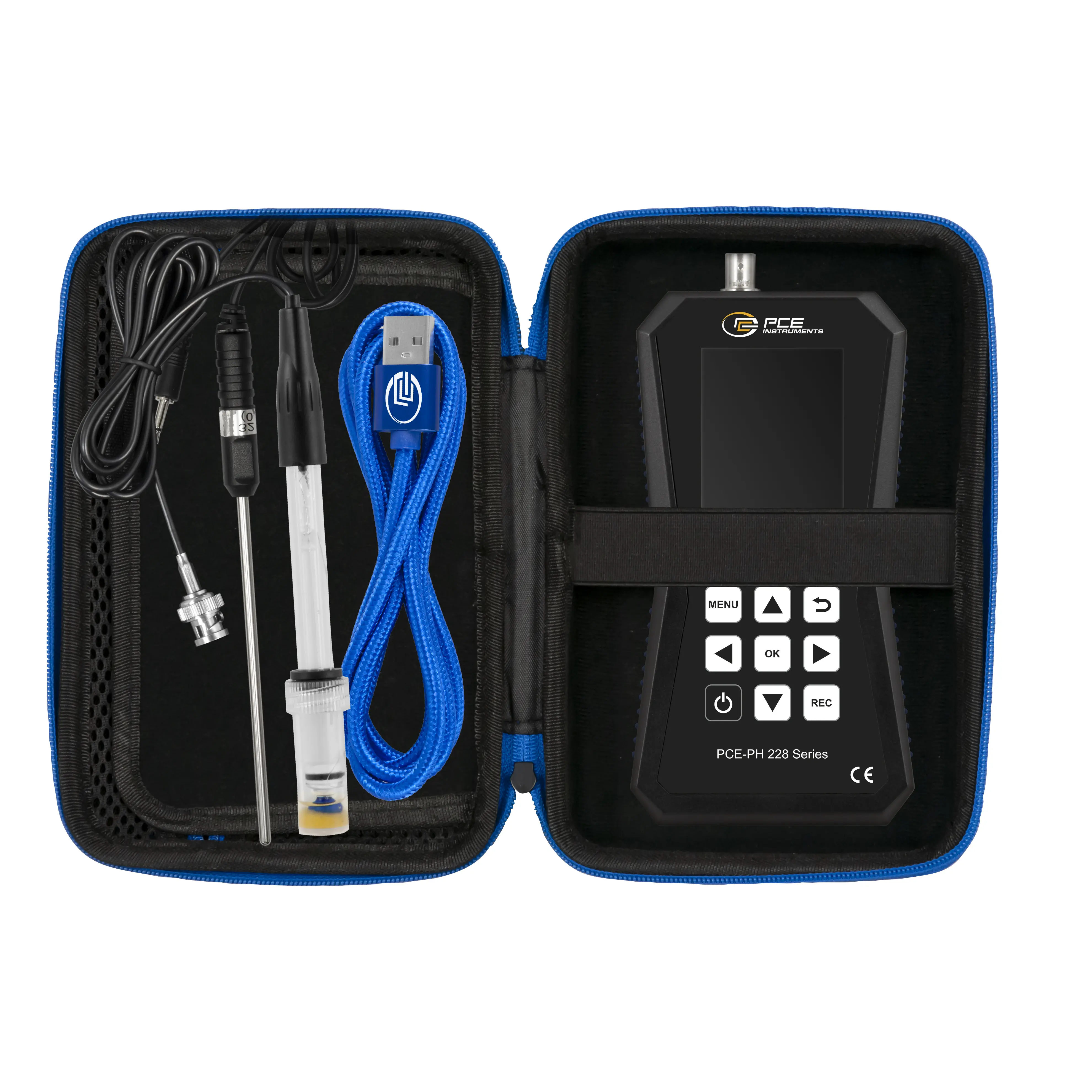

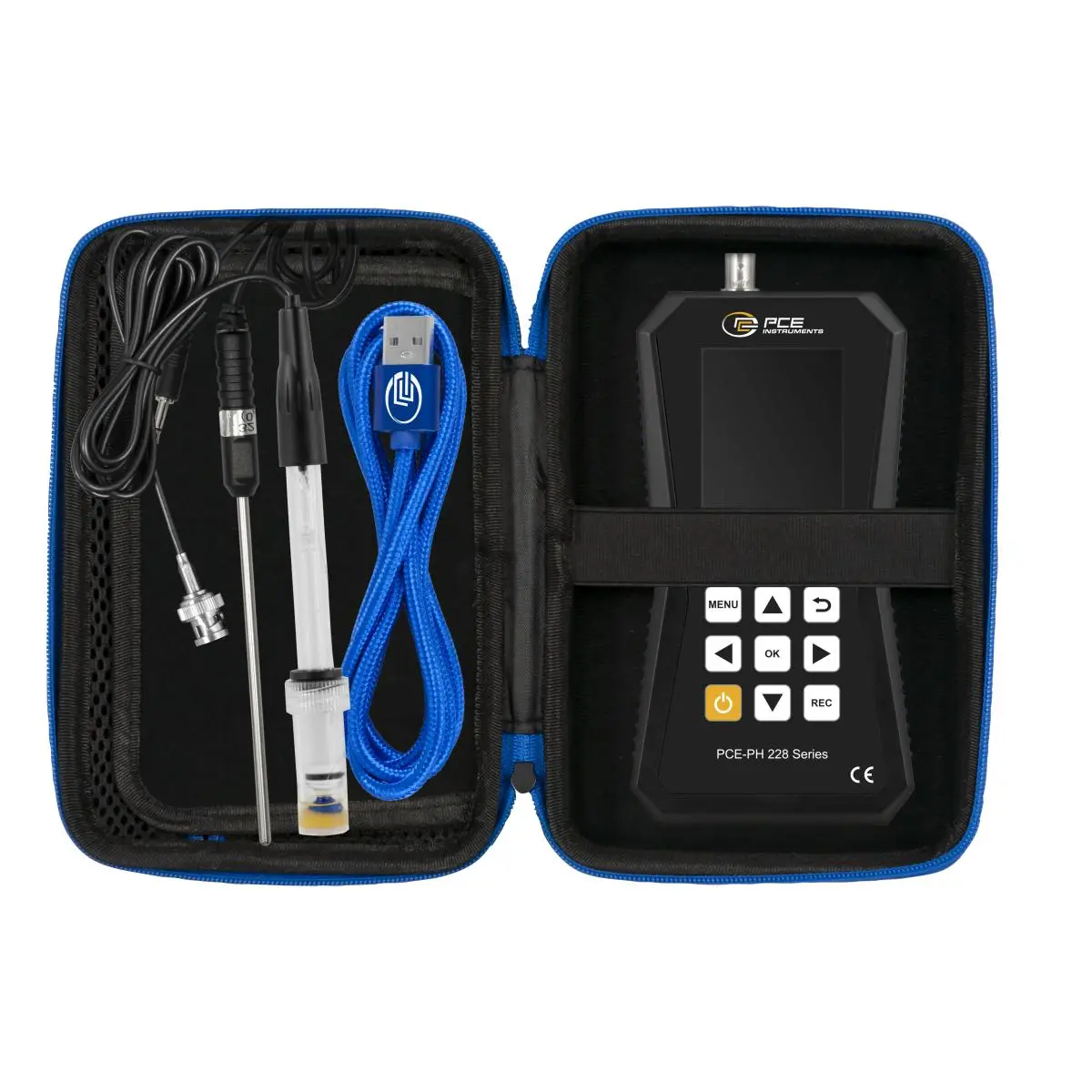

Delivery Scope

1 x pH Tester PCE-PH 228HTE
1 x pH electrode PCE-PH-LIQ
1 x temperature sensor
1 x service bag
1 x USB-C cable
1 x quick start guide
