Photometer PCE-PSR 300UV

Order no.: PCE-PSR 300UV
GTIN (EAN): 4250348736444
4.849,90 €
5.771,38 €
price ex. (VAT / delivery)
:
4250348736444
PCE-PSR 300UV
Delivery time: 1-2 working days

Description

Photometer / UV radiation intensity / colour rendering index (CRI) / colour coordinates and spectral distributions / illuminance / data as csv. and pdf. file / USB-C interface / touch screen

The UV Photometer is a high-precision meter for analysing UV-A, UV-B and UV-C radiation and offers exceptional measuring accuracy and versatility. With a measurement range of 0.1 to 500,000 µW/cm² and an accuracy of ±0.01 µW/cm², it is ideal for demanding applications in photobiology, material testing and UV protection analysis. The spectral resolution is ±0.2 nm, while the reproducibility is ±0.5 nm, which guarantees constant and reliable data acquisition.

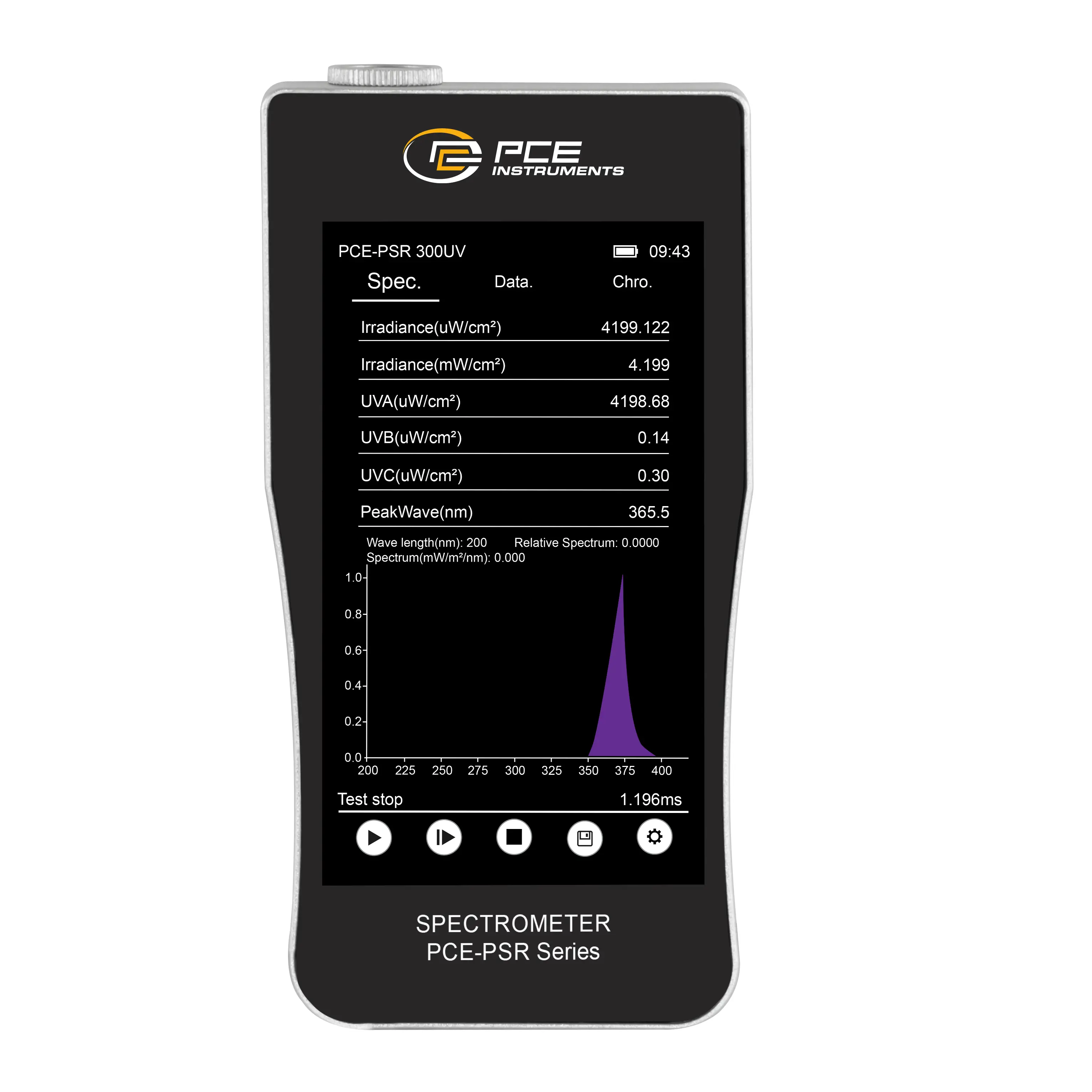

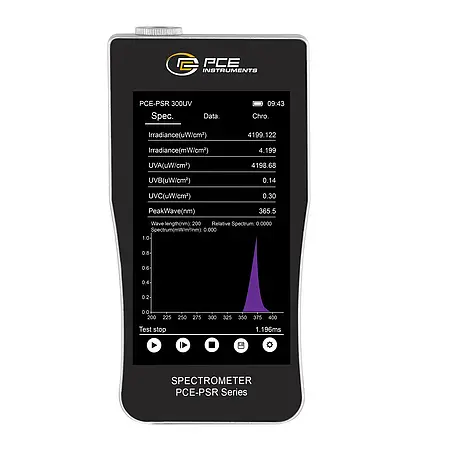

In addition to precise UV radiation measurements, the device captures colour coordinates and spectral distributions with a chromaticity coordinate accuracy of ±0.005 (Δx, Δy). The Photometer is not only technically powerful but also designed to be user-friendly. The capacitive 5-inch IPS touch screen offers intuitive operation and ensures that all measurement data is clearly displayed, even in difficult lighting conditions. With the integrated rechargeable 4000 mAh lithium-ion battery, the Photometer guarantees long operating times so that even extensive measurements can be carried out without any problems. The internal memory of 8 GB offers sufficient space for a large amount of measurement data, which can be saved directly to the device.

PC software is available for seamless data processing and advanced analysis functions. This allows measured values to be easily transferred, analysed and archived. This Photometer combines precision, versatility and ease of use in a compact device, making it the ideal solution for professional applications in industry, research and education.


Highlights

- UV-A, UV-B and UV-C light
- spectral resolution: ± 0.2 nm
- reproducibility: ± 0.5 nm
- wavelength: 200 ... 400 nm
- accuracy of the chromaticity coordinate (Δx, Δy): ±0.005
- capacitive 5-inch IPS touch screen
- rechargeable 4000 mAh lithium-ion battery
- 8 GB internal memory
- PC software

Specification

Radiation
Measurement range up to  0,1 ... 500000 µW/cm²
Resolution  0,001 µW/cm²
Accuracy  0.01 µW/cm²

General technical data
Display type  LCD touchscreen
Display size  5 Inch
Display resolution  480 x 854
Storage medium  Internal memory
Storage capacity  8 GB
Memory capacity (additional information)  approx. 5000 data records

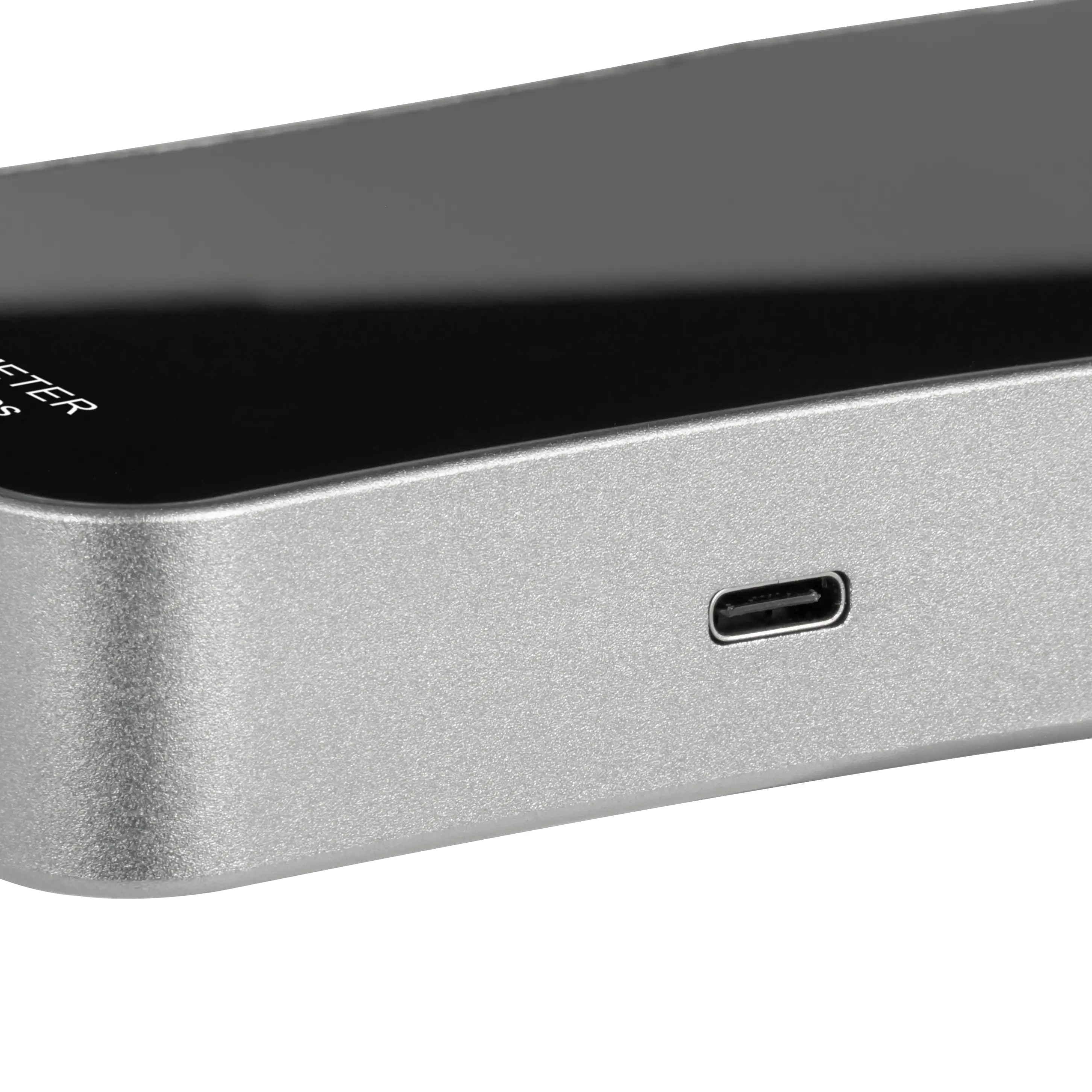

Interface  USB, BLE switch
Operating time  20 h
Automatic power-off from...to  2 ... 60 min.
Automatic power-off can be deactivated  Yes
Reproducibility  ±0.5 nm
Colour spaces  CIE1931, CIE1960, CIE1976, SDCM, CRI1, CRI2, TM30 (Distribution of Fidelity), TM30 (Change Distribution), TM30 (Rg/Rf)
Wavelength range  200 ... 400 Nm

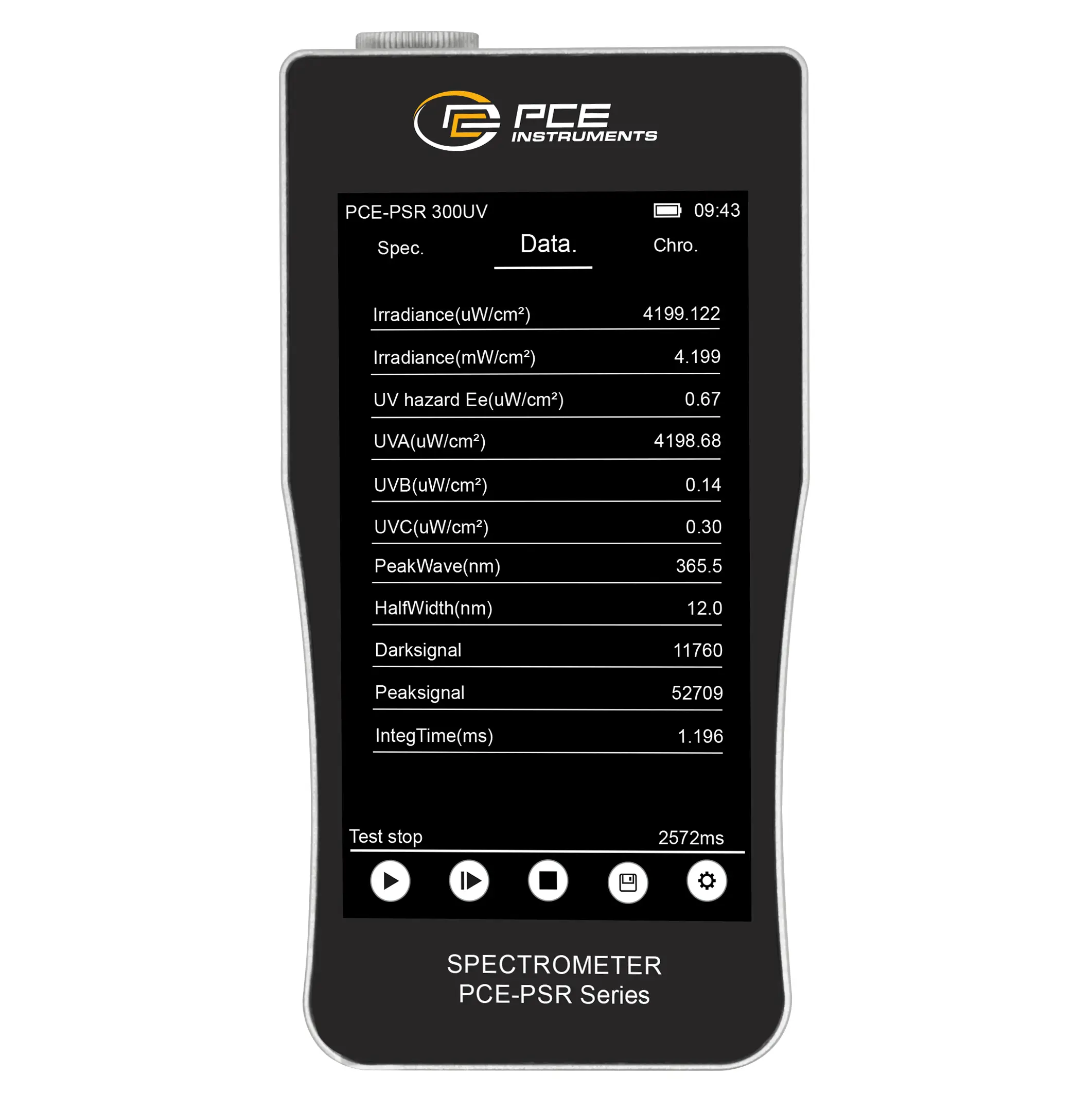

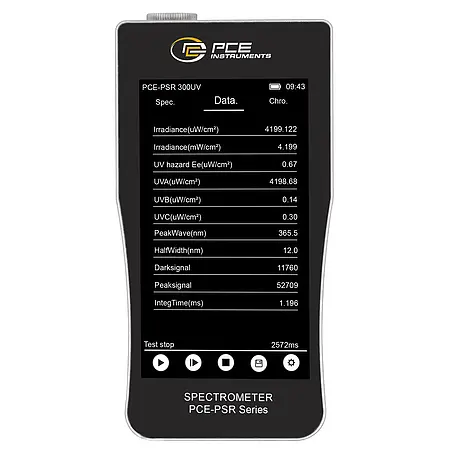

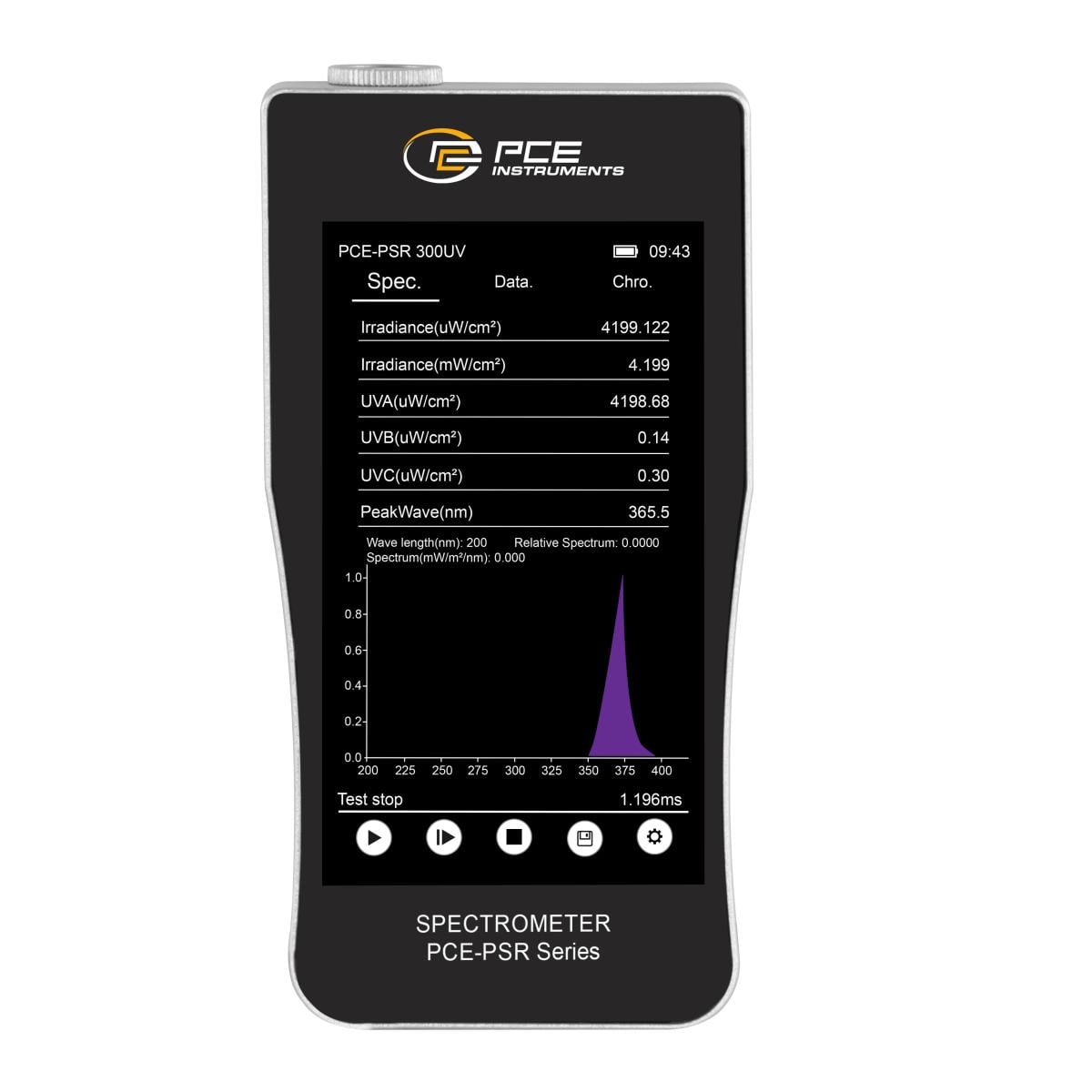

Light parameters  Irradiance (µW/cm²), Irradiance (mW/cm²), UV hazard Ee (µW/cm²), UVA (µW/cm²), UVB (µW/cm²), UVC (µW/cm²), PeakWave (nm), HalfWidth (nm), Darksignal, Peak signal, IntegTime (ms), Transmittance (%)
Menu language  English, Chinese, English (GB)
Protection class (device)  IP56
Power supply  100 ... 240V AC | 50/60 Hz
Connector type  Euro plug

(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  4000 mAh
Operating conditions  -10 ... 40 °C , 70 % RH
Storage conditions  -20 ... 45 °C , 70 % RH
Dimensions ( L x W x H )  160 x 82 x 22 mm
Weight  390 g

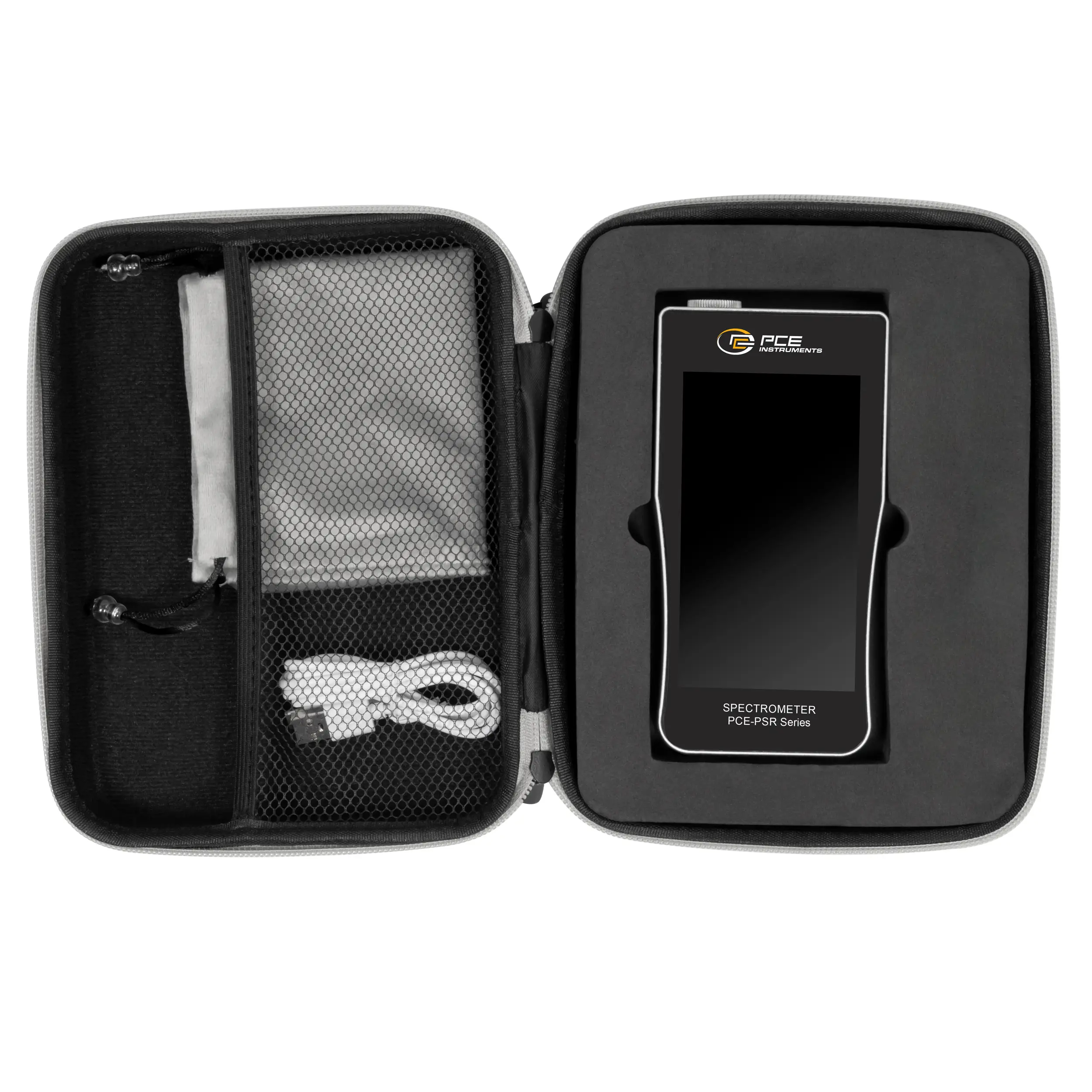

Delivery Scope

1 x PCE-PSR 300UV Photometer
1 x USB cable
1 x USB mains adaptor 5 V / 2 A

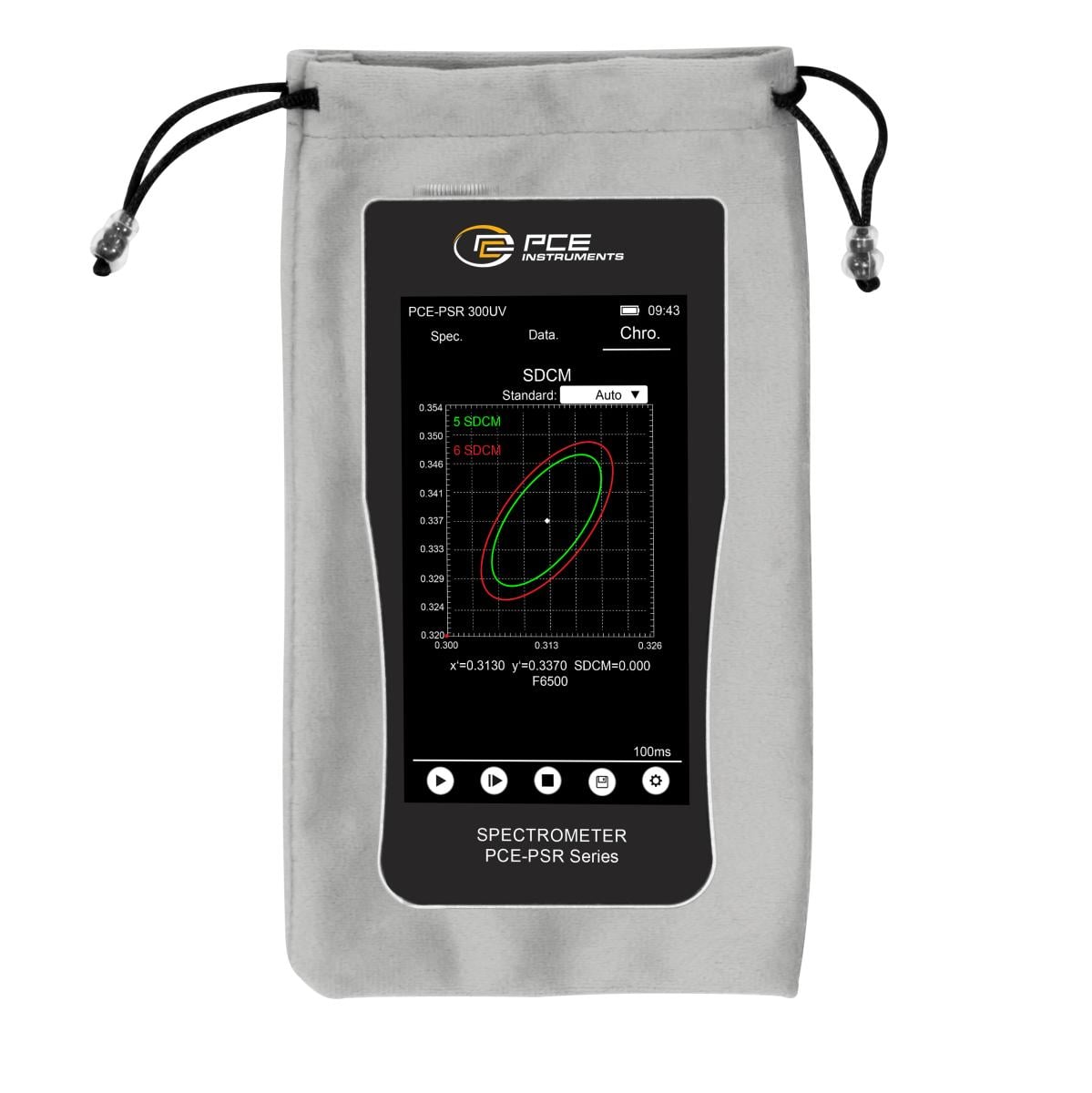

1 x pouch for storage
1 x carrying case
