374,90 €
| Flow measurement | |
| Measuring range | ±32 m/s |
| Accuracy | 0,001 m/s |
| Genauigkeit | DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s |
| DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s | |
| Reproducibility | ±0.5 % of measured value |

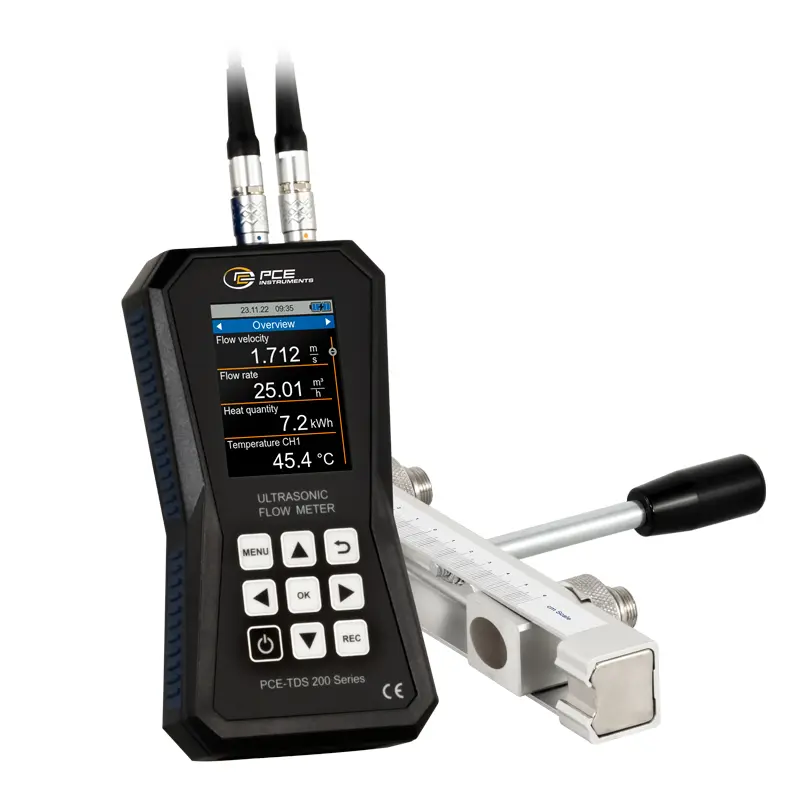

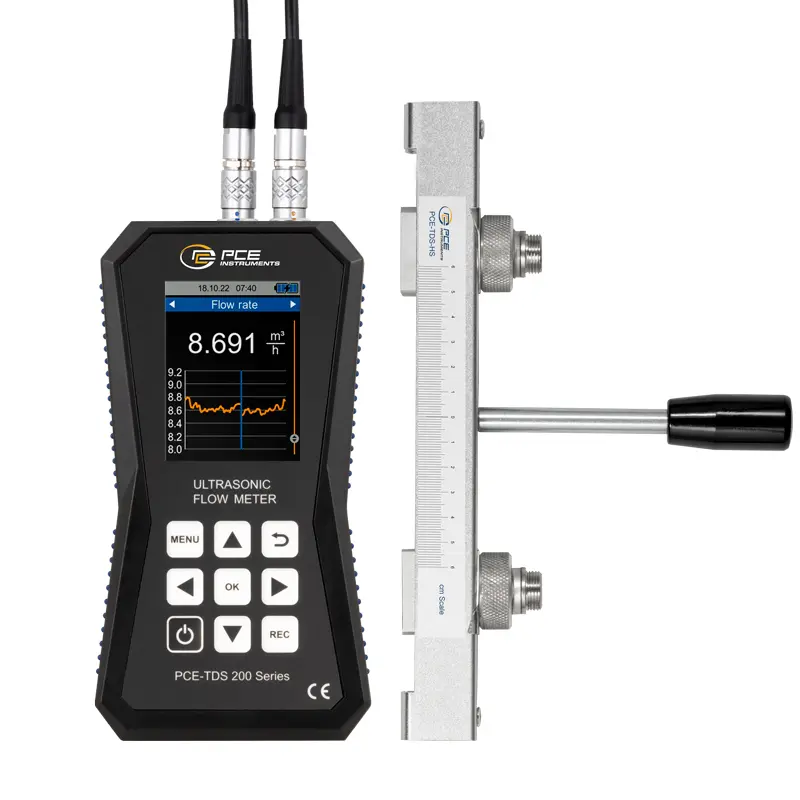

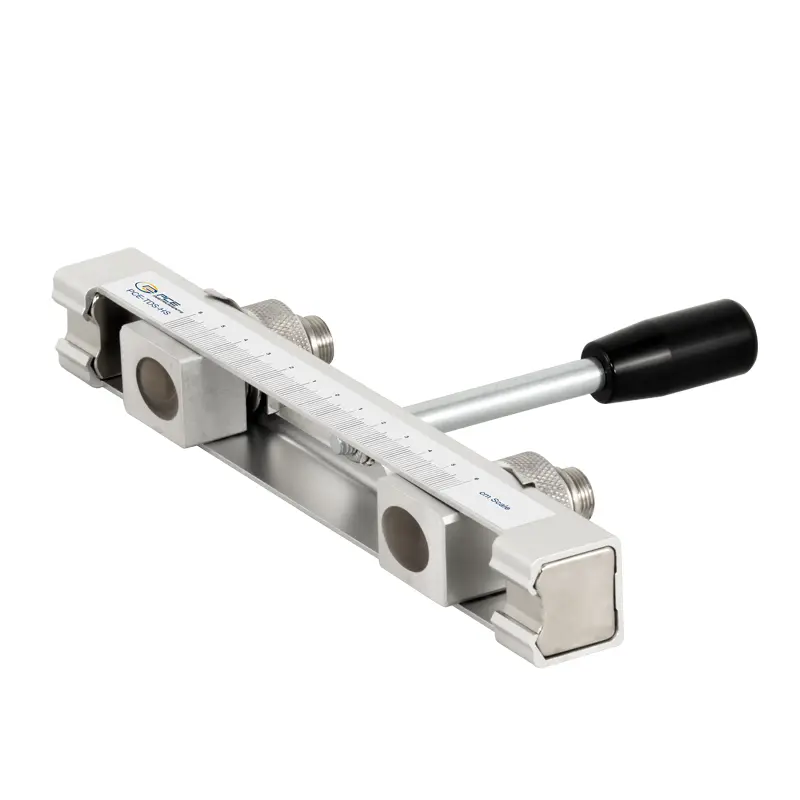

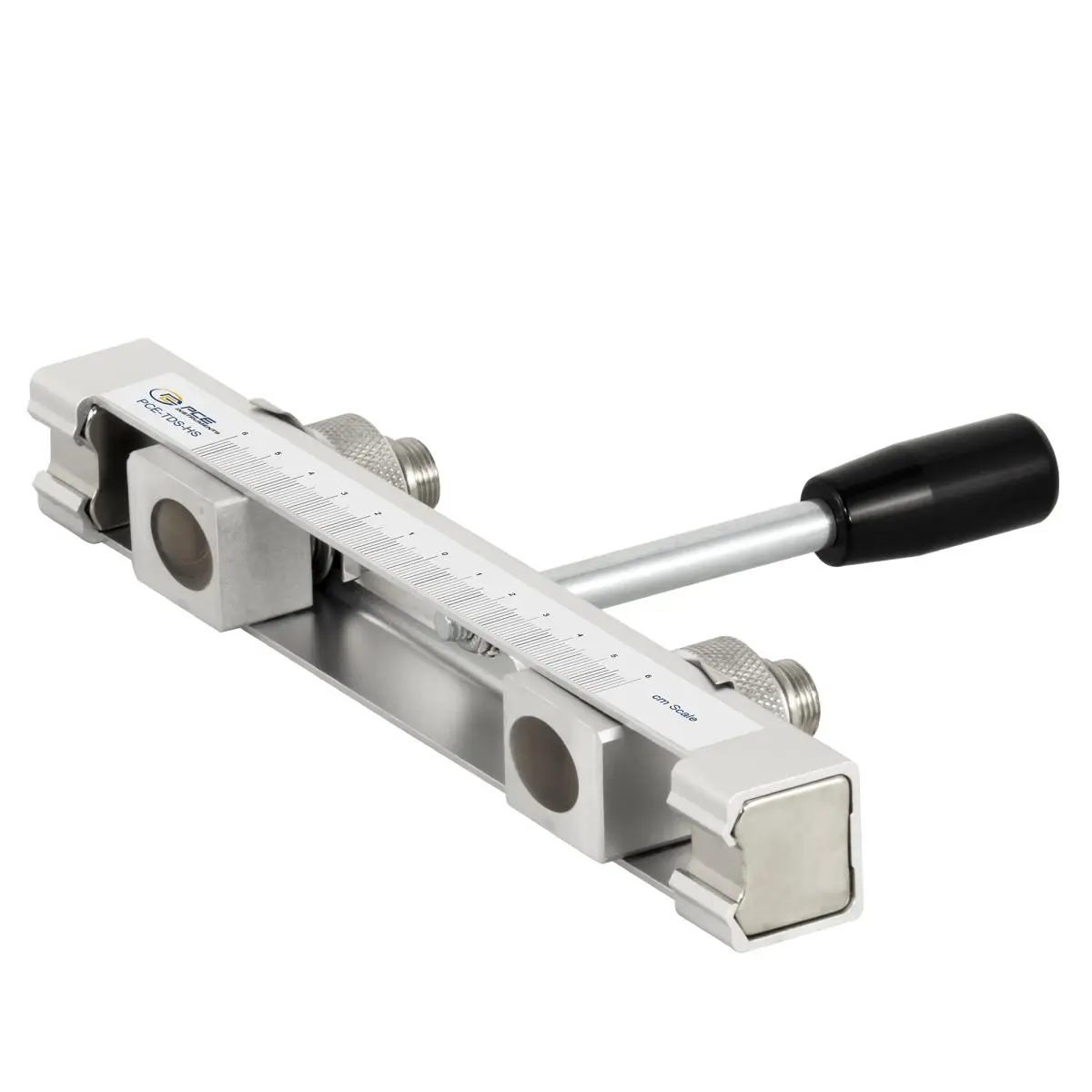

| PCE-TDS 200 SR SENSOR | Sensor pair |
| Pipe diameter | DN 15 ... 100 / 20 ... 108 mm |
| PCE-TDS 200 M SENSOR | |
| Pipe diameter | DN 50 ... 700 / 57 ... 720 mm |
| Temperature resistance | -30 ... 160 °C |

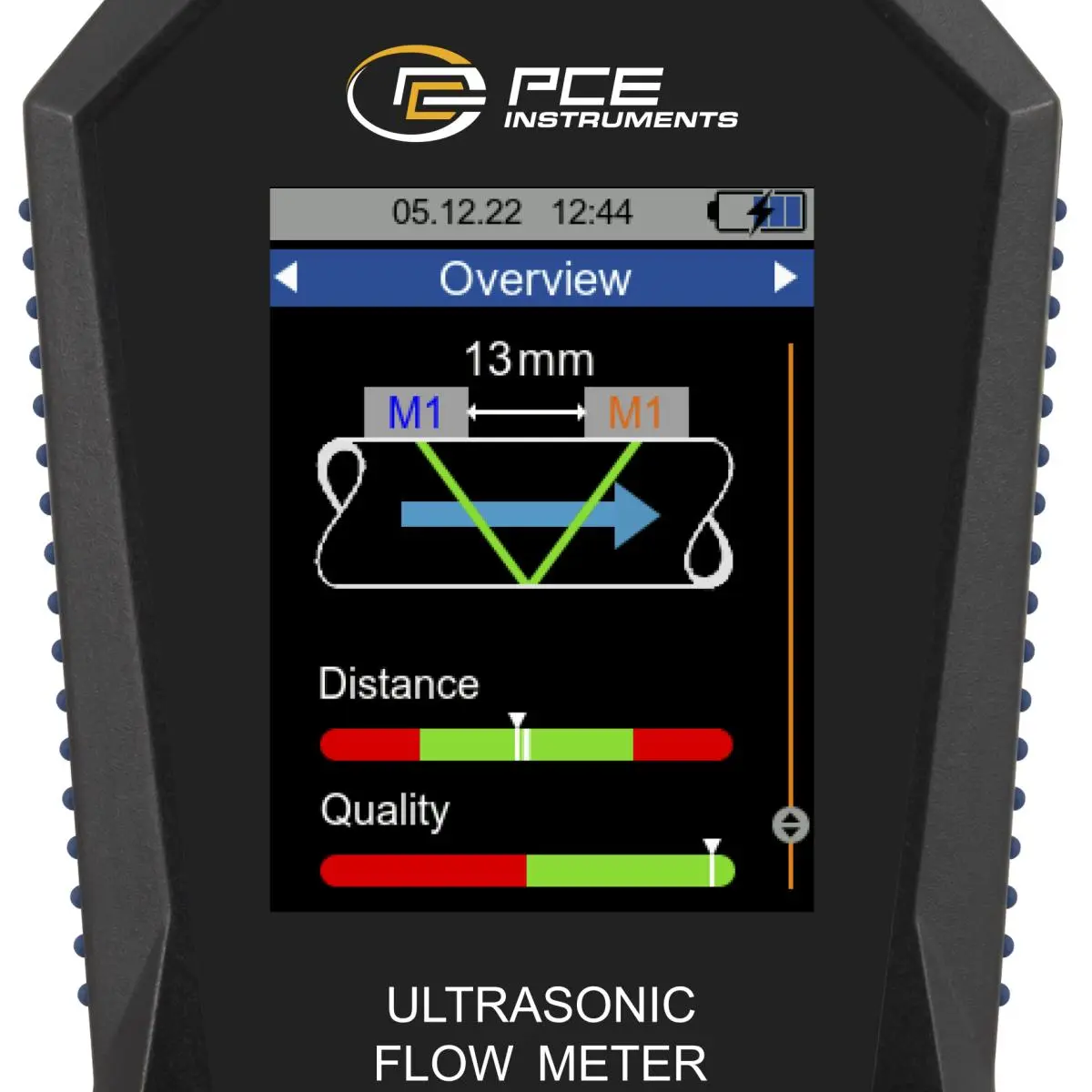

| Measuring method | Z, V, N, W |
| Medium | - water |
| - sea water | |
| - oil | |
| - crude oil | |
| - methanol | |
| - ethanol | |
| - diesel | |
| - petrol | |
| - petroleum | |
| - user defined | |
| (manual input of the sound velocity from the medium) | |
| All liquids with an impurity | <5 % |
| Pipe material | - copper CU |
| - steel FE | |
| - stainless steel VA | |
| - aluminium AL | |
| - brass ME | |
| - cast iron CI | |
| - iron FE | |
| - nickel NI | |
| - titanium TI | |
| - zink ZI | |
| - acrylic AC | |
| - polyethylene PE | |
| - polypropylene PP | |
| - polyvinyl chloride PVC | |
| - nylon NY | |
| - user defined | |
| (manual input of the transversal sound velocity | |
| of the pipe material) | |
| Inner pipe lining | - no lining |
| - user defined | |
| - epoxy resin | |
| - rubber | |
| - mortar | |
| - polystyrene PS | |
| - polyethylene PE | |
| - polytetrafluoroethylene PTFE | |
| - polyurethane PU | |
| - polypropylene PP | |
| - user defined | |
| (manual input of the longitudinal sound velocity | |
| of the inner lining of the pipe) | |
| Measurement parameters | flow velocity, volume flow and volume |
| Units (dimensions) | mm, in |
| Units (flow velocity) | m/s, ft/s |
| Units (volume flow) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Time specification | seconds, minutes, hours, days |
| Units (volume) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Further specifications | |

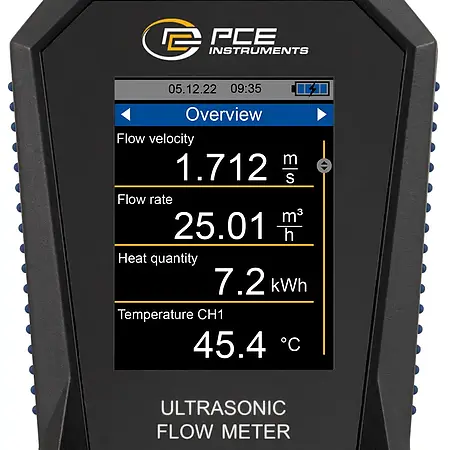

| 2.8" LCD | 2,8“ LCD |
| Menu | metrisch / imperial |
| Menu languages | German, English, French, Spanish, |
| Italian, Dutch, Portuguese, Danish, Turkish, Polish, German | |
| Turkish, Polish, Russian, Chinese, Japanese | |
| Operating and storage conditions | Temperature: -20 ... +65 °C |
| Humidity: 10 ... 95 % r. h., non-condensing | |
| Data logger | 32 GB memory capacity / 10 million measuring points |
| Unterface | USB (for online measurement, readout of the internal memory |
| memory and for recharging the battery) | |
| Protection class | IP52 |
| Power supply Internal | Internal: LiPo battery (3.7 V, 2500 mAh) |
| External: USB 5 VDC, 500 mA | |
| Operating time | approx. 10 h |
| Dimensions | 165 x 85 x 32 mm |
| Weight | 255 g |
