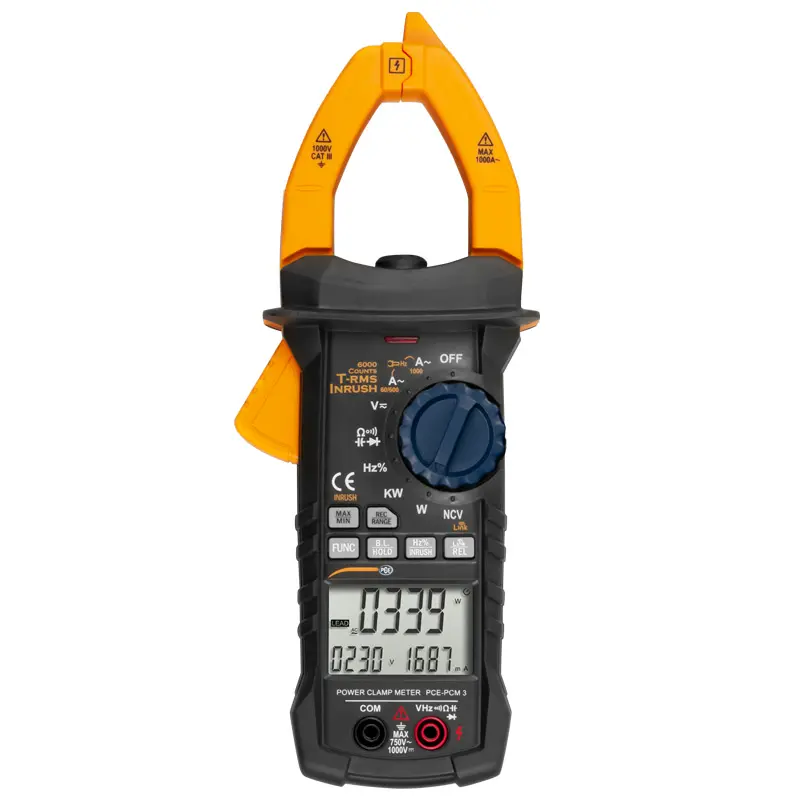

Ambient conditions 23°C / 73.4°F ± 5°C / 41°F, < 75% RH |

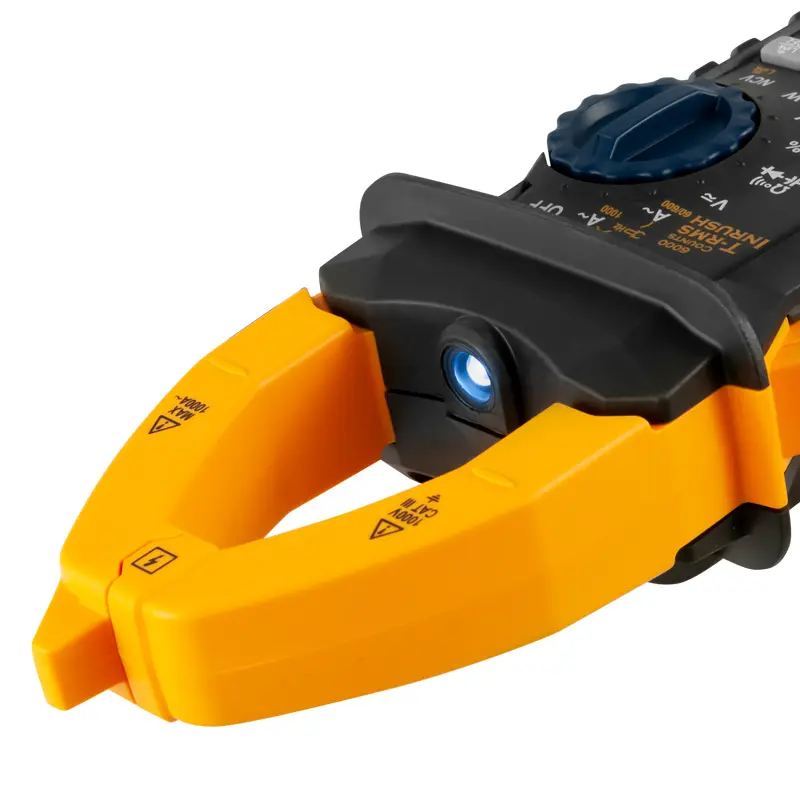

||
Measuring function | ||
Current measurement AC | ||
Measuring range | Resolution | Accuracy |
60 A | 0.01 A |
± 2% + 8 Dgt |
600 A | 0.1 A | ± 2% + 8 Dgt |
1000 A | 1 A | ± 2% + 8 Dgt |
Maximum input current: 1000 A AC | ||
Frequency range: 40 .... 400 Hz | ||
Measuring function | ||
Inrush current AC | ||
Measuring range | Resolution | Accuracy |
60 A | 0.01 A | For reference only |
600 A | 0.1 A | ± 5% + 60 Dgt |
1000 A | 1 A | ± 5% + 60 Dgt |
Integral time: 100 ms | ||
Measuring range: 20 ... 1000 A | ||
Frequency range: 40 .... 400 Hz | ||
Measuring function | ||
Voltage measurement DC | ||
Measuring range | Resolution | Accuracy |
6V | 0.001V | ± 0.5% + 5 Dgt |
60V | 0.01V | ± 0.5% + 5 Dgt |
600V | 0.1V | ± 0.5% + 5 Dgt |
1000V | 1V | ± 0.8% + 4 Dgt |
Input impedance: 10 MΩ | ||
Maximum input voltage: 750V AC (rms value) or 1000V DC | ||
Measuring function | ||
Voltage measurement AC | ||
Measuring range | Resolution | Accuracy |
6V | 0.001V | ± 0.6% + 4 Dgt |
60V | 0.01V | ± 0.6% + 4 Dgt |
600V | 0.1V | ± 0.6% + 4 Dgt |
1000V | 1V | ± 0.8% + 4 Dgt |
Input impedance: 10 MΩ | ||
Maximum input voltage: 750V AC (rms value) or 1000V DC | ||
Frequency range: 40 ... 400 Hz | ||
Measuring function | ||
Frequency measurement with | ||
The current measuring function | ||
Measuring range | Resolution | Accuracy |
99.99 Hz | 0.01 Hz |
± 1.5% + 5 Dgt |
999.9 Hz | 0.1 Hz | ± 1.5% + 5 Dgt |
Measuring range: 10 ... 1 kHz | ||
Measuring range of the input signal: > 20 AAC (rms value) | ||
The input current increases with the measuring frequency. | ||
Maximum input current: 1000 AAC (rms value) | ||
Measuring function | ||
Frequency measurement with the | ||
Voltage measurement function | ||
Measuring range | Resolution | Accuracy |
99.99 Hz | 0.01 Hz | ± 1.5% + 5 Dgt |
999.9 Hz | 0.1 Hz | ± 1.5% + 5 Dgt |
9,999 kHz | 0.001 kHz | ± 1.5% + 5 Dgt |
Measuring range: 10 ... 10 kHz | ||
Measuring range of the input signal: > 1V AC (rms value) | ||
The input current increases with the measuring frequency. | ||
Maximum input voltage: 1000V AC (rms value) | ||
Measuring function | ||
Frequency measurement | ||
Measuring range | Resolution | Accuracy |
9,999 Hz | 0.001 Hz | ± 0.3% + 5 Dgt |
99.99 Hz | 0.01 Hz | ± 0.3% + 5 Dgt |
9,999 kHz | 0.1 Hz | ± 0.3% + 5 Dgt |
999.9 Hz | 0.001 kHz |
± 0.3% + 5 Dgt |
99.99 kHz | 0.01 kHz | ± 0.3% + 5 Dgt |
999.9 kHz | 0.1 kHz | ± 0.3% + 5 Dgt |
9,999 MHz | 0.001 MHz | ± 0.3% + 5 Dgt |
Overvoltage protection: 1000V DC or 750V AC (rms value) | ||
Range of voltage input> 2V | ||
(as the input voltage increases, so does the frequency) | ||
Measuring function | ||
Duty cycle | ||
Measuring range | Resolution | Accuracy |
0.1 ... 99.9% | 0.1% | ± 0.3% + 5 Dgt |
Frequency range: 10 ... 10 kHz | ||
Voltage range: 2 ... 250V AC (rms value) | ||
(The voltage increases with the frequency) | ||
Duty cycle with the | Frequency range: 10 ... 1 kHz | |
Current measurement function | Input current: 20 ... 1000 AAC (rms value) | |
Duty cycle with the | Frequency range: 10 ... 1 kHz | |
Voltage measurement function | Input current: 1 ... 750V AC (rms value) | |
Input impedance: 1MΩ | ||
Measuring function | ||
Resistivity |
||
Measuring range | Resolution | Accuracy |
600 Ω | 0.1 Ω | ± 0.8% + 3 Dgt |
6 kΩ | 0.001 kΩ | ± 0.8% + 3 Dgt |
60 kΩ | 0.01 kΩ | ± 0.8% + 3 Dgt |
600 kΩ | 0.1 kΩ | ± 0.8% + 3 Dgt |
6 MΩ | 0.001 MΩ | ± 2% + 5 Dgt |
60 MΩ | 0.1 MΩ | ± 2% + 5 Dgt |
Measuring voltage: approx. 0.78V | ||
Overvoltage protection: 750V DC, 1000V AC (rms value) | ||
Measuring function | ||
Continuity test |
||
Measuring range | Resolution | Accuracy |
600 Ω | 0.1 Ω | - |
Acoustic signal at < 50 Ω | ||
Test voltage: 1.48V | ||
Overvoltage protection: 750V DC, 1000V AC (rms value) | ||
Measuring function | ||
Capacitance measurement |
||
Measuring range | Resolution | Accuracy |
9.999 nF | 0.001 nF | ± 3% + 5 Dgt |
99.99 n.f. | 0.01 nF | ± 3% + 5 Dgt |
999.9 nF | 0.1 nF | ± 3% + 5 Dgt |
9.999 μF | 0.001 μF | ± 3% + 5 Dgt |
99.99 μF | 0.01 μF | ± 3% + 5 Dgt |
999.9 μF | 0.1 μF | ± 3% + 5 Dgt |
9,999mF | 0.001 mF | ± 3% + 5 Dgt |
99.99 mF | 0.01 mF | ± 3% + 5 Dgt |
Overvoltage protection: 750V DC, 1000V AC (rms value) | ||
Measuring function | ||
Diode measurement |
||
Measuring range | Resolution | Accuracy |
3V |
0.001V |
- |
DC anode side: approx. 1-mA | ||
DC cathode side: approx. 3.2V | ||
Overvoltage protection: 750V DC, 1000V AC (rms value) | ||
Measuring function | ||
Single phase power measurement |
||
Measuring range | Resolution | Accuracy |
3 W / VA / Var | 0.01 W / VA / Var | ± 3% + 5 Dgt |
100 W / VA / Var | 0.1 W / VA / Var | ± 3% + 5 Dgt |
4000 W / VA / Var | 1 W / VA / Var | ± 3% + 5 Dgt |
10 kW / VA / var | 0.01 kW / VA / Var | ± 3% + 5 Dgt |
100 kW / VA / var | 0.1 kW / VA / Var | ± 3% + 5 Dgt |
750 kW / VA / var | 1 kW / VA / Var | ± 3% + 5 Dgt |
Smallest measuring current: 1-mA | ||
Smallest measuring voltage: 1V | ||
Measuring function | ||
Power factor capacitive / inductive |
||
Measuring range | Resolution | Accuracy |
0.1 ... 1 |
0.001 |
± 5% + 5 Dgt |
Smallest measuring current: 1-mA | ||
Smallest measuring voltage: 1V | ||
Measuring function | ||
Harmonics measurement |

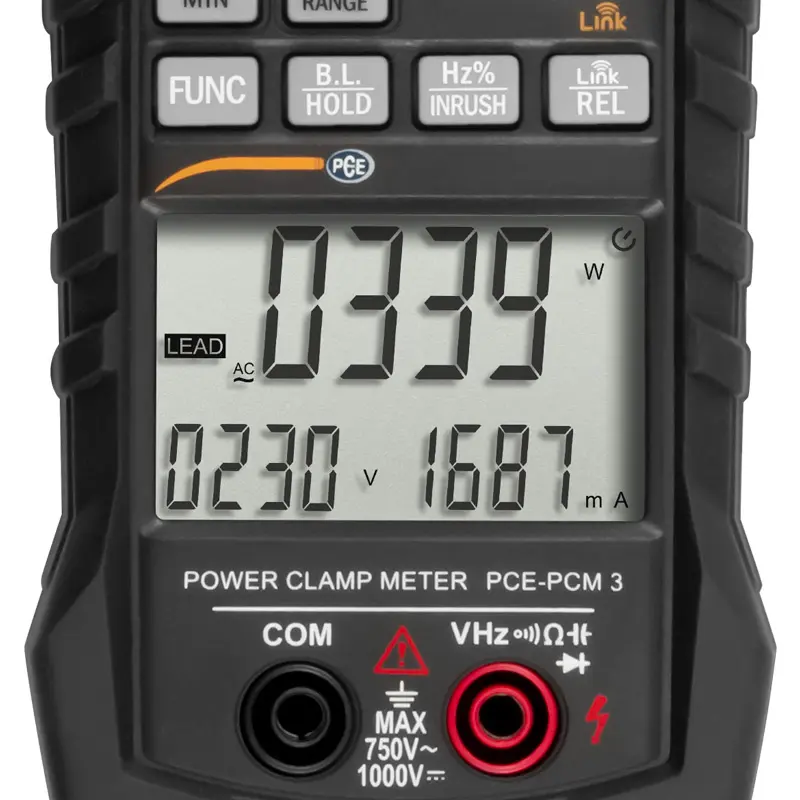

||
Measuring range | Resolution | Accuracy |
1 | - | ± 3% + 10 Dgt |
2 ... 6 | - | ± 3.5% + 10 Dgt |
7 ... 8 | - | ± 4.5% + 10 Dgt |
9 ... 10 | - | ± 5% + 10 Dgt |
11 ... 15 | - | ± 7% + 10 Dgt |
16 ... 20 | - | ± 10% + 10 Dgt |
Smallest measuring current: 1-mA | ||
Smallest measuring voltage: 1V | ||
The resolution depends on the voltage measuring range | ||
General specifications | ||
Measuring range | Automatically and manually adjustable | |
Maximum voltage range | 1000V DC or 750V AC | |
Maximum working height | 2000 m / 6561 ft | |
Display | LCD | |
Maximum display | 5999 Dgt. | |
Overrange | "OIL" | |
Measuring range underflow | "-OL" | |
Measuring rate | 3 Hz | |
Automatic shutdown | After 30 minutes | |
Power supply | 9V block battery | |
Battery indicator | Icon if the battery voltage is too low | |
Temperature coefficient | 0.1 x accuracy x °C / °F* | |
Operating conditions | 0 ... 40°C, 32 ... 104°F | |
Storage conditions | -10 ... 60°C, 14 ... 140°F | |
Dimensions | 238 x 92 x 50 mm / 9.4 x 3.6 x 2 in | |
Weight | About 420 g / < 1 lb (with batteries) | |
Accuracies are given at ambient conditions of 18 ... 28°C / 65 ... 83°F. *The temperature is the difference between the temperature of the operating conditions and the current ambient temperature. |
||
Example: | ||
Is the current ambient temperature greater than the temperature of the operating conditions | ||
(50°C / 122°F (current ambient temperature)) - (40°C / 104°F (operating temperature) = 10°C / 50°F |
||
Is the current ambient temperature less than the temperature of the operating conditions | ||
(0°C (operating temperature)) - (-5°C / 23°F (current ambient temperature)) = 5°C / 41°F |
||
