Pressure Gauge PCE-HVAC 10

Order no.: PCE-HVAC 10
GTIN (EAN): 4250348732200
245,90 €
292,62 €
price ex. (VAT / delivery)
:
4250348732200
PCE-HVAC 10
Delivery time: 5-7 working days
Digital
Handheld
-1 to 34 bar
No
No

Description

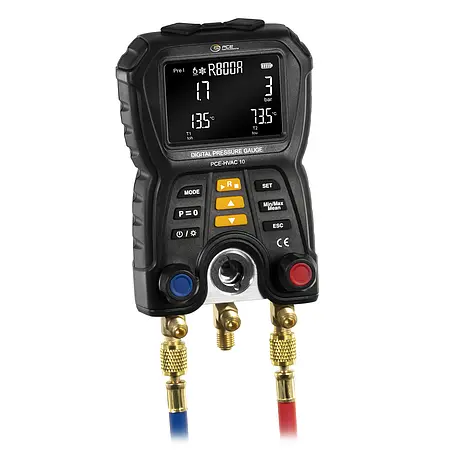

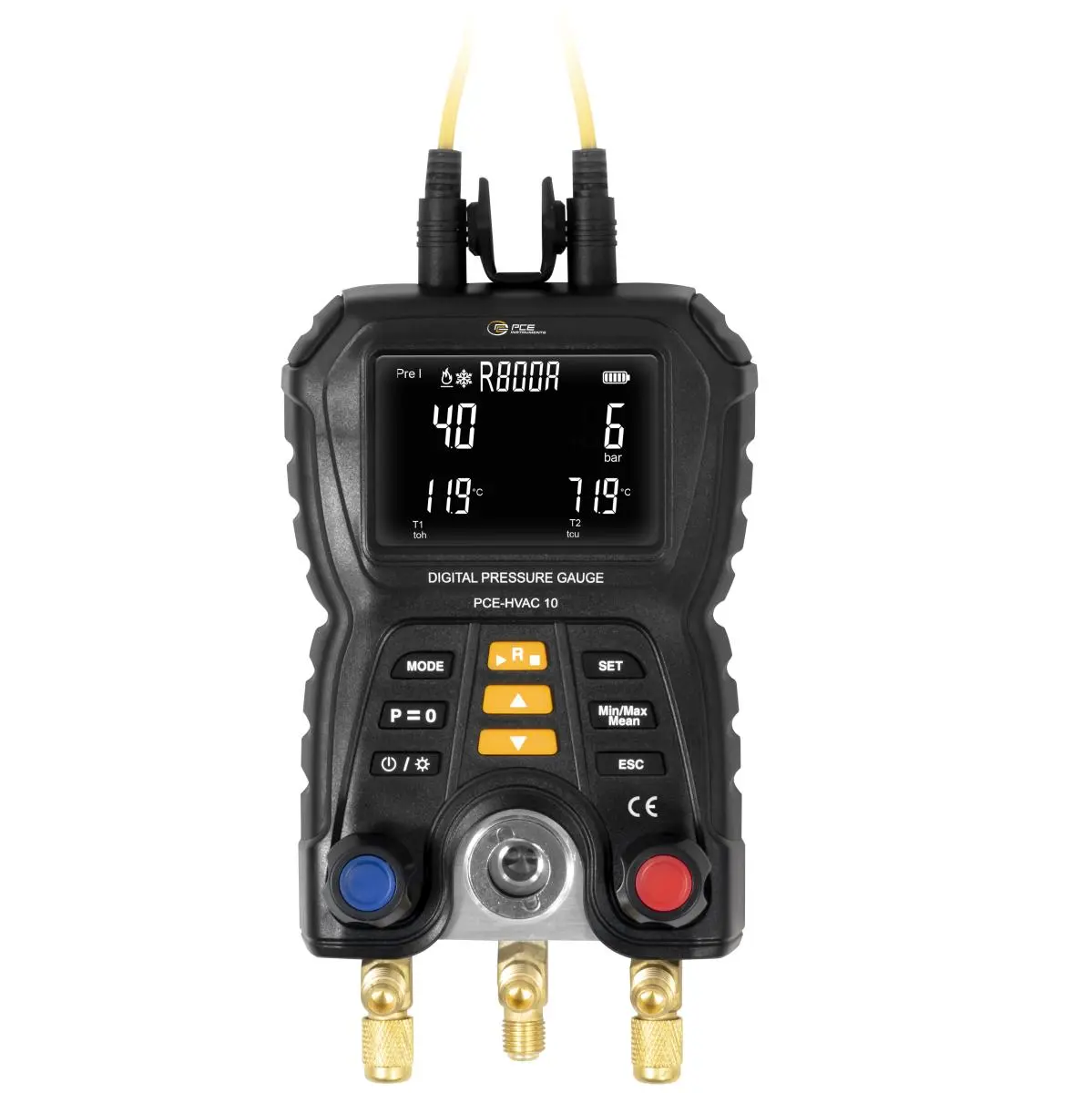

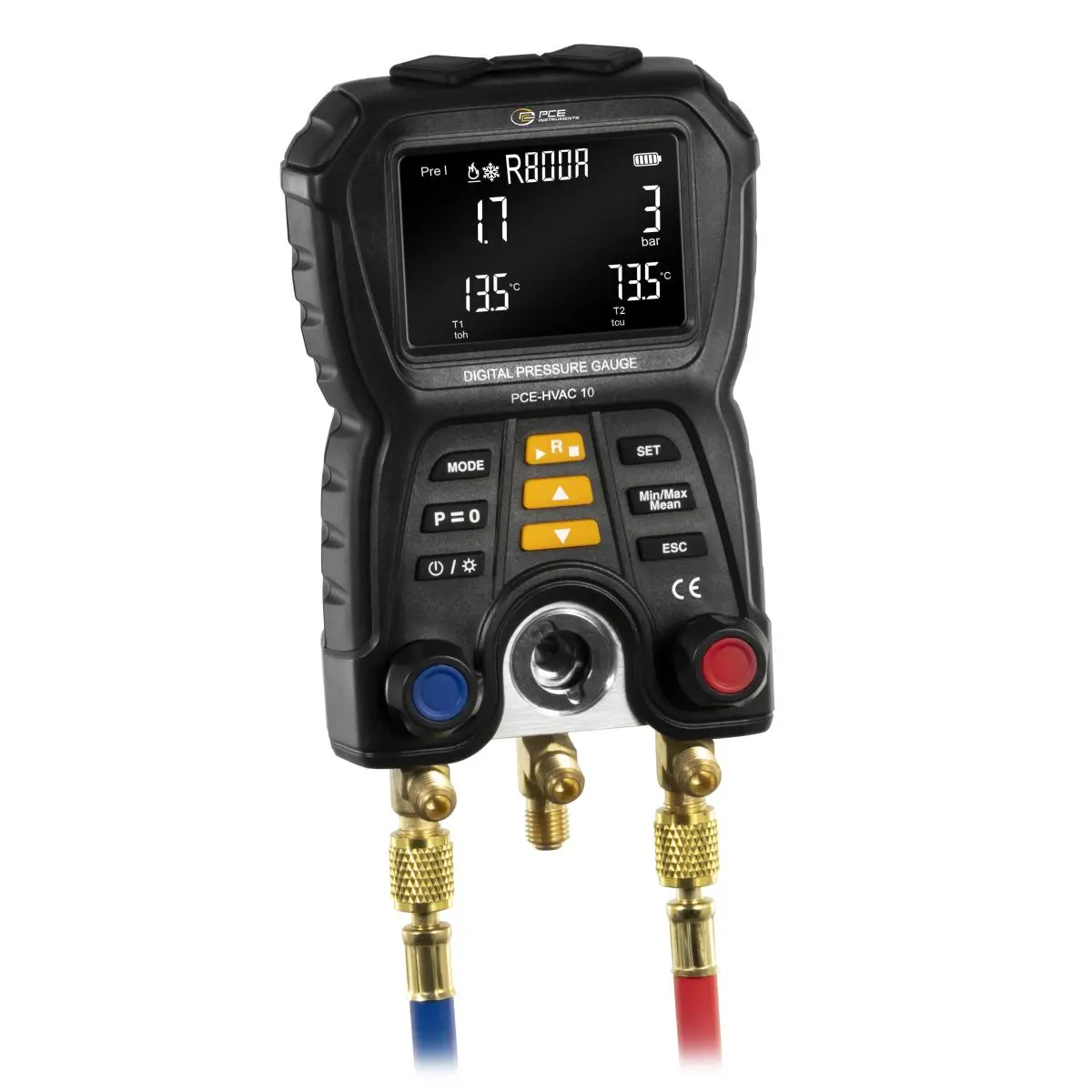

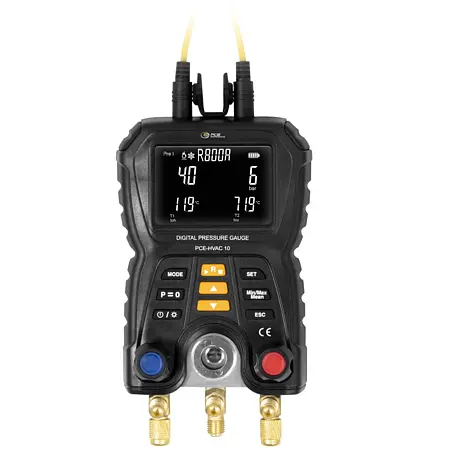

Pressure Gauge in a robust metal casing / Measures pressure from -1 ... +60 bar and temperature from -10 ... +200 °C / 2-way valve block with 3 connectors 7/16" – UNF / Various display units / Hanging fixture

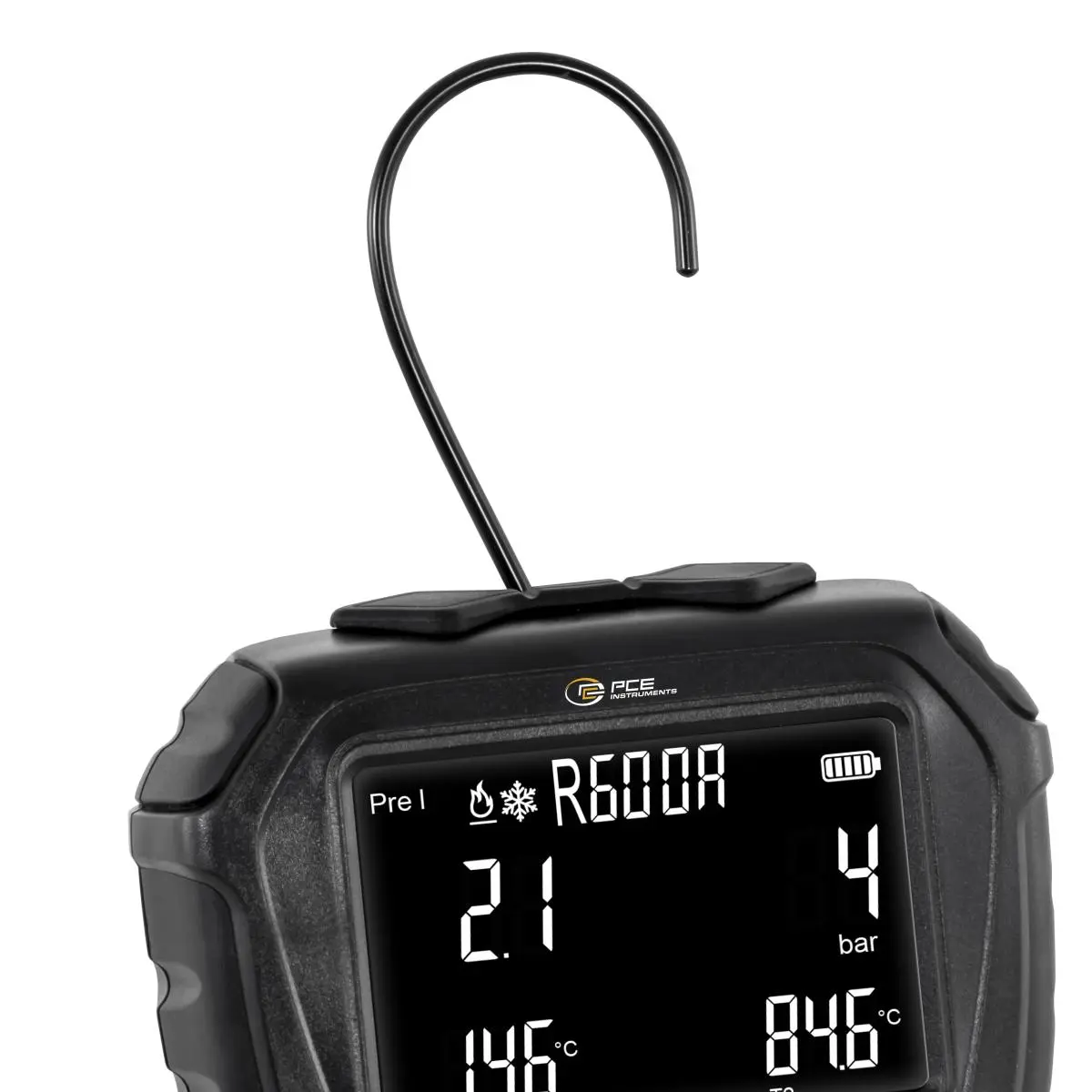

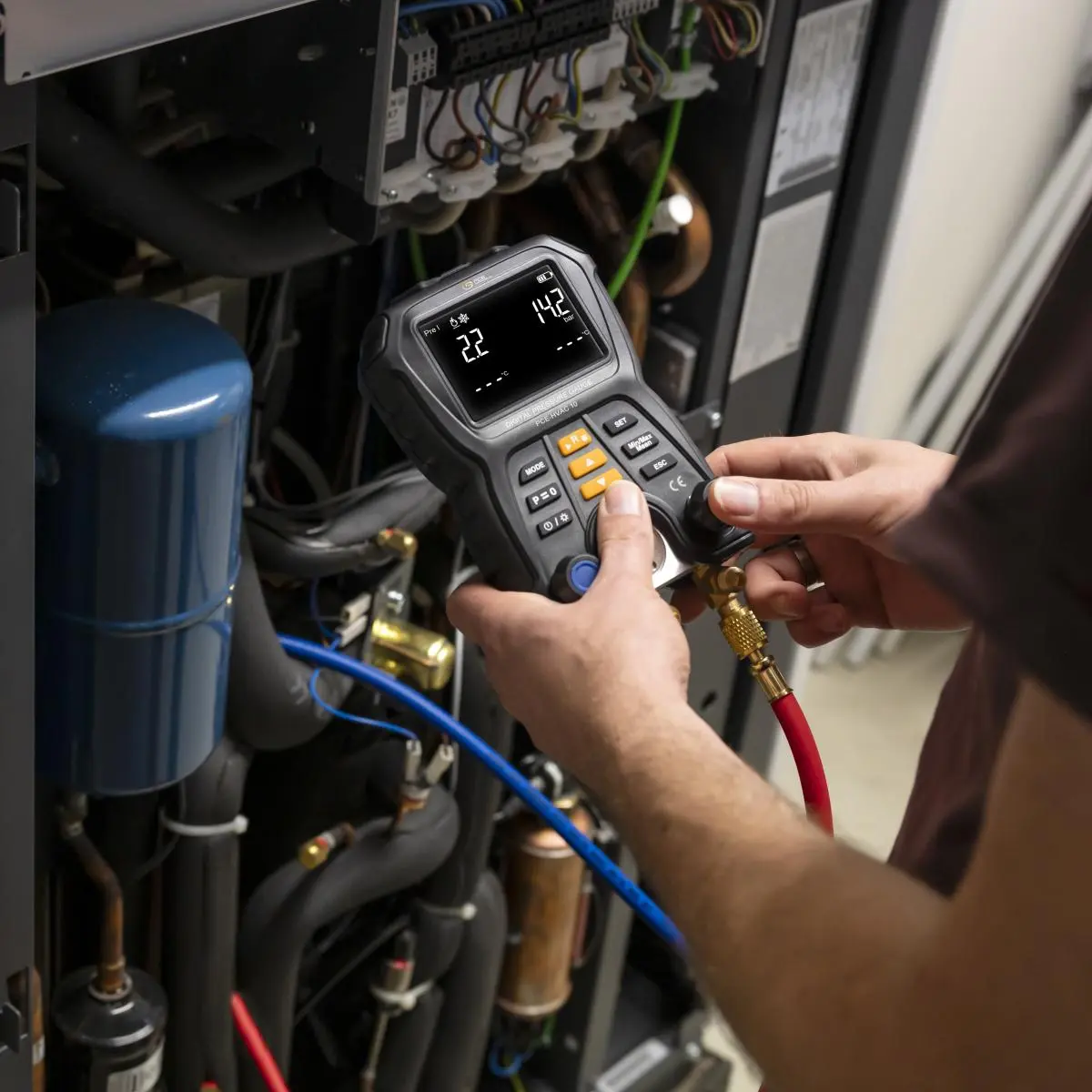

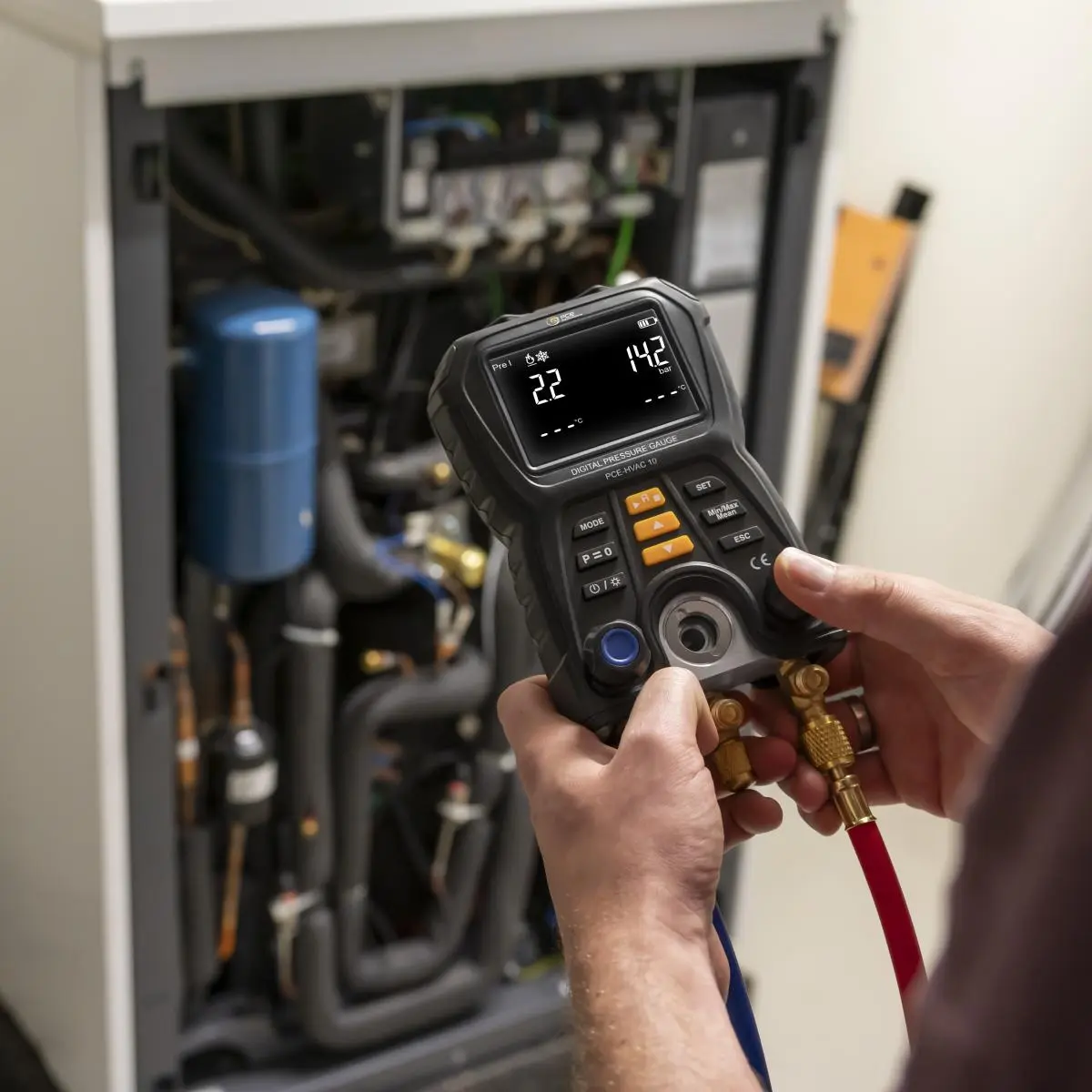

The pressure gauge is a robust measuring instrument designed for daily use in refrigeration systems and heat pumps to determine pressure and temperature. Measurement with the pressure gauge is carried out using supplied refrigerant hoses and 2 NTC clamp-on temperature sensors. All measurement parameters can be simultaneously captured by simply attaching or screwing them on. The metal 2-way valve block with 3 connectors and 3 hose holders allows for quick and easy operation of the pressure gauge. The 83 preloaded refrigerants can be quickly selected and are visible on the measurement screen. During measurements, the hanging fixture ensures secure attachment. The pressure gauge is powered by 4 x 1.5V AA batteries.

The pressure gauge is ideal for commissioning, servicing, and maintenance tasks. Thanks to additional device features such as the automatic heat pump mode, which eliminates the need to swap refrigerant hoses for measurements, and the temperature-compensated density testing function, working on refrigeration systems and heat pumps becomes very straightforward.

Highlights

- Measurement Range: -1 ... +60 bar
- Resolution: 0.01 bar
- Accuracy: ±0.5% FS (Full Scale).
- 83 refrigerants stored in the device

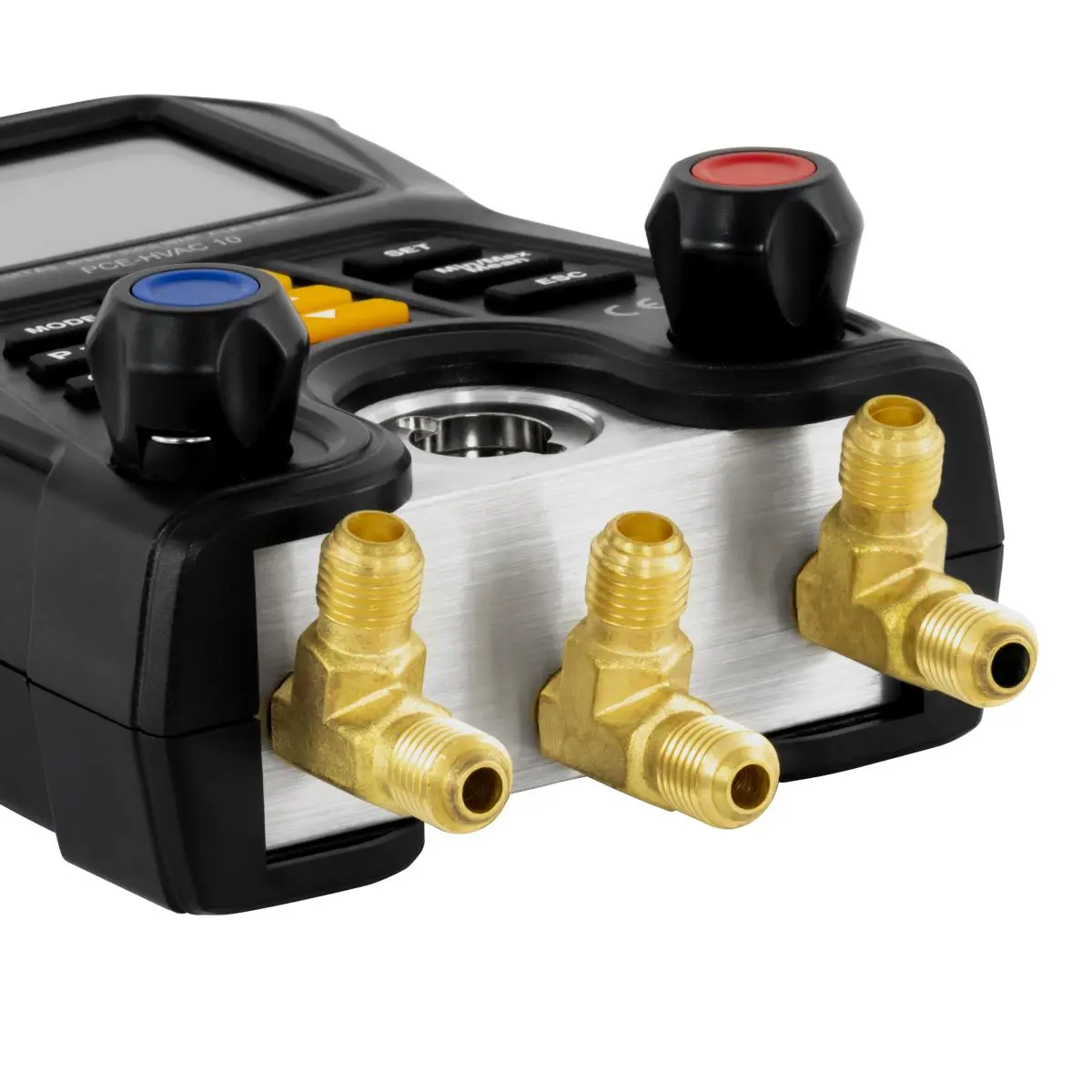

- 2-way valve block with 3 connectors 7/16" – UNF

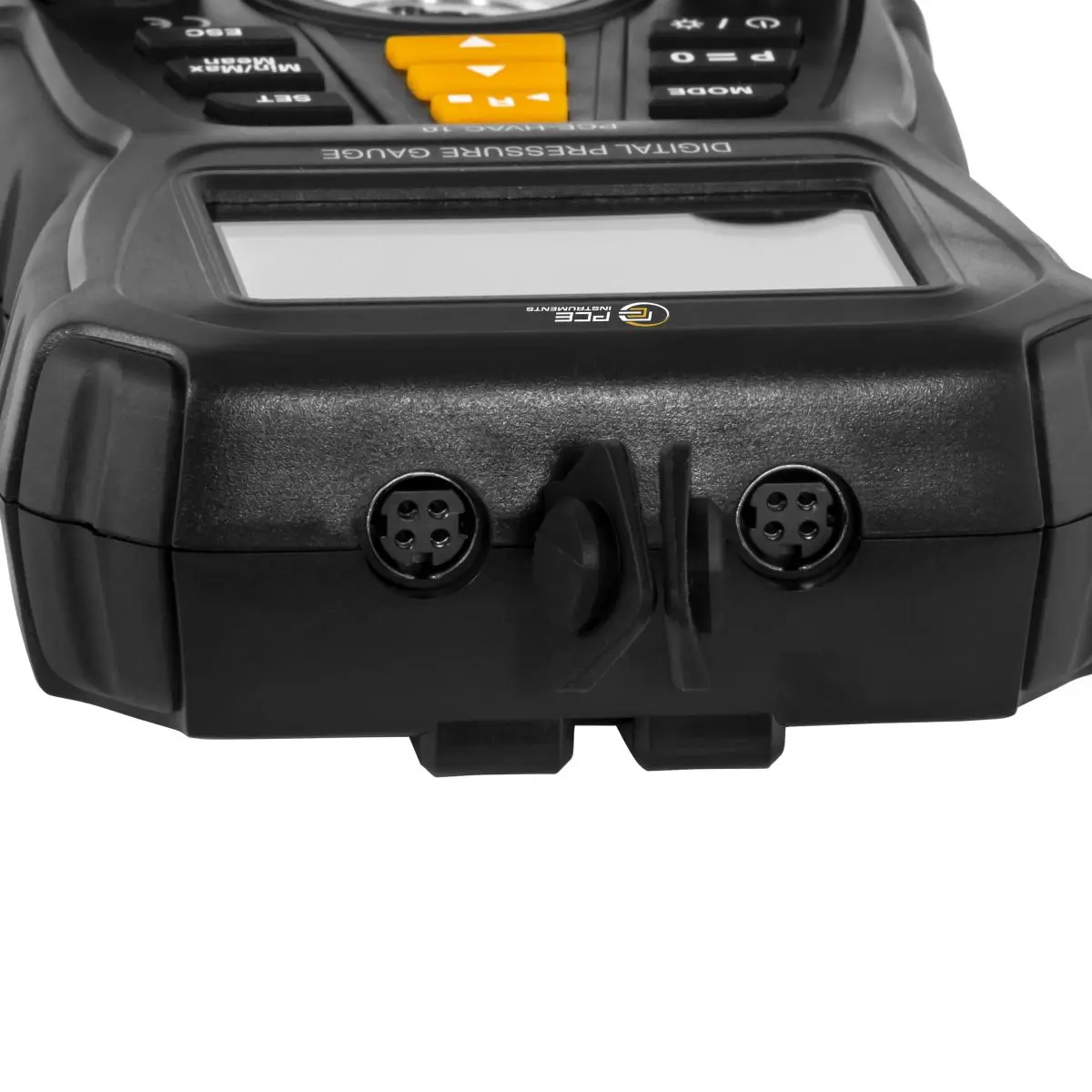

- Includes 2 NTC clamp-on temperature sensors
- Temperature measurement from -10 ... +200 °C

Specification

Temperature NTC
Measurement Range-10°C ... +200°C
Resolution0.1°C
Accuracy±(1°C + 1 Digit)

Pressure
Measurement Range-1 bar ... +60 bar
Resolution0.01 bar
Accuracy±0.5% FS (Full Scale)

General Technical Data
UnitsMPa, kPa, psi, bar, °F, °C
Connection Type3 x 7/16" – UNF
Display TypeLCD
Automatic Shutdown30 min.
Measuring MediumRefrigerant (see manual)
Battery TypeAA Battery (1.5V)
Menu LanguageEnglish
Protection ClassIP42
Weight768 g
Device Weight with Accessories2185 g
Device Weight with Accessories and Packaging2271 g
Dimensions 204 x 116 x 65 mm (L x W x H)
Dimensions Including Packaging 345 x 275 x 105 mm (L x W x H)
Additional DimensionsRefrigerant Hose Length: 0.8 m
Temperature Sensor Length: 0.8 m
Operating Conditions0°C ... +45°C, +10% ... 95% r.F. (Relative Humidity)
Storage Conditions-20°C ... +60°C, +10% ... 95% r.F. (Relative Humidity)

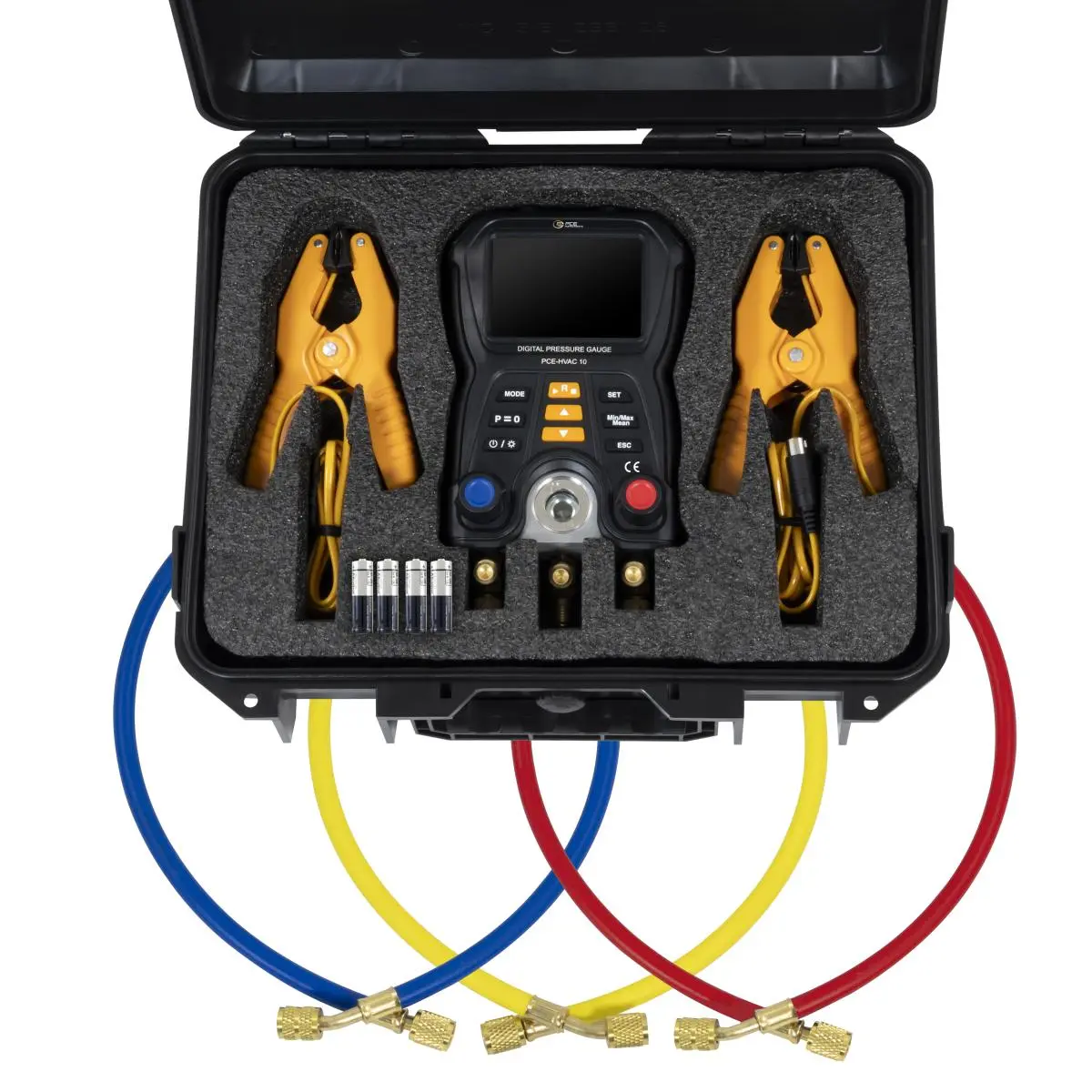

Delivery Scope

1 x Pressure Gauge PCE-HVAC 10

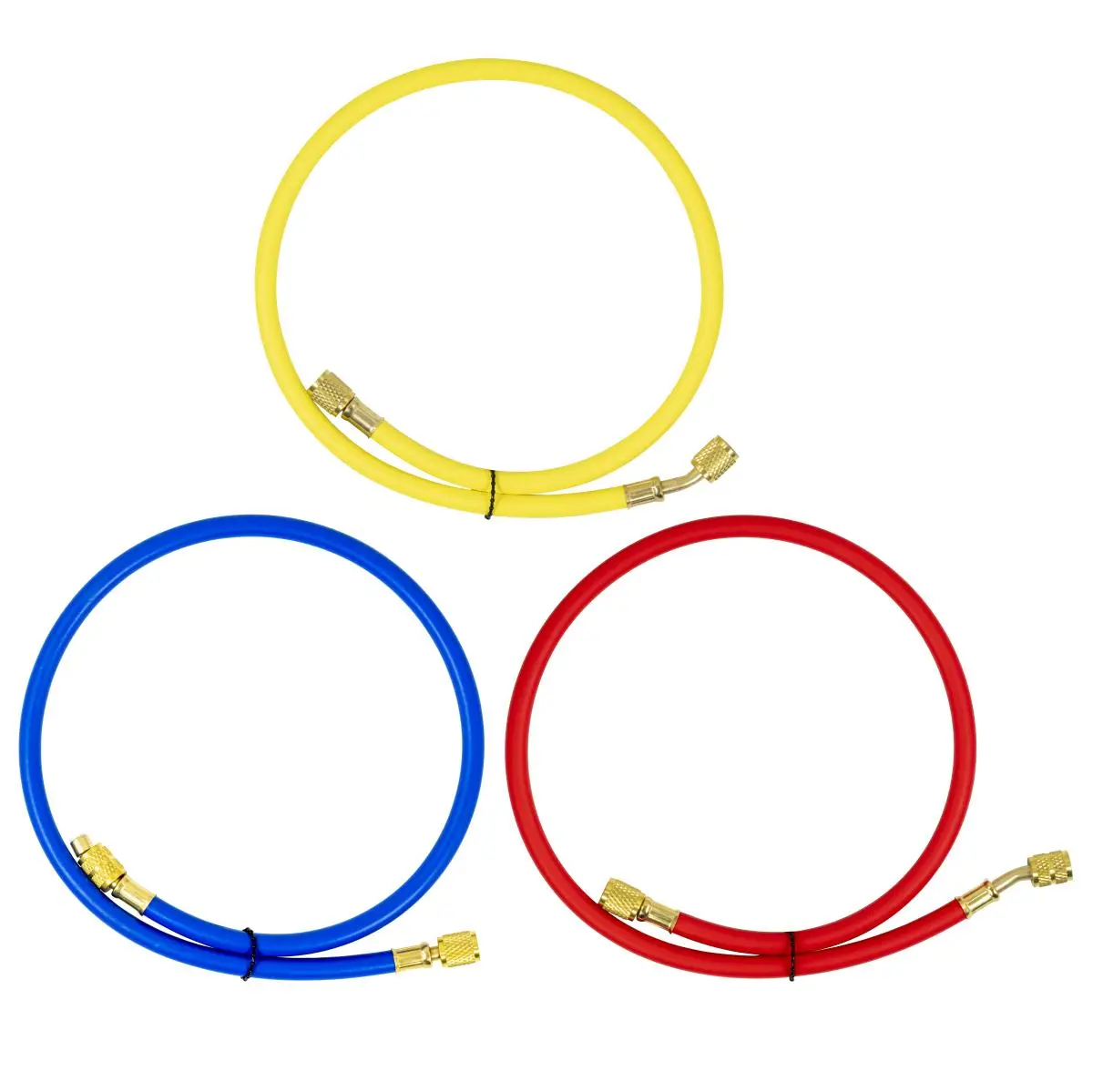

3 x Refrigerant Hoses (Red, Blue, Yellow)
2 x Clamp-On NTC Temperature Sensors
4 x 1.5V AA Batteries
1 x Carrying Case
1 x User Manual
