Pressure Gauge PCE-P01

Order no.: PCE-P01

GTIN (EAN): 4250348708144

Accessory

ISO Calibration Certificate CAL-PM (to 20 bar)

244,90 €

Silicon Tubes for PCE-Series Pressure Meters

19,90 €

Description

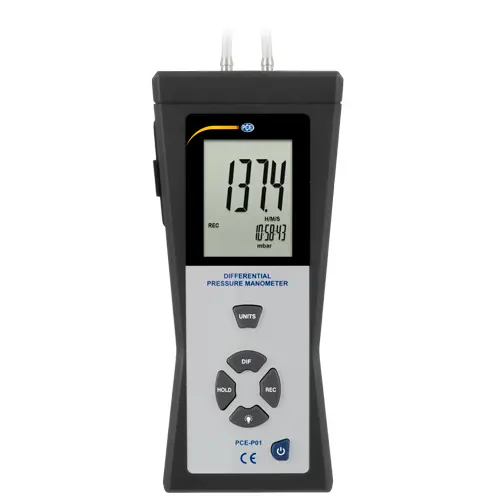

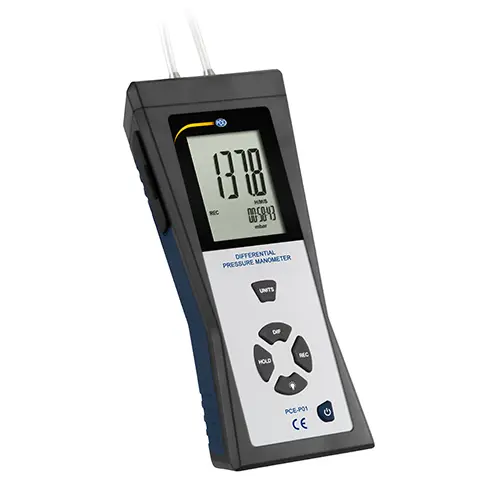

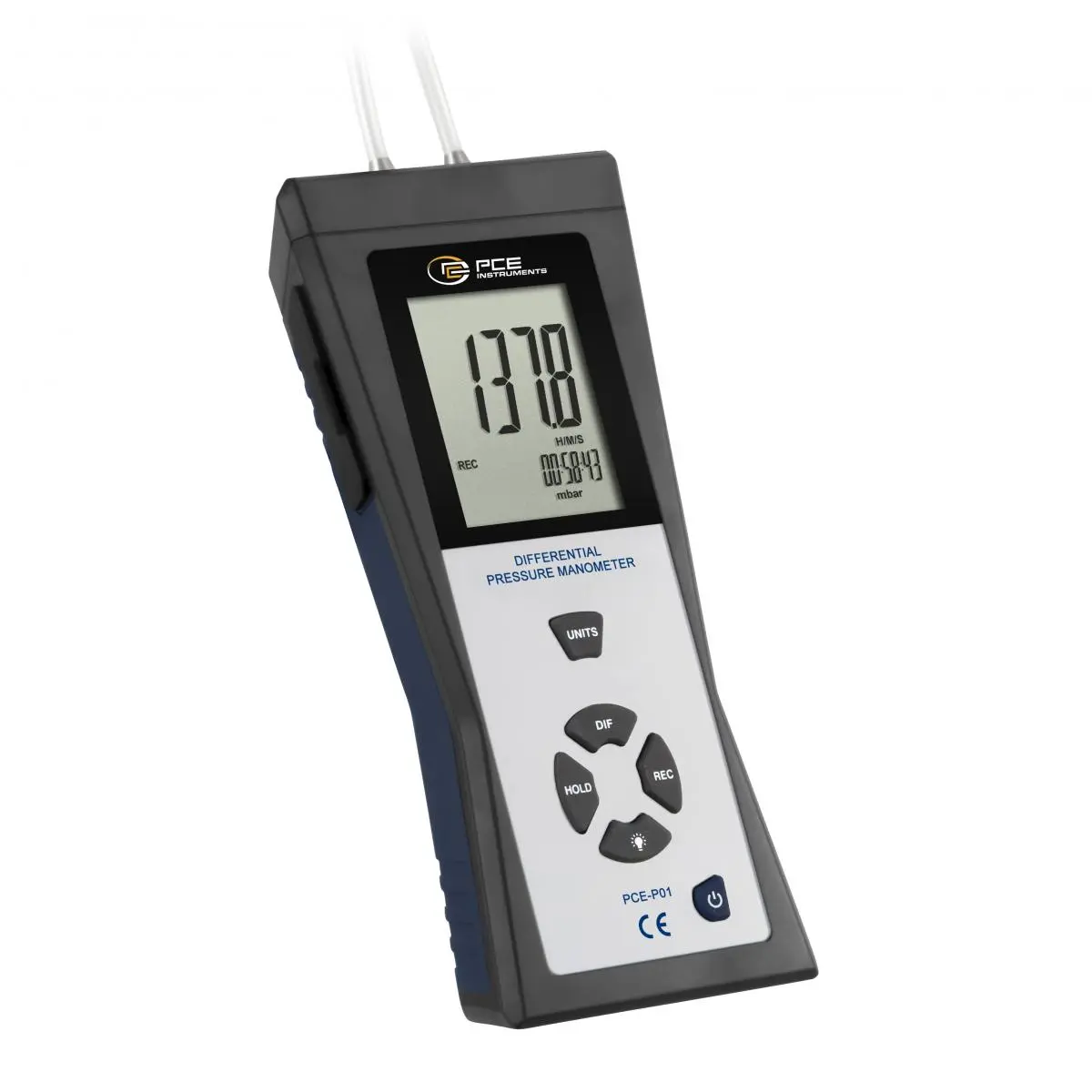

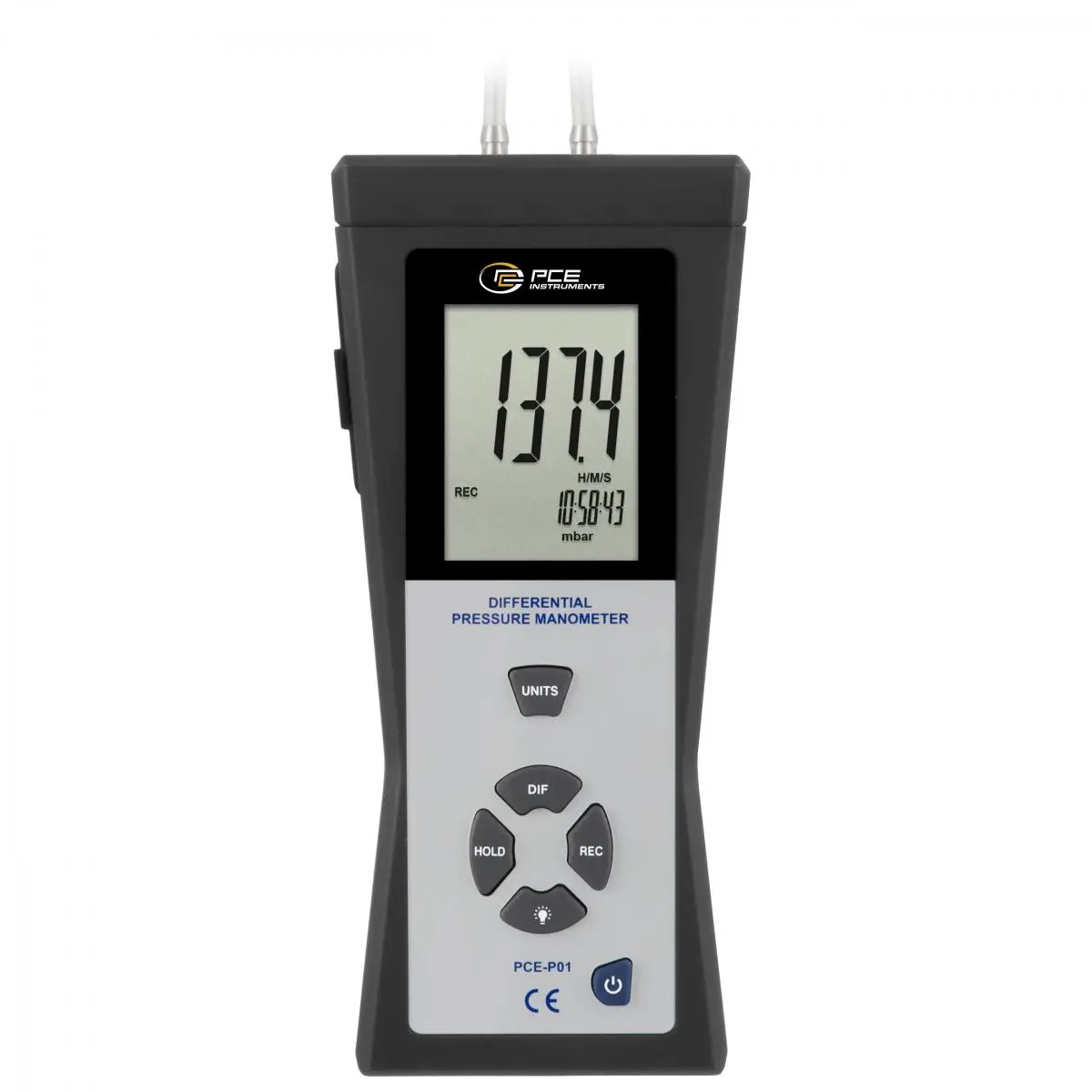

Differential Pressure Gauge PCE-P01
Differential manometer for the measuring range from -140 to +140 mbar, including software

The differential pressure gauge PCE-P01 is a robust, compact and comprehensive differential pressure gauge for measuring pressure in 11 adjustable units. The PCE-P01 is particularly suitable for the complete documentation of your measuring tasks. The minimum, maximum and average values of your measurement can be viewed in parallel to the current measured value on the large display of the PCE-P01 differential meter. For example, if you want to determine and document pressure fluctuations, you can use the enclosed software, with the help of which it is possible, for example, to transfer the measured values to the computer every second and display them graphically and in tabular form.

Highlights

- Easiest operation
- Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, ...
- Measuring range from -140 to +140 mbar

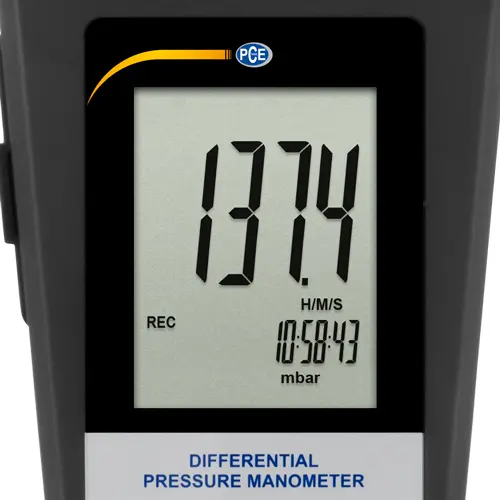

- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply

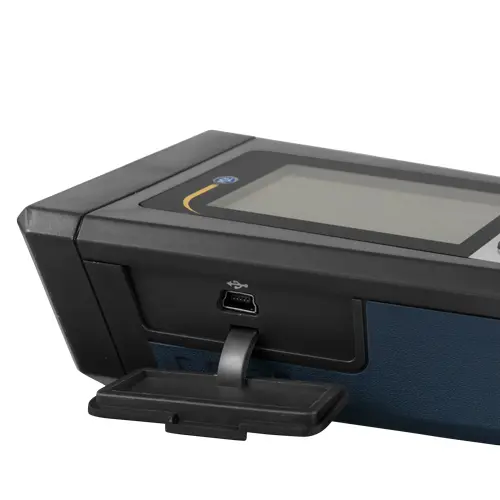

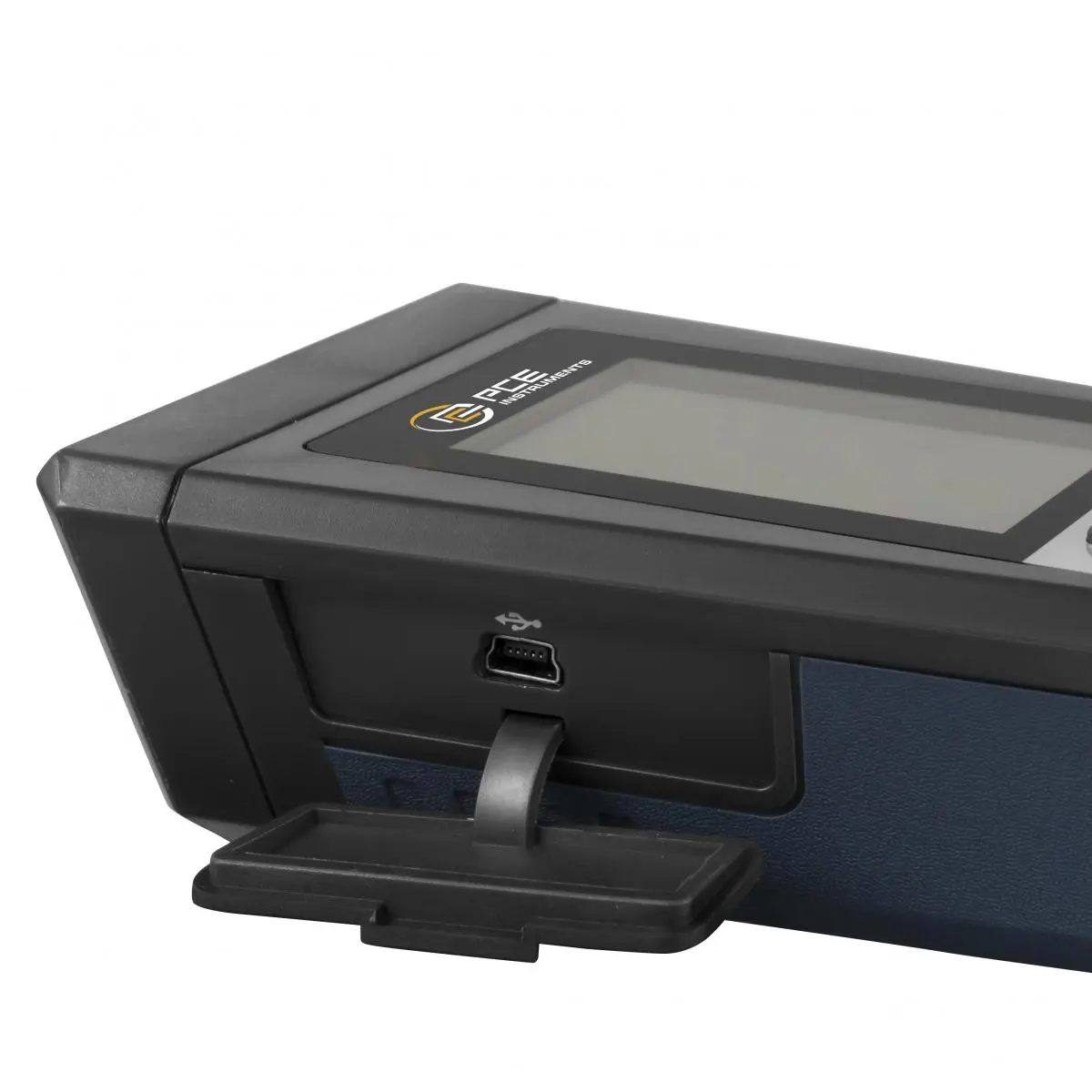

- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time

Specification

Measuring range (±) inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar	55.40 2.000 137.8 13.79 4.072 103.4 32.00 4.612 140.6 0.140 0.137
Resolution inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar	0.01 0.001 0.1 0.01 0.001 0.1 0.01 0.001 0.1 0.001 0.001
Accuracy (at +25 °C / +77 °F)	± 0.3% of measuring range
Linearity	± 0.2%
Response time	Approx. 0.5 sec.
Max. pressure	689 mbar
Operating temperature	0 ... 50°C / 32 ... 122°F
Storage temperature	-10 ... 60°C / 14 ... 140°F
Media	Air and non-explosive gases
Real-time data-logging interval	1 sec. to 24 h adjustable

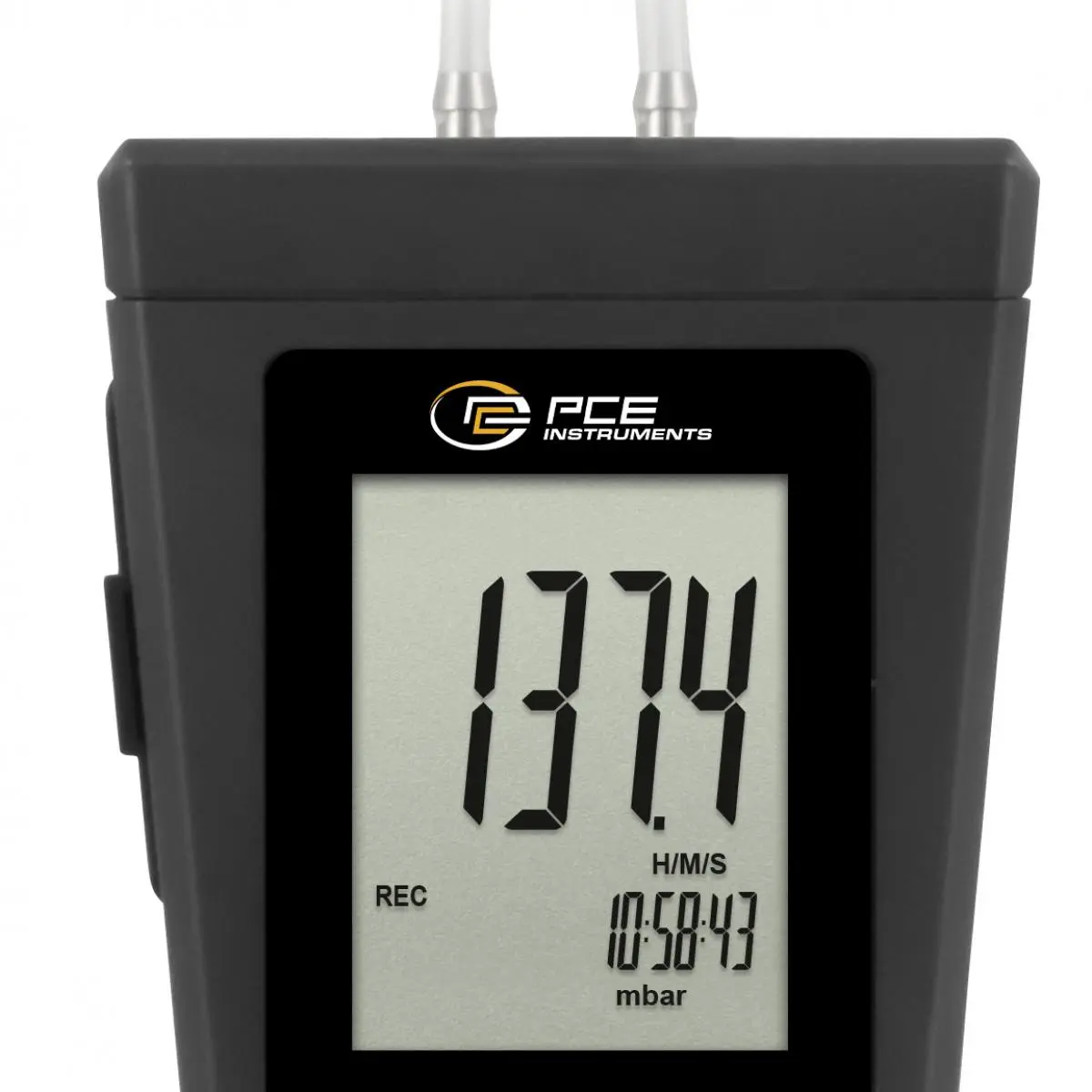

Display	Dual LCD
Dimensions	210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)	650 g / 1.44 lbs

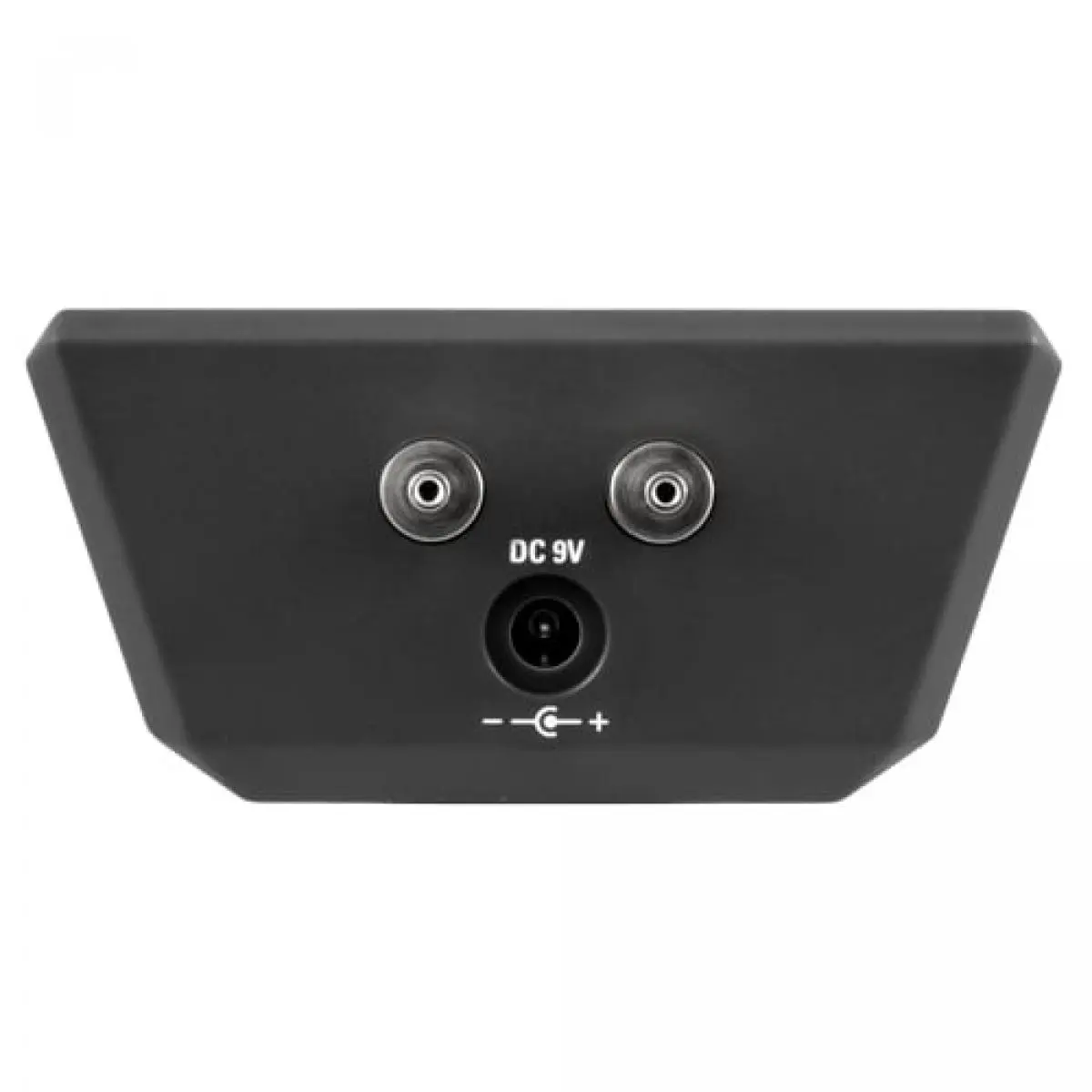

Power supply	Battery: 1 x 9V block AC adapter: 9V DC / 500-mA

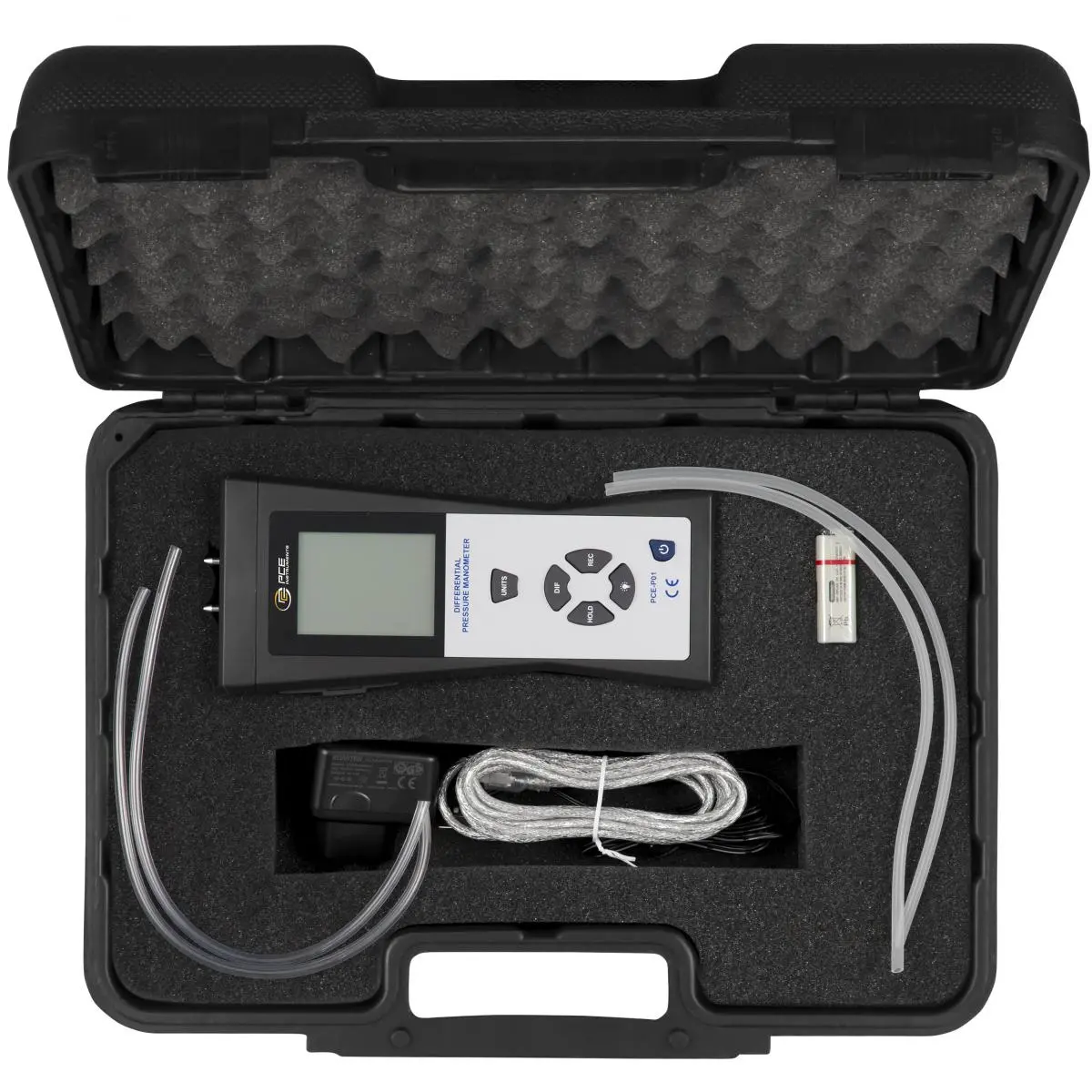

Delivery Scope

1 x Pressure Gauge PCE-P01
4 x 30cm / 11.8" silicone hose
1 x Software including USB cable
1 x 9V block battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual

Note
Overloading destroys the pressure sensor on the differential pressure meter
