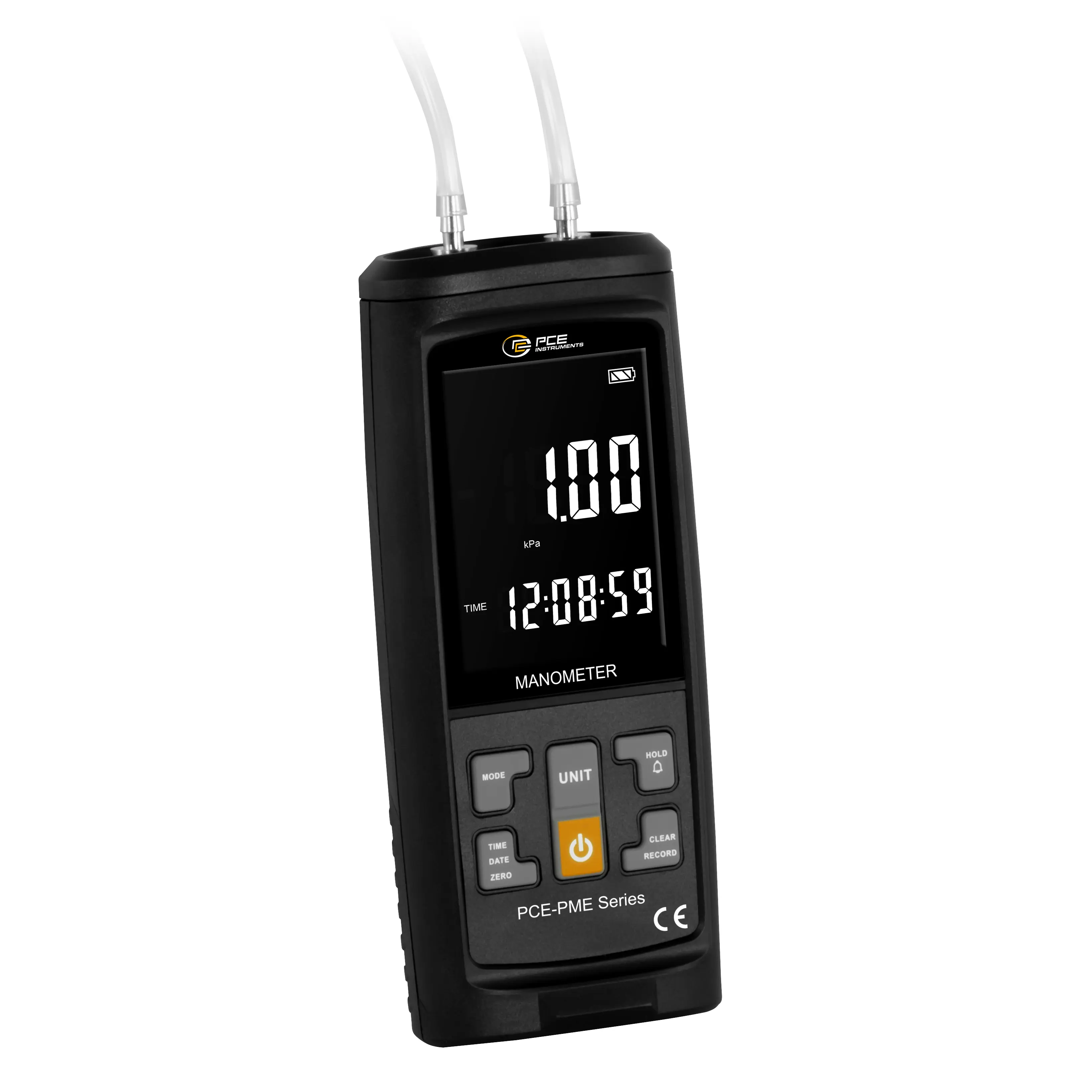

Pressure Gauge PCE-PME 1

Order no.: PCE-PME 1
GTIN (EAN): 4250348733771
131,90 €
156,96 €
price ex. (VAT / delivery)
:
4250348733771
PCE-PME 1
Delivery time: 1-2 working days

Description

Pressure Gauge up to ±1 kPa / 13 selectable units / data logging and USB-C interface / PC software / export to xls file

The digital Pressure Gauge is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Pressure Gauge is suitable for measuring non-aggressive and non-explosive gases.

The Pressure Gauge offers a variety of measuring functions such as maximum, minimum and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The Pressure Gauge has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.


Highlights

- MAX, MIN, AVG value, HOLD
- audible alarm
- 13 selectable pressure units
- data logging and software
- rechargeable lithium battery
- LC colour display
- date and time display

Specification

Differential pressure
Measurement range up to  -1 ... +1 kPa
Resolution  0,01 kPa
Accuracy  ±1 % FS

Differential pressure
Measurement range up to  -10 ... +10 mbar
Resolution  0,1 mbar
Accuracy  ±1 % FS

General technical data
Measuring functions  MIN, MAX, HOLD, AVG
Units  inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O

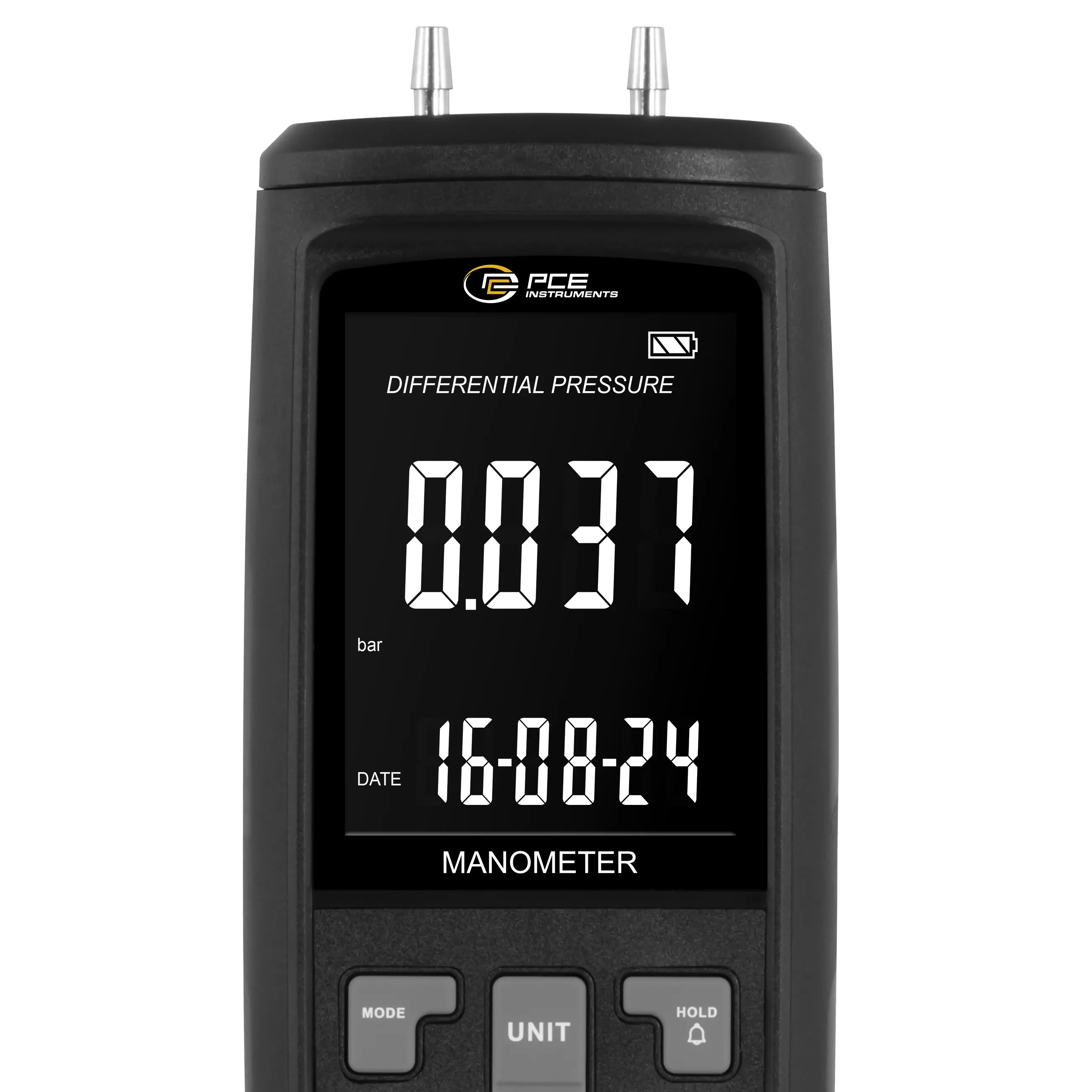

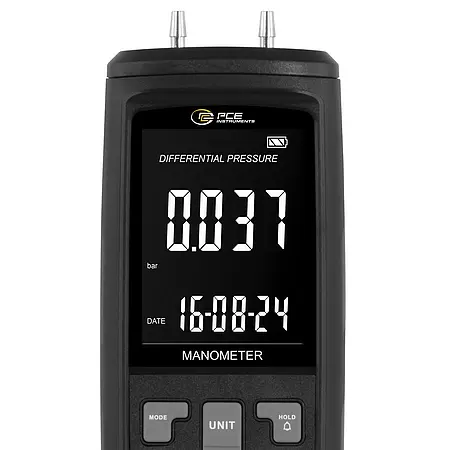

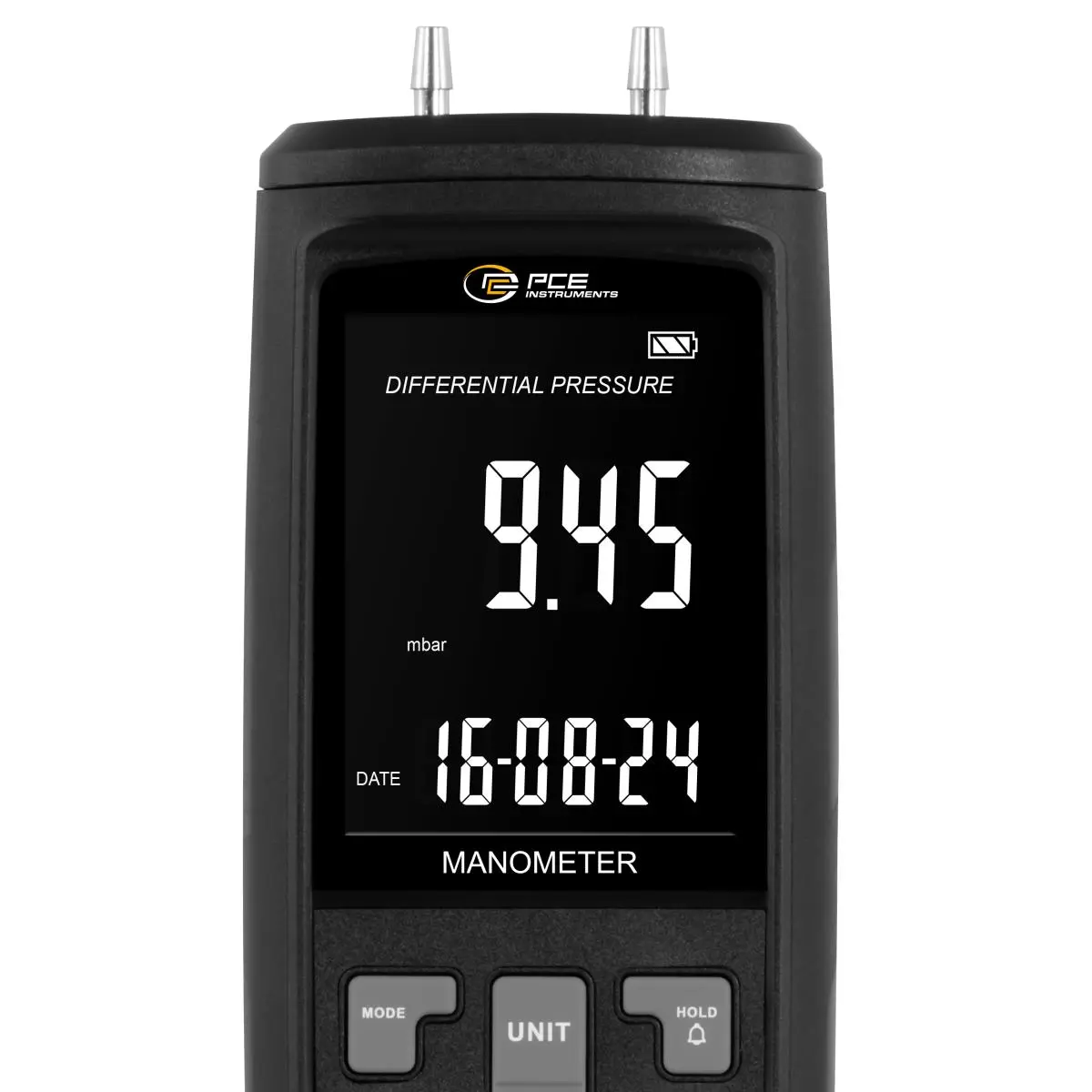

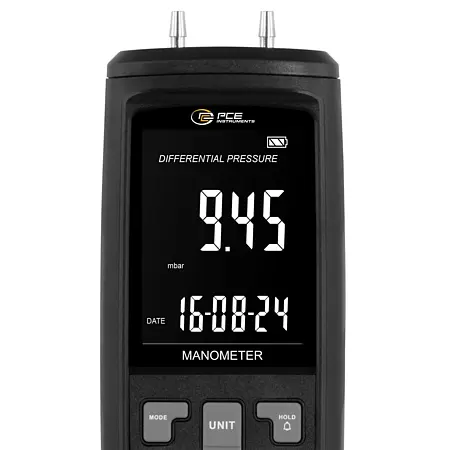

Display type  LC colour display
Storage medium  Internal memory
Storage capacity  15996 Measurements
Storage interval from  1 s
Storage interval to  9999 s

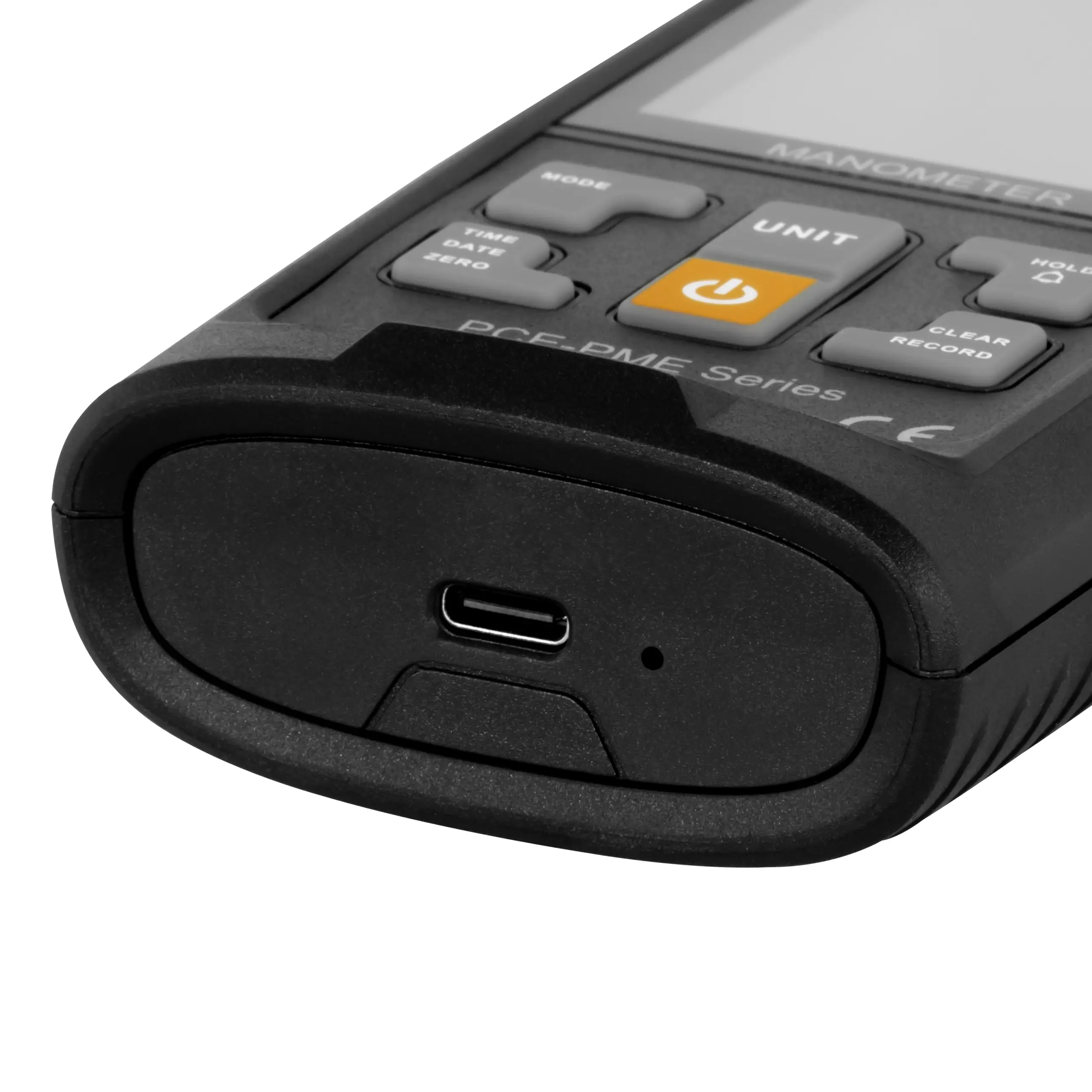

Interface  USB-C
Operating time  13 h
Automatic power-off from...to  1 ... 99 min.
Automatic power-off can be deactivated  Yes
Alarm  Acoustic
Alarm modes  Above, below
Overpressure  3 kPa
Menu language  English
Protection class (device)  IP20
Power supply  5 V
Weight  180 g
Operating conditions  -10 ... 60 °C , 0 ... 95 % RH
Storage conditions  -10 ... 60 °C , 0 ... 95 % RH
Capacity  1000 mAh
Dimensions ( W x H x D )  63 x 162 x 32 mm

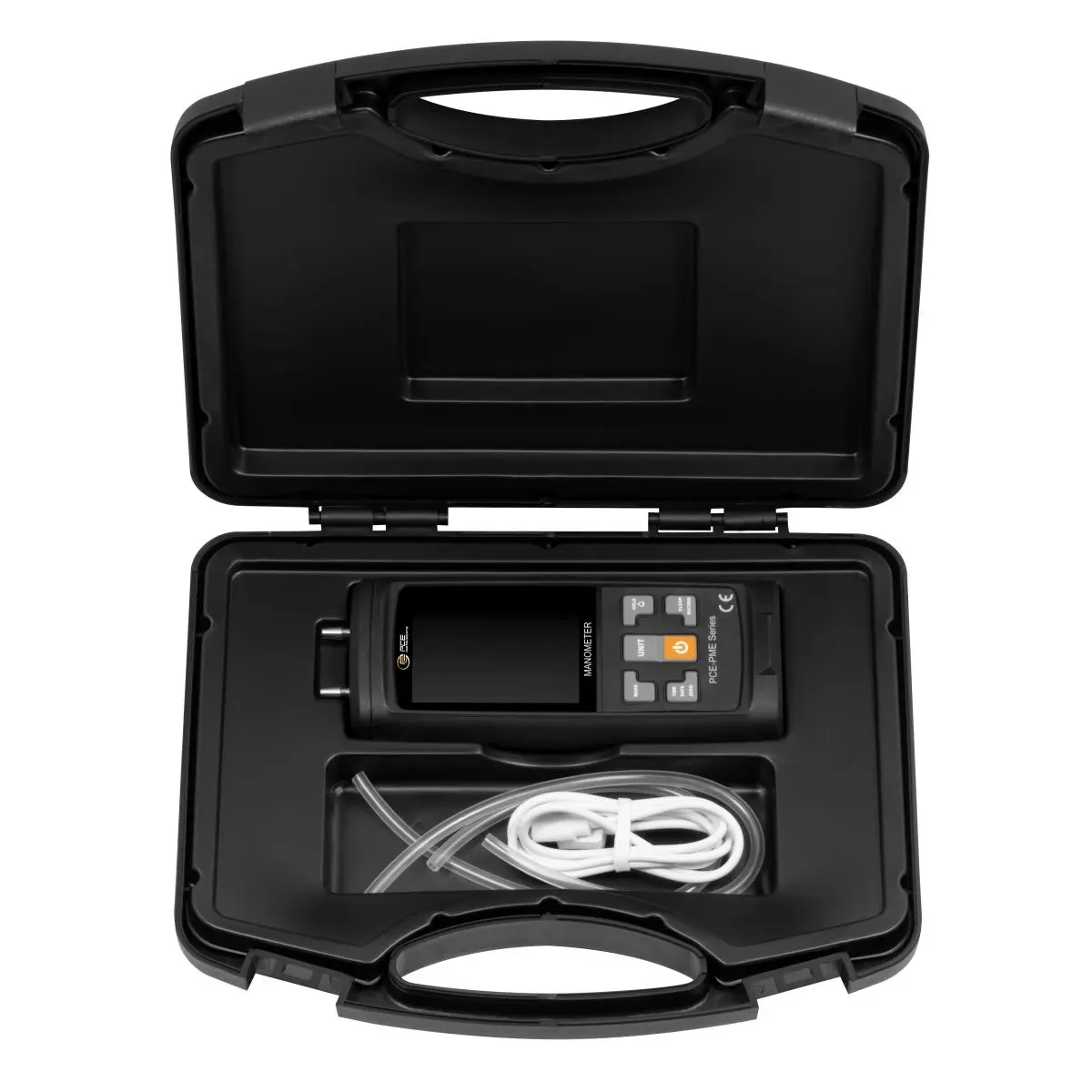

Delivery Scope

1 x Pressure Gauge PCE-PME 1

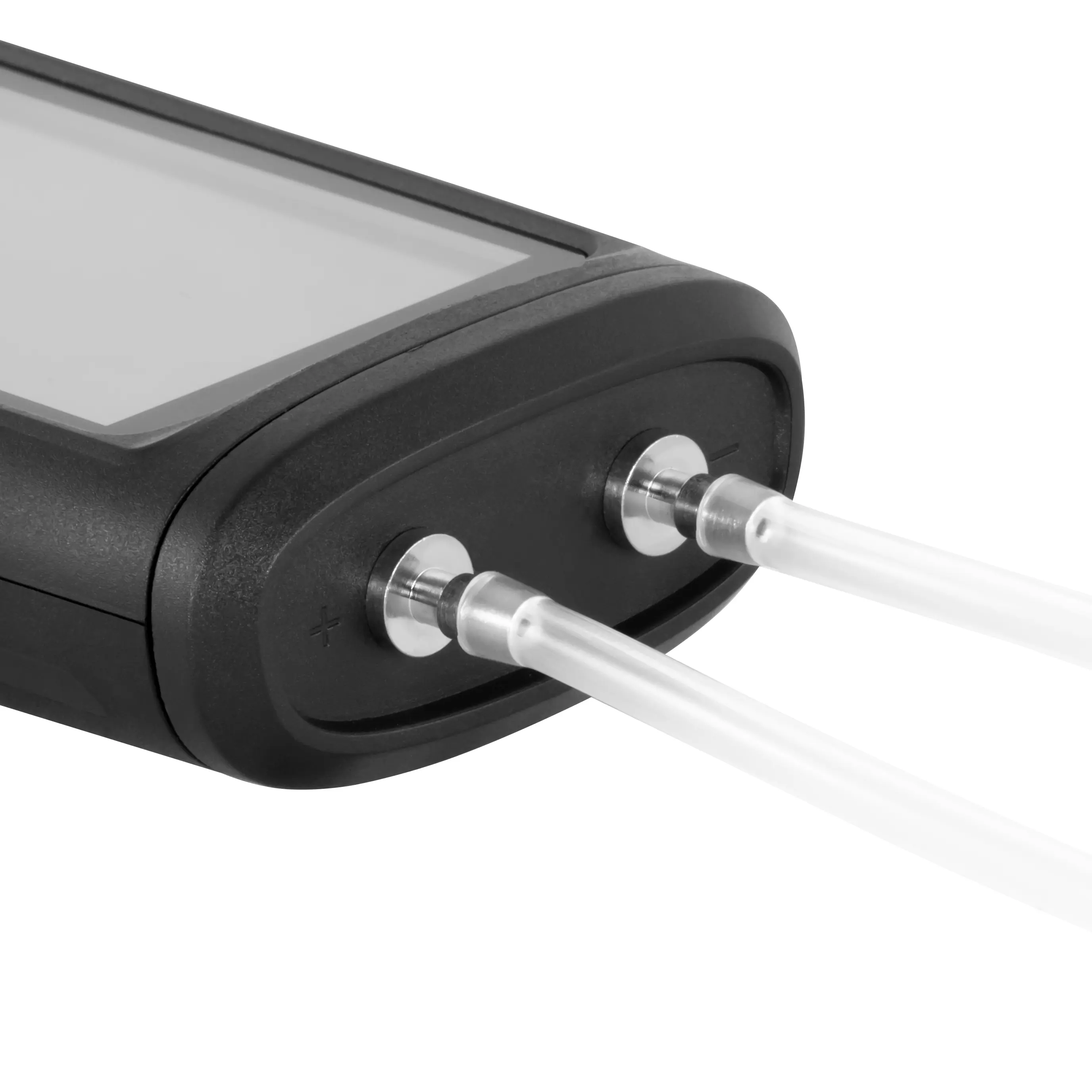

2 x hose approx. 25 cm
1 x USB-A - USB-C cable (mains adaptor not included)

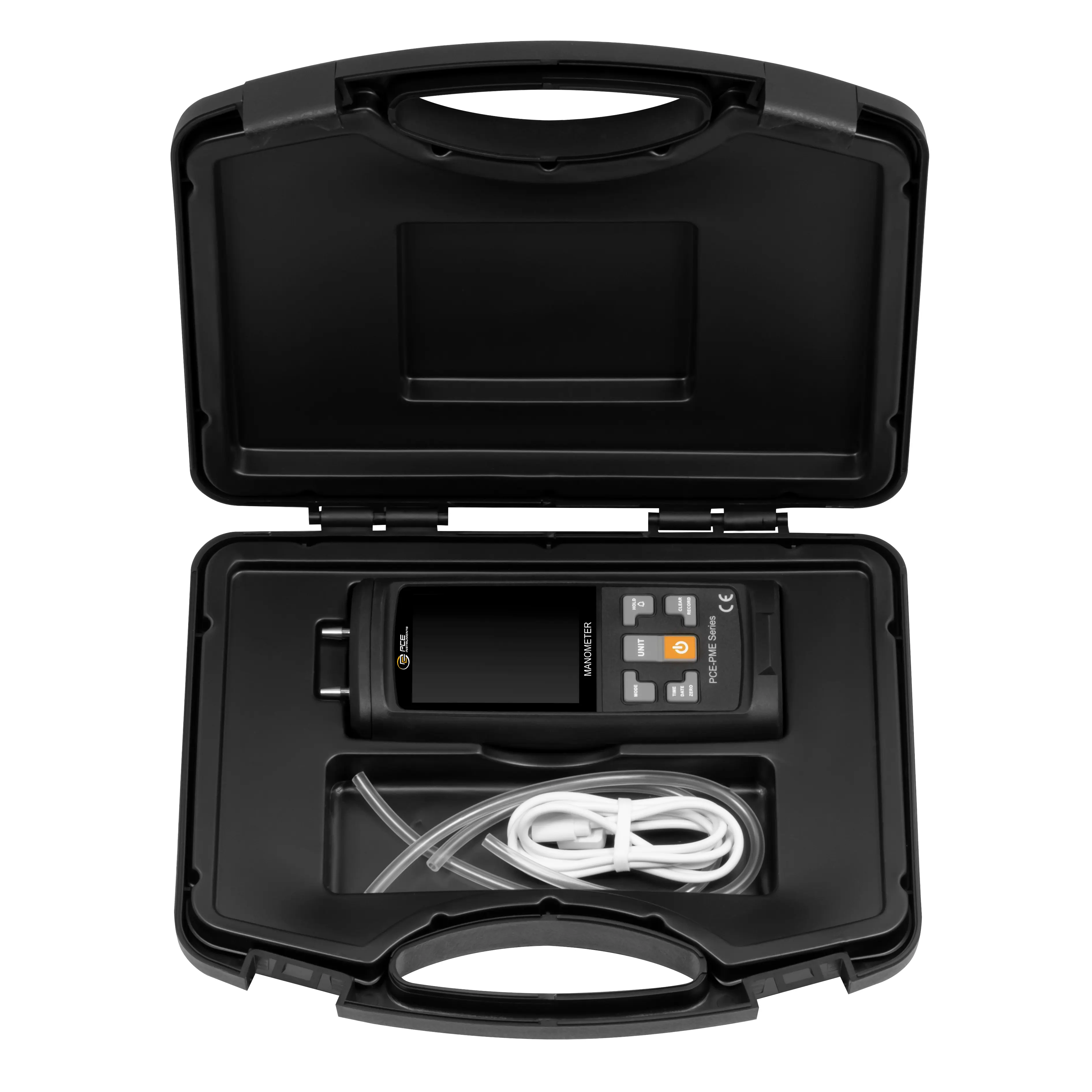

1 x carrying case
1 x PC software (in the download area)
1 x user manual
