Specification
| TR-PS2W-20BAR |
|
| Measuring range |
Resolution |
| 0 ... 20 bar |
0.02 bar |
| 0 ... 290 PSI |
0.2 PSI |
| 0 ... 20.40 Kg / cm² |
0.02 kg / cm² |
| 0 ... 15000 mm Hg |
20 mm Hg |
| 0 ... 590.5 inch Hg |
0.5 inch Hg |
| 0 ... 204.0 meters H20 |
0.2 meters H20 |
| 0 ... 8020 inches H20 |
10 inch H20 |
| 0 ... 19.74 ATP |
0.02 ATP |
| 0 ... 2000 kPa |
2 kPa |
| |
|
| Exit |
4 to 20-mA DC |
| 4-mA |
= normal pressure |
| 20-mA |
= maximum pressure |
| Precision pressure sensor made of ceramic |
| Linearity output signal |
± 1% FS |
| Zero Offset |
± 2% FS |
| Operating temperature |
-20 ... 80°C / -4 ... 176°F |
| Ambient humidity |
80% RH |
| Size |
Ø 30mm x 85mm |
| Weight |
160 g / < 1 lb |
| |
|
Delivery Scope

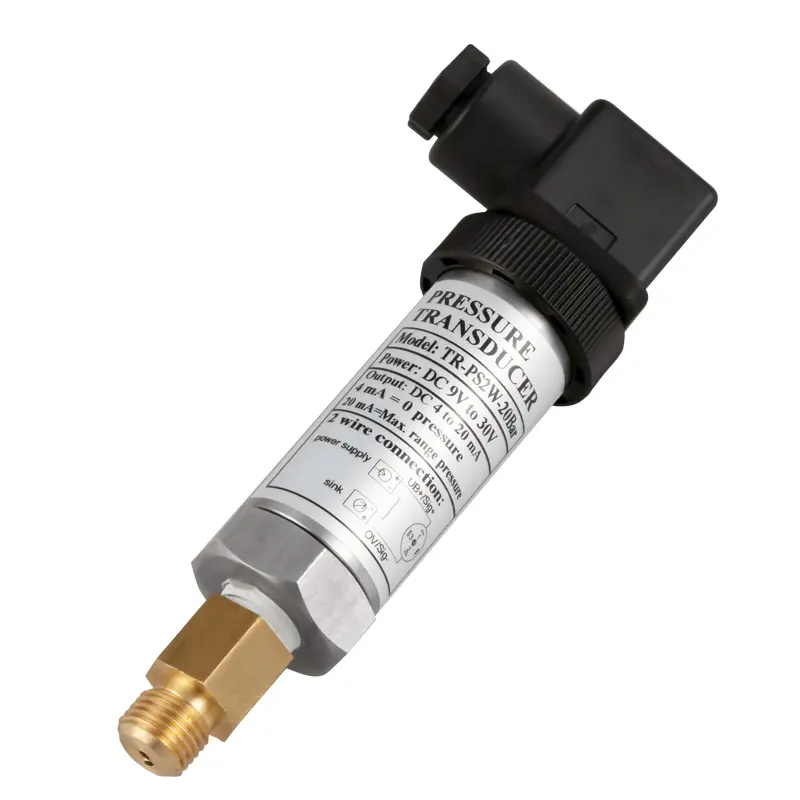

1 x Pressure sensor TR-PS2W-20BAR
