Specification
| TR-400 bar PS2W |
|
| Measuring range |
Resolution |
0 ... 400 bar
|
0.5 bar |
| 0 ... 5800 PSI |
5 psi |
| 0 ... 408.0 Kg / cm² |
0.5 kg / cm² |
| 0 ... 300000 mm Hg |
500 mm Hg |
| 0 ... 11810 inch Hg |
10 inch Hg |
| 0 ... 4075 meters H20 |
5 meters H20 |
| 0 ... 160600 inches H20 |
200 inches H20 |
| 0 ... 394.5 ATP |
0.5 ATP |
| 0 ... 40000 kPa |
50 kPa |
| |
|
| Exit |
4 to 20-mA DC |
| 4-mA |
= normal pressure |
| 20-mA |
= maximum pressure |
| Precision pressure sensor made of ceramic |
| Linearity output signal |
± 1% FS |
| Zero Offset |
± 2% FS |
| Operating temperatur |
-20 ... 80°C / -4 ... 176°F |
| Ambient humidity |
80% RH |
| Size |
Ø 30 mm x 85 mm |
| Weight |
160 g / < 1 lb |
| |
|
Delivery Scope

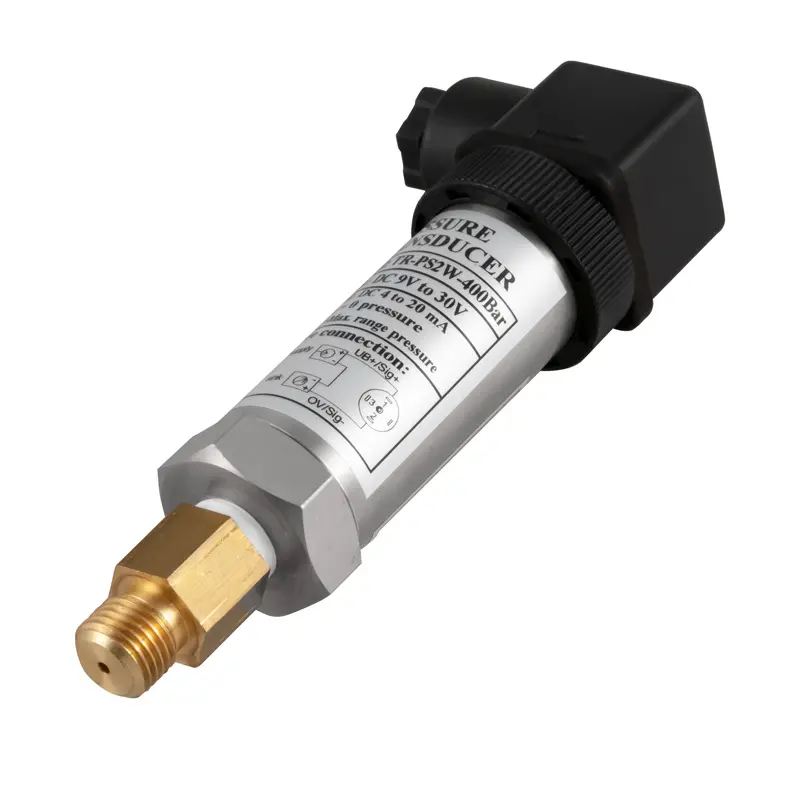

1 x Pressure sensor TR-PS2W-400BAR
