Specification
| TR-PS2W-5Bar |
|
| Measuring range | |
| 0 ... 5 bar |
0.005 bar |
| 0 ... 72.5 PSI |
0.1 PSI |
| 0 ... 5.095 Kg / cm² |
0.005 kg / cm² |
| 0 ... 3750 mm Hg |
5 mm Hg |
| 0 ... 147.6 inches Hg |
0.1 inch Hg |
| 0 ... 50.95 meters H20 |
0.05 meter H20 |
| 0 ... 2006 inch H20 |
2 inches H20 |
| 0 ... 4,935 ATP |
0.002 ATP |
| 0 ... 500 kPa |
0.5 kPa |
| |
|
| Exit |
4 to 20-mA DC |
| 4-mA |
= normal pressure |
| 20-mA |
= maximum pressure |
| Precision pressure sensor made of ceramic |
| Linearity output signal |
± 1% FS |
| Zero Offset |
± 2% FS |
| Operating temperature |
-20 ... 80°C / -4 ... 176°F |
| Ambient humidity |
80% RH |
| Size |
Ø 30 mm x 85 mm |
| Weight |
160 g / < 1 lb |
| |
|
Delivery Scope

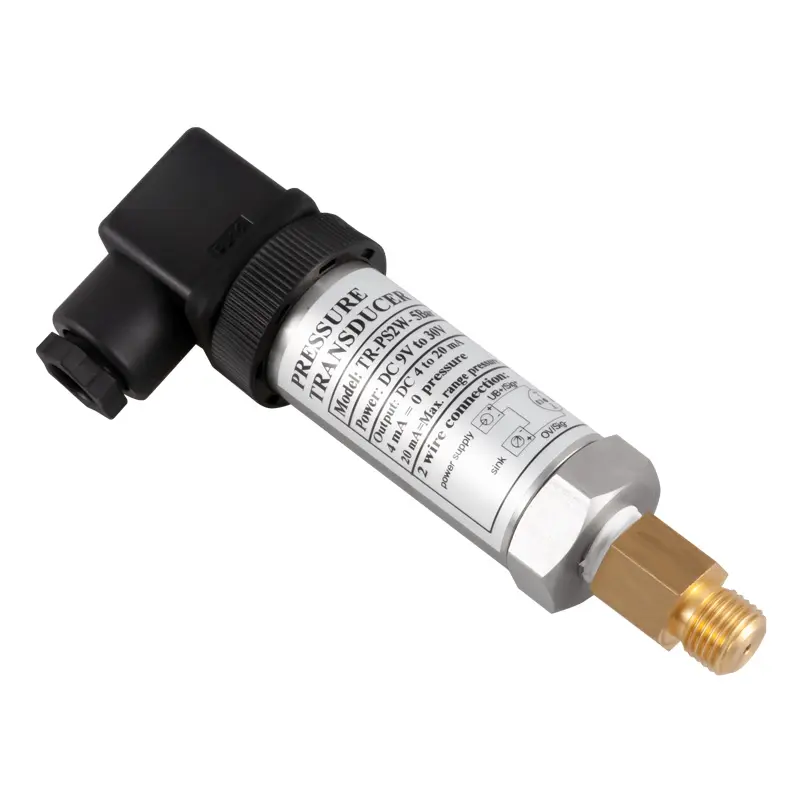

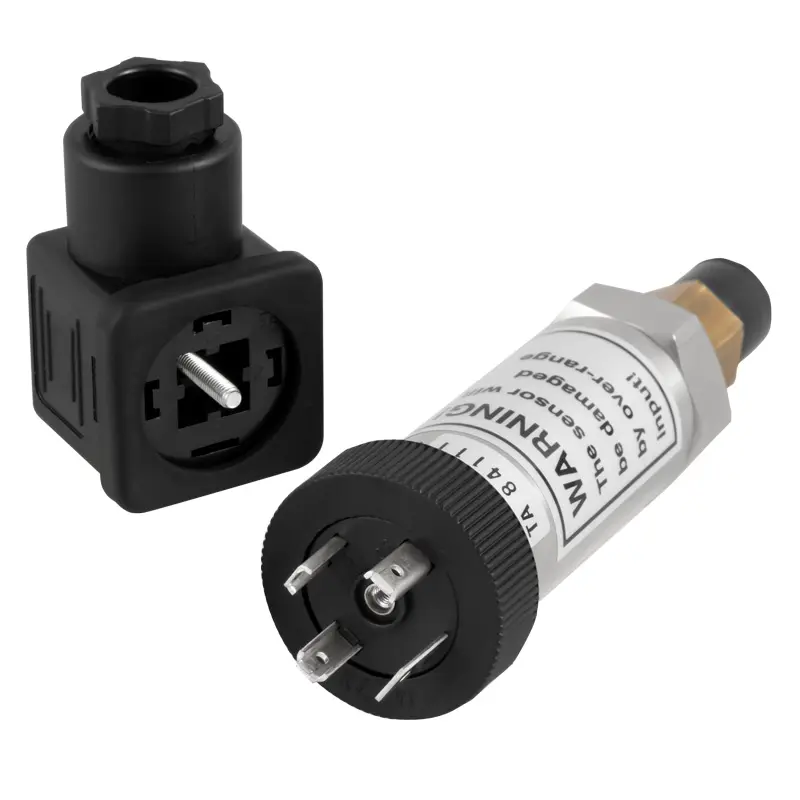

1 x Pressure sensor TR-PS2W-5BAR
