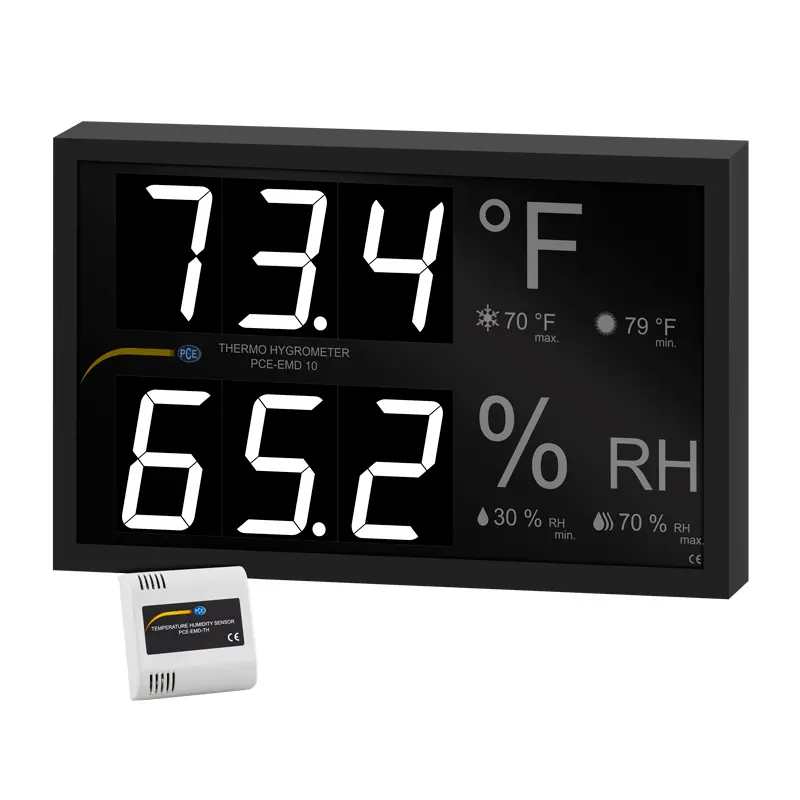

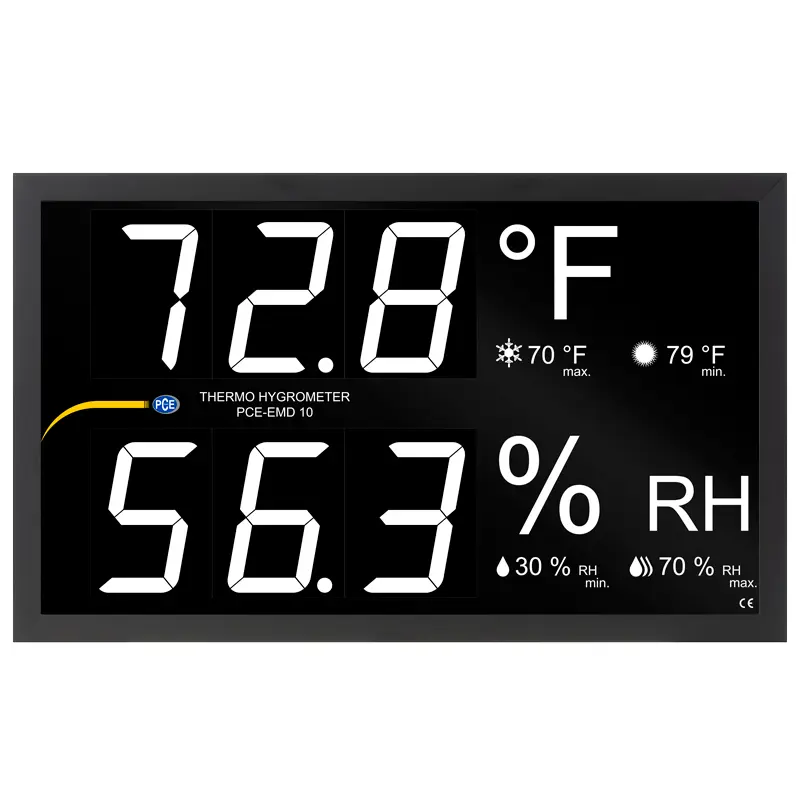

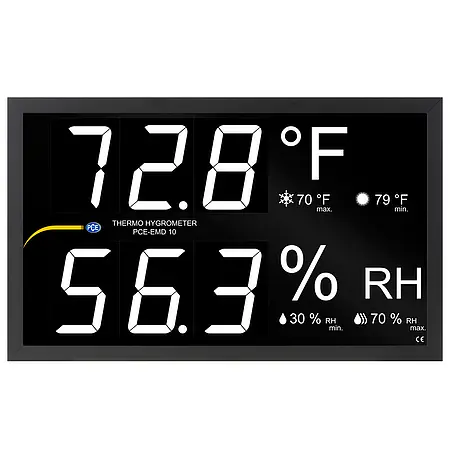

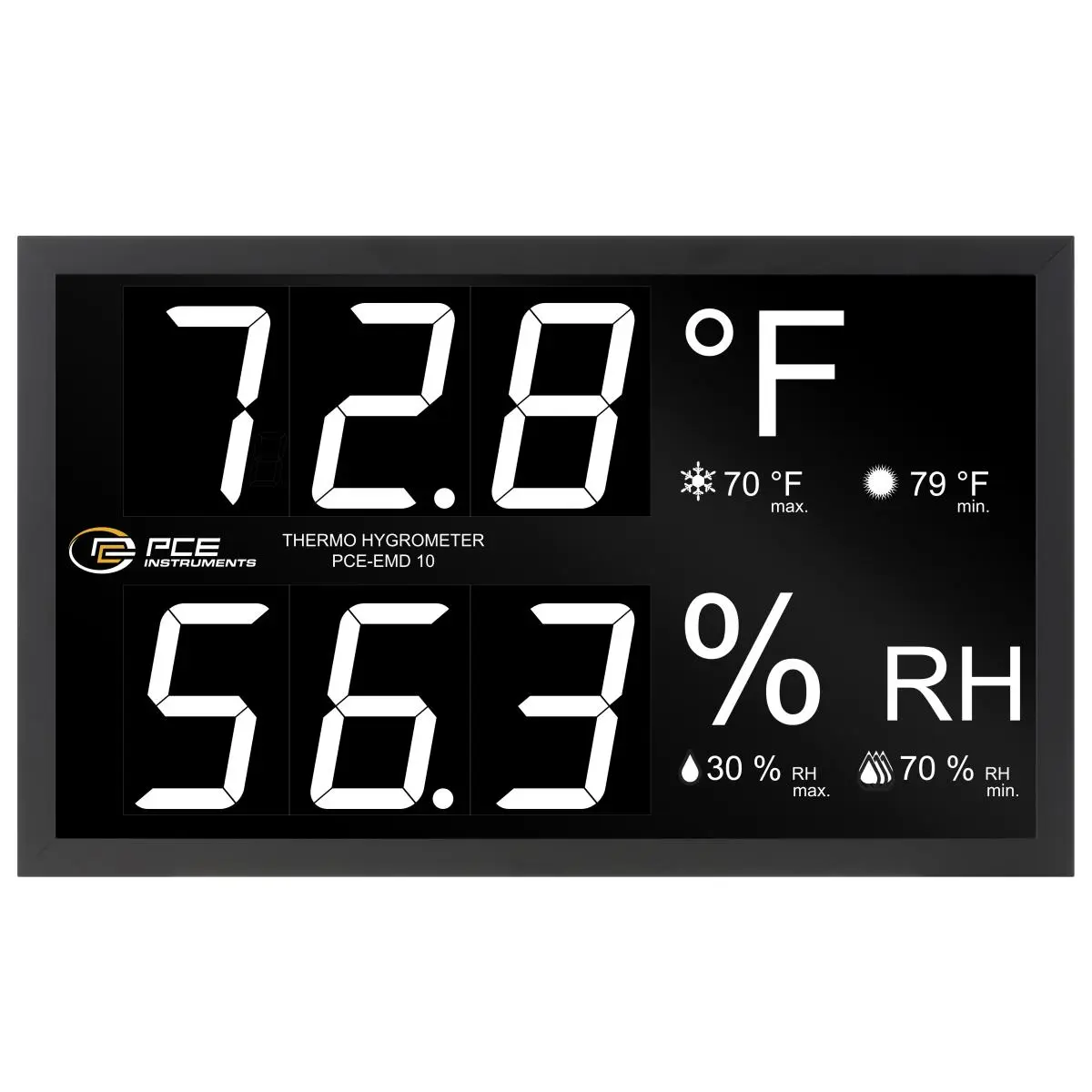

Psychrometer PCE-EMD 10-ICA Incl. ISO Calibration Certificate

Order no.: PCE-EMD 10-ICA

GTIN (EAN): 4250348728456

Accessory

Replacement Temperature and Humidity Transmitter PCE-EMD-TH

166,90 €

ISO Calibration Certificate for Temperature and Humidity

159,90 €

Description

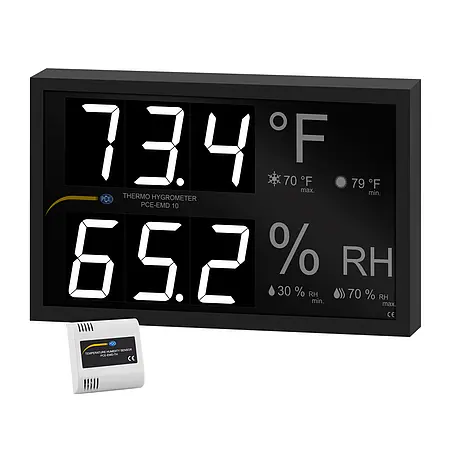

Psychrometer with robust aluminum frame / Digit height 100 mm (3.9") / Temperature measuring range 32.0 ... 122.0 °F / Humidity measuring range 0.0 ... 99.9% RH / Connection of up to four sensors at the same time

The Psychrometer can be connected to up to four external temperature and humidity modules. The temperature measurement range of the Psychrometer sensors is 32.0 ... 122.0 °F and the humidity measuring range is 0.0 ... 99.9% RH. The power supply itself is effected in the Psychrometer via a power supply of 110 ... 220V AC. The integrated sensor supply in the Psychrometer, can also supply the connected external sensors with 12 or 24V DC.

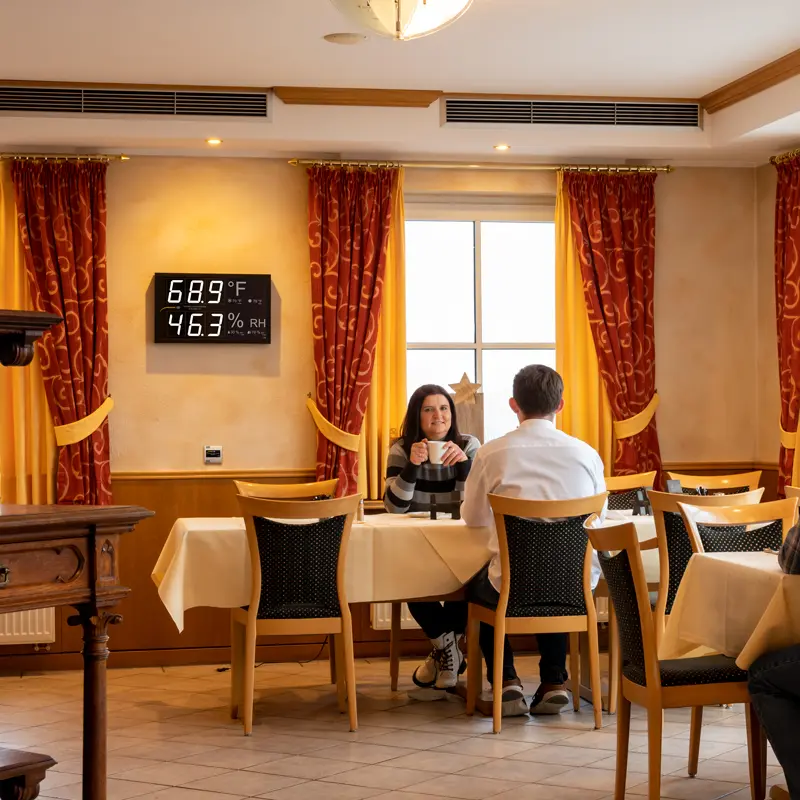

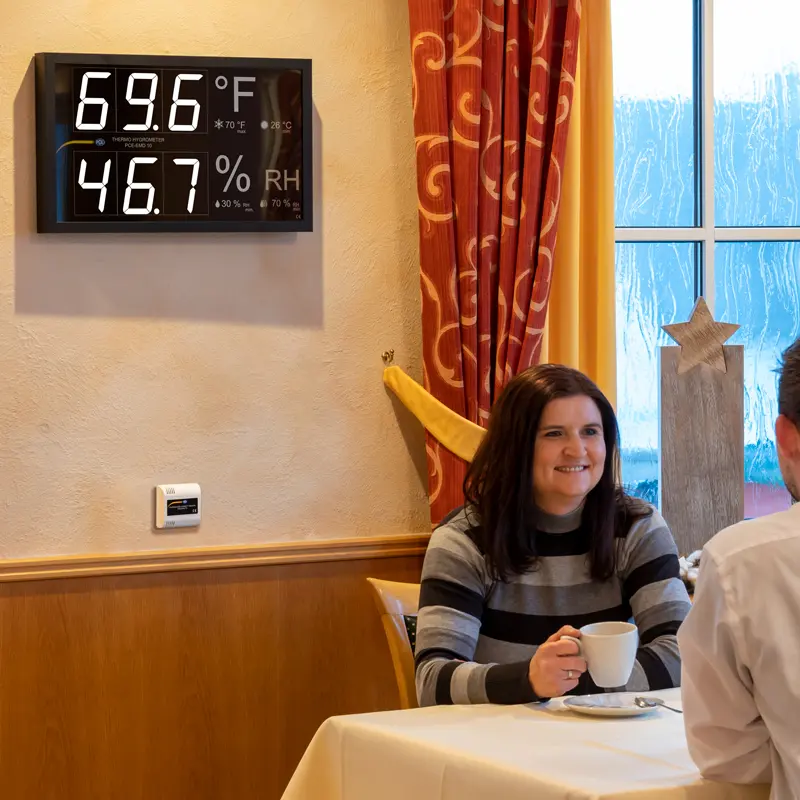

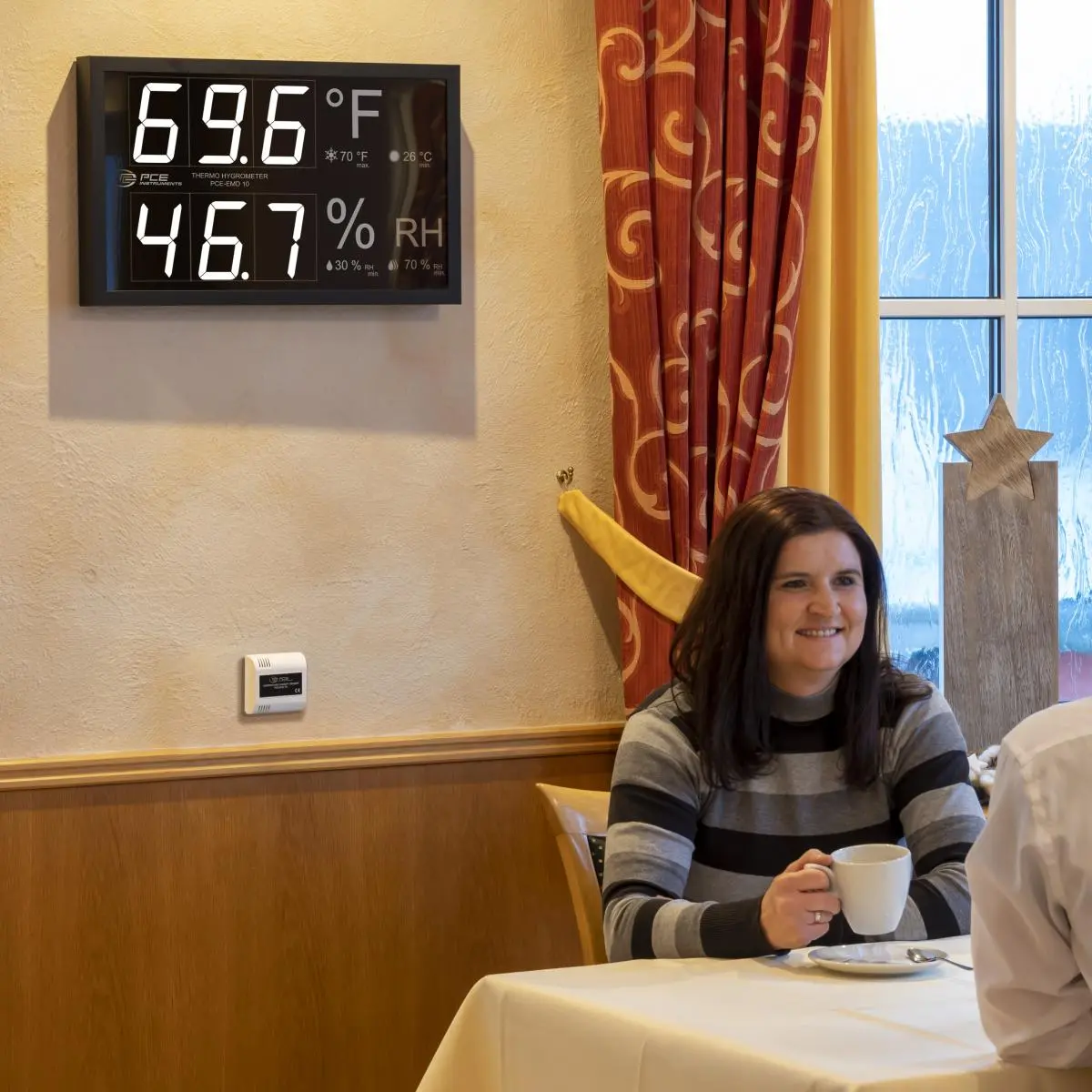

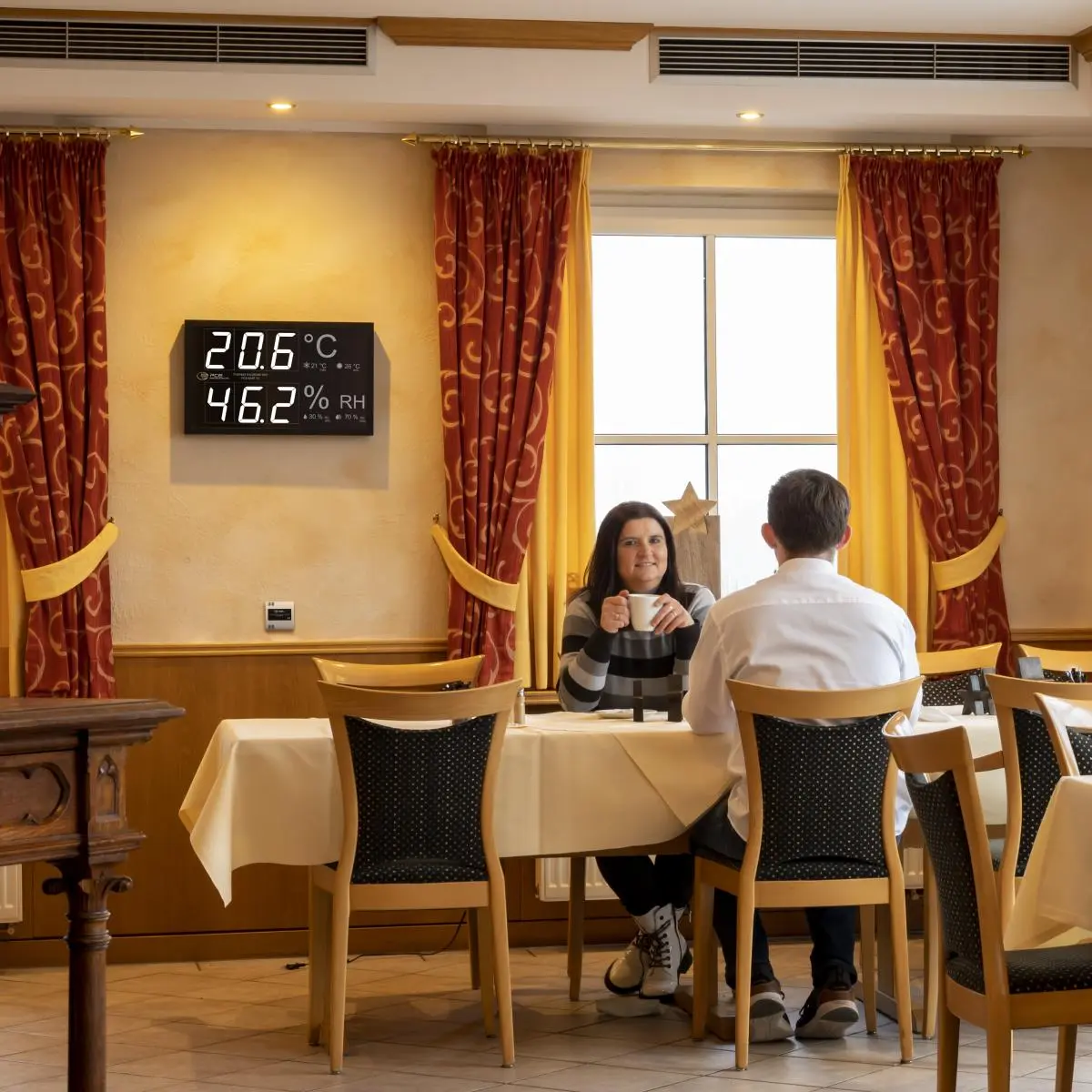

As soon as the sensors are connected, they are automatically recognized by the Psychrometer. The communication between the sensor modules and the Psychrometer takes place via an analog 4… 20-mA signal. If several sensors are connected, the average reading of all sensors is displayed on the Psychrometer. The Psychrometer is used, for example, in event halls, restaurants or in public buildings to monitor ambient conditions.

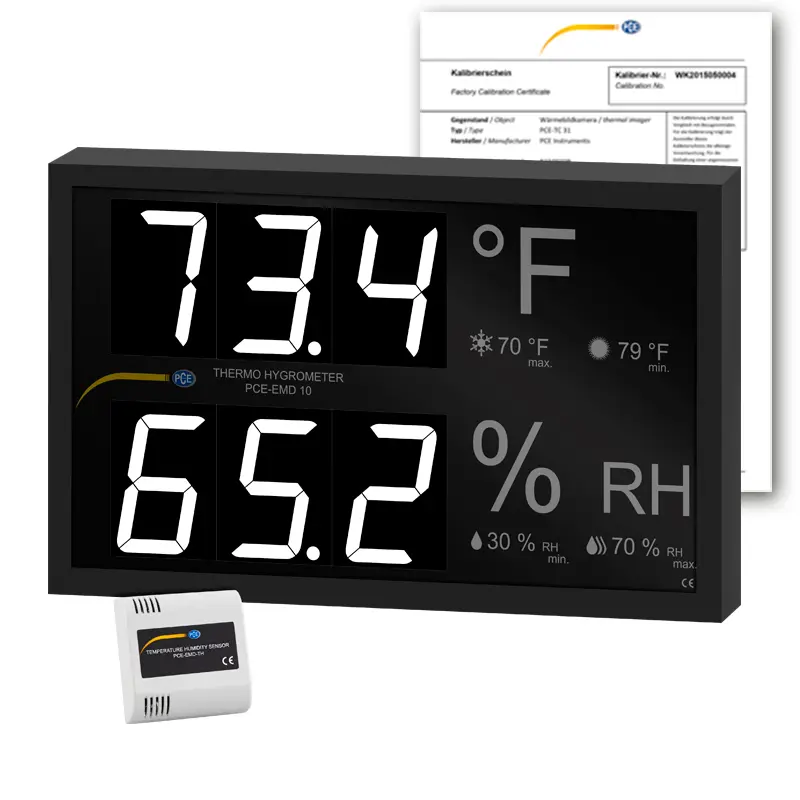

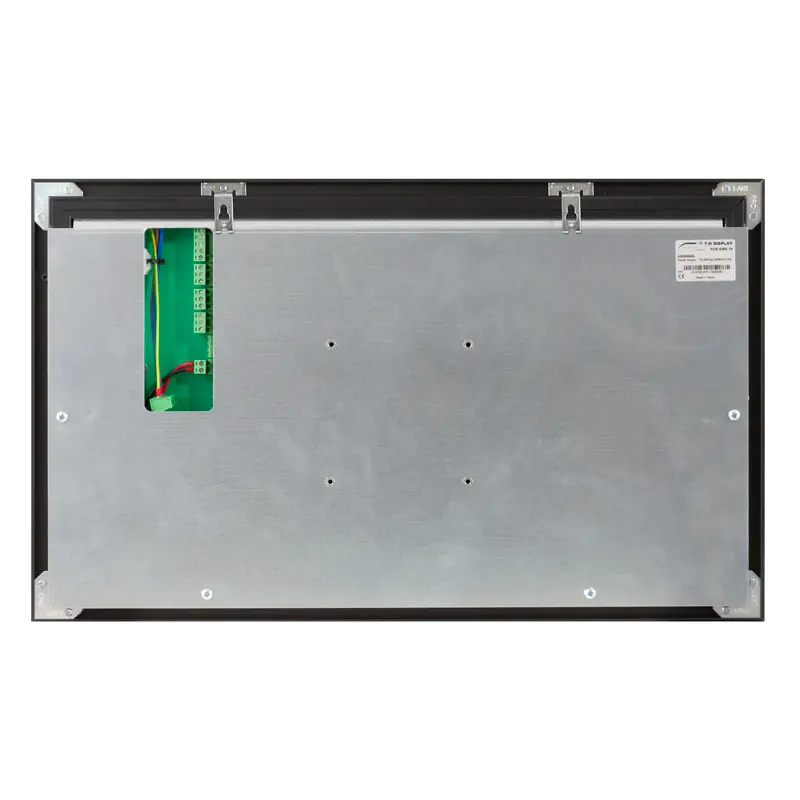

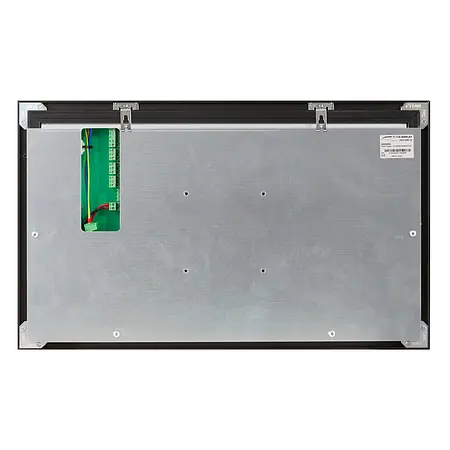

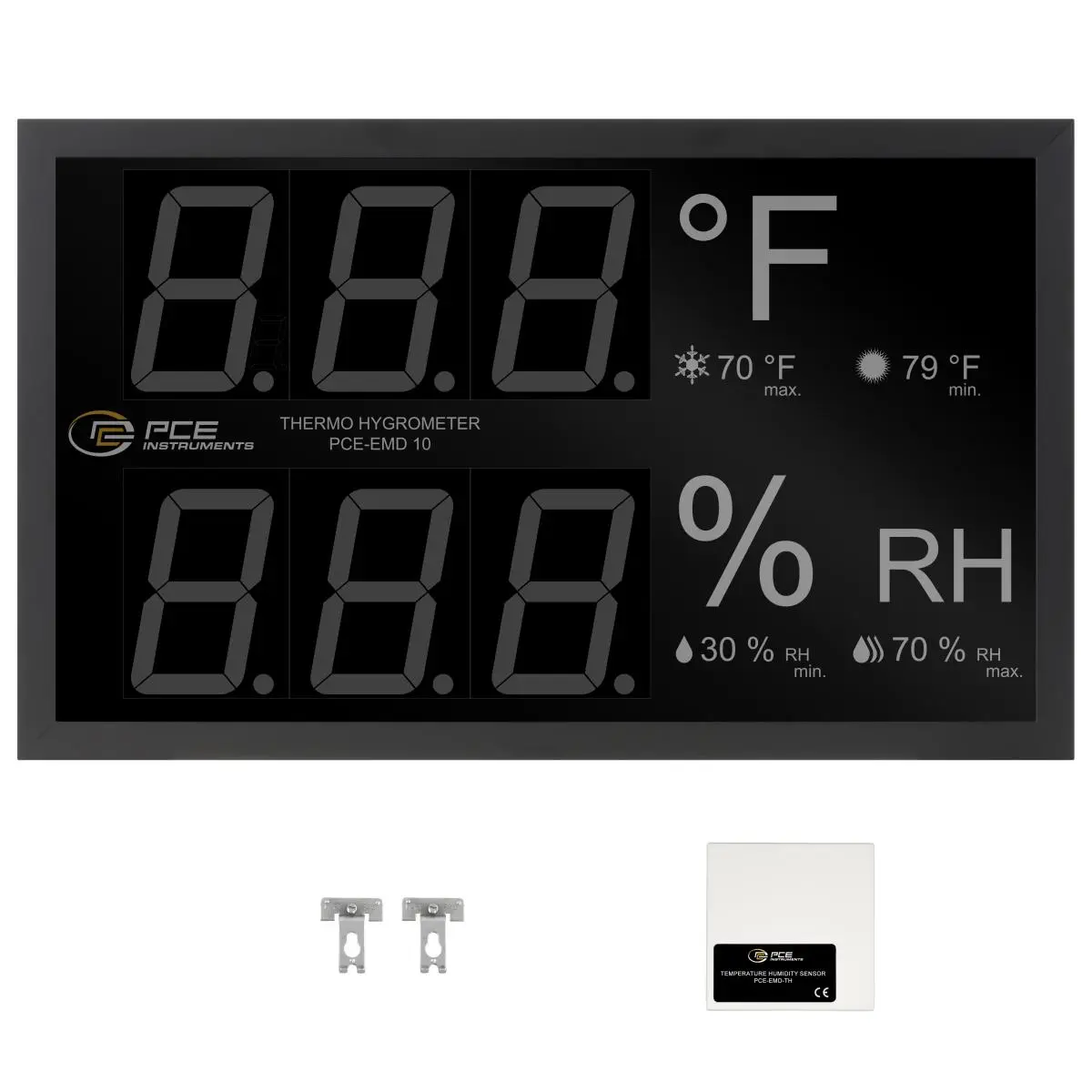

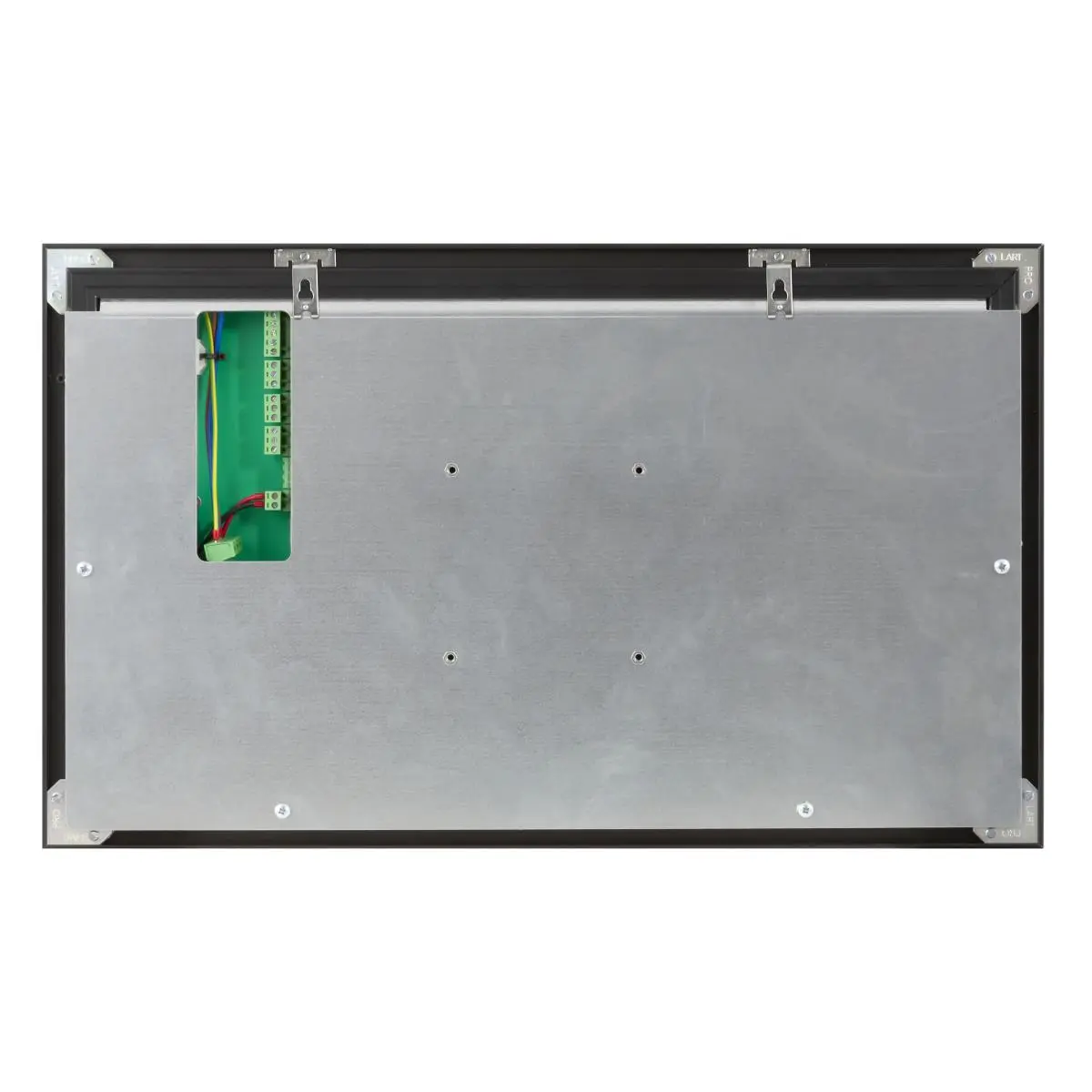

Both the Psychrometer and the sensor module are mounted on a wall. If necessary, the Psychrometer can be mounted on a monitor bracket with the mounting dimensions 75 x 75 mm. This allows the Psychrometer to be ideally aligned. The Psychrometer can optionally be equipped with an ISO calibration certificate.

Highlights

- Digit height of 100 mm (3.9")
- Measuring ranges: 32.0 ... 122.0 °F
- Wall mounting
- Connection of up to four external sensors
- Analog 4 ... 20-mA input signal

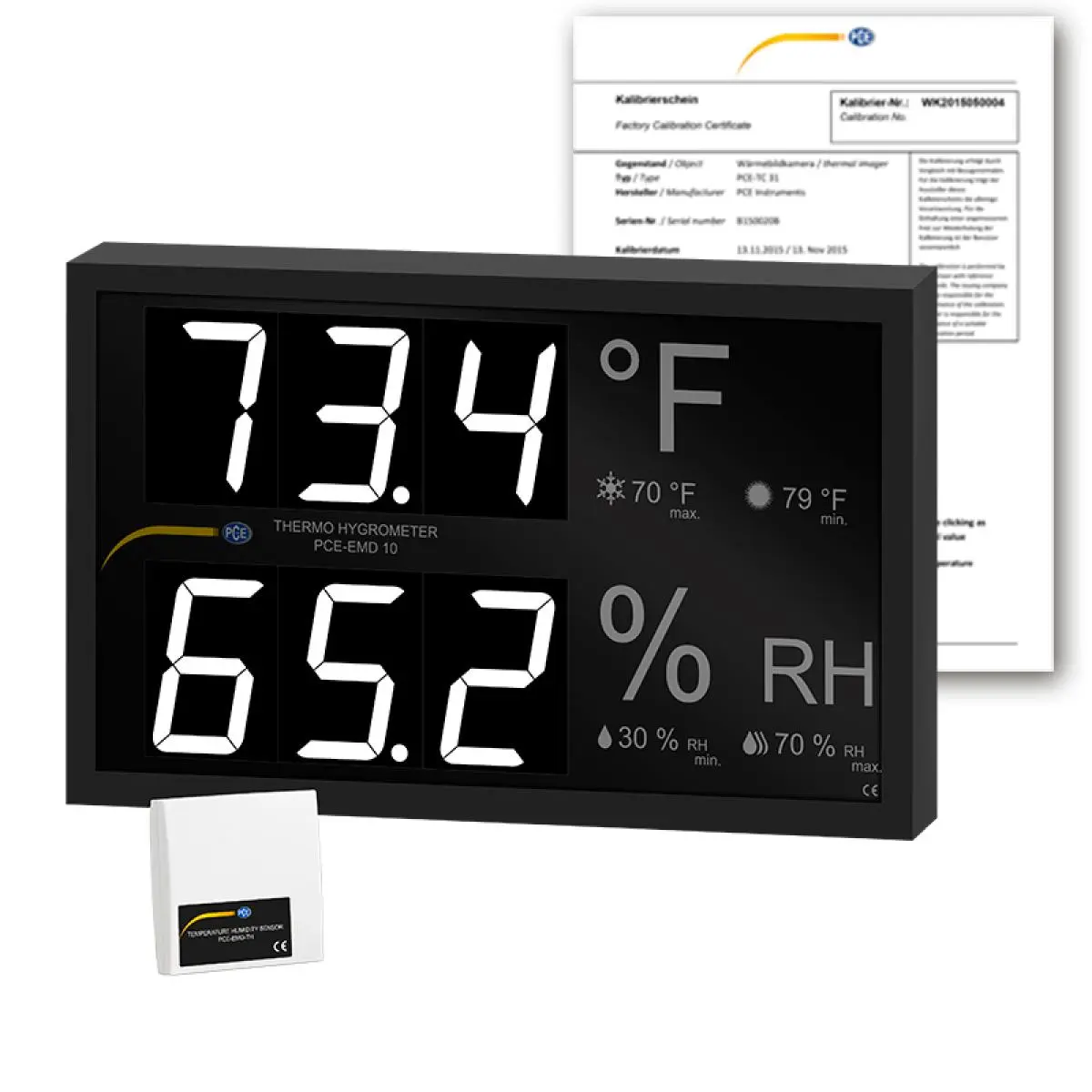

- Incl. ISO calibration certificate

Specification

Measuring range temperature	32.0 … 122.0 °F
Resolution	0.1 °F
Accuracy	±0.9 °F

Measuring range humidity	0.0 … 99.9 % RH
Resolution	0.1 % RH
Accuracy	±3 % RH

Further specifications
Response time	<15 seconds at a wind speed of <1 m/s
Display interval	1 Hz
Number of usable sensors	4
Digit height	100 mm / 3.9"
Digit colour	white
Sensor supply voltage	12 and 24 V DC
Maximum sensor supply current	100 mA
Impedance current input	<200 Ω
Housing material	black painted aluminium housing
Screen protection	anti-reflective methacrylate
Housing material sensor	ABS
Protection class display	IP20
Protection class sensor	IP30
Power supply display	110 ... 220 V AC 50 / 60 Hz
Maximum power consumption	18 W
Mounting display	wall mounting, monitor stand (75 x 75 mm / 2.95 x 2.95")

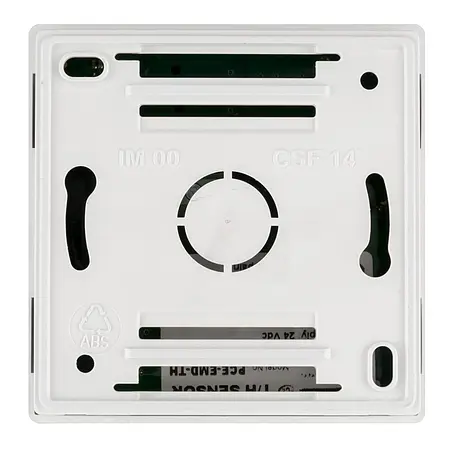

Mounting sensor	wall mounting

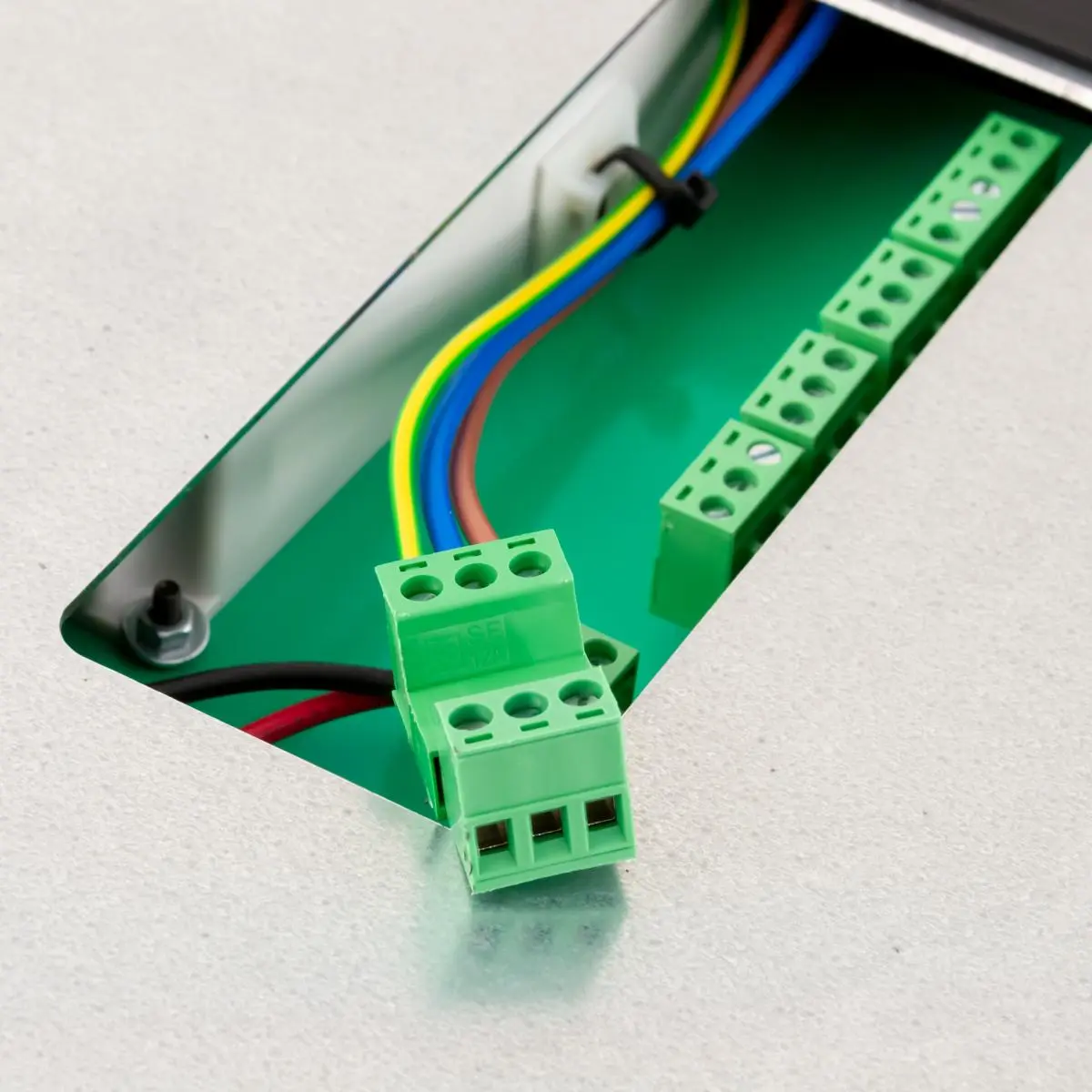

Terminal strip power supply cable cross-section	0.5 … 2.5 mm² (AWG 14) rigid cable 0.5 … 1.5 mm² (AWG 15) flexible cable
Terminal strip sensor connection cable cross-section	0.14 … 0.15 mm² (AWG 18) rigid cable 0.15 … 1 mm² (AWG16) flexible cable
Terminal strip torque	1.2 Nm
Terminal strip screw length	<12 mm / 0.47"
Dimensions display	535 x 327 x 53 mm / 21.0 x 12.8 x 2.0"
Dimensions sensor	80 x 80 x 35 mm / 3.1 x 3.1 x 1.3"
Operating conditions	-10 … 60 ºC, 5 … 95 % RH, non-condensing
Storage conditions	-20 … 70 ºC, 5 … 95 % RH, non-condensing
Weight display	4579 g / 161.5 oz
Weight sensor	66 g / 2.3 oz
