Radiation Detector

A radiation detector is a device for measuring nuclear, electromagnetic or light radiation. A nuclear radiation detector identifies nuclear radiation by measuring the emission of ionizing radiation of alpha particles, beta particles and gamma rays. Also referred to as a geiger counter, a nuclear radiation detector consists of two main elements: the processing electronics and the geiger tube. The geiger tube is filled with low-pressure inert gas like helium, argon or neon. If radioactive radiation occurs, the inert gas is ionized. An anode within the geiger tube registers the quantity of ionized particles numerically correlating with the strength of the radioactive radiation. The radioactivity measurement is then displayed on the LCD screen of the geiger counter or nuclear radiation detector.

It is very important to measure nuclear radioactivity as well as to classify nuclear radioactivity values. For example, terrestrial gamma radiation is measured according to general values from 0.03 - 0.3 µSv/h (microsievert / hour). This "normal" oscillation range is conditioned by natural radioactive elements in the ground such as uranium and potassium. To calculate this factor, one must take into consideration cosmic radiation. For example, when considering cosmic radiation, the maximum radioactivity content at Schneefernerhaus, the highest-located German environmental research station, is approximately equal to 110 µSv/h. At PCE Instruments, you will find three types of geiger counter or nuclear raditation detection devices to help you measure radioactivity: 1) alpha radioactivity meters, 2) meters for detecting alpha, beta and gamma radioactivity and 3) radioactivity meters to be worn on the body.

If you have any questions about the nuclear, electromagnetic or light radiation detectors on this website, please contact us at or +49 (0) 2903 976 990 (Mo. - Fr. von 8.00 bis 17.00 Uhr).

Radiation Detector PCE-RDM 5

94,90 €

Price excl. VAT &. delivery

The Radiation Detector is a small sensitive radiation measuring instrument used for monitoring X-rays, gamma and beta radiation. The Radiation Detector uses an energy-compensated Geiger-Müller counting tube as a detector for accurate measurement.

β- and X-ray radiation
Measuring range max.: 9.999 µSv/h
Measuring range min.: 0.08 µSv/h
alarm function
battery operation
vibration alarm
Type USB C charging port

Radiation Detector PCE-RDM 10

154,90 €

Price excl. VAT &. delivery

With a measurement range of 0 to 99.99 µSv/h, the radiation detector covers a wide range of measurement tasks. The radiation detector has an accuracy of 0.25 counts per second per microsievert per hour (0.25 cps/µSv/h), making it a highly precise measuring instrument.

Measurement range: 0.01 … 99.99 µSv/h
Resolution: 0.01 µSv/h
Detectable radiation: γ-rays, β-rays, X-rays
Sensitivity: 0.25 cps/
Data storage for 167,857 values
Real-time value, average value
Accumulated value in mSv for long-term measurements
Adjustable alarm threshold

Radiation Detector PCE-RAM 10

443,90 €

Price excl. VAT &. delivery

The radiation detector measures α-, β-, γ- and X-rays and offers a high measurement accuracy and convenient design. Using the integrated Bluetooth interface in the radiation detector, the measured values can be sent in real time to a PC and analyzed with the included PC software.

α-, β-, γ- and X-rays
Bluetooth interface
Internal memory
PC software included

Electromagnetic Radiation Detector PCE-SFS 10

1.100,90 €

Price excl. VAT &. delivery

An electrostatic measurement is particularly important to check whether surfaces, components or the human body are electrostatically charged. Such electrostatic charges can be detected with the electromagnetic radiation detector.

Measuring range: ±60 kV DC
Acoustic signal when the measured value is exceeded
Temperature and humidity display
Laser for aligning the measuring device

Solar Radiation Detector PCE-SPM 1

305,90 €

Price excl. VAT &. delivery

The solar radiation detector for solar energy is the optimal hand - testing device for solar engineers, architects and hobby solar installers. This makes it possible to make a statement about the composition and design of a photovoltaic system.

Measuring range: 0 … 2000 W/m²
Resolution: 1 W/m²
Accuracy: ±10 W/m² or ± 5%
Data memory: 32,000 measured values
Application, e.g .: photovoltaic systems
Data transmission: RS-232 serial interface

Radiation Detector PCE-PVA 100

1.283,90 €

Price excl. VAT &. delivery

The radiation detector is a useful tool to examine solar cells for their characteristics. With a DC voltage range of 0… 60 V and a DC current range of 0… 12 A, the radiation detector covers a large number of solar modules.

Measuring range: 0 … 12 A DC
Three different test functions
PC interface for data transfer
Switchable graphic view
Application, e.g. photovoltaic systems

Radiation Detector PCE-EMF 20

34,90 €

Price excl. VAT &. delivery

The Radiation Detector is a device for the simultaneous measurement of electric and magnetic fields, ideal for domestic use for testing routers, Bluetooth devices, radios, televisions, computers, printers, microwave ovens, refrigerators and mobile phone masts. The Radiation Detector offers a measurement range from 1 to 1999 V/m for electric fields and from 0.01 to 99.99 µT for magnetic fields.

electric field: 1 ... 1999 V/m
resolution: 1 V/m
accuracy: 1 V/m
magnetic field: 0.01 ... 99.99 µT
resolution: 0.01 µT
accuracy: 0.01 µT
bandwidth: 5 Hz ... 3500 MHz
alarm threshold: 40 V/m, 4 µT

Radiation Detector PCE-RAM 5

87,90 €

Price excl. VAT &. delivery

The radiation detector and safety meter is a small, highly sensitive radiation warning device that is mainly used to monitor X, ß and y radiation.

X, ß and y radiation
Measuring range: 0.05 usv … 50 msv based on 137 Cs y
Accuracy: -17 % … + 25 %
Clip design
OLED display
USB-C charging socket

Radiation Detector PCE-RAM 6

121,90 €

Price excl. VAT &. delivery

The radiation detector is frequently used in nuclear power plants, accelerators, industrial and medical applications as well as in the environmental control of nuclear facilities. The radiation detector with a Geiger counter tube as a sensor is a versatile instrument for monitoring X, gamma and hard beta radiation in radioactive work areas.

X, Y and hard β-radiation
Measurement range: 0.00 … 1000 µSv/h
Resolution: 0.01 µSv/h
Sensitivity: 80 µSv/h
Energy range: 48 keV to 1500 keV
Sensor: Geiger counter tube
Adjustable alarm

Radiation Detector PCE-RAM 8

181,90 €

Price excl. VAT &. delivery

The radiation detector is a high-precision instrument developed for the detection of gamma, beta and X-rays. With its sensitive detection technology, it enables reliable measurement and monitoring of the radiation environment. Dose measurement is a central aspect of the radiation meter.

γ-, β-, X- radiation
Resolution: 0.01 µSv/h

Dose measurement
Display in µSv/h and µR/h

Accumulated radiation measurement
Adjustable acoustic alarm
Battery operation

Radiation Detector PCE-RAM 7

191,90 €

Price excl. VAT &. delivery

The Radiation Detector with a measurement range of 0 to 9999 μSv/h and a resolution of 0.01 μSv/h is a powerful and precise instrument for detecting beta (β), gamma (γ) and X-ray radiation. Thanks to its compact and handy design, the Radiation Detector is easy to use and is ideal for measuring small changes in radiation levels.

measurement range: 0 ... 9999 CPS
resolution: 1 CPS
accuracy: ≤3 % of Rd.
units µSv/h, CPS and CPM
energy range: 20 ... 3000 keV ≤±30％ (137Cs-）
sensitivity: 80 cpm / μSv / (Co-60)

Radiation Detector PCE-RD 100

291,90 €

Price excl. VAT &. delivery

The Radiation Detector offers precise monitoring of the radon concentration within the range of 0.1 ... 99.9 pCi/L with an accuracy of < 10% at 10 pCi/L and a sensitivity of 30 CPH at 1 pCi/L. Our Radiation Detector discovers radon at an early stage, minimises health risks and enables continuous real-time monitoring. Current measurement data is recorded every 10 minutes and average values are calculated for 1 hour, 1 day and 7 days. The first reliable data output takes less than 1 hour.

measurement range: 0.1 ... 99.9 pCi/L (3700 Bq/m³)
resolution: 0.01 pCi/L
accuracy: <10 % at 10 pCi/L
data export to PC via memory card
app connection via WiFi
adjustable alarm
display: green, yellow, red

Radiation Detector PCE-FRQ 500

356,90 €

Price excl. VAT &. delivery

This high-quality bug finder / Radiation Detector offers maximum security against surveillance devices and effectively protects your privacy. With a wide frequency range from 50 MHz to 8 GHz, the Radiation Detector reliably detects analogue and digital signals as well as hidden WiFi cameras, GPS tracking devices, radio bugs, transmitters and wireless cameras.

detection of analogue and digital signals 50 MHz ... 8 GHz
hidden WiFi cameras, GPS tracking devices
radio bugs, transmitters, wireless cameras
16-stage signal strength display
range: 10 m
app for signal output
charging indicator light

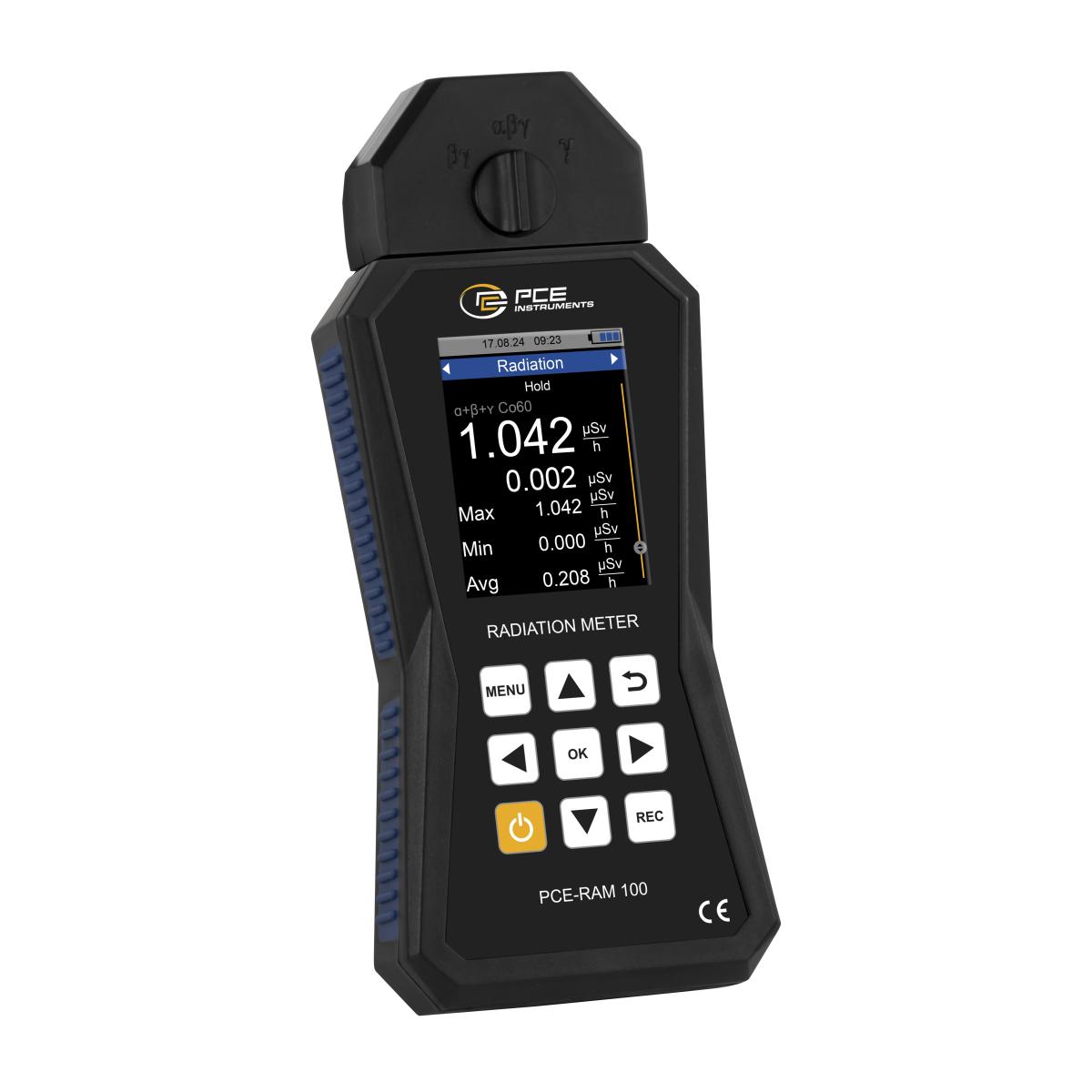

Radiation Detector PCE-RAM 100

456,90 €

Price excl. VAT &. delivery

The Radiation Detector offers comprehensive measurement functions for α, β and γ radiation and is the test instrument of choice for professional radiation measurements. With the ability to precisely measure the accumulated radiation dose and count the radiation in both cps (counts per second) and cpm (counts per minute), the Radiation Detector provides accurate and reliable measurement data at all times.

radiation: 0 µSv/h ... 9999.9 µSv/h
resolution: 0.001 µSv/h
accuracy: <10 % of Rd
units µSv and mrem
pulse counting in cps and cpm
32 GB memory with data logger
adjustable alarm

Radiation Detector PCE-MFM 4000

1.100,90 €

Price excl. VAT &. delivery

The radiation detector is used in the laboratory and quality assurance to measure the strength of magnetic fields. The radiation detector is delivered with two different sensors. A magnetic field sensor is available for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli-Gauss and micro-Tesla range.

Tabletop device with 2 sensors
General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss)
Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
For static and changing magnetic fields
Highly accurate Transverse Hall sensor
Different units selectable (mG / µT)
Data storage on SD memory card

Radiation Detector PCE-PSM 10

1.245,90 €

Price excl. VAT &. delivery

The Radiation Detector has a measurement range of 0.1 to 200 kV and an accuracy of ±10 % and is a test device for detecting the electrostatic voltage on the surface of objects. It uses non-contact measurement technology to detect the electrostatic field. In addition, the Radiation Detector has an earth connection to ensure proper earthing and therefore safety during use.

static charge: 0.1 ... 200 kV
resolution: 0.1 kV DC
accuracy: ±10 %
measuring function: hold
earth connection

Radiation Detector PCE-PVA 100-ICA incl. ISO Calibration Certificate

1.499,90 €

Price excl. VAT &. delivery

Measuring range: 0 … 12 A DC
Three different test functions
PC interface for data transfer
Switchable graphic view
Application, e.g. photovoltaic systems
incl. ISO Calibration Certificate

Radiation Detector PCE-LMD 200

2.032,90 €

Price excl. VAT &. delivery

The radiation detector is a precise measuring instrument that fulfils the highest requirements for light measurements. In accordance with DIN 5032-7, it fulfils the requirements of precision class A, which enables accurate and reliable measurement of light intensities. With an impressive measuring range of 0.000 lux to 500,000 lux, the radiation detector is extremely versatile.

Measuring range: 0.000 lx … 500 klux
Resolution: 0.001 lx

Precision in accordance with DIN 5032-7
Accuracy class: A
External sensor
8 GB measured value memory
