Sound Level Meter / Noise Level Meter PCE-MSL 1

Order no.: PCE-MSL 1
GTIN (EAN): 4250348717177
36,90 €
43,91 €
price ex. (VAT / delivery)
:
4250348717177
PCE-MSL 1
Delivery time: 1-2 working days
A
Fast / Slow
No

Description

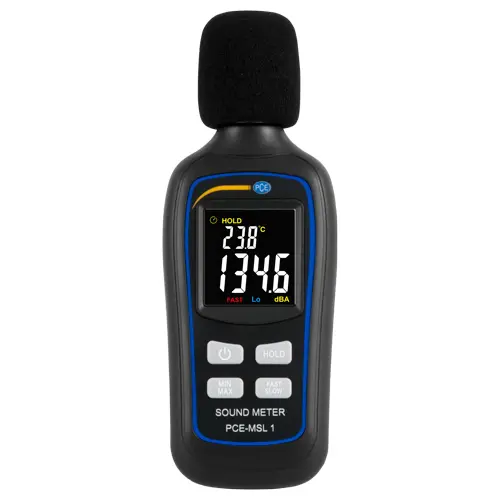

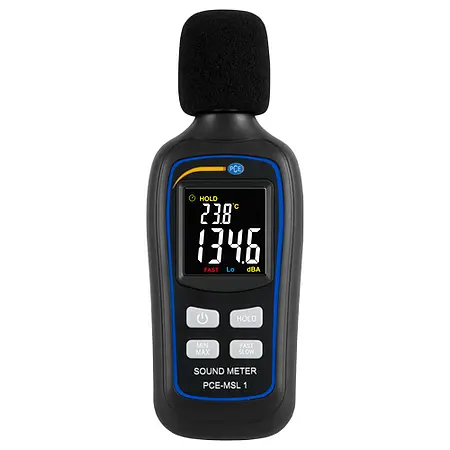

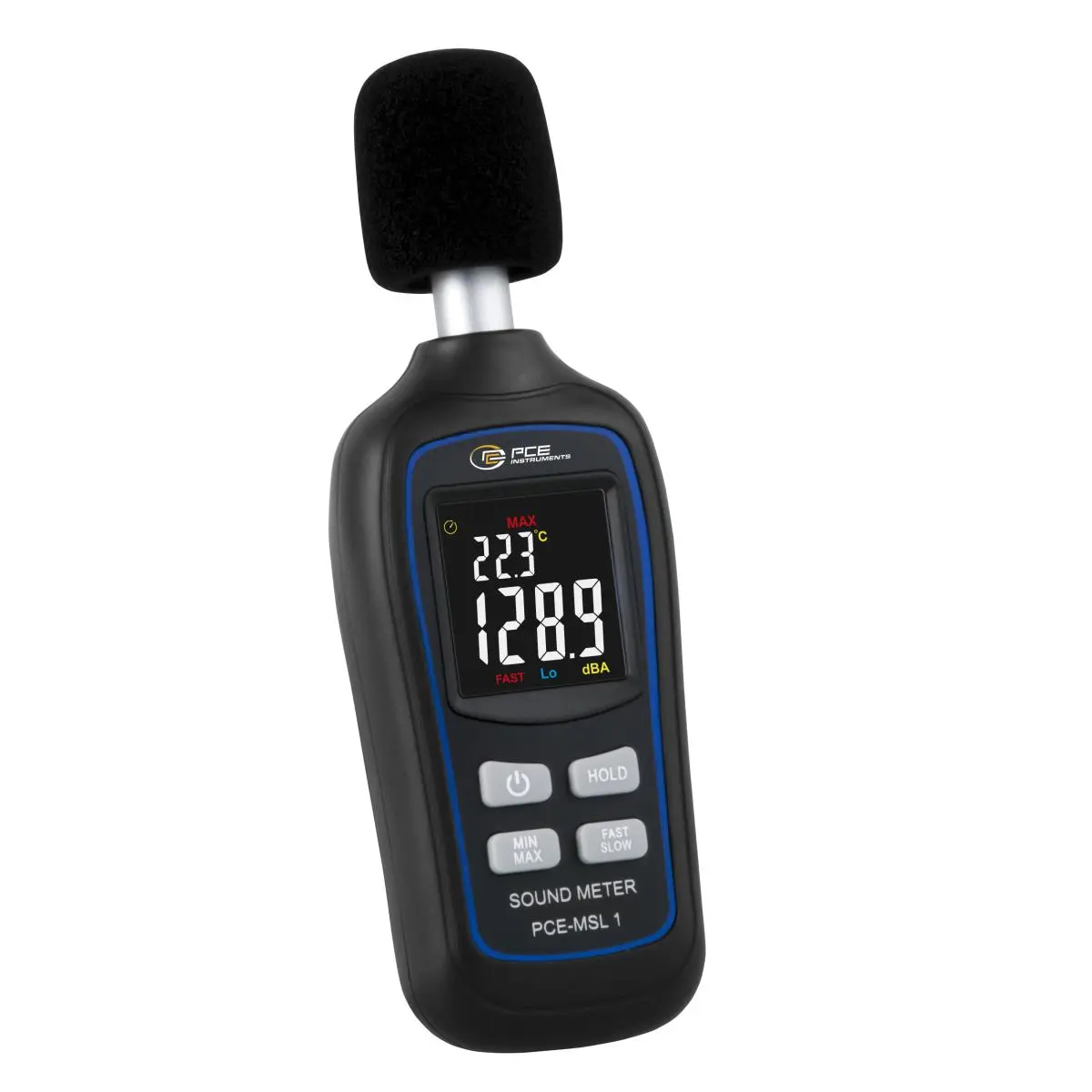

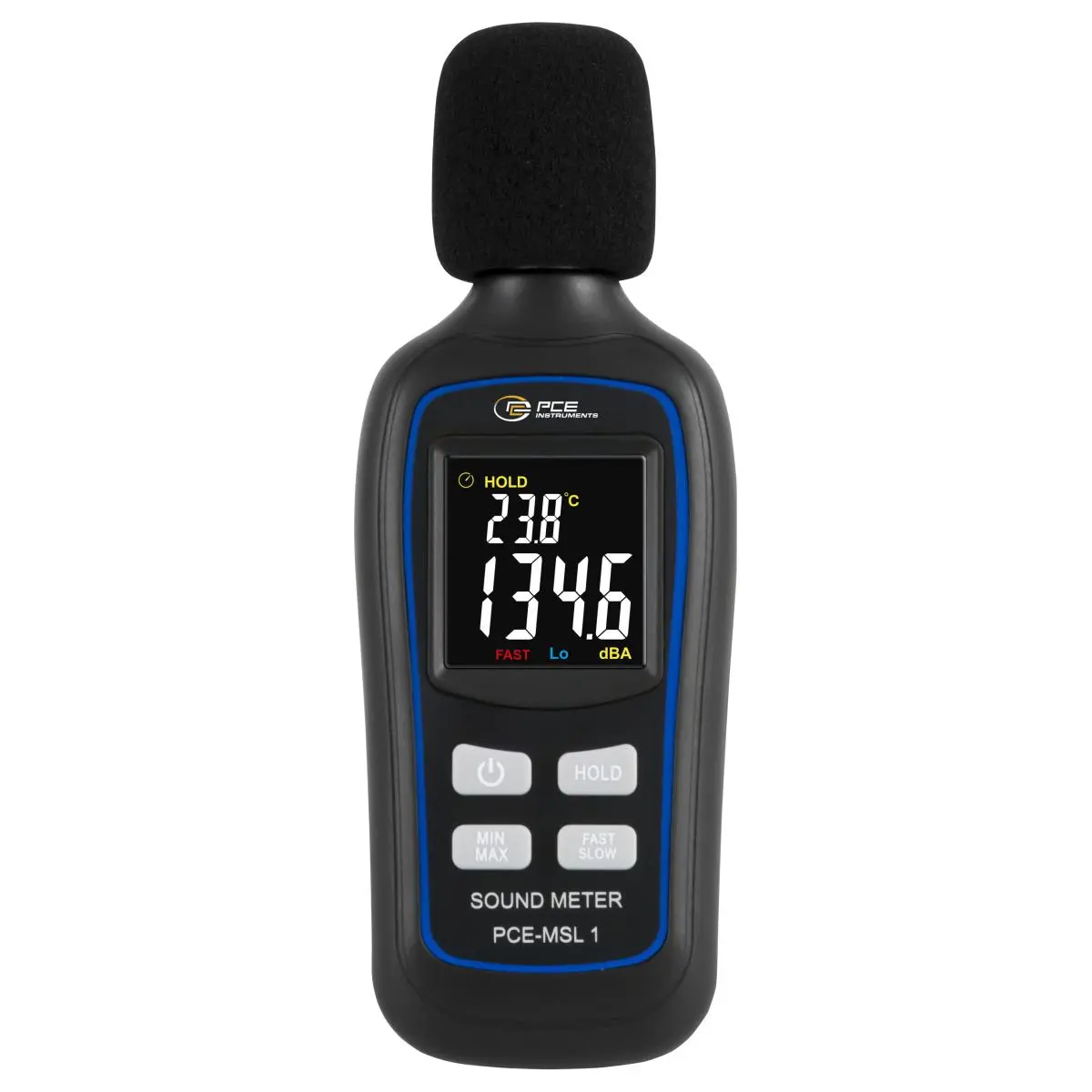

Sound Level Meter / Noise Level Meter PCE-MSL 1
Sound level meter with A-frequency weighting / simultaneous temperature measurement / 0.1 dB resolution / HOLD function / extreme value measurement / large frequency range / backlit colour LCD

The Sound Level Meter / Noise Leve Meter PCE-MSL 1 is a simple sound measuring device. The sound level meter / noise level meter PCE-MSL 1 is used to quickly determine the ambient volume. In addition to the volume measurement, the sound level meter / noise level meter also has the facility to determine the ambient temperature. The measurement of background noise is important in almost every situation today. For this purpose it is helpful to use a simple sound level meter / noise level meter that gives the user an initial idea about the possible noise level.

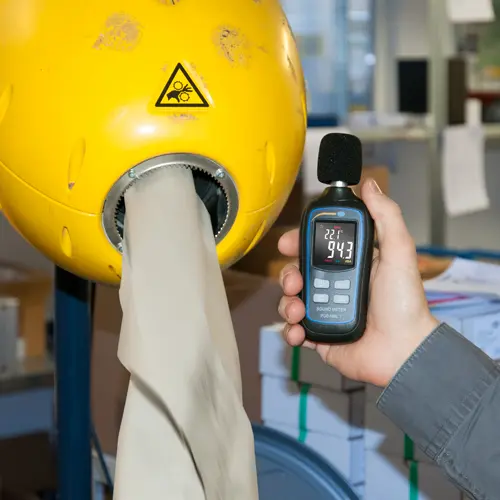

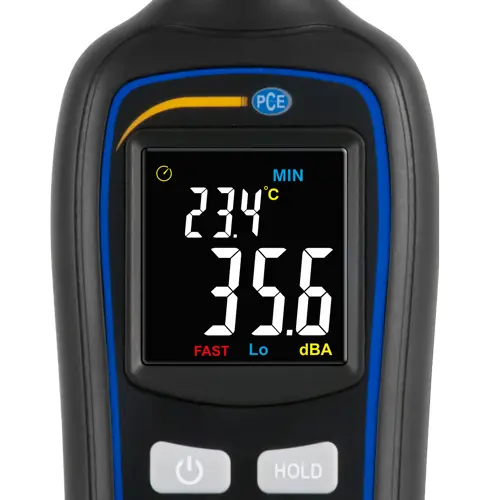

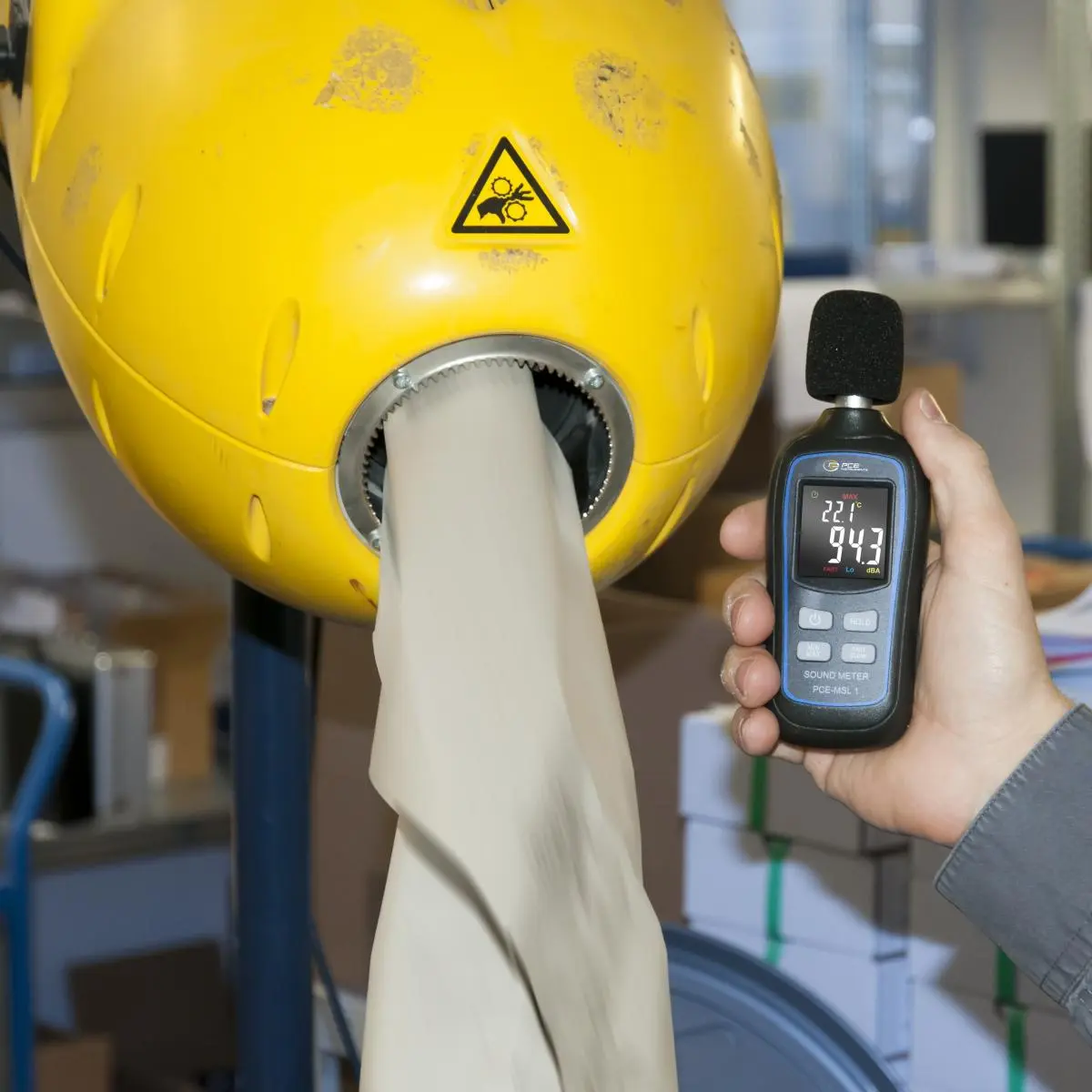

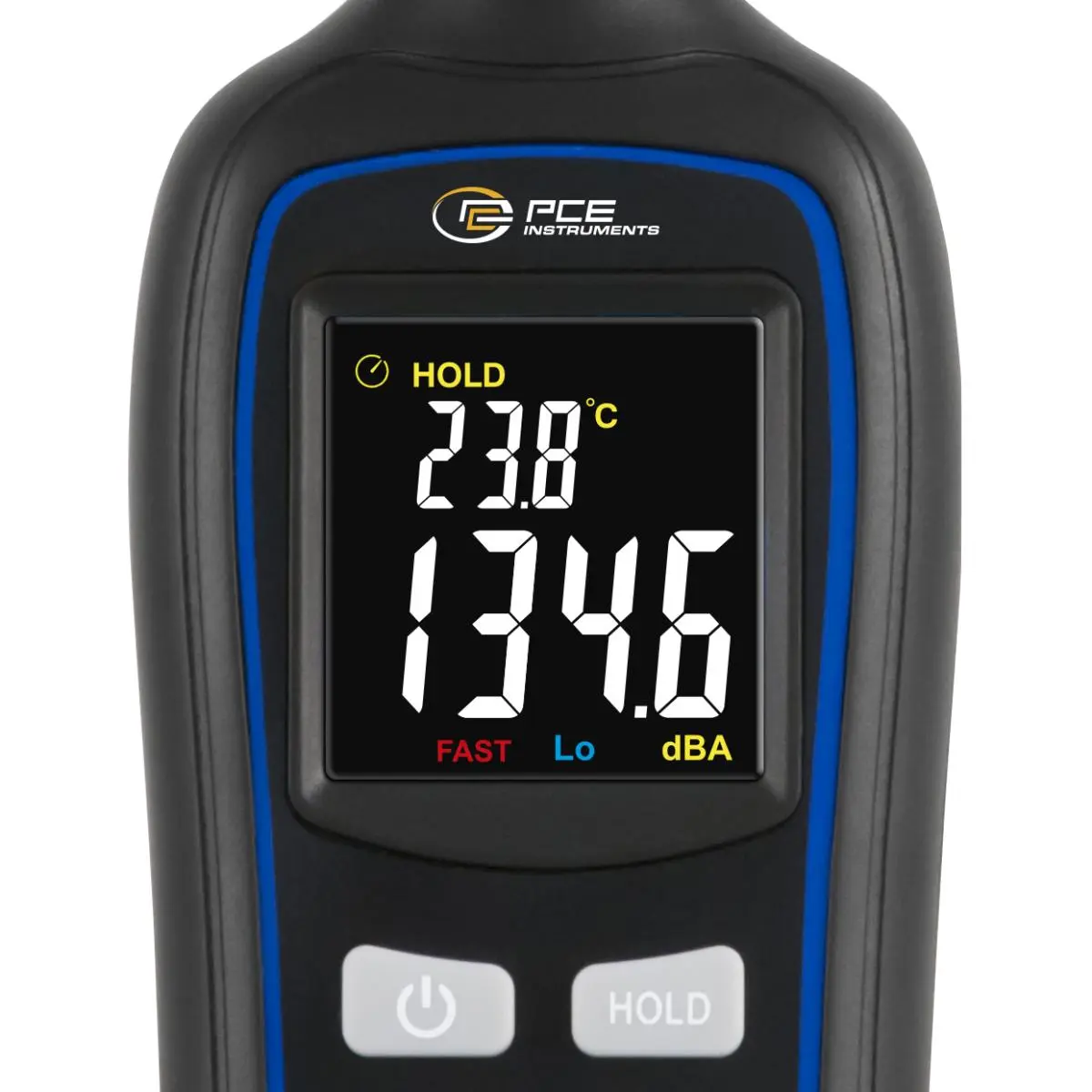

The LC display gives clear results of the measurements made by the sound level meter. A backlight is also integrated into the display. The sound level meter is especially ideal for measurements that need to be non-stationary.

Highlights

- extreme value measurement
- high precision
- fast volume measurements
- backlit colour LCD
- simultaneous temperature measurement
- HOLD function
- large frequency range
- A-frequency weighting
- robust ABS plastic housing

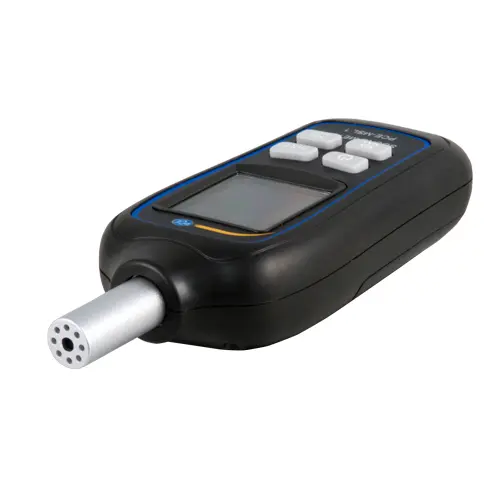

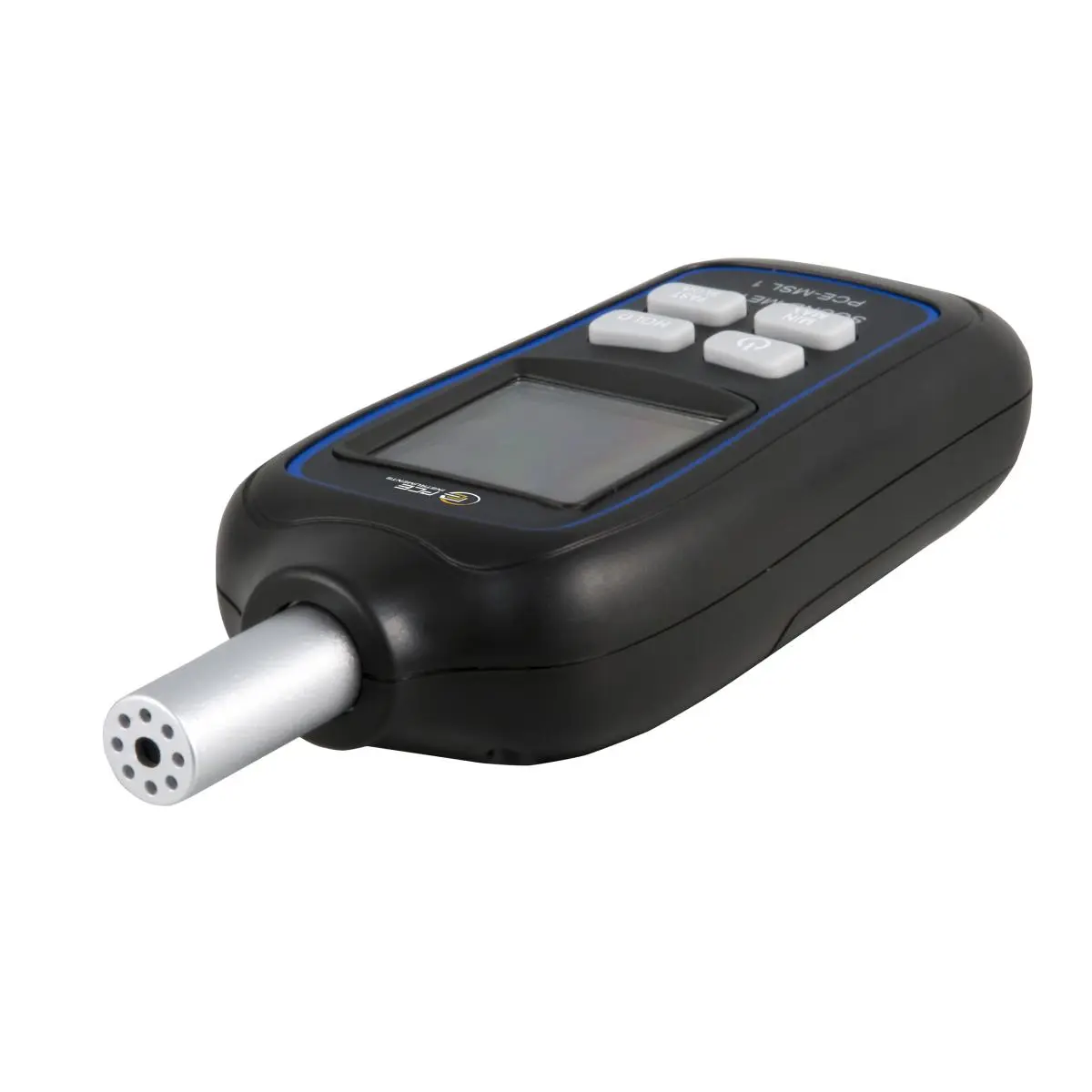

- 1/2" electret condenser microphone
- slow/fast time rating
- alarm at frequency exceeded
- resolution 0.1dB
- display update every 300 ms

Specification

Measuring range

35...135 dB
Dynamic range 50 dB
Frequency range 31.5 Hz ... 8 kHz
Accuracy ±2 dB
Frequency 31.5 Hz ... 8 kHz
Frequency rating A
Time rating fast: 125 ms
slow: 1 sec.
Microphone type 1/2" Electret condenser microphone
Visual alarm limits >100 dB: display shows "HI"
< 100 dB: display shows "LO"
Temperature measuring range
 -20 ... 70 °C / -4 ... 158 °F
Temperature accuracy ±1.5 °C / ±2.7 °F
Resolution 0.1
Data update 300 ms
Battery life <60 h
Automatic shutdown after 15 mins inactivity (can be deactivated)
Power supply
 3 x 1.5 AAA batteries
Operating conditions 0 ... +60 °C / 32 ... 140 °F, 10 ... 90 % rel. humidity
Storage conditions 0 ... +60 °C / 32 ... 140 °F, 10 ... 70 % rel. humidity
Dimensions 144 x 56 x 30.5 mm / 5.6 x 2.2 x 1.2"
Weight 73 g / 2.5 oz
Standard IEC 61672-1 Class II

Delivery Scope

1 x Sound Level Meter / Noise Level Meter PCE-MSL 1
1 x Wind noise suppressor
3 x 1.5 V AAA batteries
1 x User manual
