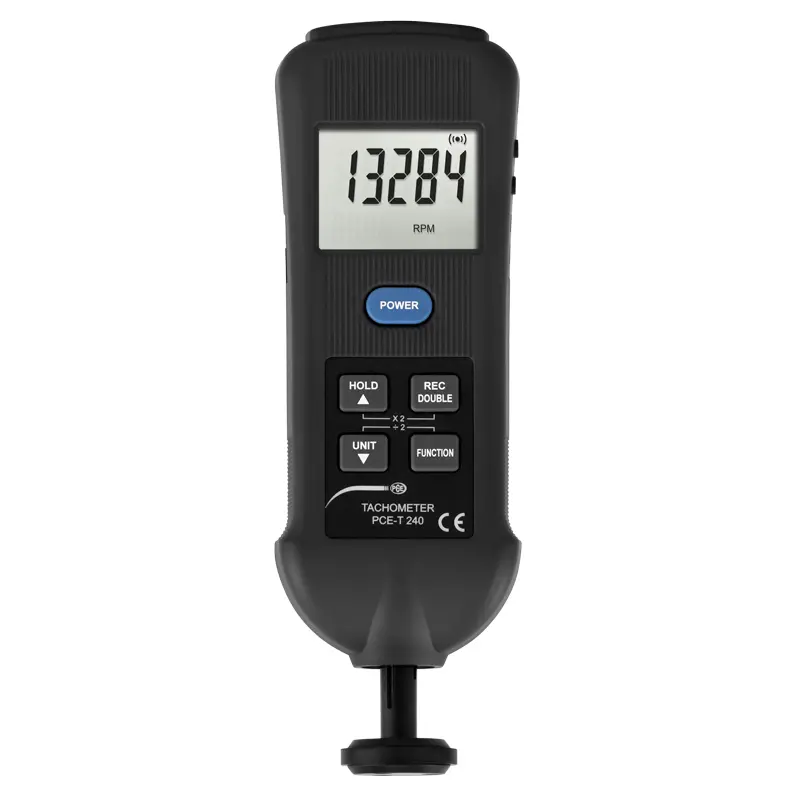

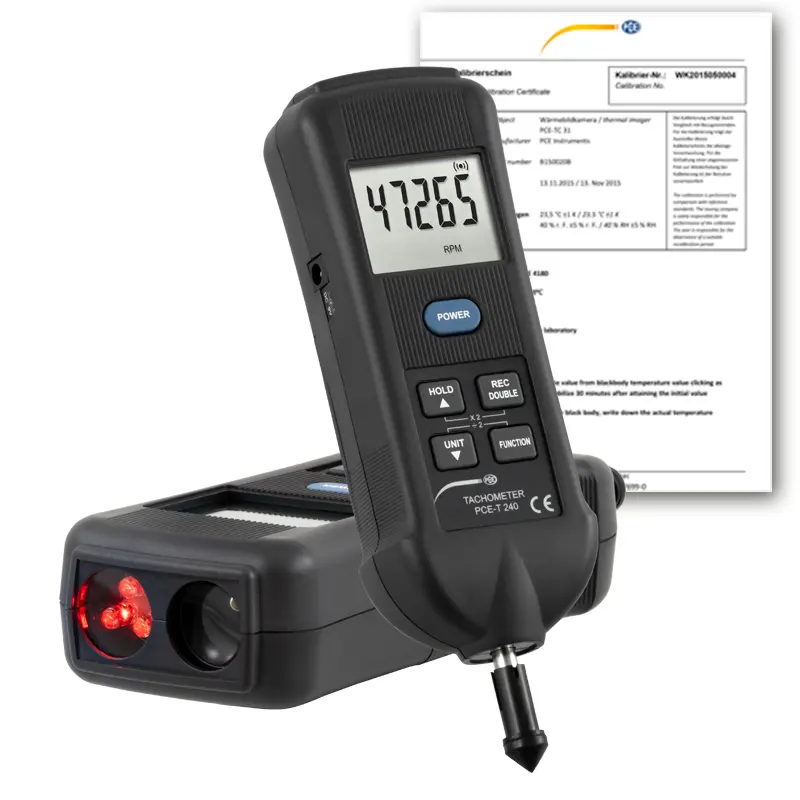

Stroboscope PCE-T 240-ICA incl. ISO Calibration Certificate

Order no.: PCE-T 240-ICA
GTIN (EAN): 4250348729705
416,90 €
496,11 €
ISO Calibration
price ex. (VAT / delivery)
:
4250348729705
PCE-T 240-ICA
Delivery time: 10 - 14 days

Accessory

Replacement Mechanical Attachments Set
Replacement Mechanical Attachments Set
35,90 €
Roll of Reflective Tape REFB
Roll of Reflective Tape REFB
19,90 €
Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
24,90 €
Calibration certificate for PCE-T23x (Tachometer function)
Calibration certificate for PCE-T23x (Tachometer function)
160,90 €

Description

Stroboscope with temperature measurement / Contact and optical speed measurement / RS232 interface / Battery and mains operation / Automatic switch-off / Strobe Measuring range 5 … 99,999 RPM / Speed measurement / Optional with ISO calibration certificate

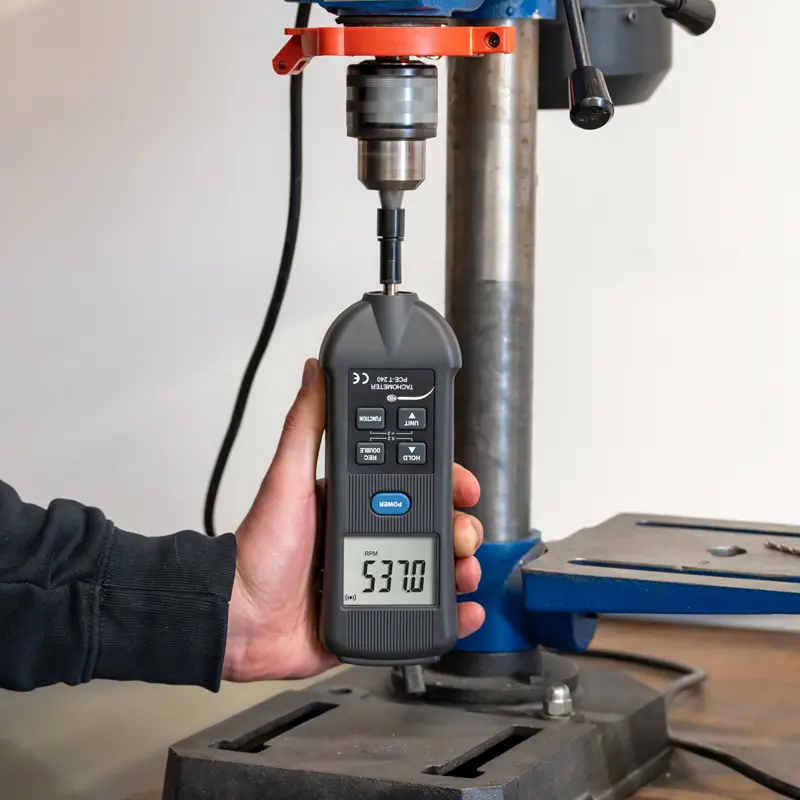

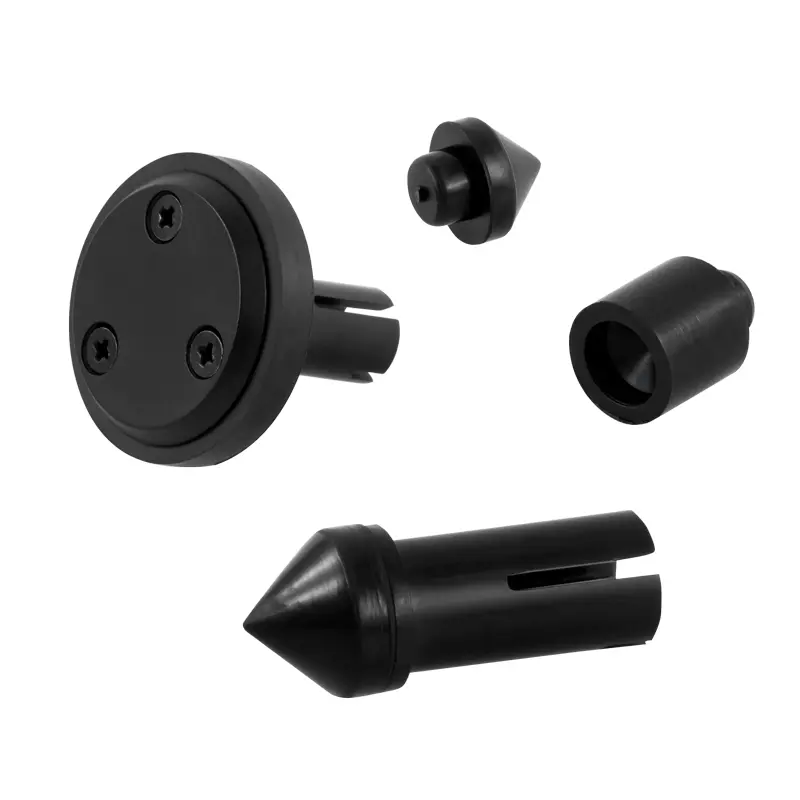

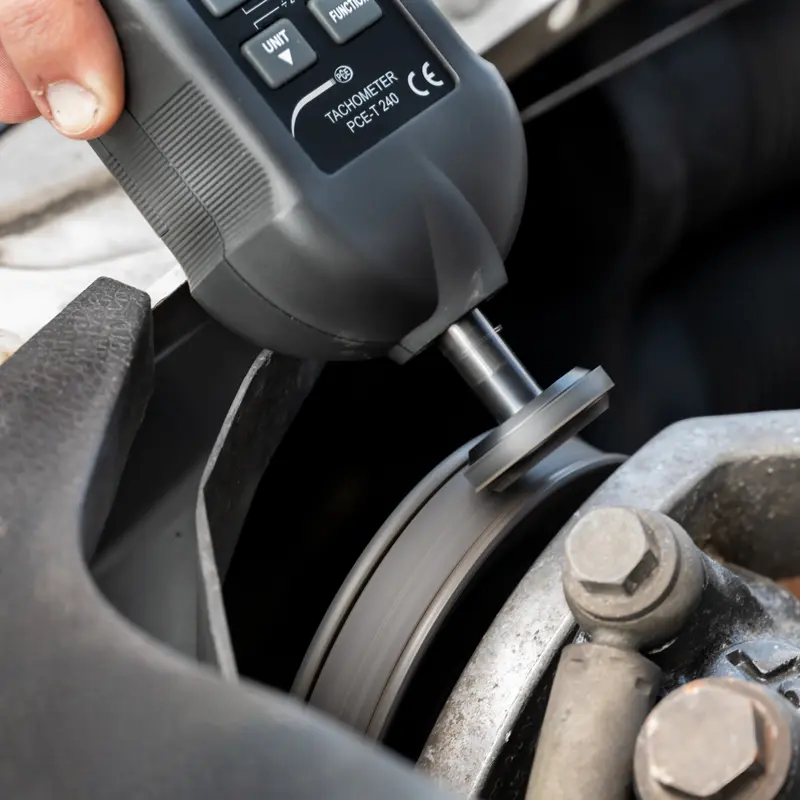

The stroboscope has a contact speed measurement. The measuring range of the contact speed measurement with the stroboscope is 0.5 ... 99,999 RPM. In order to transmit the speed to the stroboscope, the scope of delivery includes two rubber measuring tips with an inner and an outer cone. In the case of contact measurement with the stroboscope, the speed can also be determined in m/min, for example, using the measuring wheel.

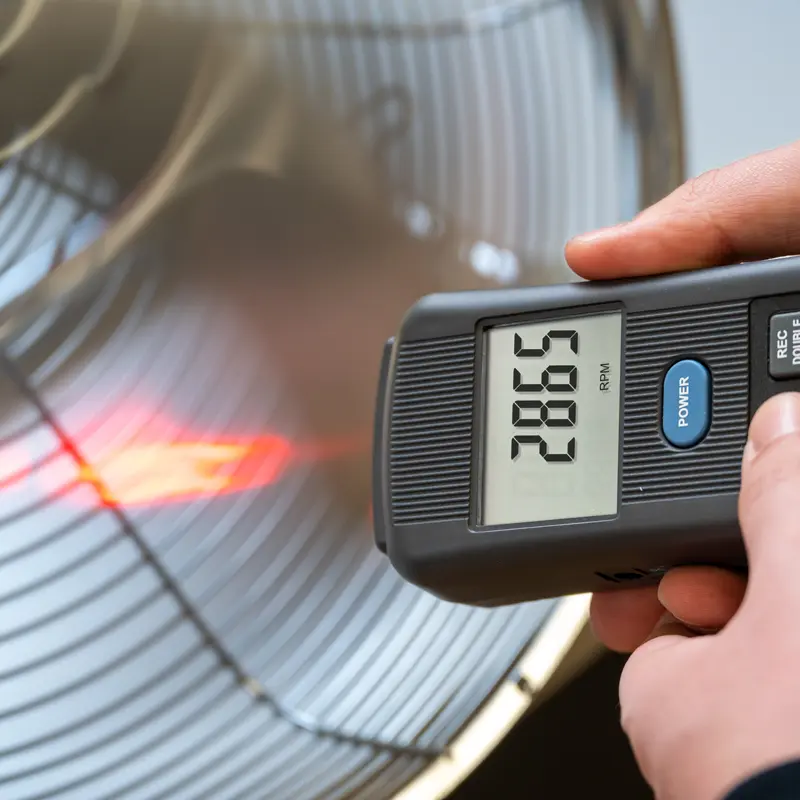

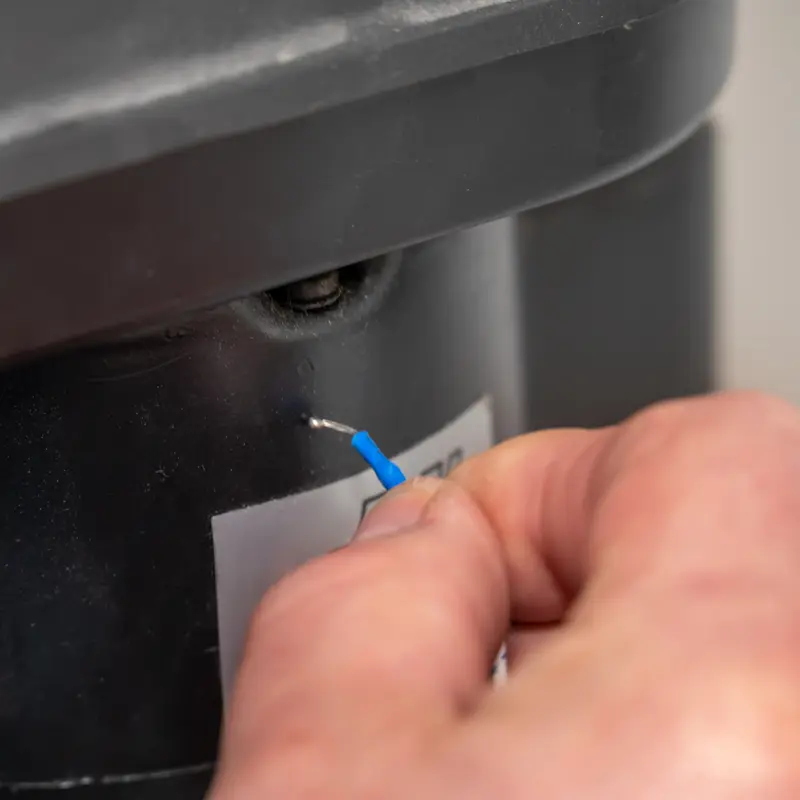

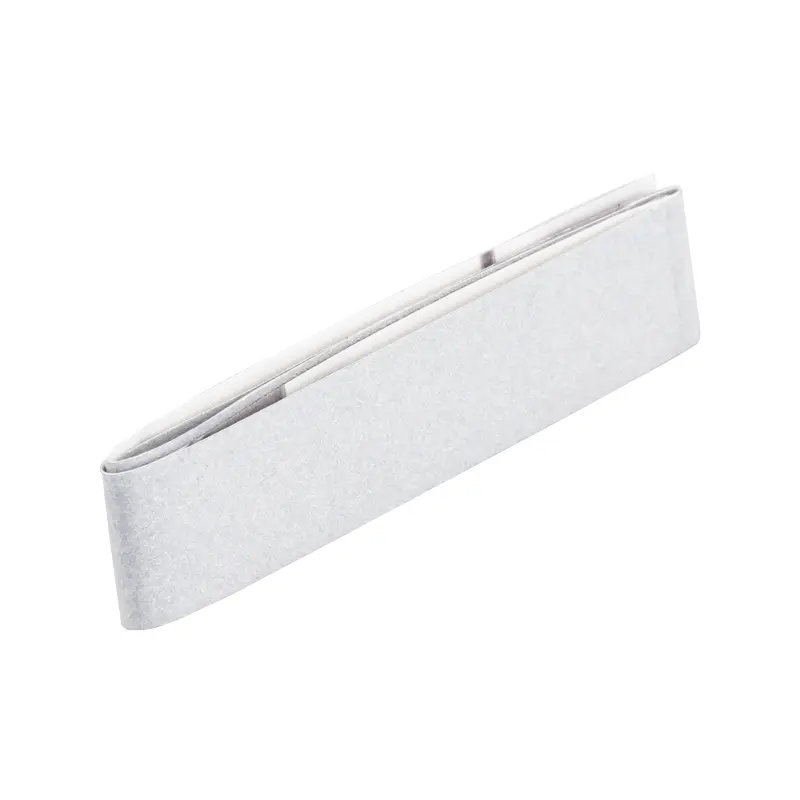

In addition to the contact measurement, the speed can also be measured optically with the stroboscope. To do this, a piece of reflective tape measuring 1 x 1 cm is glued to the test object. The stroboscope can determine the speed through the reflection.

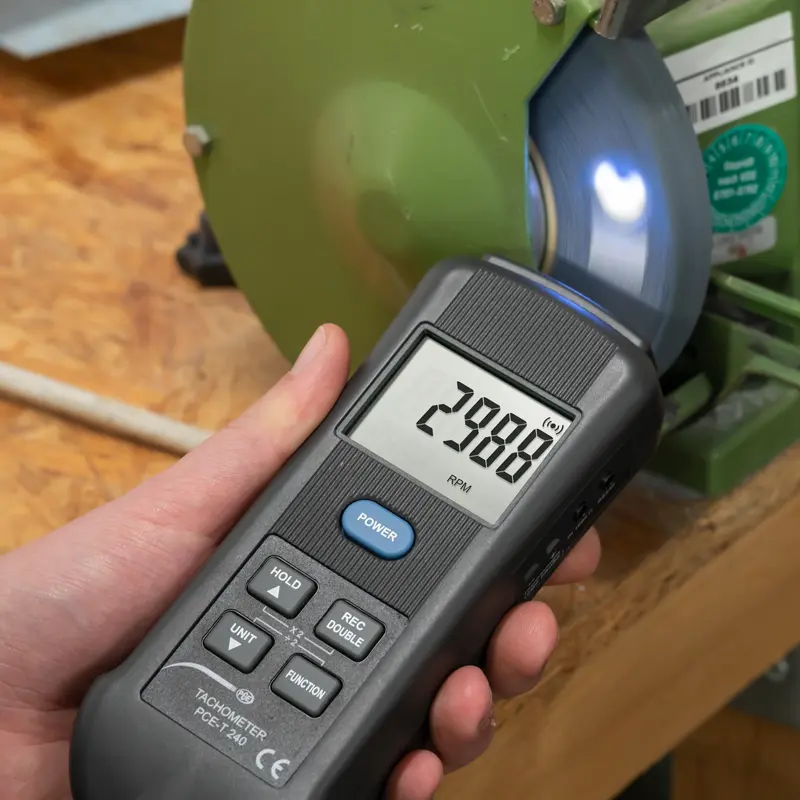

In addition, the speed can be determined from the stroboscope using the strobe function. With this function, many flashes follow one after the other from the stroboscope. The flash frequency can be doubled or halved for quick setting of the flash frequency on the stroboscope. The speed with the stroboscopic function on the stroboscope is then determined as soon as the test specimen can be seen continuously and standing upright through the flash.

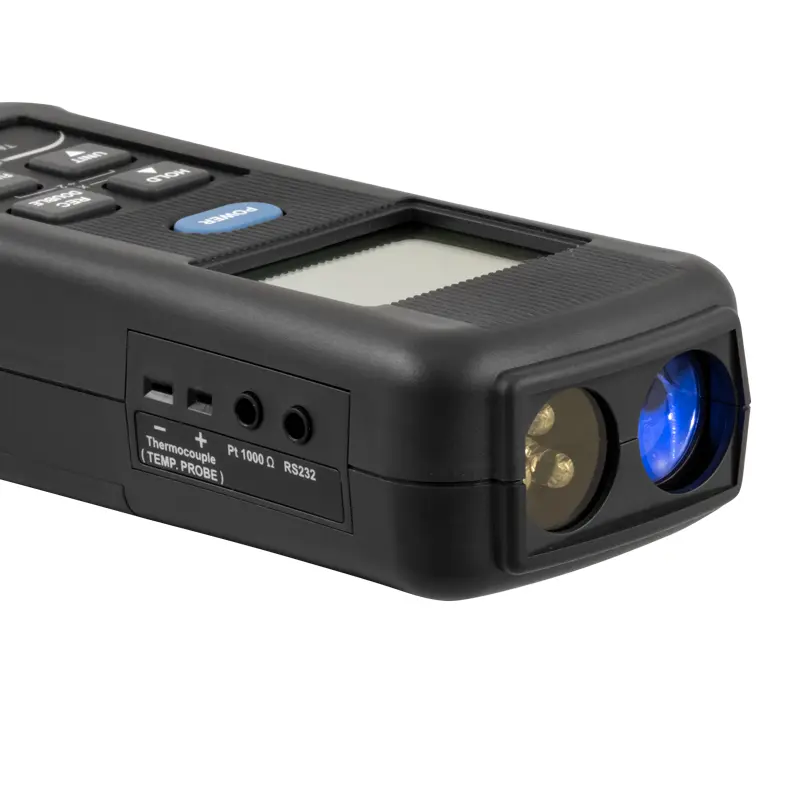

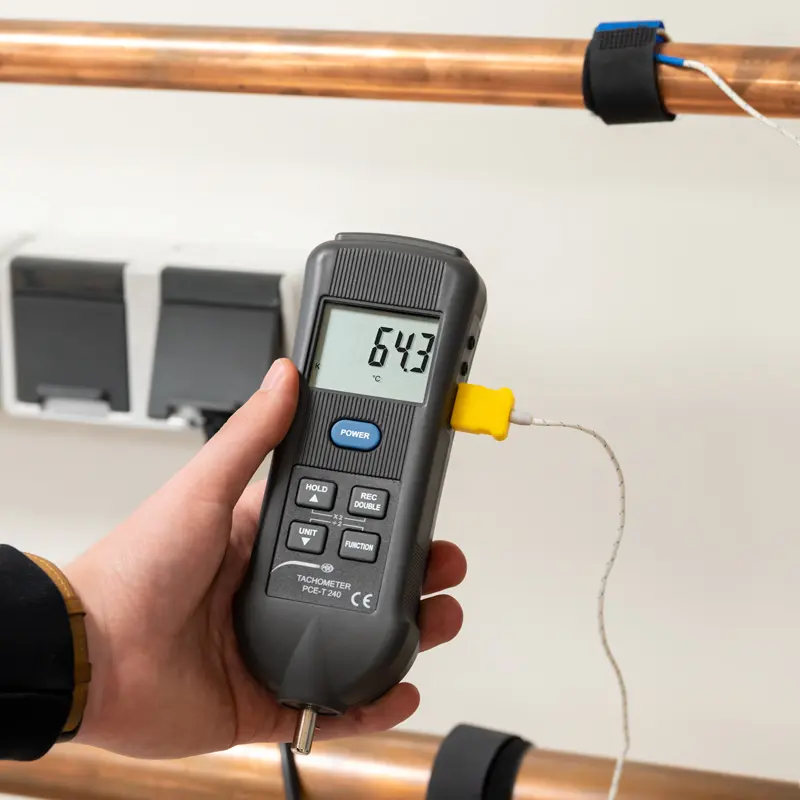

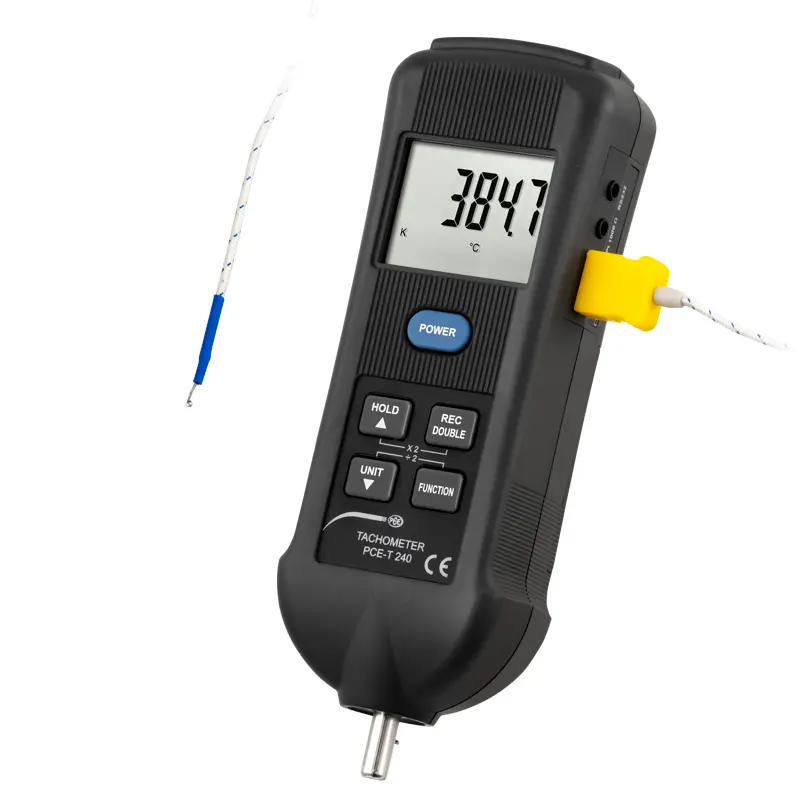

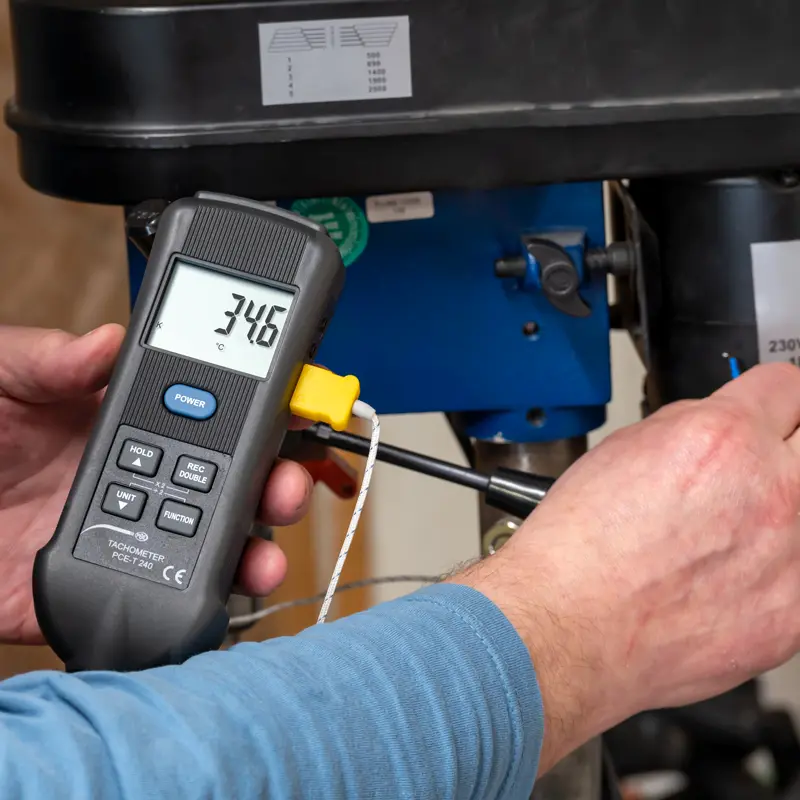

In addition to measuring the number of revolutions and speed, the temperature can be determined with the stroboscope. Any type K thermocouple can be connected for this purpose. If required, a PT1000 resistance temperature sensor can also be connected.

Thanks to the many functions, the stroboscope can already be used in many areas. The handheld tachometer is used, for example, to determine the speed of conveyor belts and to determine the rotational speed of ventilation systems.

Highlights

- Battery and mains power adapter
- Strobe for speed determination
- Contact and optical measurement
- Measuring range 0.5 ... 99,999 RPM contact
- Temperature measurement in °C and °F
- Various attachments

Specification

Optical measurement
Measuring range 5 … 99,999 RPM
Resolution 0.5 RPM (< 1,000 RPM)
  1 RPM (≥1,000 RPM)
Accuracy ±(0.05 % of reading + 1 digit)
Detection distance 50 … 150 mm, 2 ... 6 inch (typical)
  maximum 300 mm, 12 inch
   (depending on ambient lighting)

Contact measurement
Measuring range 0.5 … 19,999 RPM
Resolution 0.5 RPM (<1,000 RPM)
  1 RPM (≥1,000 RPM)
Accuracy ±(0.05% of reading + 1 digit)

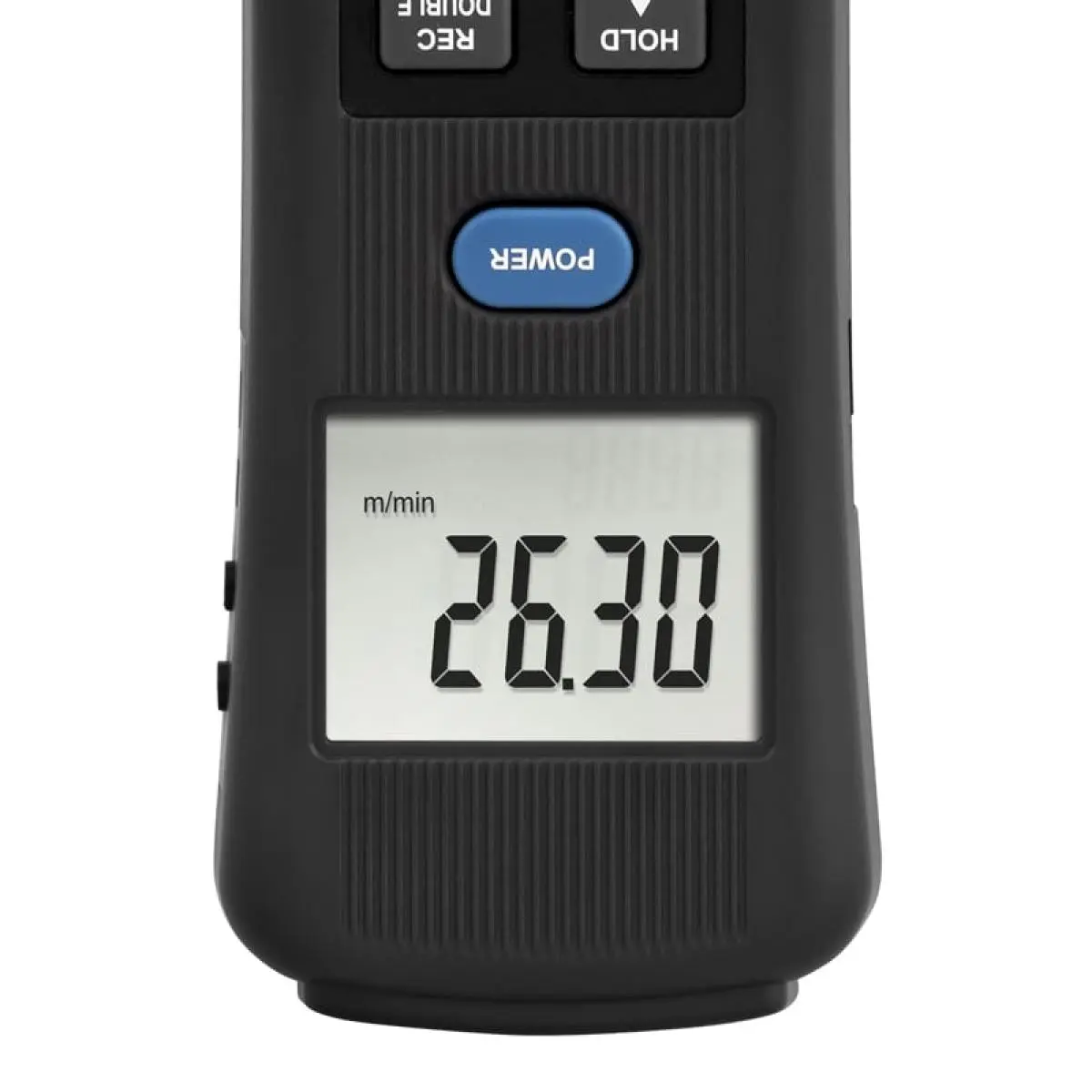

Measuring range 0.05 ... 1,999.9 m/min
Resolution 0.05 m/min (<100 m/min)
  0.1 m/min (≥100 m/min)
Accuracy ±(0.05% of reading + 1 digit)

Measuring range 0.2 ... 6,561.4 ft/min
Resolution 0.1 ft/min (<1,000 ft/min)
  1 ft/min (≥1,000 ft/min)
Accuracy ±(0.05% of reading + 1 digit)

Measuring range 2.0 ... 78736.2 in/min
Resolution 0.1 in/min (<1,000 in/min)
  1 in/min (≥1,000 in/min)
Accuracy ±(0.05% of reading + 1 digit)

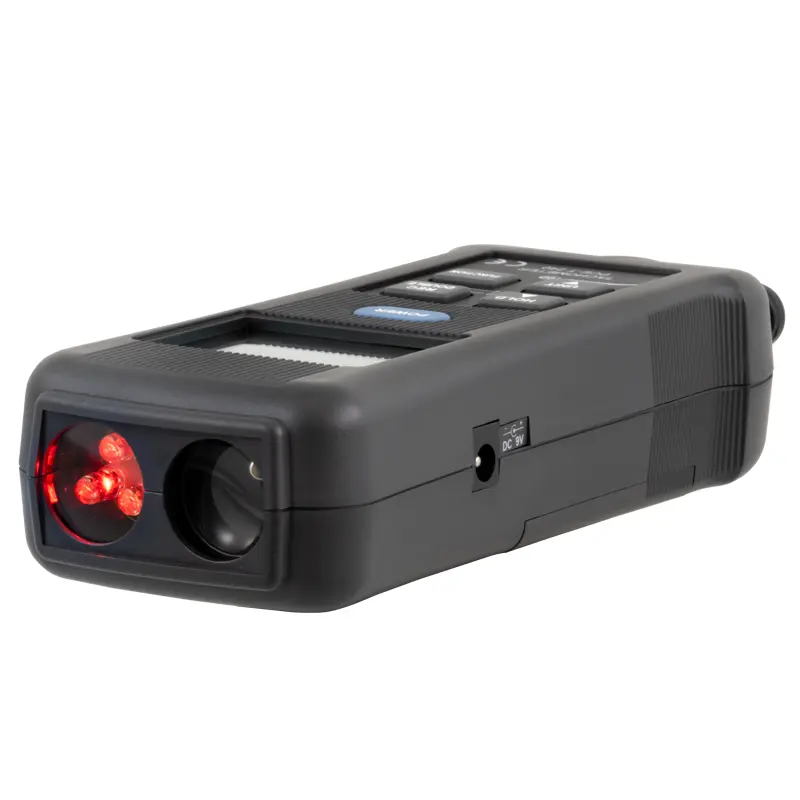

Strobe
Measuring range 100 … 99,990 RPM/FPM
Resolution 0.1 RPM (<1,000 PRM)
  1 RPM (1,000 … 30,000 RPM)
  5 RPM (30,000 … 50,000 RPM)
  10 RPM (50,000 … 99,990 RPM)
Accuracy ±(0.1% of reading + 2 digits)
LED three red LEDs

Temperature (Type K)
Measuring range -50.0 … 1300.0 °C
Resolution 0.1 °C
Accuracy ±(0.4 % of reading +0.5 °C)
Measuring range -100.0 … -50.1 °C
Resolution 0.1 °C
Accuracy ±(0.4 % of reading +1 °C)

Measuring range -58.0 … 2372.0 °F
Resolution 0.1 °F
Accuracy ±(0.4 % of reading +1 °F)
Measuring range -148.0 … -58.1 … °F
Resolution 0.1 °F
Accuracy ±(0.4 % of reading +1.8 °F)

Temperature (PT1000)
Measuring range -10.0 … 70.0 °C, 14.0 … 158.0 °F
Resolution 0.1 °C, 0.1 °F
Accuracy ±1.2 °C, ± 2.2 °F

More specifications
Display LCD display, 43 x 33 mm, 5 digits
Storage largest and smallest measured value
Power supply (mains power)
9 V DC, 100 mA
Power supply (battery) 4 x 1.5V AA batteries
Power consumption DC 42 mA
Automatic shutdown after 10 minutes of inactivity
Interface RS232
Environmental conditions 0 … 50 °C, 32 … 122 °F, <80 5 RH,
  (non-condensing);
  magnetic field <3 V/M, <30 MHz
Dimensions 207 x 67 x 39 mm, 8.15 x 2.63 x 15.3 inch
Weight 230 g, 0.5 lb (without batteries)

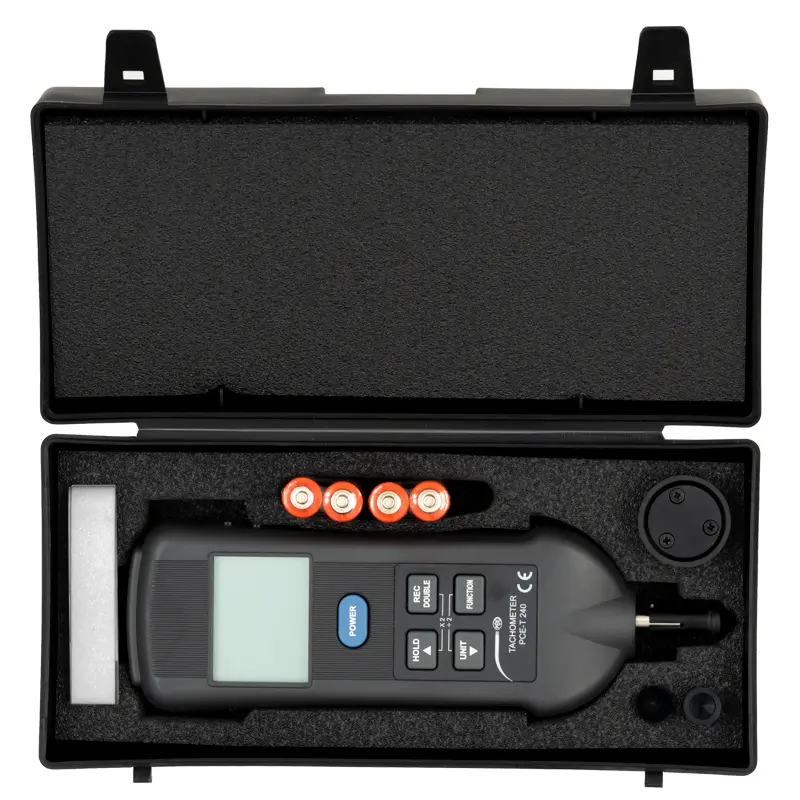

Delivery Scope

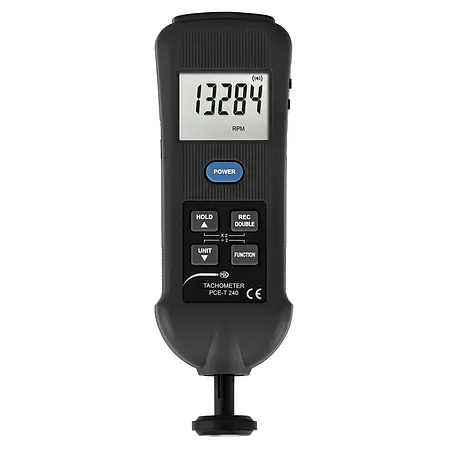

1 x Stroboscope PCE-T 240
1 x Measuring tip (outer cone)
1 x Measuring hollow tip (inner cone)
1 x Measuring wheel
1 x Reflective contact strip (approx. 600 mm)
1 x Carrying case
4 x 1.5V AA batteries
1 x Instruction manual
1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
