142,90 €

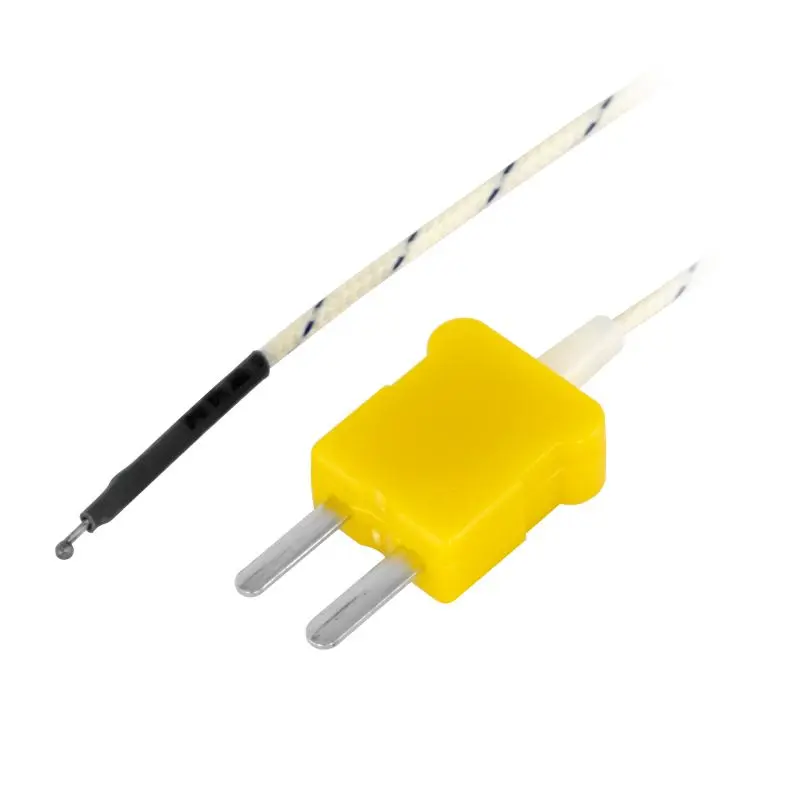

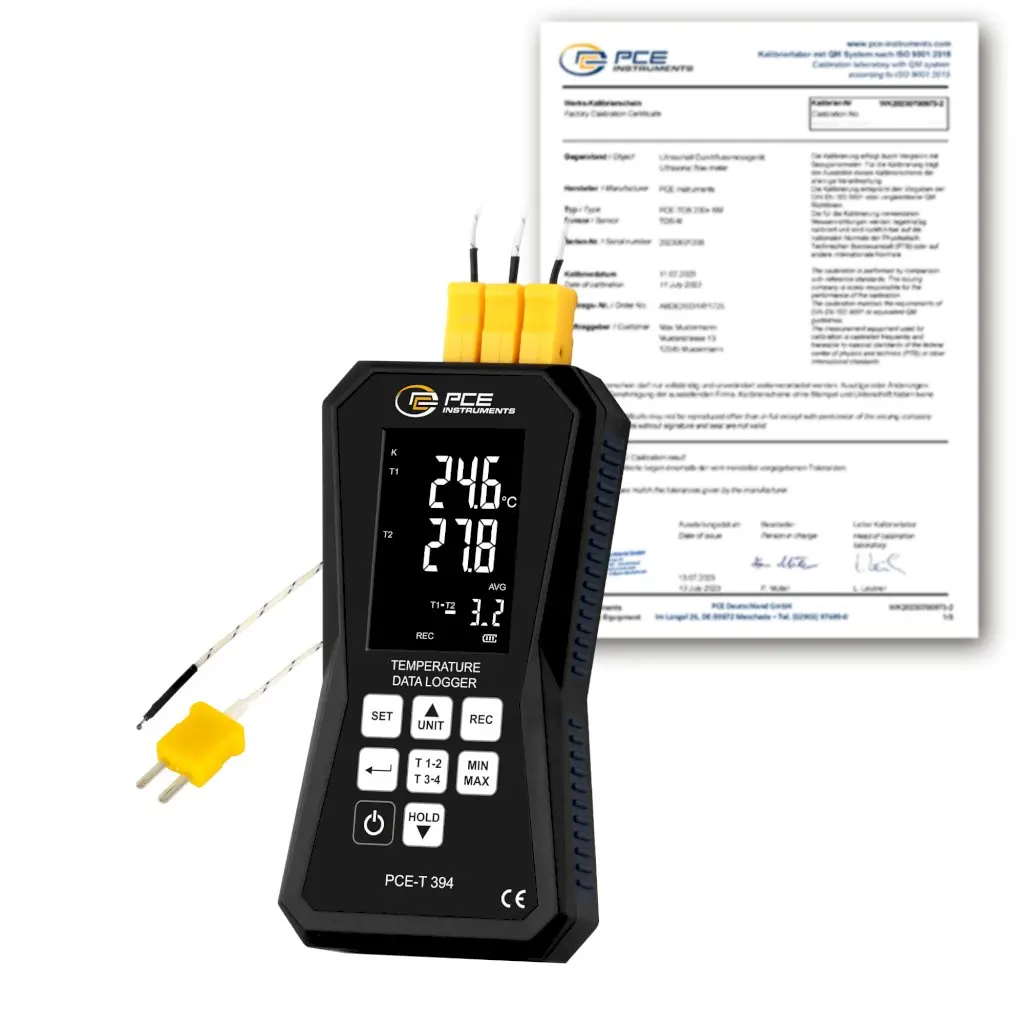

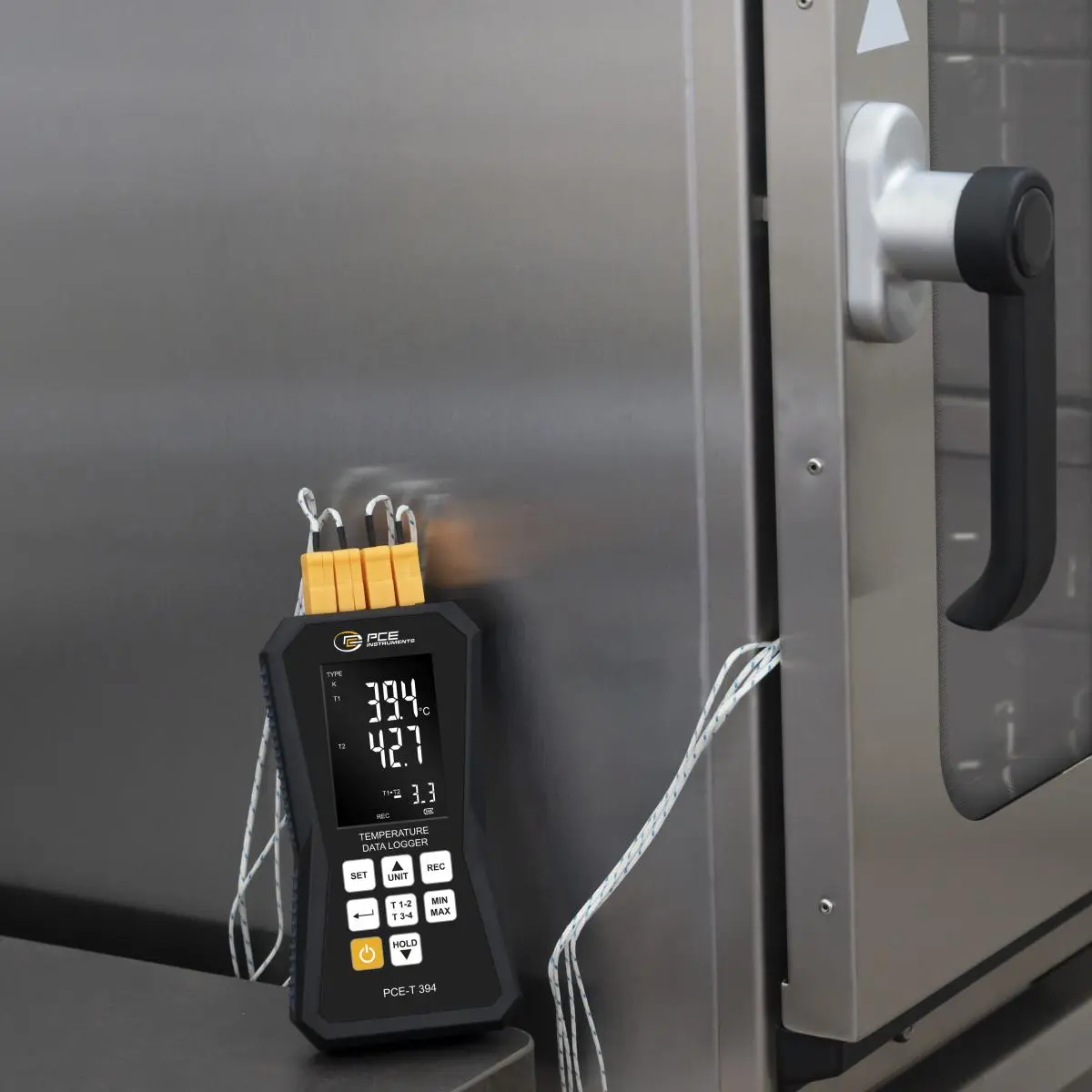

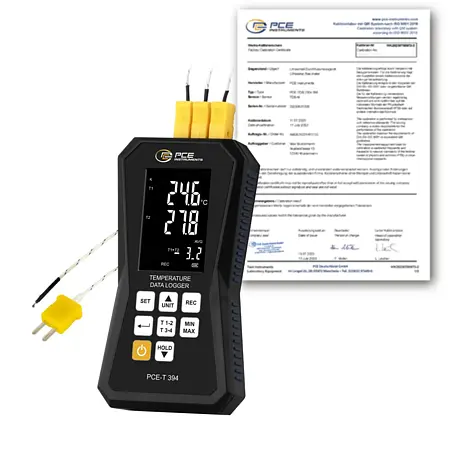

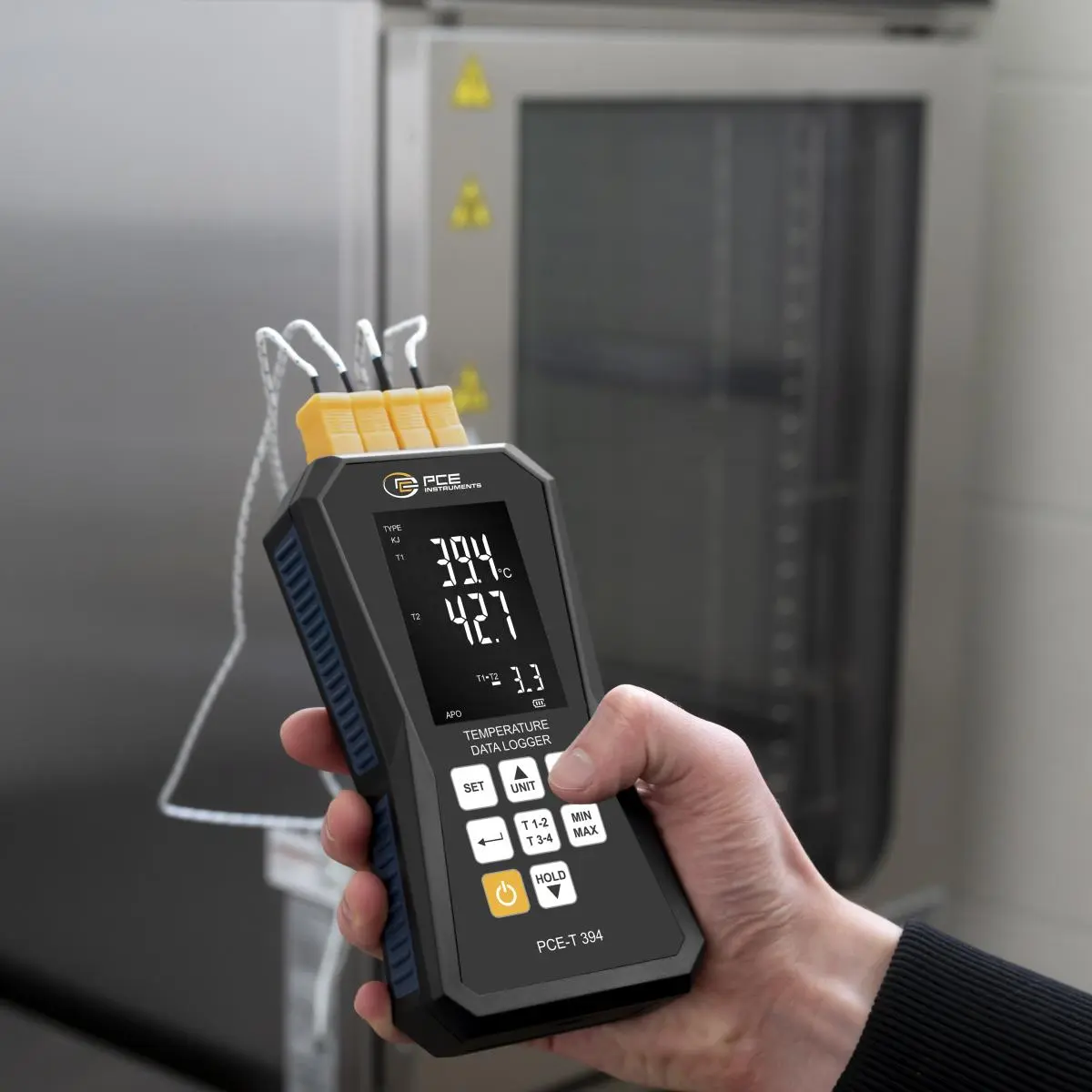

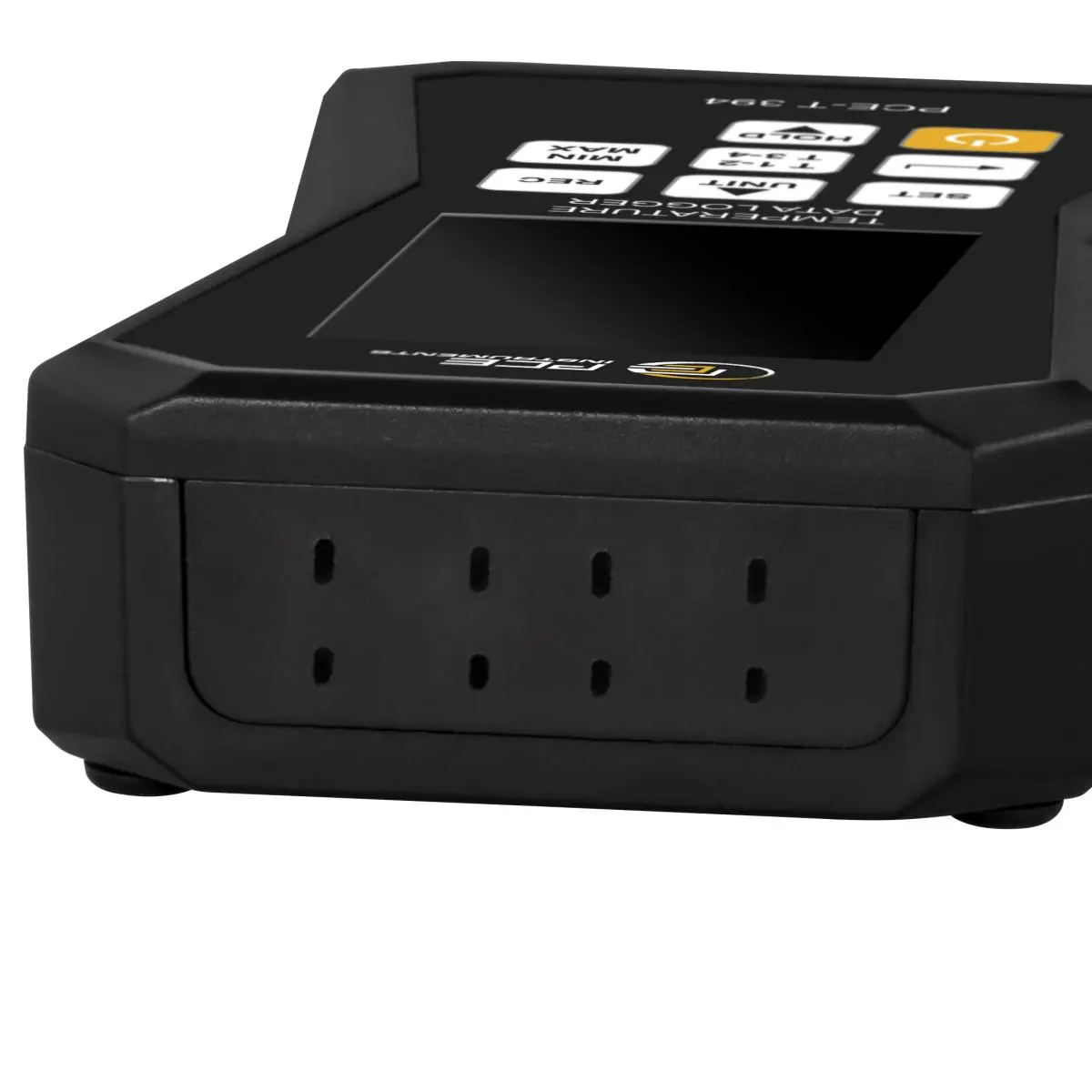

The temperature meter offers precise temperature monitoring. With a measuring range of -210 to 1370 °C and support for thermocouple types K and J, it enables accurate measurements in different environments. Its 4 input channels allow simultaneous monitoring of multiple measuring points, making it ideal for complex applications.
Before the recording mode can be started, the temperature meter must be connected to a PC via a micro USB port and the parameters configured using the PC software. The storage interval, the number of measured values and also the starting point of the data logger can be set. Up to 32000 data records can be recorded with this function. The interval can be set in steps from 1s to max. 24h. The temperature meter software can also be used to export the data in pdf and csv format.

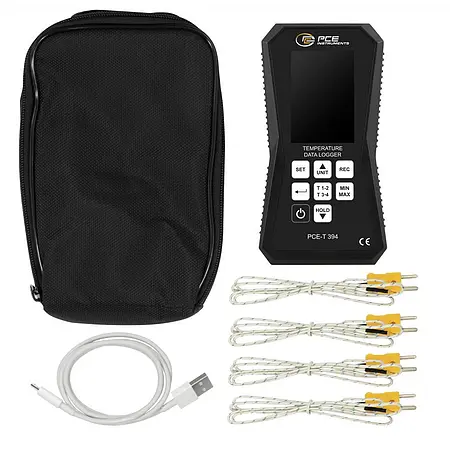

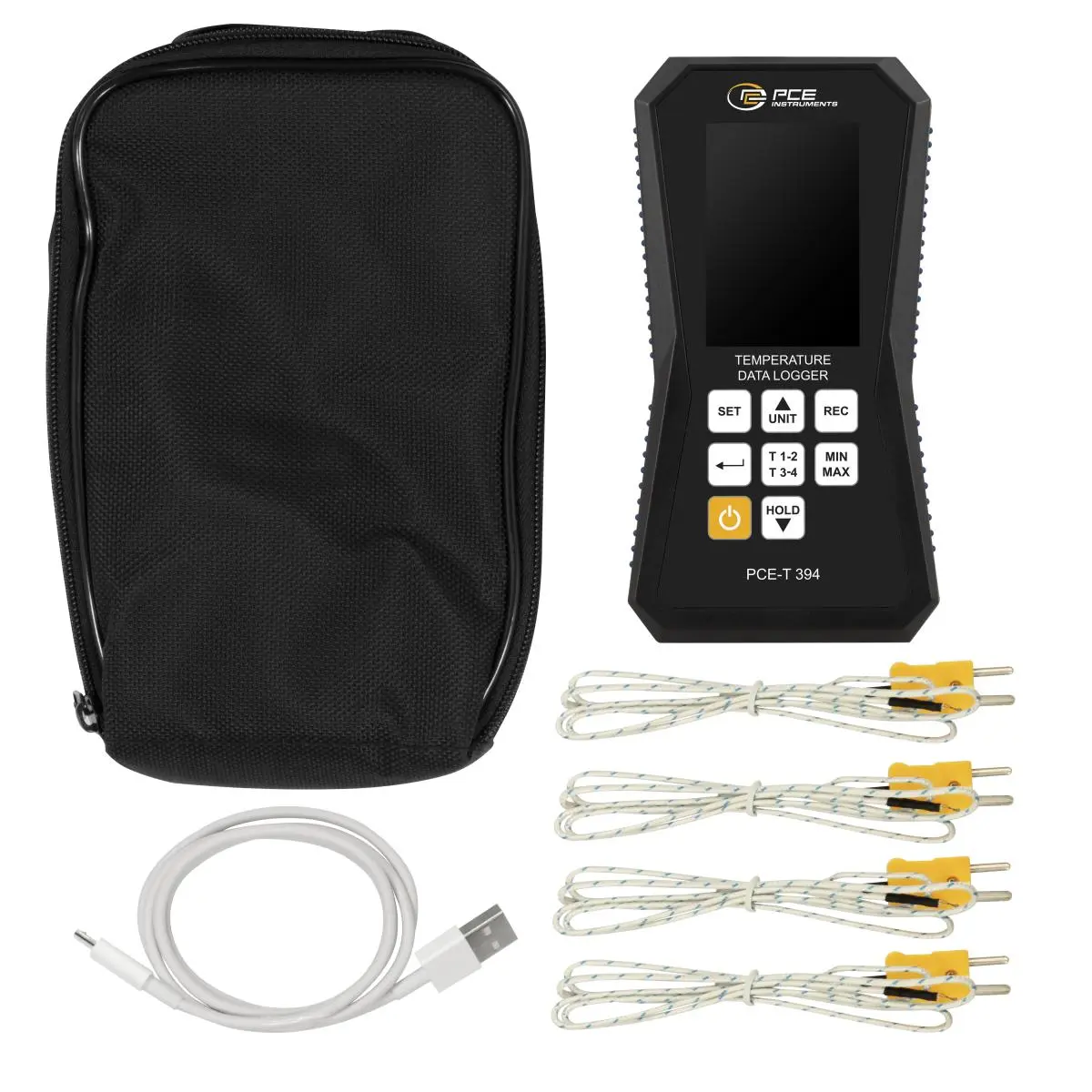

The MIN, MAX, AVG and HOLD measurement functions enable precise data recording and analysis. The thermometer switches off automatically after 20 minutes of inactivity to save energy and extend the operating time of the 3.7 V Li-Ion battery. The "Auto Power Off" function can also be deactivated. The temperature meter is charged via the micro-USB interface and comes in a practical case for transportation.
| Temperature type K | |
| Measuring range | -200 °C ... +1370 °C |
| Resolution | 0.1 °C |
| Accuracy | ±0.2 % of Mw.+1 °C above -100 °C / ±0.5 % of Mw.+2 °C below -100 °C |
| Temperature type J | |
| Measuring range | -210 °C ... +1100 °C |
| Resolution | 0.1 °C |
| Accuracy | ±0.5 % of Mw.+2 °C below -100 °C / ±0.5 % of Mw.+2 °C below -100 °C |
| General technical data | |

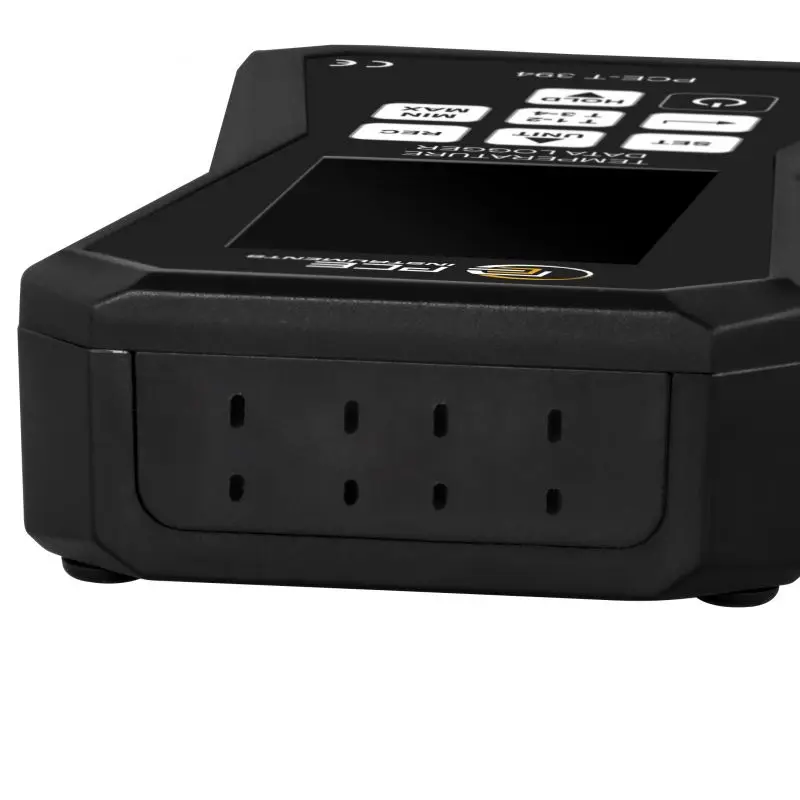

| Number of measuring channels | 4 |
| Measurement functions | MIN, MAX, HOLD, average value |
| Units | °C, °F, K |
| Display type | LCD |
| Display size | 2.8 inch |
| Display refresh rate | 500 mS |
| Storage capacity | 32000 data records |
| Storage interval of | 1 s |
| Storage interval to | 24 h |

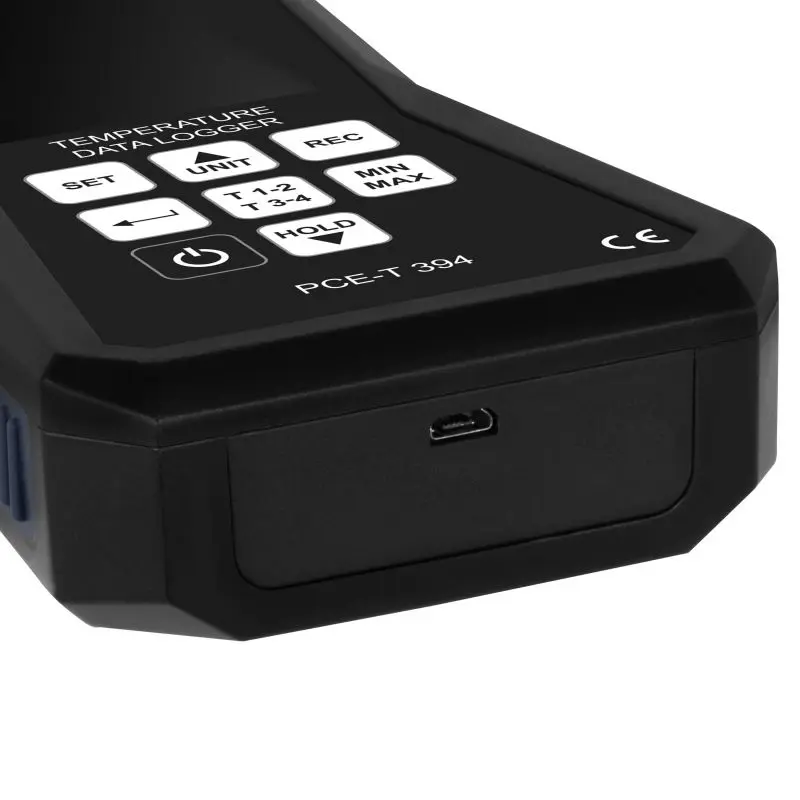

| Interface | Micro-USB |
| Automatic switch-off | 20 min |
| Automatic switch-off can be deactivated | yes |
| Menu language | English |
| Protection class (device) | IP52 |
| Power supply | 5V DC |
| Plug type | Euro plug device |
| Weight | 247 g |
| Dimensions (L x W x H) | 166 x 88 x 32 mm |
| Operating conditions | -10 ... 50 °C , 0 ... 80 % r.H |
| Storage conditions | -20 ... 50 °C , 0 ... 80 % r.H |
| Capacity | 2500 mAh |
