Tension Dynamometer PCE-DDM 20-ICA incl. ISO Calibration Certificate

Order no.: PCE-DDM 20-ICA

GTIN (EAN):

Accessory

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

1.424,90 €

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

1.361,90 €

Calibration certificate for tensile or compressive force up to max 200kN / 20t

564,90 €

Description

Mobile Tension Dynamometer / Measuring range up to 20 t /
PEAK hold function / incl. remote display / incl. shackles and transport case

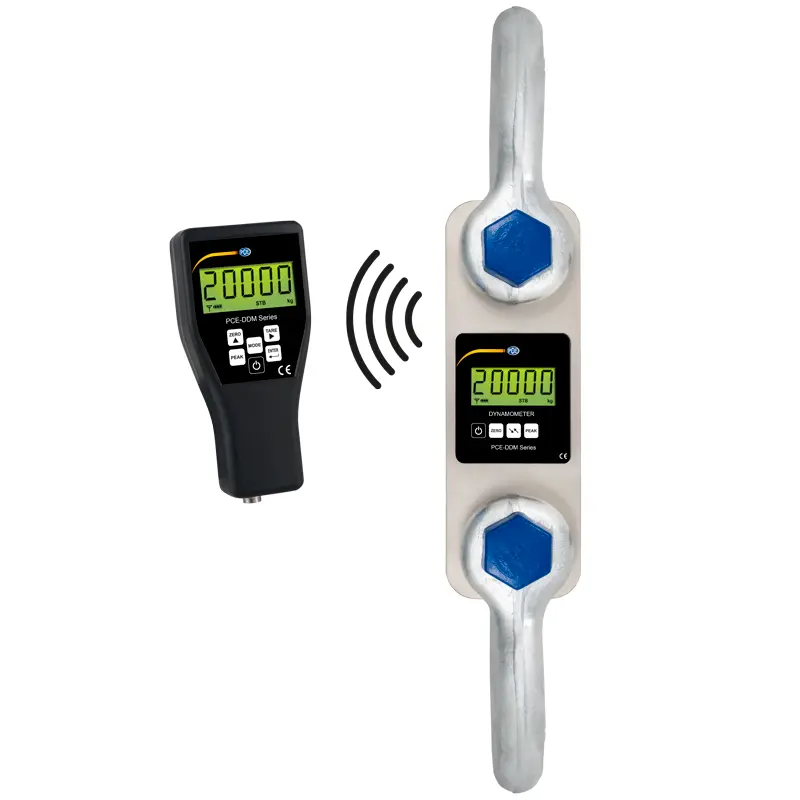

The tension dynamometer is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with a radio display and two shackles in a transport case.

Interesting functions of the tension dynamometer are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measuring range up to 20,000 kg / 200 kN
- Low device weight
- Compact design
- Long battery life
- Remote radio display
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.

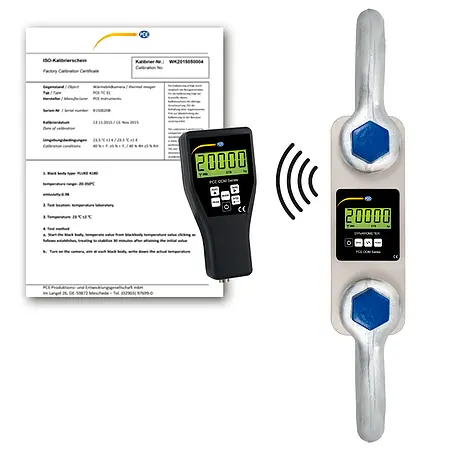

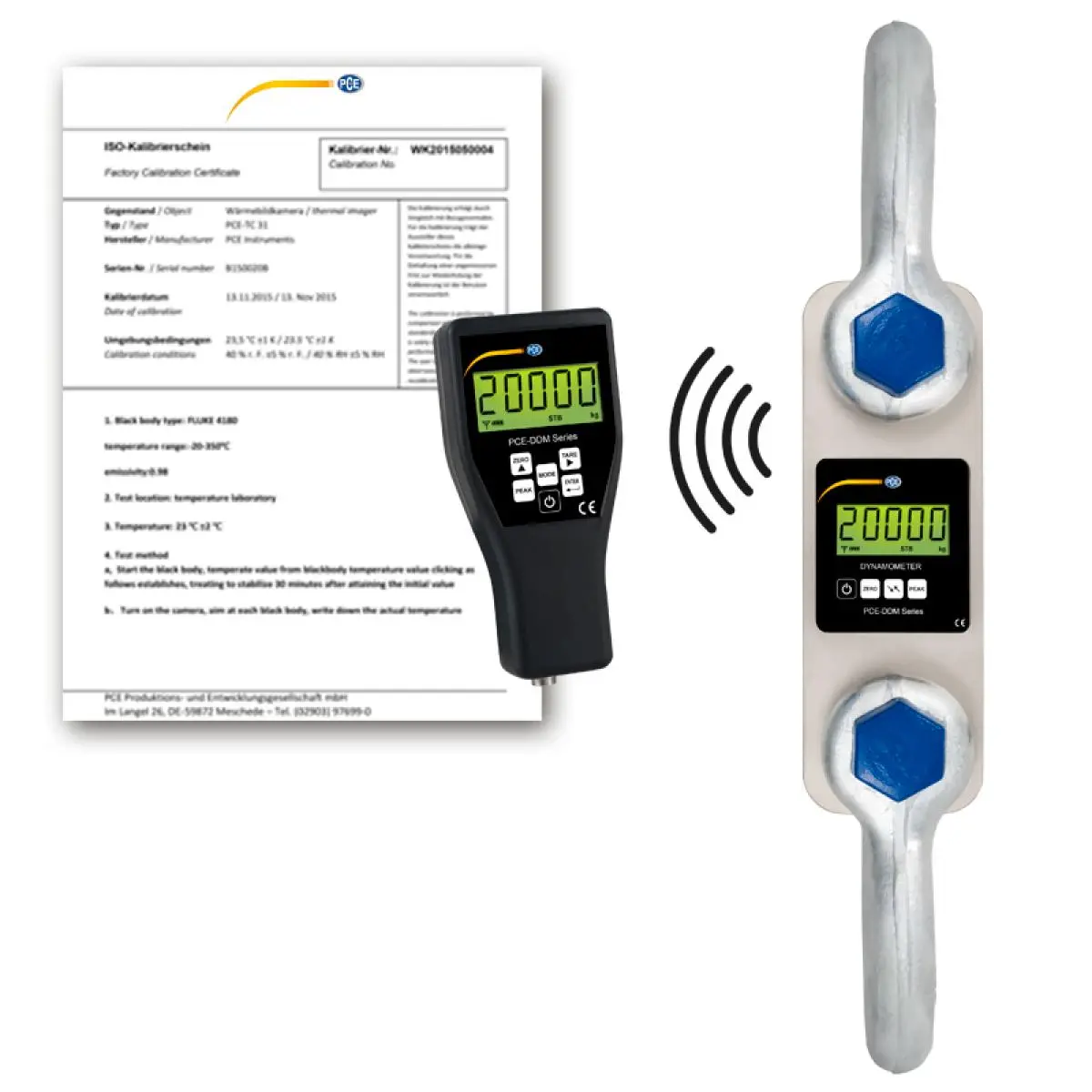

- incl. ISO Calibration Certificate

Specification

Measuring range	20000 kg / 200 kN / 44092 lbs
Resolution	10 kg / 100 N / 22 lbs
Min. range	200 kg / 440 lbs
Weight (with shackle)	18 kg / 39 lbs (49 kg / 108 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours

Technical drawing

Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM

A	B	C	D	Ø E	Ø F	G	H	Material
420 mm 16.5 in	128 mm 5.0 in	74 mm 2.9 in	260 mm 10.2 in	127 mm 5 in	54 mm 2.1 in	71 mm 2.8 in	660 mm 26.0 in	Steel

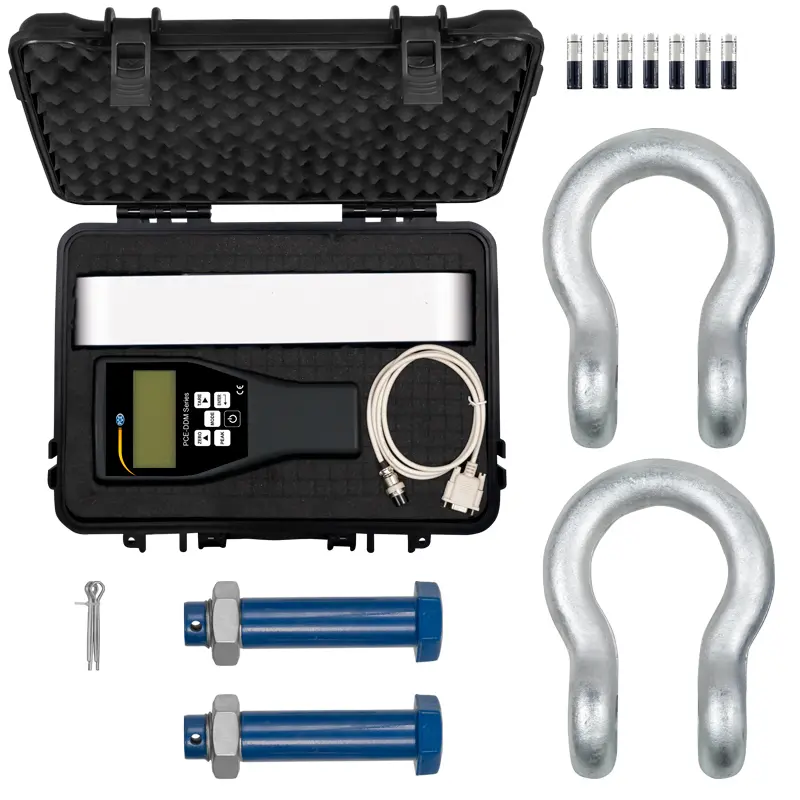

Delivery Scope

1 x Tension Dynamometer PCE-DDM 20-ICA

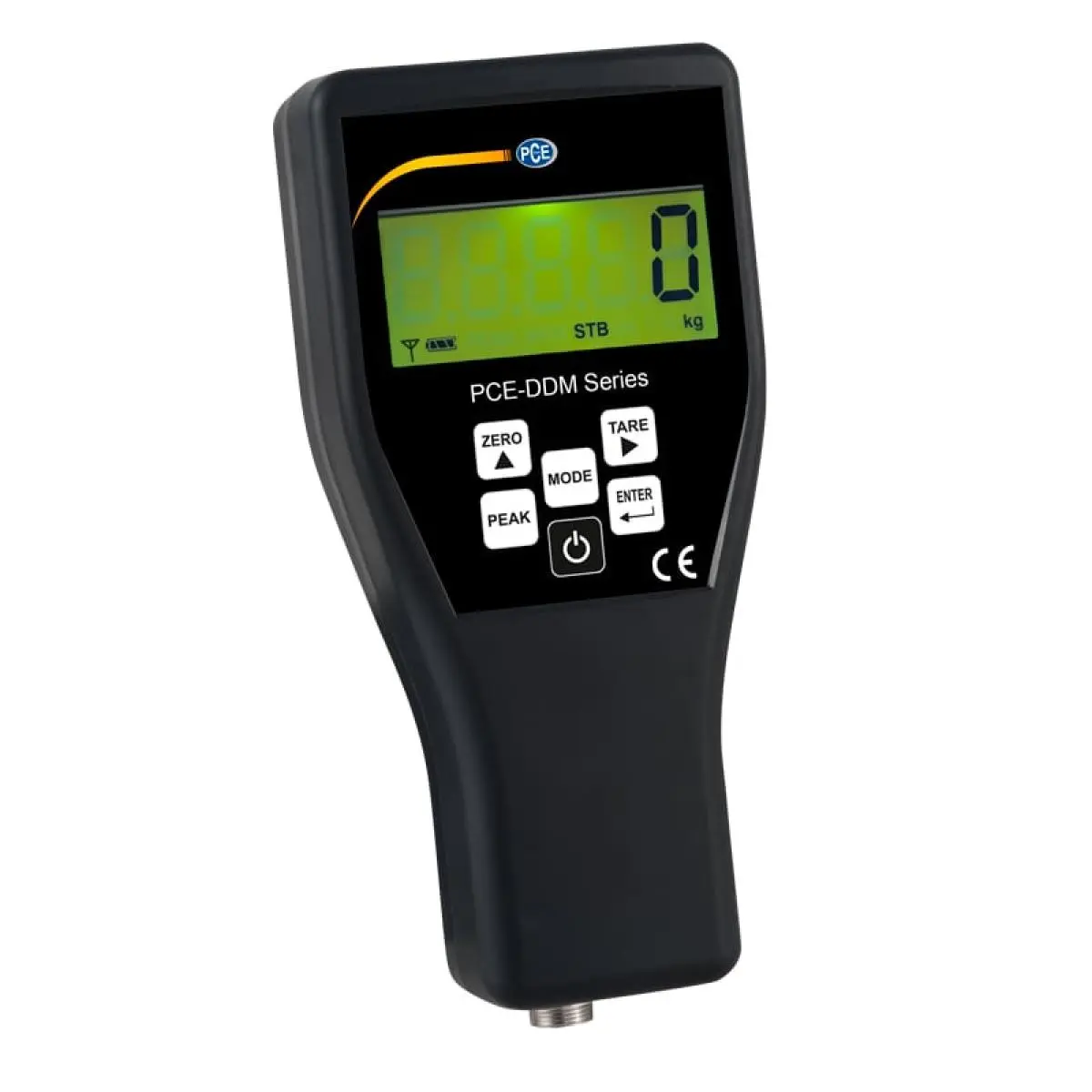

1 x Remote control indicator
2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
