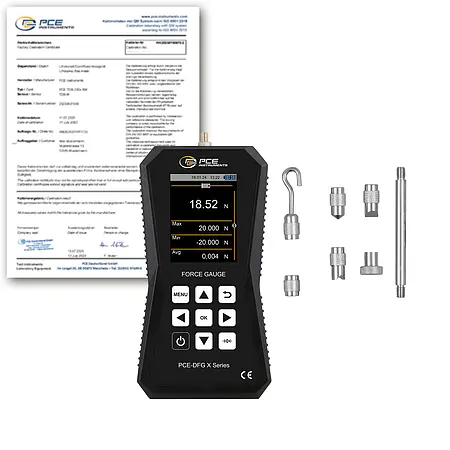

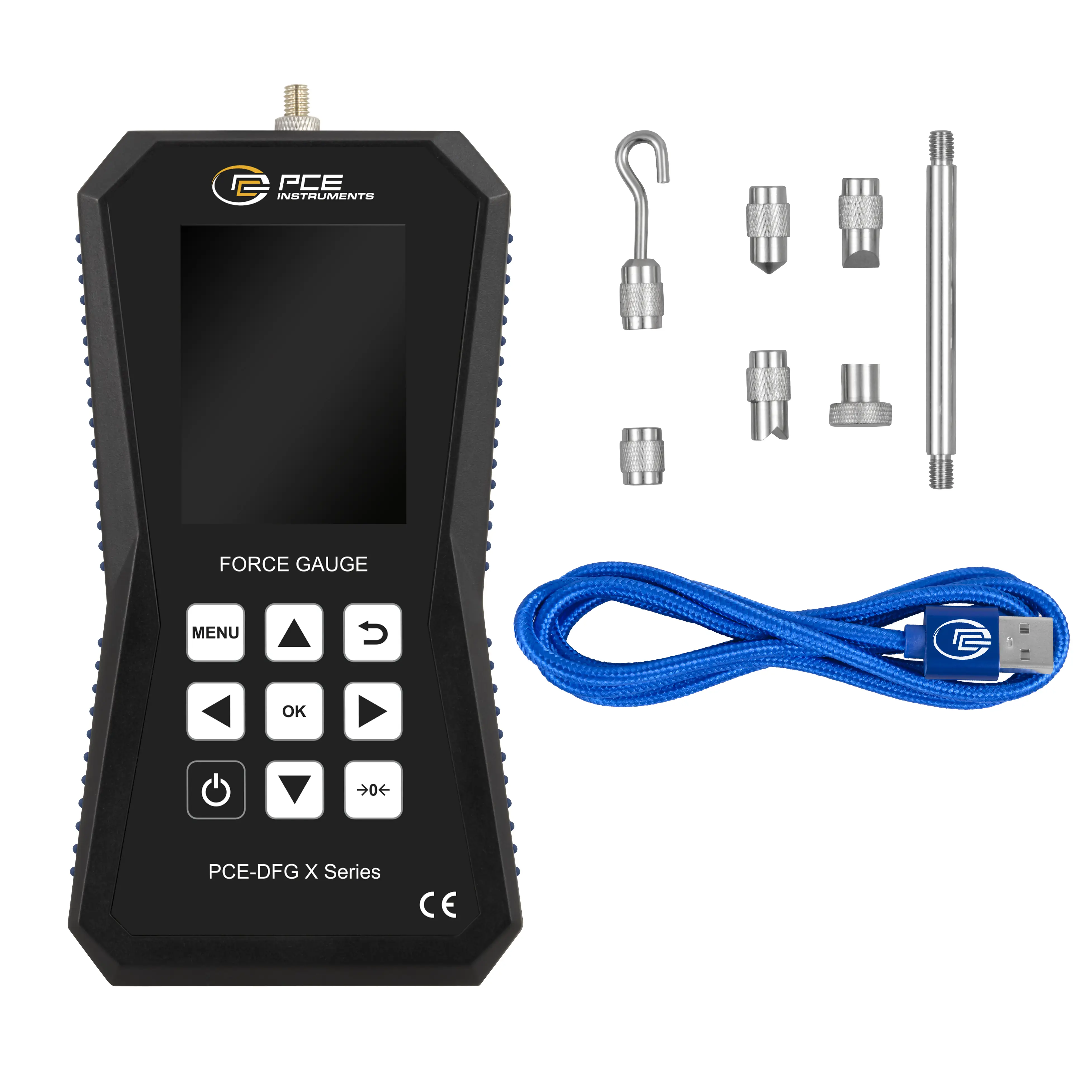

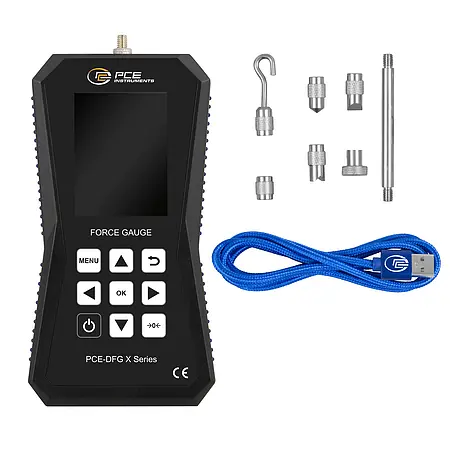

The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell has an internal measuring cell and can measure forces up to 20 N. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

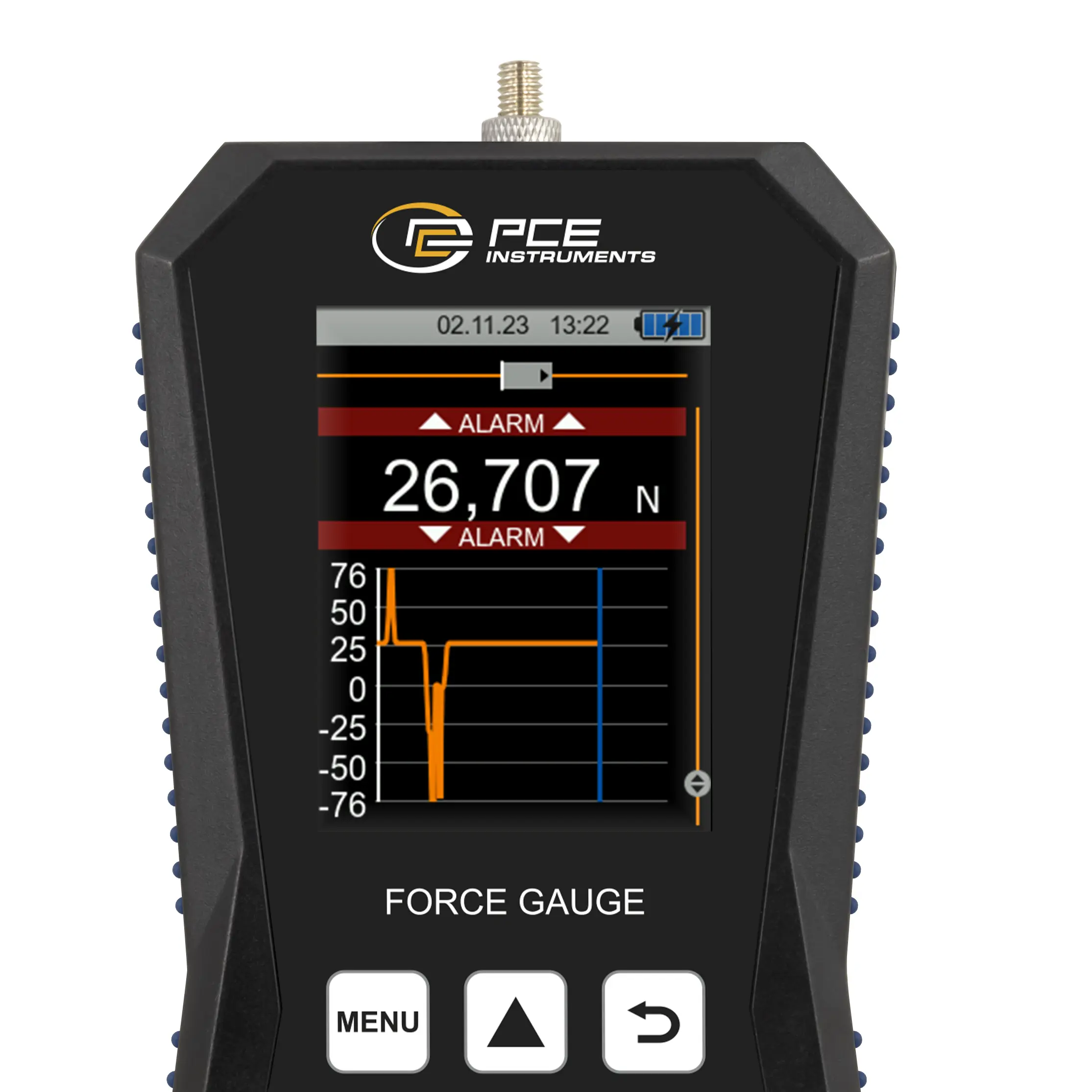

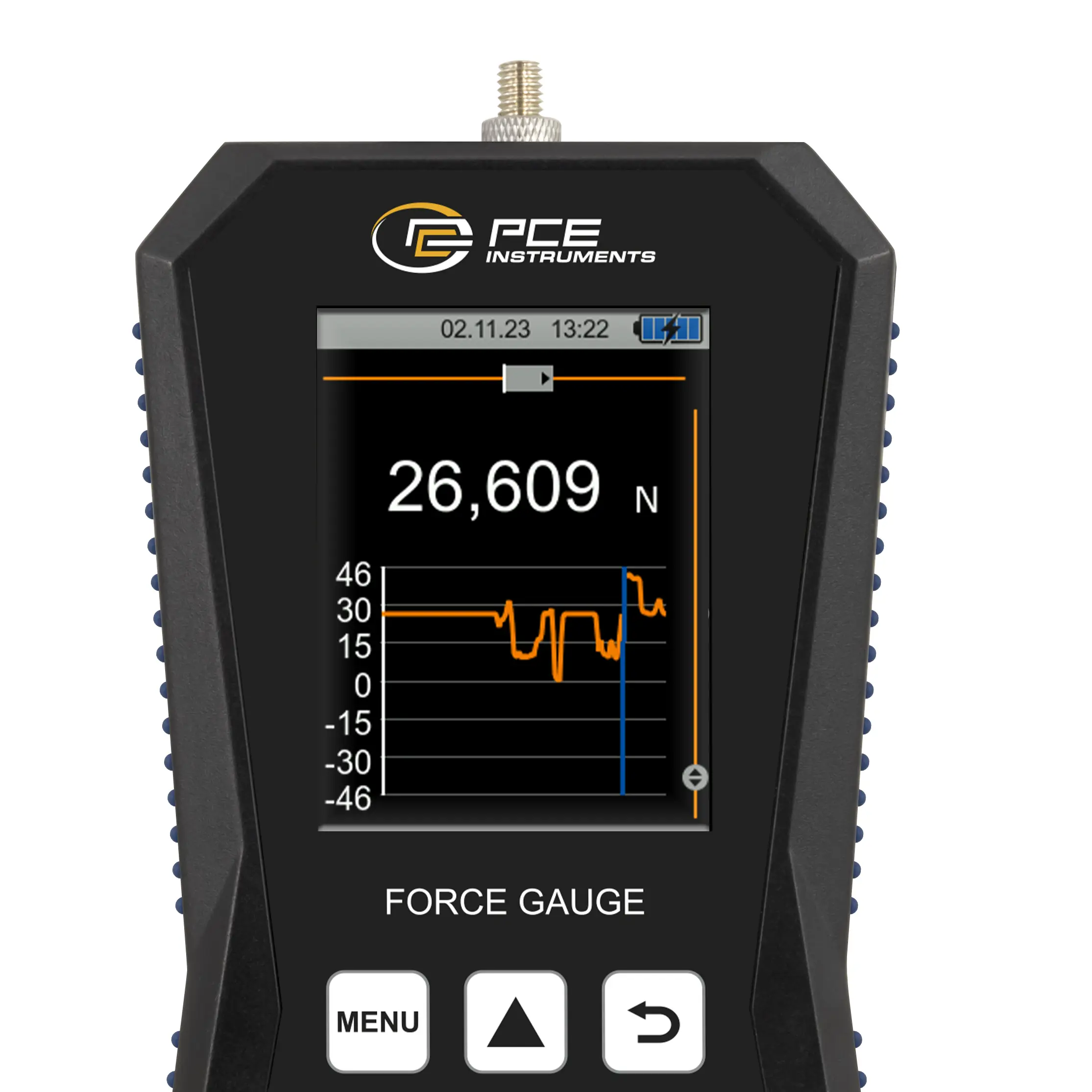

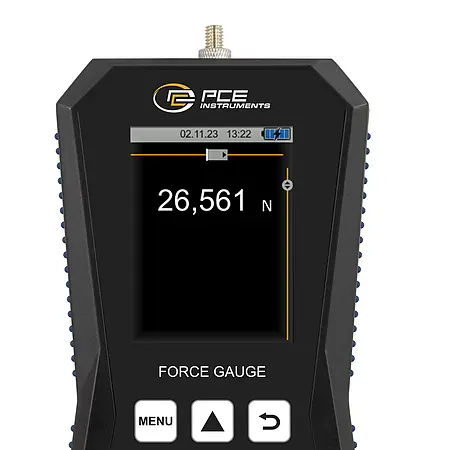

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell has a USB-C interface that can be used to read the measurement data into the PC software. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.
| Force | |
| Measurement range up to | 0 ... 20 N |
| Resolution | 0.01 |
| Accuracy | ±0.05 % F.S. |
| General technical data | |
| Units | N, kg, kn, Pa, kPa, Nm, lb, ft, g |
| Display type | LCD with backlight |
| Display size | 2,8 Inch |
| Adjustable measuring rate | 1 ... 7200 Hz |
| Storage medium | Internal memory |
| Storage capacity | 32 GB |
| Storage interval from | 1 Hz |
| Storage interval to | 7200 Hz |

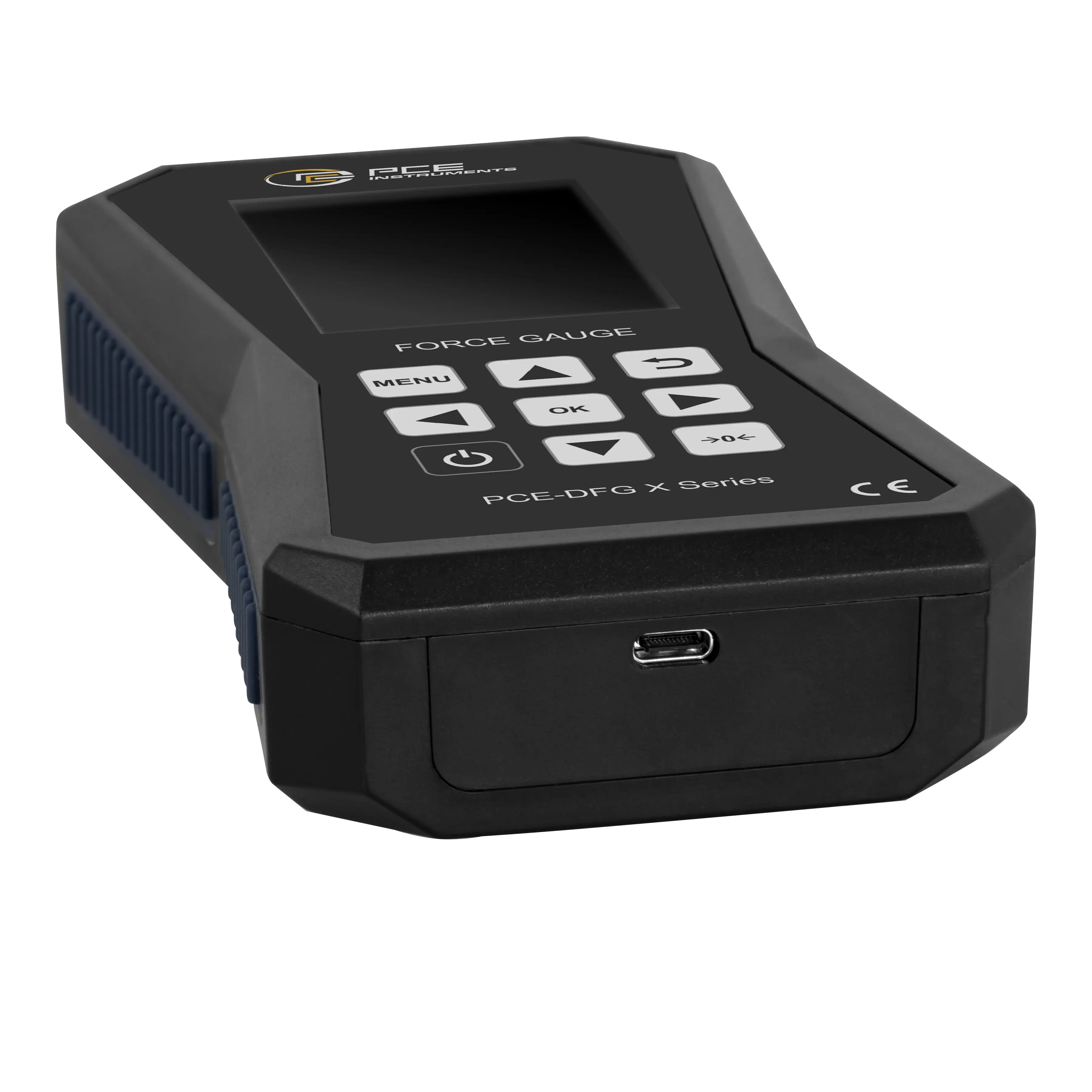

| Interface | USB-C |
| Operating time | 13 h |
| Automatic power-off from...to | 1 ... 15 min. |
| Automatic power-off can be deactivated | Yes |

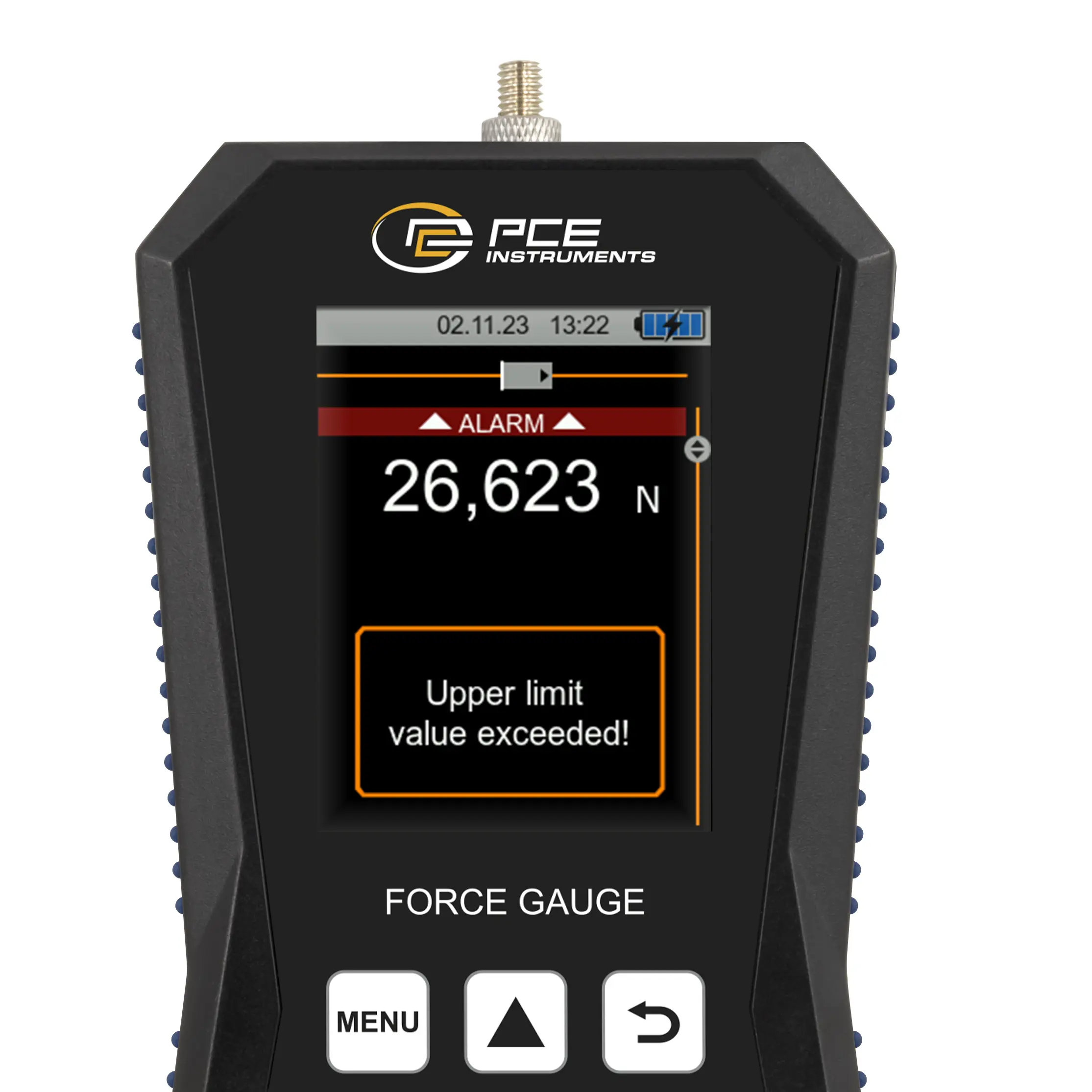

| Alarm | optical, Acoustic |
| Alarm modes | Within, beyond, fracture, off |
| Menu language | Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Weight | 255 g |
| Operating conditions | -20 ... 65 °C , 10 ... 95 % r.F |
| Storage conditions | -20 ... 65 °C , 10 ... 95 % r.F |
| Capacity | 2500 mAh |
| Dimensions ( L x W x H ) | 165 x 85 x 32 mm |
