Tension Load Cell PCE-DDM 20WI

Order no.: PCE-DDM 20WI

GTIN (EAN):

Accessory

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

1.424,90 €

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

1.361,90 €

Calibration certificate for tensile or compressive force up to max 200kN / 20t

564,90 €

Description

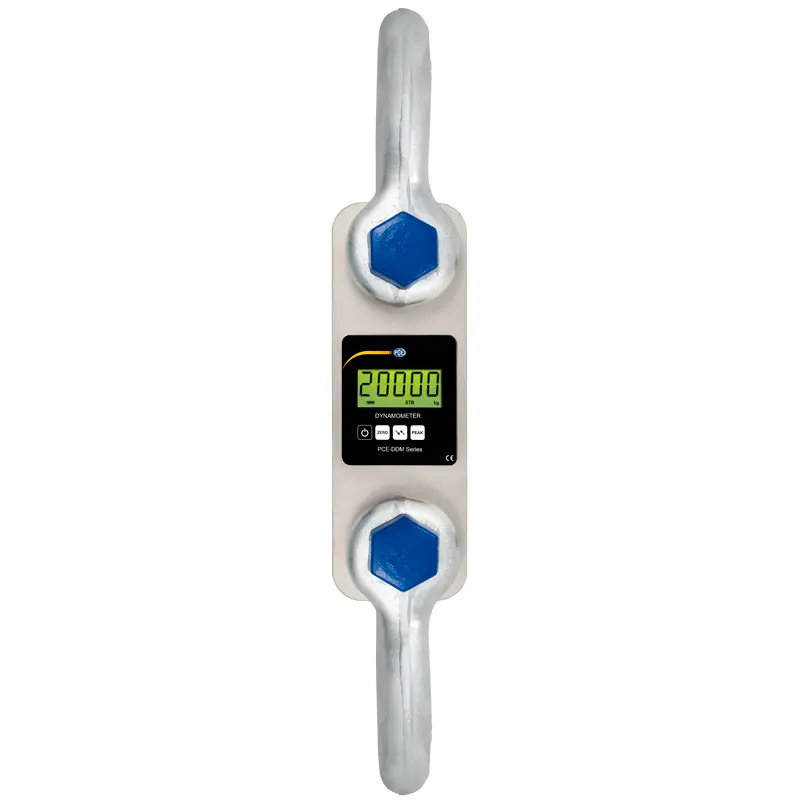

Mobile Tension Load Cell / Measuring range up to 20 t /
PEAK hold function / incl. shackles and transport case

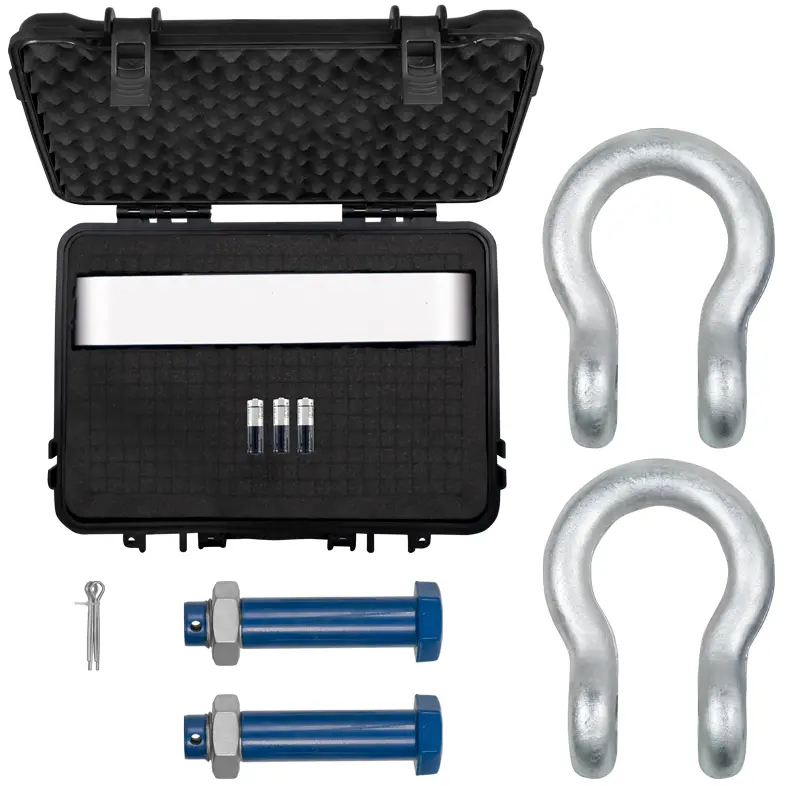

The tension load cell is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with two shackles in a transport case.

Interesting functions of the tension load cell are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measurement range up to 20000 kg / 200 kN

- High capacity

- Compact and portable

- Long battery life

- Peak hold function

- Summation function

- Selectable units of measurement: kg / t / lb / N / kN

- Adjustable gravitation range

- Shackles and carrying case included

Specification

Measuring range	20000 kg / 200 kN / 44092 lbs
Resolution	10 kg / 100 N / 22 lbs
Min. range	200 kg / 440 lbs
Weight (with shackle)	18 kg / 39 lbs (49 kg / 108 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours
