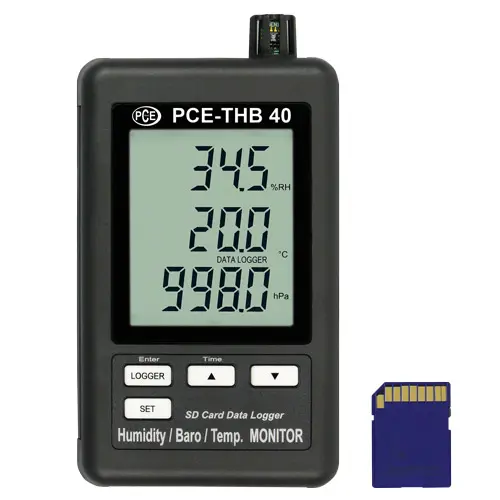

Thermometer PCE-THB 40

Order no.: PCE-THB 40
GTIN (EAN): 4250348707086
262,90 €
312,85 €
Topseller
price ex. (VAT / delivery)
:
4250348707086
PCE-THB 40
Delivery time: 1-2 working days

Description

Thermometer with SD memory card
(max. 16 GB SDHC) / large LCD display / different units can be selected / battery or
mains operation (optional) possible

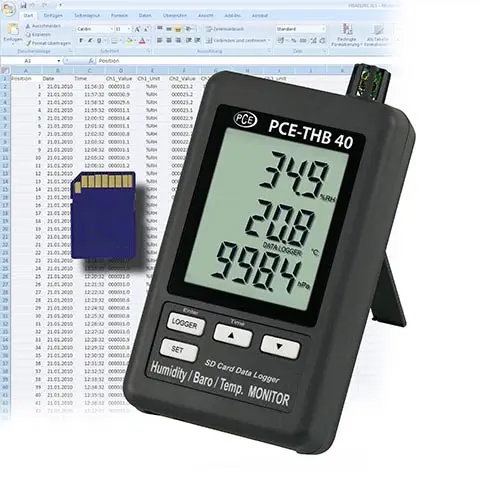

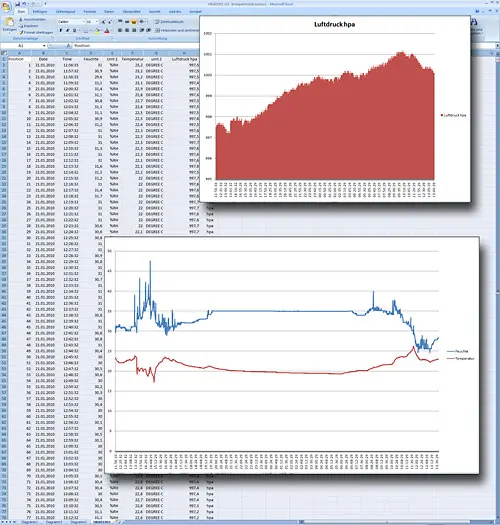

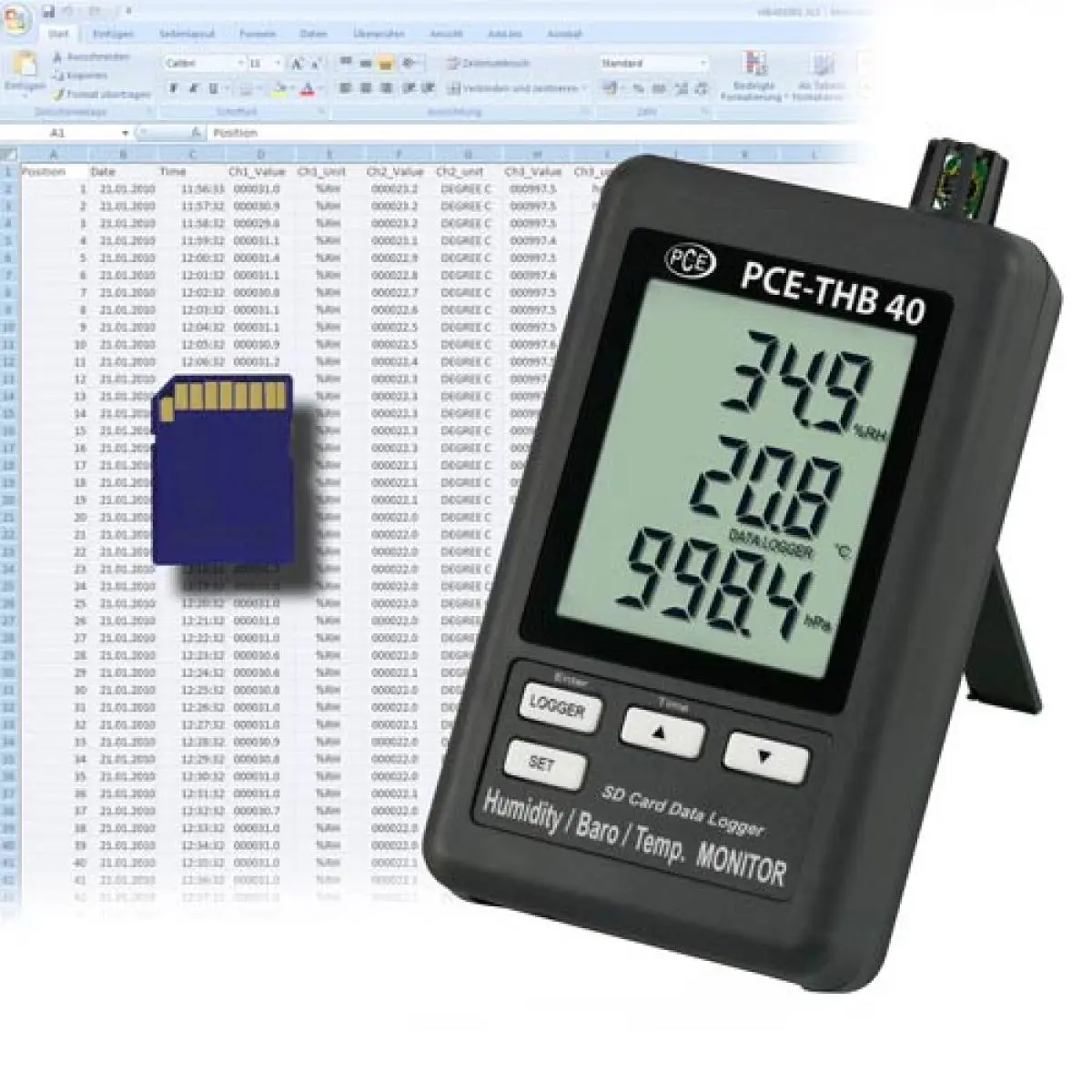

The thermometer records the air temperature as well as the relative humidity and the barometric pressure and saves them internally on an SD card. The compact device with a large memory (up to max. 16 GB SDHC card) is primarily used for long-term registration in the food sector (refrigerated counters in department stores, refrigerated transports, warehouses) and for measurement and recording in industry (heating and cooling processes, machine temperatures, product storage). The current measured value is shown directly on the LCD display and is also stored in the data memory so that the value can either be read off directly or the values ​​stored on the SD card can be transferred to a PC or laptop as desired and evaluated graphically as a progression curve.

The values ​​recorded in the data logger function can of course also be transferred back to the PC and evaluated (.xls file on the SD card). You can also check the columns of numbers for outliers and, in the case of the food industry, quickly see whether and, if so, how long the cold chain was interrupted. The internal real-time clock with date allows the user to precisely assign the events. The measuring rate is freely adjustable. The electronics of the data logger are protected against impacts and robust handling in industry.

Highlights

- Measures temperature, humidity, barometric pressure
- Flexible internal real-time data storage via SD memory card (1 ... 16GB)
- The saved data is saved directly as an Excel file on the SD card
- Selectable pressure unit: hPa, mmHg and inHg
- Low battery display
- Large LCD display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Optional software kit for online transfer to a PC or laptop (no software is required to evaluate the stored data)

Specification

Measurement ranges
Temperature 0 ... 50°C / 32 ... 122°F
Relative humidity in air     10 ... 90% RH
Barometric pressure 10 ... 1100 hPa / 7.5 ... 825 mmHg / 0.29 ... 32.48 inHg
Resolution
Temperature 0.1°C / 0.18°F
Relative humidity in air 0.1% RH
Barometric pressure 0.1 hPa: 10 ... 1000 hPa, 1 hPa: 1001 ... 1100 hPa / 0.1 mmHg / 0.01 inHg
Accuracy
Temperature ± 0.8°C / ± 1.4°F
Relative humidity in air ± 4% RH: < 70% RH
± ( 4% reading + 1% RH): ≥ 70% RH
Barometric pressure ± 2 hPa: 10 ... 1000 hPa, ± 3 hPa: 1001 ... 1100 hPa / ± 1.5 mmHg / ± 0.1 inHg
Sampling interval 5,10, 30, 60, 120, 300 or 600 seconds, or automatic (it stores data when there is an alteration of the value of ± 1º, ±1 % RH or ± 1 hPa)
Memory SD card memory up to 16 GB (an SD card is included in the delivery contents)
Operating temperature 0 ... 50ºC / 32 ... 122ºF
< 90% RH
Power 6 x 1.5V AAA batteries or

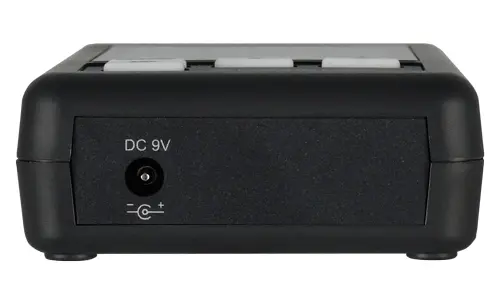

1 x 9V electric power supply (optional)
Dimensions 132 mm x 80 mm x 32 mm / 5.1 in x 3.1 in x 1.3 in
Weight (with batteries) 285 g / < 1 lb

Delivery Scope

1 PCE-THB 40 Thermometer
1 x SD card
1 x Wall mounting kit
6 x Batteries
1 x User manual
