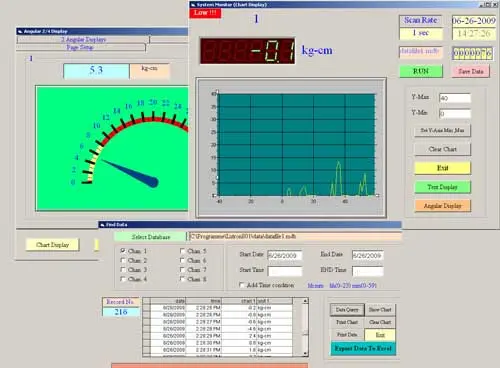

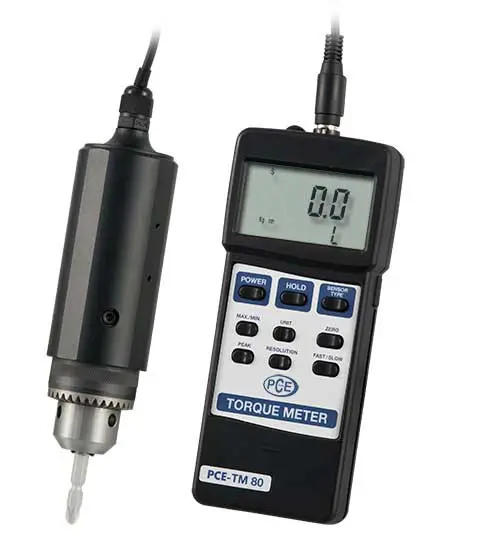

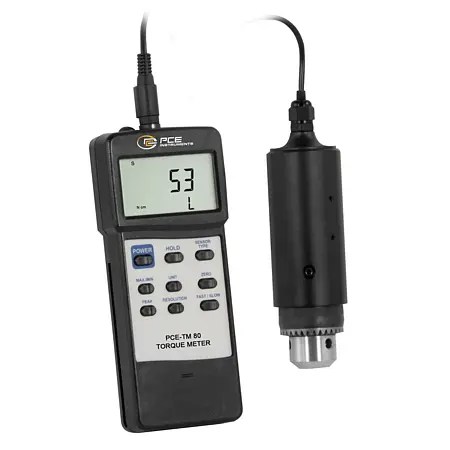

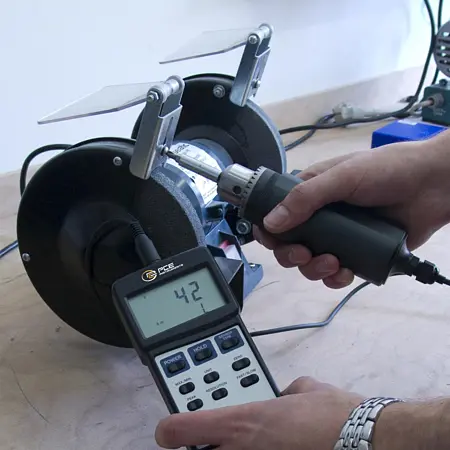

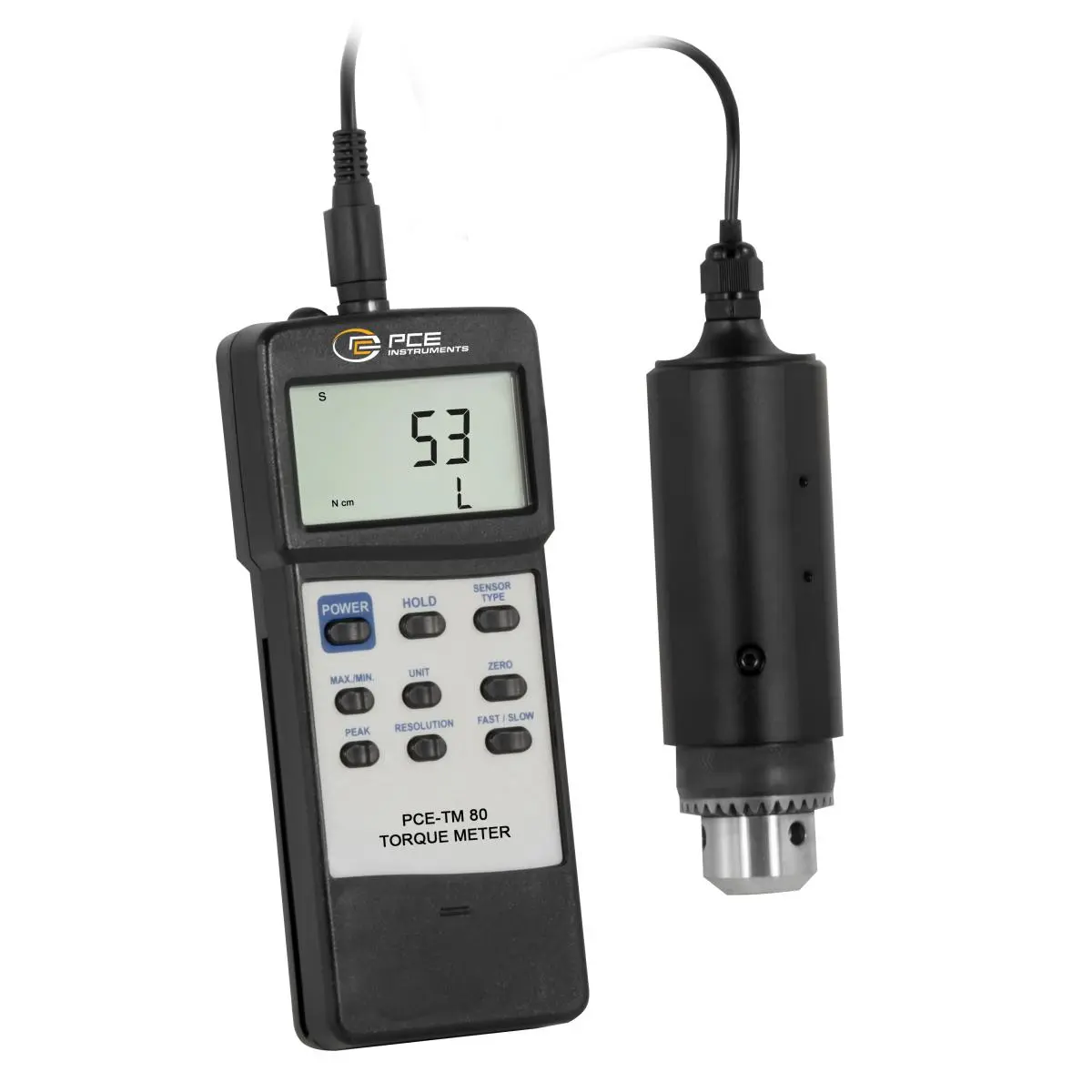

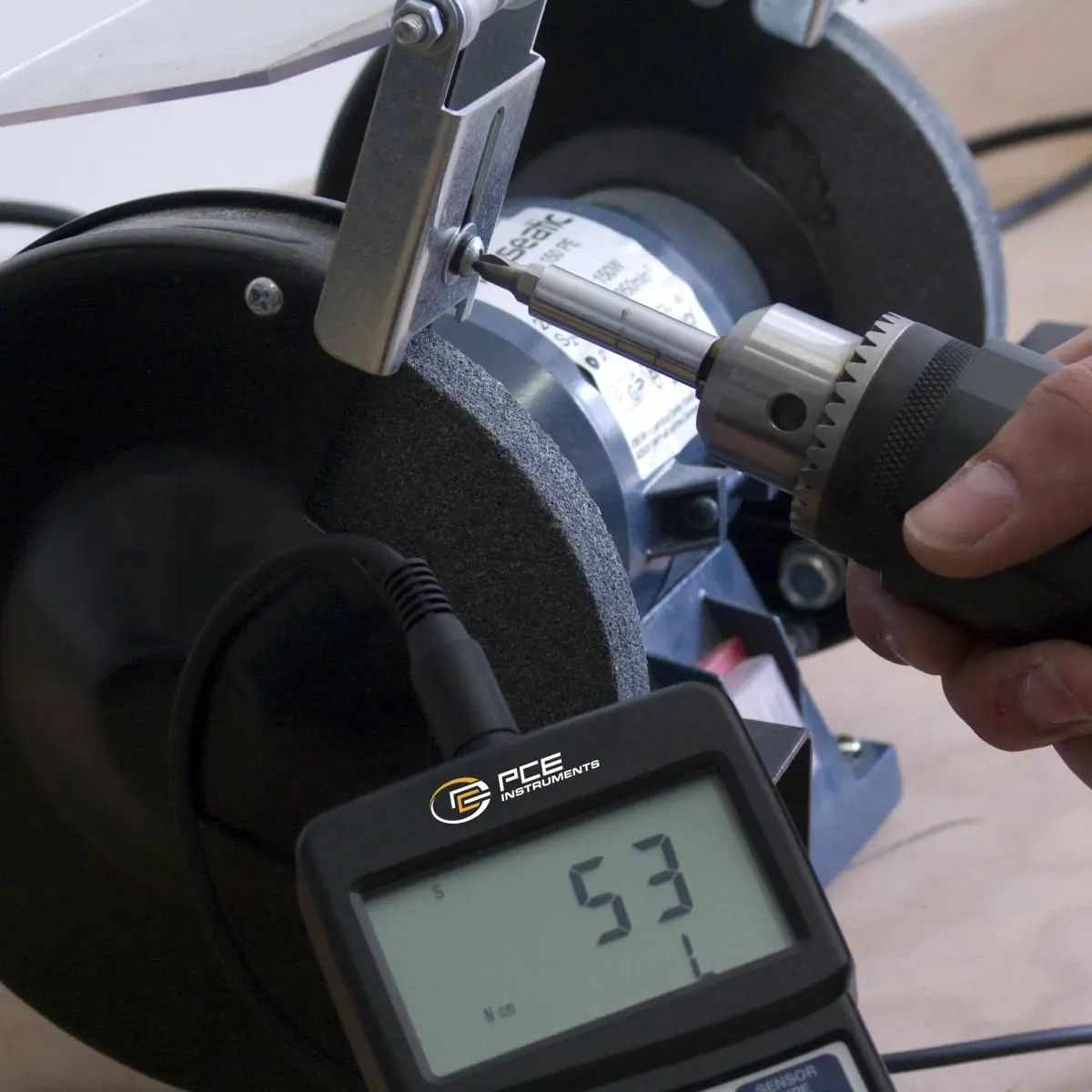

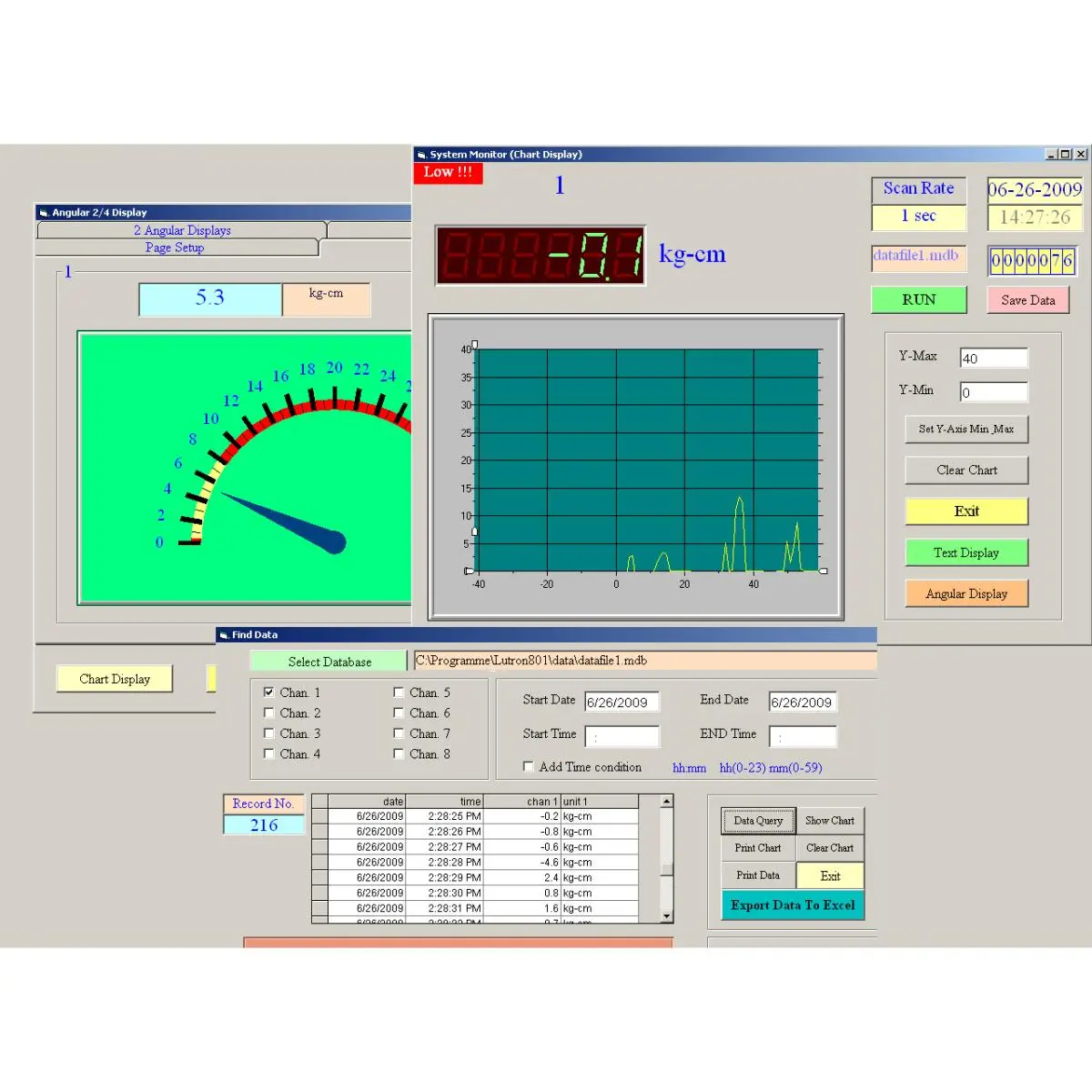

The Digital Torque Meter PCE-TM 80 with external sensor to measure the static or startup torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to easily perform static torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the option to enlarge the 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. Use of the optional software allows real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very robust to ensure both long duration and reliability.

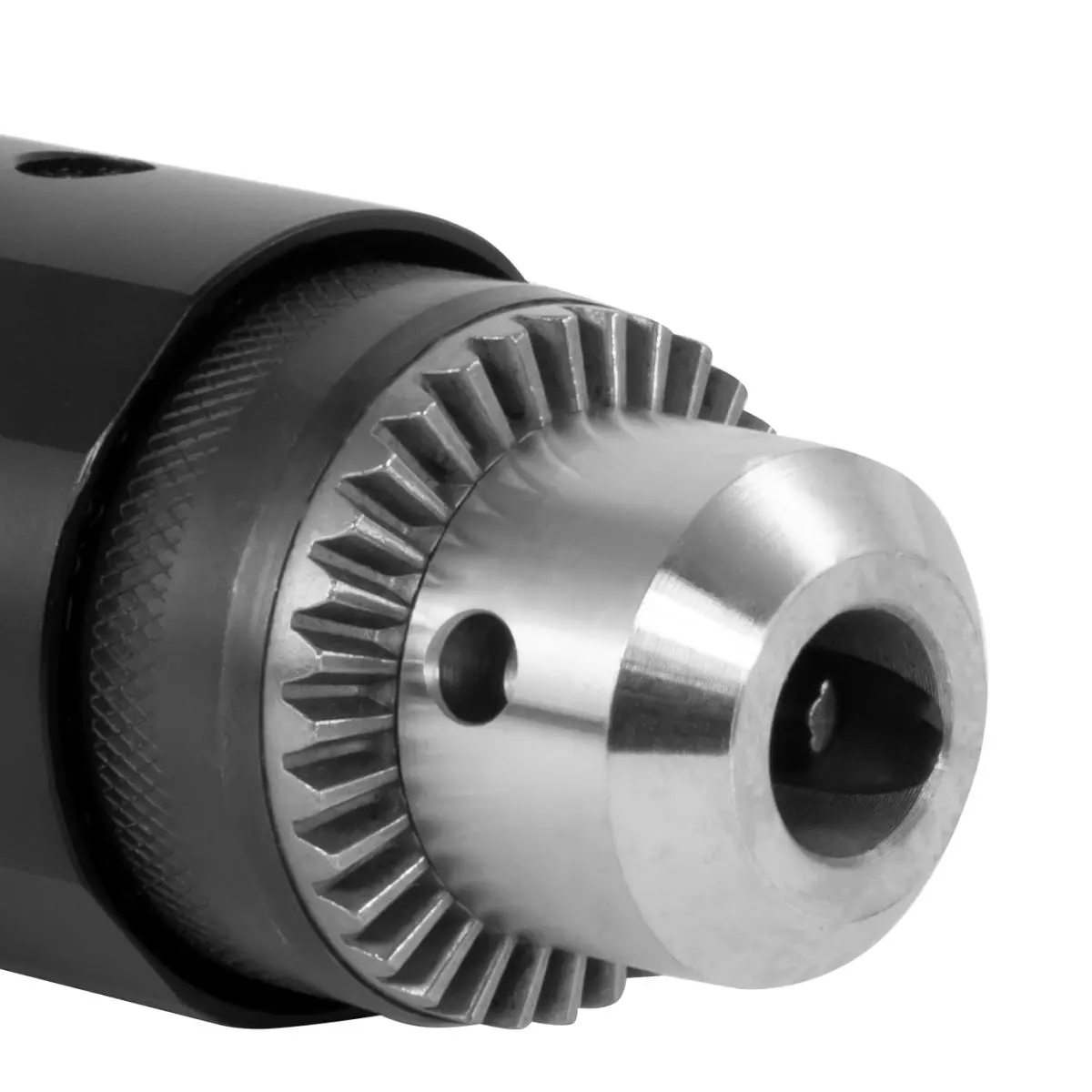

**Note the chuck does not rotate, the force is static or "startup" force
Technical specifications | |
Measurement range | 147.1 Ncm / 13.02 lbfin / 15 kgfcm |
Resolution - High resolution - Low resolution |
0.1 Ncm / 0.01 lbfin / 0.01 kgfcm 1 Ncm / 0.1 lbfin / 0.1 kgfcm |
Accuracy | ±1.5 % + 5 digits |
Peak-hold function | Yes |
Additional functions | Data-hold / max. and min. / peak-hold |
Units | Ncm, lbfin, kgfcm (Default is kgfcm) |
Overload protection | Max. 150 % |

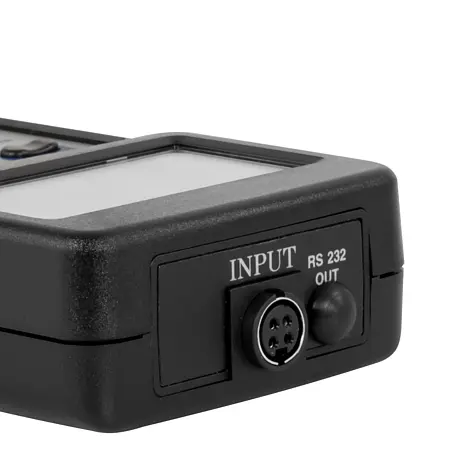

Output | RS-232 |
Software | Optional |

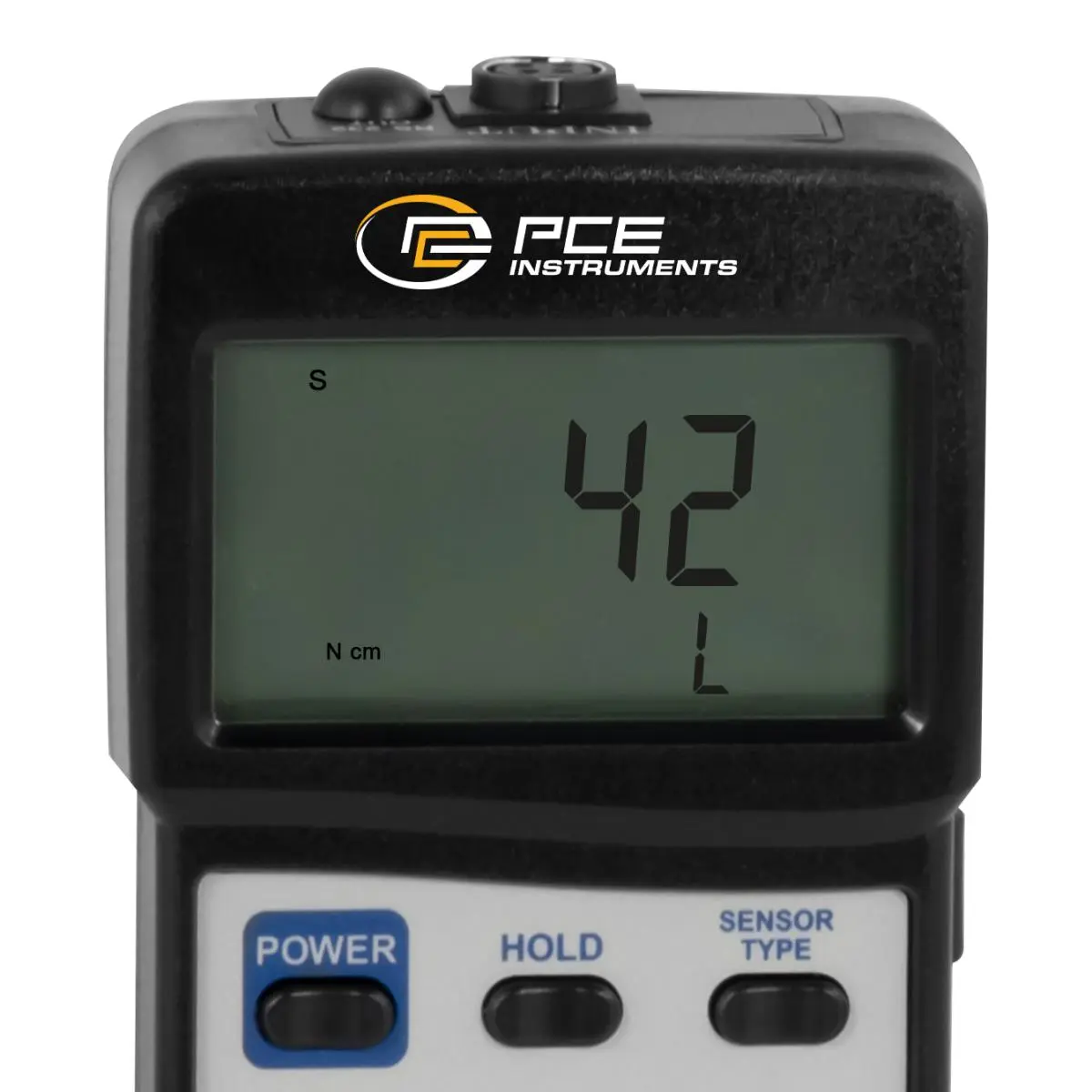

Display | LCD |
Operating temperature | 0 ... +50 ºC, below 80 % RH |

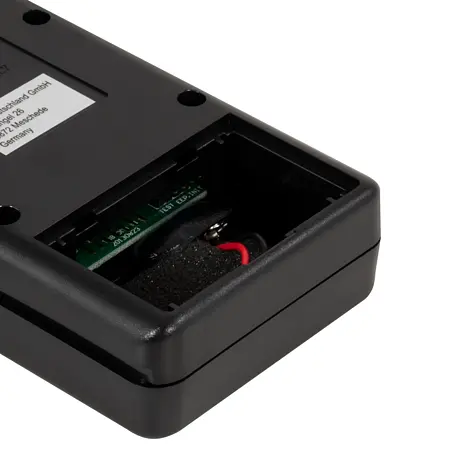

Power supply | 9 V battery |
Weight - Main unit - External sensor |
Approx. 225 g Approx. 665 g |
Dimensions - Main unit - External sensor |
180 x 72 x 32 mm Ø 48 x 160 mm |
