215,90 €
|

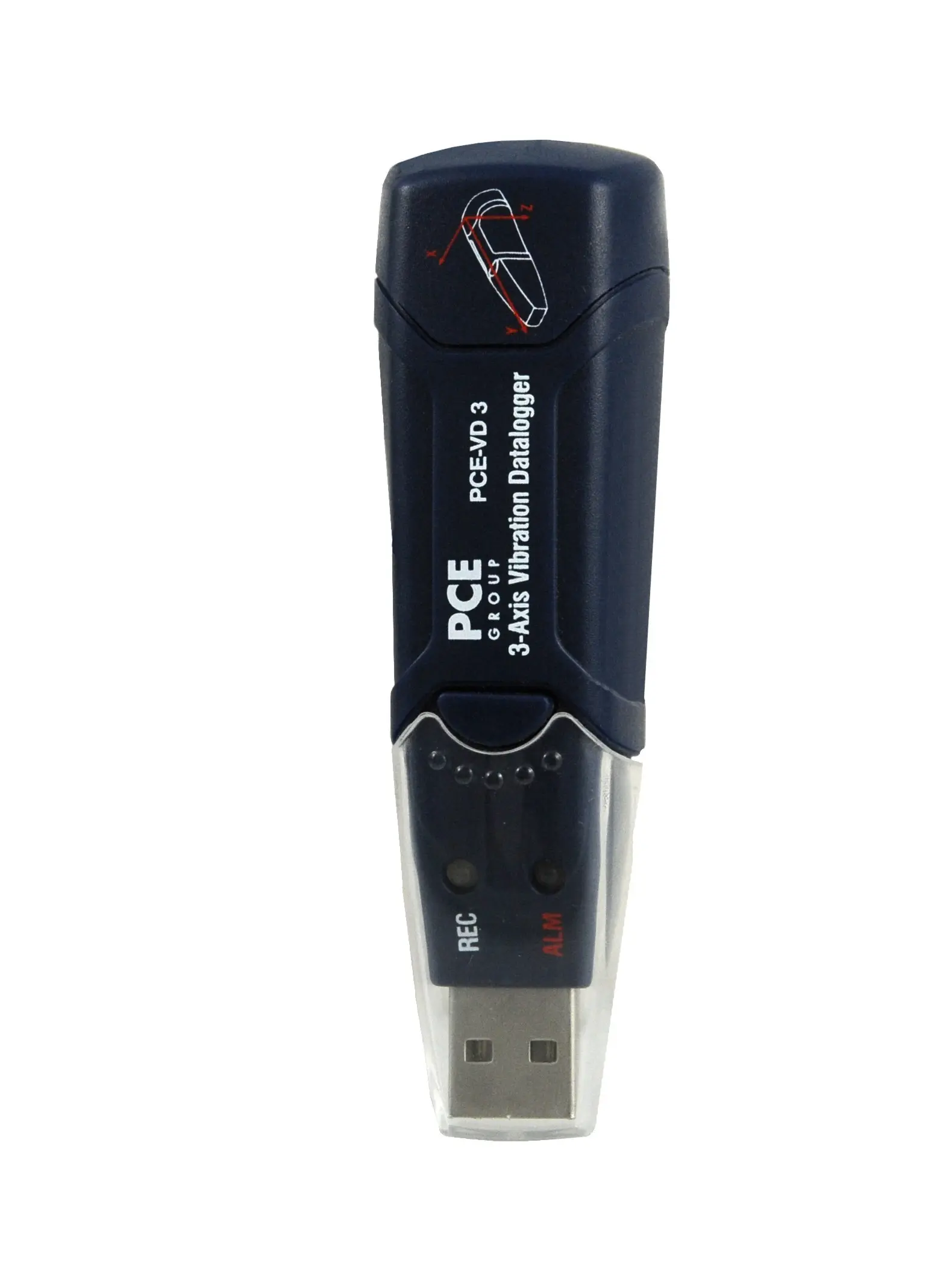

PCE-VD 3 Vibration Analyser |
|
|

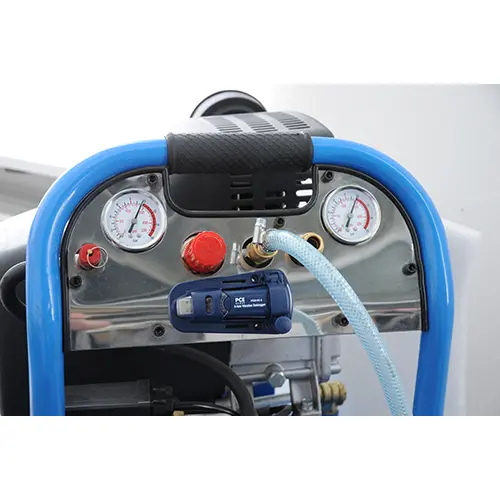

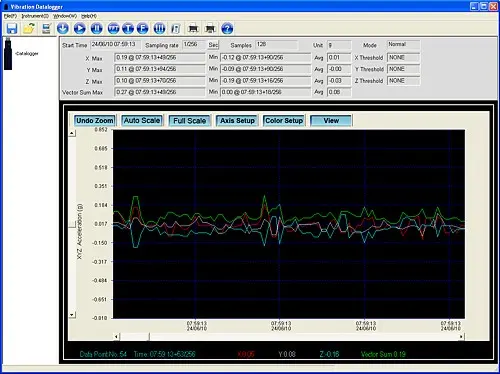

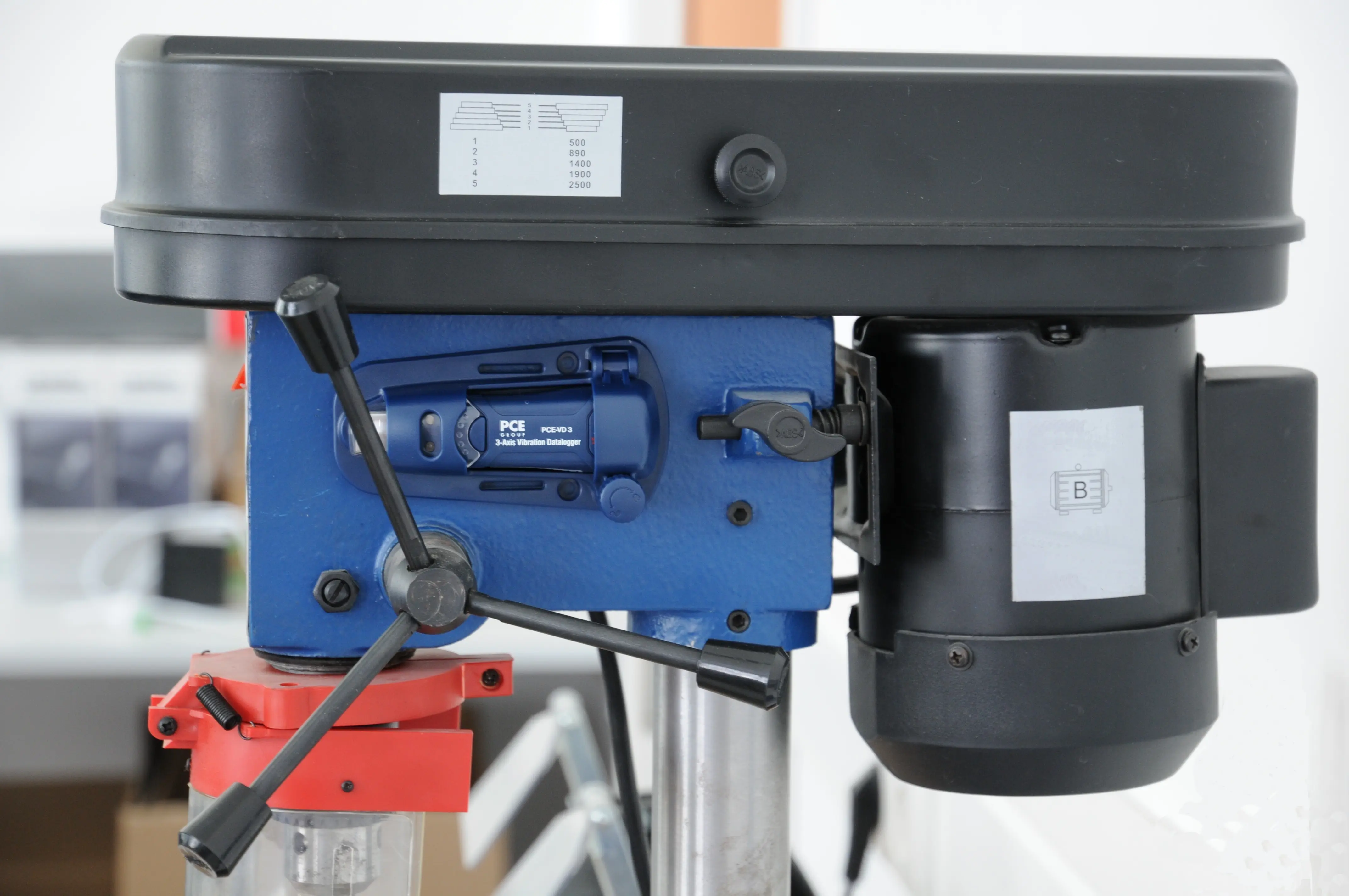

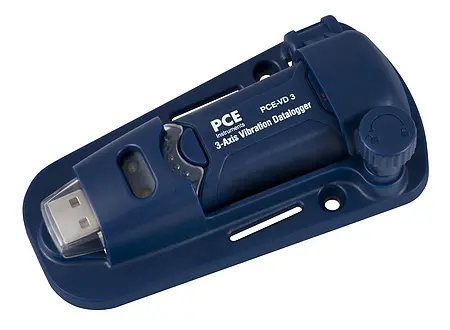

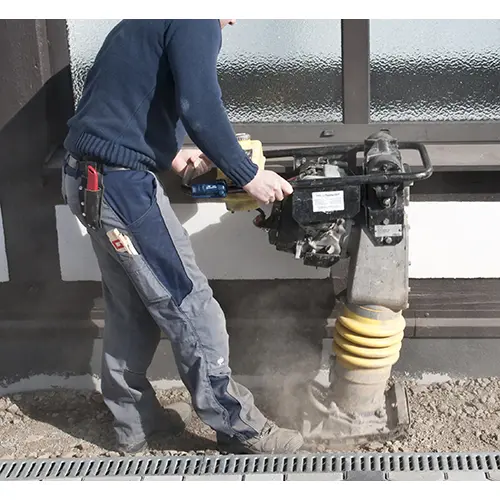

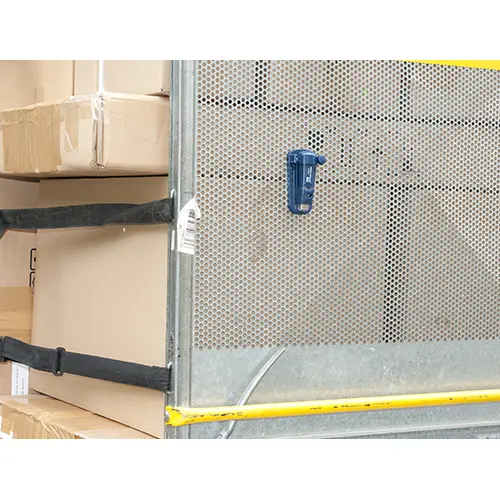

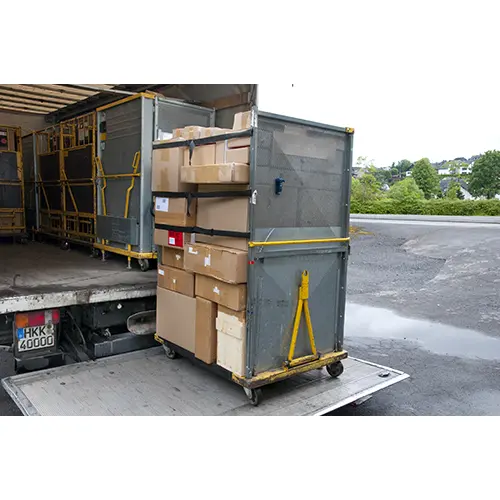

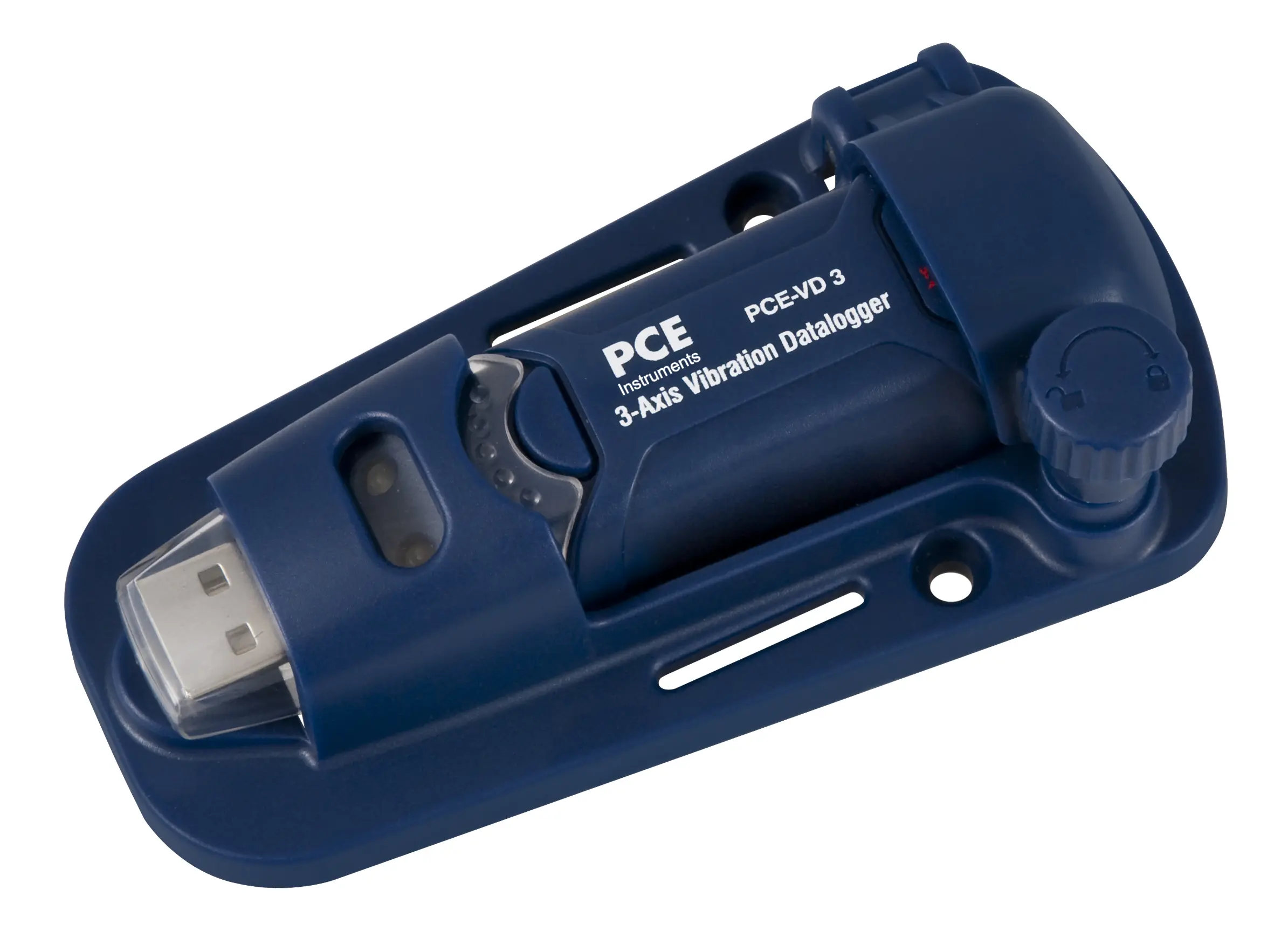

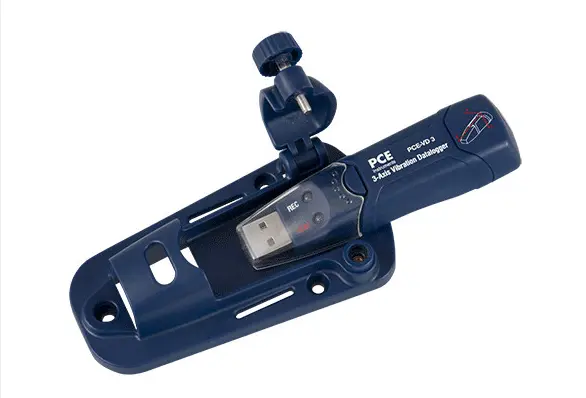

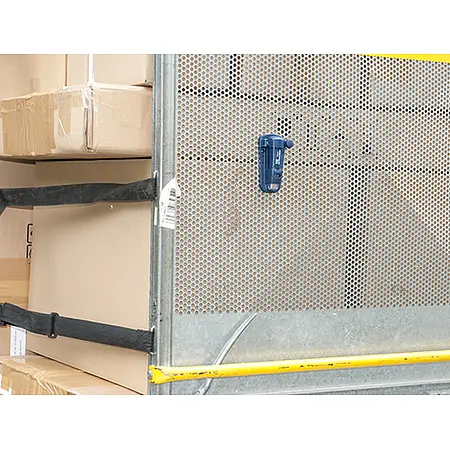

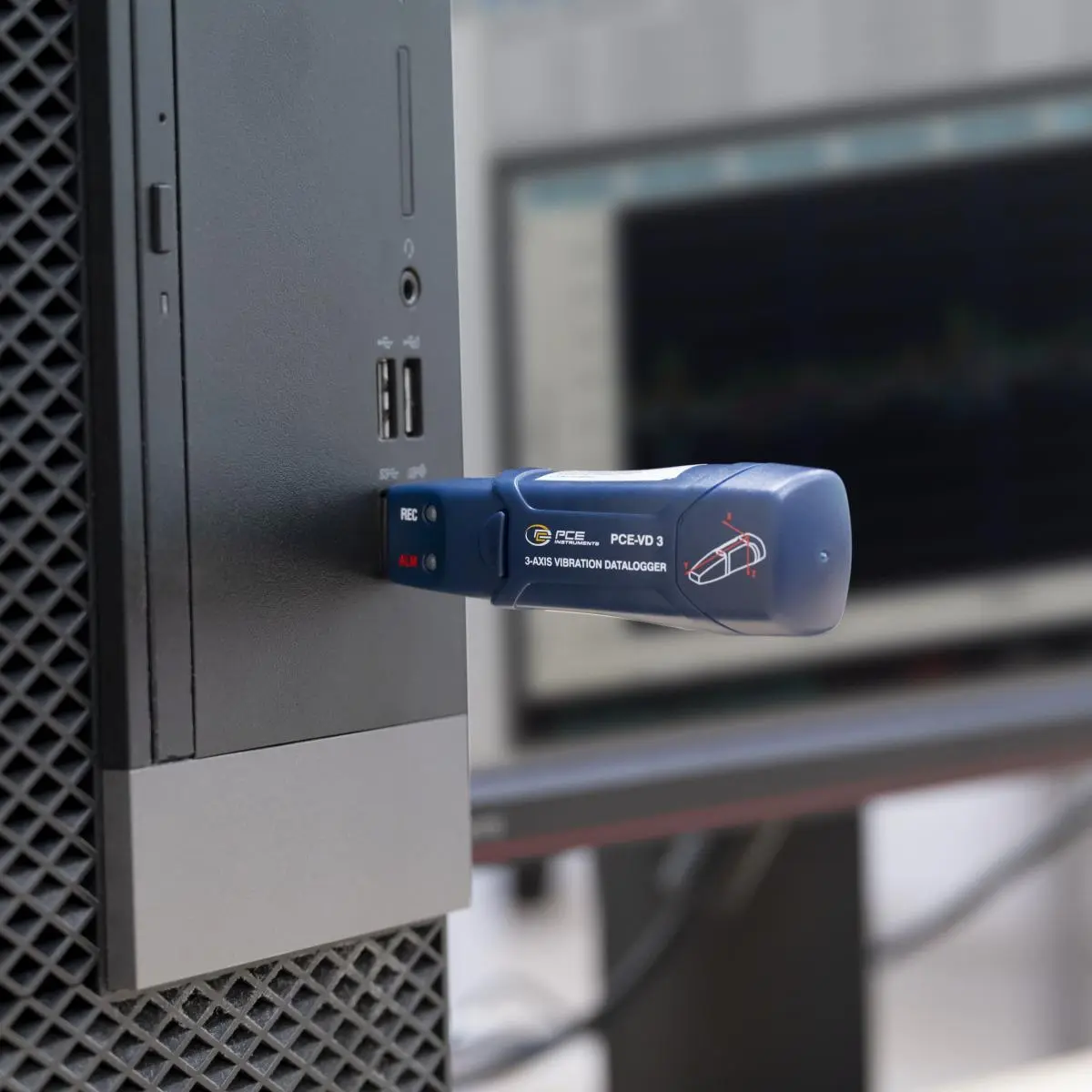

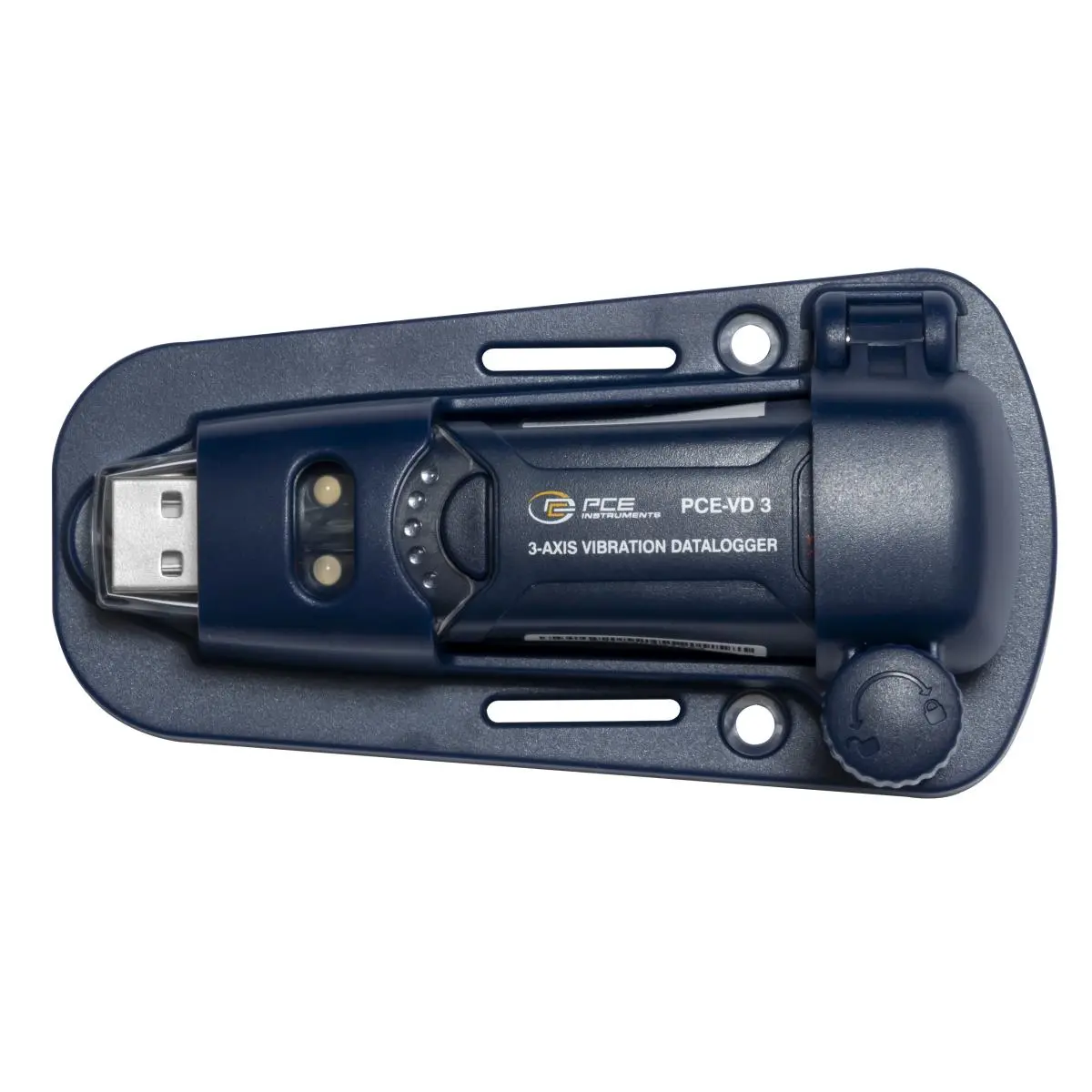

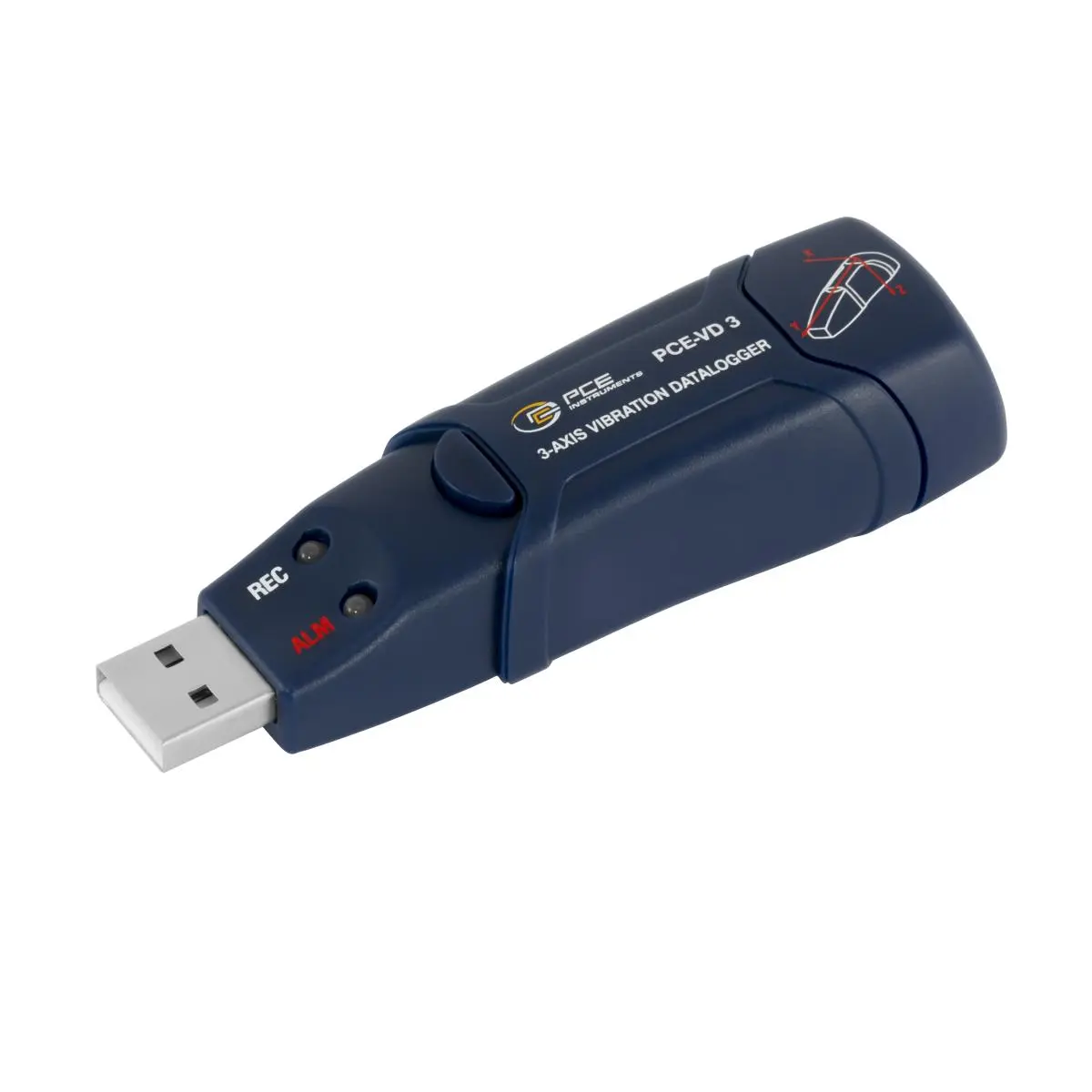

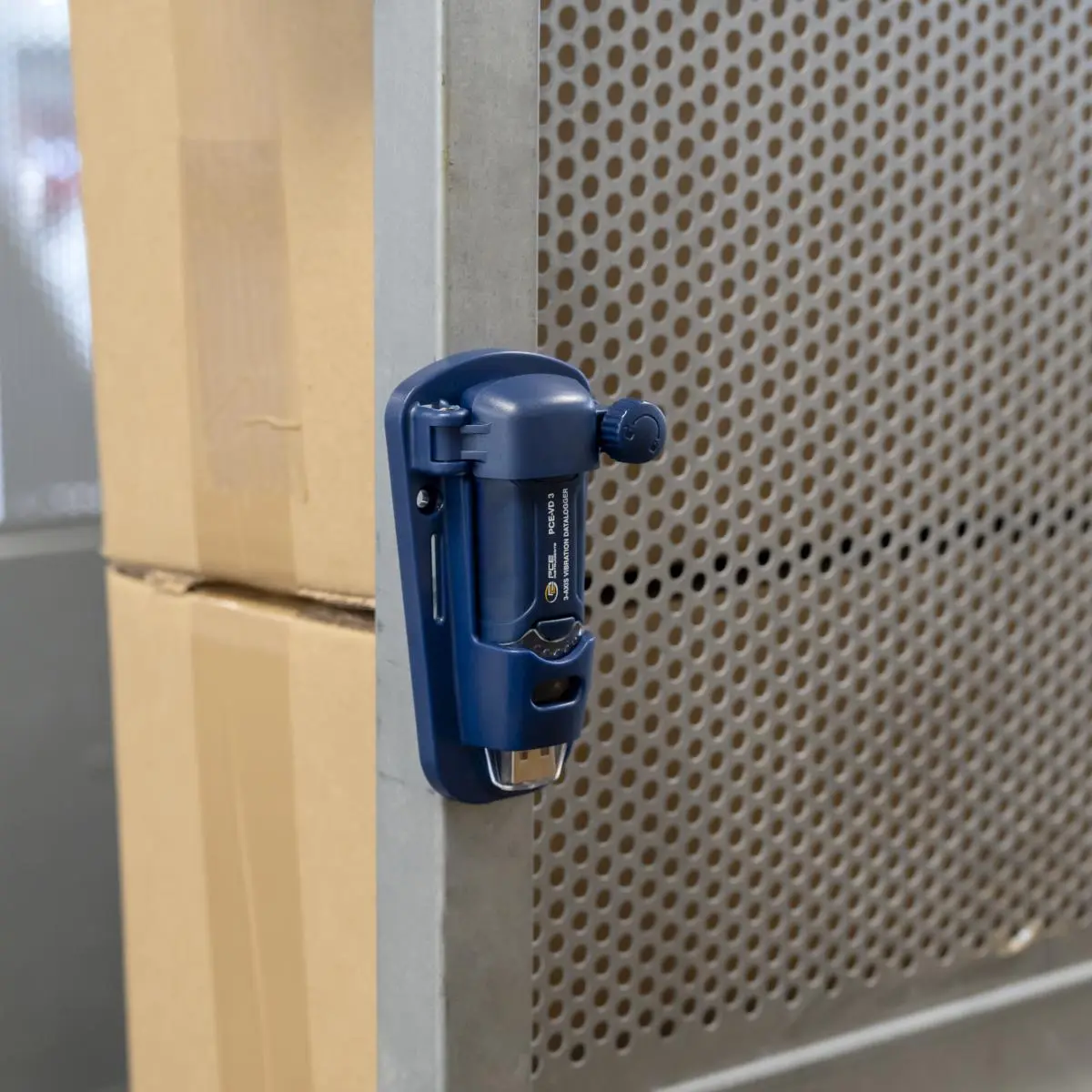

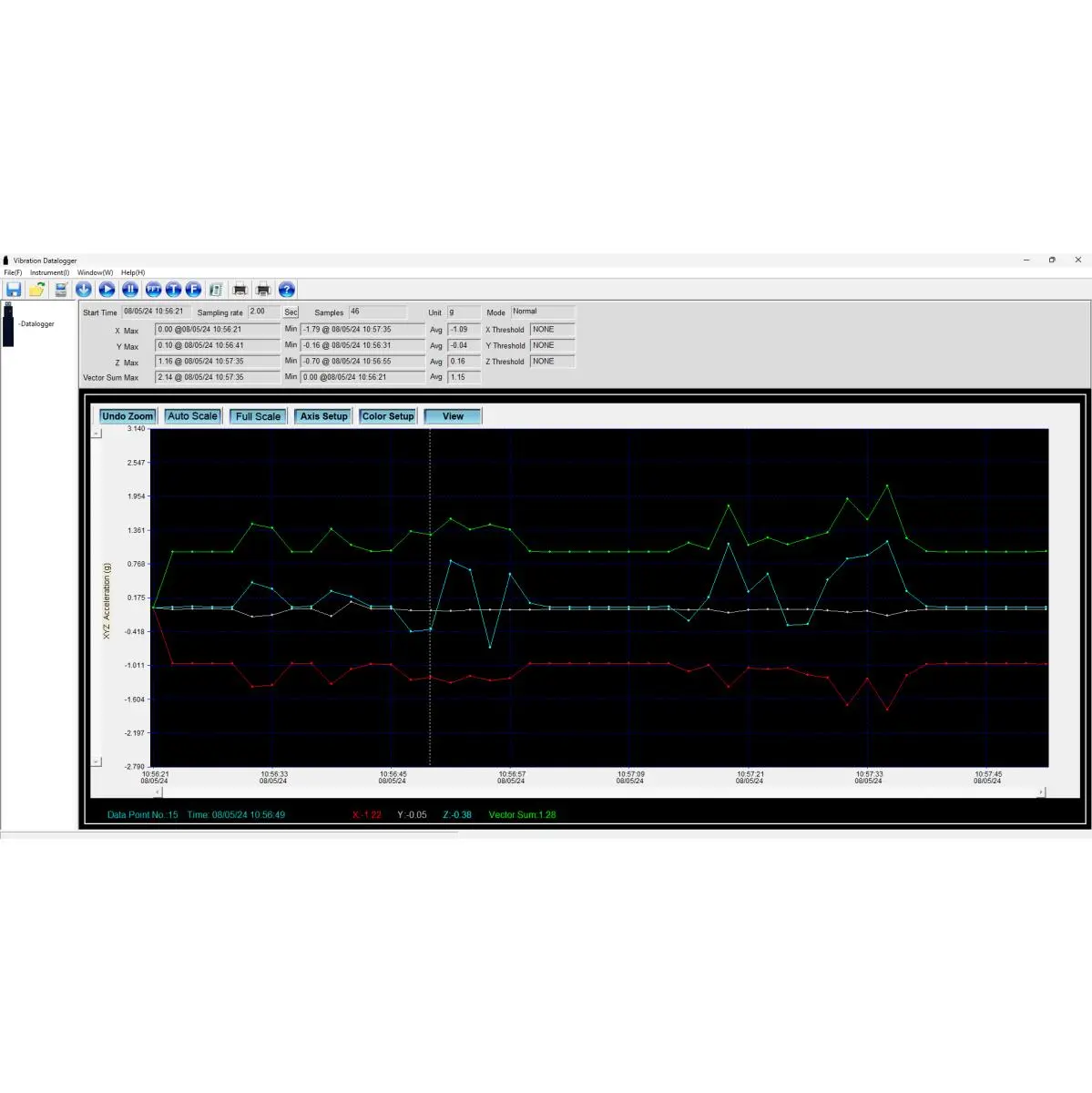

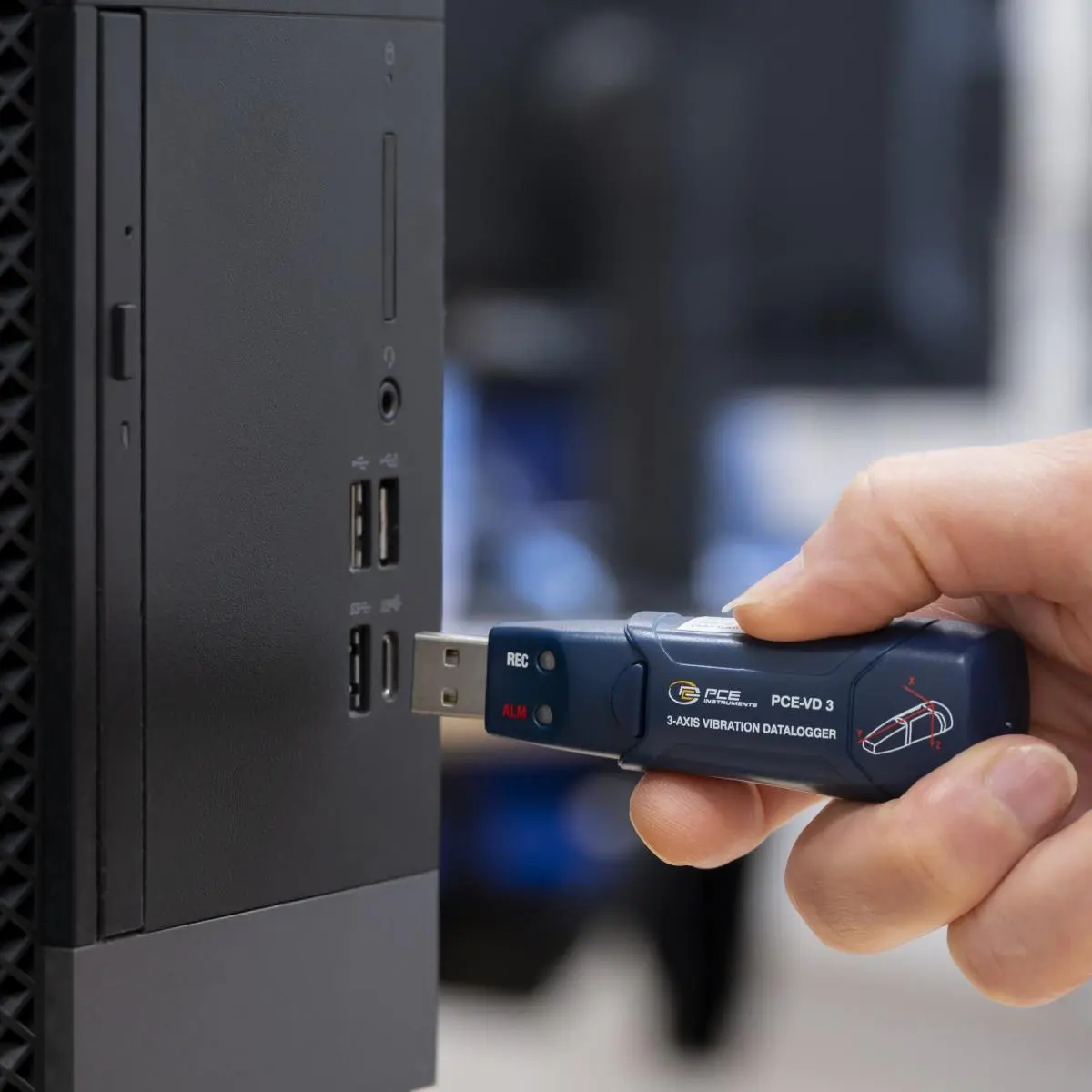

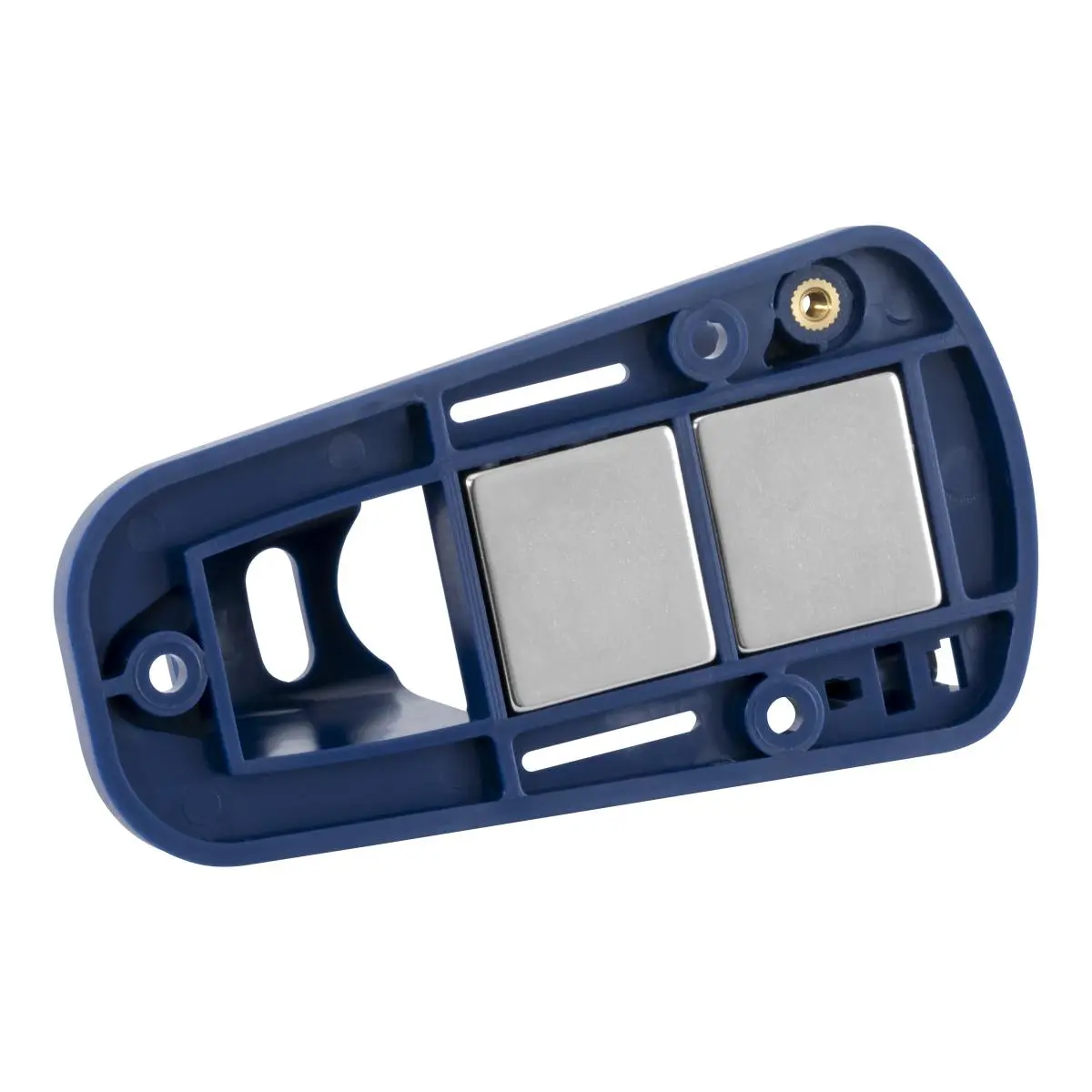

The PCE-VD 3 Vibration Analyser is a miniaturized universal Vibration Analyser with an included built-in three-axes acceleration sensor (X, Y, Z axis). The internal sensor of the PCE-VD 3 Vibration Analyser measures acceleration force along the X, Y, and Z axes with a measurement range of ±16 g per axis. Since the PCE-VD 3 Vibration Analyser is in motion while it is recording data, alterations are recorded for the three axes. The PCE-VD 3 Vibration Analyser can be placed anywhere due to its robust and magnetic bracket. Moreover, due to its small size and lightweight, the Vibration Analyser can be used for many different applications, such as shipment control, sports, medicine, or for any application requiring the recording of movements of 1 to 3 axes. The PCE-VD 3 Vibration Analyser can be easily programmed through the included software. All data can be sent to a PC or laptop via the USB port easily and quickly. Note: The VD 3 must be programmed with a PC before it will operate, follow instruction manual to setup unit. |
| Measurement range | ±16 g |
| Accuracy | ± 0.5 g |
| Resolution | 0.004 g |
| Frequency range | 0 ... 60 Hz |
| Memory | 8 Mbit |
| normal measuring mode: 168042 records | |
| motion detection: 112028 records | |
| Measurement rate / Record interval |
50 ms ... 12 hours |

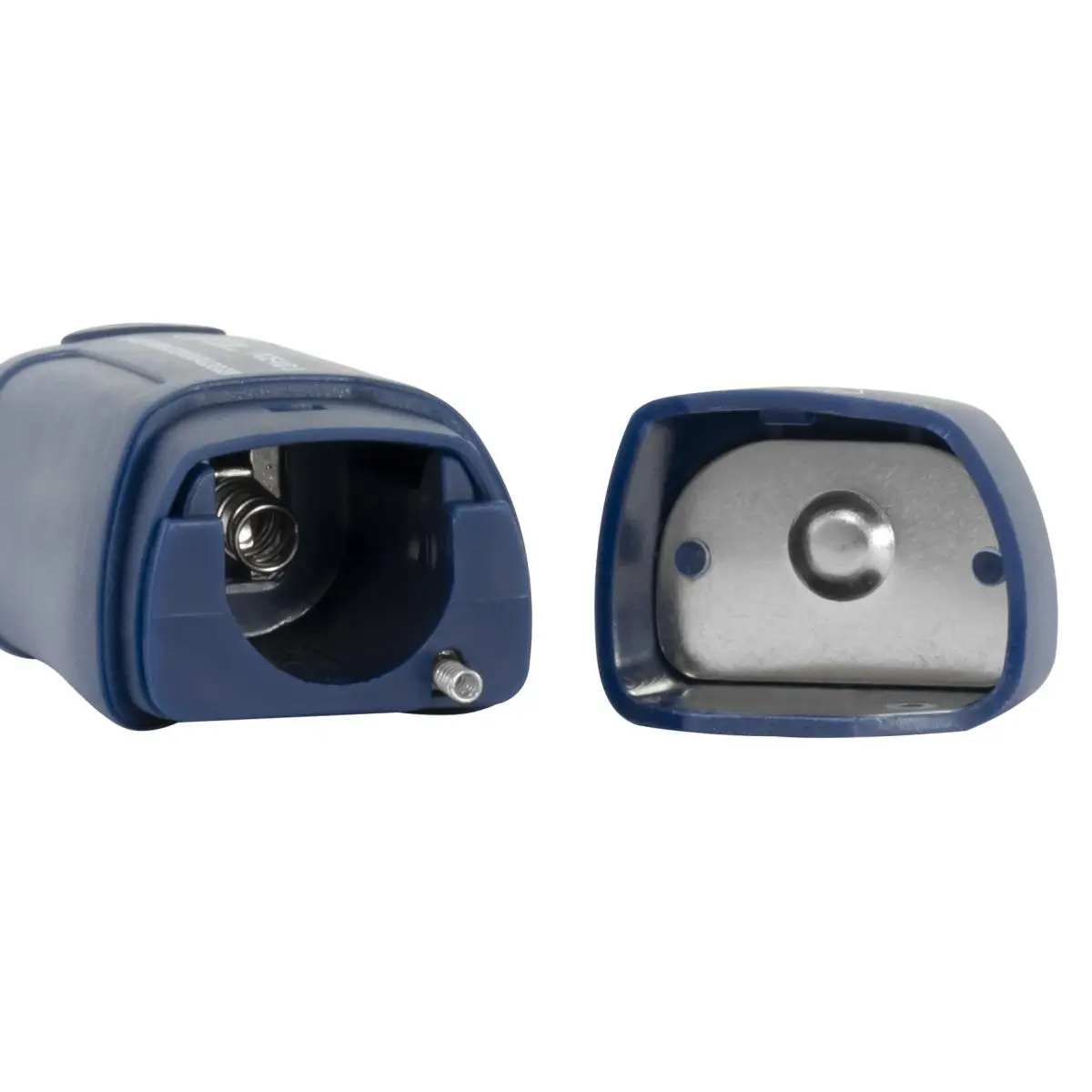

| Power supply | 1 x 3.6 V, 1/2 AA, 14250, battery |
| Power consumption | ca. 2.8 mA during a measurement |
| <1.5 µA idle | |
| Battery life | ca. 400 hours |
| Status display |
via 2 LEDs (recording in progress / alarm) |
| Interface | USB |
| Operating conditions | 0 ... 40 ºC (32 ... 104 ºF), 10 ... 75 % RH non-condensing |
| Storage conditions | -10 ... 60 °C (14 ... 140 °F), 10 ... 90 % RH, non-condensing |
| Dimensions of device |
95 x 28 x 21 mm / 3.7 x 1.1 x 0.8" |

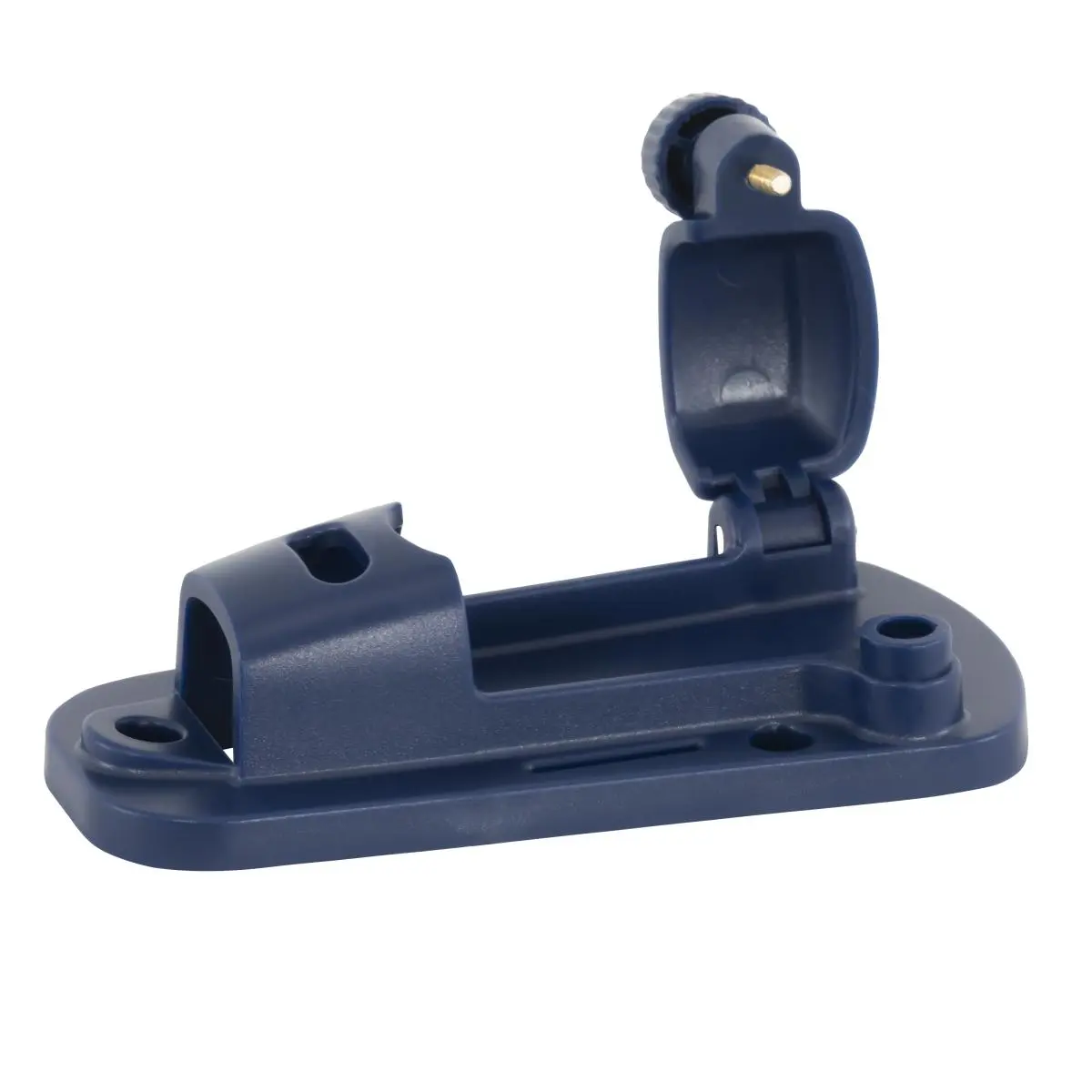

| Dimensions of wall bracket | 106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3" |
| Weight |
25 g / 0.88 oz |
