  5. Vibration Meter PCE-VM 22-ICA incl. ISO Calibration Certificate

Vibration Meter PCE-VM 22-ICA incl. ISO Calibration Certificate

Order no.: PCE-VM 22-ICA
GTIN (EAN): 4250348728401
2.849,90 €
3.391,38 €
ISO Calibration
price ex. (VAT / delivery)
:
4250348728401
PCE-VM 22-ICA
Delivery time: 10 - 14 days
Machine vibration

Description

Vibration meter with 4 GB data memory / FFT analysis / Waveform display / Infrared temperature meter / Measuring range 0 ... 200 mm/s² / Battery life of 8 hours /
Micro USB interface / Magnetic holder / Optical speed measurement / incl. ISO Calibration Certificate

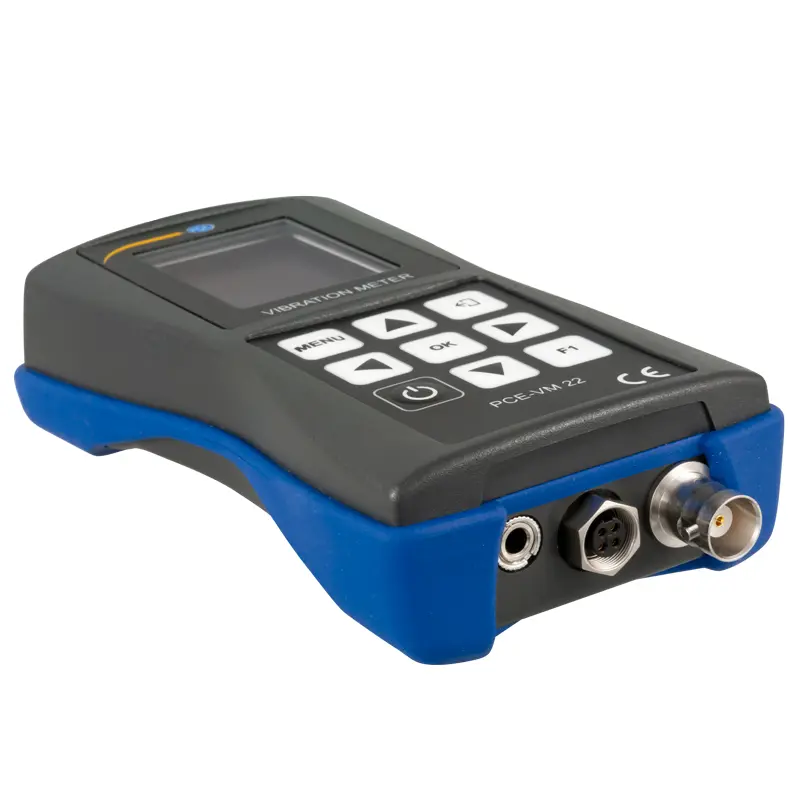

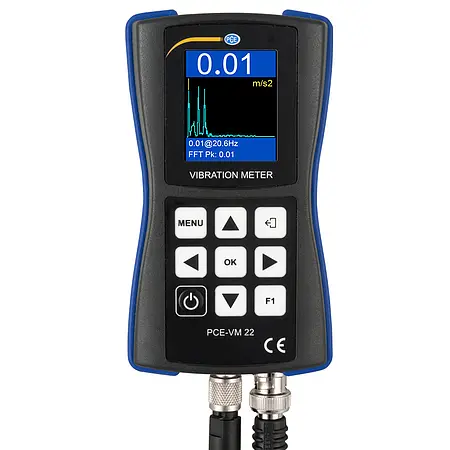

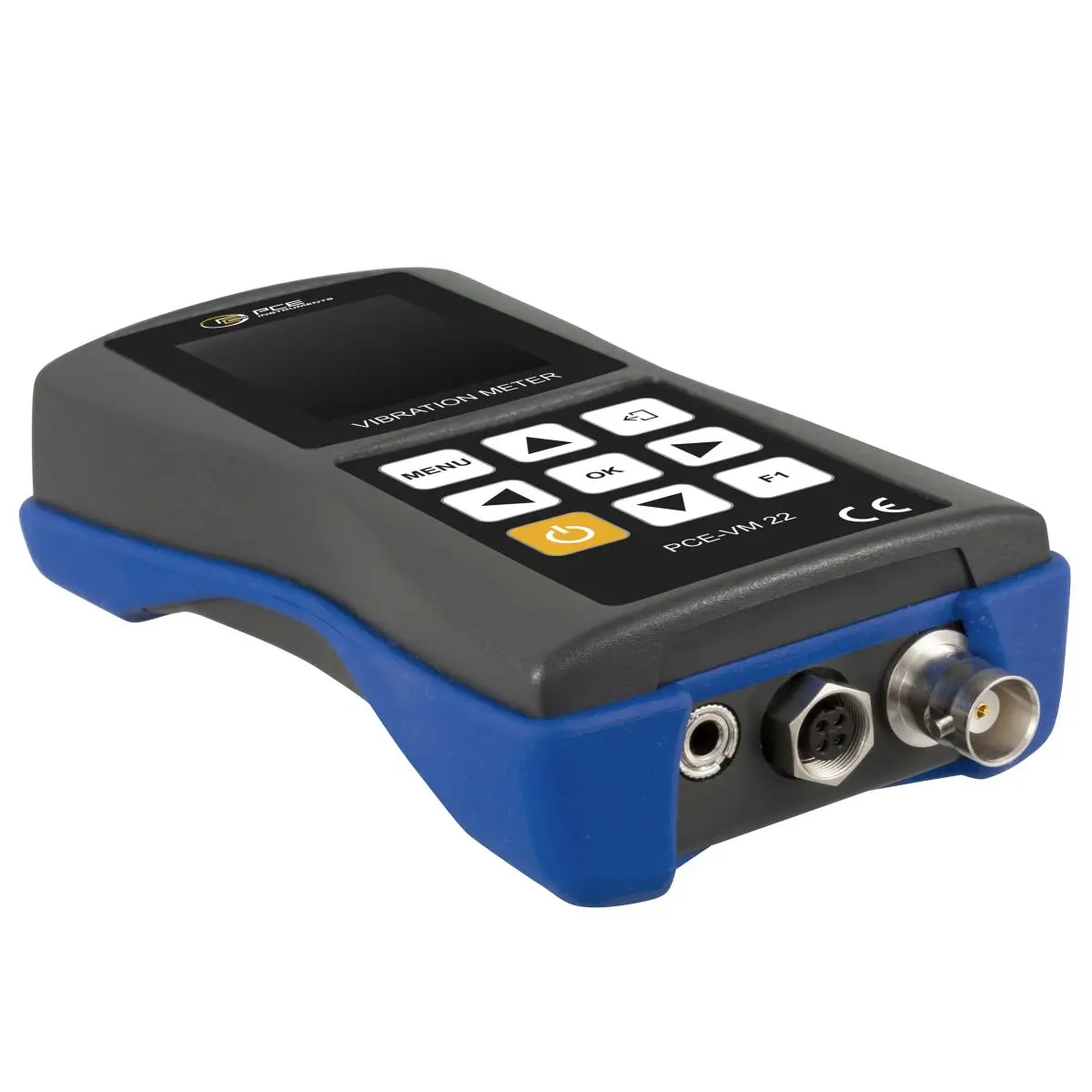

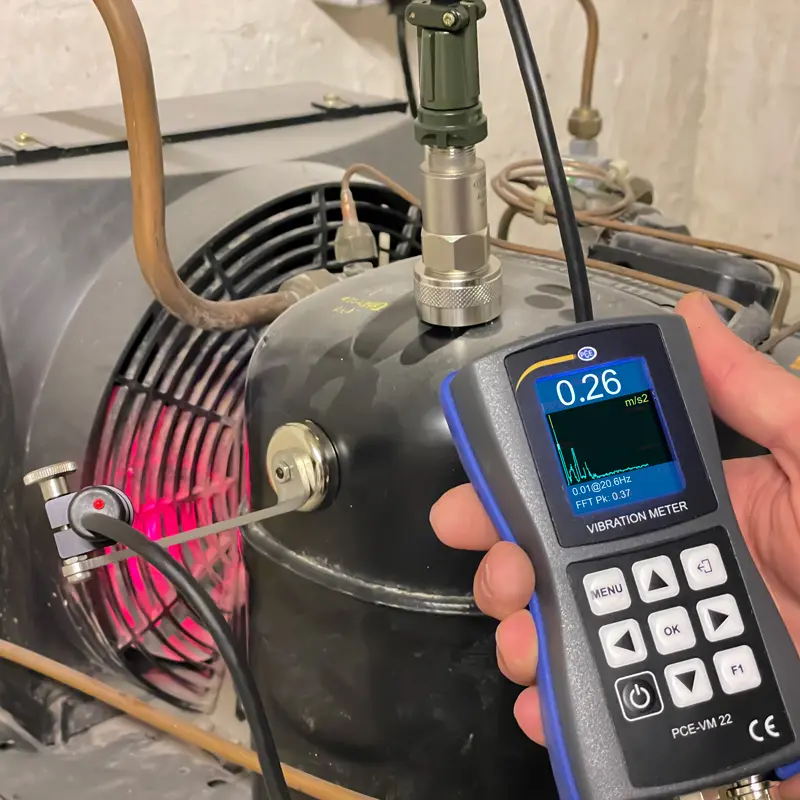

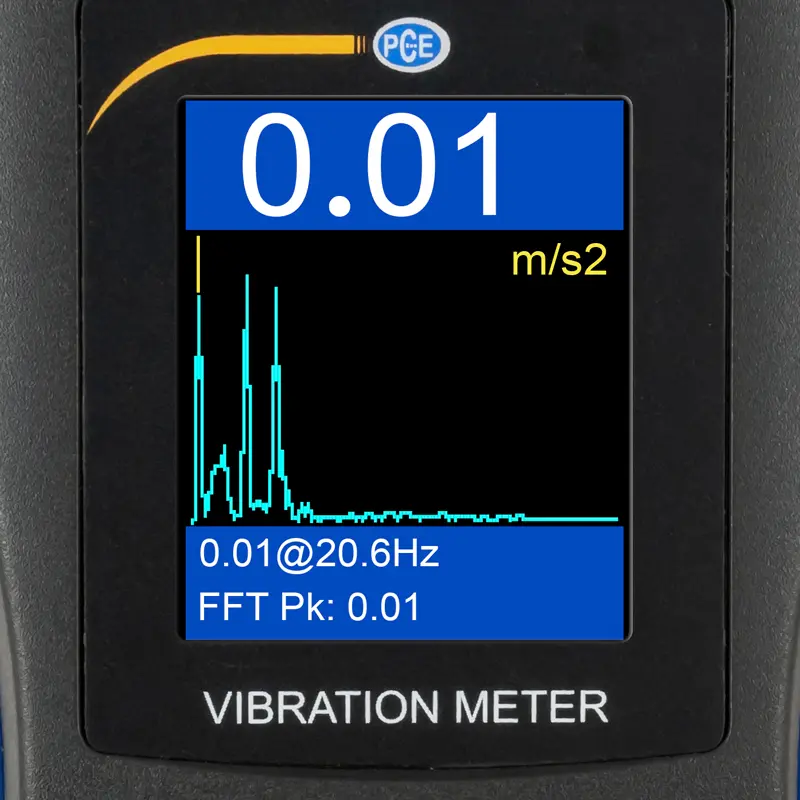

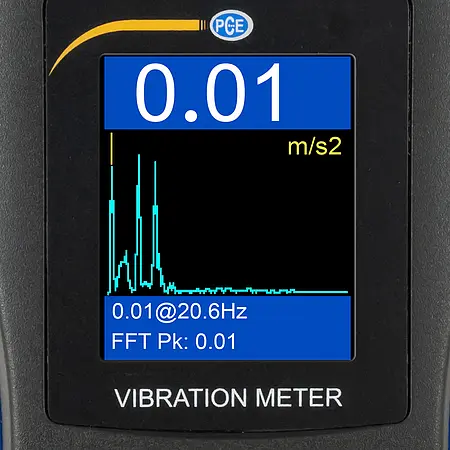

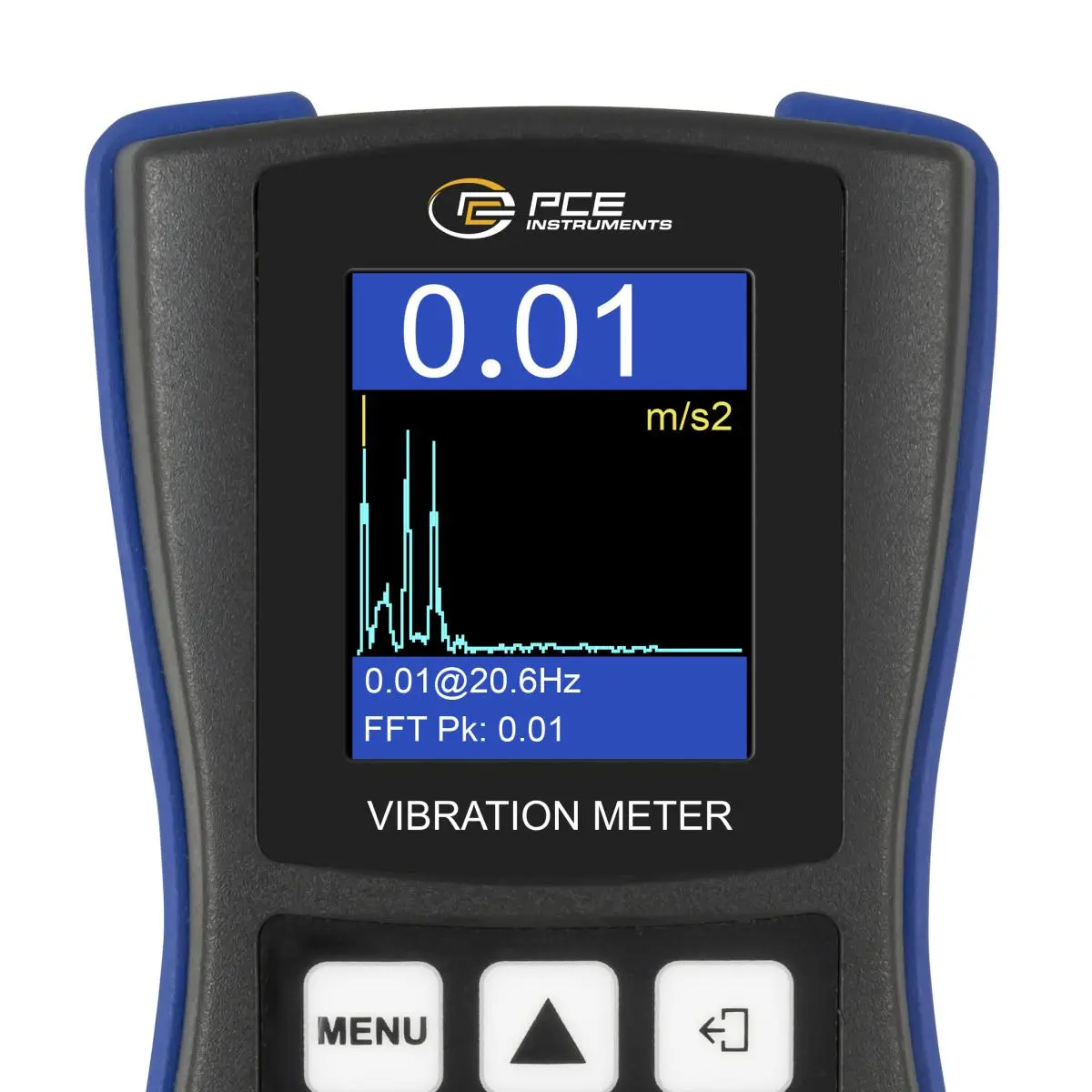

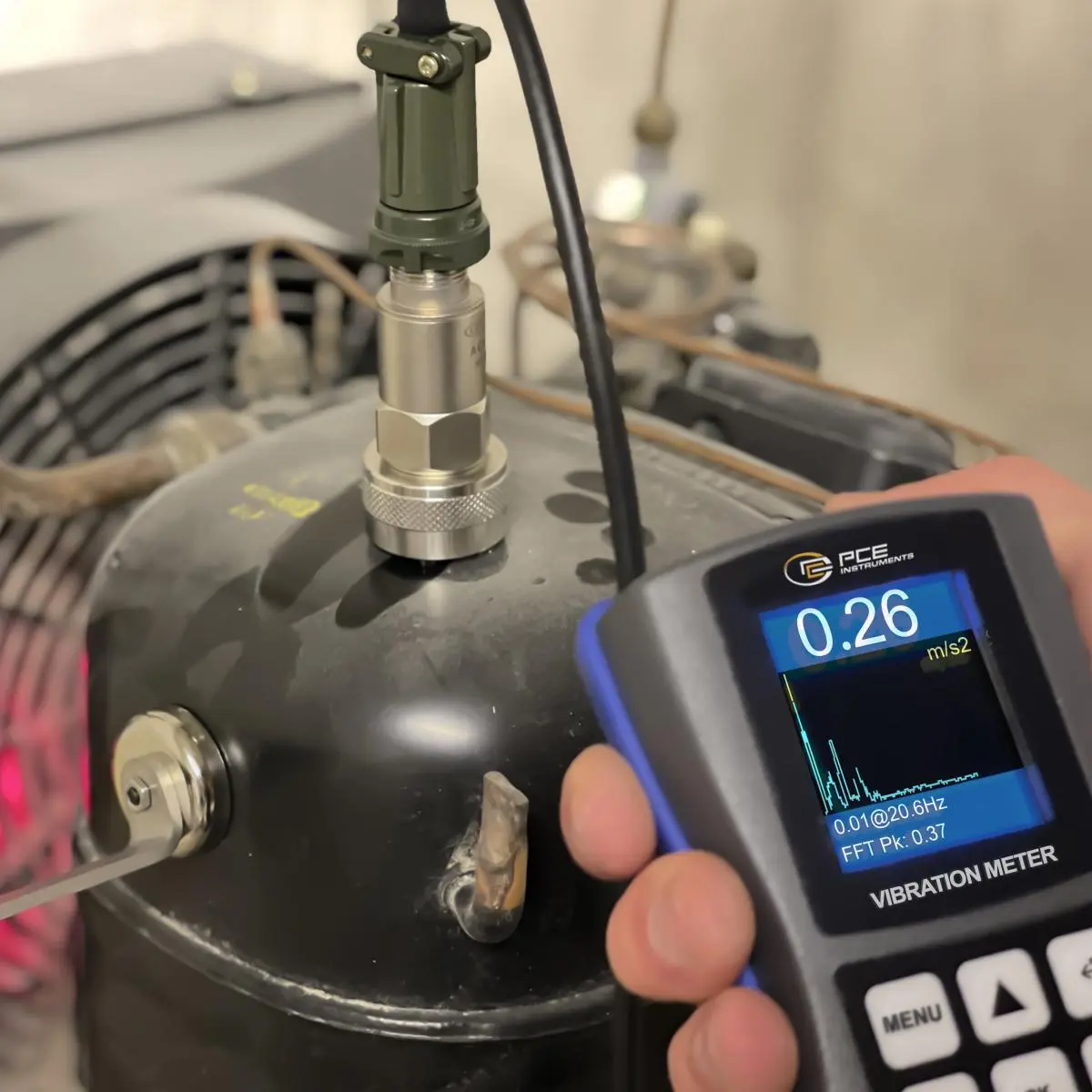

The vibration meter has a measuring range of 0 ... 200 m/s² for acceleration. In addition to acceleration, the vibration meter can also measure speed, displacement, frequency and an ISO 18016-3 measurement. During the vibration measurement, an FFT view is simultaneously displayed on the vibration meter. By pressing a button, it is possible to switch from the FFT analysis to the actual wave view of the vibration. This makes it possible to analyse and evaluate a vibration even better with the vibration meter. The magnetic holder of the vibration sensor of the vibration meter is designed in such a way that it can be attached to curvatures with a minimum radius of 20 mm / 0.78".

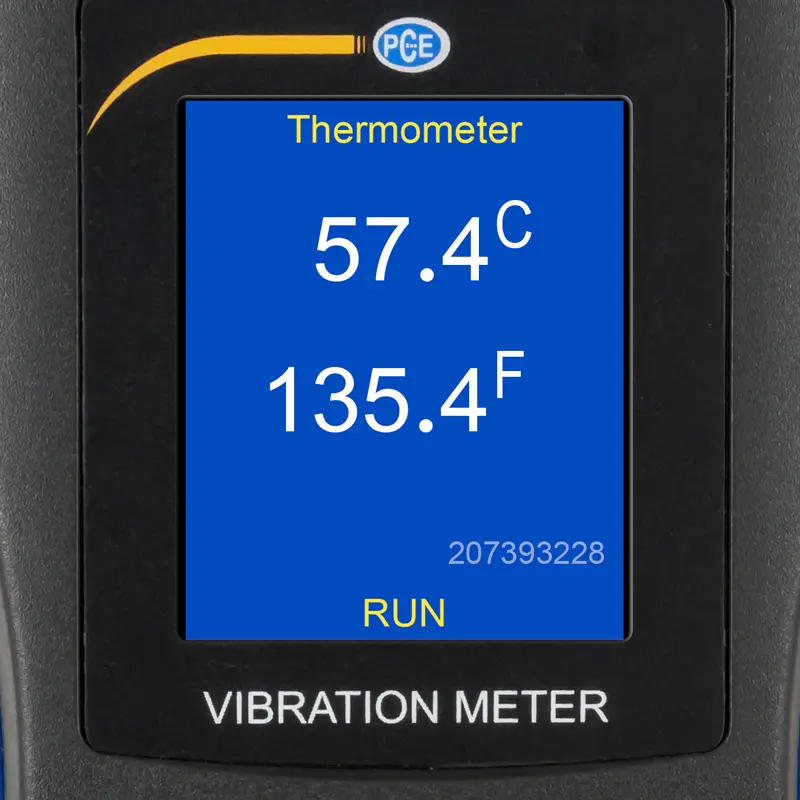

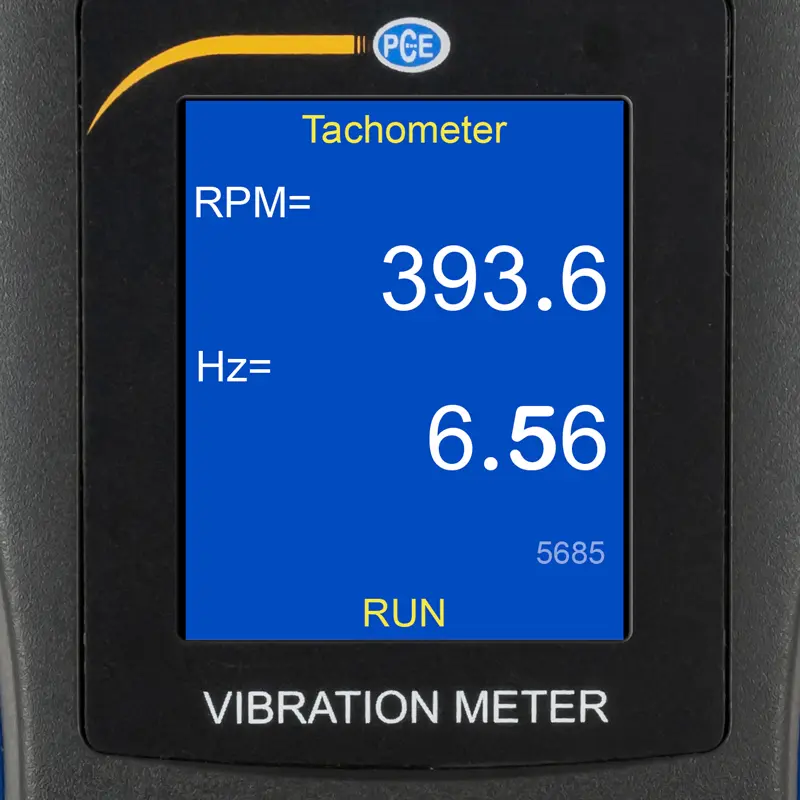

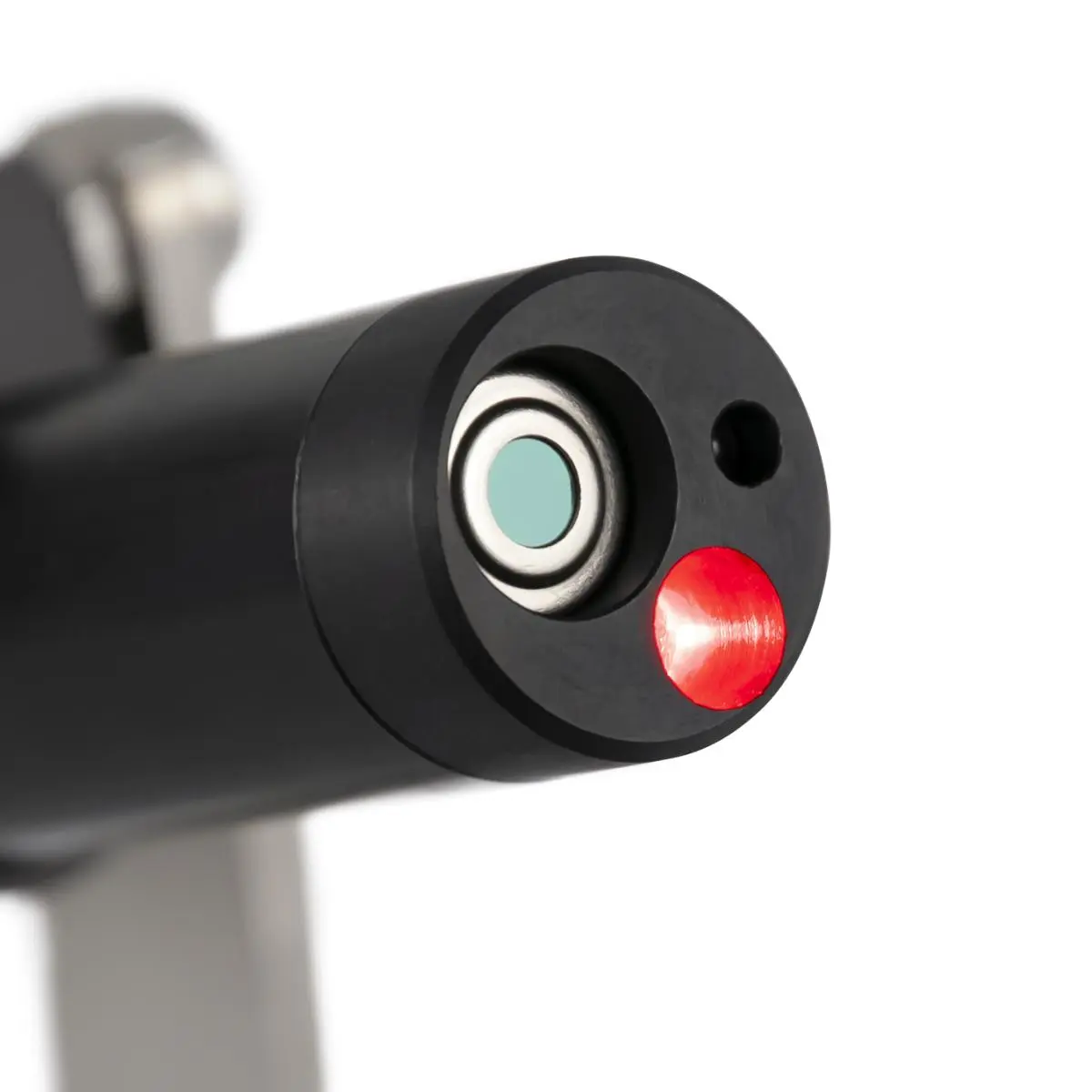

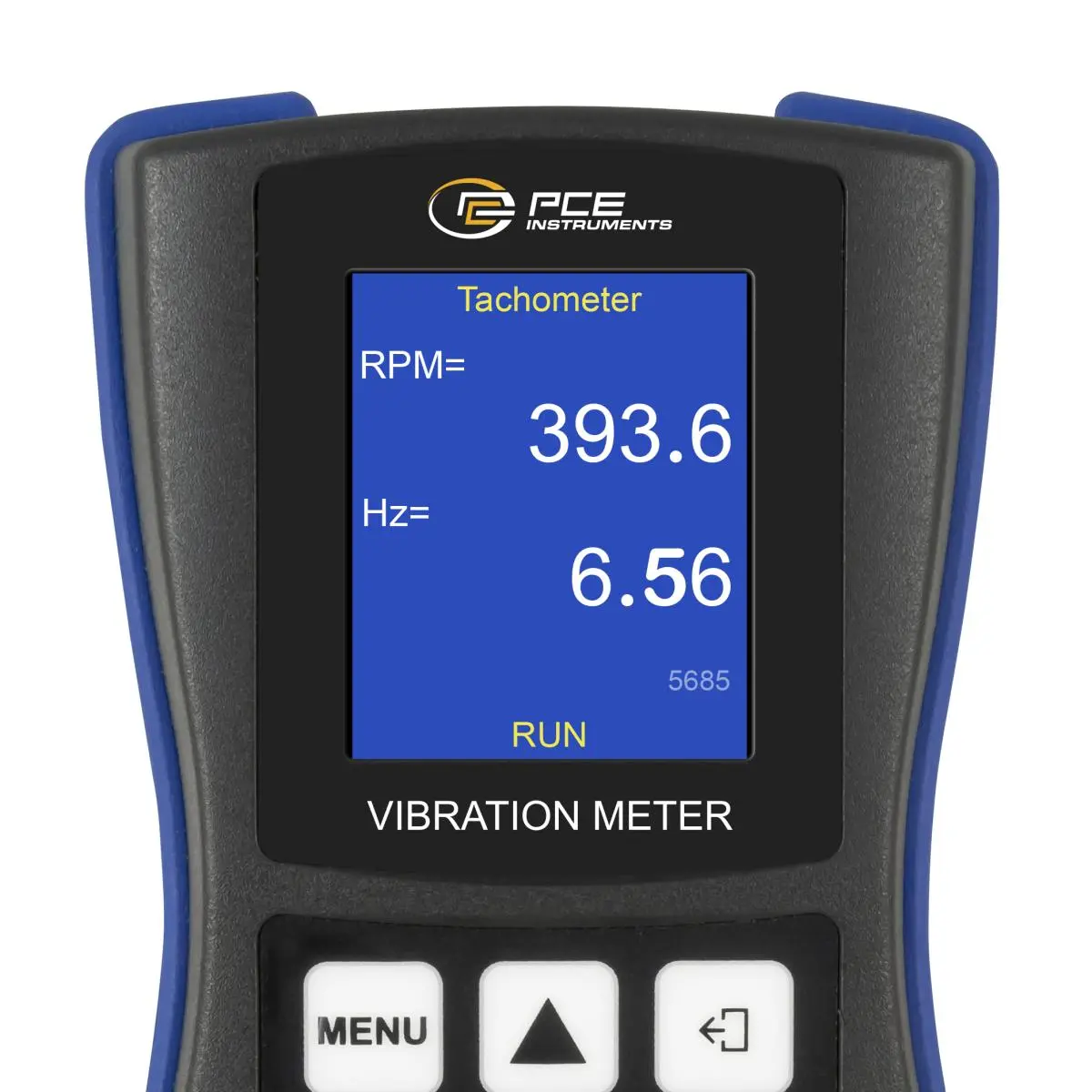

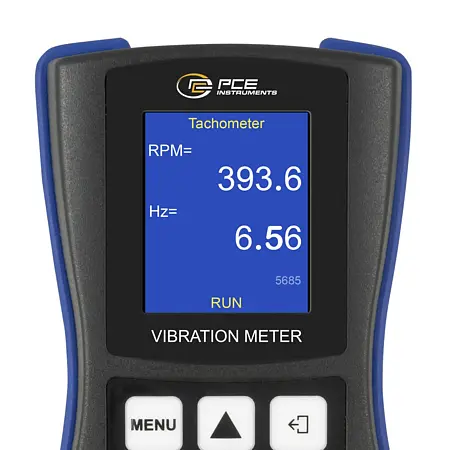

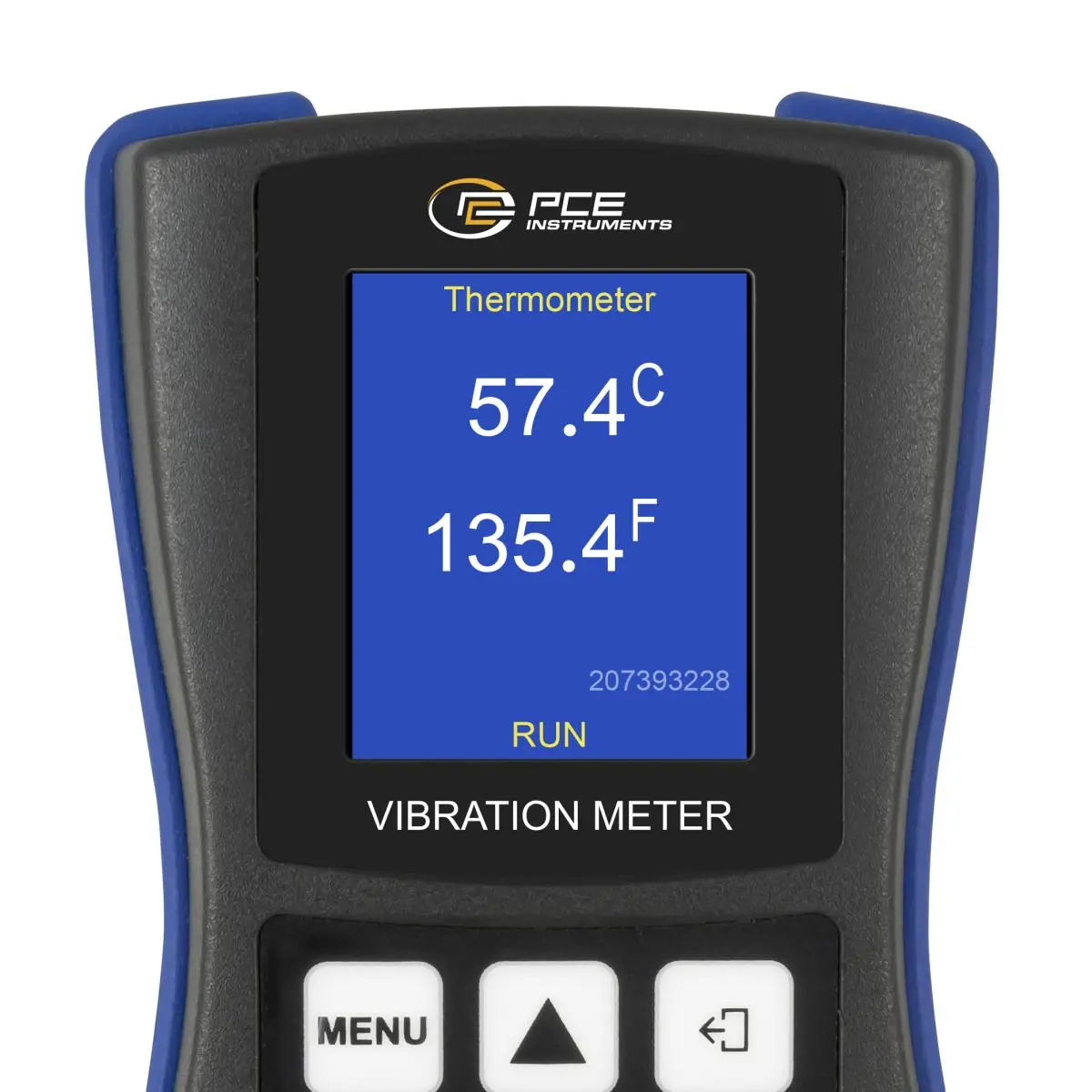

In addition to the vibration measurement, the vibration meter also has an external infrared temperature sensor. With this temperature sensor, surface temperatures between -70 ... 380 °C / 158 ... 716 °F can be measured. Another measuring function of the vibration meter is the contactless speed measurement. This means that the number of revolutions of ventilation systems, for example, can be checked with the vibration meter.

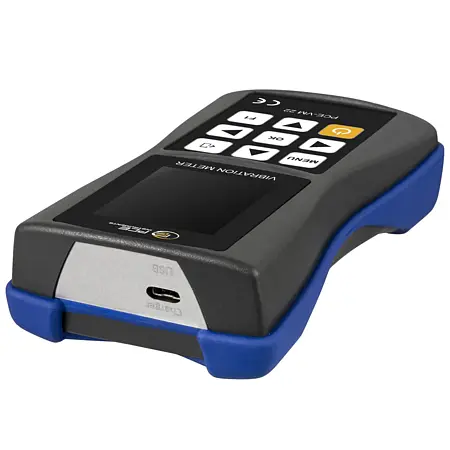

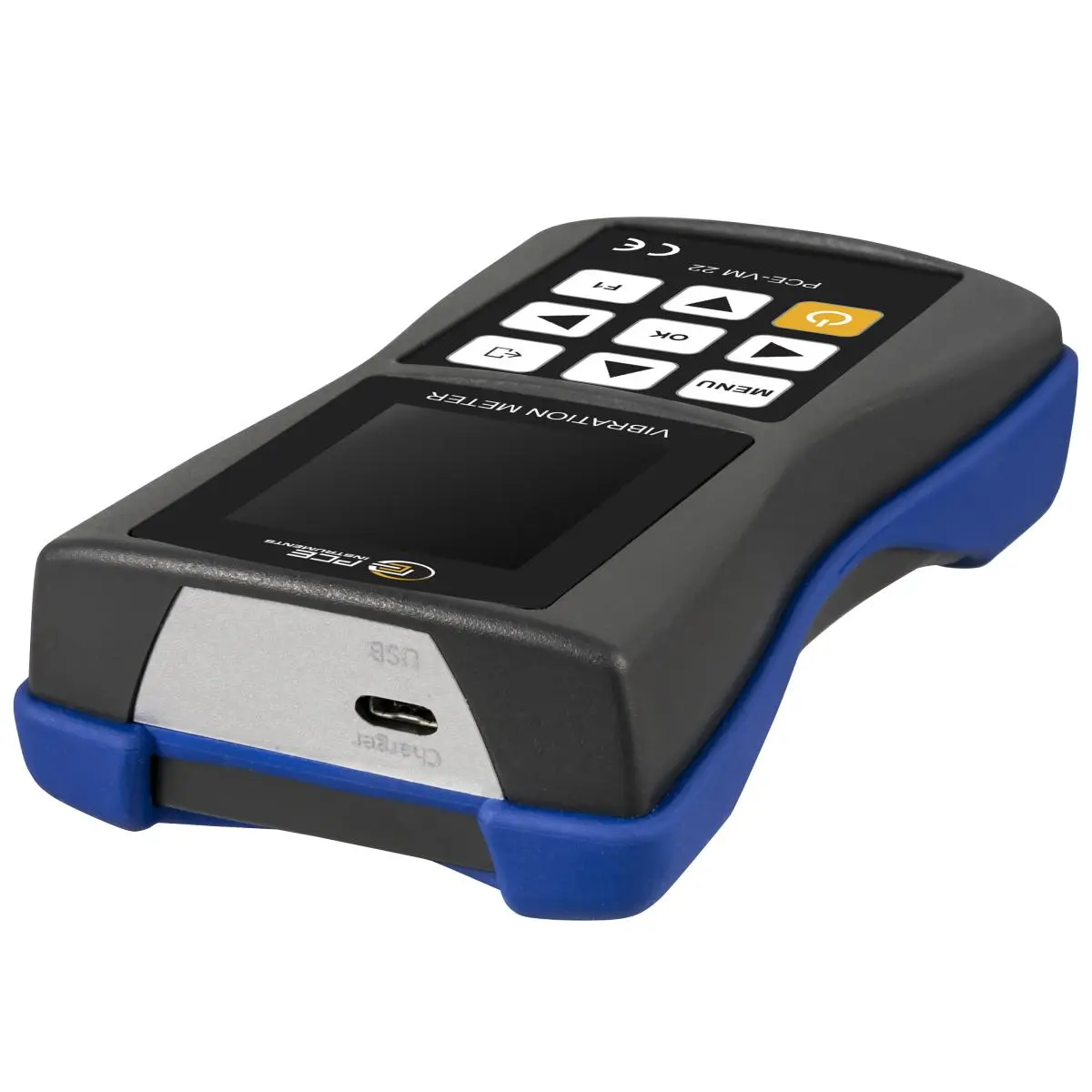

The vibration meter has a 4 GB memory. The measurement data can then be transferred from the vibration meter to a PC. Free software is available to analyse the data.

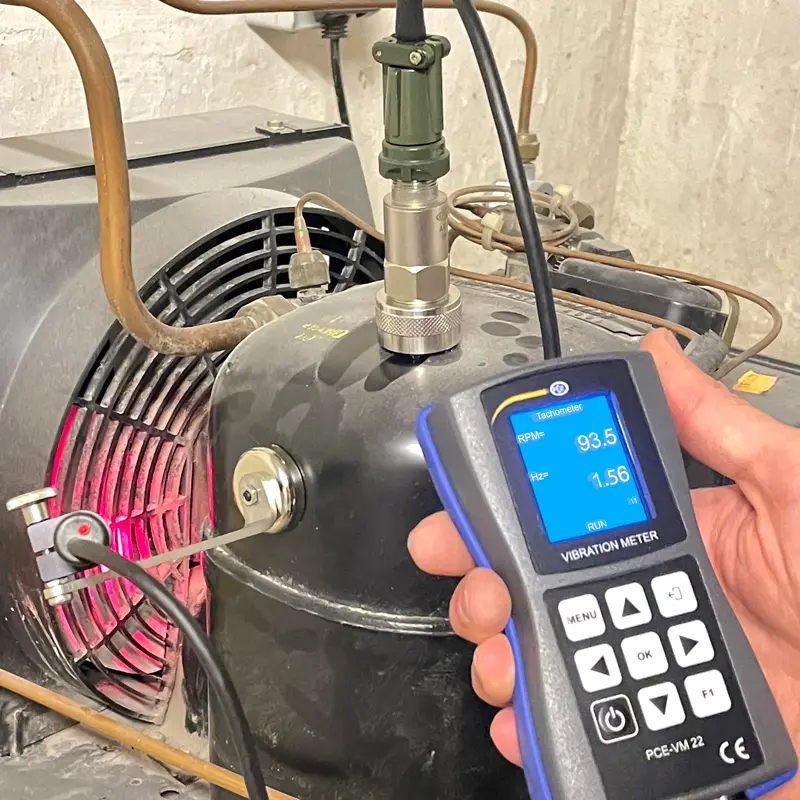

Because of its many functions, the vibration meter is a universally applicable measuring tool. Thus, the vibration meter can be used, for example, for maintenance work on generators or engines. Optionally, the vibration meter can be equipped with an ISO certificate.

Highlights

- Measuring range 0 ... 200 m/s²
- Infrared temperature measurement
- 4 GB data storage
- 8 hours of battery life
- Including ISO calibration certificate
- FFT analysis and wave view of the vibration

Specification

Frequency
Measuring range1 ... 10,000 Hz
Resolution0.1 Hz
Accuracy±5 %

Acceleration
Measuring range0 ... 200 m/s²
Resolution0.01 m/s²
Accuracy±5 %

Speed
Measuring range0 ... 200 mm/s
Resolution0.01 mm/s
Accuracy±5 %

Displacement
Measuring range0 ... 2000 µm
Resolution0.01 µm
Accuracy±5 %

Infrared temperature measurement

Measuring range-70 ... 380 °C / -94 ... 716 °F
Resolution0.1 °C / °F
Accuracy±0.5% at
 (0…+60°C), (32 ... 140 °F)
 ±1% at
 (-40 ... 0, 60 ... 120 °C), (-40 ... 32, 140 ... 248 °F)
 ±2% at
 (-70 … -40, 120 ... 180 °C),
 (-94 ... -40, 248 ... 356 °F)
 ±4% at
 (180 ... +380 °C), (356 ... 716 °F)
Emissivity1 fixed

Tachometer
Measuring range10 … 200,000 RPM
Resolution0.1 RPM
Accuracy±0.1% and ±1 RPM
Units
RPM, Hz

Further specifications for the handheld device
FFT spectrum resolution400, 800, 1600 lines
Dynamic range106 dB
A/D converter resolution24 bit
Storage space4 GB
Display128 x 160 pixels
InterfacesMicro USB interface
Power supply battery3.7 V, 1000 mAh battery
Battery lifeca. 8 hours
Power supply for power pack5 V DC, 1 A
Operating conditions0 ... 50 °C / 32 ... 122 °F, <85% RH, non-condensing
Storage conditions-20 ... 60 °C / -4 ... 140 °F, <85% RH, non-condensing
Dimensions132 x 70 x 33 mm / 5.2 x 2.7 x 1.3"
Weight150 g / 5.3 oz

Vibration sensor specifications
Sensitivity100 mV/g
Cable lengthca. 1.5 m / 4.9 ft
Connection2 pin MIL-DTL-5015
Case material316L stainless steel
DimensionsØ25 x 53 mm / Ø0.98 x 2.08"
Weight86 g / 3.0 oz

Magnetic holder specifications
Diameter30 mm / 1.18"
Magnetic force20 kg / 44 lbs
Connection thread1/4"-28 UNF female
Smallest radius20 mm / 0.78"

Infrared and RPM sensor specifications
Cable lengthca. 1.2 m / 3.9 ft
DimensionsØ16 x 83 mm / Ø0.63 x 3.26"
Weight75 g / 2.6 oz

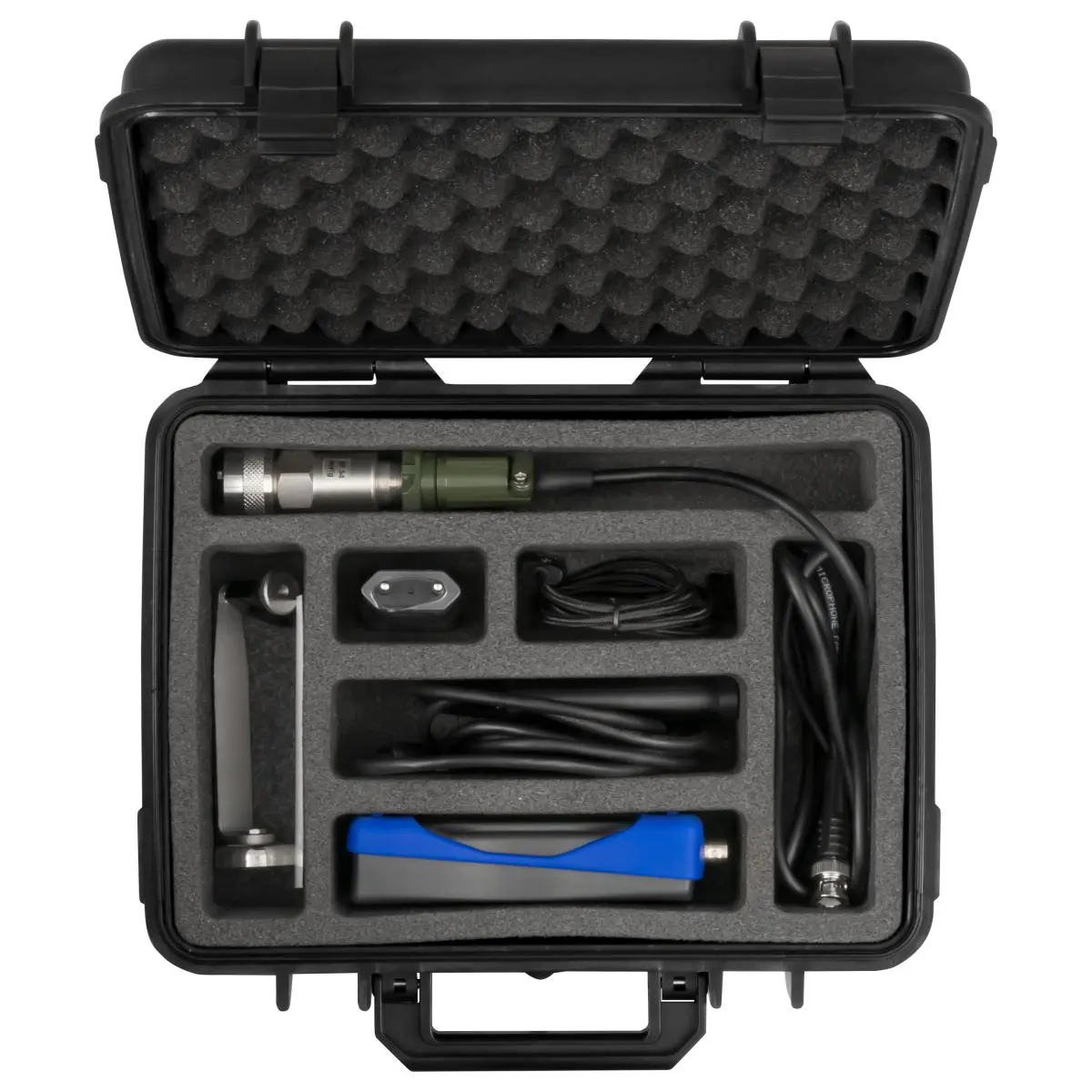

Delivery Scope

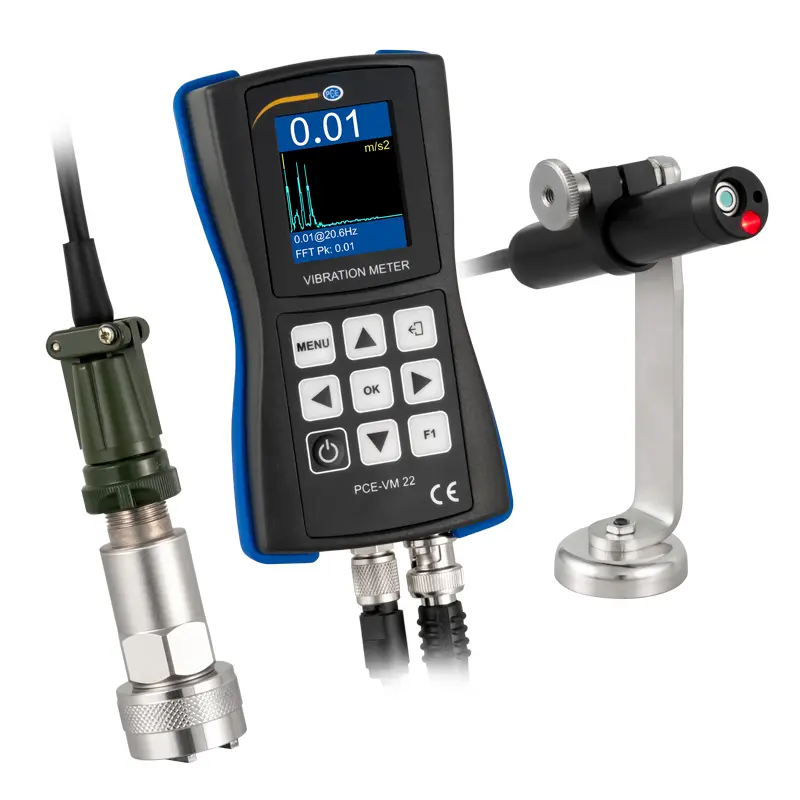

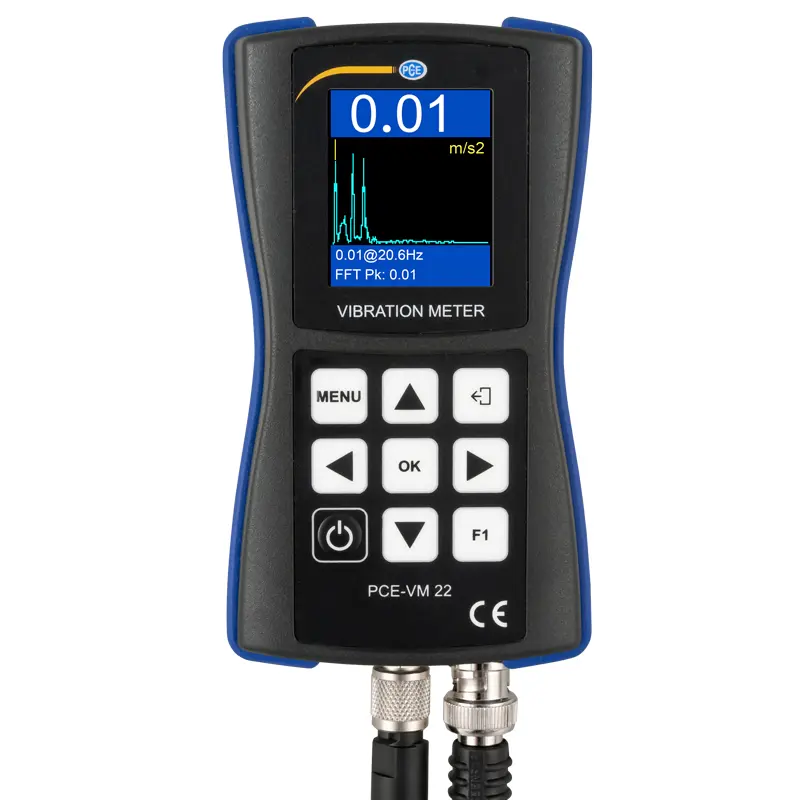

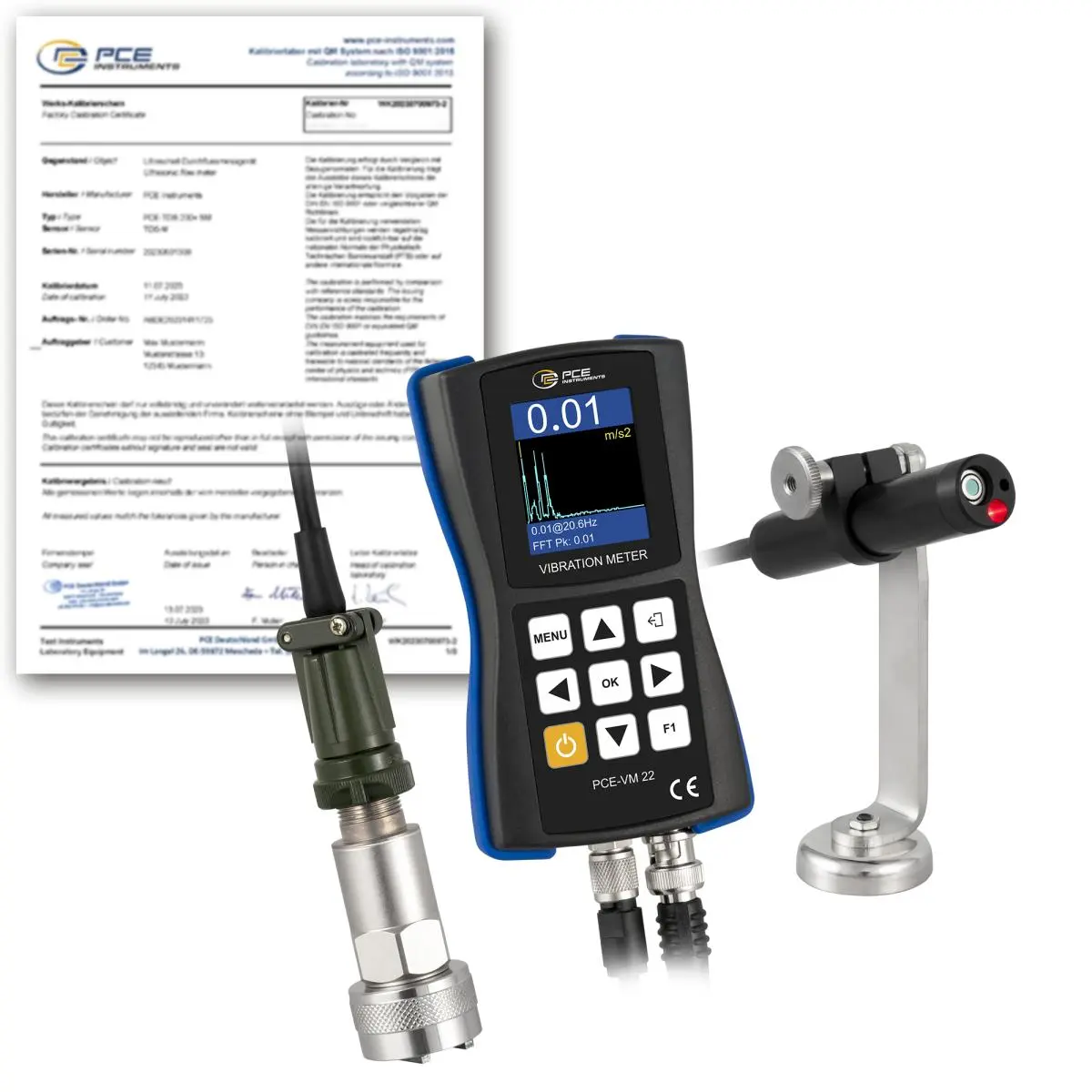

1 x Vibration Meter PCE-VM 22-ICA

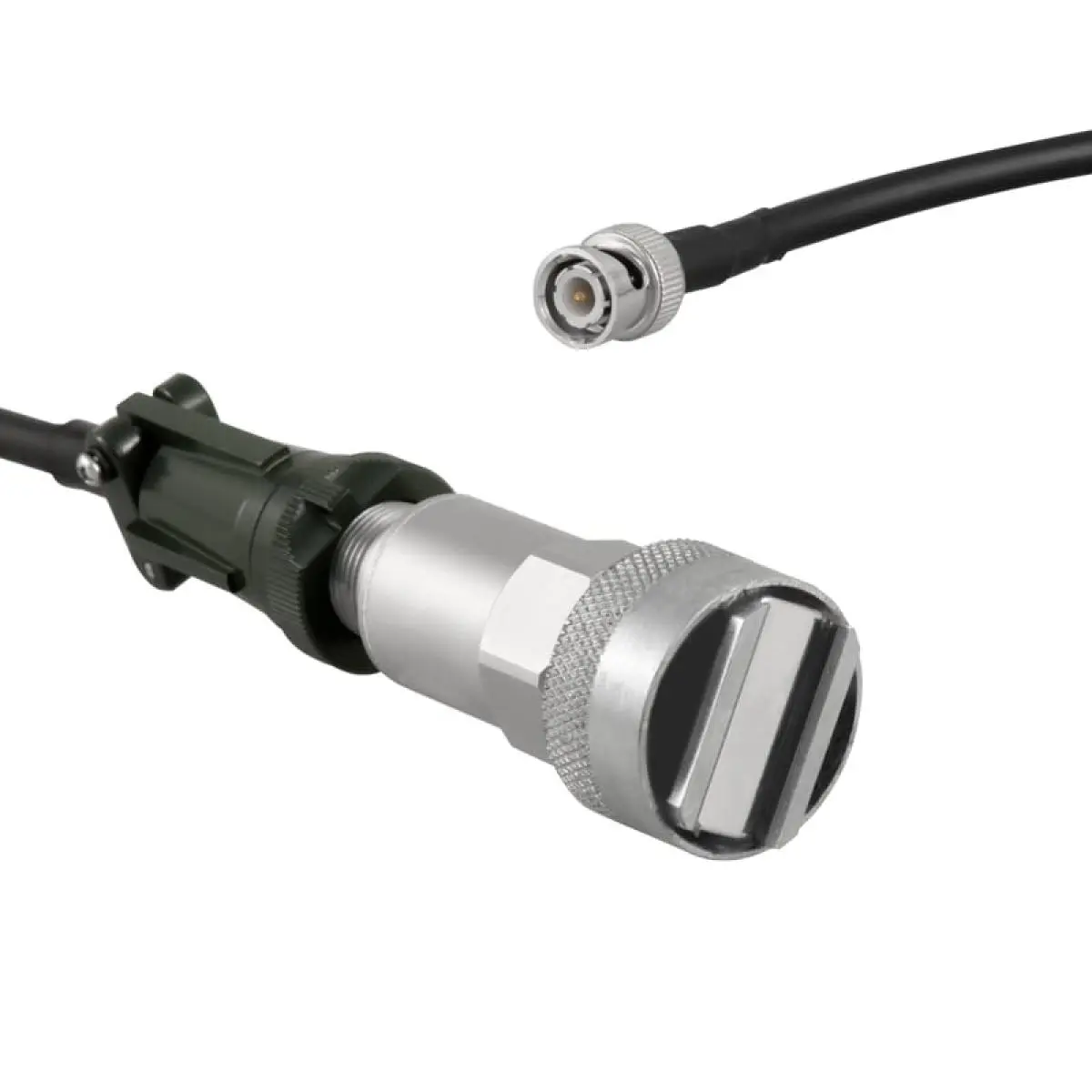

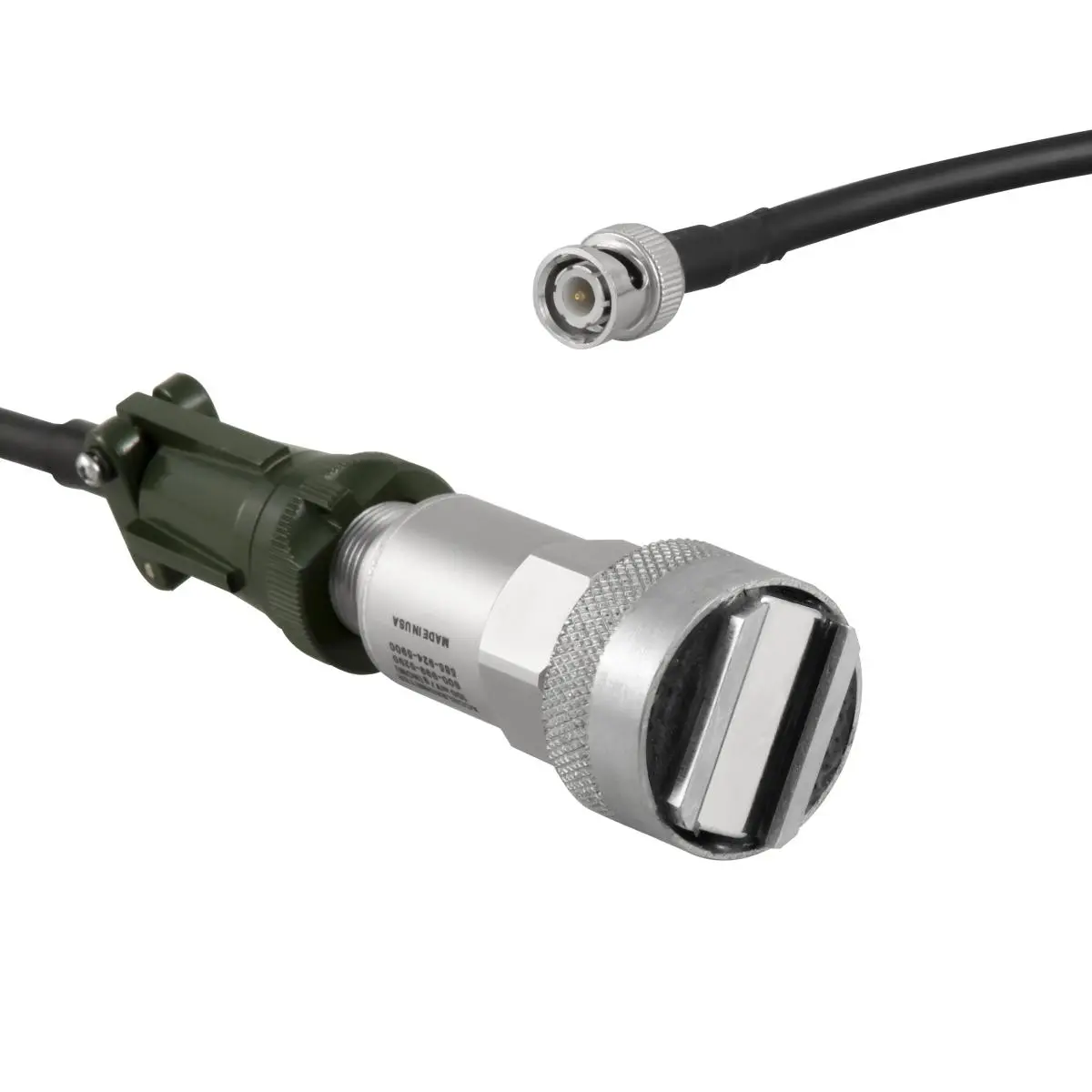

1 x Vibration sensor with connection cable and magnetic holder

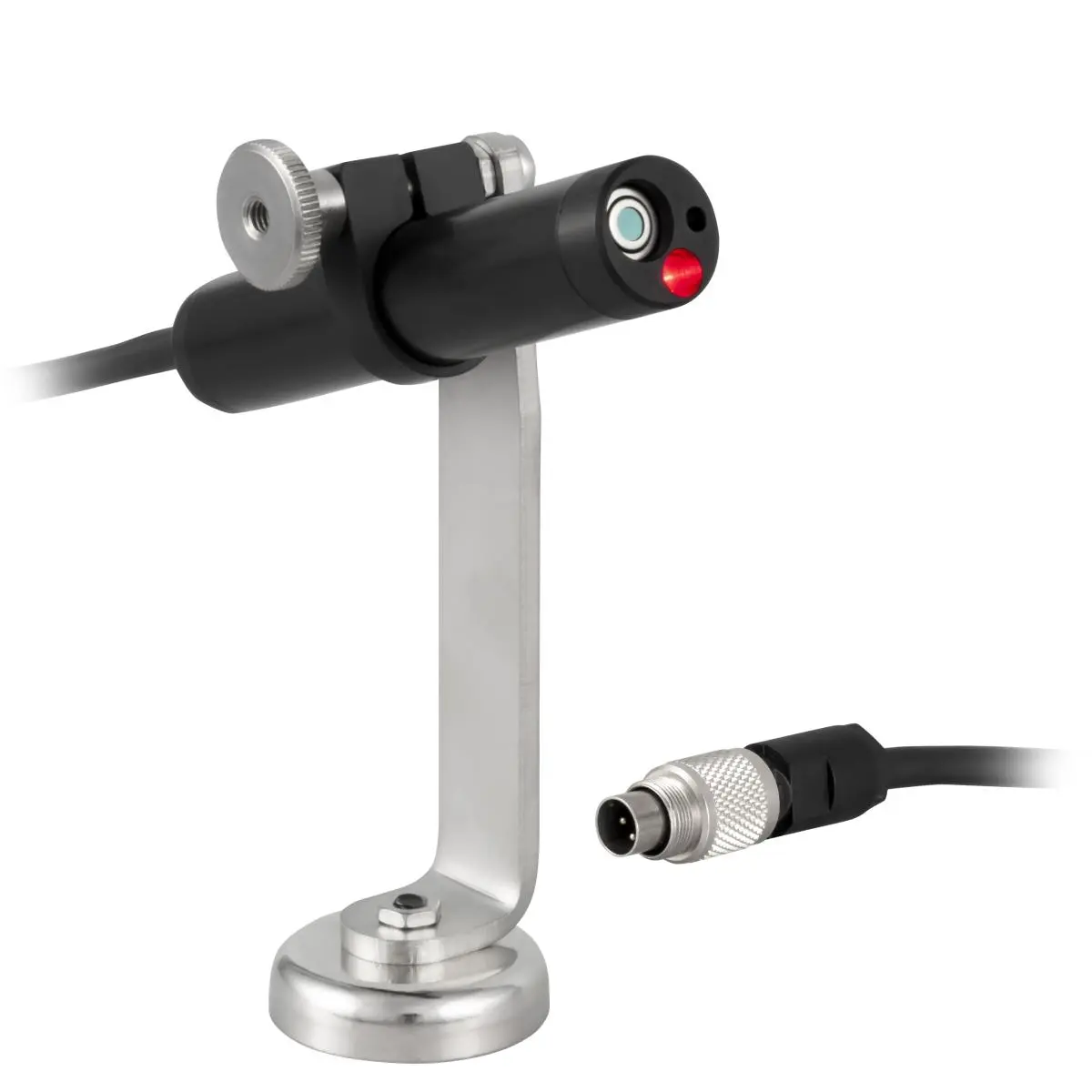

1 x Infrared sensor with speed sensor
1 x Magnetic holder
1 x USB charging adapter

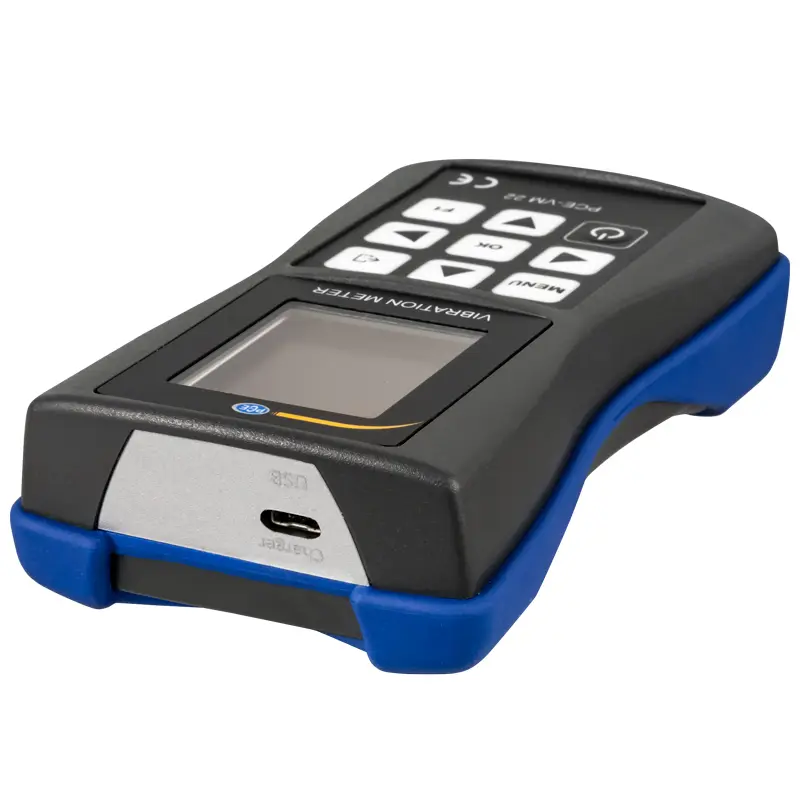

1 x Micro USB cable

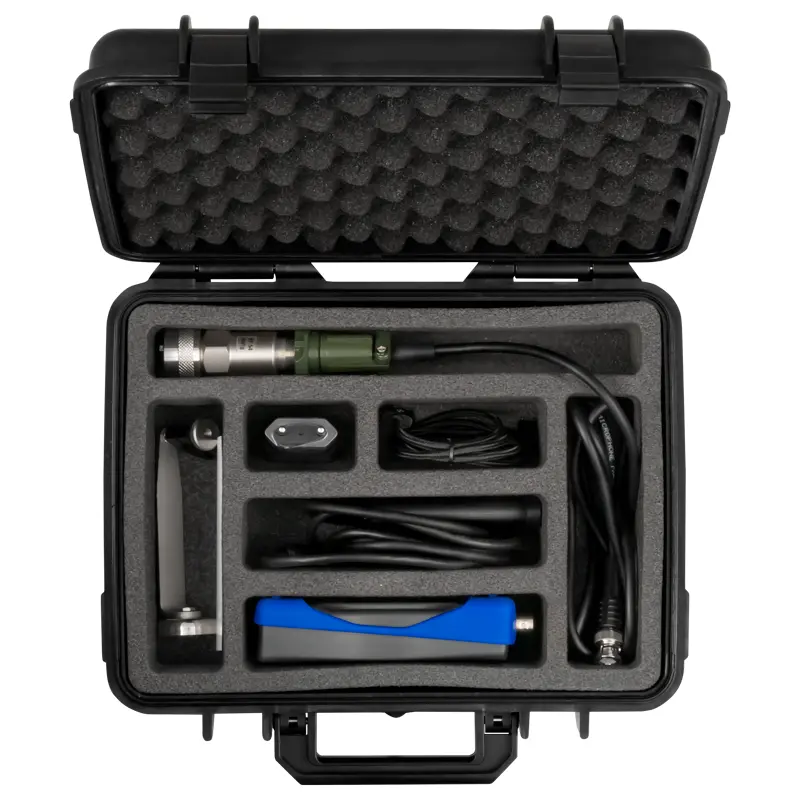

1 x Transport case
1 x Instruction manual

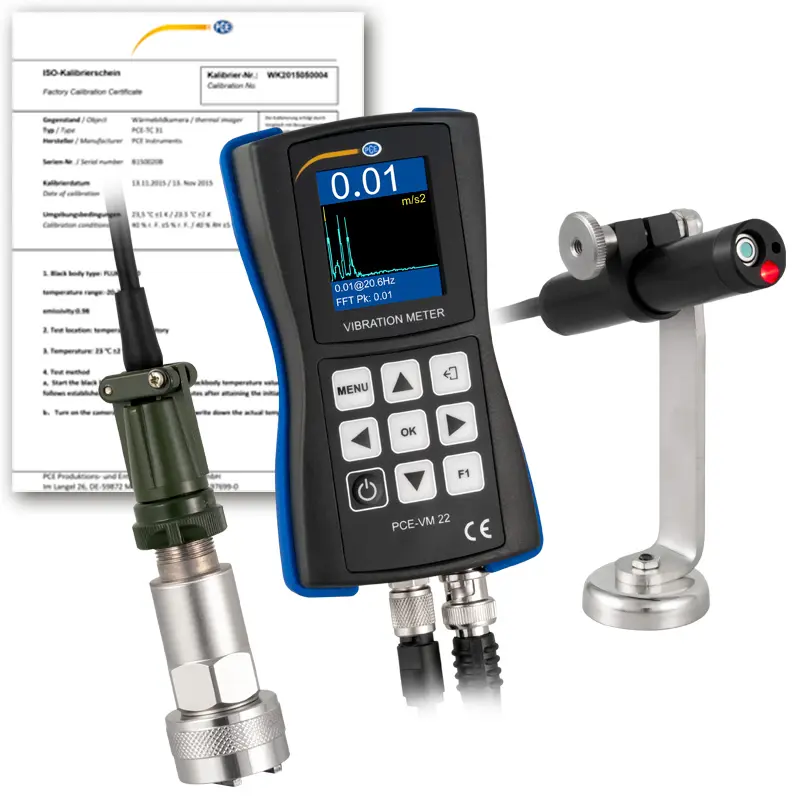

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
