Vibration Meter / Vibration Tester PCE-VM 3D

Order no.: PCE-VM 3D

GTIN (EAN): 4250348715999

Accessory

ISO Calibration Certificate CAL-V-III

406,90 €

Vibration Probe for PCE-VM 3D-PROBE

251,90 €

Description

Vibration Meter / Vibration Tester for machines and systems / analog interface for headphones / with different sensor tips

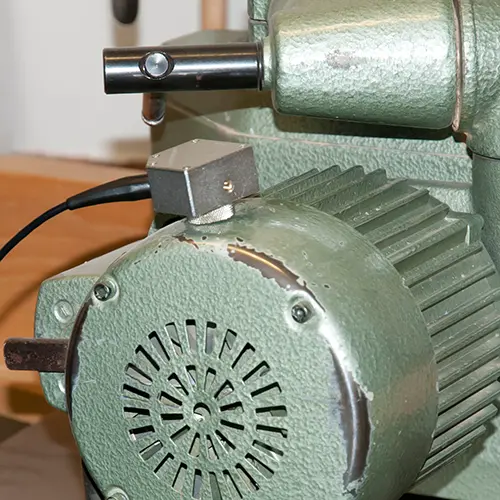

The Vibration Meter / Vibration Tester enables a quick and very simple measurement of the acceleration, the vibration path and the vibration speed to test vibrations on machines and components. The PCE-VM 3D vibration measuring device can measure vibrations in three directions, i.e. on the x, y and z axes. Defects or excessive imbalances can be precisely determined with the vibration measuring device. Various measuring sensors are optionally available for this Vibration Meter / Vibration Tester.

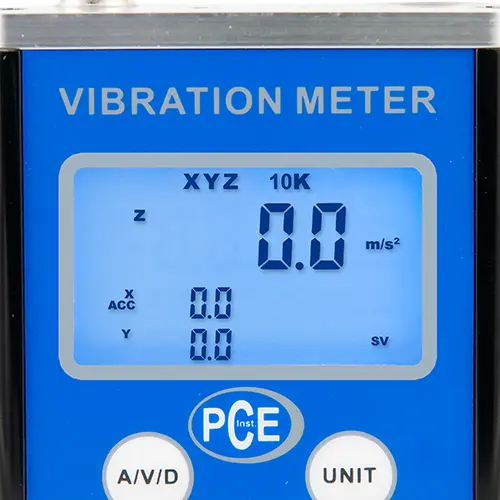

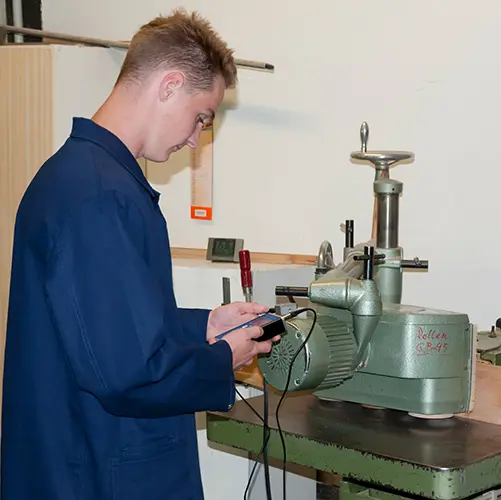

The LCD display is backlit and easy to read. With a weight of only 305 g, the vibration measuring device is an suitable companion at every workplace. Areas of application are, for example, large or small companies that have to measure the vibrations or imbalances on the motors of their machines. The detection of errors, defects or excessive imbalances can significantly extend the service life of a machine. The Vibration Meter / Vibration Tester can also be calibrated according to ISO. Check the vibration behavior of your machines with this vibration measuring device and prevent major damage.

Highlights

- Frequency range: 10 Hz ... 10 kHz
- Measurement of acceleration, speed and displacement
- Large backlit LCD display
- Three display options
- Common mode
- Status bar in the display
- Alarm function

Specification

Measuring ranges
Vibration acceleration	0.1 m/s² ... 400.0 m/s² (Peak) / 0.3 ft/s² ... 1312.3 ft/s² (Peak) (0 ... 40 g / 0.09 lb force)
Vibration velocity	0.01 ... 400.0 mm/s / 4.0 x 10-4 in/s ... 15.7 in/s
Vibration amplitude	0.001 mm ... 4.000 mm (Peak-Peak) / 4.0 x 10-5 in ... 0.16 in (Peak-Peak)
Range of Frequencies
Vibration velocity	10 Hz ... 10 kHz
Vibration acceleration	10 Hz ... 10 kHz
Vibration amplitude	10 Hz ... 10 kHz
General Specifications
Resolution	0.25 Hz
Accuracy	± 5 %
Data interface	RS-232C
Batteries	2 x AA 1.5 V batteries
Environmental conditions	0 ... +50 °C / 32 ... 122° F / < 95 % r.H.
Dimensions device	130 x 70 x 30 mm / 5.1 x 2.8 x 1.2 in
Dimensions sensor	40 x 40 x 22 mm / 1.5 x 1.5 x 0.8 in
Weight	305 g / 0.67 lbs (without batteries)

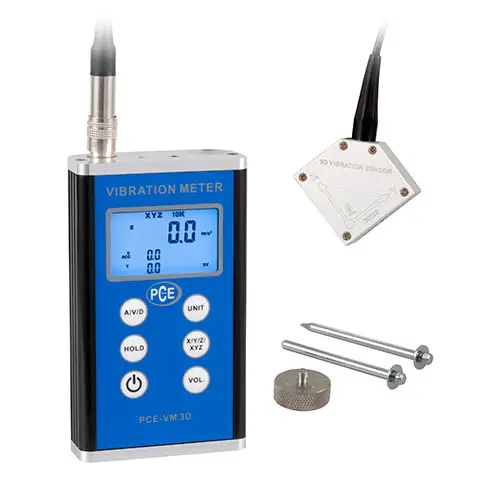

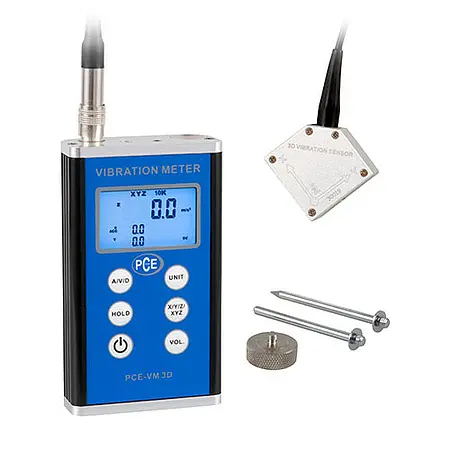

Delivery Scope

1 x Vibration Meter / Vibration Tester PCE-VM 3D
1 x Cable (1.5 m)
1 x Magnetic sensor
1 x Measuring sensor x-, y-, z-axis
2 x Measuring tip
2 x AA 1.5 V batteries
1 x Manual and case
