Accelerometer PCE-VM 5000

Order no.: PCE-VM 5000

GTIN (EAN): 4250348712226

Accessory

ISO Calibration Certificate for PCE-VM xx

455,90 €

Vibration Sensor VB-83

294,90 €

Power Supply 9 V / 0.8 A (US / North American)

15,90 €

USB Data Cable Incl. Software SOFT-LUT-USB

85,90 €

Power Supply 9 V / 1 A (European)

24,90 €

Vibration Sensor VB-84

294,90 €

Description

Accelerometer
display and storage of acceleration, speed and displacement measurement of vibrations /

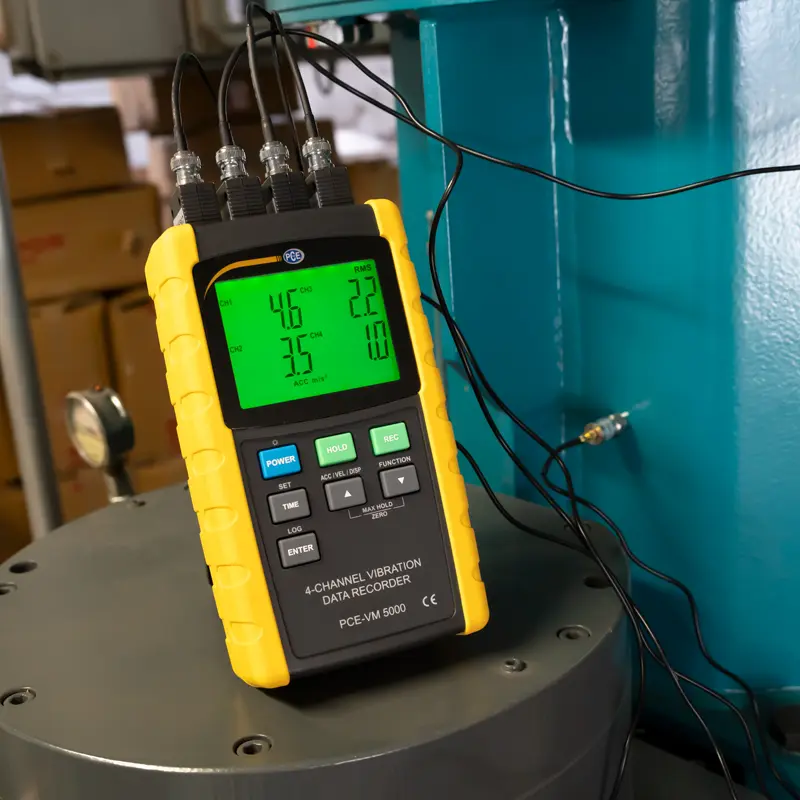

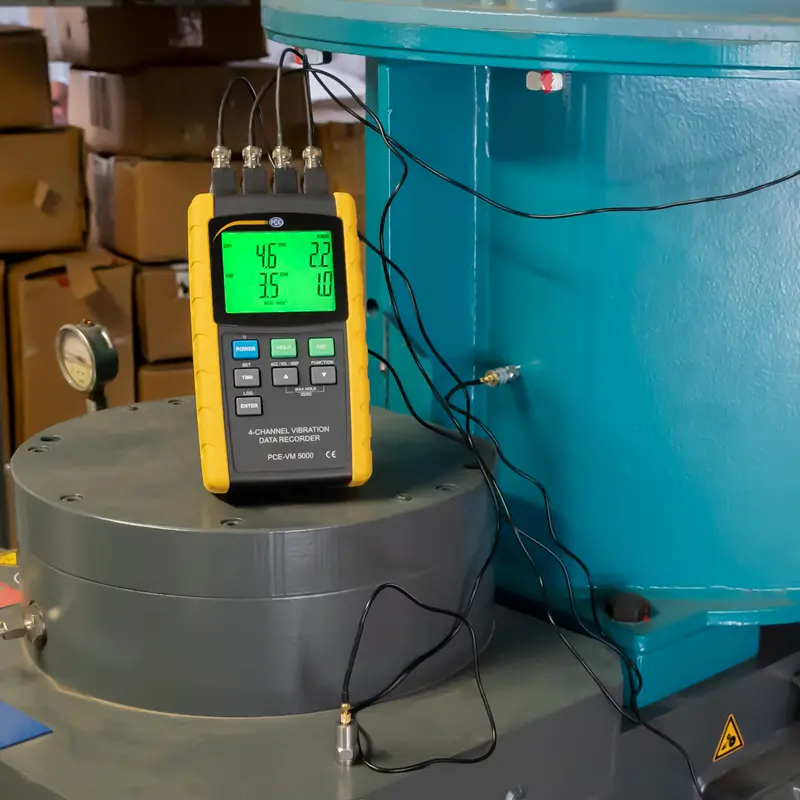

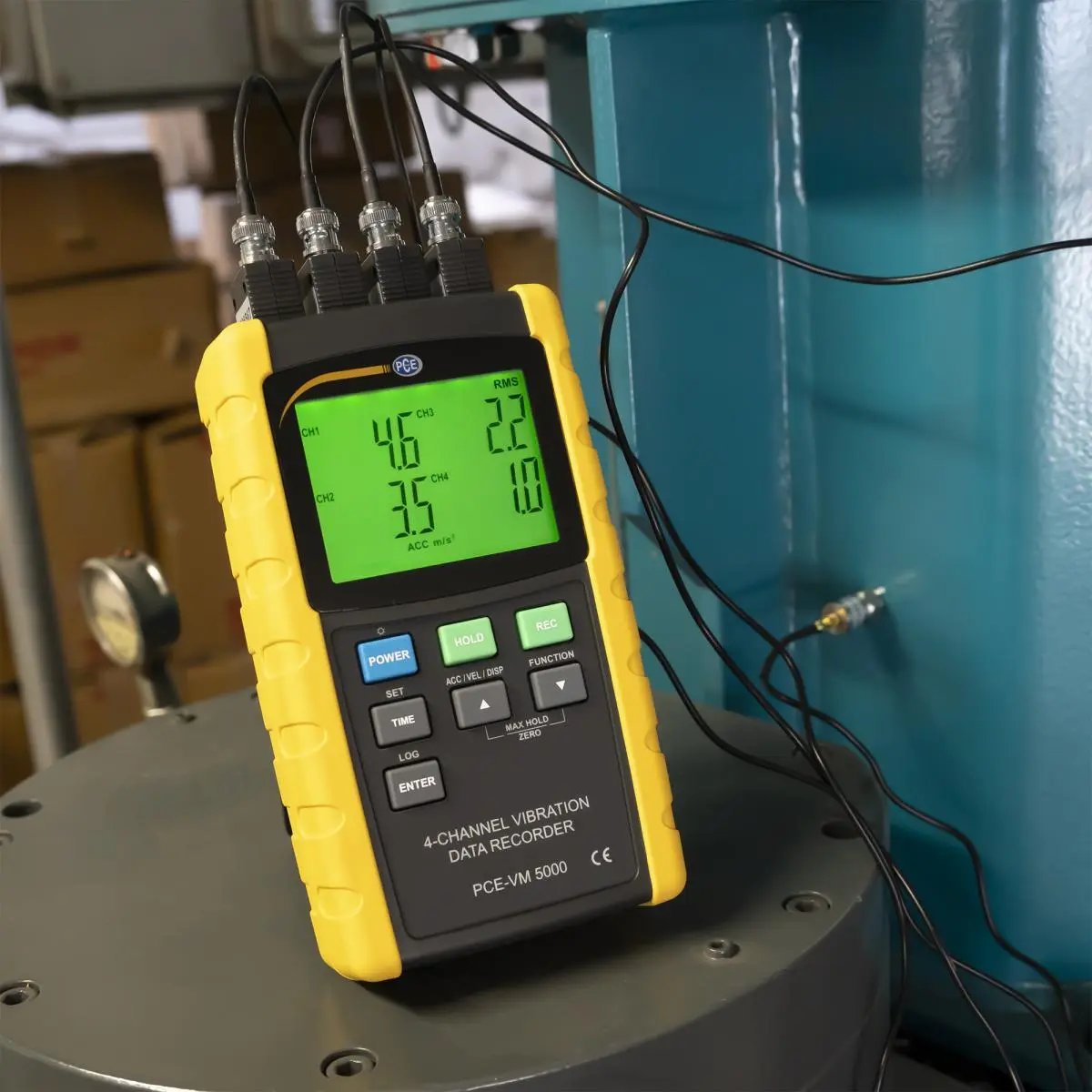

4-channel vibration Accelerometer indicates 4 channels of simultaneous Accelerometering through remote vibration sensors

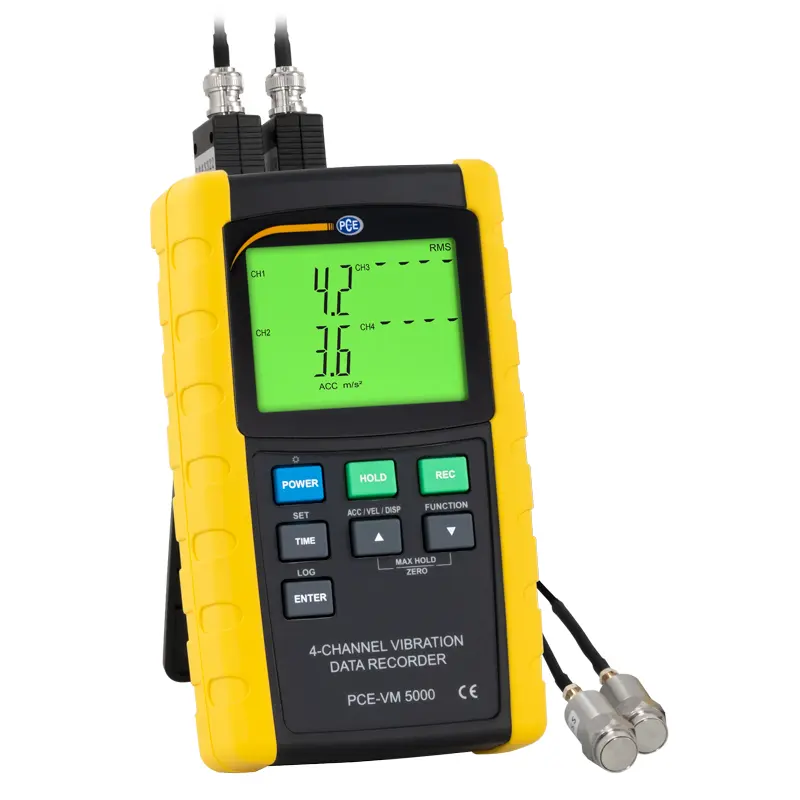

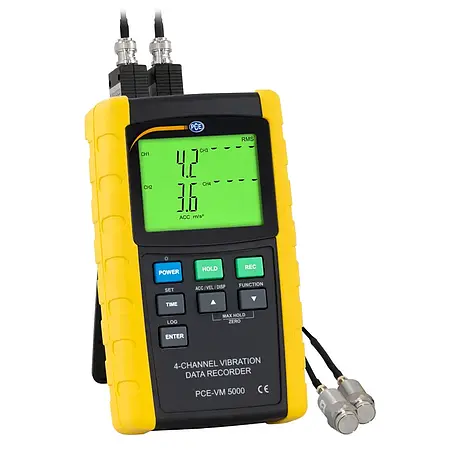

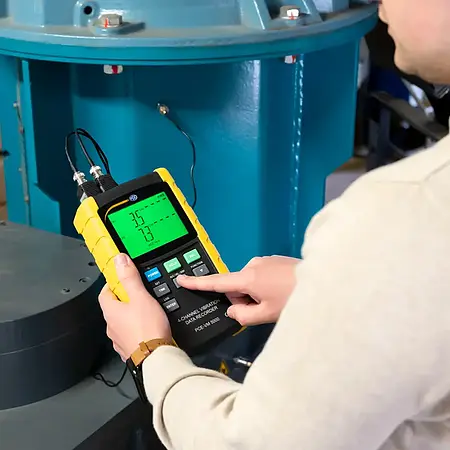

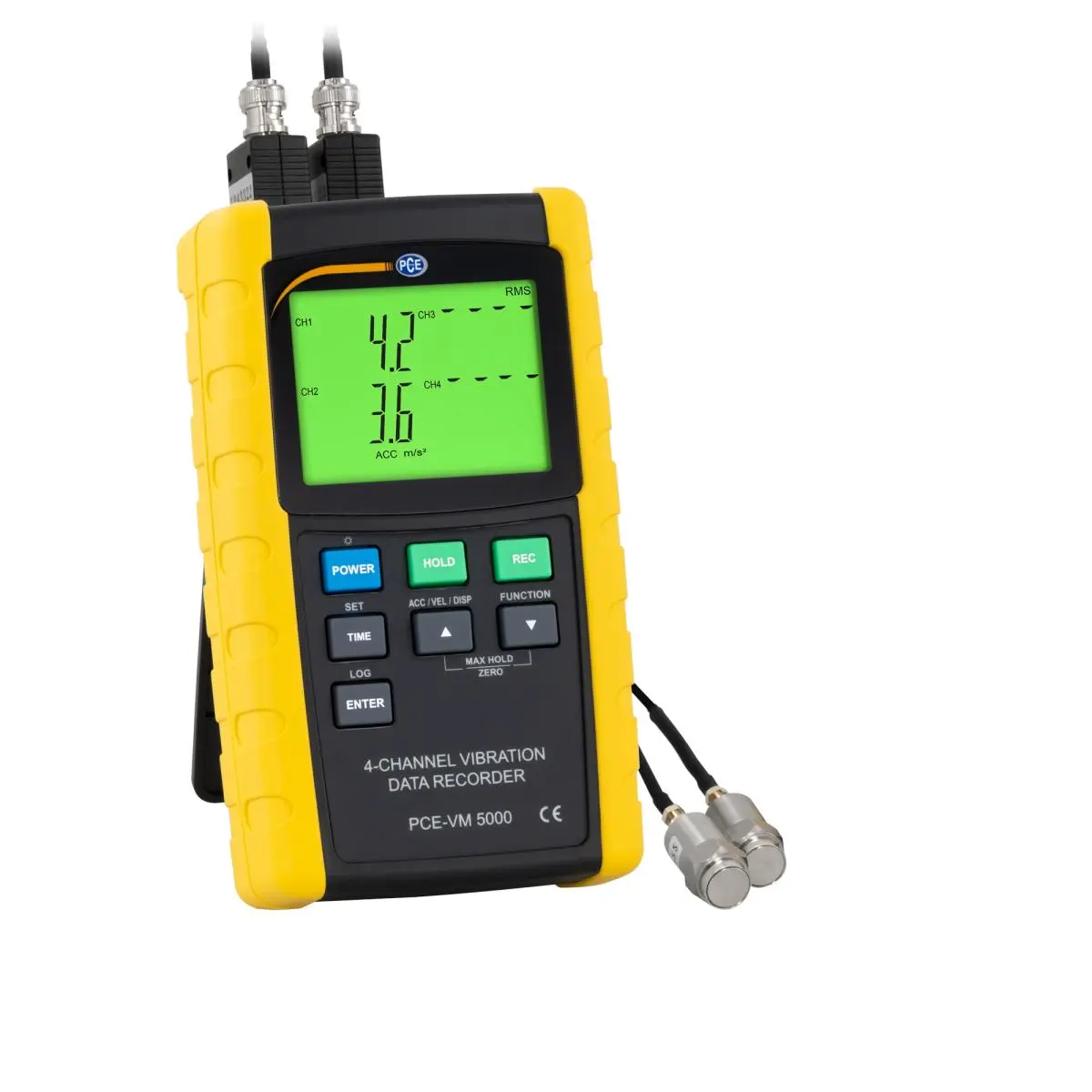

The 4-channel PCE-VM 5000 Accelerometer is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Accelerometer is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Accelerometer indicates a large, lighted LCD display for four channels of simultaneous vibration measurements from remote vibration sensors. The Accelerometer measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement.

The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Accelerometer you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be choosen.

Highlights

- Acceleration, speed, and displacement
- Long-lasting battery
- Precise measurement
- Large, LCD display with background lights
- Different measurement units
- Data storage on SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data at computer

Specification

Acceleration
Unit: m/s²	Range: 0.5 ... 199.9 m/s² Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Unit: g	Range: 0.05 ... 20.39 g Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Unit: ft/s²	Range: 2 ... 656 ft/s² Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Calibration point	50 m/s² (160 Hz)
Speed
Unit: mm/s	Range: 0.5 ... 199.9 mm/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Unit: cm/s	Range: 0.05 ... 19.99 cm/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Unit: inch/s	Range: 0.02 ... 7.89 inch/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Calibration point	50 mm/s (160 Hz)
Expansion
Unit: mm	Range: 1.999 mm Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Unit: inch	Range: 0.078 inch Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Calibration point	0.141 mm (160 Hz)
Display	82 x 61 mm / 3.22 in x 2.4" LCD with background light

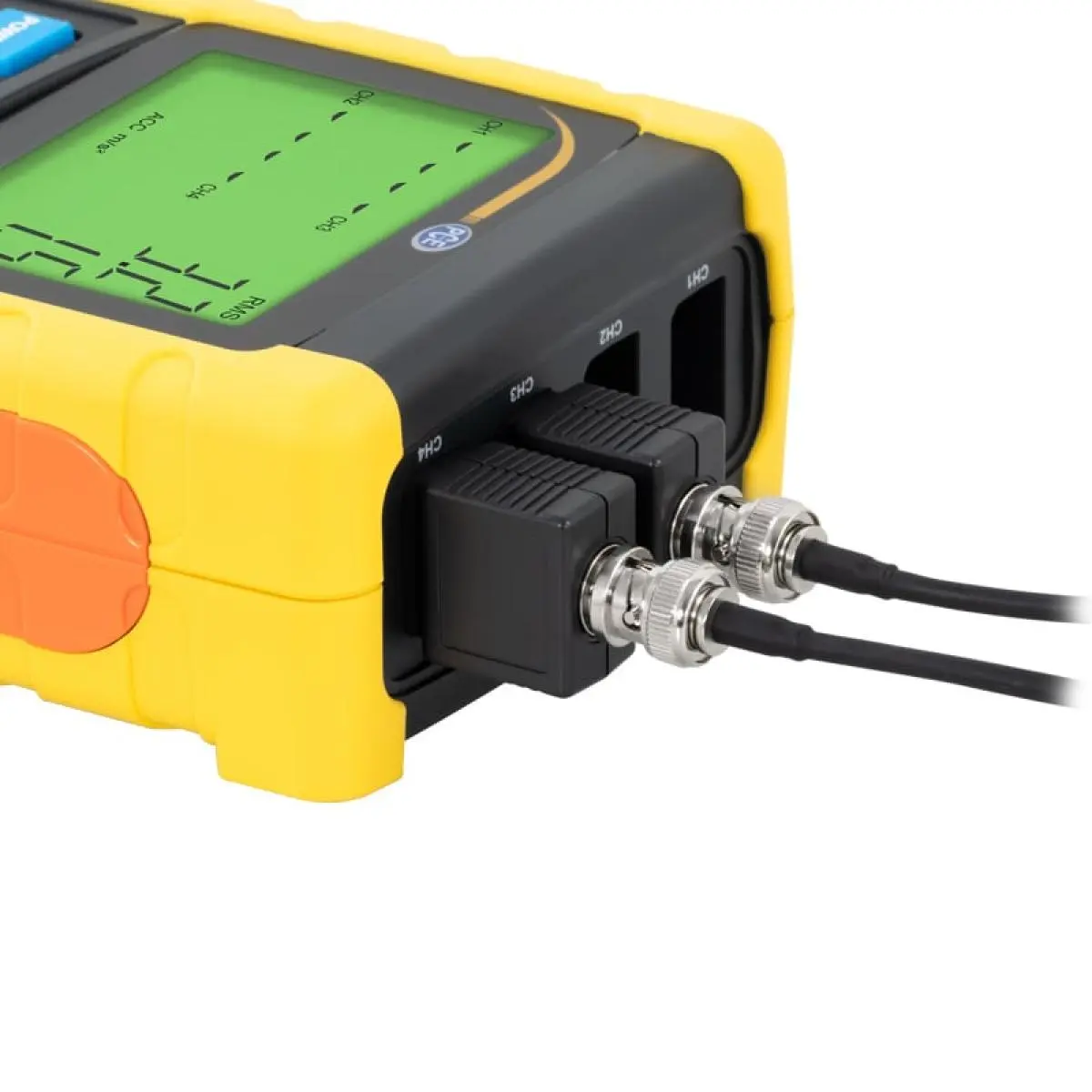

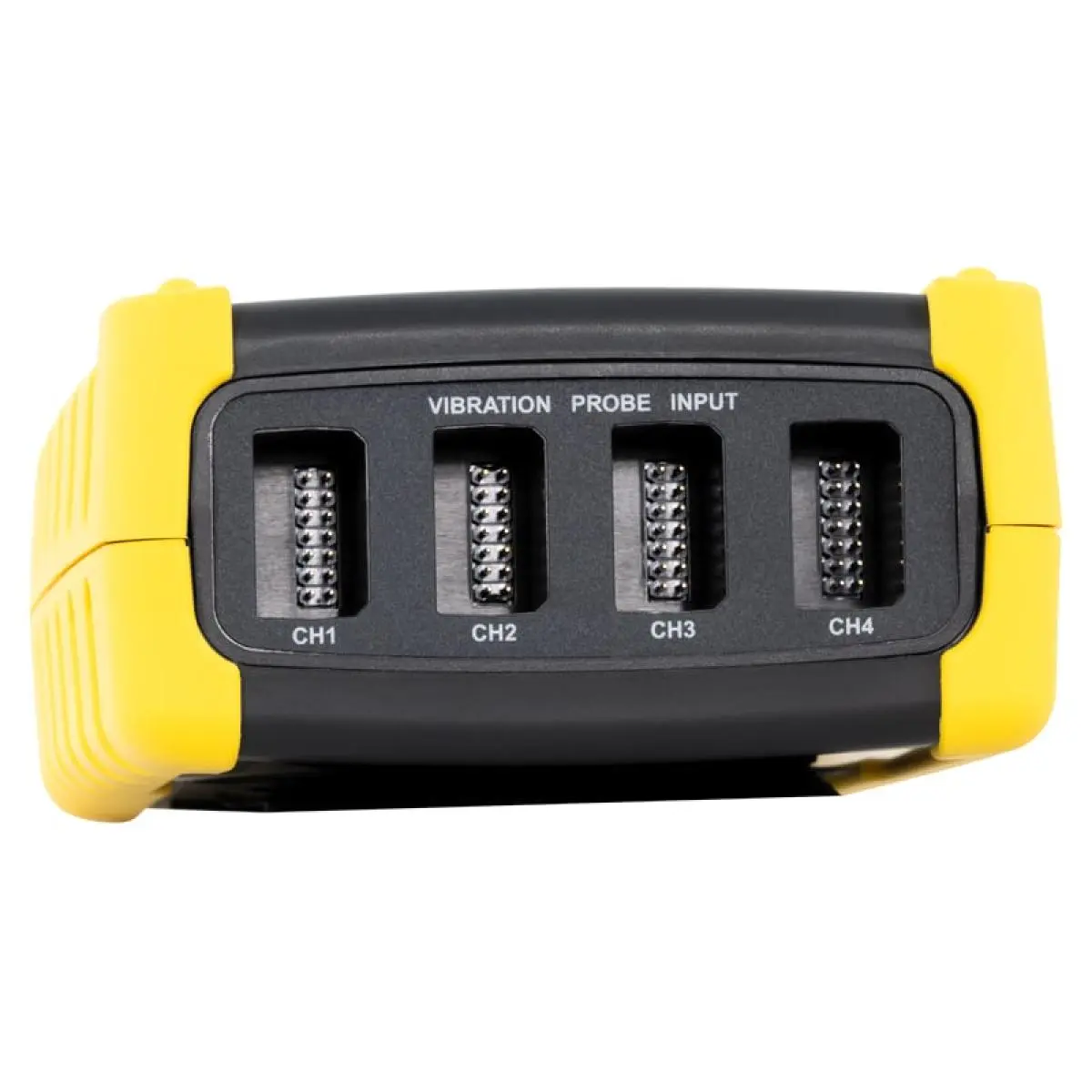

No. of channels	4 input channels
Measurement types	Speed, acceleration, expansion
Unit of measurement	Acceleration: m/s², g, ft/s² Speed: mm/s, cm/s, inches/s Expansion: mm, inches
Frequency range	10 Hz ... 1 kHz
Peak hold	Acceleration, Speed: Measures / updates the max. value Expansion: Measures / updates the p-p value
Max hold	Acceleration, Speed: Measures / updates the max. value Expansion: Measures / updates the p-p value
Max hold reset	Push-button activation
Zero function	Push-button activation for acceleration-(RMS) measurements
Datalogger sampling rate	Automatic: 1 ... 3,600 seconds Manually: at the push of a button

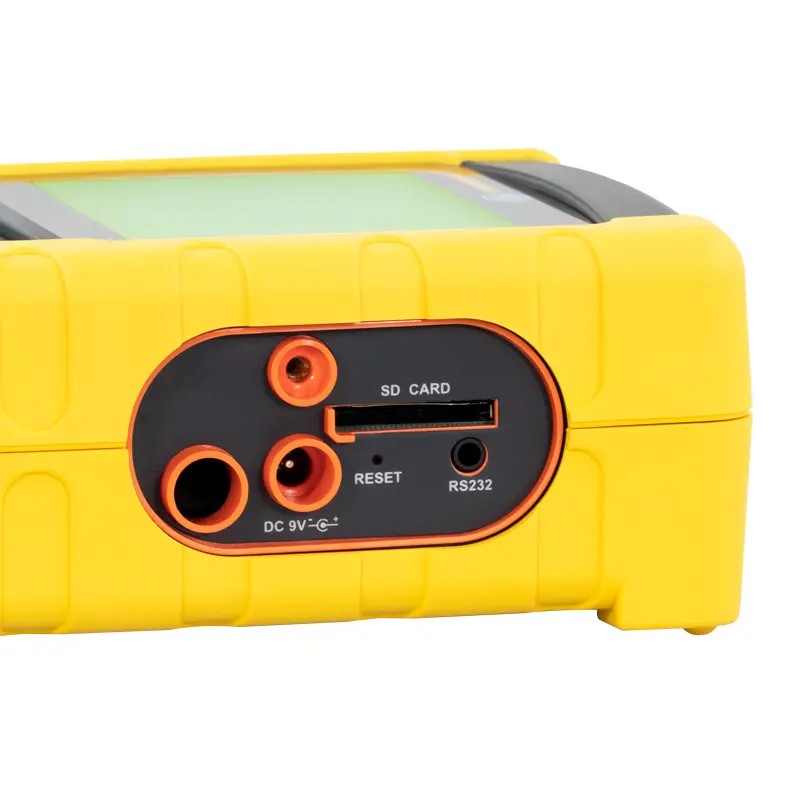

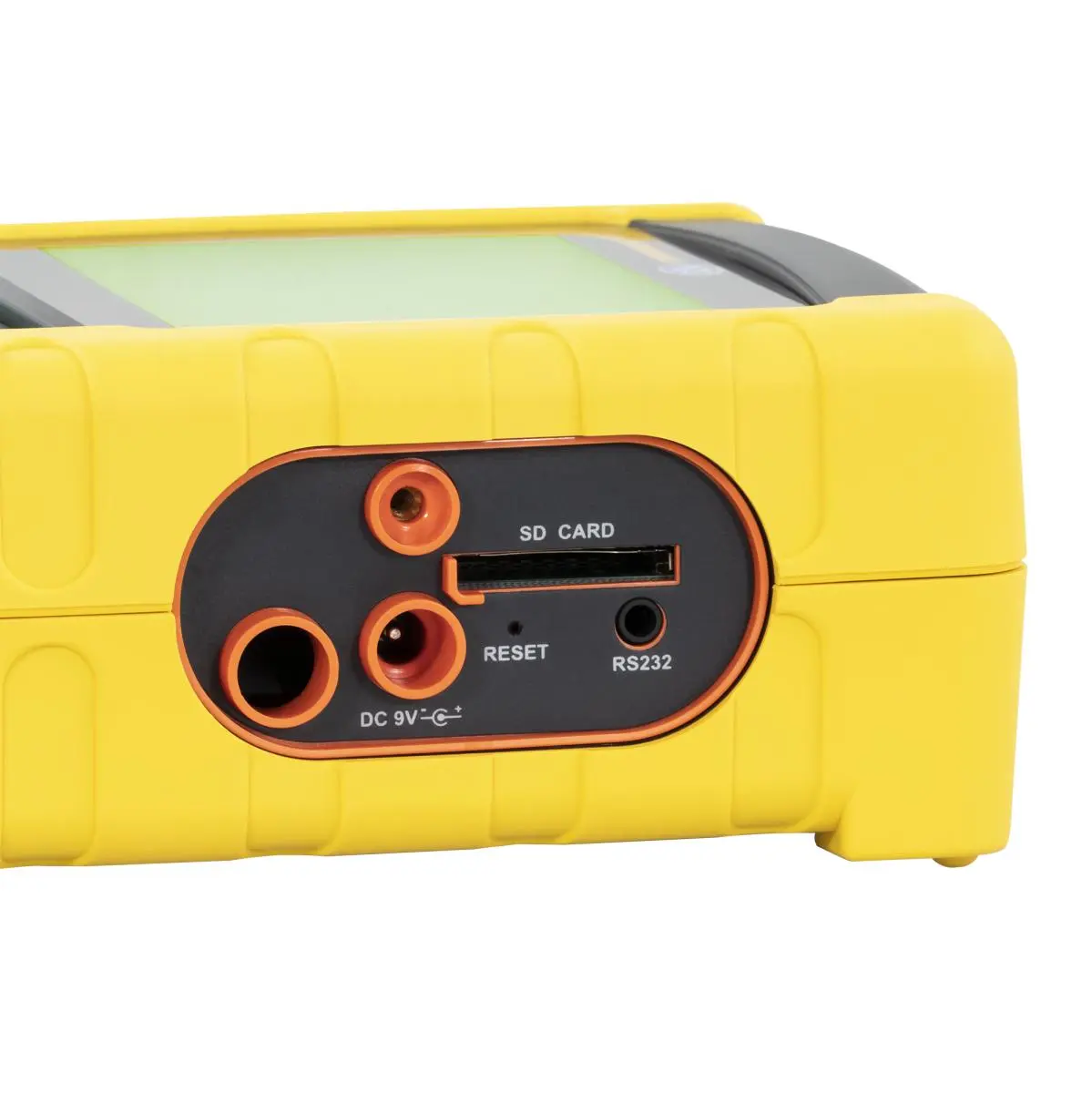

Memory card	SD memory card (1 ... 16 GB)
Data hold function	Holds displayed measured value
Audio output point	Mini stereo jack socket Max. voltage: 2 V Output resistance: 100 Ohm
Operating temperature	0 ... +50 °C / 32 ... 122 °F
Operating humidity	85 % r.H. max.
Power supply	8 x 1.5 V AA batteries or 9 V power adapter
Power consumption	NiMH battery 3 x 2700 mAh
Operating / charging time	Normal operation: ca. 12 mA dc With the background lighting switched off and the data logger switched on: ca. 35 mA dc
Weight	Meter: 515 g / / 1.1 lbs Probe with cable and magnetic base: 99 g / 0.2 lbs

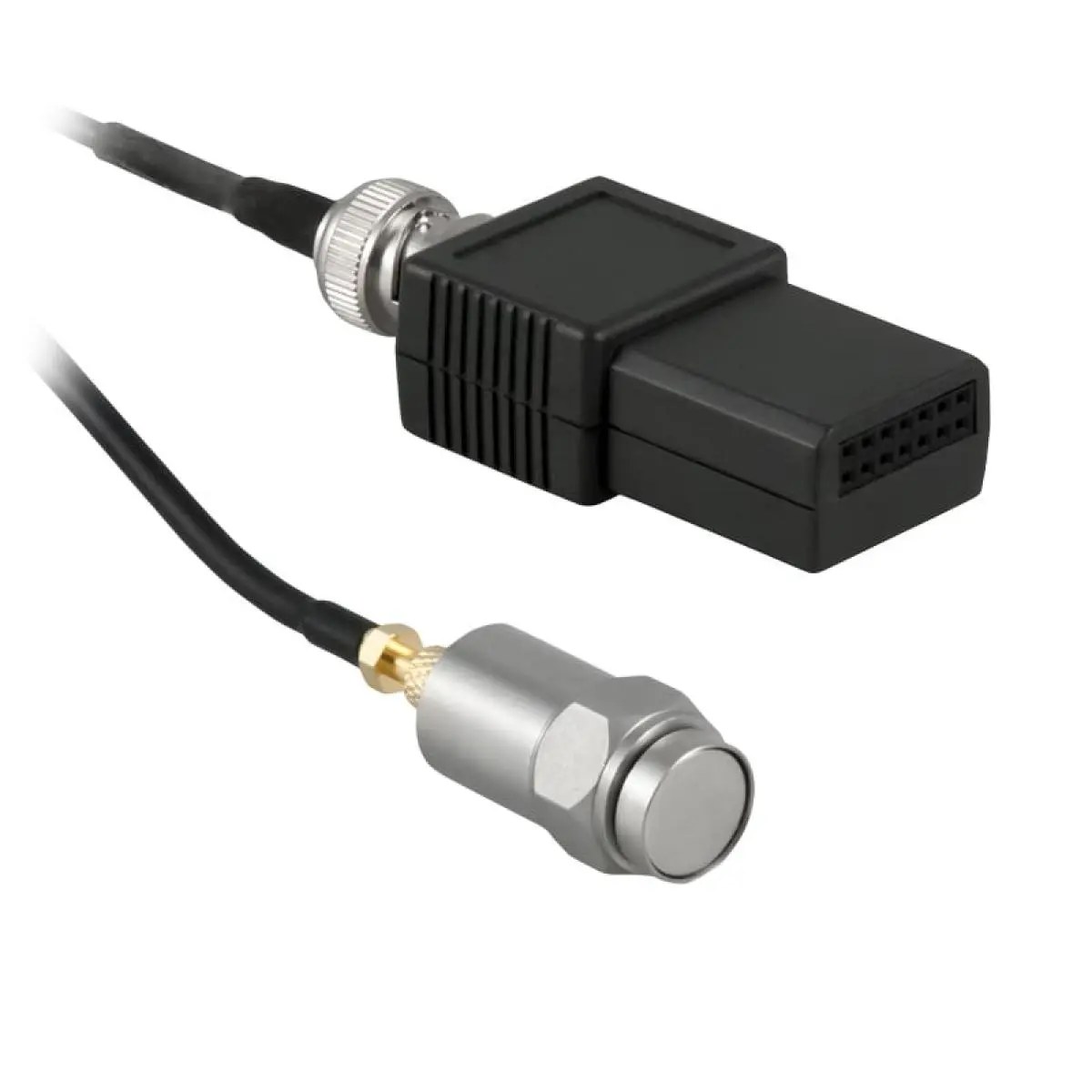

Dimensions	Main unit: 203 x 76 x 38 mm / 8.0 x 3.0 x 1.5" Probe: 16 x 37 mm / 0.6 in x 1.5" in diameter Cable length: 1.2 m / 3.9 ft
