Water Analysis Meter PCE-228WINE

Order no.: PCE-228WINE

GTIN (EAN): 4250348719294

Accessory

Replacement Electrode CPC-OSH-12-00SP

115,90 €

Carrying Case with hard foam insert

25,90 €

REDOX-Electrode ORP-14

84,90 €

pH-Electrode PE-03

50,90 €

Food pH-electrode CPC-OSH-12-01

208,90 €

Temperature sensor TP-07

34,90 €

ISO certificate CAL-PCE-PH for pH meters

71,90 €

Power Supply 9 V / 0.8 A (US / North American)

15,90 €

Power Supply 9 V / 1 A (European)

24,90 €

USB Data Cable Incl. Software SOFT-LUT-USB

85,90 €

pH Electrode for Wine PCE-PH-WINE

380,90 €

Electrode Storage Solution 3mol / l

14,00 €

Diaphragm Cleaner with Thiourea PCE-DCS-250

28,90 €

pH Electrode PCE-PH-HTE

91,90 €

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

21,90 €

Redox Solution +468 mV PCE-RTS-468

30,90 €

Redox Solution +240 mV PCE-RTS-220

30,90 €

pH Electrode PCE-PH-SLUR

150,90 €

pH Electrode PCE-PH-LIQ

150,90 €

Calibration Solution pH4 and pH7

20,90 €

pH Electrode IJ-44A

148,90 €

Calibration Solution pH4 and pH7 and pH10

28,01 €

Calibration Solution pH10

13,90 €

Calibration Solution pH7

12,20 €

Calibration Solution pH4

12,20 €

Description

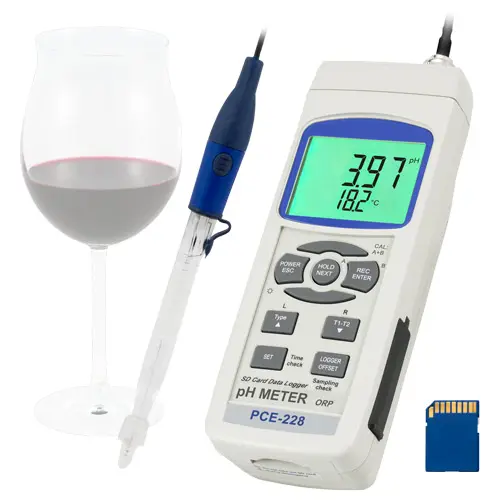

PCE-228WINE water analysis meter for pH value, redox and temperature / Large, easy-to-read display SD card memory (1 ... 16 GB), saved data is saved as an Excel file /
RS-232 interface and optional software for direct transmission to the PC

The PCE-228 water analysis meter is a very easy-to-use handheld pH / mV / °C meter. The pH value and the temperature can be saved directly on the SD card (Excel file) or transferred directly from the pH meter to a PC via the RS-232 interface. For this purpose, we optionally offer software and the appropriate RS-232 interface cable as accessories. The temperature compensation takes place either manually or automatically using the temperature sensor supplied.

All of this allows a quick and reliable pH measurement. The pH meter has a three-point calibration, which is carried out automatically. The combination measuring device can be used to determine the pH value, the temperature or the REDOX potential (ORP). For the latter measurement parameter, however, a REDOX electrode must be ordered additionally. Here we recommend the ORP electrode ORP-14. The pH meter is battery operated (6 x 1.5 V batteries are included).

Highlights

- Optimal price / performance ratio
- SD card memory (1 ... 16 GB)
- The data is saved directly as an Excel file on the SD card
(no software is required for evaluation)
- RS-232 interface for online data transfer
- Measures pH value, redox and temperature
- High precision
- Large LCD display
- Robust housing
- Including pH electrode PE-03 and stainless steel temperature sensor
- Automatic calibration
- Manual or autom. temperature compensation
- BNC connector
- Suitable for laboratory and on-site pH measurement
- Additional REDOX electrode
- Adjustable measuring rate
- Easy to use

Specification

Measurement range pH	0.00 ... 14.00 pH
Resolution	0.01 pH
Accuracy	±(0.02 pH + 2 digits)

Measurement range redox	-1999 ... 0 ... 1999 mV (only with the optional Redox electrode)
Resolution	1 mV
Accuracy	±(0.5 % + 2 digits)

Measurement range temperature	0.0...65.0 °C / 32 ... 149 °F (only with the temperature sensor)
Resolution	0.1 °C
Accuracy (@20°C / 68°F)	±0.5 °C

Calibration	automatic three-point calibration
Temperature compensation	automatic from 0 to 65°C or manual between 0 and 100°C removing the temperature sensor
Electrode	pH electrode PCE-PH-WINE
Temperature range	0 ... 60 °C / 32 ... 140 °F
Measurement rate	adjustable from 1 second up to 8 hours 59 min 59 sec
Display	LC display 52 x 38 mm
Data memory	flexible via SD card memory 1 ... 16 GB

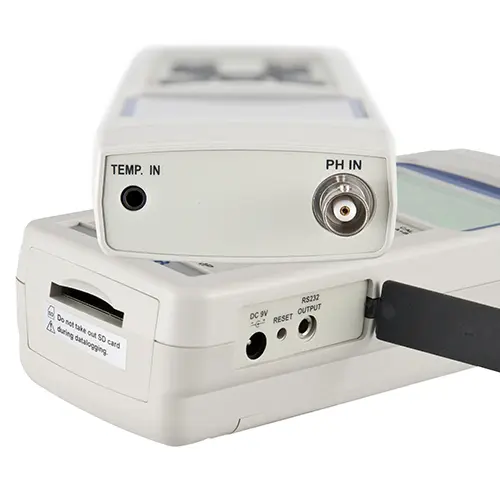

Interface	RS-232
Software	optional
Power supply	6 x 1.5 V AA batteries / 9 V mains adapter (optional)
Operating conditions	0...50 °C max. 85 % r.H
Dimensions	177 x 68 x 45 mm / 6.9 x 2.7 x 1.7"
Weight	490 g / 17 oz

Delivery Scope

1 x Water analysis meter PCE-228 (basic unit)

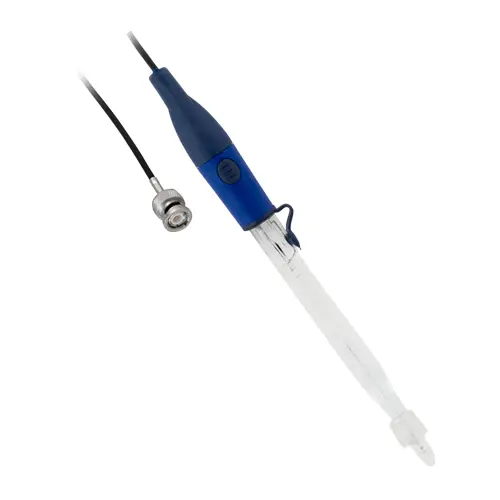

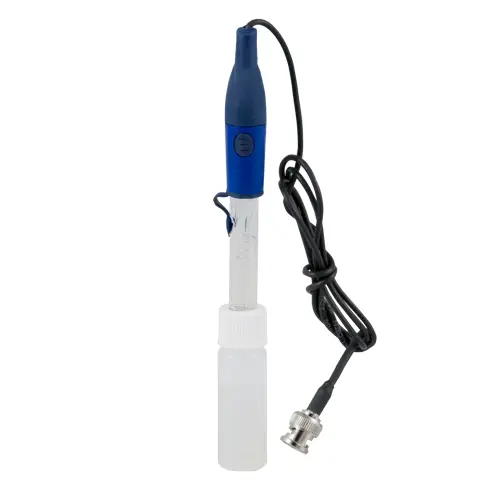

1 x pH electrode PCE-PH-WINE
1 x SD memory card (2 GB)
1 x Card reader
1 x Temperature sensor
6 x Battery
1 x Instruction manual
