Water Analysis Meter PCE-TUM 100

Order no.: PCE-TUM 100
GTIN (EAN): 4250348733078
999,90 €
1.189,88 €
price ex. (VAT / delivery)
:
4250348733078
PCE-TUM 100
Delivery time: 1-2 working days

Description

Water Analysis Meter, colour display, measuring range up to 500 NTU,  scattered light measuring method 90°, mains operation, USB and printer interface

The precision of the water analysis meter ensures accurate measurements in all relevant applications. With five factory-saved calibration points, the opacimeter offers a ready-to-use solution for different environments. In addition, the water analysis meter offers the option of customised opacity calibration. With up to five calibration points, the turbidity meter can be flexibly adapted to specific requirements and measurement conditions.

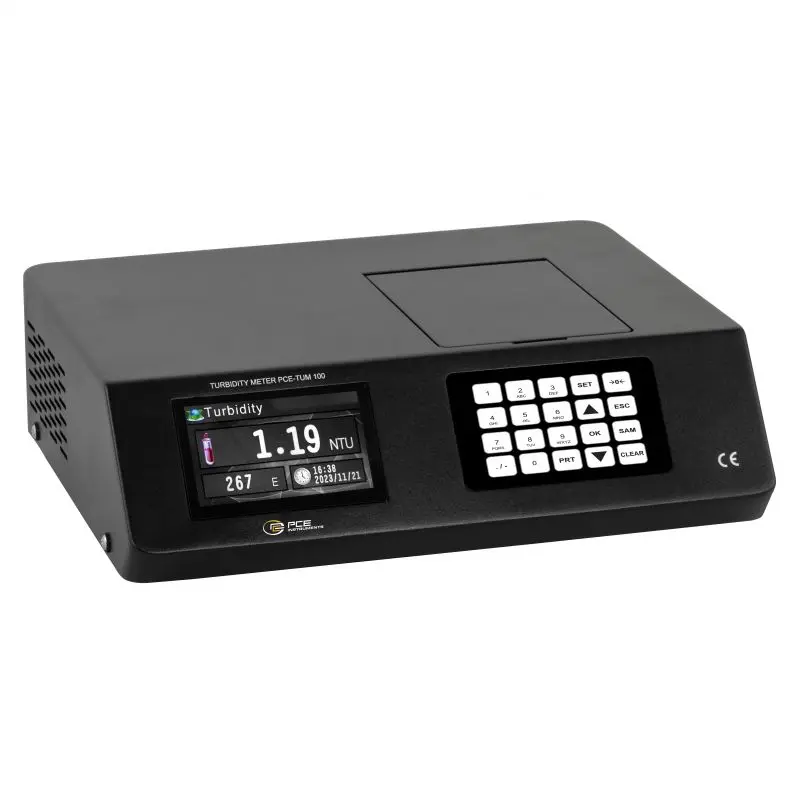

The turbidity meter's colour display presents the measurement results in a clear and easy-to-understand manner. This user-friendly interface simplifies operation considerably and also enables new users to utilise the water analysis meter quickly and efficiently. The internal memory allows measurement data to be saved for later analysis or reporting.

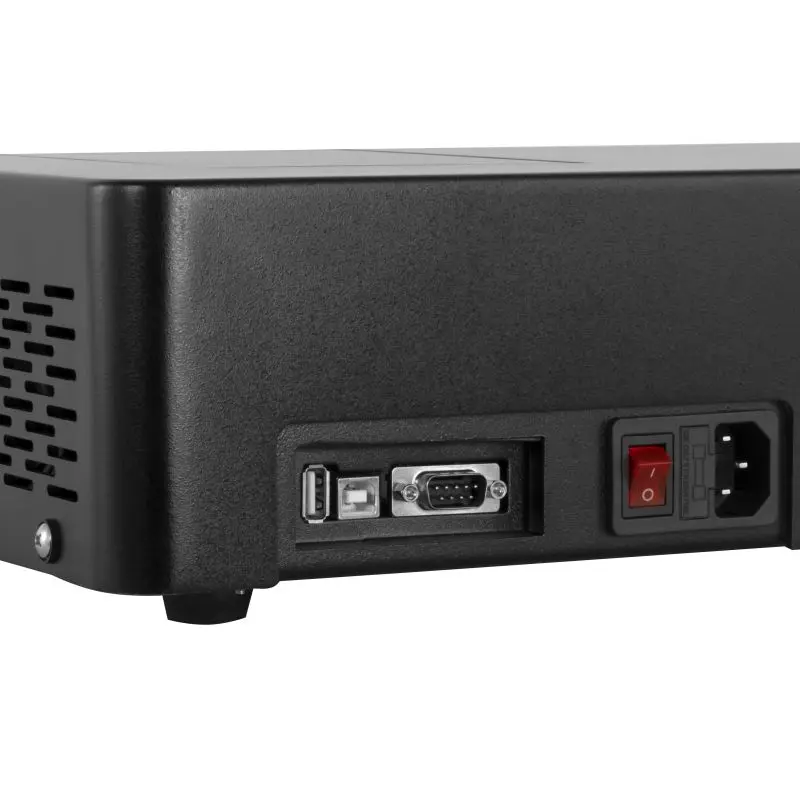

For seamless data management, the water analysis meter is equipped with a USB interface for external data carriers. This makes it easy to save measurement results from the water analysis meter to a USB stick. In addition, the RS232 printer interface on the water analysis meter offers the option of printing measurement logs directly to ensure quick documentation of the results.

Overall, the water analysis meter impresses with its precise measurements, simple operation and wide range of data storage and transfer options. It is the ideal solution for anyone who places the highest demands on turbidity measurements.

Highlights

- Precise measurement
- 5 stored calibration points
- Individual 5-point turbidity calibration possible
- Colour display
- Simple operation
- Internal memory
- USB-A interface for data carriers
- RS232 printer interface

Specification

Turbidity
Measurement range0 NTU ... +500 NTU
Resolution0.01
Accuracy±5 % FS

General technical data
Display typeLED
Display size4.2 inches
InterfaceRS232, USB A
Light sourceLED @ 850 nm
Number of calibration points5
Measurement method90 °
Menu languageEnglish
Protection class (device)IP20
Power supply110-220V, 50-60Hz
Plug typeCold plug
Weight3.68 kg
Dimensions (L x W x H)37 cm x 31 cm x 11.5 cm mm
Other dimensionsCuvette
Ø x height
25 x 65 mm
Operating conditions16 ... 35 °C , 45 ... 80 % RH
Storage conditions16 ... 35 °C , 45 ... 80 % r.H
Instruction languagesEnglish

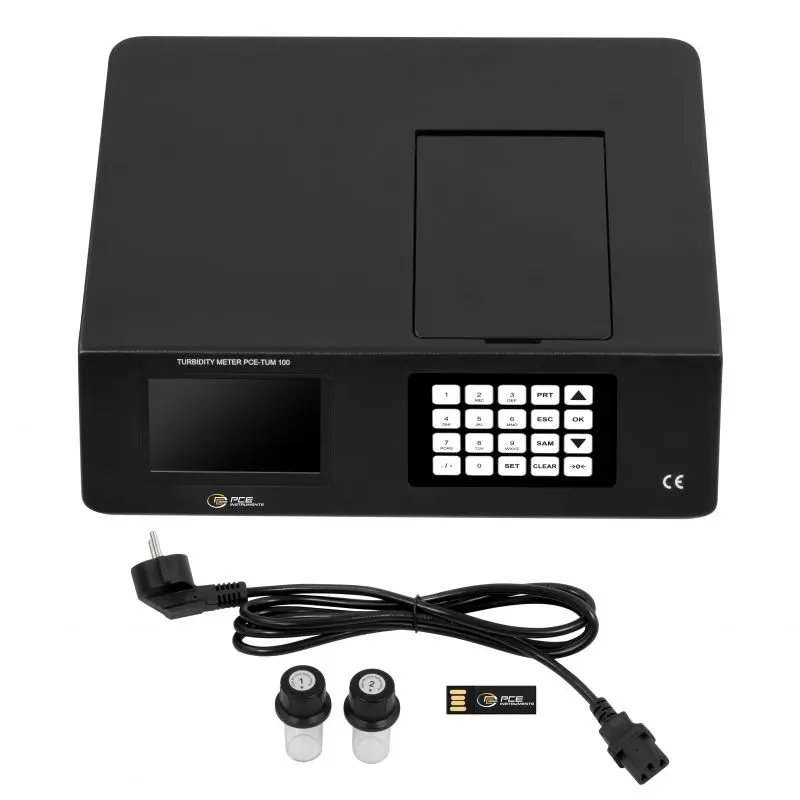

Delivery Scope

1 x Water Analysis Meter PCE-TUM 100

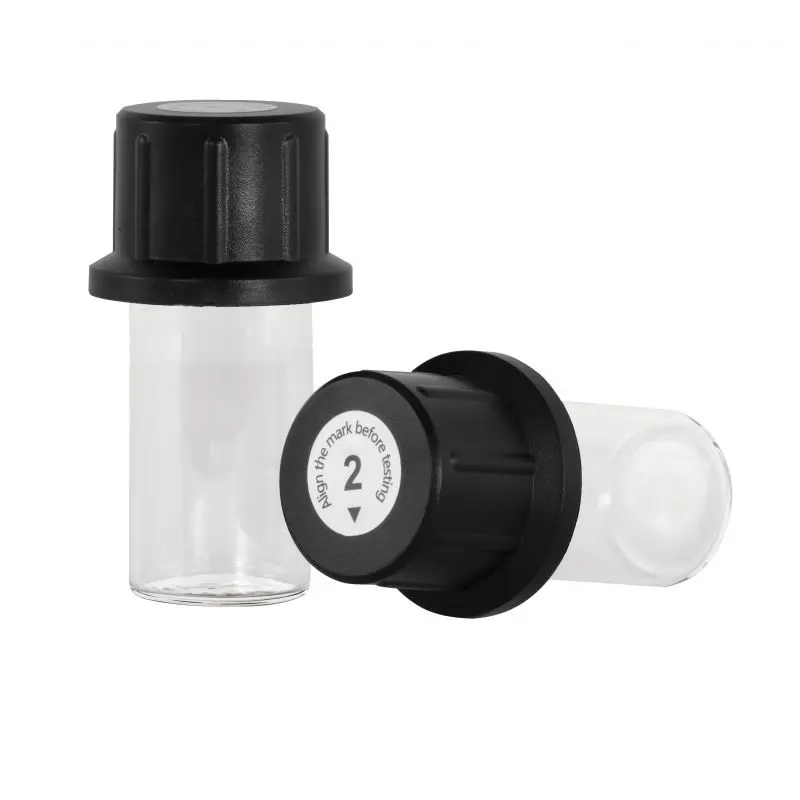

2 x cuvette
1 x power cable
1 x USB stick
1 x operating manual
