Wind Speed Alarm Controller PCE-WSAC 50W 230

Order no.: PCE-WSAC 50W 230
GTIN (EAN): 4250348718884
1.196,90 €
1.424,31 €
price ex. (VAT / delivery)
:
4250348718884
PCE-WSAC 50W 230
Delivery time: 1-2 working days

Description

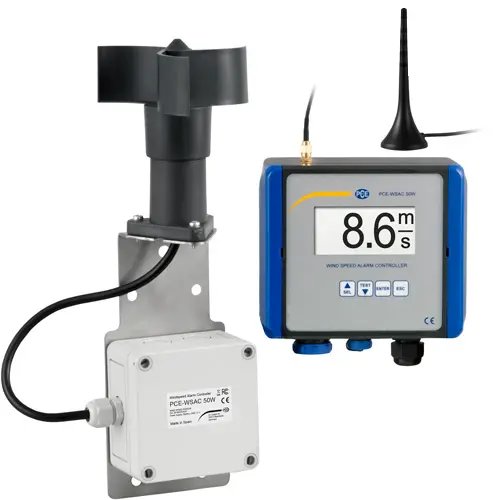

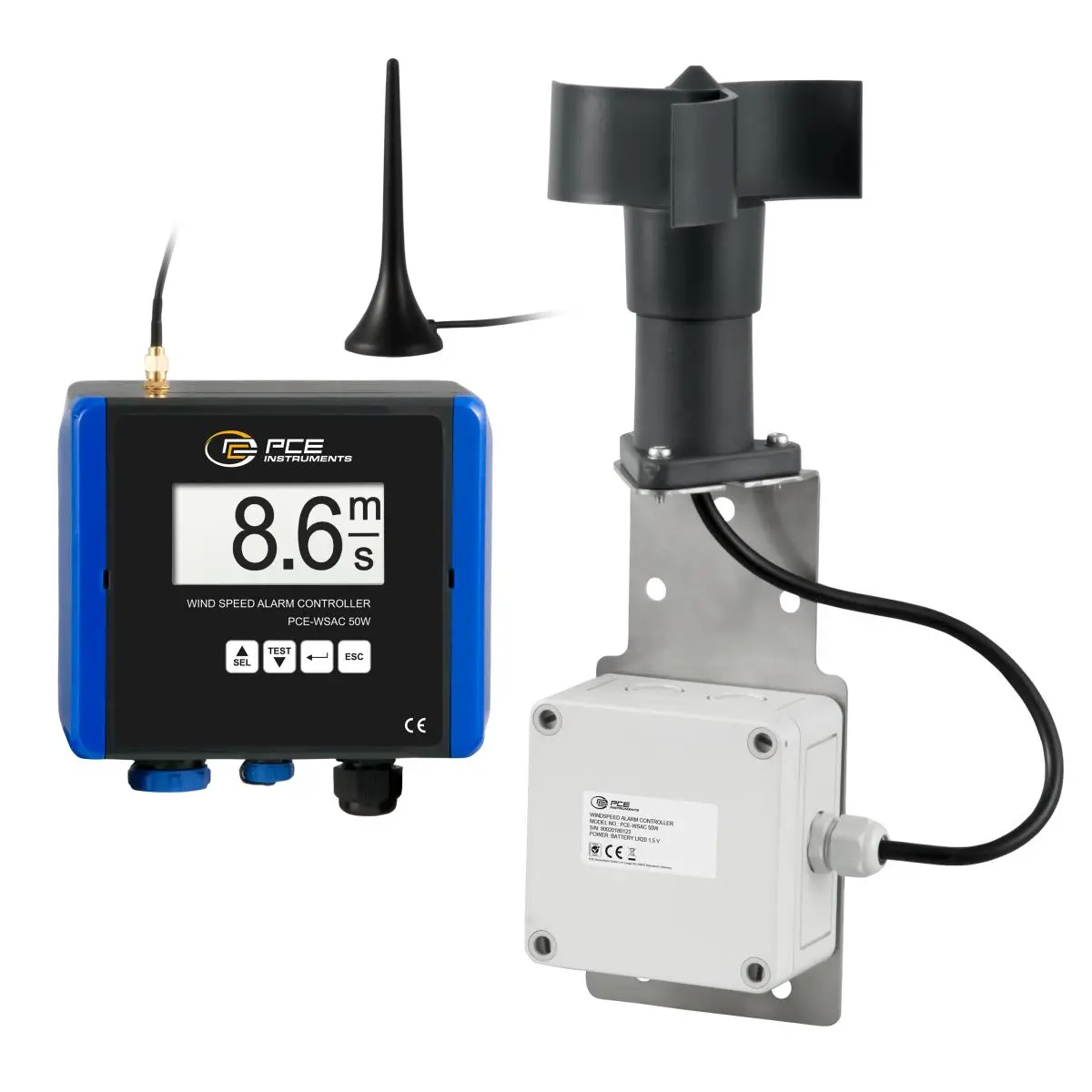

PCE-WSAC 50W 230 Wind Speed Alarm Controller
Radio anemometer warning system / Wind monitoring on construction cranes / 4 ... 20-mA analog output / Power supply 110 ... 230V AC

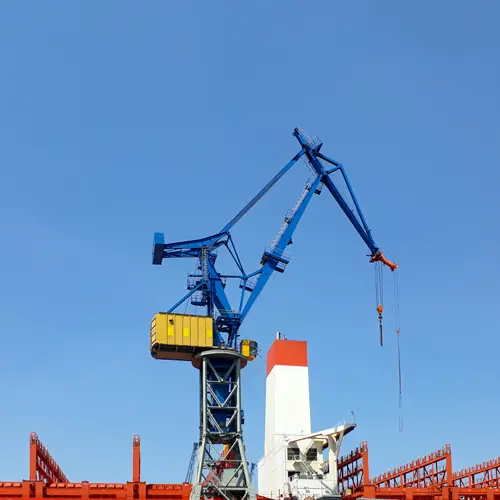

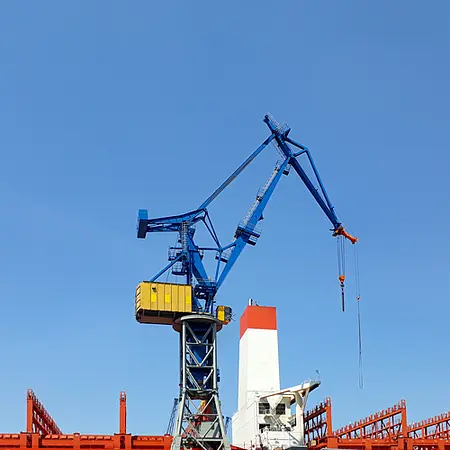

Wind speed alarm controller PCE-WSAC 50W 230 is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The wind speed alarm controller PCE-WSAC 50W 230 is equipped with alarm relay for a pre-alarm or main alarm.

Due to the high measuring range of up to 50 m / s of the wind speed alarm controller, stormy gusts can also be monitored. The radio range of the wind speed alarm controller is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the wind speed alarm controller PCE-WSAC 50W 230 in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.

Highlights

- Robust plastic housing
- Units: km / h, mph, m / s
- 4 ... 20-mA analog output
- 128 x 64 pixel LC display
- Alarm relay
- Measuring range up to 180 km / h
- Durable stainless steel ball bearings
- Ambient temperature -20 ... 70°C / -4 ... 158°F
- Radio transmission

Specification

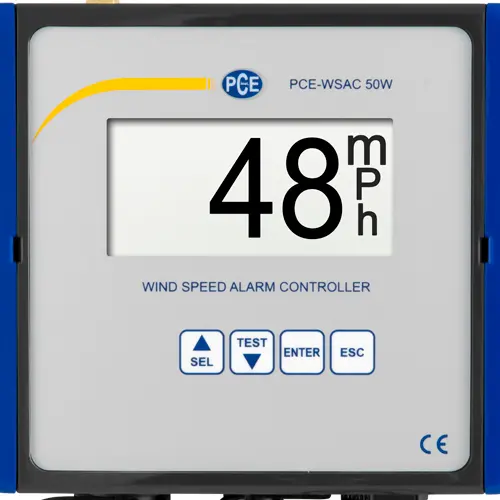

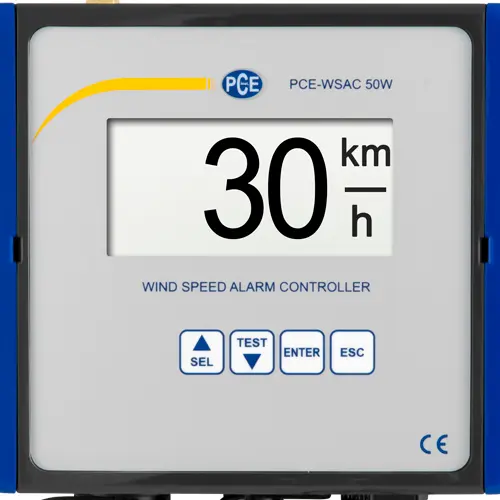

Display of the Wind Speed Alarm Controller PCE-WSAC 50W 230
InputPulse, analog (4 ... 20-mA) or radio
RadioIEEE 802.15.4 ISM 2.4 GHz
Units km / h, mph, m / s
Power supply for sensors+15V DC
Analog output4 ... 20-mA
Maximum input impedance 500 Ω
Resolution of the analog output10 bits
Accuracy of the analog output± 1.5%
Alarm relayMax. 250V AC, 8 A
Display Backlit 128 x 64 pixel LC display
CasingRobust plastic housing
Protection classIP65
Dimensions145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in
Weight 650 g / 1.4 lbs

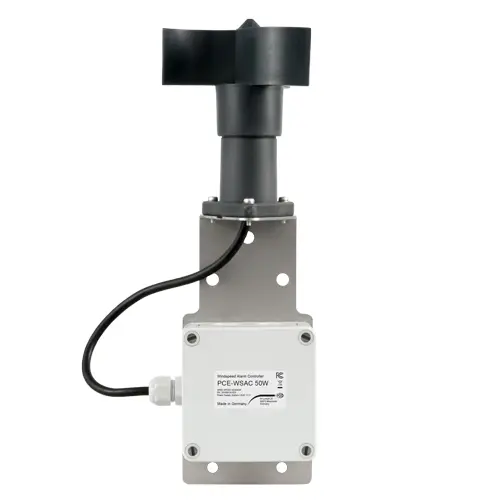

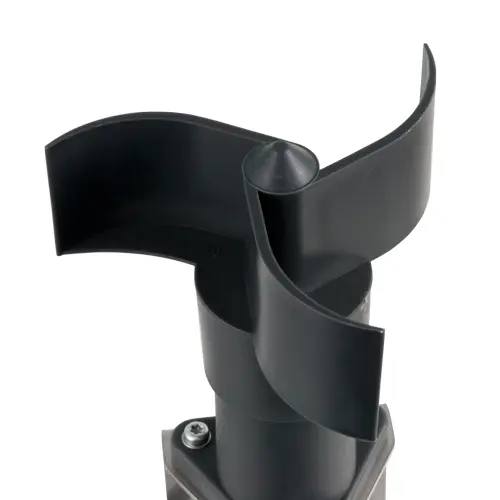

Sensor of the Wind Speed Alarm Controller PCE-WSAC 50W 230


Measuring range 4 ... 180 km / h
Minimum start speed 8 km / h
Accuracy ± 1 km / h in the range 4 ... 15 km / h
  ± 3% in the range 16 ... 180 km / h

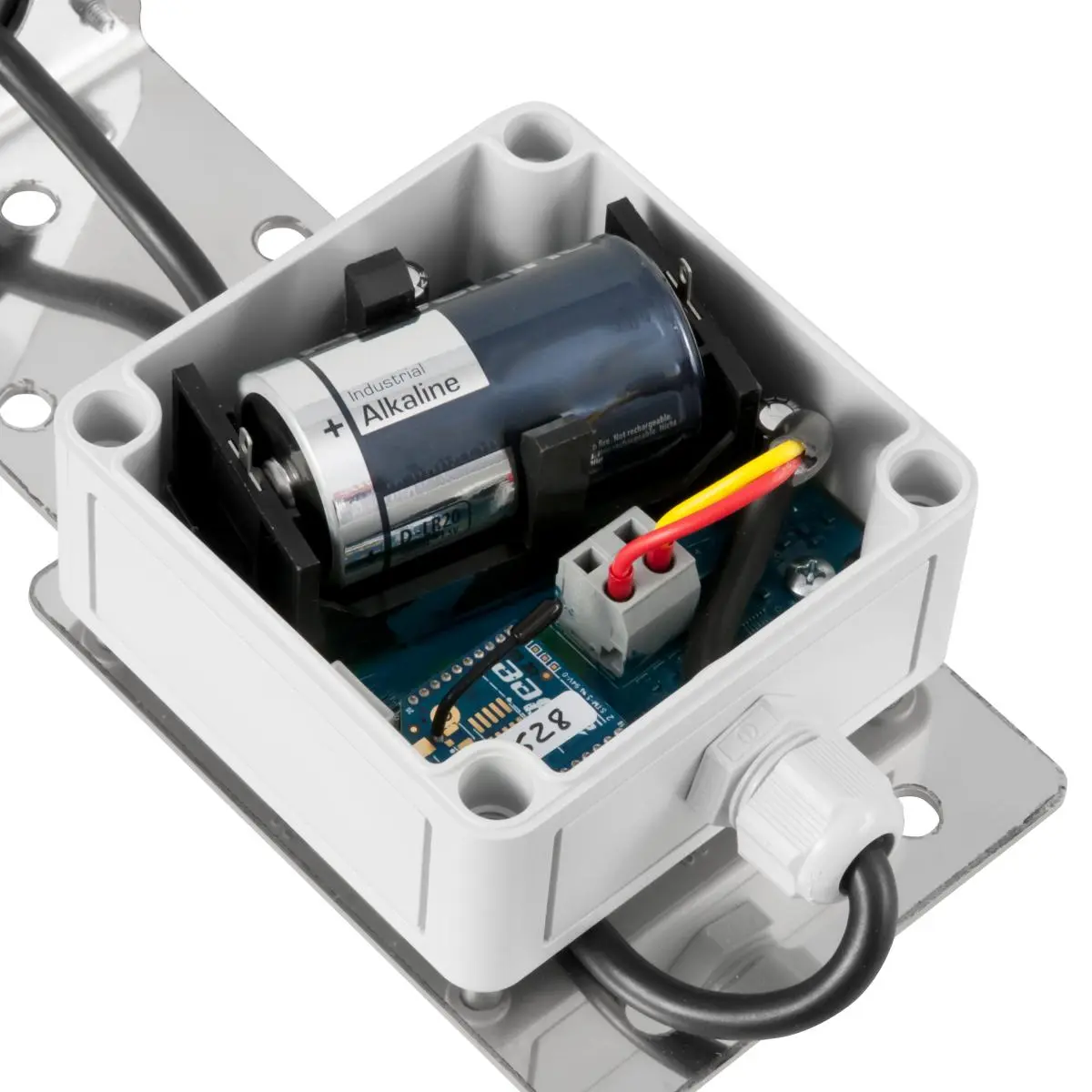

Power supply Battery mono cell D 1.5V DC
Power consumption approx. 0.3 W with 1.5V DC power supply
Housing material PA + FG
Ball-bearing Stainless steel X65Cr13
Holder Stainless steel AISI 304
Weight (with standard bracket) about 680 g / 1.5 lbs
Geicht with self-leveling bracket about 900 g / 2 lbs
Dimensions 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in
Storage temperature -35 ... 70°C / -31 ...158°F
Ambient temperature -20 ... 70°C  / -4 ... 158°F
Protection IP65



Delivery Scope

1 x PCE-WSAC 50W 230 Wind speed alarm controller

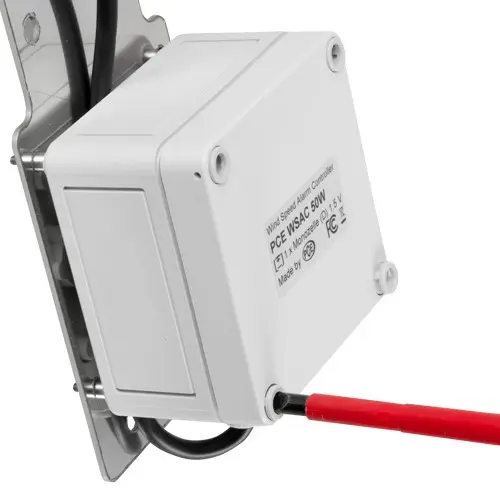

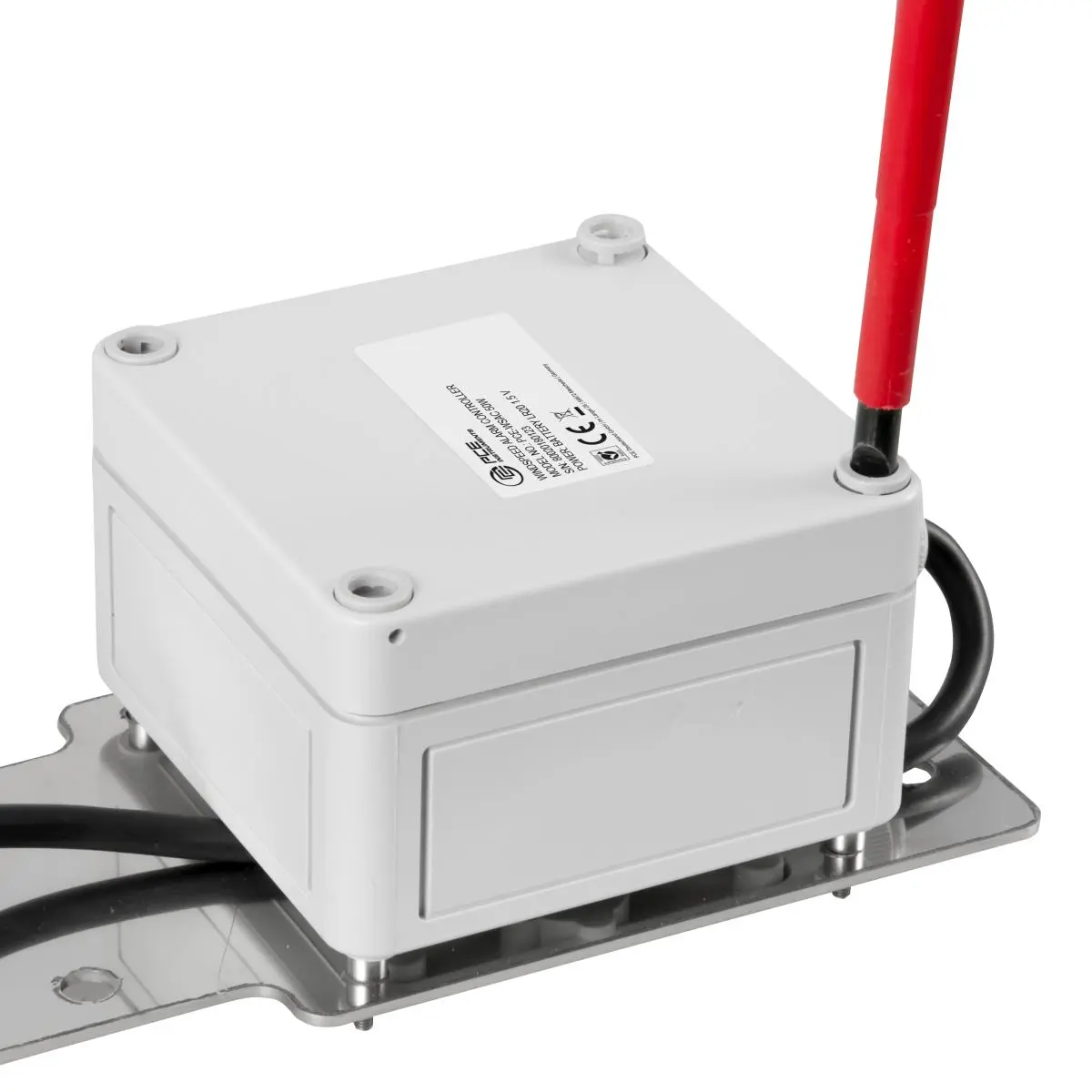

1 x Wind sensor of the wind speed alarm controller

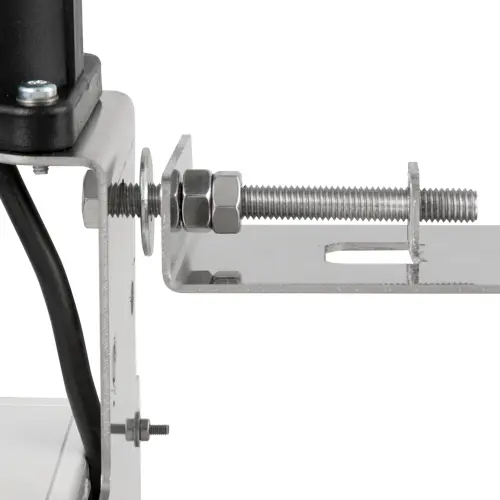

1 x Self-leveling additional bracket

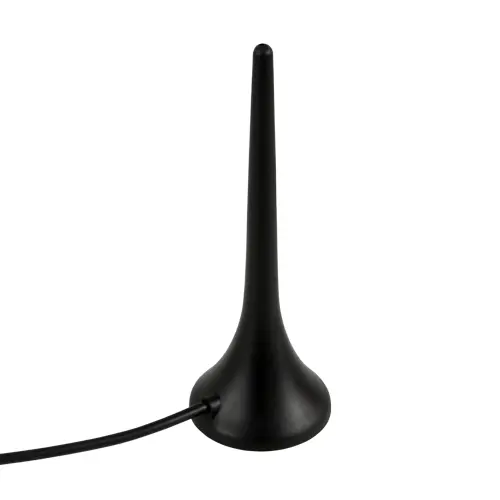

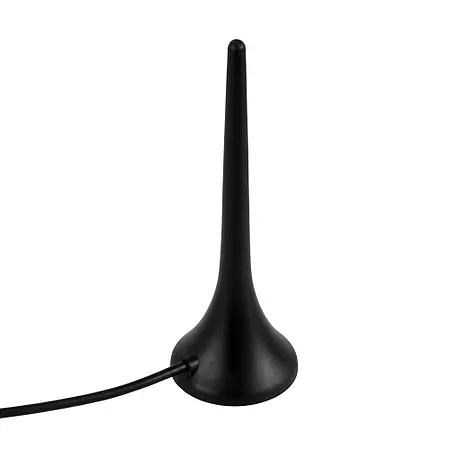

1 x Radio antenna

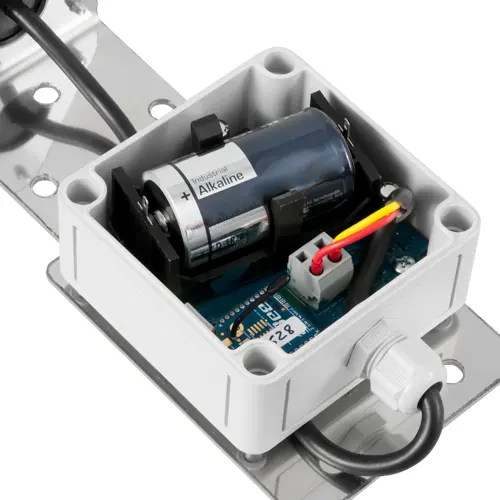

1 x Battery Monocell D 1.5V DC
1 x User manual
