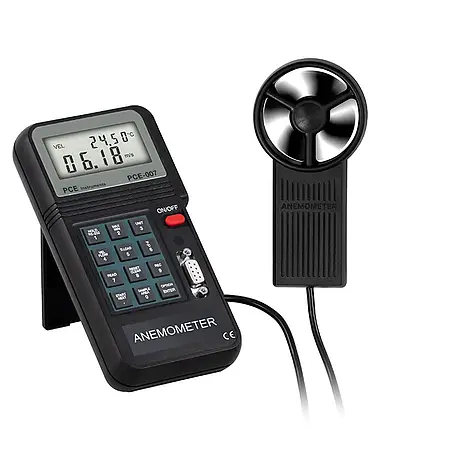

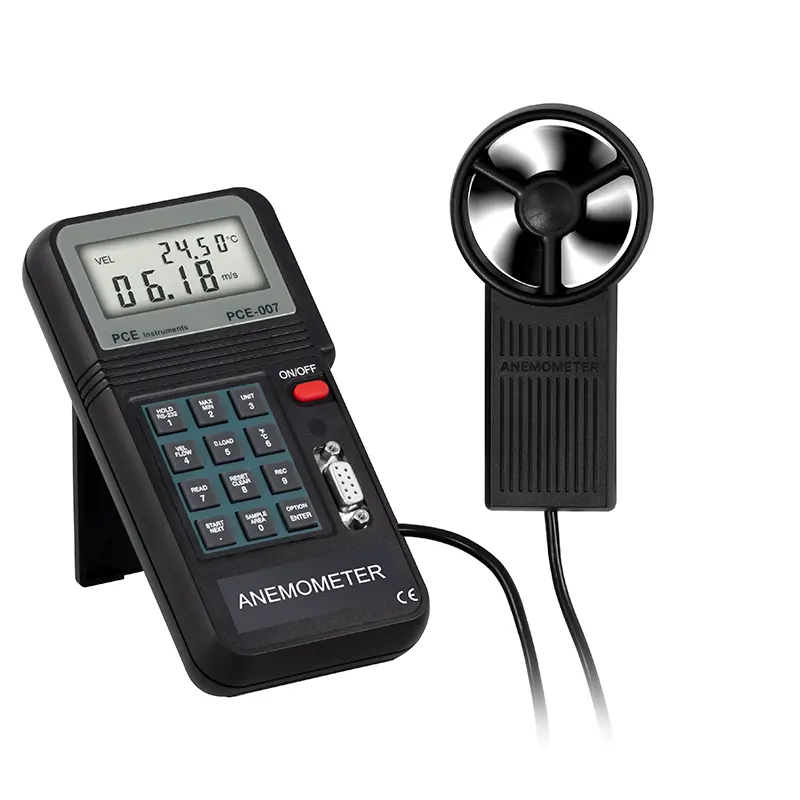

Wind Speed Meter PCE-007

Order no.: PCE-007
GTIN (EAN): 4250348700117
321,90 €
383,06 €
price ex. (VAT / delivery)
:
4250348700117
PCE-007
Delivery time: 1-2 working days
Impeller
Up to 45 m/s
Yes (integrated)
Yes (RS-232)

Accessory

ISO Calibration Certificate CAL-AM
ISO Calibration Certificate CAL-AM
183,90 €

Description

Wind Speed Meter with connection port, memory, software for measuring wind speed, temperature and Data logger

This Wind Speed Meter is very economical. With this Wind Speed Meter you can measure wind speed and air temperature. Once you have the right cross section, the Wind Speed Meter will show the air volume flow. The readings can be stored in the device and then transferred to a computer for further analysis. As such, you can take a series of measurements with the Wind Speed Meter off-site, then look closely at the data once back at the office. In this way, you save time and maintain a high level of accuracy in readings.

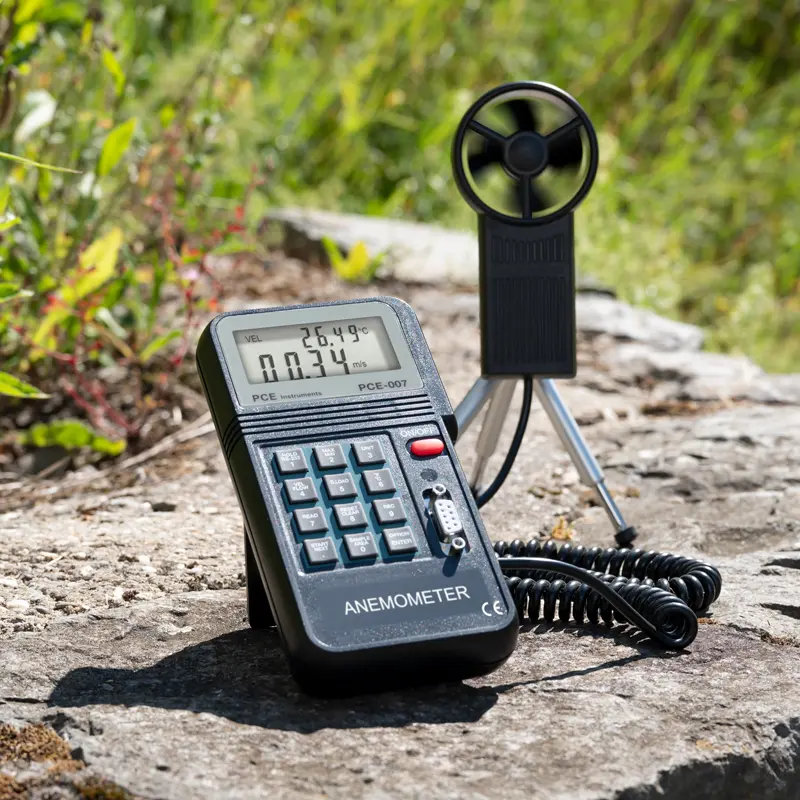

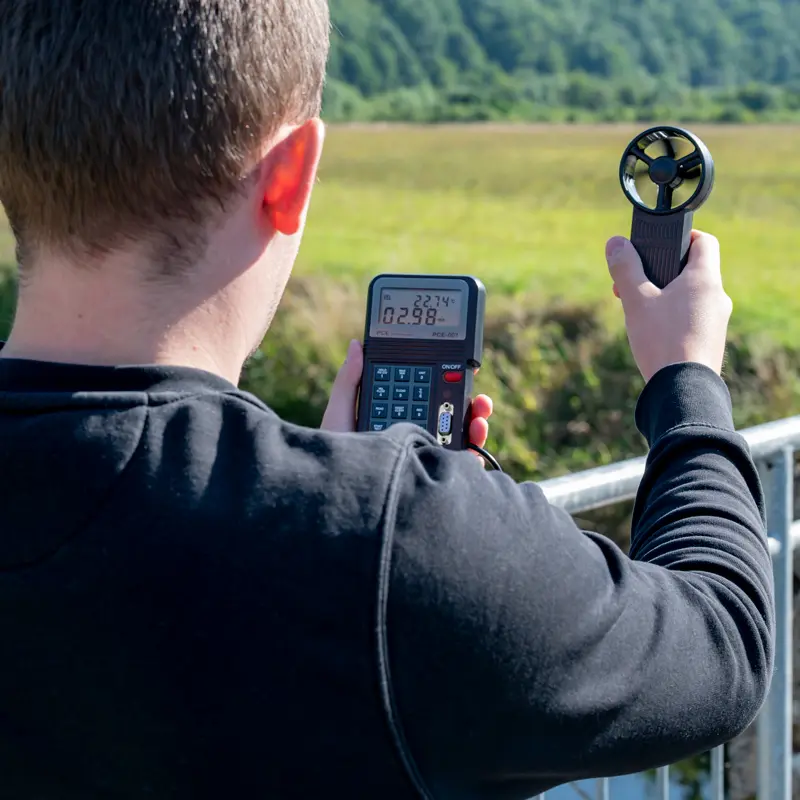

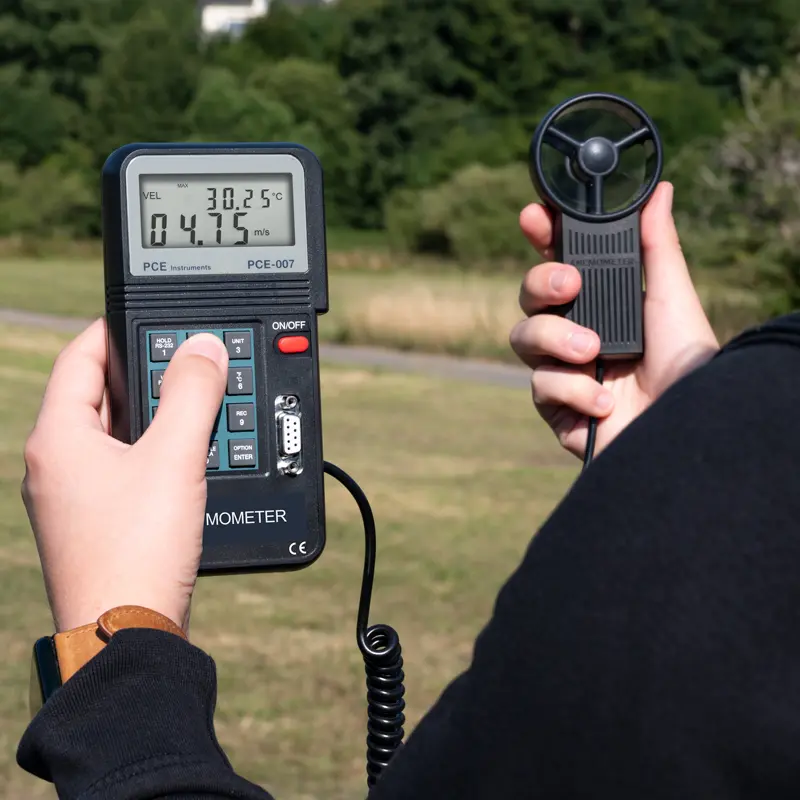

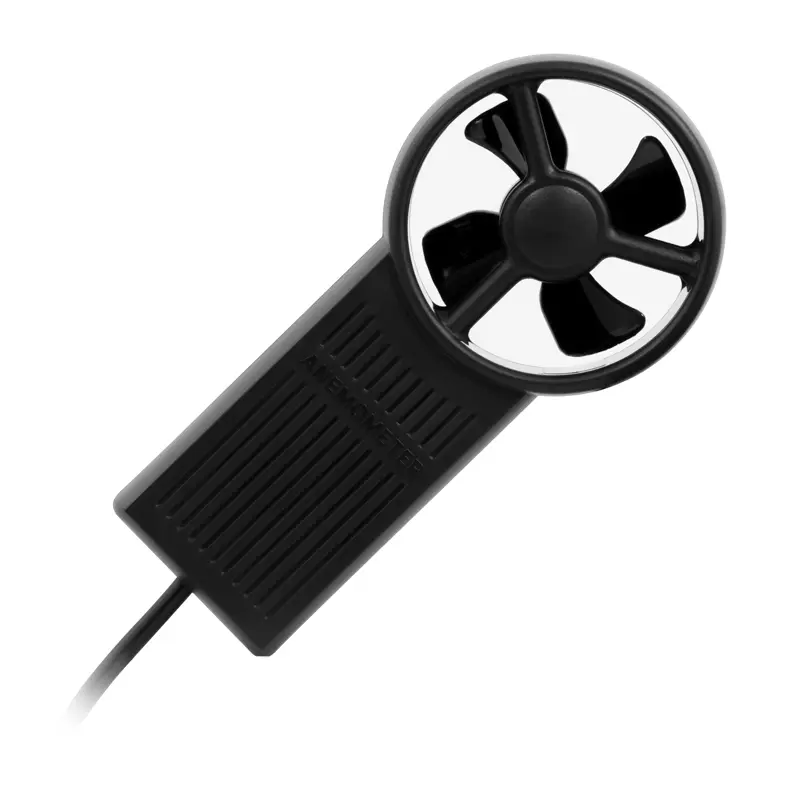

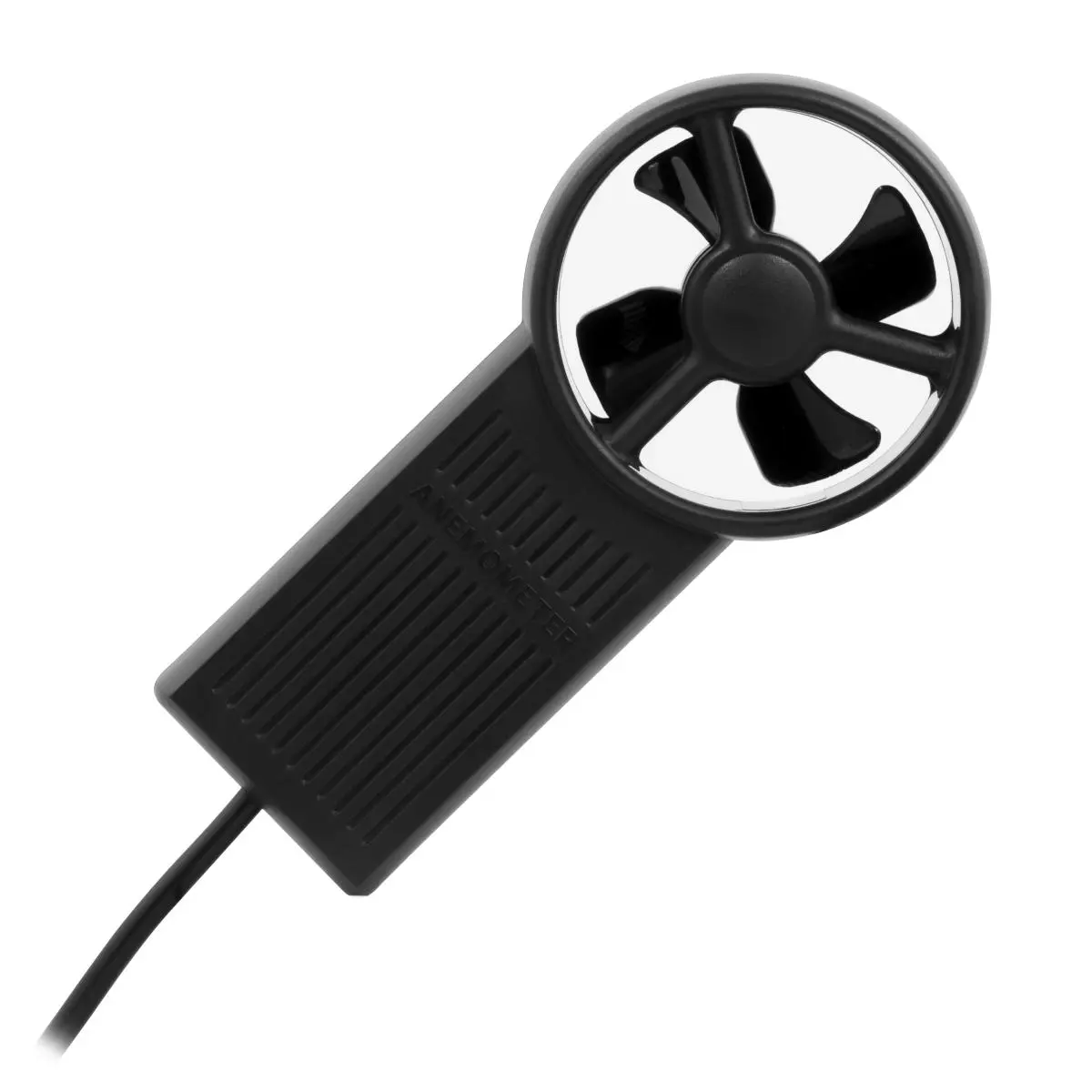

The external impeller, connected by a 1.5 m / 4.9 ft long cable, increases the mobility and flexibility of measurements of wind speed. These Wind Speed Meters form a part of the basic equipment of an installation technician for  ventilation systems. The useful life of the battery is approx. 50 hours with a current of 300-mA/h. If you wish to take timed measurements over a period of time longer than 2 days, you will need to use a battery pack, or a power adapter.


Highlights

- Measures wind speed and air temperature
- Calculate and shows Data logger
- Stores up to 2000 readings

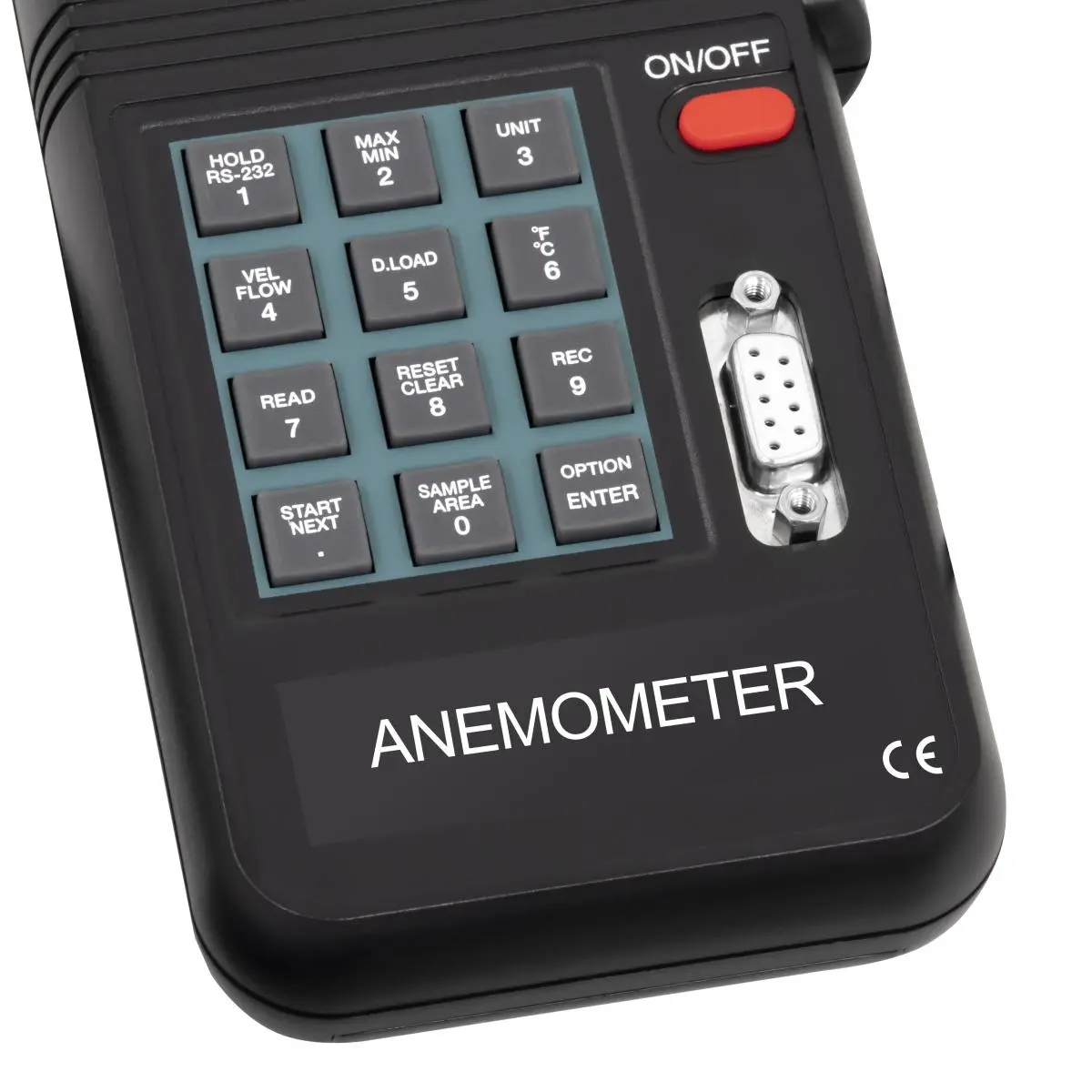

- Comes with an RS-232 interface
- Has software to transfer data
- Shows distinct units of measurement

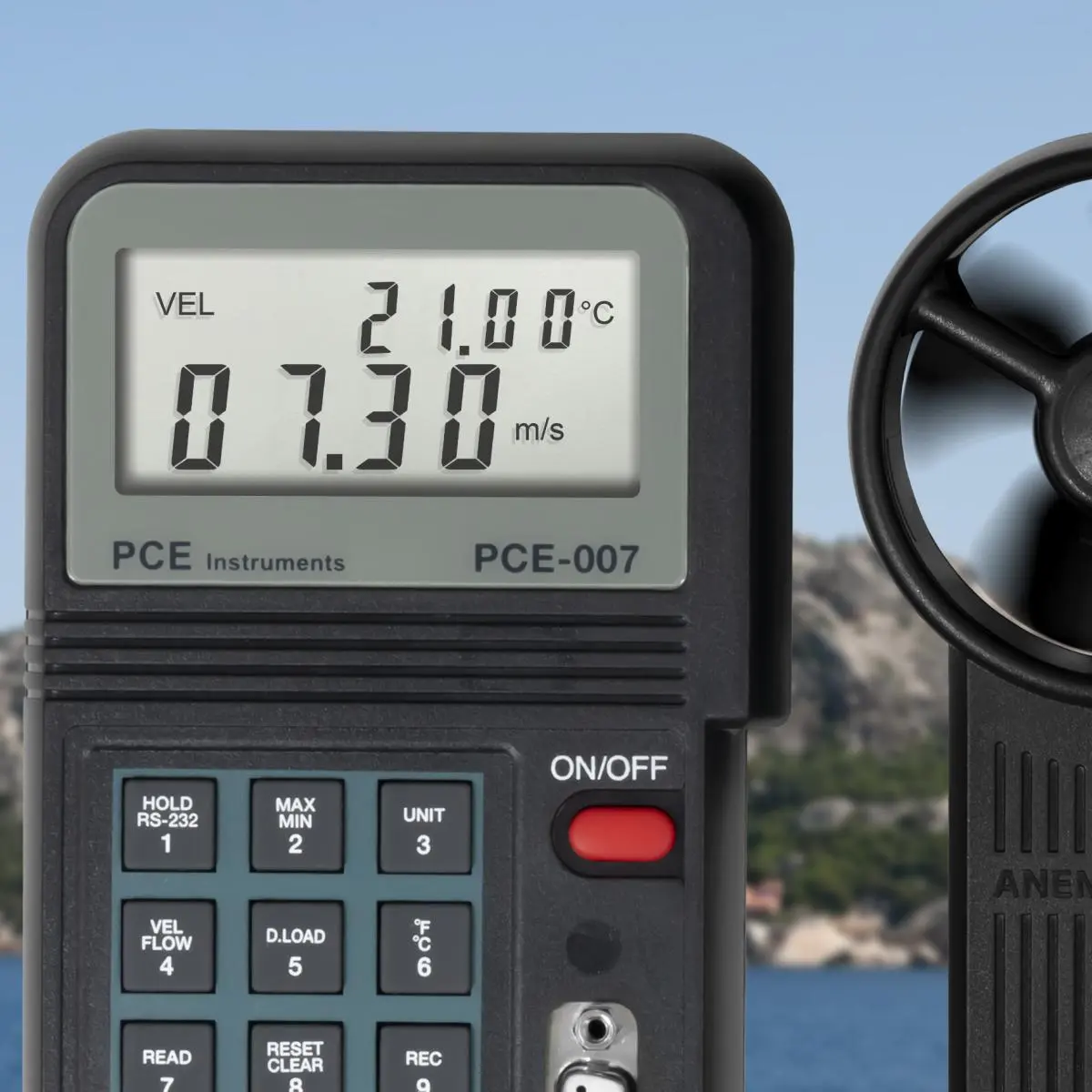

- Has a dual display
- Is easy to use
- Max/Min/Hold functions
- Auto-Power off

Specification

Ranges of measurement with the corresponding symbol of measurement displayed for the PCE-007 Flow meter:
    - m / s
    - Feet/min
    - Knots
    - Km/h
    - Mph
    - °C / °F
    - m³/min 		0.3 ... 45.0
0.3 ... 8800
0.3 ... 88.0
0.3 ... 140.0
0.3 ... 100.0
0.0 ... 45.0 / 32 ... 113°F
0.0 ... 999,900
Resolution:
    - Wind speed
    - Air temperature
    - Data logger 		0.01 m/s (the same for all units)
0.2°C / 32.4°F
0.001 to 100 (according to the measurement range)
Accuracy:
    - Wind speed
    - Air temperature
    - Data logger 		±3% ±0.1 (the same for all units)
±1°C / 33.8°F
Calculated from the wind speed and the surface
Interface Yes, RS-232 for data transfer
Memory Yes, 2000 readings either as wind speed or temperature.
Don't forget: if the memory is full, it will save all currently stored data, but if the batteries have no power, then all the data will be lost.
Software Yes, for the configuration of the device and to transfer data to a computer (with Windows 95, 98, 2000 or XP Professional)
Measurement values can be exported to other programmes such as Excel.
Data transmission rate (via software)  1 s

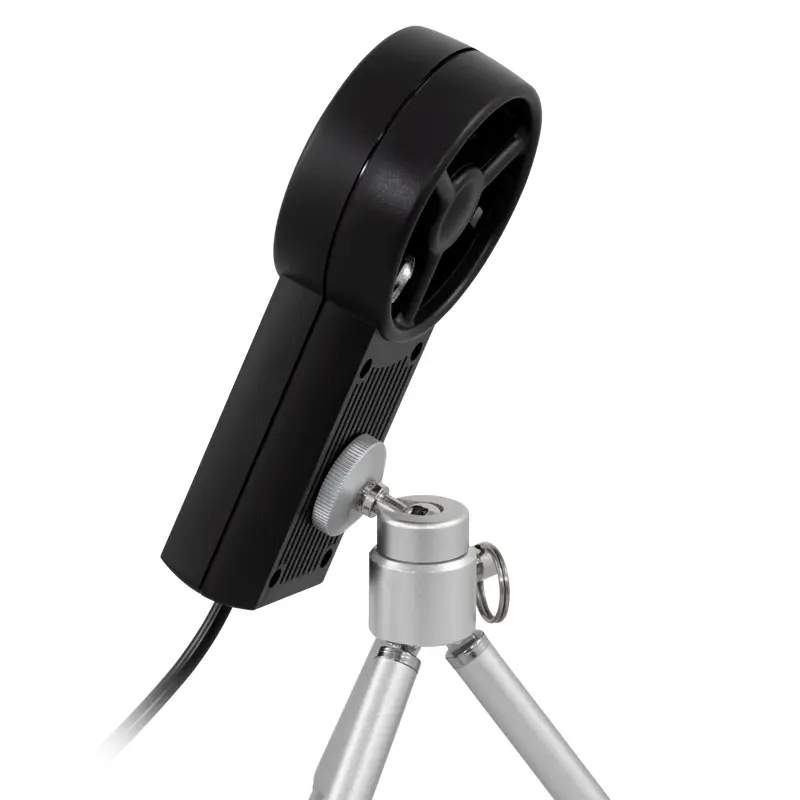

Side wheel
  - Casing
  - Dimensions 		Sapphire (set upon bearings of precious stones)
66 x 132 x 29.2 mm / 2.6 x 5.2 x 1.1 in

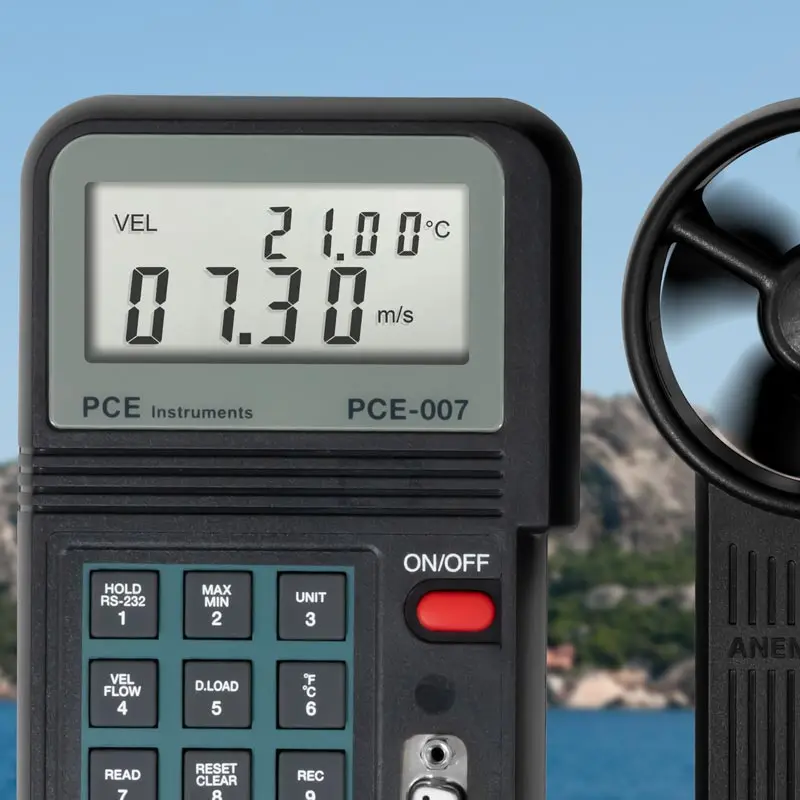

Display  2 double LCDs with 4 digits
Operating conditions  Data logger:    0 ... 50°C / 32 ... 122°F,  <80% r.h.
 Side wheel:       0 ... 60°C / 32 ... 140°F, <80% r.h.
Power  1 x 9V battery (approx. 50 hours of use)
Dimensions of the device  88 x 168 x 26.2mm / 3.5 x 6.6 x 1 in
Enclosure  ABS plastic
Weight  350g / < lb

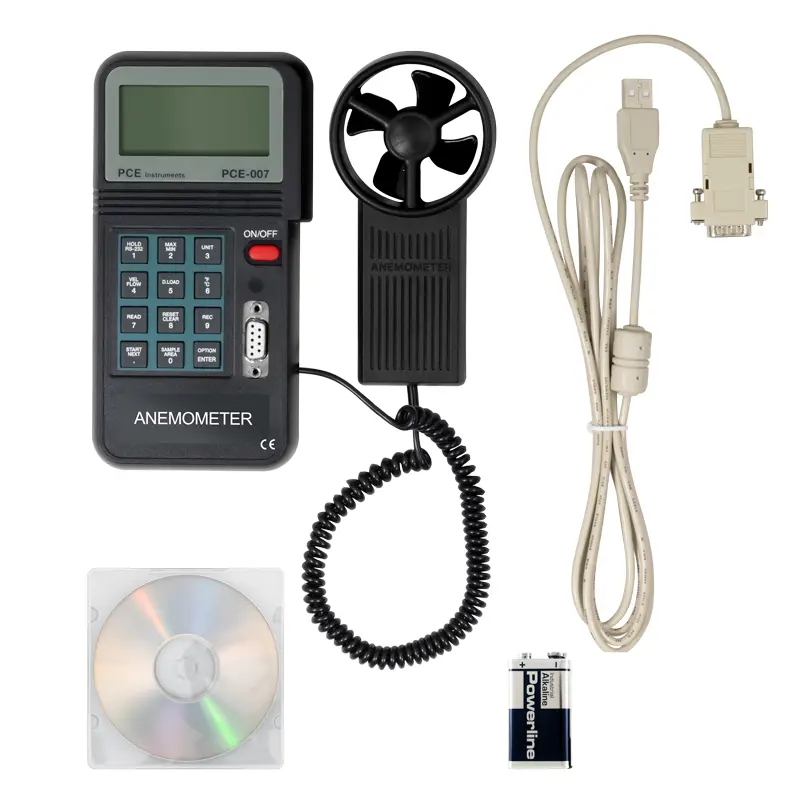

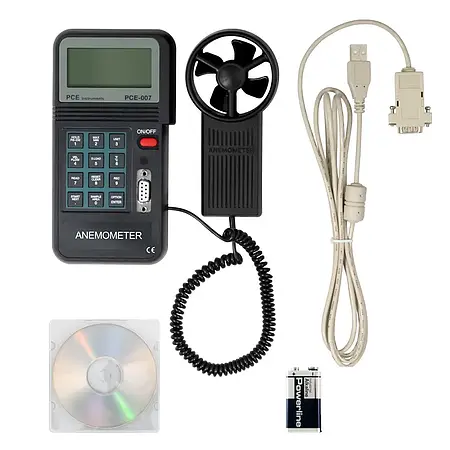

Delivery Scope

1 x PCE-007 Wind Speed Meter with impeller and 1.5 m / 4.9 ft long cable
1 x Interface
1 x Software
1 x Battery
1 x Bag
1 x User's manual
