Table Housing PCE-TGH450

Order no.: PCE-TGH450
GTIN (EAN):
131,90 €
156,96 €
price ex. (VAT / delivery)
PCE-TGH450
Delivery time: 1-2 working days

Description

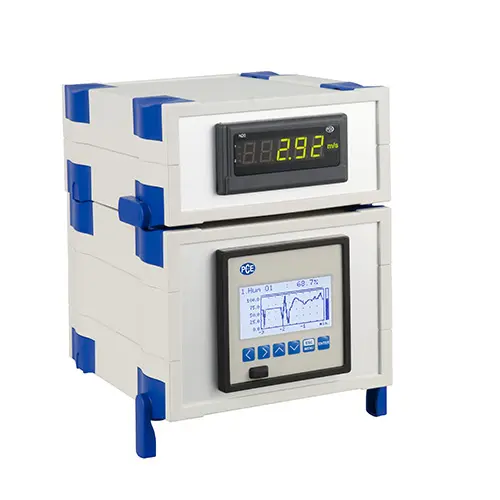

Desktop enclosure for controller, display, paperless recorder / pedestals / 45 x 92 mm panel cutout / stackable

Table housing for controller, display, screen recorder with the control panel cutout 45 x 92 mm. The table housing is supplied with an aluminum panel with a matching cutout. The table housing has mounting feet at the front. This makes it possible to conveniently read the measured values ​​from the built-in mounting devices. Several stacking boxes can be stacked on the upper side without slipping.

Highlights

- 45 x 92 mm cutout
- Plastic housing
- Mounting feet
- Aluminum front panel
- Stacking cavities in the cover
- Easy installation

Specification

Technical specification
Control panel cutout45 x 92 mm / 1.7 x 3.6 in
External dimensions178 x 65 x 197 mm / 7 x 2.5 x 7.7 in(W x H x D)
Built-in depthMax. 186 mm / 7.3 in
Housing materialABS
Front panel material Aluminium
WeightApprox. 300 g / 10.5 oz

Delivery Scope

Delivery
1 x Table housing PCE-TGH 450
