PCE-MA 100 Analytical Balance
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content

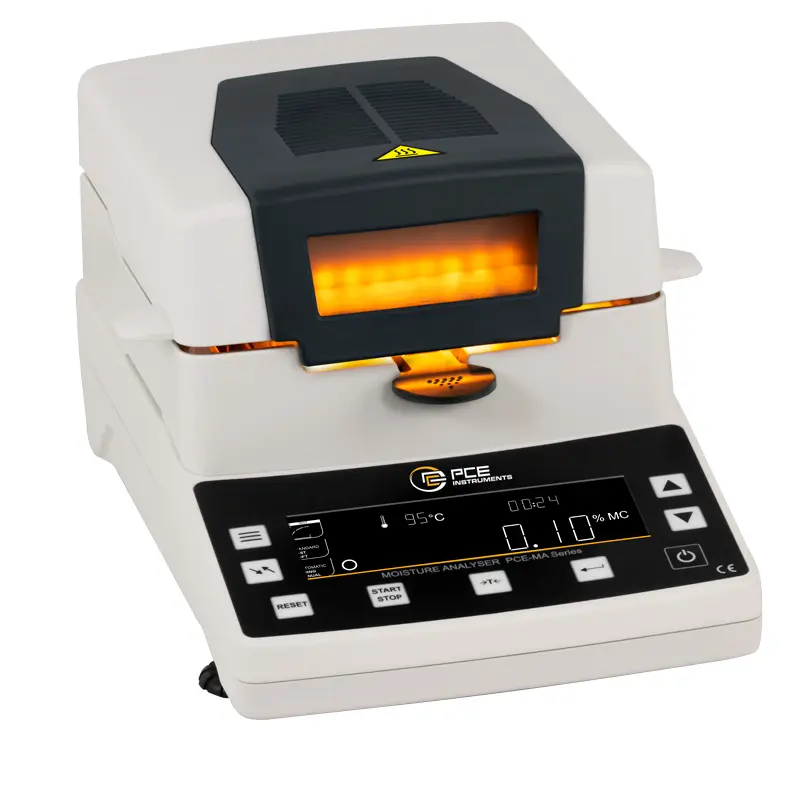

The analytical balance PCE-MA 100 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the analytical balance dries the material to be weighed, and then calculates the moisture content from the weight difference. The analytical balance can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the analytical balance. Accordingly, the analytical balance is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the analytical balance can be calibrated at any time.
Weighing range | 110 g |
Readability | 1 mg / 0.001 g |
Heating element | halogen lamp |
Temperature range | +40 ... +199 °C |
Heating time | 1 ... 99 min. adjustable |
Humidity measurement range | 0 ... 100 % |
Readability | 0.01 % |
Memory | 15 drying programs |
Interface | RS-232 |
Display | LCD, 9 membrane keys |
Power supply | 220 V / 50 Hz or 110 v / 60 Hz |
Dimensions | 200 x 180 x 380 mm |
