GSM Paper Basis Weight Balance PCE-DMS 200

Order no.: PCE-DMS 200
GTIN (EAN): 4250348700728
243,90 €
290,24 €
price ex. (VAT / delivery)
:
4250348700728
PCE-DMS 200
Delivery time: 1-2 working days

Description

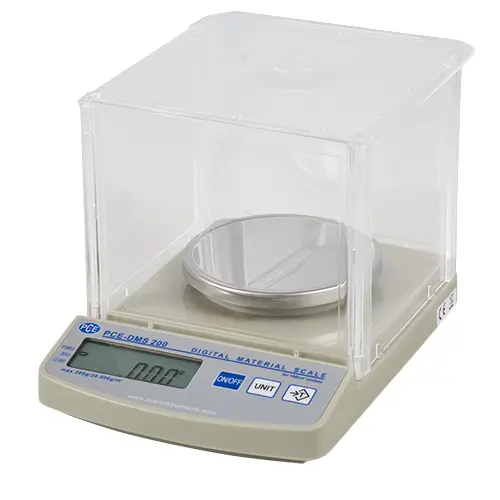

PCE-DMS 200 GSM Paper Basis Weight Balance
10 cm round pan for weighing 11 cm circle cut samples

PCE-DMS 200 is a GSM paper basis weight balance or scale used to accurately determine the basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd². Weighing units can be changed with just the push of a button.

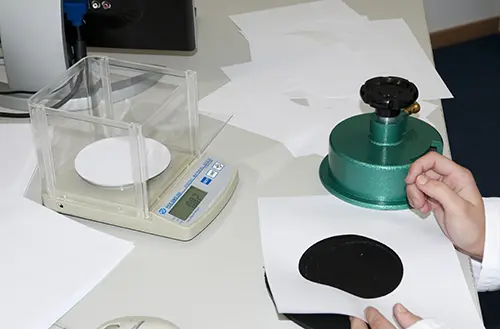

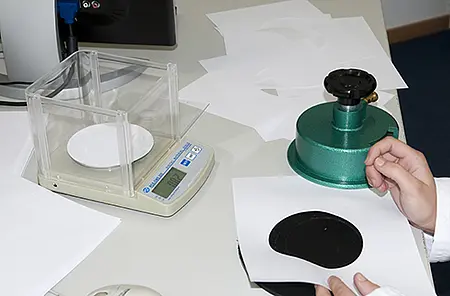

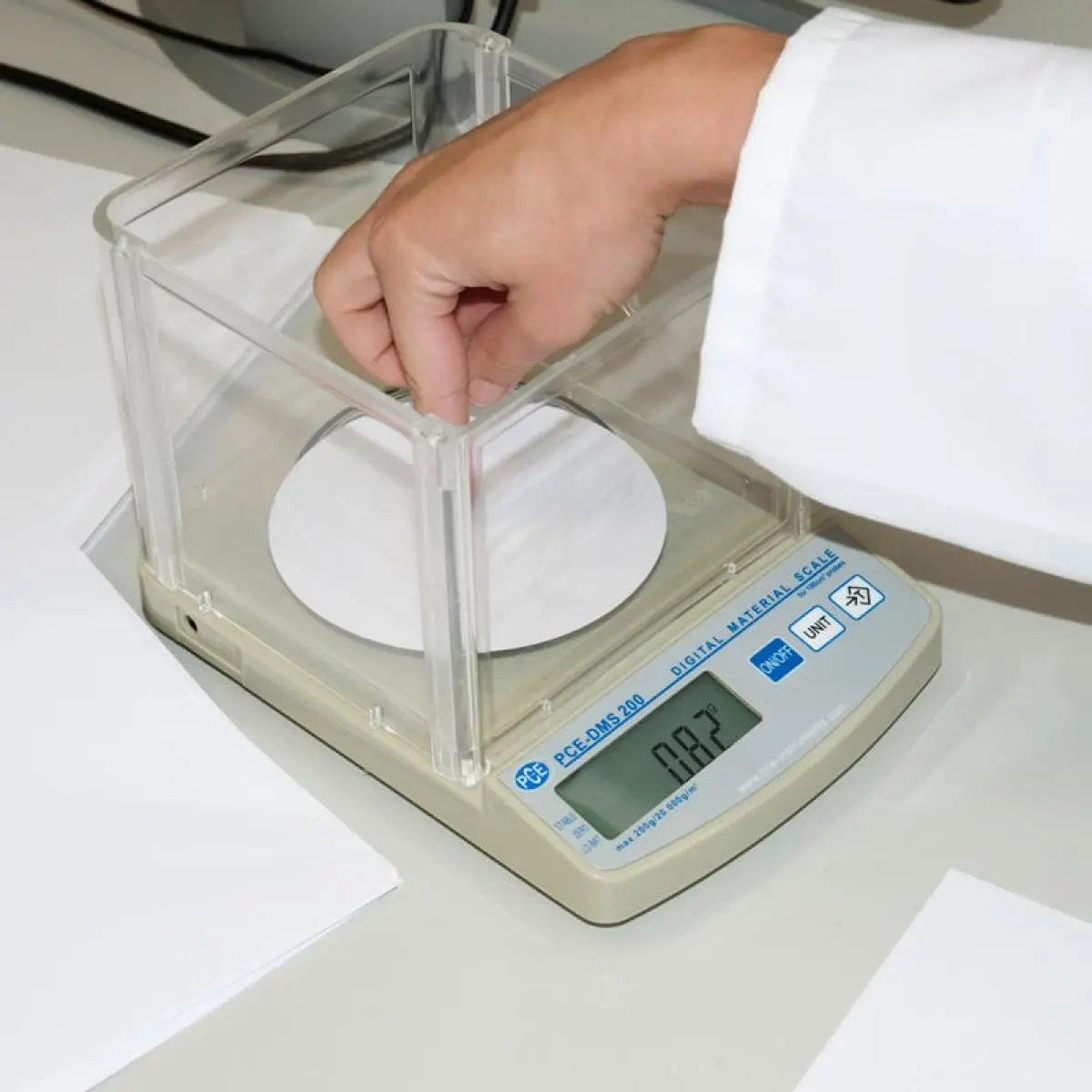

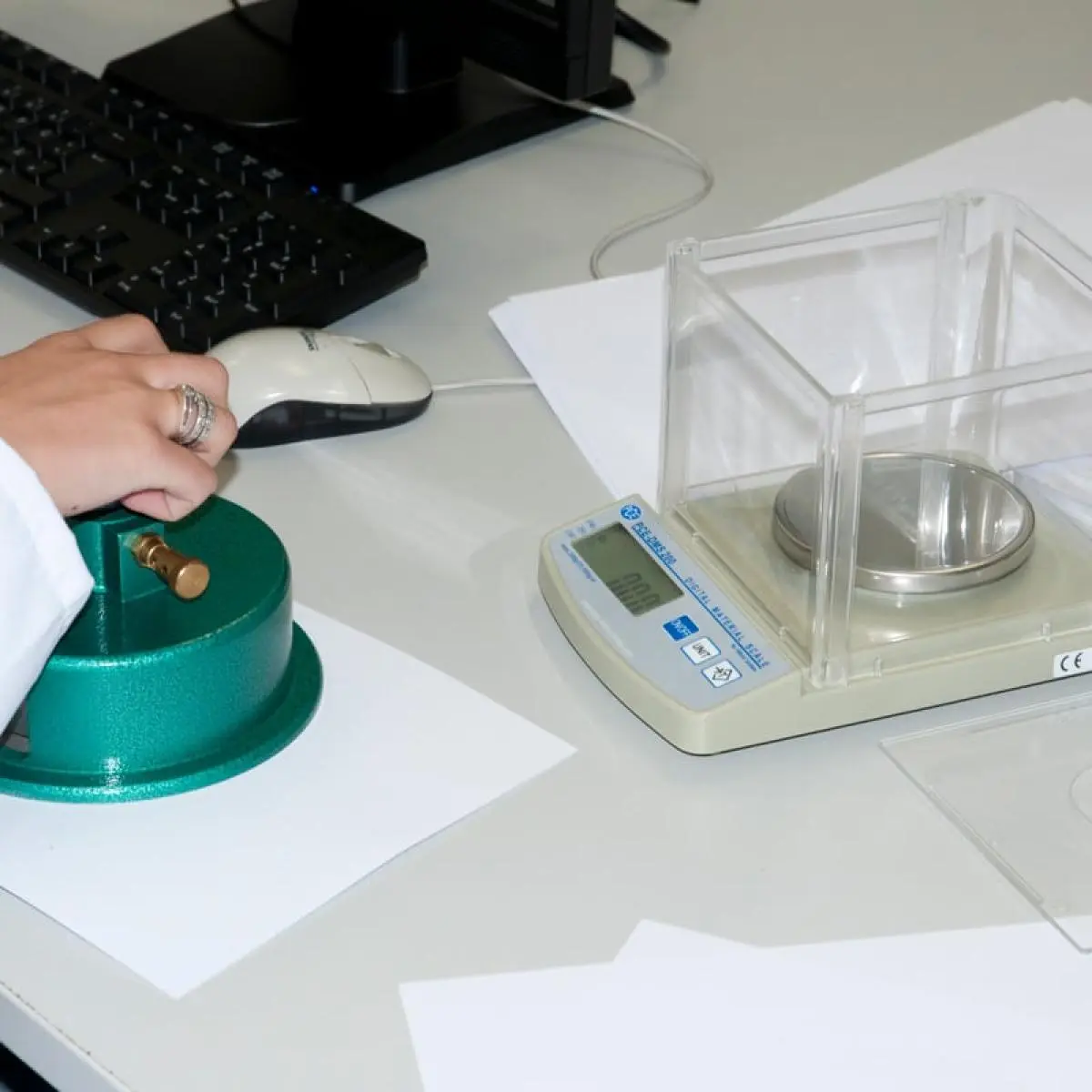

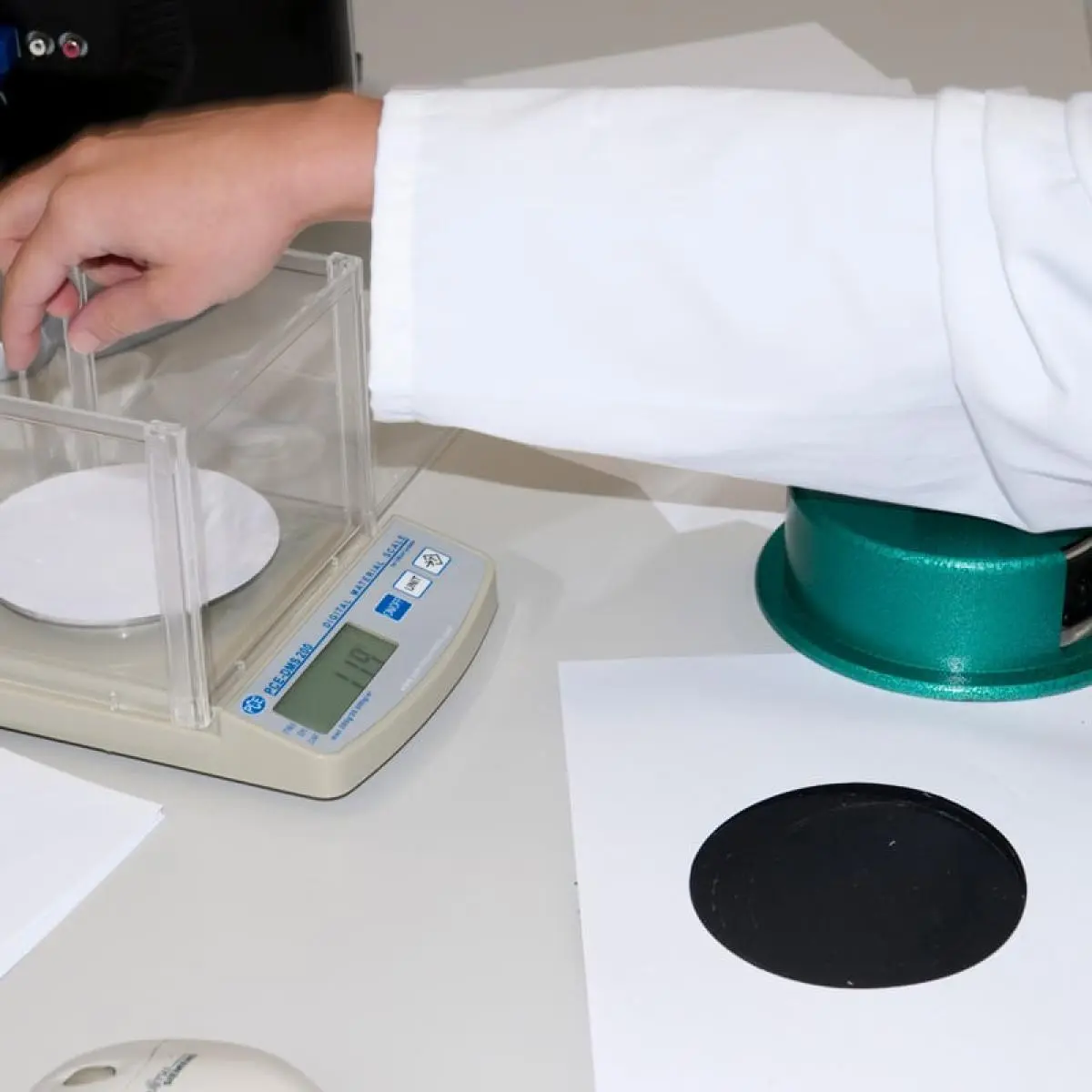

The PCE-DMS 200 paper basis weight scale is used primarily by paper and textile production companies. The paper and textile industries perform similar quality control testing by weighing a 11 cm round circular sample of paper or fabric. The PCE-DMS 200 paper basis weight scale makes this test process quick and easy, especially when using the optional 11 cm circle sample cutter accessory (see accessories tab for details).

Highlights

- 10 cm round pan for weighing 11 cm circle cut samples
- Weighing units can be changed with just the push of a button
- Easy-to-read 15 mm (0.6") backlit LCD display
- Automatically powers off (saves battery life / function can be disabled)
- Automatic calibration function (using external weight - not included)
- Optional ISO calibration certificate (see accessories tab for details)

Specification

Weighing ranges 0 ... 200 g, 0 ... 20,000 g/m², 0 ... 7.05 oz or 0 ... 589.87 oz/yd²
Readability 1 g/m²  or  0.01 g
Repeatability 0.02 g
Linearity± 0.02 g
Stabilization time 3 seconds
Calibration Automatic function (using external weight - not included)
Display 15 mm (0.6") LCD / backlit
Power supply 230 V / 50 Hz (via 12 V net adaptor) or 6 x AA batteries
Housing ABS plastic
Wind shield Plastic / Approx. 145 x 145 x 120 mm (5.7 x 5.7 x 4.7")
Pan size Round, 10 cm (Approx. 4") diameter
Overall dimensions        Approx. 145 x 210 x 40 mm (5.7 x 8.3 x 1.6")
Net weightApprox. 1 kg (2.3 lb)

Delivery Scope

1 x PCE-DMS 200 GSM paper basis weight balance
1 x Wind screen
1 x Power supply
6 x AA batteries
1 x User manual
