Checkweighing Scale PCE-MS PF60-1-45x45-M

Order no.: PCE-MS PF60-1-45x45-M
GTIN (EAN): 4250348729033

376,90 €
448,51 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348729033
PCE-MS PF60-1-45x45-M
Delivery time: 10 - 14 days
0.02 kg
Yes

Description

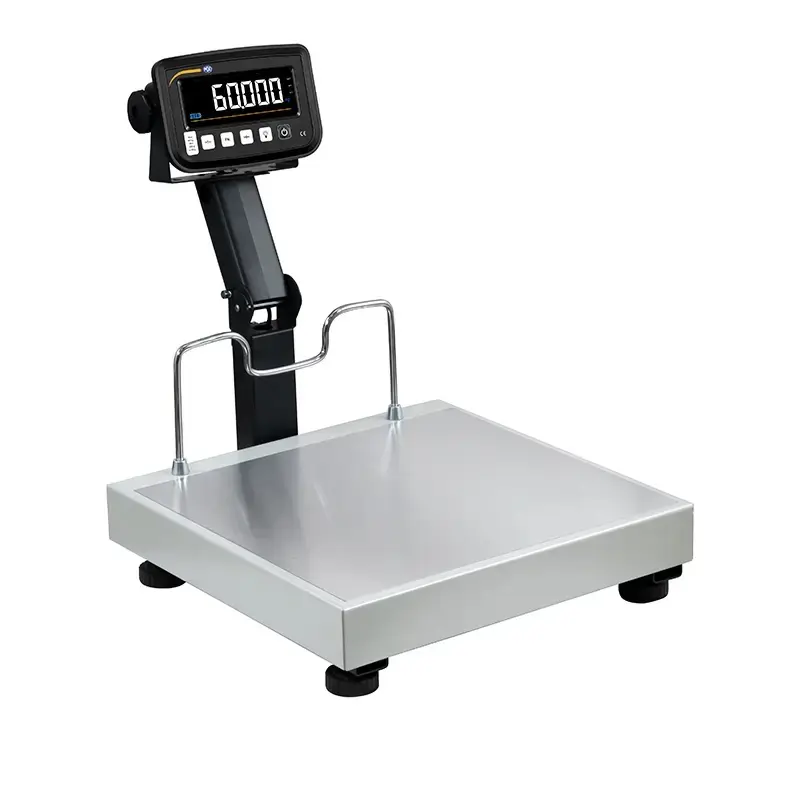

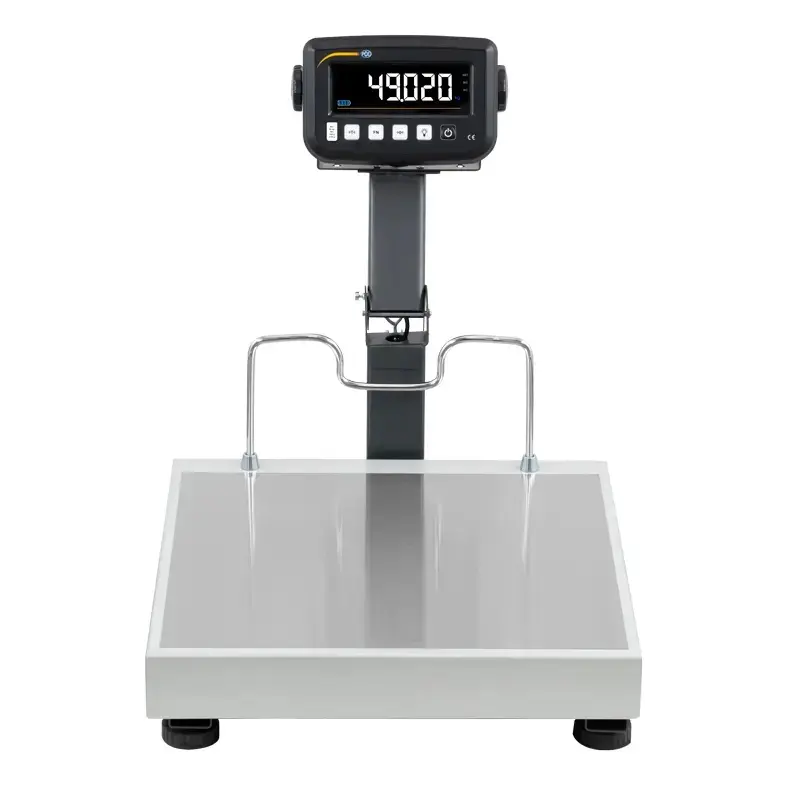

Checkweighing Scale / Max. capacity 60 kg (132 lb) / Calibration value: 20 g / Incl. verification (conformity assessment)

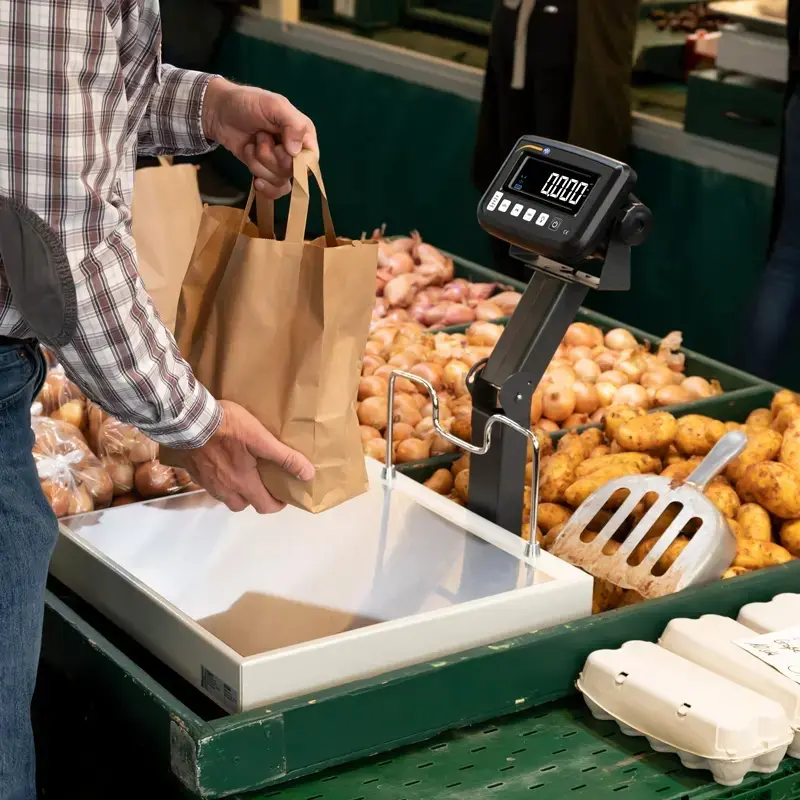

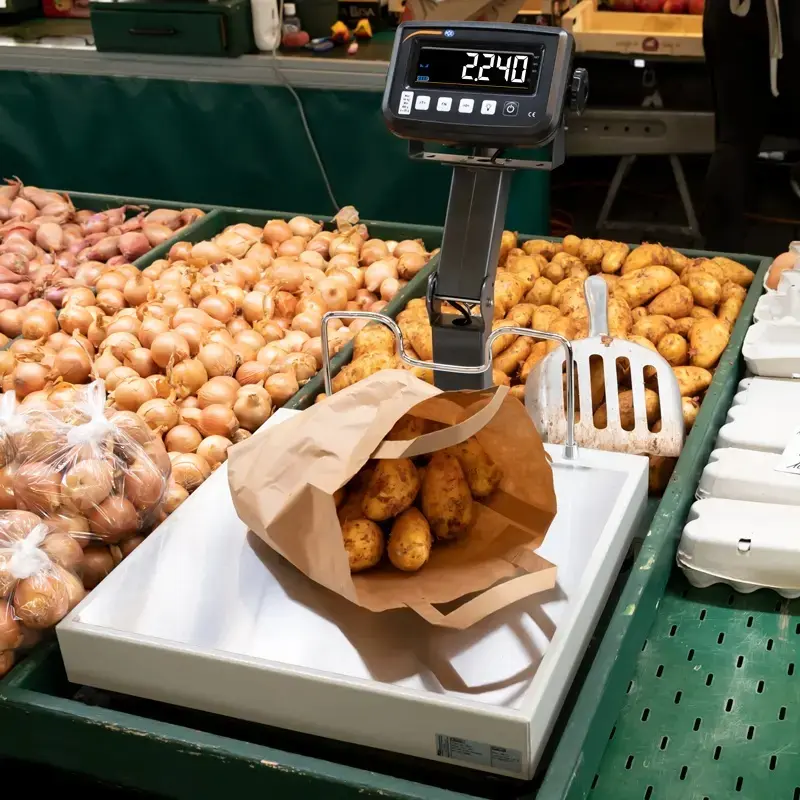

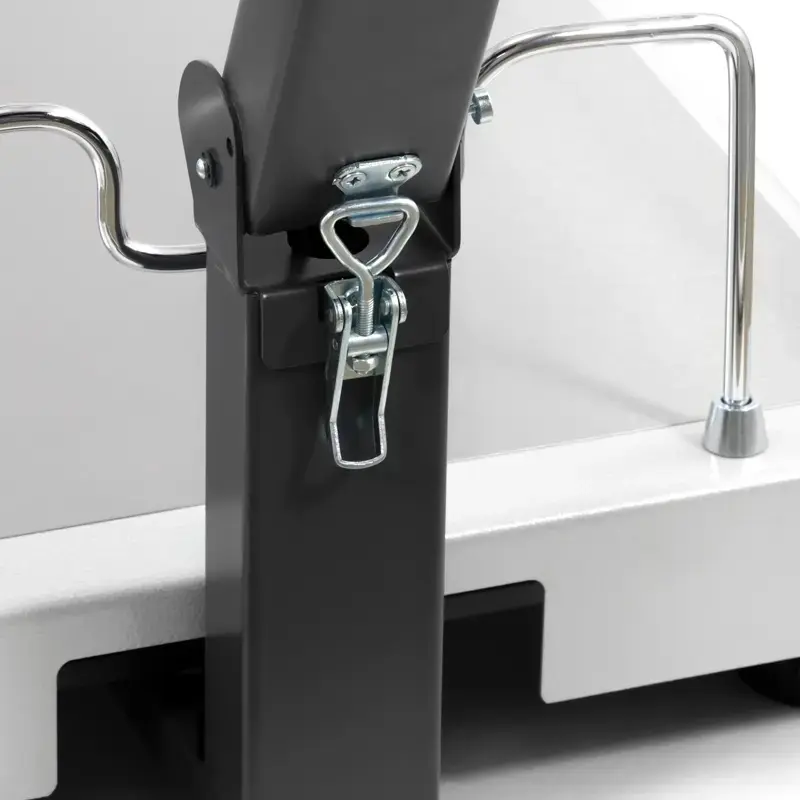

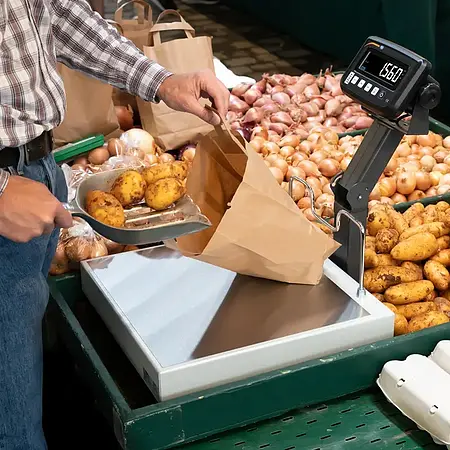

The checkweighing scale was designed for mobile use on tables. It is equipped with a display tripod that can be folded up in a few simple steps without tools. The conformity assessment, which replaces the first verification, is carried out for the largest possible geographical area around the planned installation site of the scale.

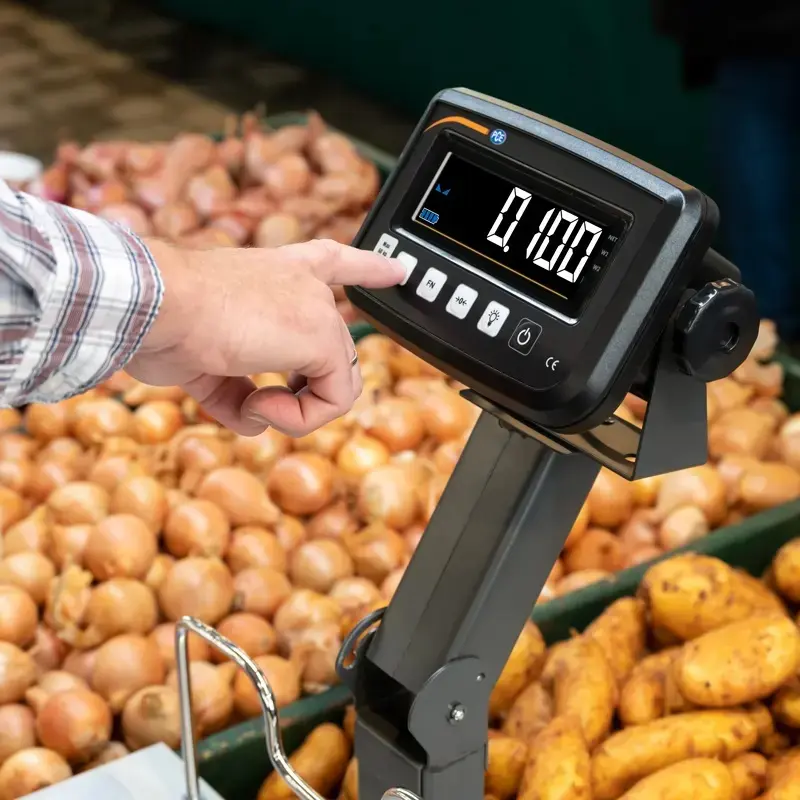

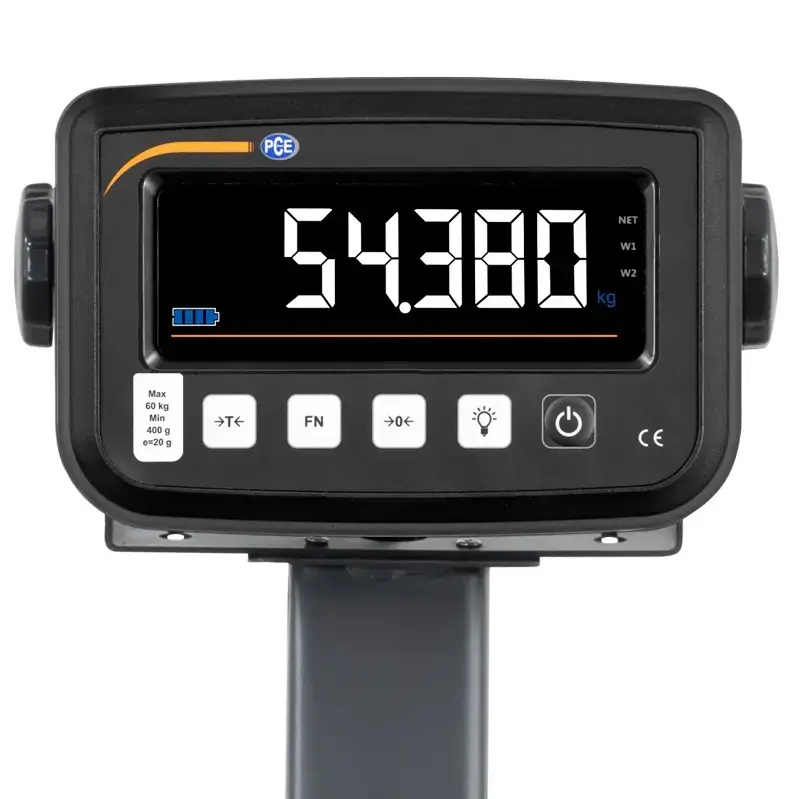

The checkweighing scale is operated via the internally installed rechargeable battery, which enables a service life of up to 25 hours in continuous operation. The energy-saving mode helps to significantly extend the operating time. The checkweighing scale has a high-contrast inverted display with a digit height of 28 mm (1.1"). The display can be easily protected from dirt with the help of a practical transparent protective cover. The verified checkweighing scale has a bidirectional USB-B interface with which the weighing values ​​can be transferred directly to a computer.

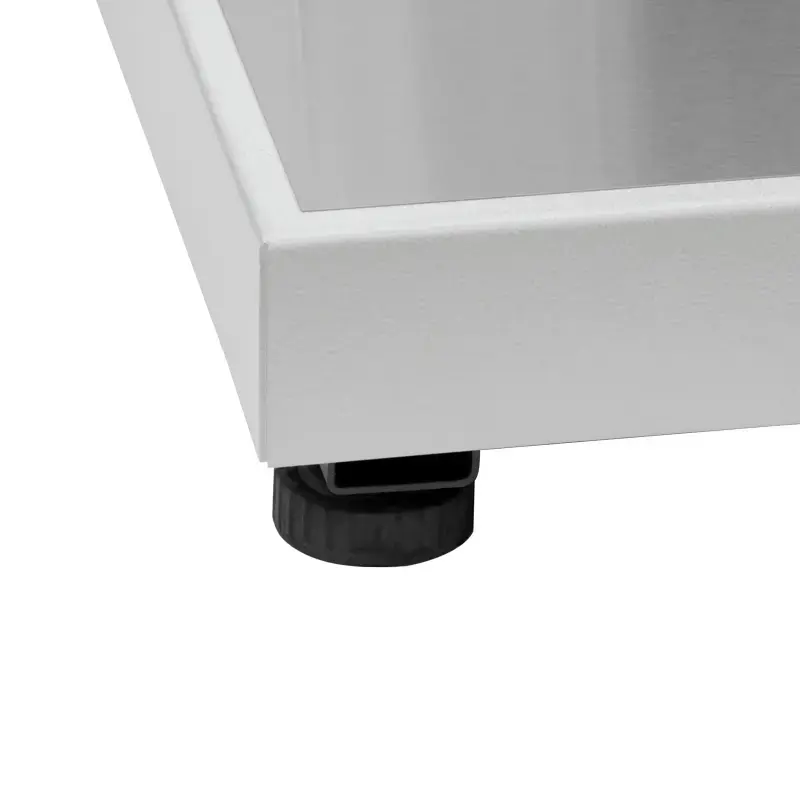

The usable area of ​​the checkweighing scale is 45 x 42 cm (17.7 x 16.5"). On the side where the display stand is connected, the platform closes with a bracket that simplifies correct load placement. The checkweighing scale is powder-coated, and the bearing surface of the weighing platform is also provided with a thin layer of stainless steel.

Specification

Scale type single-range scale
Weighing range [max] 60 kg / 132 lb
Resolution [d] 20 g / 0.7 oz
Weighing unit kg
Calibration value [e] 20 g / 0.7 oz
Verification class [e] M III
Minimum load [min] 400 g / 14.1 oz
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing plate [WxD] 450 x 450 mm / 17.7 x 17.7" / usable area with protective bar 450 x 420 mm / 17.7 x 16.5"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 100 kg / 220 lb / IP 65
Operating temperature -10 ... +40 °C / 14 ... 104 °F
Weight 17.7 kg / 39 lb

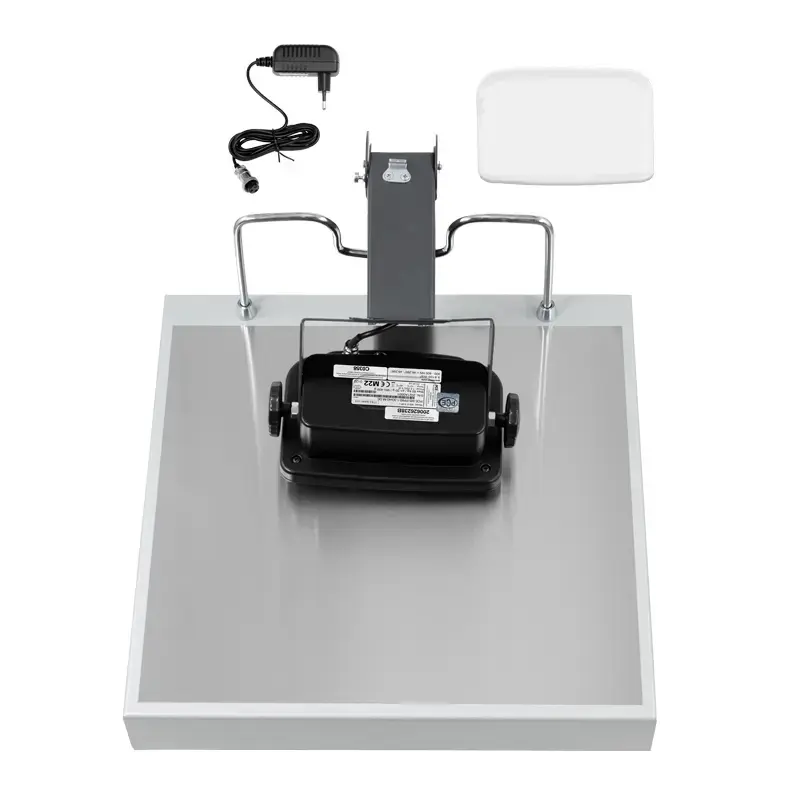

Delivery Scope

1 x Checkweighing Scale PCE-MS PF60-1-45x45-M
1 x Mains power adapter
1 x Instruction manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP), Town, Country must be specified
