32,90 €

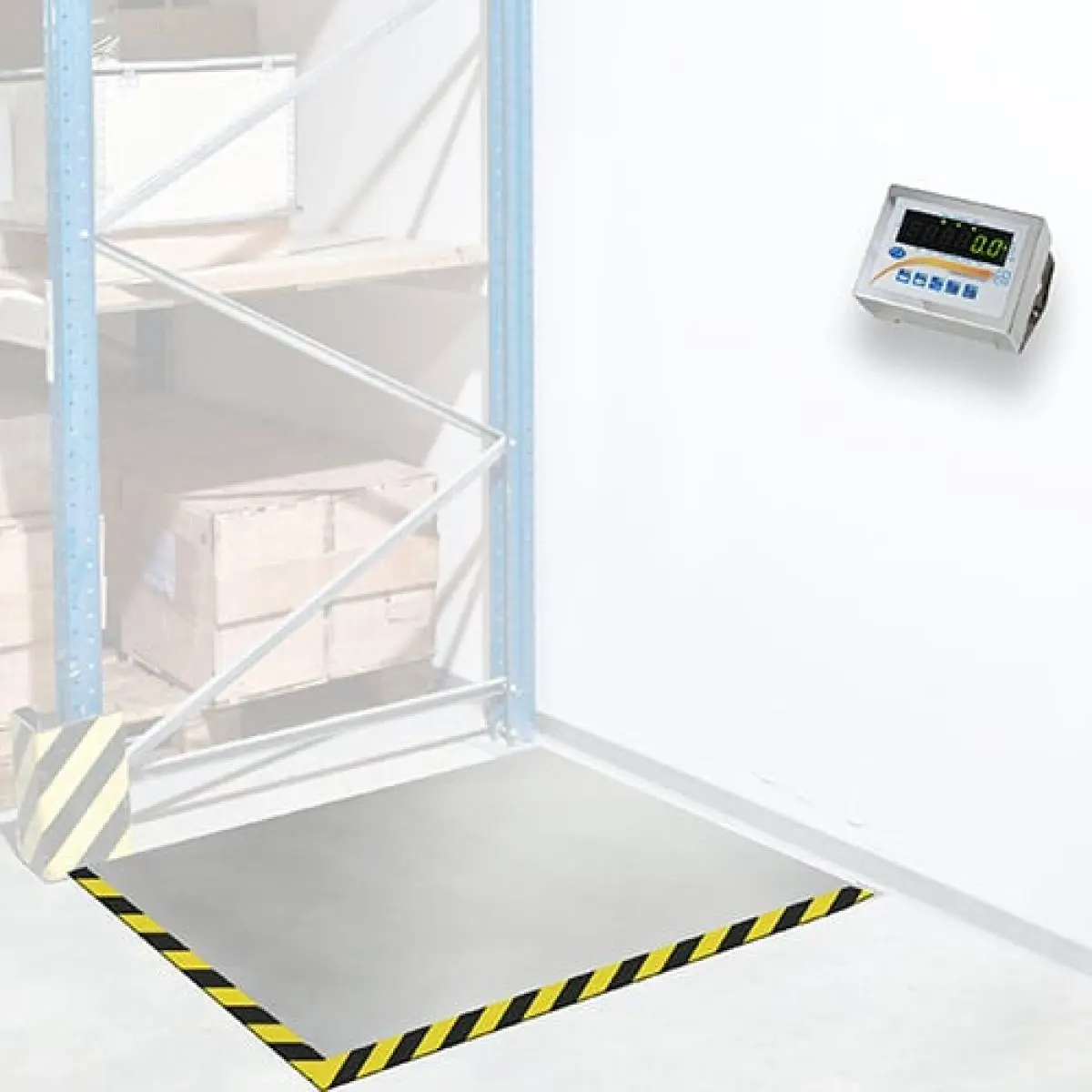

Calibrated stainless steel built-in counting scales up to 6t / Resolution 2 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate
|
|||||||||||||||
| * The minimum load is the load from which the calibration authority checks the accuracy. The verifiable stainless steel floor installation scale also indicates smaller weights, but these may not be used in legal traffic. | |||||||||||||||
| Calibration | calibratable according to class M III (delivered calibrated) | ||||||||||||||
| Tare range | multiple tare over the full weighing area | ||||||||||||||
| Settling time | <4 s | ||||||||||||||
| Display | LED with 20 mm digit height | ||||||||||||||
| Cable length | plugged in 5 m | ||||||||||||||
| Weighing units | kg / piece / lb | ||||||||||||||
| Interface | optional bi-directional RS-232, USB, LAN Interface description e.g. 4-20 mA, 0-10V, OC switching contacts |
||||||||||||||
| Weighing plate | Smooth stainless steel (unscrewable) | ||||||||||||||
| Operating temperature | -10 °C ... +40 °C / 14 ... 104 °F | ||||||||||||||
| Power supply | ~230V 50Hz 8VA (safety plug) | ||||||||||||||
| Protection | cell IP 68 / display IP65 | ||||||||||||||

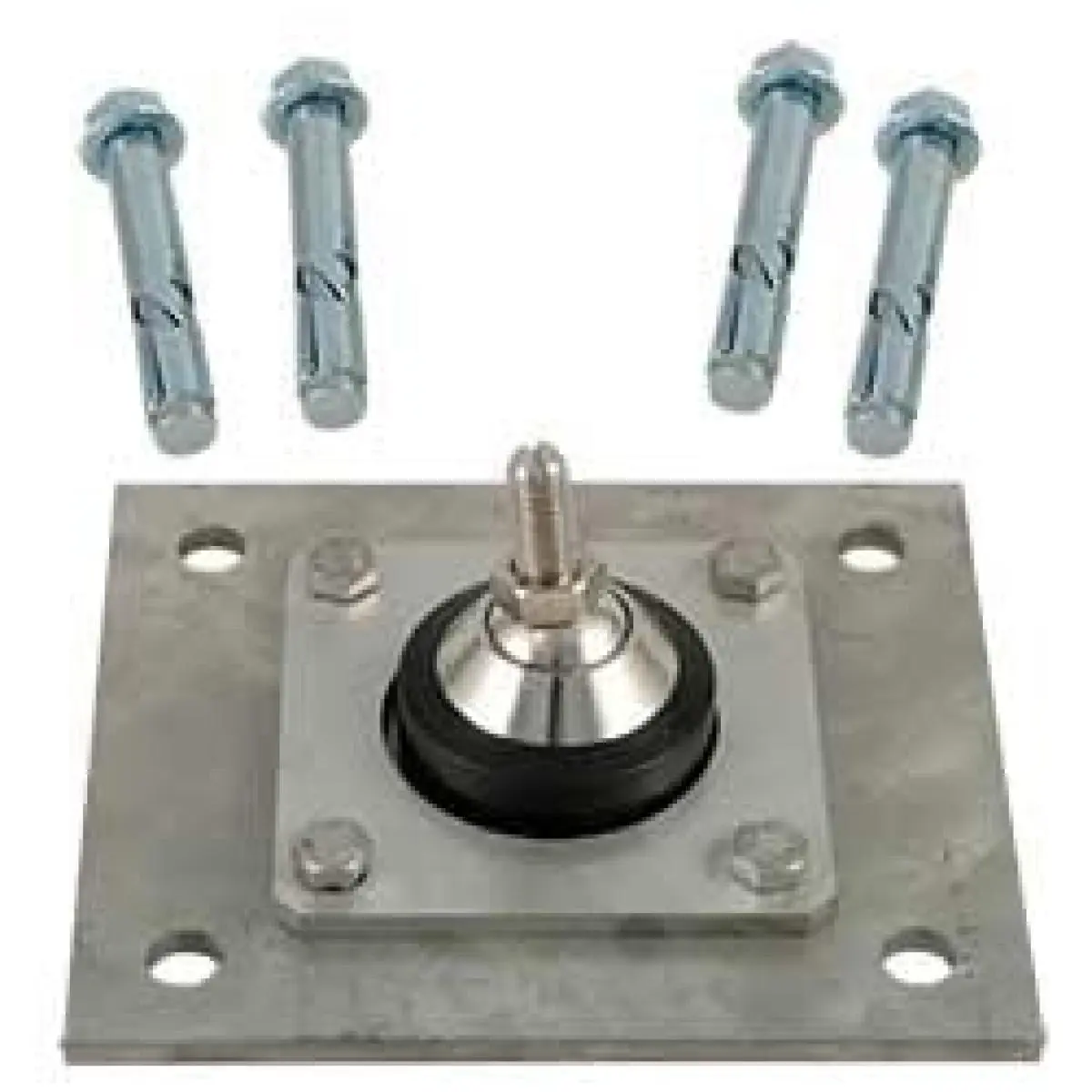

| For the installation of the stainless steel installation scale you need the dimensions of the foundations as well as the frame, which are located behind the buttons sketch | |||||||||||||||
