Floor Scale PCE-SD 1500U

Order no.: PCE-SD 1500U
GTIN (EAN): 4250348712424

2.198,90 €
2.616,69 €
:
4250348712424
PCE-SD 1500U
Delivery time: up to 10 working days

Description

Calibrated floor scale up to 1500 or 3000 kg / resolution above 0.5 kg or 1 kg / analogue outputs optional / mobile due to transportation rollers / bi-directional RS-232 interface

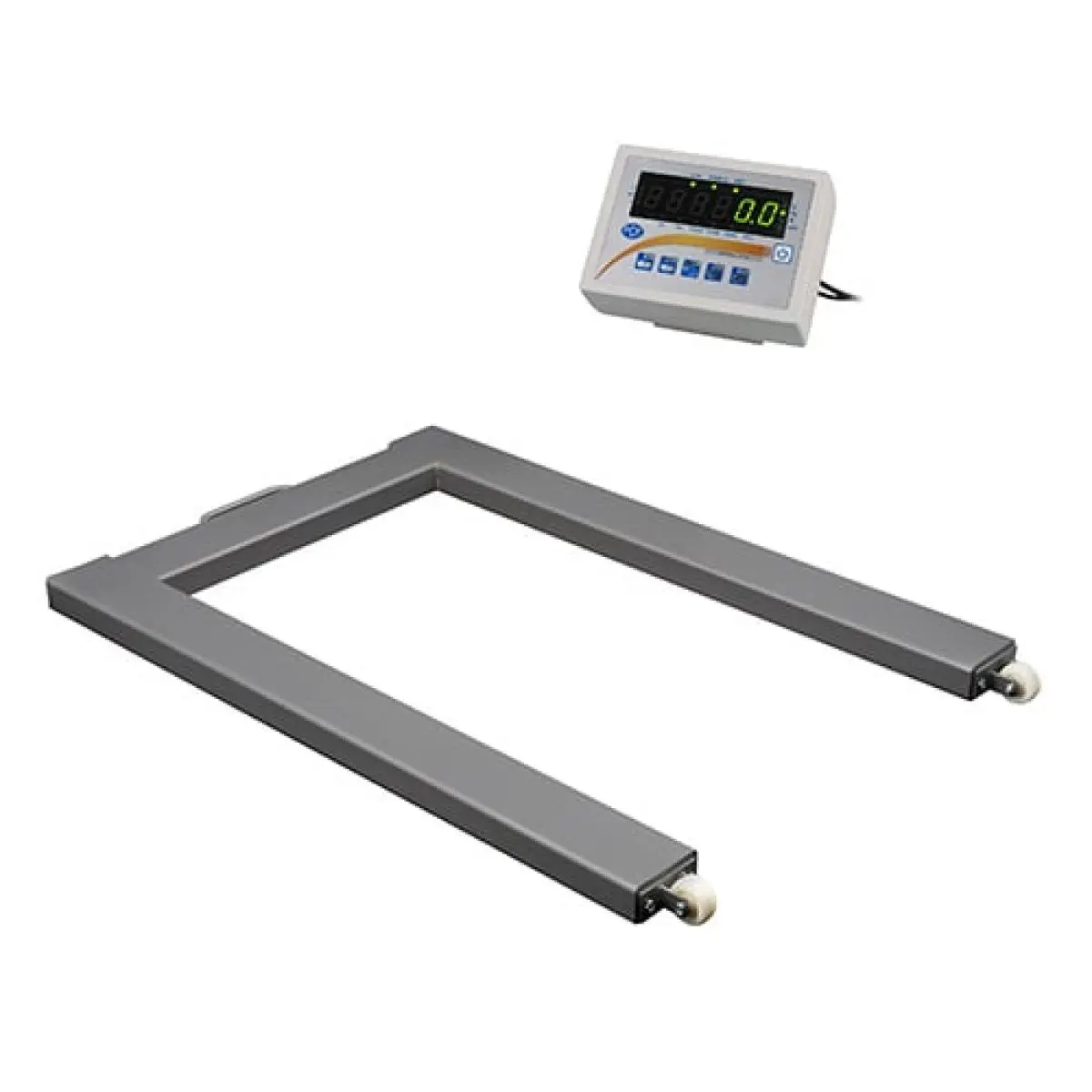

The floor scale is calibratable, and also initially calibrated, designed for mobile applications and having a U-shaped design. The size and measurements of the calibrated floor scale PCE-SD U series is accordant to European standard pallet scales (1200 x 800 mm). The U-shape of the calibrated floor scale allows easy positioning of EU standard pallets on the scale, preferably with a forklift. This calibrated floor scale is lacquered with steel. In order to maintain flexible application of the calibrated floor scale, it features two rollers and a handle, thus the calibrated floor scale can be mounted and dismounted easily and quickly at different locations. The measured data can be easily read from the separate display (connected to a 3.0 m cable). The separate pallet display features a 3.0 m long cable, so that it can be placed on a table or mounted to a wall or placed on a stand. Functions that the calibrated floor scale support are: unit counter, max./min. weighing, composition weighing, percentage weighing, average weight determination, summation function, tare weighing data storage, adjustable RS-232 interface. The bi-directional RS-232 interface can be used to transfer the weighing data to a computer or printer.

Highlights

- Unit Counter
- Summation function
- Weight compare on percentage
- Animal weighing
- Tare-value memory
- Weight tolerance min/OK/max
- Statistical calculation
- Composition weighing
- Adjustable bi-directional RS-232 interface
- Adjustable automatic switch-off
- Gross / net key at display
- Adjustable menu
- Maintenance-free compartments
- Optional: USB, LAN or 4-20 mA

Specification

Model Weighing range Resolution Minimum load *
PCE-SD 1500U 1,500 kg 0.5 kg 10 kg
PCE-SD 3000U 3,000 kg 1 kg 20 kg
*The minimum load is defined by the load from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.
Calibrationcalibratable according to M III (calibrated before delivery)
Tare rangefor the whole measurement range
Settling time< 4 sec.
Displayhigh-contrast LED / 20 mm digit height
Weighing unitskg / units / lb
InterfacesSerial interfaces RS-232 (bi-directional)
description of interfaces
Operation Temperature-10 °C ... +40 °C
Power Source~230V 50Hz 8VA
Protection Typeload cell IP 67 / display IP 54
Weightapprox. 70 kg

Delivery Scope

1 x Calibrated Floor Scale PCE-SD 1500U
1 x display incl. holder for wall or table
1 x instruction manual
