Verifiable Heavy Duty Scale up to 6,000 kg / Resolution from 0.1 kg
/ Robust industrial design / Summing function / Counting function / Checkweighing function
/ RS-232 interface /
Optional 4-20 mA analogue output or LAN interface

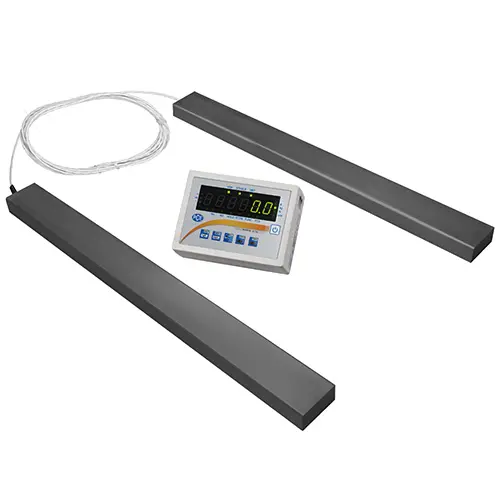

The heavy duty scale is calibratable and intended for mobile use. Due to the flexibly movable load beam and cable length between the two load bars of 4 m, the heavy duty scale is well suited for weighing large or long objects. Similarly, non-standard pallet sizes can be weighed quickly and conveniently. This calibrated heavy duty scale is made of painted steel. The weighing data can be read very clearly on the external display (on 3.0 m cable).
The indicator of the heavy duty scale can be placed on a table or mounted on the wall. Further functions of the heavy duty scale are: piece counting function, summing function, min. / max. display, filter function, tare function, % comparison skew, tolerance determination, gross / net key on the display and much more. The integrated RS-232 interface allows the data transfer to a PC (the software package for the calibrated load beam is optional).
|
|||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated balance bars also indicate smaller weights, but these may not be used in legal calculations. |
|||||||||||||||
Calibration | Calibratable to class M III (to be calibrated) | ||||||||||||||
Tare range | Multiple tare over the entire weighing range | ||||||||||||||
Settling time | <3 s | ||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||
Weighing units | kg / piece / lb | ||||||||||||||
Interface | bi-directional RS-232 optional USB or LAN interface |
||||||||||||||
Operating temperature | -10 ... +40 °C | ||||||||||||||
Protection | IP 54 | ||||||||||||||
Power supply | ~230V, 50Hz, 8VA | ||||||||||||||
![]() If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us. |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 0-10V
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 4-20mA
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Thermal printer for scales and balances
Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply
