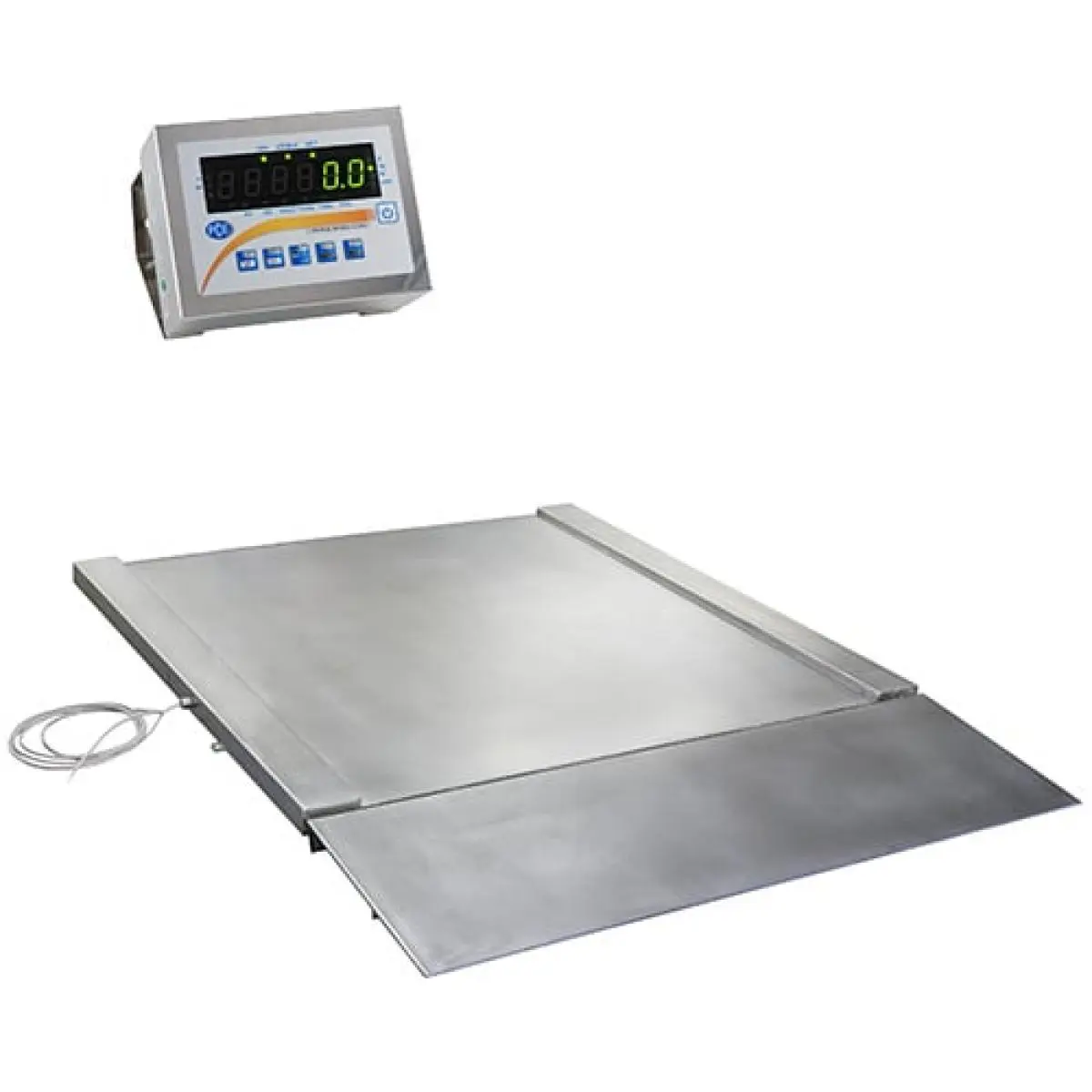

Before delivery, the calibratable stainless steel industrial scale is calibrated for its location of use according to calibration class III and is then approved for two years in all of Europe for calibration class III. The stainless steel industrial scale is made of solid corrosion and acid-resistant steel. The weighing platform of the stainless steel industrial scale has encapsulated weighing cells that withstand the harshest conditions with the IP 68 protection class. The drive-on ramp is easy to drive on thanks to the low height of the stainless steel industrial scale and, as required, can be used as a drive-on ramp or as a drive-through scale using a second optionally available drive-through ramp. The fixing plates included in the scope of delivery ensure that the calibrated stainless steel industrial scale stand securely and prevent the ramps from slipping.
The stainless steel display of the industrial scale is IP 65 protected and can be conveniently mounted on the table, on the wall or on the optionally available stainless steel tripod. The functional package of the calibrated stainless steel industrial scale is very extensive. Functions such as auto tare, piece counting function, saving a fixed tare weight, recipe function, summing function and more make work much easier. The stainless steel ramp scale is ideal if you do not want to install a scale into the floor. Simply set up the industrial scale on a level hall floor, connect the control terminal and you can start weighing. For the calibrated stainless steel drive-on scale, we offer an RS-232, USB, LAN interface and 4..20 mA or 0 ... 10 V analog outputs or three switching outputs.
Technical Data | ||||||||||||||
| ||||||||||||||
*The minimum load is the load from which the calibration authority checks the accuracy. The verifiable drive-through scale also shows smaller weights, but these may not be used in legal transactions. | ||||||||||||||
Calibration | calibratable according to class M III (delivered calibrated) | |||||||||||||
Taring range | over the full weighing range | |||||||||||||
Settling time | < 3 s | |||||||||||||
Display | high-contrast LED with 20 mm digit height | |||||||||||||
Weighing units | kg / pieces / lb | |||||||||||||
Interface | optional RS-232 / USB / LAN / 4-20 mA / 0-10V | |||||||||||||
Operating temperature | -10 ... +40 °C | |||||||||||||
Protection class | Cells IP68 / Display IP65 (without connections) | |||||||||||||
Power supply | ~230V, 50Hz, 8VA (Schuko plug) |
